<h2>Overview</h2>

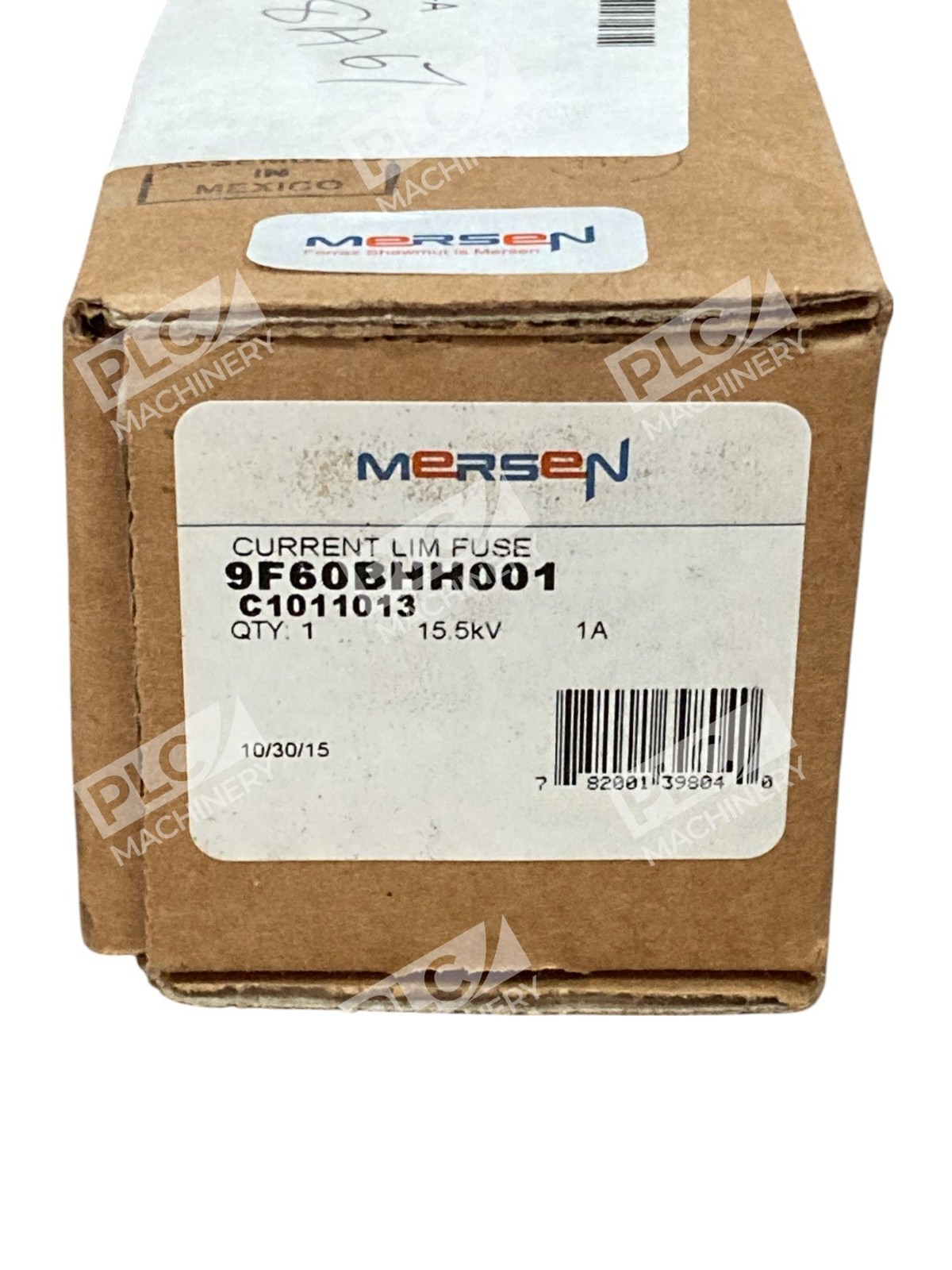

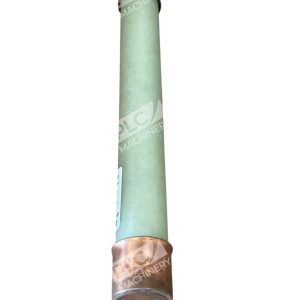

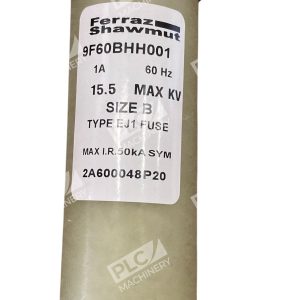

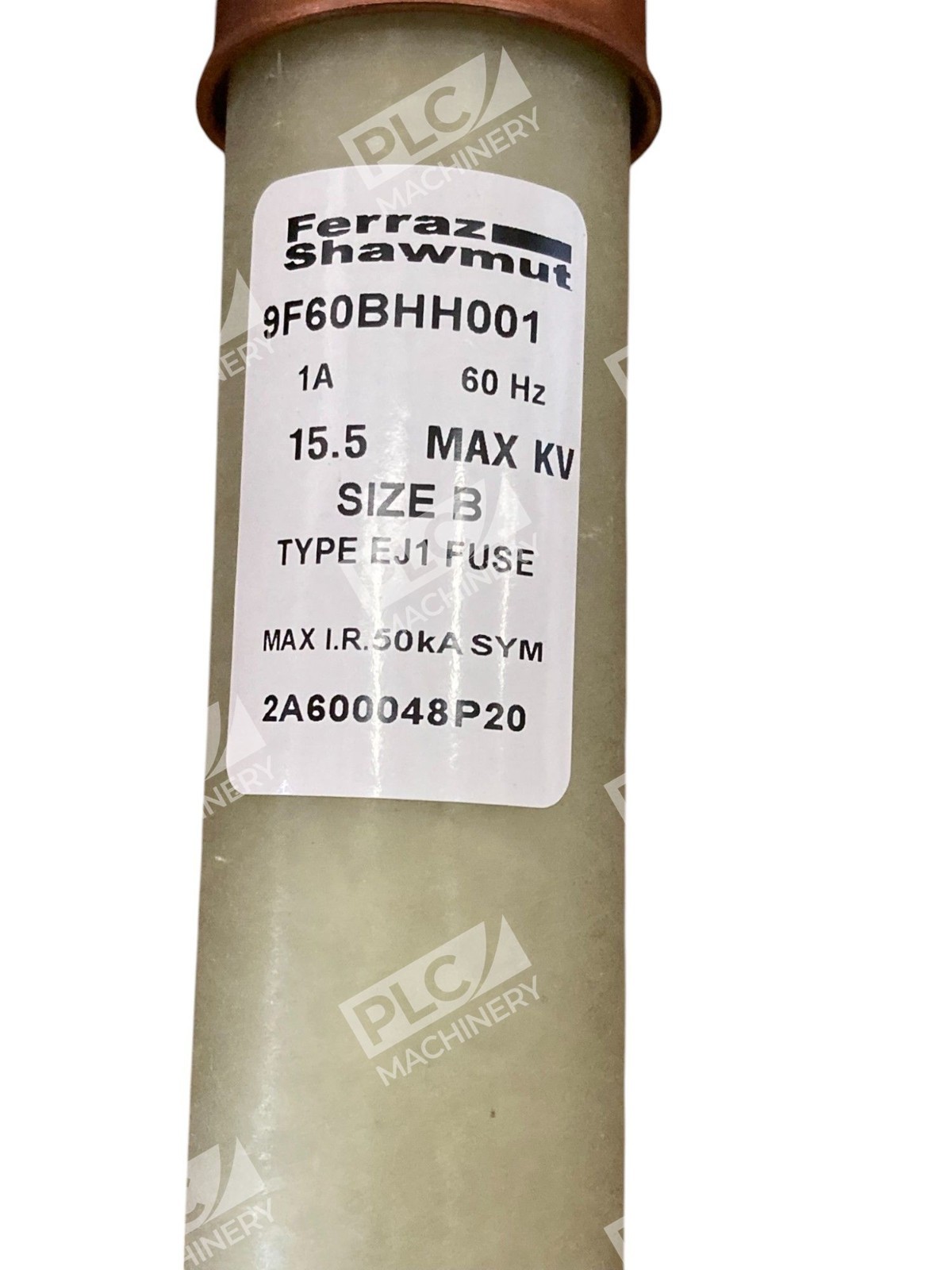

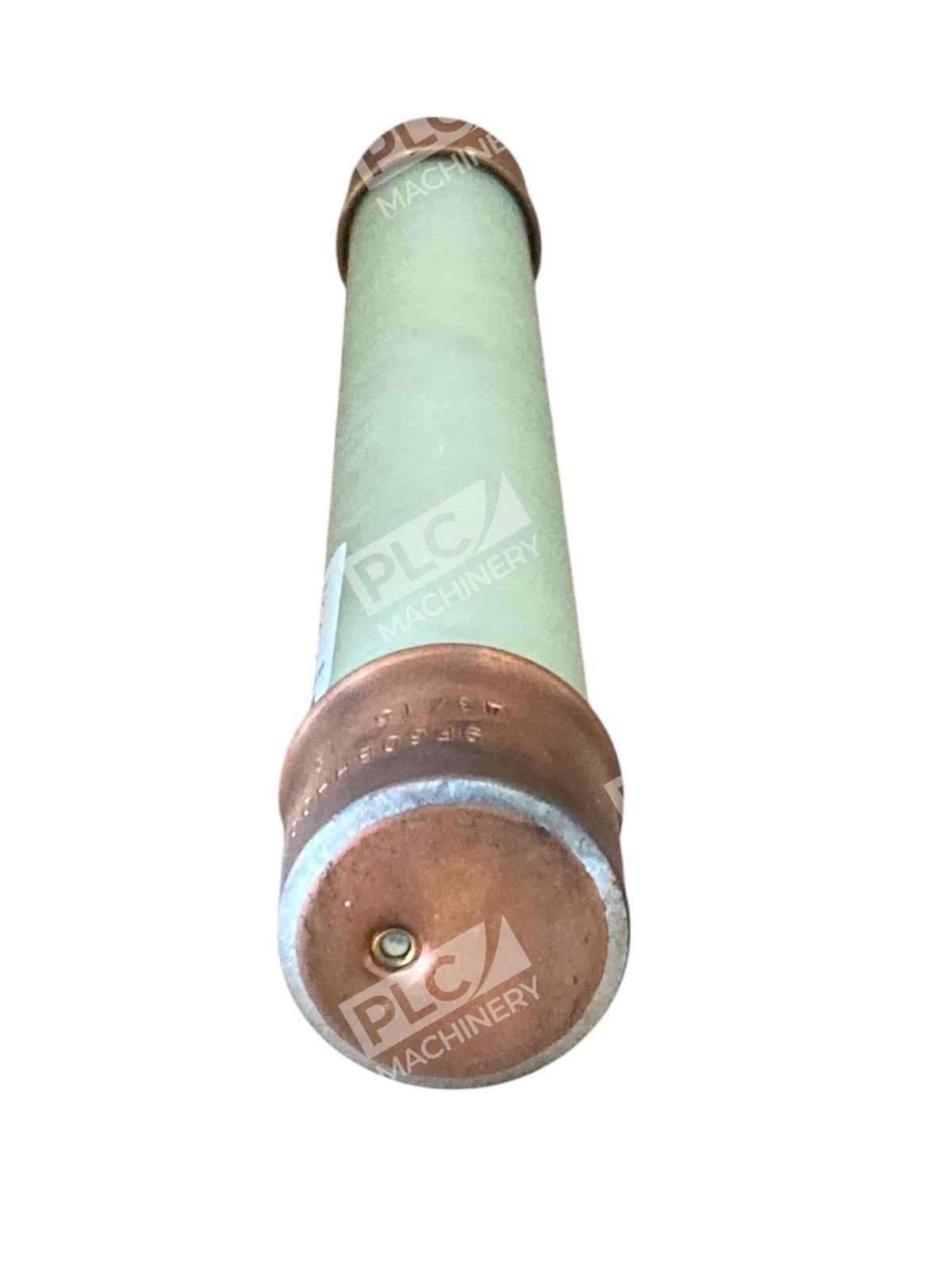

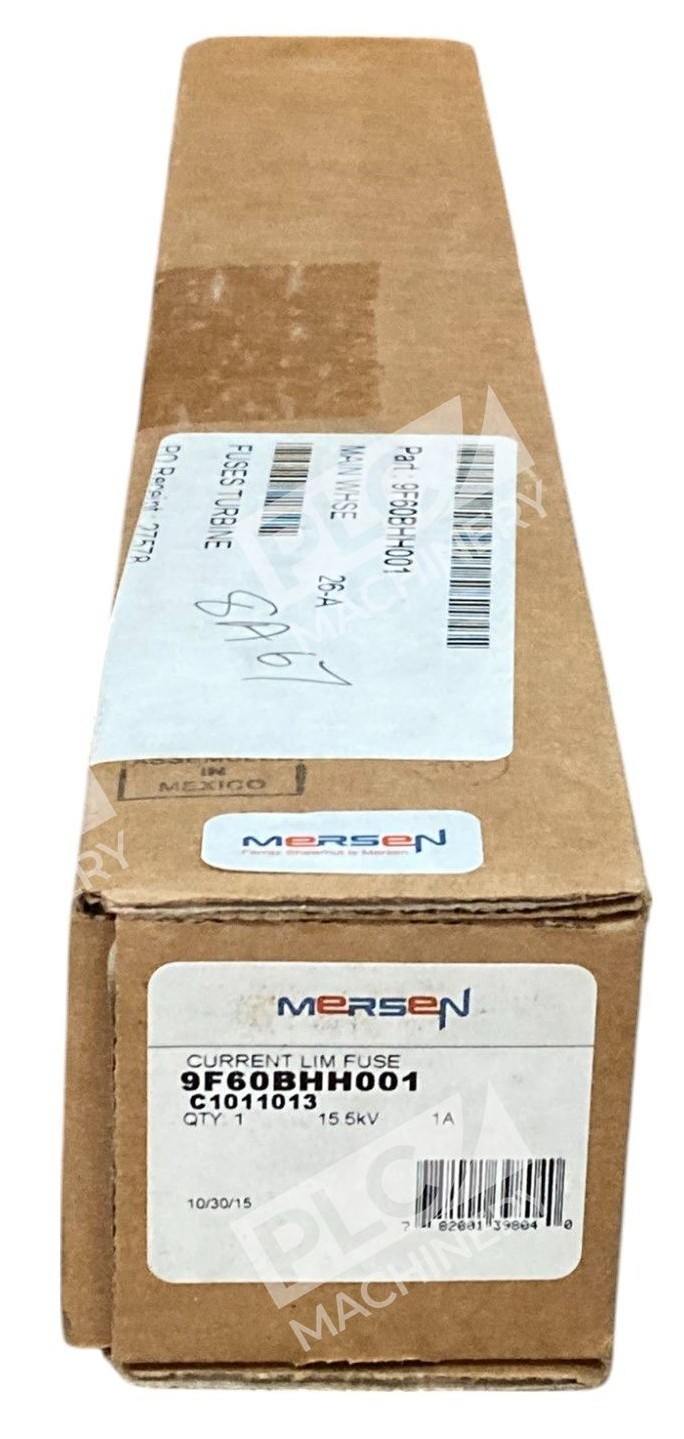

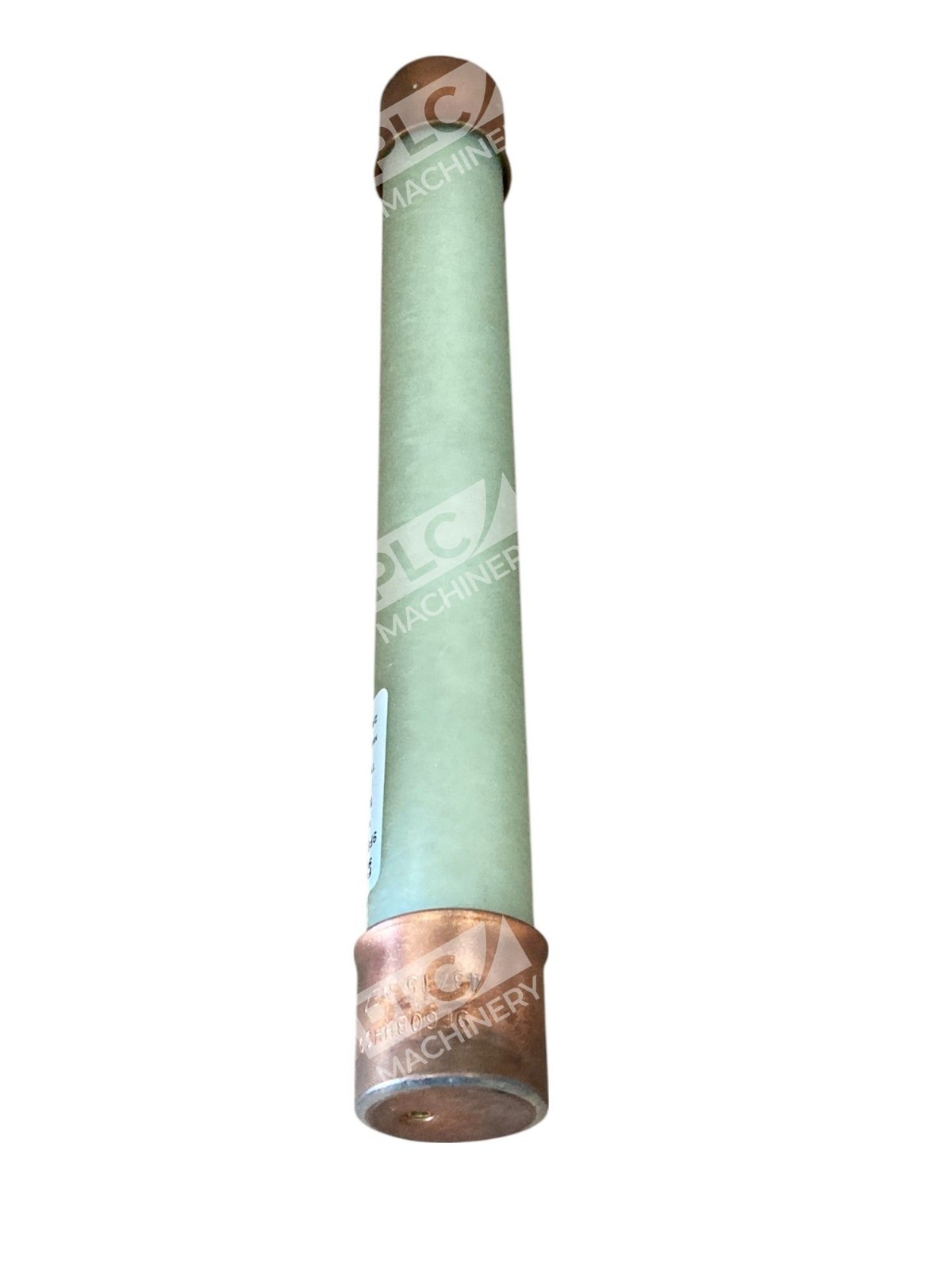

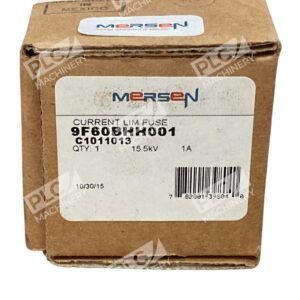

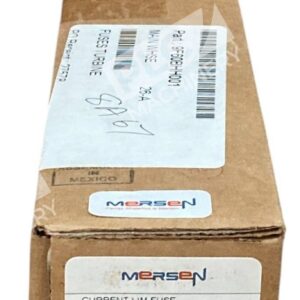

<p>The <strong>Mersen 9F60BHH001</strong> is a medium-voltage potential transformer (PT) fuse engineered for primary winding protection in industrial and utility applications. Rated at 15.5kV with a 1A current rating and 120kA interrupting capacity, this fuse combines current-limiting performance with high interrupting capability to protect sensitive transformer circuits from overcurrent and fault conditions. The ferrule-mount design ensures compatibility with standard PT clips and provides compact, space-efficient installation.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Current-limiting protection</strong> — Minimizes fault current, reducing thermal and mechanical stress on transformer windings.</li>
<li><strong>High interrupting rating</strong> — 120kA breaking capacity for reliable clearing of high-fault-current circuits.</li>
<li><strong>Ferrule mounting</strong> — Clips directly into standard PT fuse holders for fast, tool-free installation.</li>
<li><strong>Visual indicator</strong> — Amp-Trap® design provides immediate indication of fuse operation.</li>
<li><strong>Compact design</strong> — Small ferrule profile saves mounting space in control cabinets and switchgear.</li>
<li><strong>Industrial-grade body</strong> — Fiberglass melamine construction withstands harsh electrical and thermal environments.</li>
</ul>
<h2>Technical Specifications</h2>
<p>The Mersen 9F60BHH001 meets Class E (EJ-1) standards and is UL-listed for North American applications. See detailed specs in the table below.</p>
<h2>Typical Applications</h2>
<ul>
<li>Primary winding protection of medium-voltage instrument transformers (potential transformers).</li>
<li>Protection circuits in utility and industrial distribution systems operating at 15.5kV.</li>
<li>Voltage metering and protective relay circuits in substations and power plants.</li>
<li>Switchgear and control cabinet overcurrent protection in medium-voltage applications.</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard potential transformer (PT) clip-mount fuse holders</li>
<li>Medium-voltage electrical distribution switchgear and control systems</li>
<li>Utility metering and protective relay circuits rated 15.5kV</li>
<li>Industrial power systems and substation equipment</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The Mersen 9F60BHH001 is the direct equivalent of Ferraz Shawmut designation and serves as a drop-in replacement for other 15.5kV, 1A Class E PT fuses of the same ferrule geometry and interrupting rating. Verify compatibility with your system integrator before ordering to ensure fit in existing clip holders.</p>
<h3>Works With</h3>
<ul>
<li>Potential transformer protection schemes in IEC 60269 and UL 248 compliant circuits</li>
<li>SCADA, substation automation, and protective relay systems</li>
<li>High-voltage distribution networks and switchyard equipment</li>
</ul>
