Overview

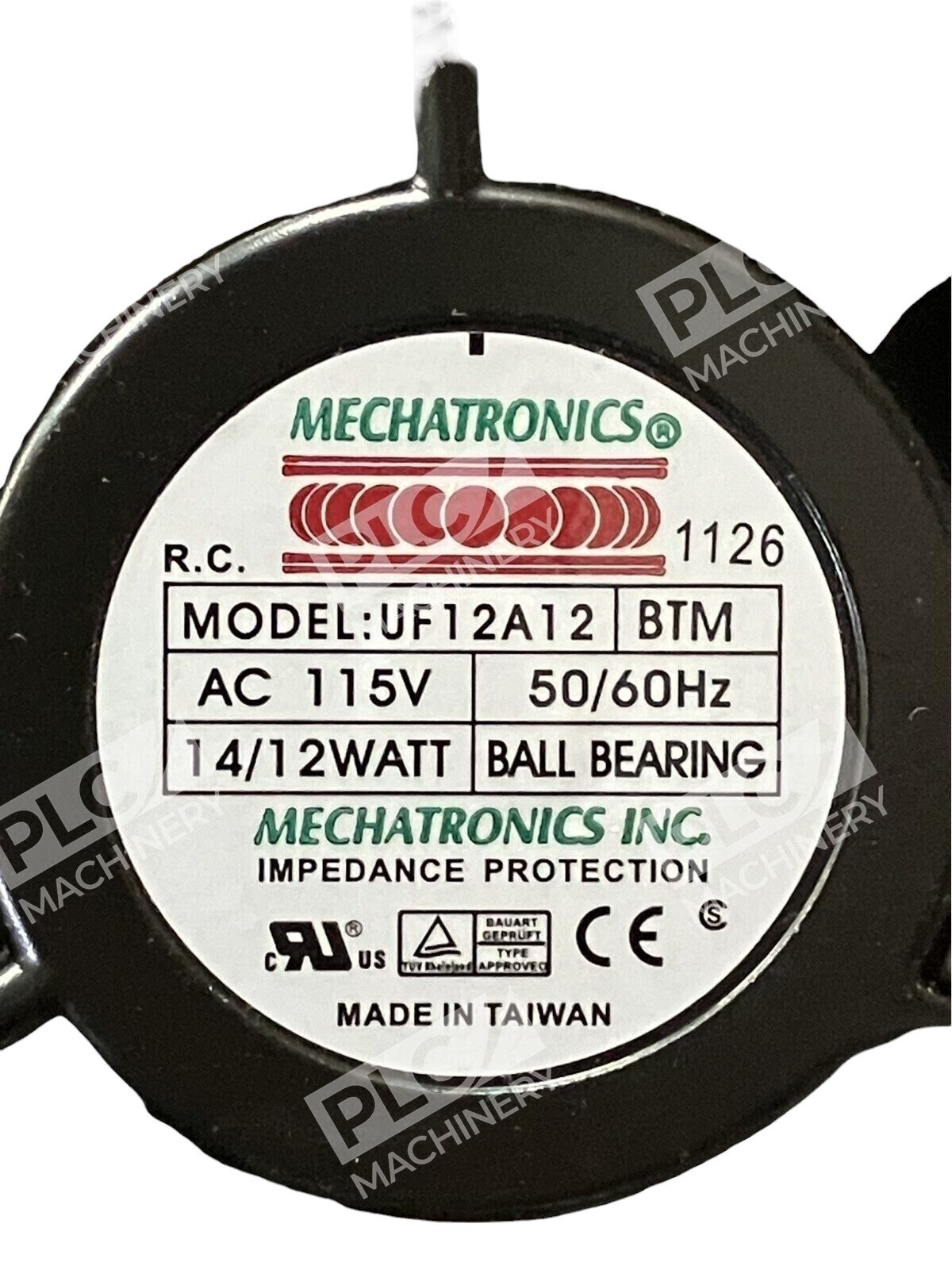

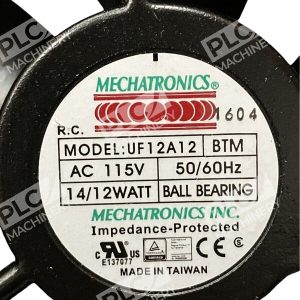

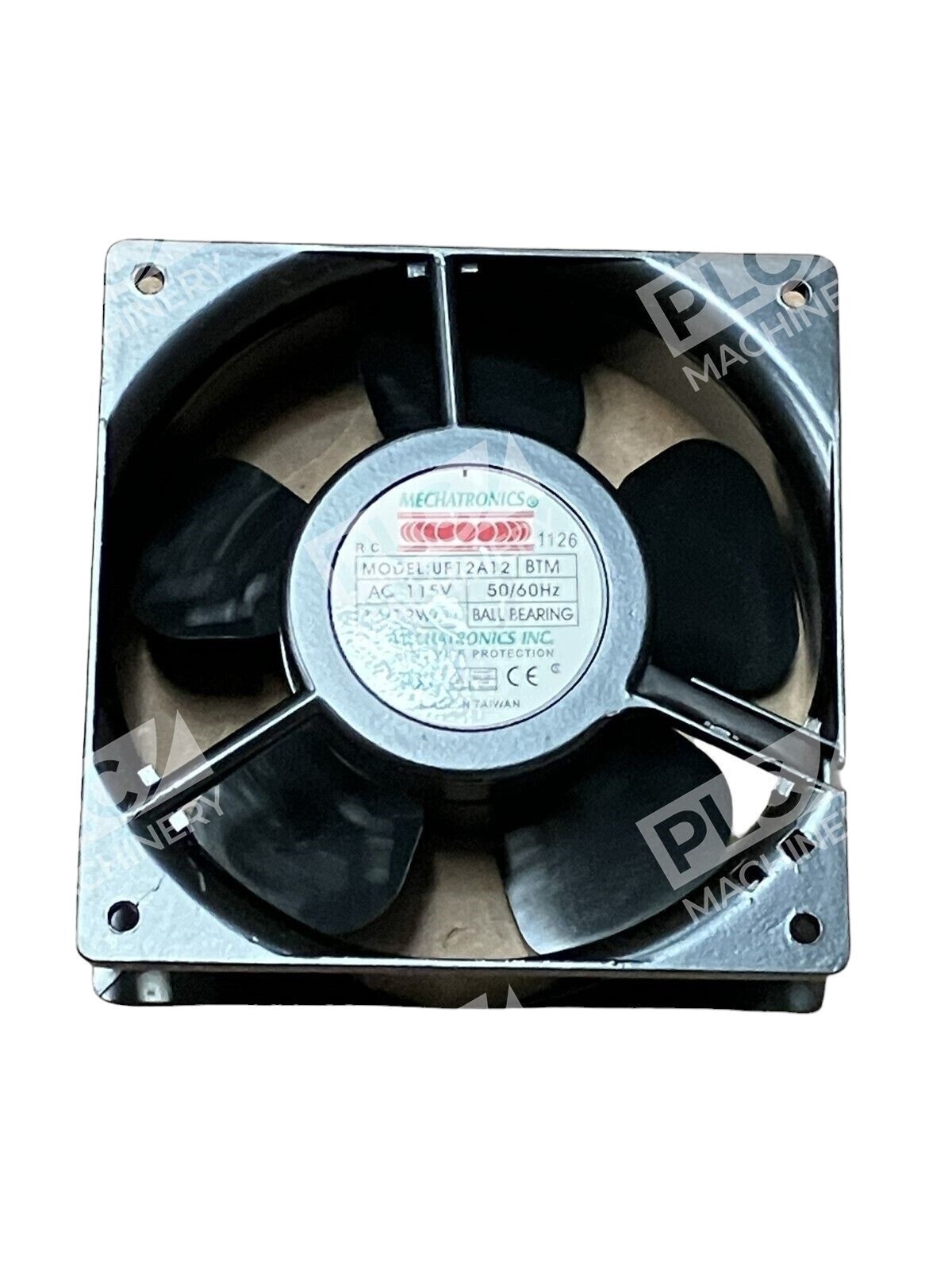

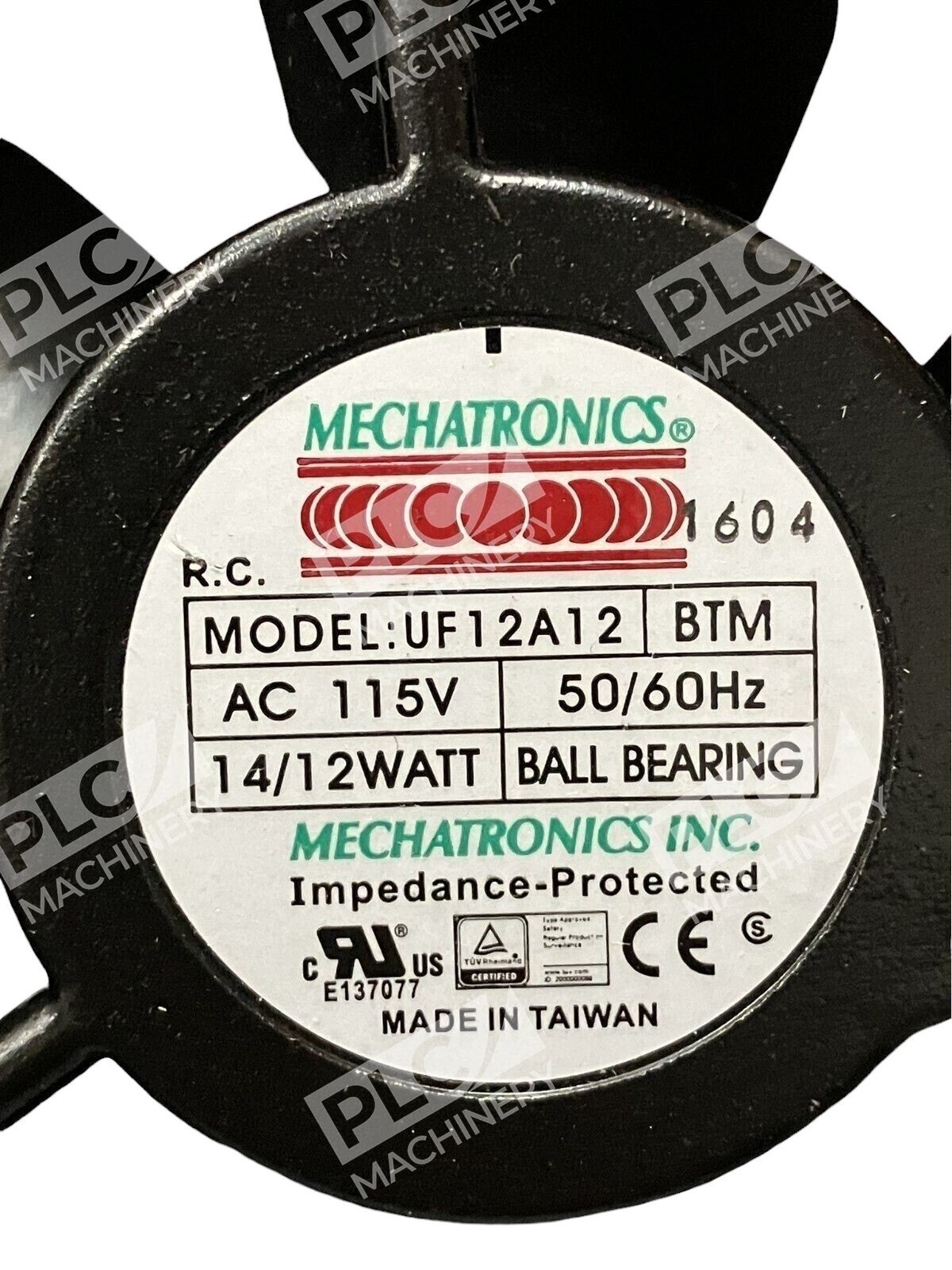

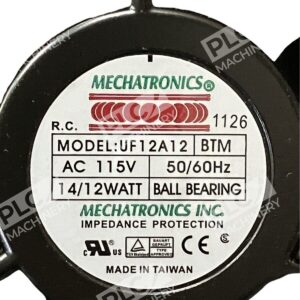

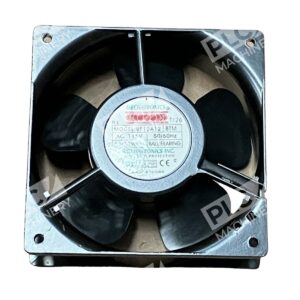

The Mechatronics UF12A12 BTM is a reliable 120mm AC axial fan designed for industrial cooling applications. Operating at 115VAC with a 12W power rating, this fan delivers efficient thermal management for PLC enclosures, industrial control cabinets, and HVAC systems. The ball bearing design and die-cast aluminum construction ensure long-term durability in demanding environments.
Key Features
- Compact 120×120×38mm form factor fits standard control cabinet mounting
- Ball bearing design rated for 50,000 hours lifetime at 25°C operating temperature
- Produces 106 CFM airflow at 46 dB(A) noise level

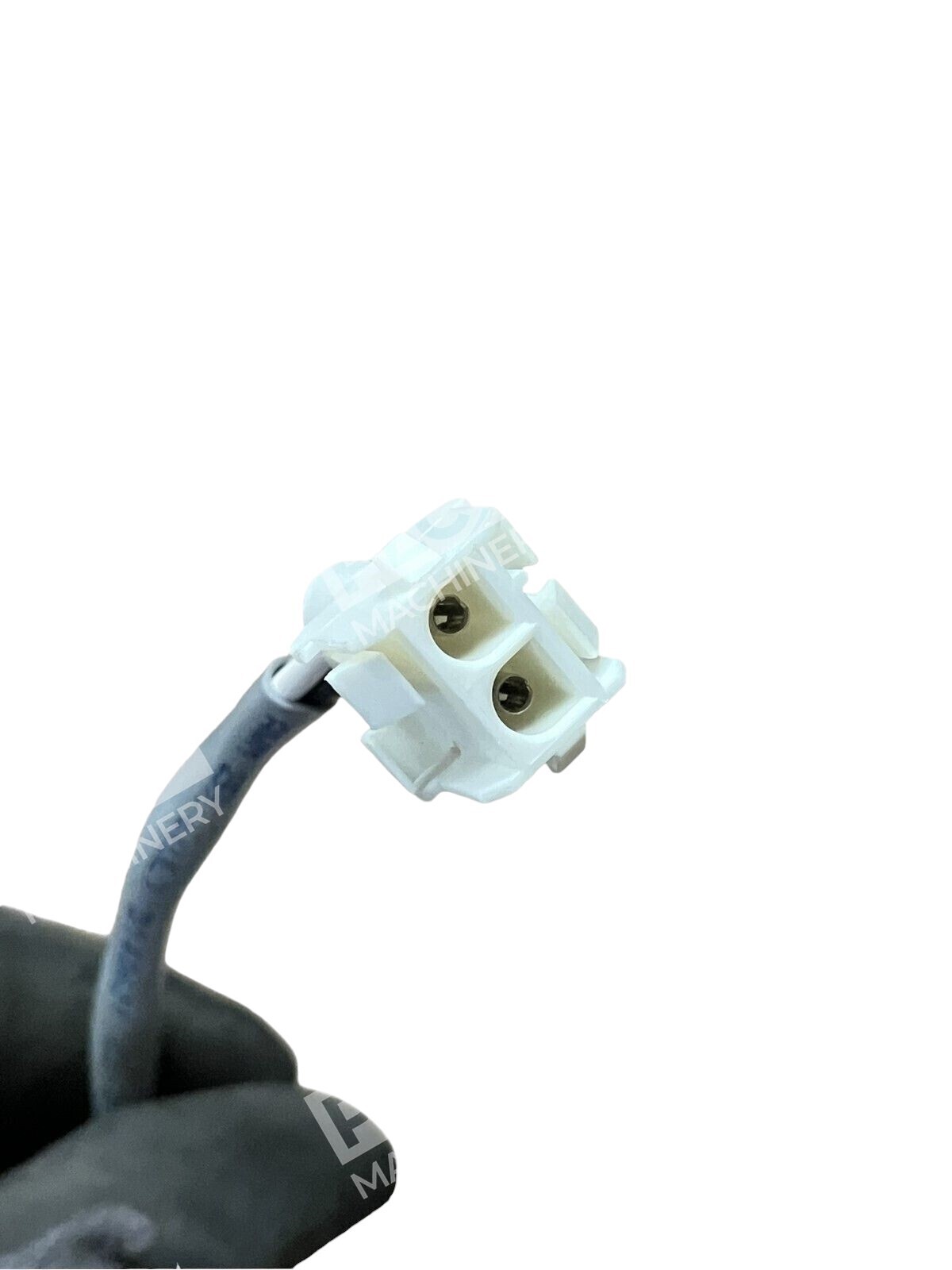

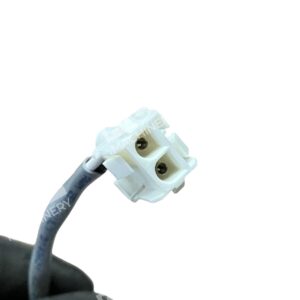

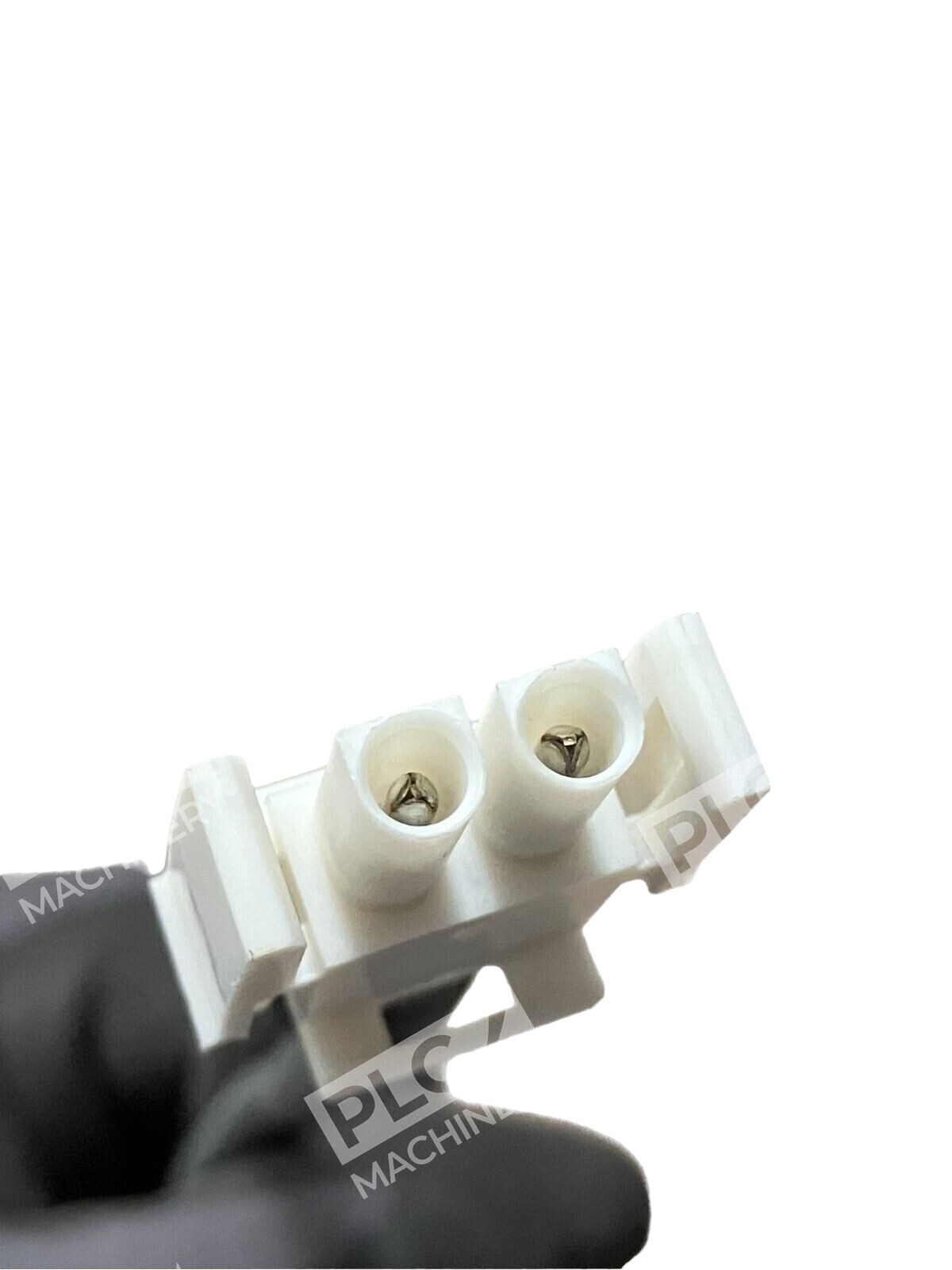

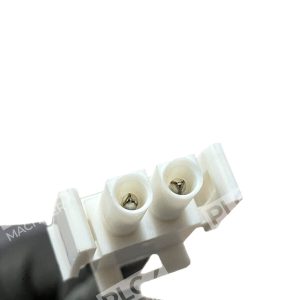

- Terminal tab connection for easy installation in control cabinets
- UL94V-0 PBT plastic impeller with die-cast aluminum frame for corrosion resistance
- Single-phase shaded pole motor with impedance protection
Technical Specifications
Voltage: 115VAC, 50/60Hz | Power: 12W | Current: 0.150A | Airflow: 106 CFM | Static Pressure: 0.35 inH₂O | Noise Level: 46 dB(A) | Motor Speed: 2,300 RPM | Operating Temperature: −20 to +70°C (−40 to +158°F) | Dimensions: 120×120×38mm (4.69×4.69×1.50 in) | Weight: 0.53 kg (1.2 lbs) | Frame Material: Die-cast Aluminum | Impeller Material: UL94V-0 PBT | Bearing: Ball | Termination: 0.110″ Terminal Tabs | Insulation Class: B | Certifications: UL, CE, cUL, TUV
Typical Applications
- PLC and industrial controller enclosure cooling
- HVAC equipment cooling and airflow regulation
- Industrial automation cabinet ventilation
- Power electronics thermal management
- Refrigeration and commercial cooling systems
Compatibility & Replacements
Compatible With
- Standard 120mm square mounting hole pattern industrial enclosures
- Control cabinets using 0.110″ tab terminal connectors
- Systems operating on single-phase 115VAC 50/60Hz power
Replaces / Drop-In Replacement For
- Mechatronics UF12A series axial fans with identical 115VAC/50/60Hz specifications and 120mm mounting pattern
- Compatible alternative: UF12A12-BTLR (ball bearing variant)
- Compatible alternative: UF12A12-BTHR (high-speed ball bearing variant, 106 CFM)
Works With
- Industrial enclosure cooling systems and cabinet ventilation equipment
- Standard 115VAC single-phase AC power supplies
- HVAC and refrigeration control panels
- Thermal management systems in PLC and automation cabinets
