Overview

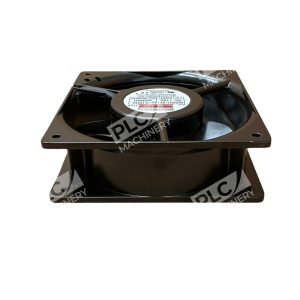

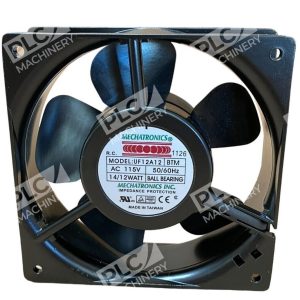

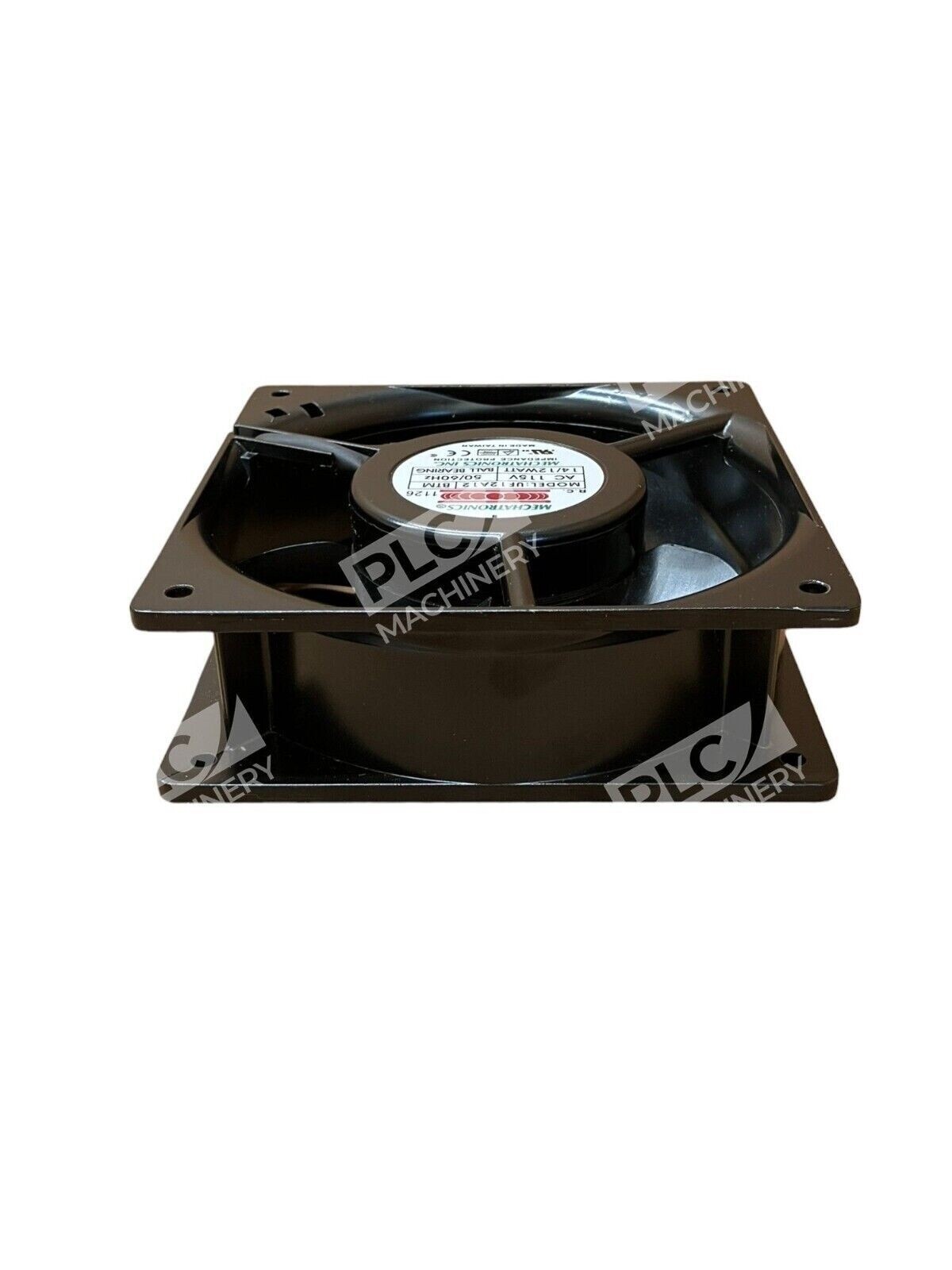

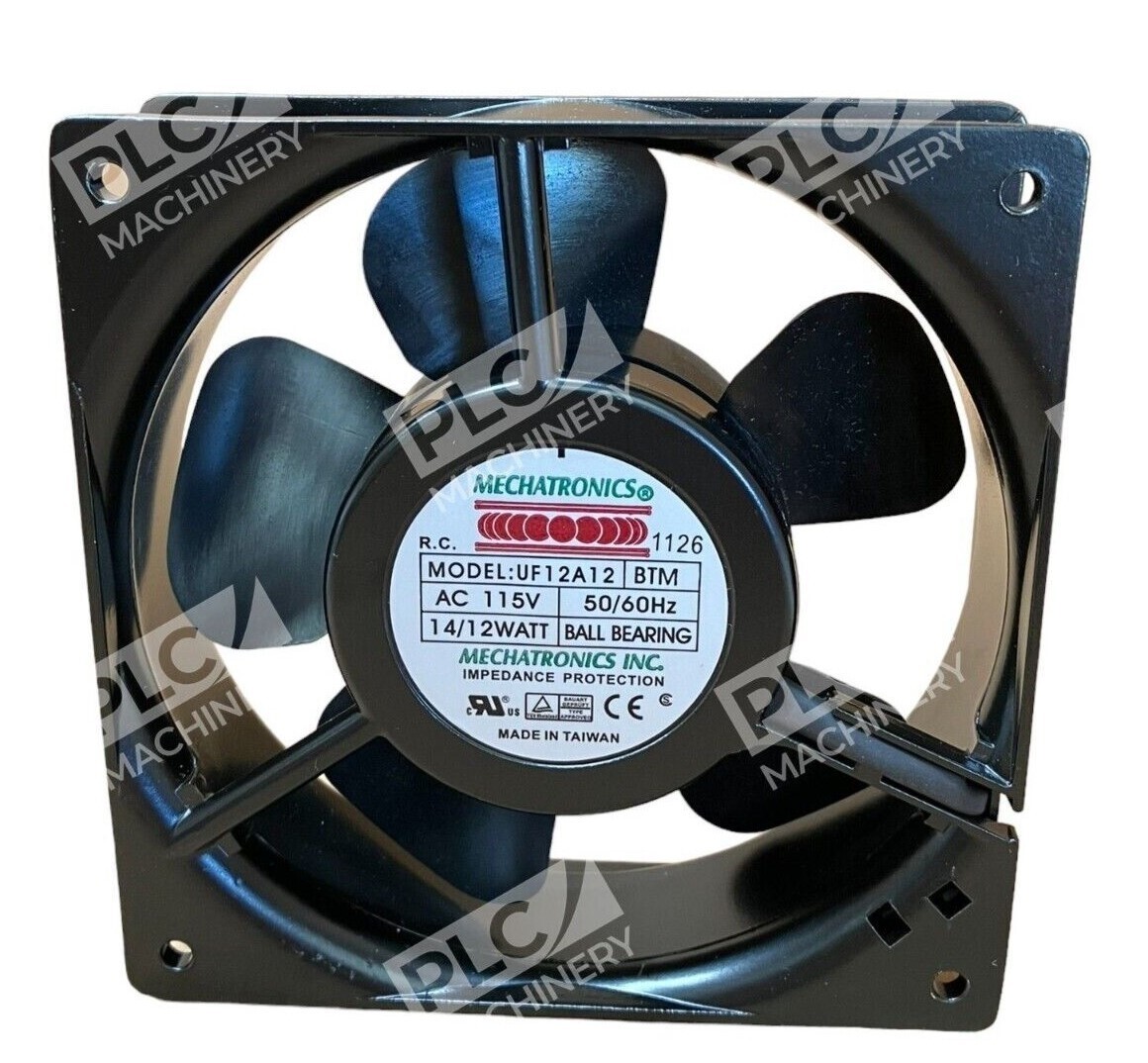

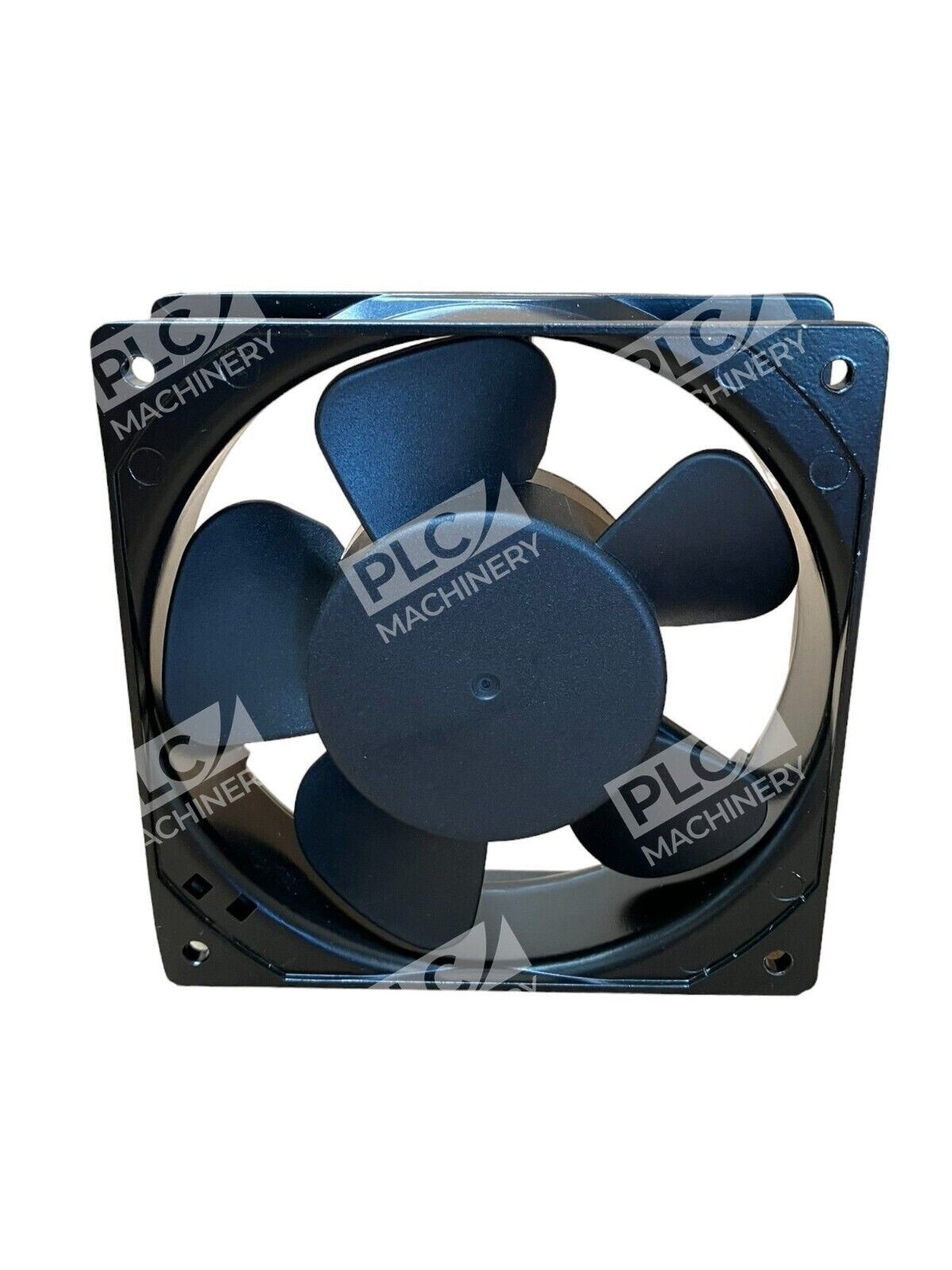

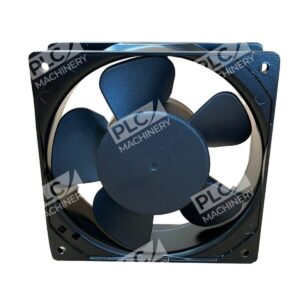

The Mechatronics UF12A12-BTM is a compact 120mm AC axial fan designed for HVAC and industrial cooling applications. Operating at 115V AC (50/60 Hz), this ball-bearing fan combines reliable performance with durability for use in air handling units, refrigeration systems, and control enclosure ventilation. The BTM variant features a metal die-cast aluminum frame, terminal tab connectors, and shaded-pole motor technology, making it suitable for both retrofit and new installations in demanding environments.
Key Features
- 120 × 120 × 38 mm compact form factor fits standard mounting cutouts
- Ball bearing construction for extended operational life and low vibration
- Shaded-pole motor with impedance protection ensures reliable starting
- Die-cast aluminum frame with UL94V-0 PBT plastic impeller for durability

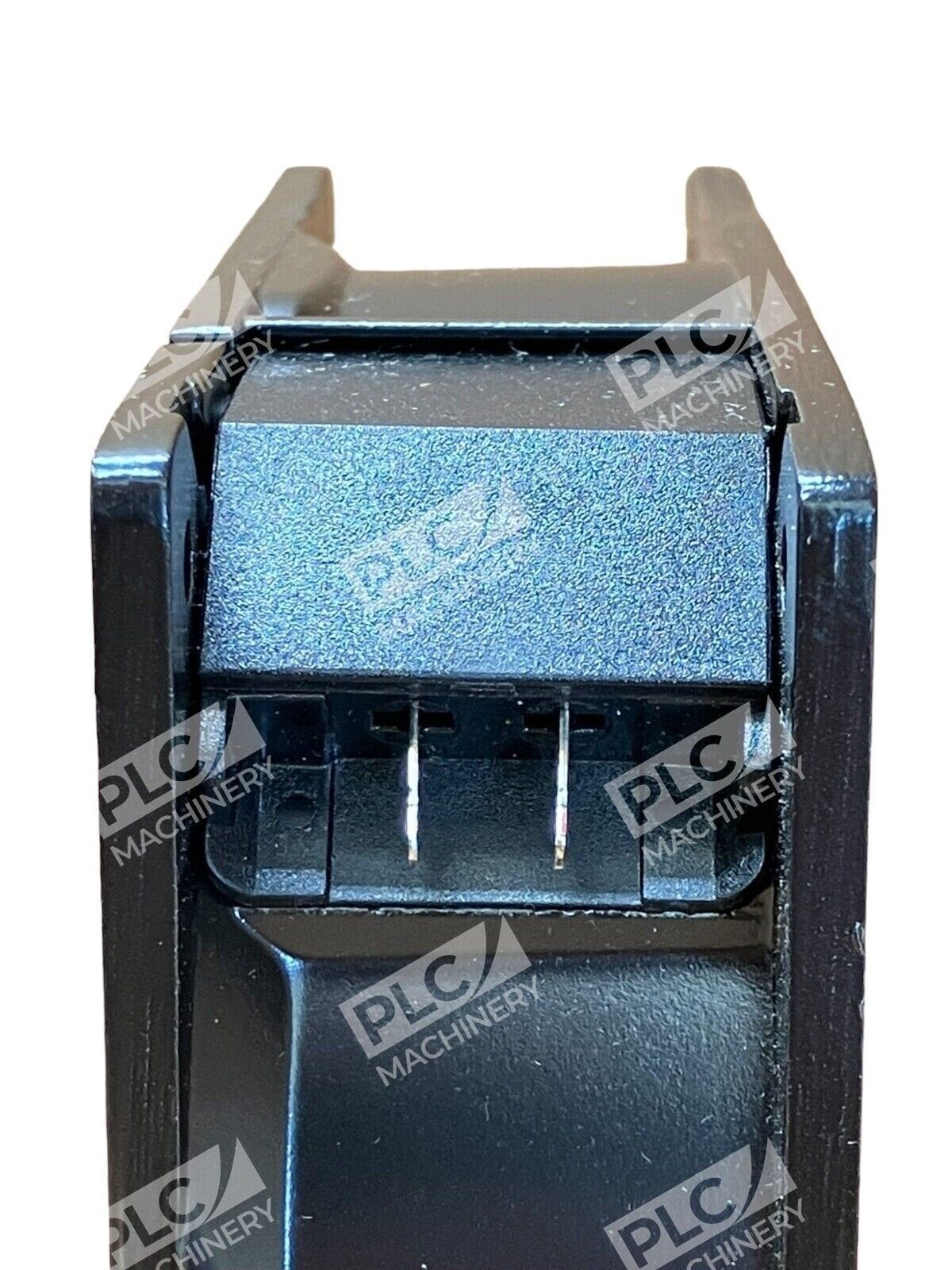

- Terminal tab connectors for quick and secure electrical connection
- UL Listed and CE Marked for global safety compliance
- Low acoustic signature (~38 dBA) suitable for noise-sensitive applications
Technical Specifications
- Operating Voltage: 115V AC, 50/60 Hz, single-phase
- Power Rating: 12W
- Air Flow: 81 CFM (nominal)
- Fan Speed: 2300 RPM (BTM configuration)
- Sound Level: 38 dBA
- Current Draw: 0.15A nominal
- Dimensions: 120 × 120 × 38 mm (4.69 × 4.69 × 1.50 in)
- Weight: 0.53 kg (1.17 lbs)
- Mounting: Four corner mounting holes, flange-mount design
- Operating Temperature: −20 to +70°C (−4 to +158°F)
- Bearing Type: Ball bearing
- Motor Type: Shaded pole

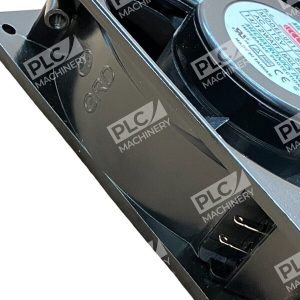

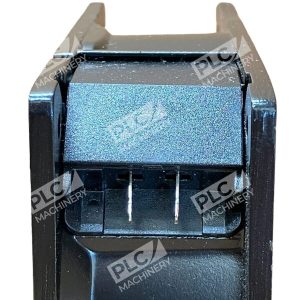

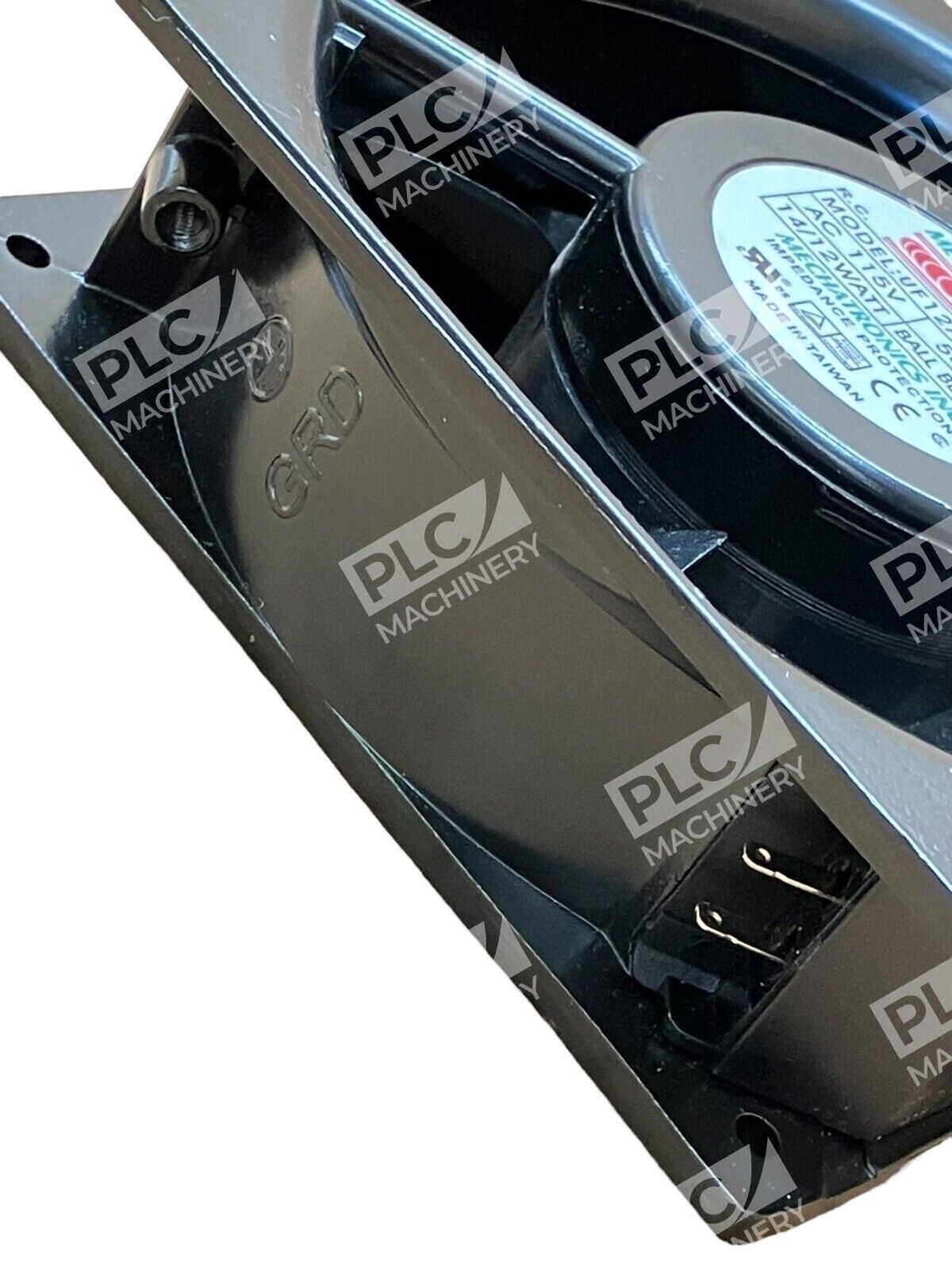

- Connectors: 0.110″ terminal tabs
- Frame Material: Die-cast aluminum
- Impeller Material: UL94V-0 PBT plastic
- Motor Protection: Impedance protection
- Certifications: UL Listed, CE Marked
- Insulation Class: Class B
Typical Applications
- HVAC system ventilation and air circulation
- Refrigeration equipment cooling
- Industrial control cabinet and enclosure cooling
- Equipment thermal management in manufacturing facilities
- Ventilation systems requiring compact, low-noise fans
- Retrofit and replacement installations in existing equipment
Compatibility & Replacements
Compatible With
- Standard 120mm square mounting cutouts (North American and international standards)
- Enclosures and equipment designed for 115V AC 50/60 Hz operation
- HVAC and refrigeration systems supporting 115V single-phase power
- Terminal tab connector-based wiring schemes
- Shaded-pole AC motor circuits with impedance protection
Replaces / Drop-In Replacement For
- Mechatronics UF12A12-M (standard variant)
- Other 120mm UF12A series fans with terminal connections (subject to electrical specifications verification)
- Legacy cooling fans in HVAC and industrial equipment with matching voltage and mounting
Works With
- Standard 120V AC power supplies (North American industrial standard)
- Manual on/off switching or simple contactor control
- Thermostatic or timer-based fan control circuits
- Enclosure-mounted fan control modules
- Industrial PLC and HMI systems with AC output modules (verify voltage compatibility)
