Overview

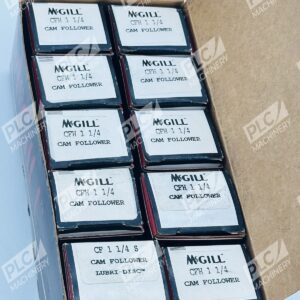

The McGill CFH 1-1/4 is a Camrol heavy stud cam follower bearing designed for industrial machinery requiring consistent, high-capacity radial load support. This stud-type cam follower features full complement needle roller construction, eliminating cage wear and maximizing load-carrying capacity. Each bearing in this box of 10 delivers robust performance in complex motion systems including packaging machinery, conveyors, and automation equipment operating under shock loading conditions.
Key Features
- Heavy stud construction for improved shock load resistance and durability
- Full complement needle roller bearings provide higher radial capacity than caged designs
- Sealed closure with relubrication capability via oil hole for extended bearing life
- Cylindrical outer race (OD) for standard cam track applications
- Induction heat-treated studs for consistent performance in high-load environments
- Black oxide finish on 52100 bearing steel for corrosion resistance
- Hex socket head for standard installation and removal
Technical Specifications
- Roller Diameter: 1-1/4 inch
- Roller Width: 3/4 inch
- Stud Diameter: 3/4 inch
- Stud Length: 1-1/4 inch
- Thread Size: 3/4-16 UNF
- Thread Length: 5/8 inch
- Radial Dynamic Load Capacity: 3930 lbf
- Radial Static Load Capacity: 7700 lbf
- Maximum Speed: 3100 rpm
- Operating Temperature Range: -20 to +250°F
- Material: 52100 bearing steel with black oxide finish
- Roller Material: Chrome steel
- Closure Type: Sealed with LUBRI-DISC seals
- Relubrication: Yes (3/16 inch lubrication fitting)
- Weight per Unit: 0.37–0.39 lb
- Clamping Torque: 1250 in-lbf
Typical Applications
The McGill CFH 1-1/4 heavy stud cam follower is widely used in:
- Packaging machinery and filling systems requiring precise, repetitive cam tracking
- Conveyor systems with shock loading or variable speed profiles
- Automation equipment in automotive assembly and production lines
- Material handling and transfer systems with high radial load demands
- Index drives and intermittent motion mechanisms
- Equipment operating in harsh environments where sealed, relubricated bearings extend service life
Compatibility & Replacements
Compatible With
- Standard cam tracks designed for 1-1/4 inch roller diameter follower bearings
- 3/4-16 UNF threaded mounting points and cam mechanisms
- OEM machinery using McGill Camrol heavy stud specifications
- Circulating and oil-mist lubrication systems
- Sealed bearing maintenance schedules requiring periodic relubrication
Replaces / Drop-In Replacement For
- McGill CFH 1-1/4 B (unsealed version) — upgrade to sealed performance
- McGill CFH 1-1/4 S / CFH 1-1/4 SB (sealed variants with identical load ratings)
- OEM equivalent heavy stud cam followers with matching dimensional specifications
Works With
- Cam lobe systems requiring 3930 lbf dynamic load capacity
- High-speed machinery up to 3100 rpm maximum operating speed
- Temperature-controlled environments ranging from -20°F to +250°F
- Standard industrial lubrication oils and greases for bearing maintenance
- Machinery design standards using hex-socket stud attachment methods
