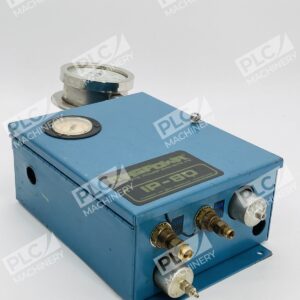

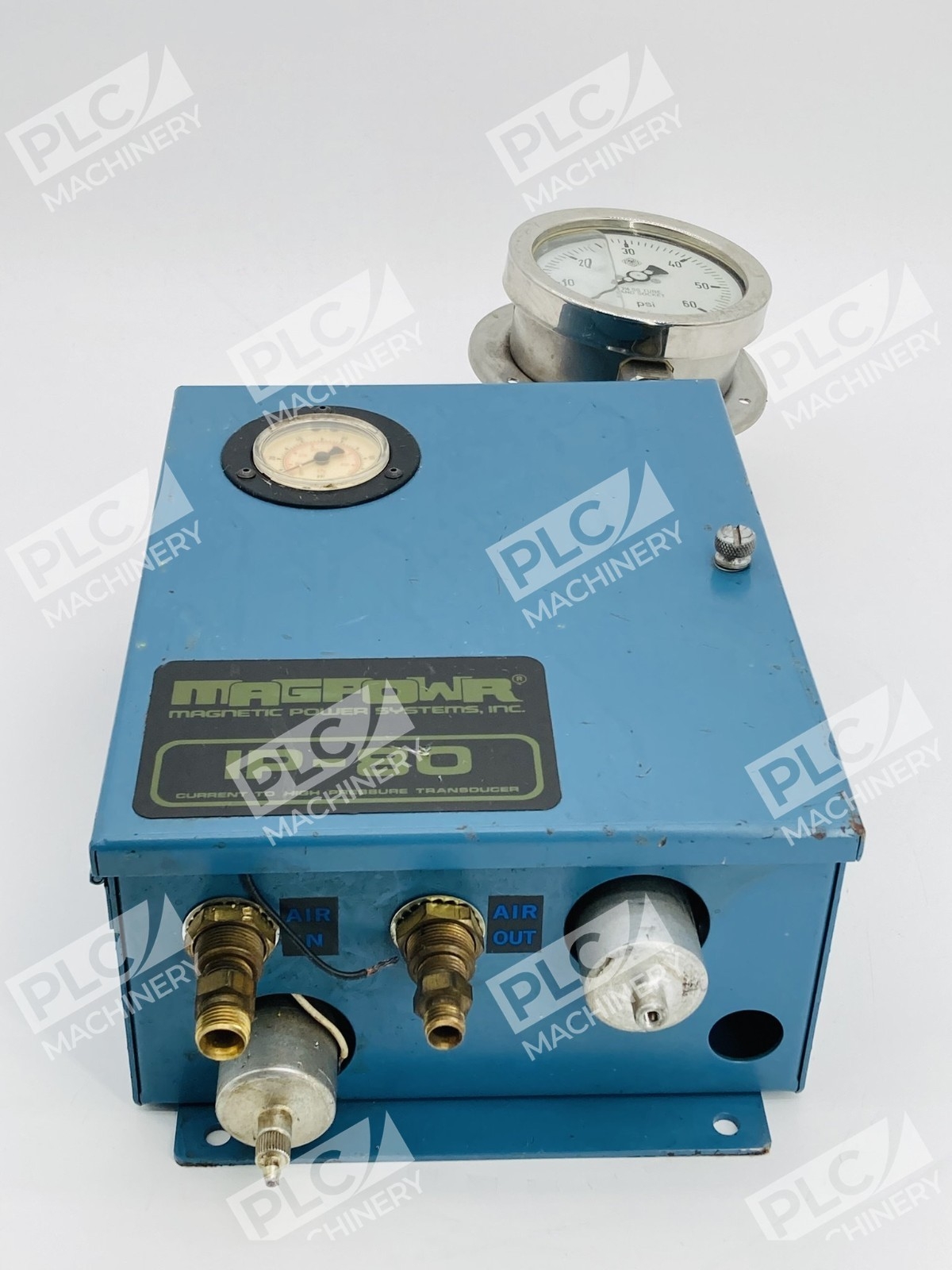

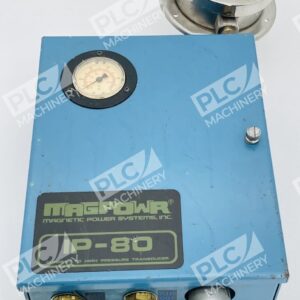

Overview

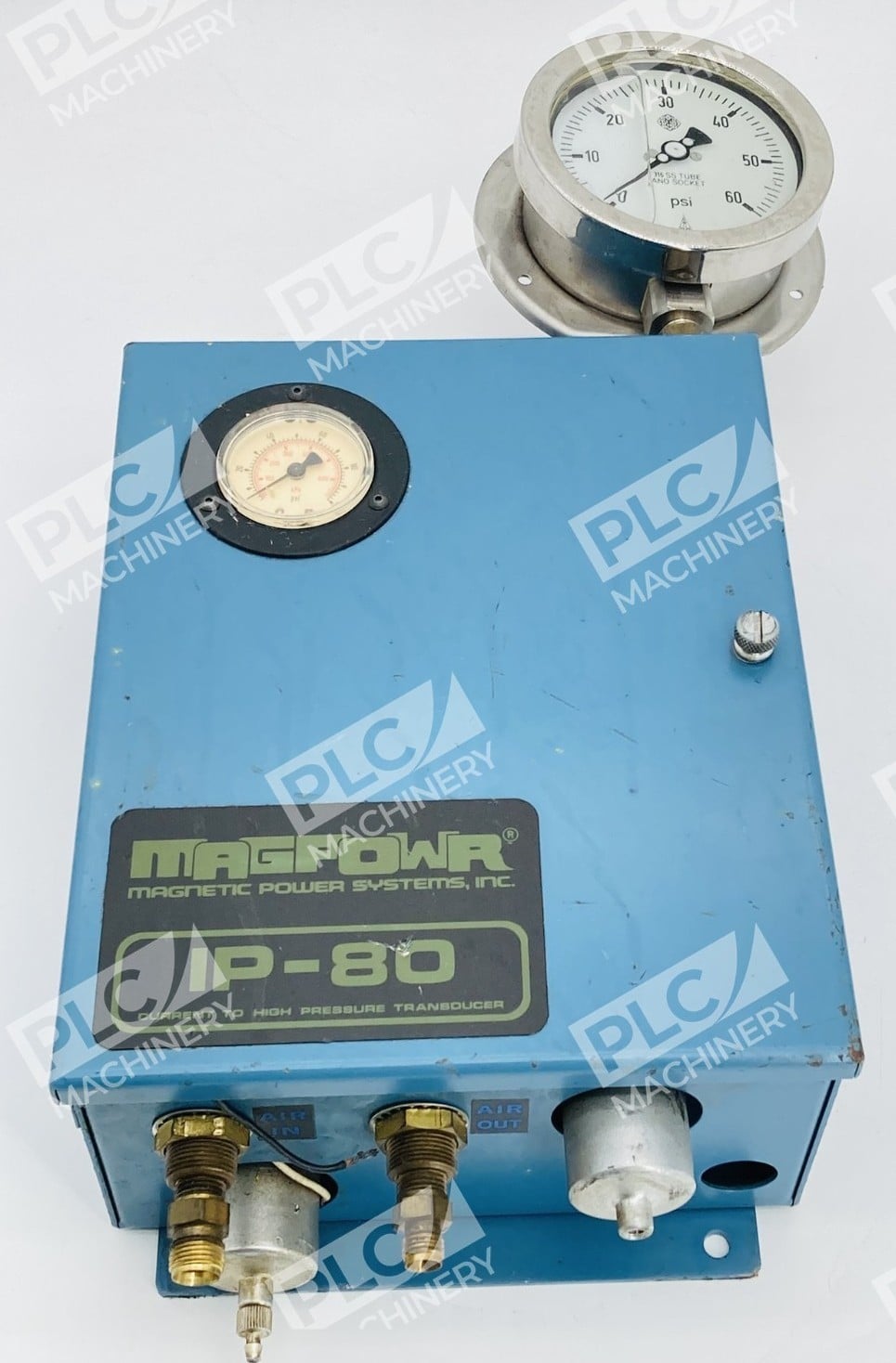

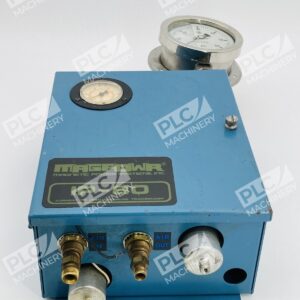

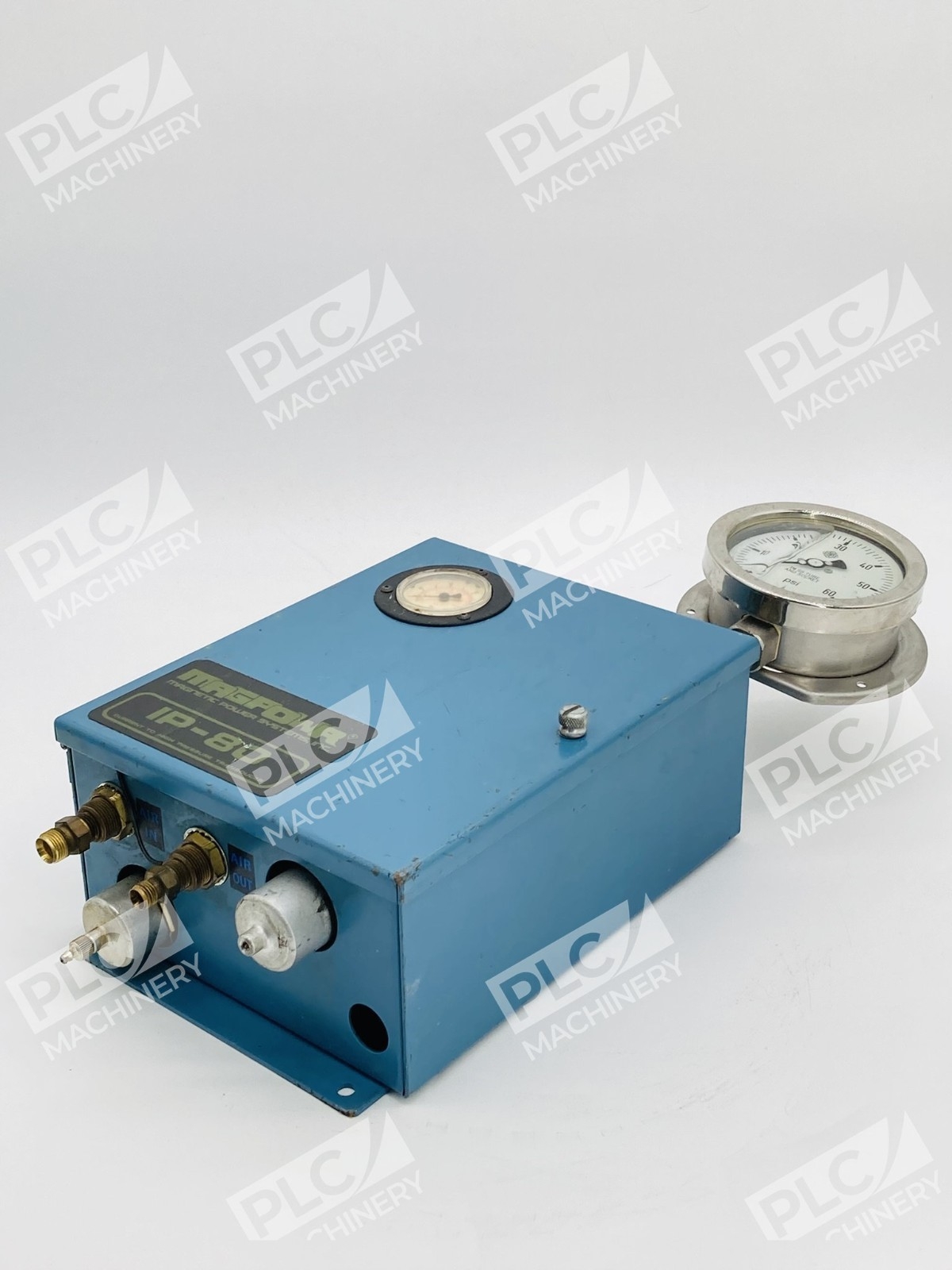

The Magpowr IP-80 current to pressure transducer is an industrial-duty electro-pneumatic converter designed to translate 4-20 mA DC control signals into regulated pneumatic pressure output. Built into this compact, vibration- and shock-resistant industrial duty unit is an accurate, easy-to-read pressure gauge that monitors output pressure. The flexible IP-80 operates on normal filtered shop air and allows a wide variation in supply pressure, offers high flow and exhaust characteristics to insure rapid response. This unit is widely used in web tension control, clutch and brake actuation, and automated manufacturing systems.
Key Features

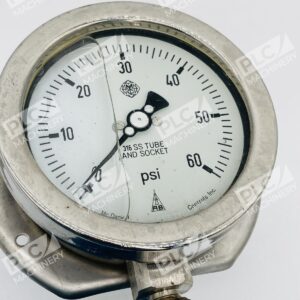

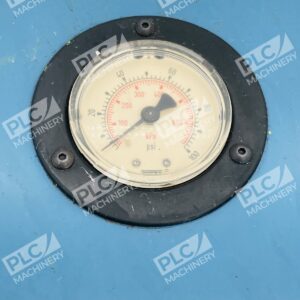

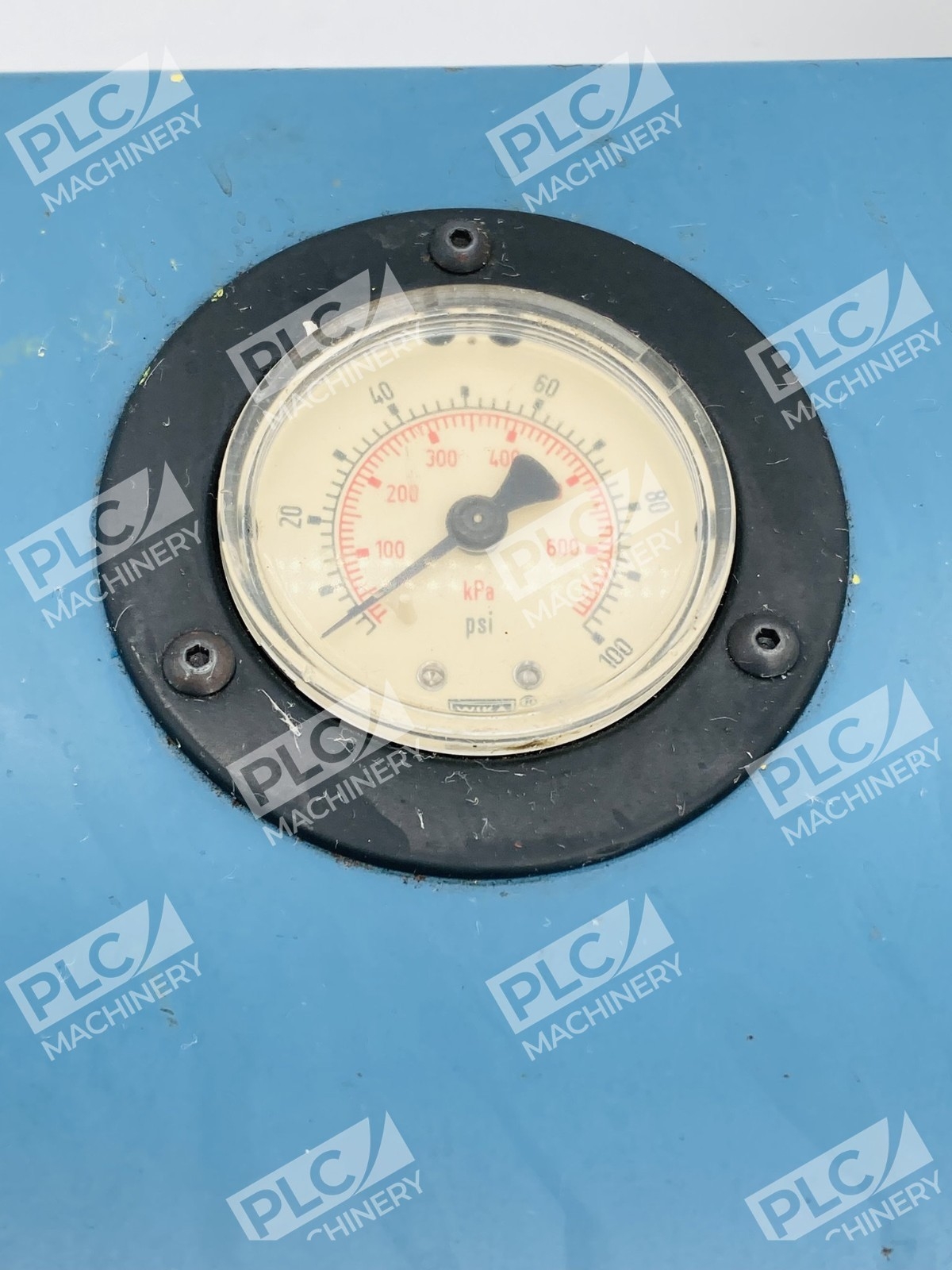

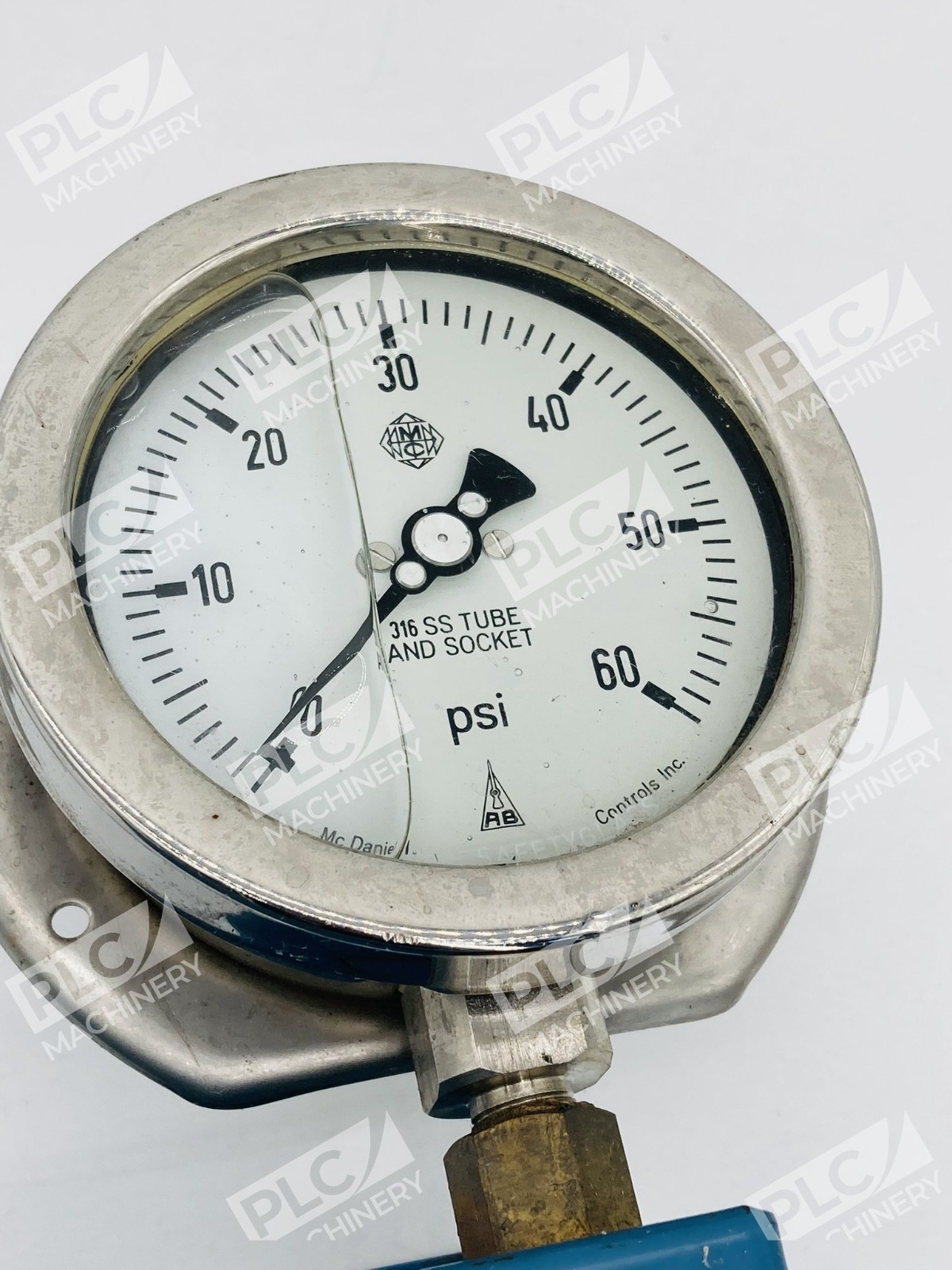

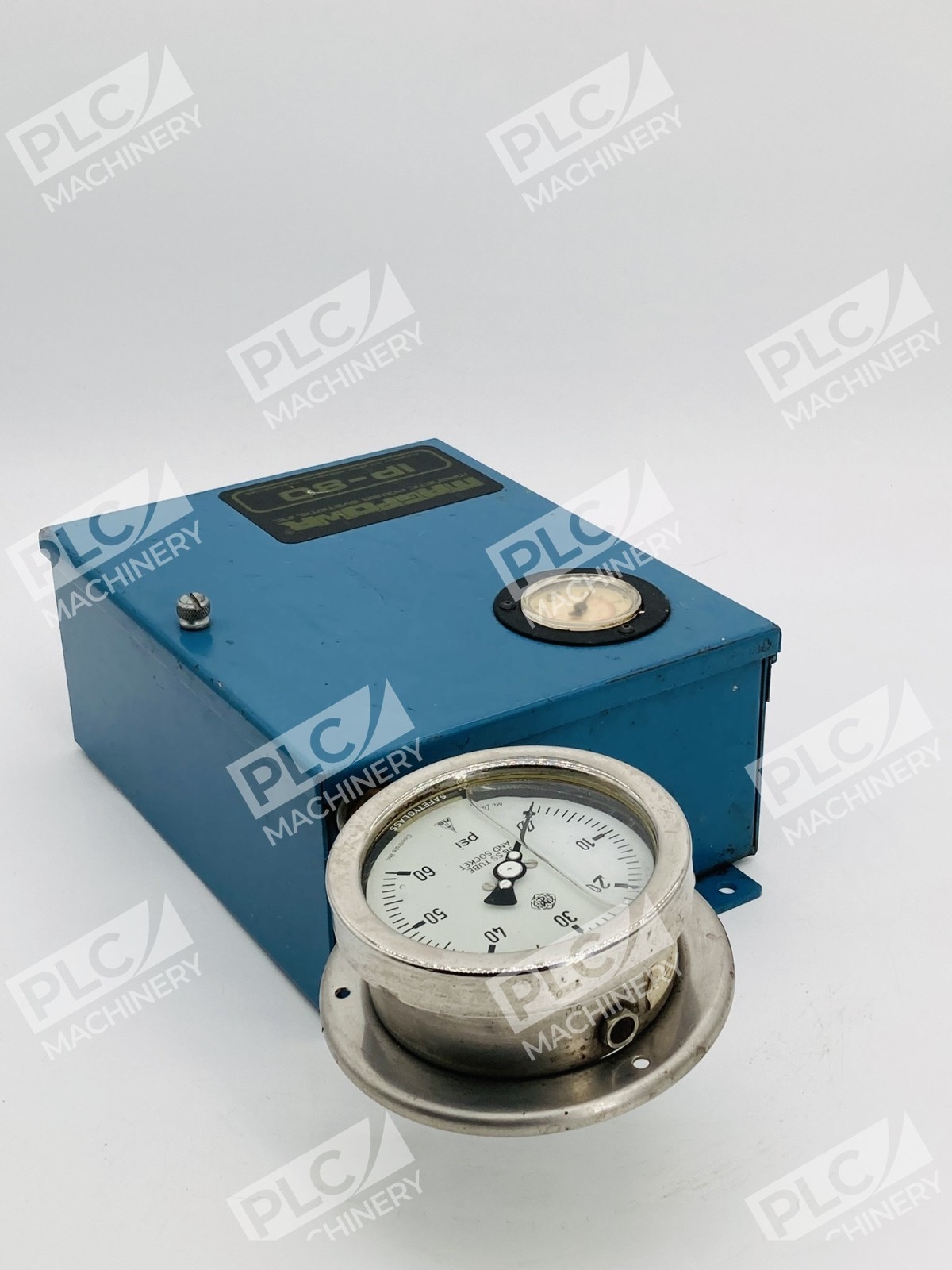

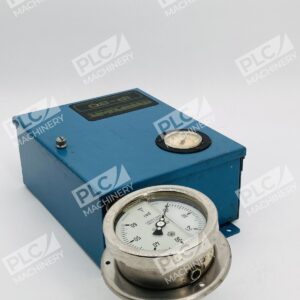

- Accurate, easy-to-read pressure gauge monitors output pressure in real-time
- High flow and exhaust characteristics ensure rapid response for clutches and brakes
- Vibration- and shock-resistant industrial duty construction

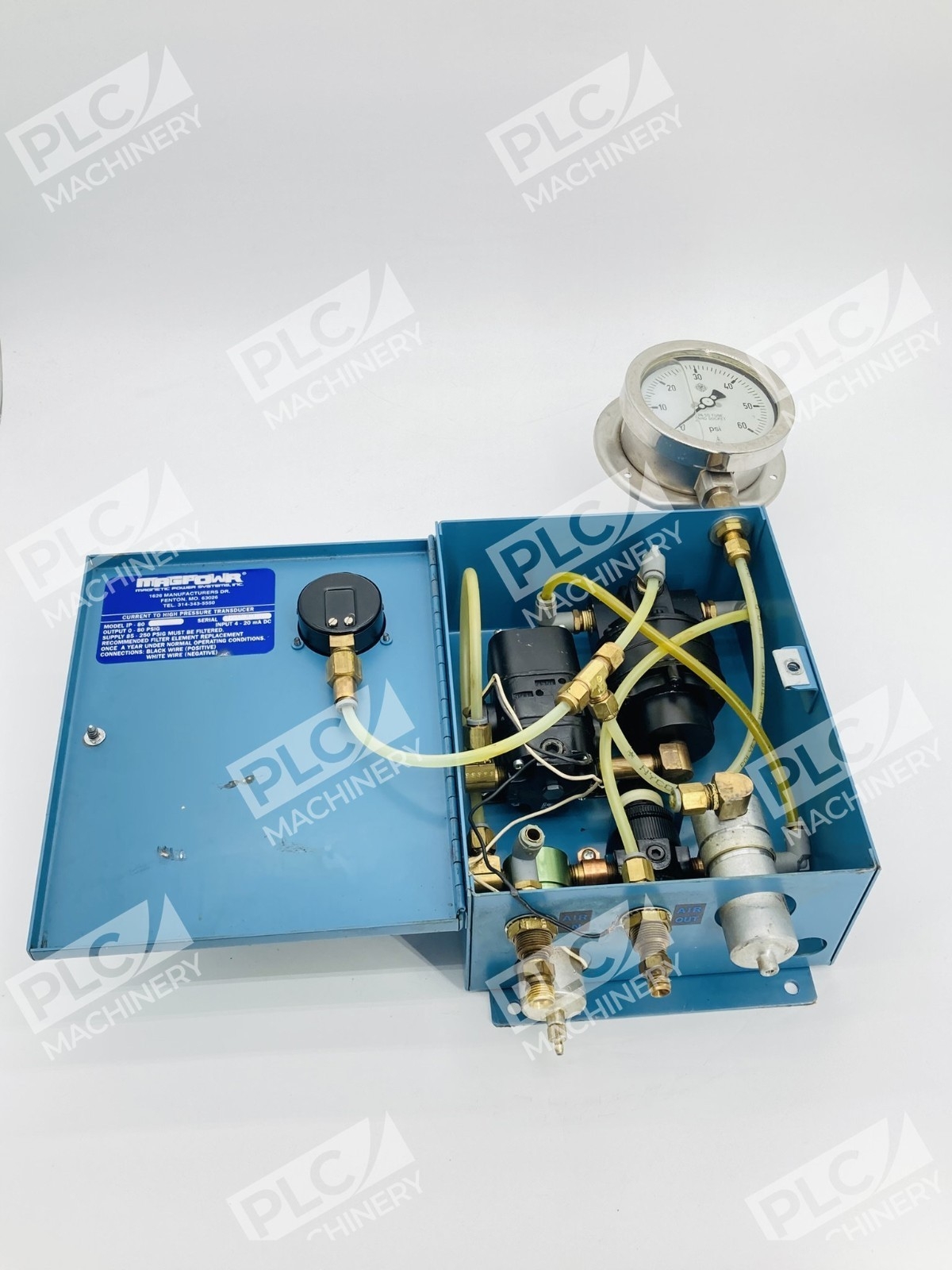

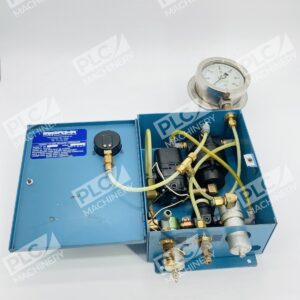

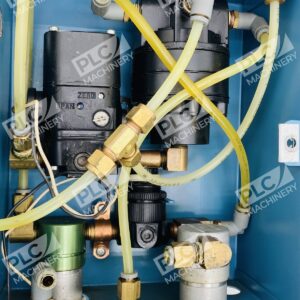

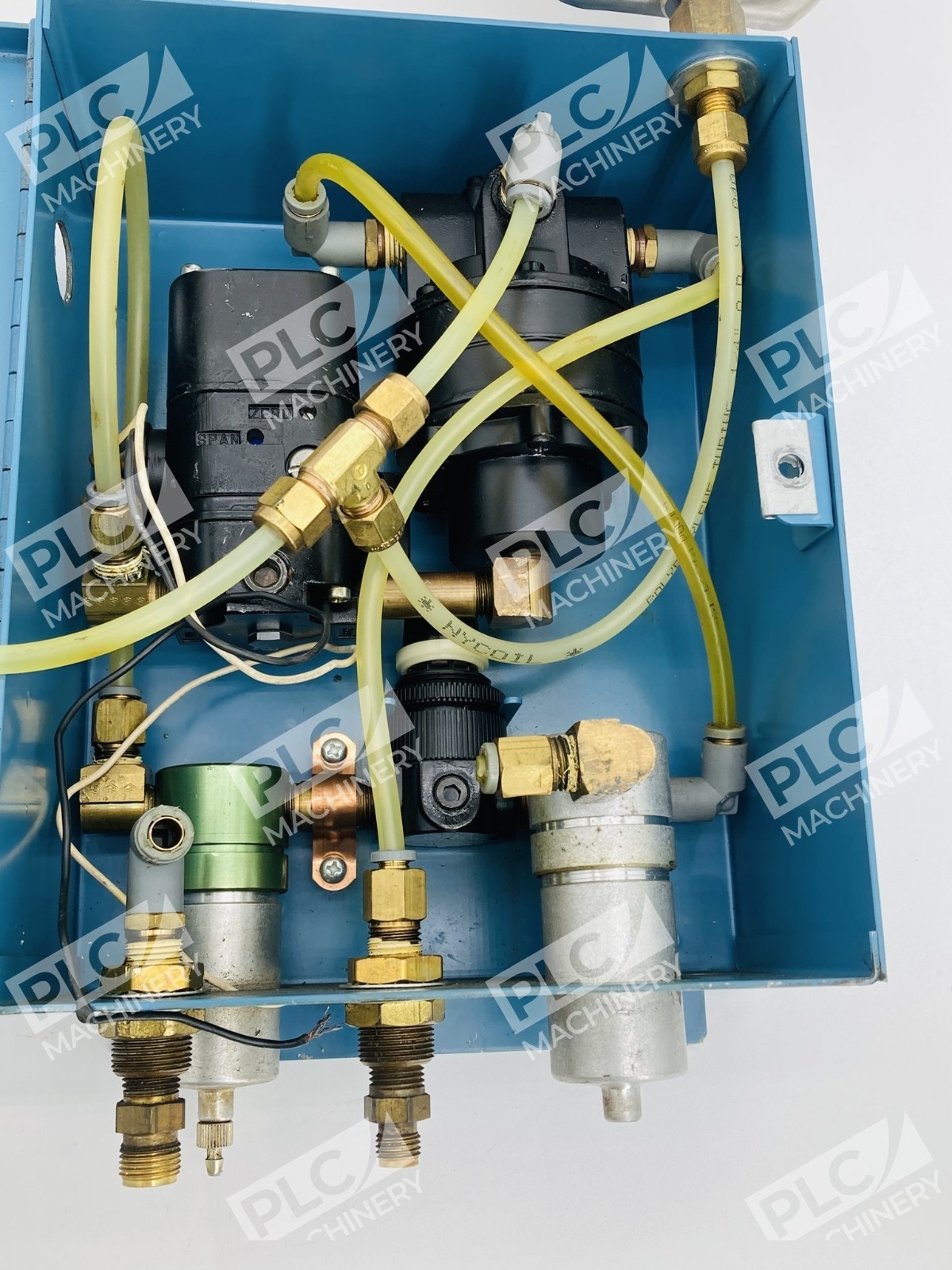

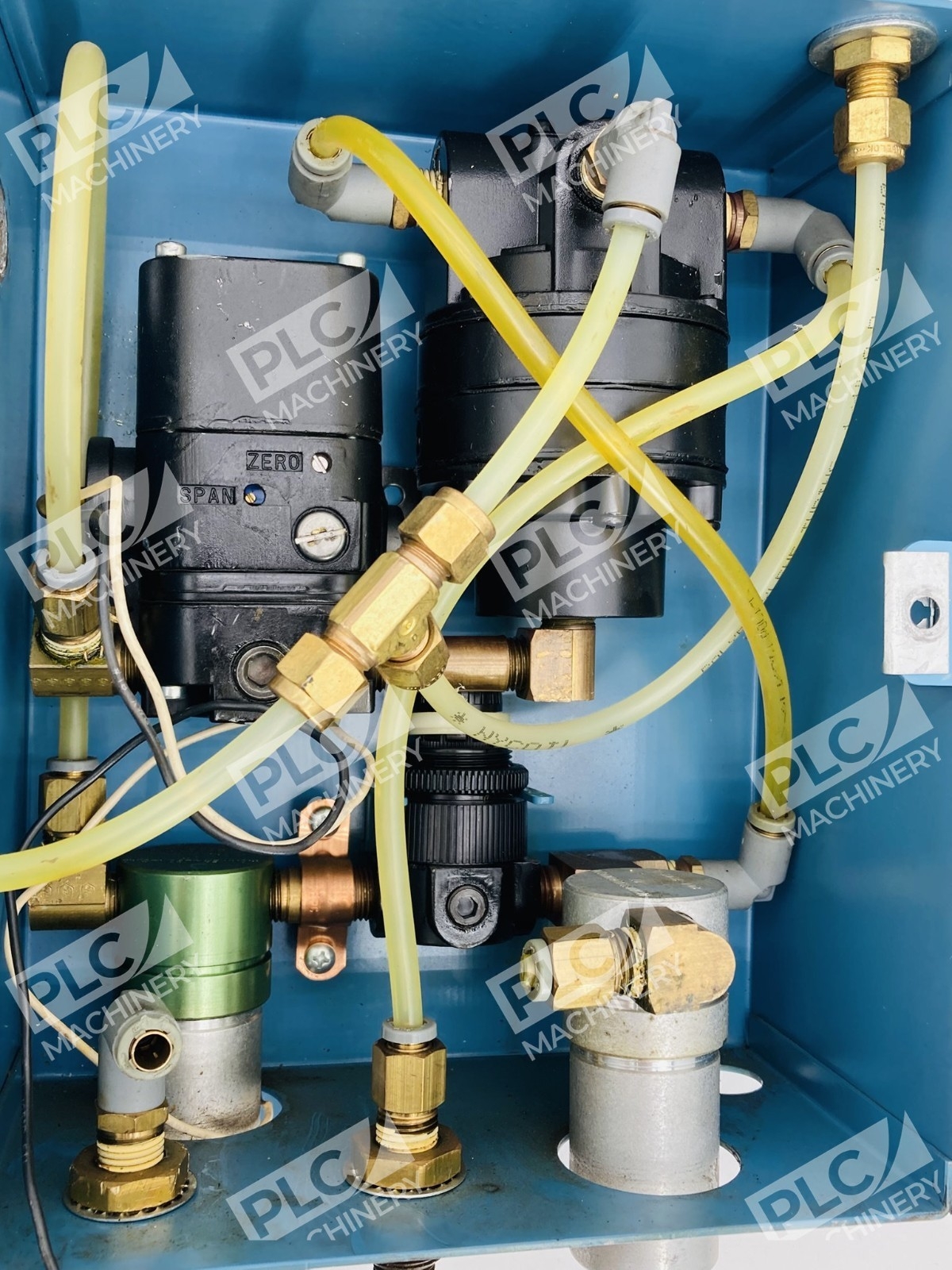

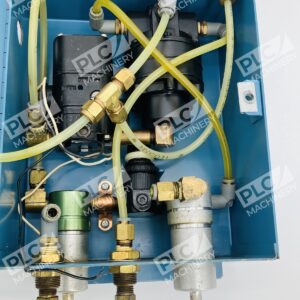

- Includes integrated 20-psi reference regulator, dual reference air filters with automatic drains, air regulator and volume pressure booster

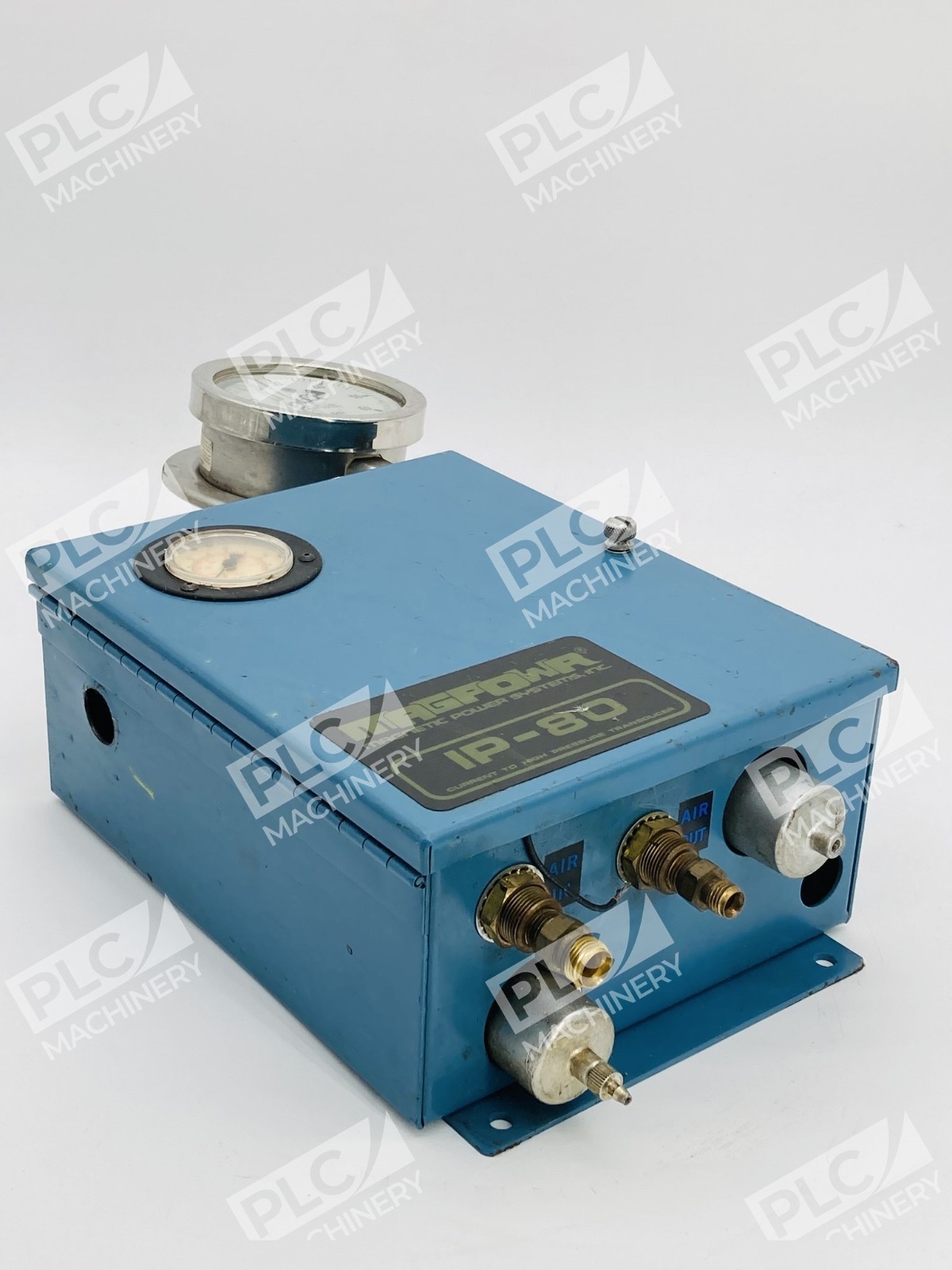

- Compact wall-mount enclosure design fits standard industrial control cabinets
- Operates on normal filtered compressed shop air with wide supply pressure tolerance

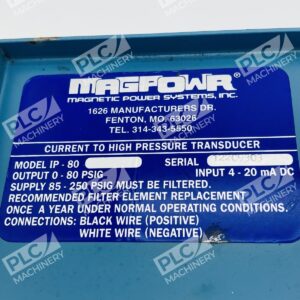

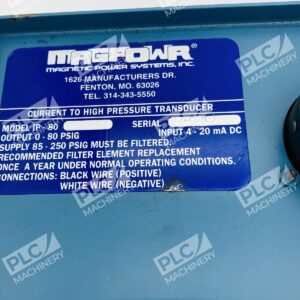

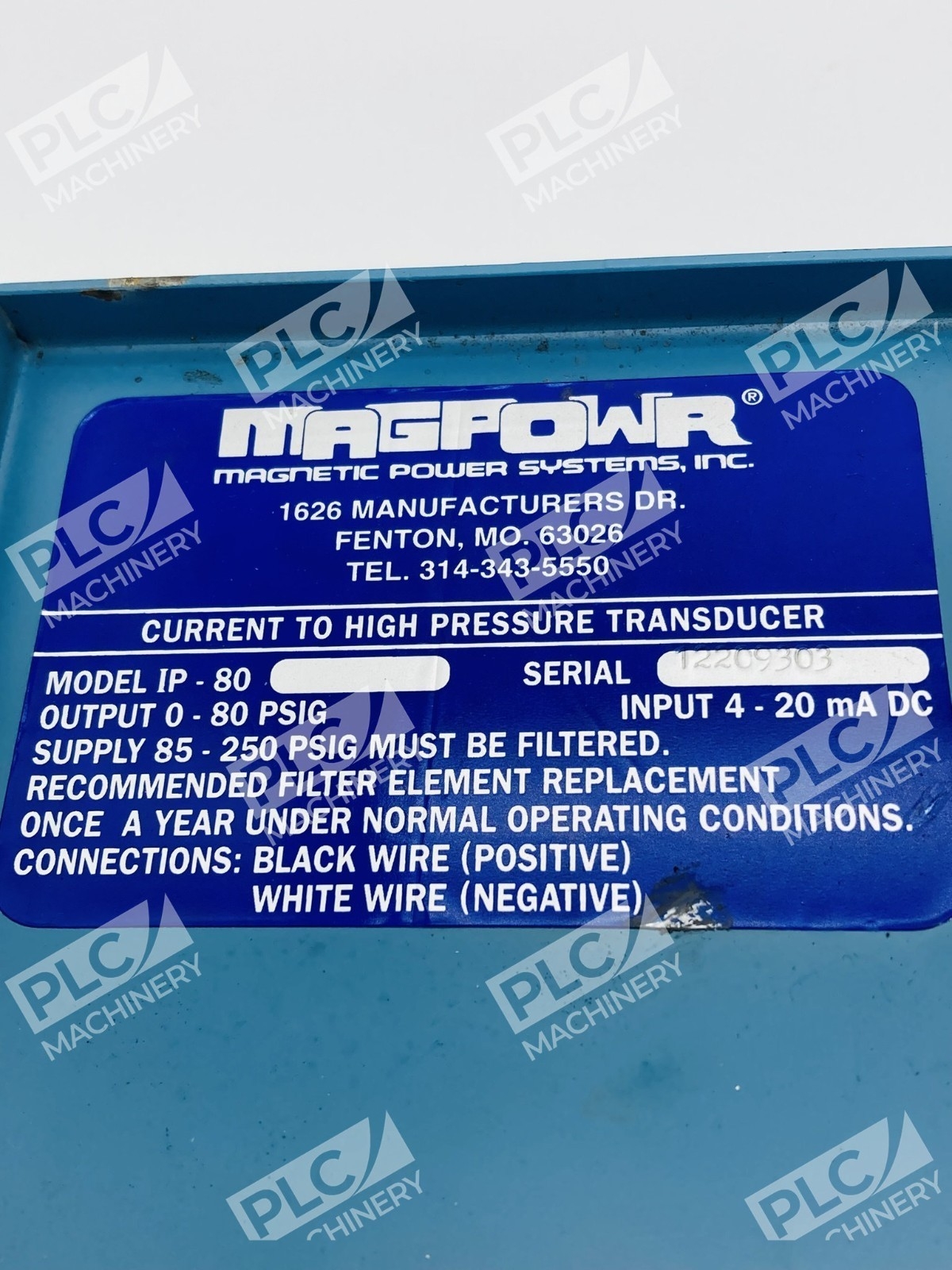

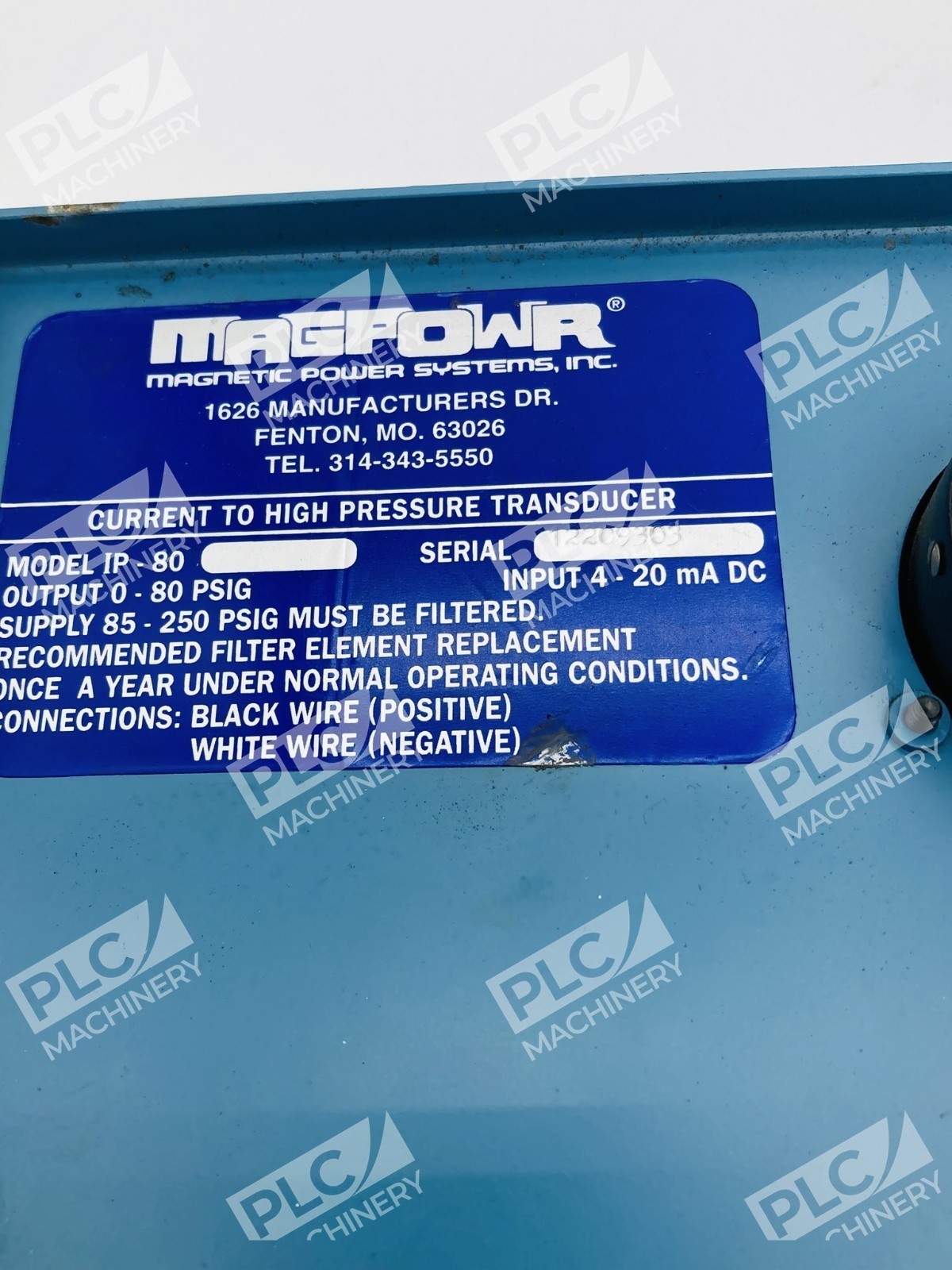

Technical Specifications
- Input Control Signal: 4 to 20 mA DC
- Output Pressure Range: 0-80 PSIG (some variants 0-90 PSI)
- Supply Pressure: 5 PSI Above Max Required, 35 PSI Min
- Flow Capacity: 40 SCFM @ 100 PSI Supply and 20 PSI Set
- Enclosure: Wall-mount enclosure model
- Weight: 13.44 lbs
- Shock & Vibration: Negligible effect at 3 G between 5 to 200 Hz
- Mounting: 5-hole mount pattern
- Application Medium: Filtered compressed air
Typical Applications
The Magpowr IP-80 is engineered for demanding industrial control applications:
- Web tension control in printing, packaging, and converting equipment
- Pneumatic clutch and brake actuation in power transmission systems
- Industrial automation and process control requiring proportional pressure output
- Unwind and rewind control in production machinery
- Any application requiring conversion of electronic current signals to pneumatic pressure
Compatibility & Replacements
Compatible With
- Pneumatic clutches and magnetic particle brakes
- 4-20 mA DC current signal sources (PLCs, proportional controllers, analog outputs)
- Standard filtered compressed air systems (35-250 PSIG supply)
- Industrial control cabinets with wall-mount capability
- Proportional pressure control applications up to 80 PSI output
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The IP-80 is a specialized transducer; confirm that replacement units meet your specific output pressure range and signal input requirements before installation.
Works With
- AC/DC power supplies rated for transducer solenoid control
- Analog current control signal outputs (4-20 mA standard)
- Pneumatic regulators and air preparation equipment
- Pressure gauges and transducers for monitoring system output
- Magnetic particle brake and clutch control systems
