Overview

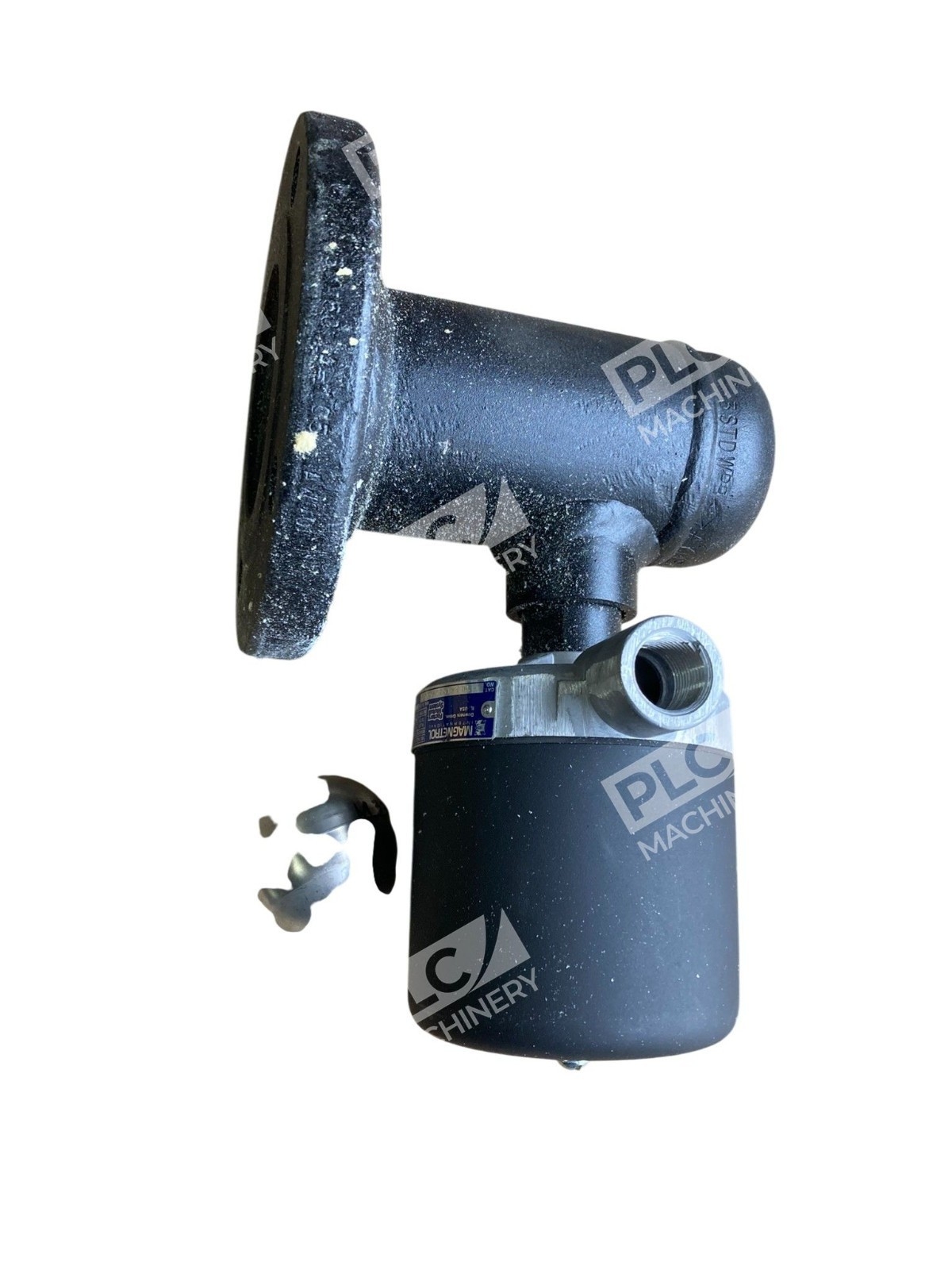

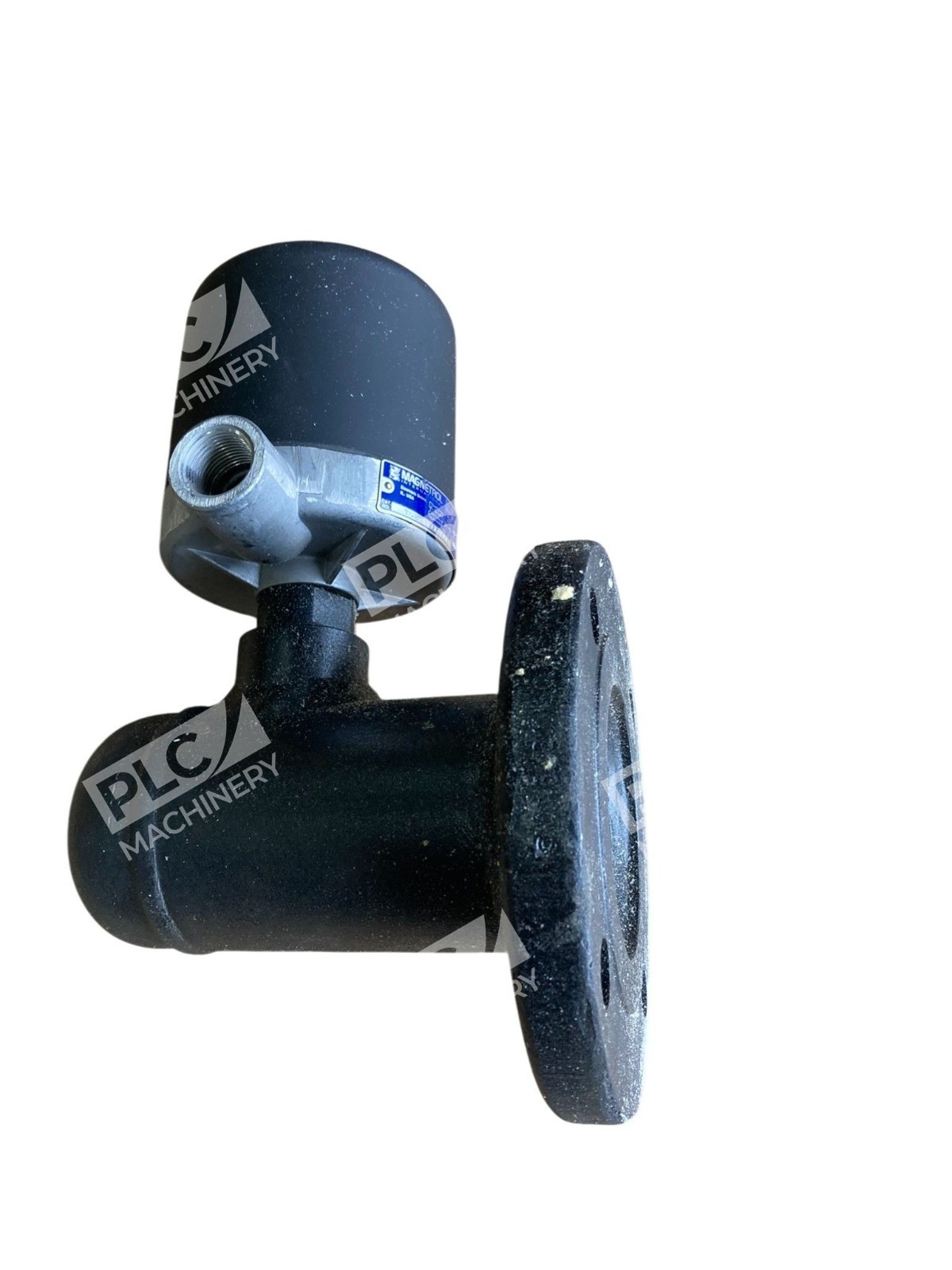

The Magnetrol T62-1G3A-CDG liquid level switch is a side-mounted float control designed for reliable level measurement and control in industrial applications. This single-stage switch mounts horizontally through a threaded or flanged connection to tanks and vessels operating up to 285 PSI (34.5 bar). The T62 series features adjustable differential settings to optimize on/off switching points for high or low level alarm and control operations.
Key Features
- Single-stage float switch with adjustable differential
- Side-mount design—threaded or flanged pipe connection
- Rated for maximum pressure 285 PSI (34.5 bar)
- Suitable for minimum liquid density 0.5 kg/dm³
- Field-adjustable switching point for flexibility
- ISO 9001 certified manufacturing quality
- Three-year manufacturer warranty from factory shipment
Technical Specifications
- Model: Magnetrol T62-1G3A-CDG
- Type: Single-stage liquid level switch
- Mount Style: Side-mounted (horizontal)
- Maximum Pressure: 285 PSI (34.5 bar)
- Minimum Liquid Density: 0.5 kg/dm³
- Differential: Adjustable
- Switch Mechanism: Float-operated dry contact
- Operating Temperature Range: Up to 425°C (800°F) with restrictions
- Mounting Nozzle Length (T62 Threaded): 3.06 inches
- Standards Compliance: ISO 9001
- Manufacturer: Magnetrol (AMETEK LMS)
- Warranty: Three years from factory shipment
Typical Applications
- Tank and vessel level monitoring and control
- High/low level alarm indication
- Pump start/stop automation based on liquid level
- Overfill and low-level protection
- Industrial water, oil, and chemical tank management
- Process automation requiring adjustable setpoints
Compatibility & Replacements
Compatible With
- Standard tank and vessel connections (threaded 1-inch and larger, flanged ANSI B4.1)
- Industrial control systems using dry contact switch inputs
- Single or multi-stage liquid level monitoring systems
- Pumps, solenoid valves, and alarm circuits controlled by float switch
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The T62-1G3A-CDG is a specific model configuration; confirm the exact variant (CDG designation for switch housing and mechanism) matches your application requirements.
Works With
- Dry contact relay circuits and PLC discrete inputs
- Alarm and control systems using normally-open or normally-closed switch contacts
- SPDT (Single Pole Double Throw) relay logic
- Manual or automated tank management systems
