Overview

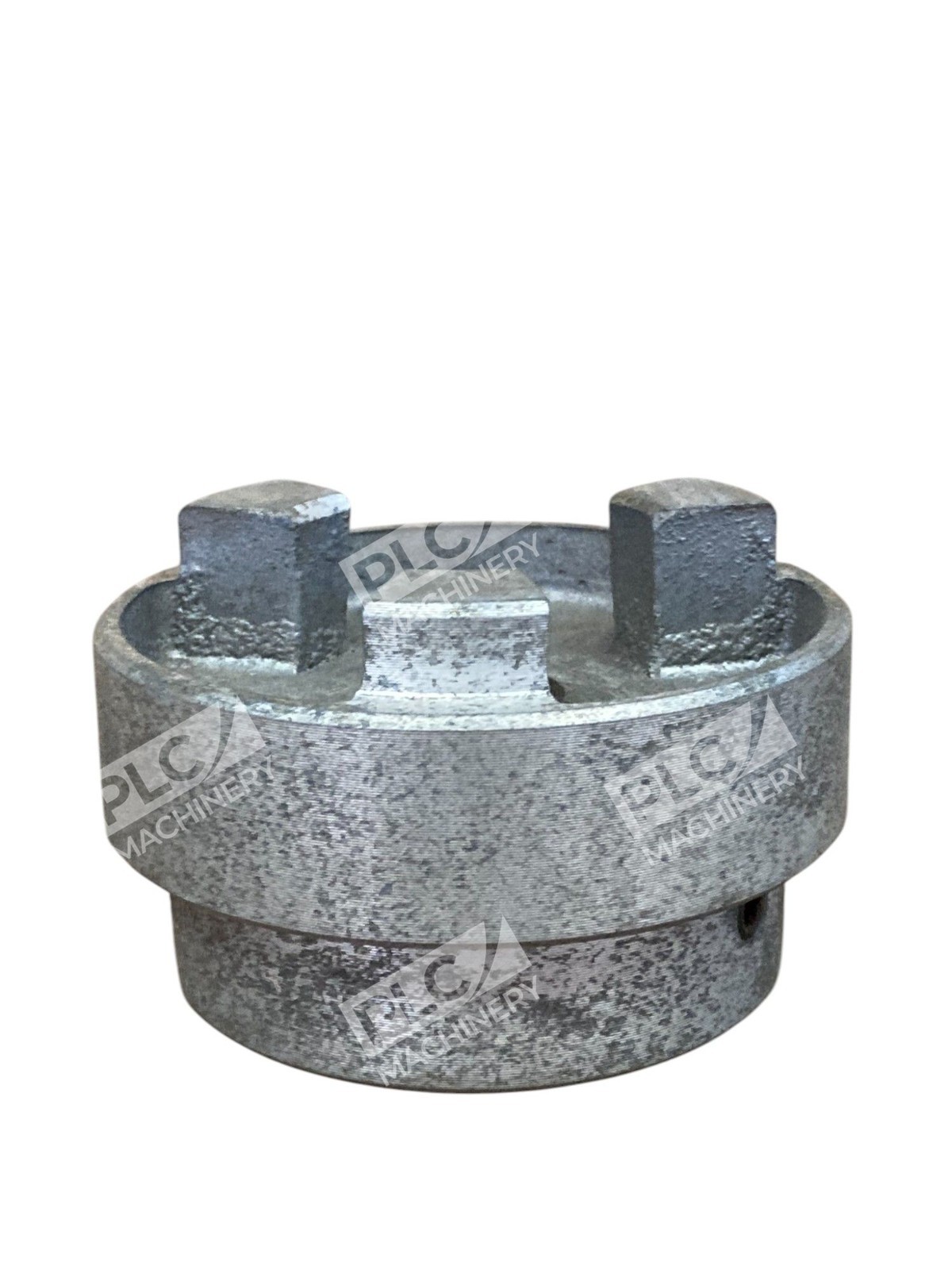

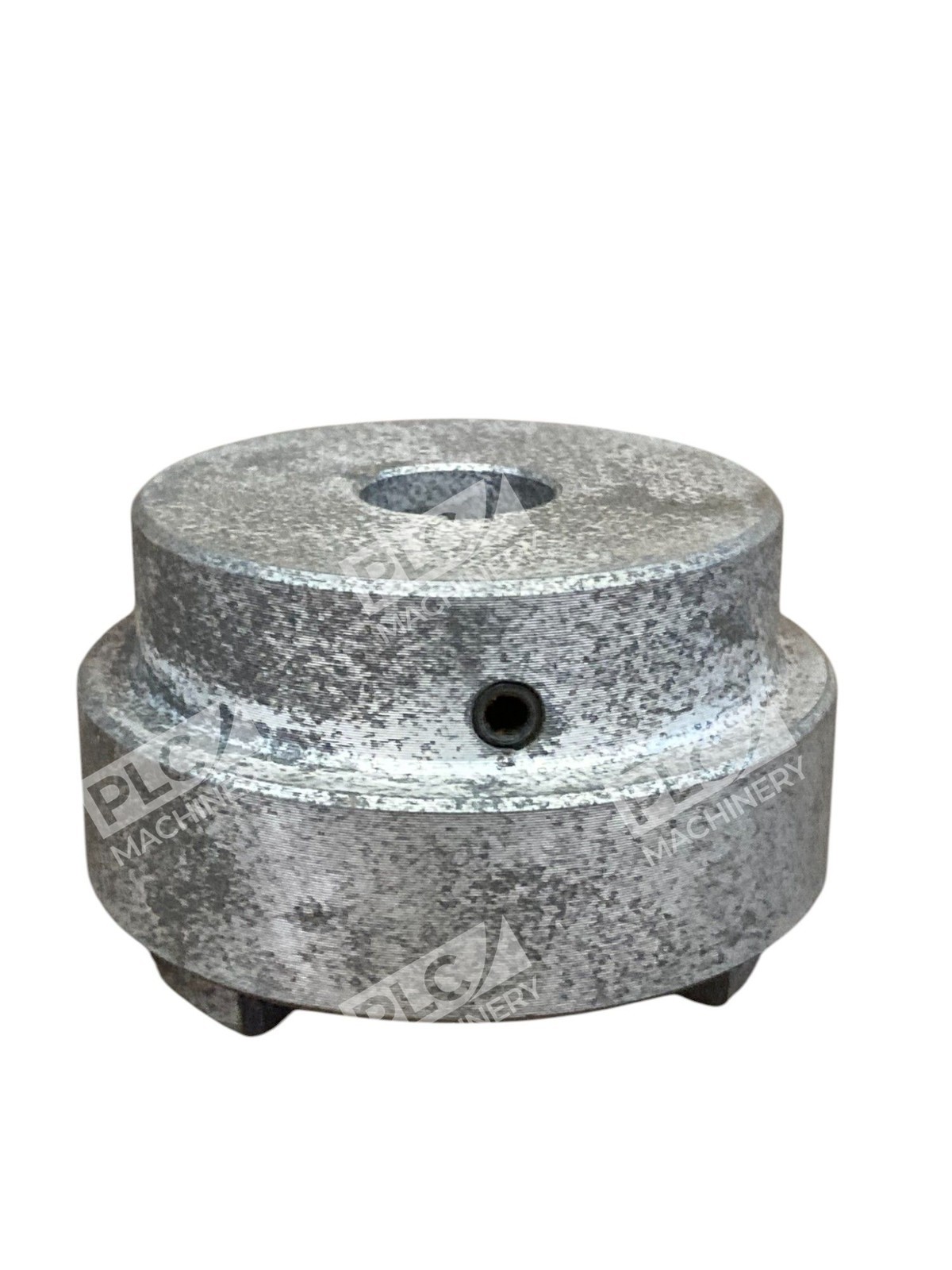

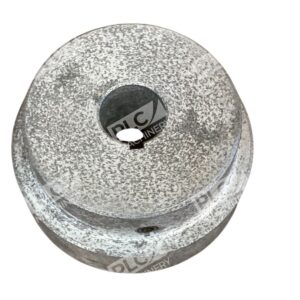

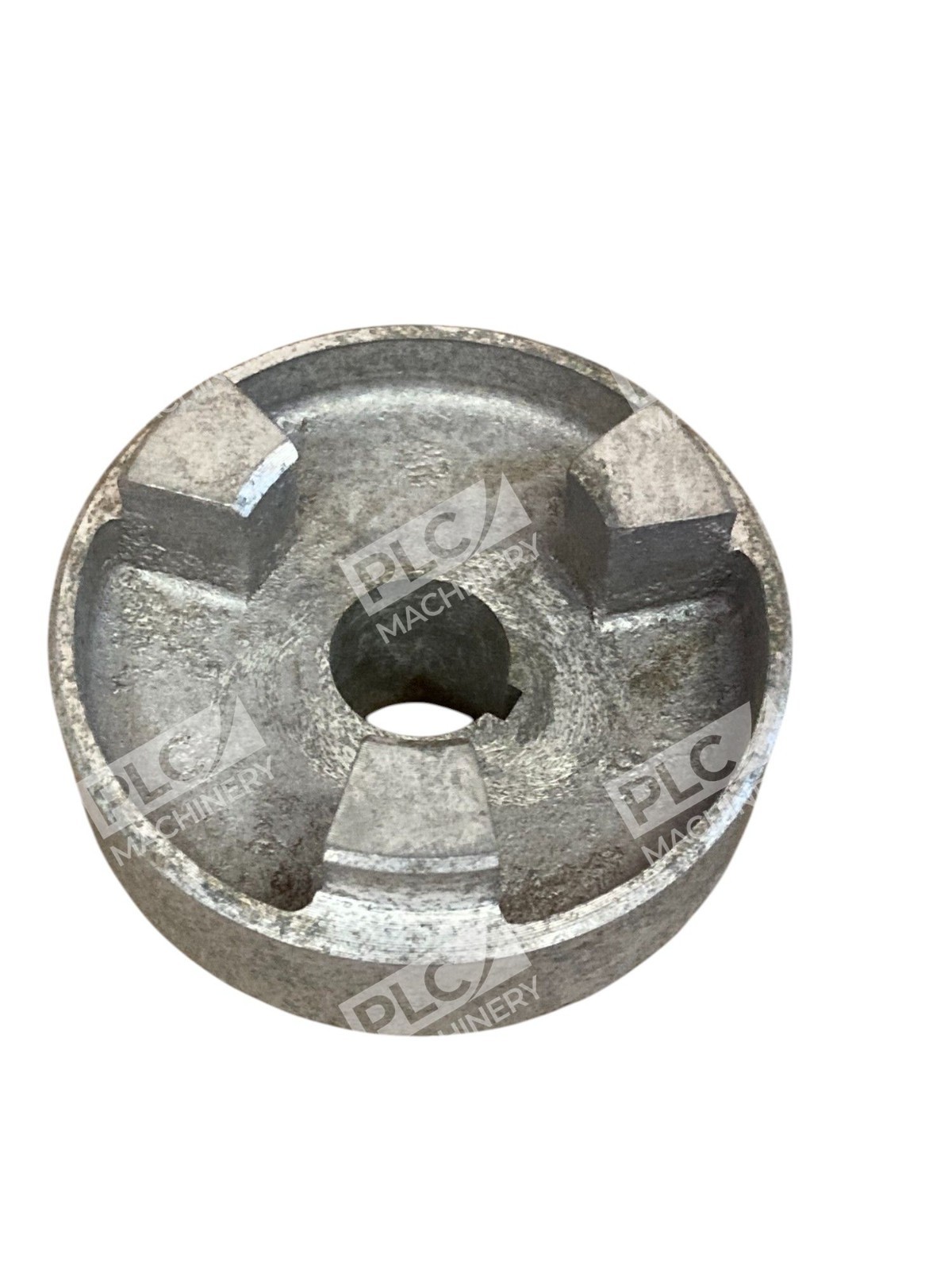

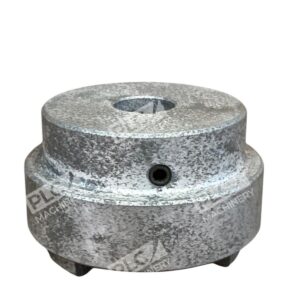

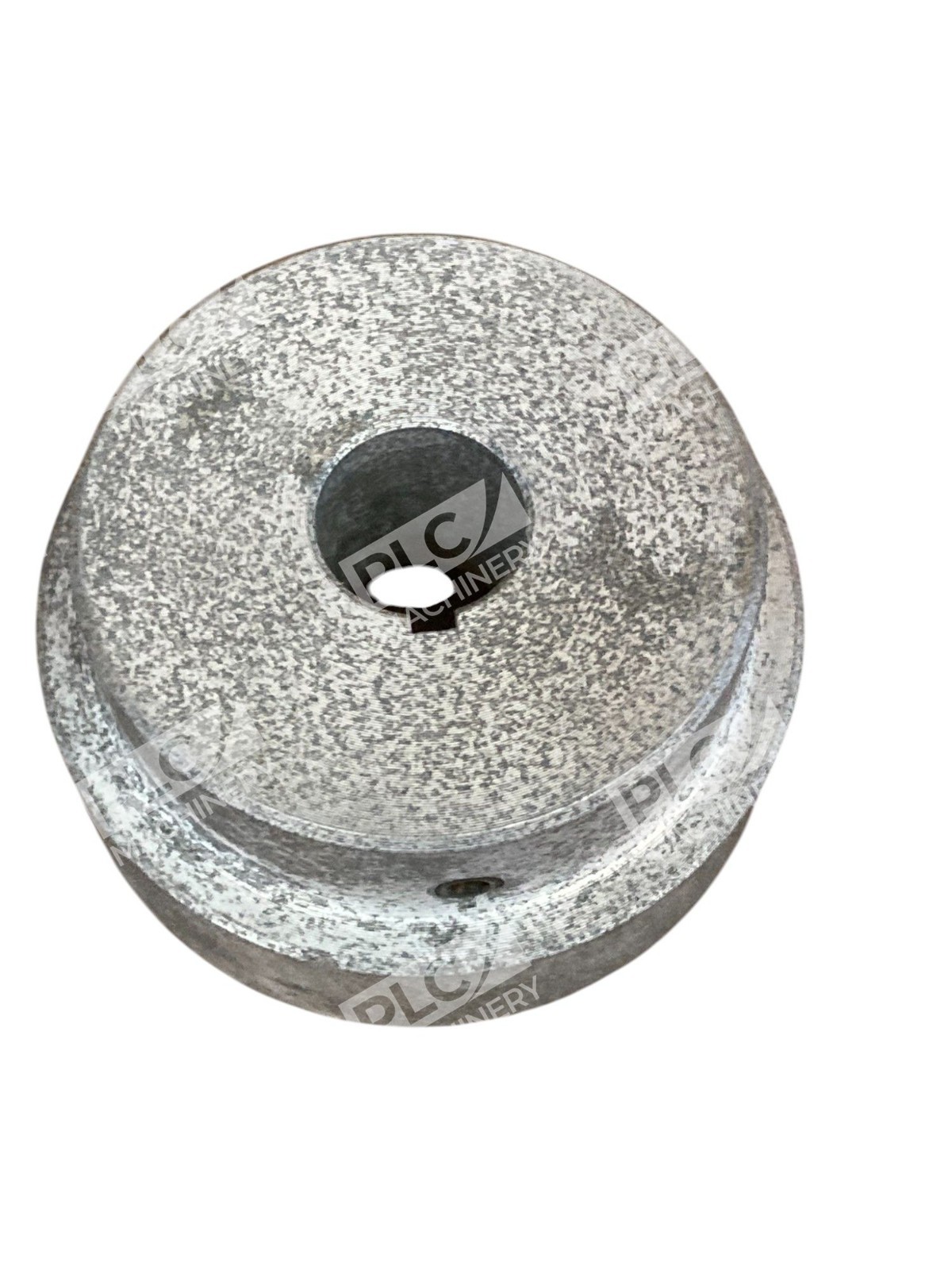

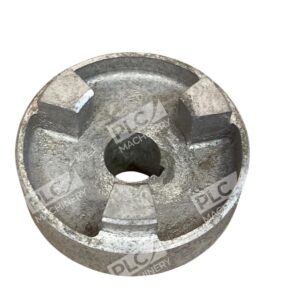

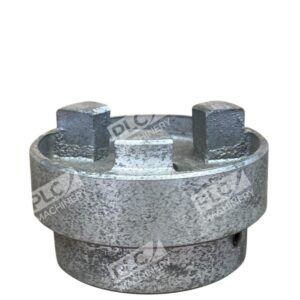

The Magnaloy M30002806 is a Model 300 standard hub coupling designed for flexible power transmission in industrial machinery. The 300 Series Magnaloy coupling is the original lightweight, heavy-duty flexible drive coupling. This unit features a 7/8 inch bore with a 3/16 inch keyway, delivering reliable shaft connection with minimal runout.
Key Features
- Lightweight magnesium construction makes Magnaloy couplings 76% lighter than cast iron and 36% lighter than aluminum units and they’re stronger than either.
- Close machining tolerances (TIR of .002″) assure vibration-free operation and easy, accurate alignment without need for special tools.
- Reduced loads on bearings, shafts and pumps, for longer component life.
- Rust proof and corrosion resistant.
- The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway.
Technical Specifications
- Bore: 7/8 inch
- Keyway: 3/16 inch
- Series: 300
- Hub Type: Standard
- Weight: 0.80 lbs
- Construction: Solid magnesium alloy
- Runout Tolerance (TIR): 0.002 inch
- Set-Screw Configuration: Single set-screw over keyway (standard)
Typical Applications
The Magnaloy M30002806 is well-suited for:
- Pump and motor coupling in fluid power systems
- General machinery drive shaft applications
- Equipment requiring low-weight, high-strength connections
- Industrial systems where corrosion resistance is important
- Applications requiring precise alignment and minimal vibration
Compatibility & Replacements
Compatible With
- Standard shaft bore applications up to 7/8 inch diameter
- Flexible drive systems requiring magnesium coupling hubs
- Equipment designed for Model 300 Magnaloy coupling integration
- Single and dual set-screw mounting configurations
Replaces / Drop-In Replacement For
This coupling hub is directly compatible with Model 300 Magnaloy coupling systems using 7/8 inch bore and 3/16 inch keyway specifications. Verify bore and keyway dimensions with your equipment documentation before ordering.
Works With
- Standard keyway-type shaft couplings
- Flexible coupling inserts (sold separately)
- Set-screw locking mechanisms
- Industrial motor and pump applications
