Overview

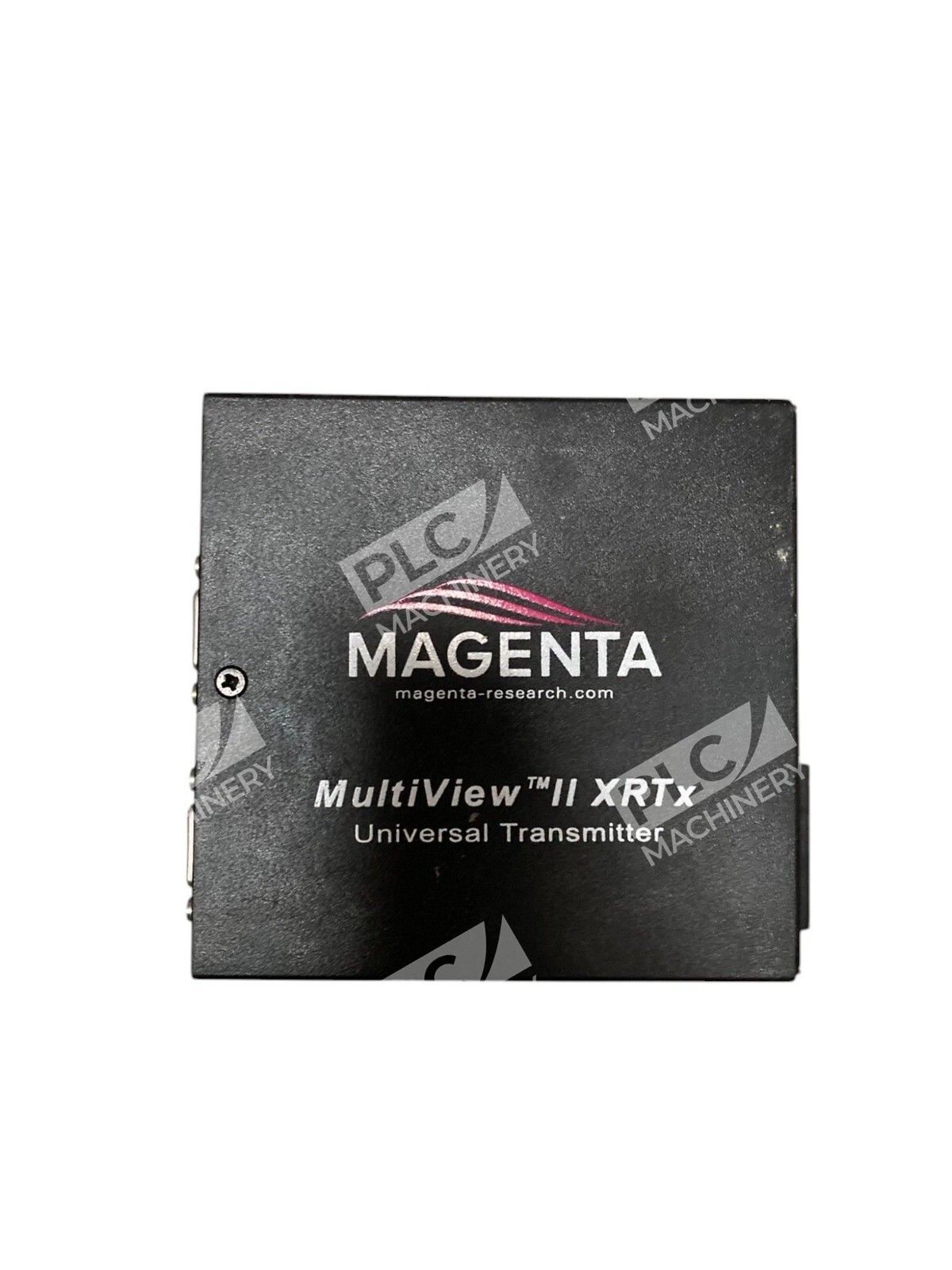

The Magenta Research 400R3588-02 MultiView II XRTx-A is a professional-grade video and audio UTP (unshielded twisted pair) transmitter designed for extending analog video and stereo audio signals over long distances. As a core building block in the MultiView II product family, the XRTx-A integrates seamlessly with all Magenta MultiView receivers, distribution amplifiers, and matrix switchers. This transmitter is ideal for broadcast facilities, AV rental companies, command centers, and commercial installation environments requiring reliable signal extension without active network infrastructure.
Key Features
- Extended Range: Delivers video and audio signals up to 2000 feet (609 meters) over standard CAT5, CAT5e, or CAT6 cabling
- High-Resolution Support: Supports WUXGA resolution (1920×1200) with DDC compatibility for source device configuration
- User-Configurable Audio: Left/Right summed audio setting allows both channels from a stereo source to be combined and transmitted to both speakers
- Improved Sync Technology: Enhanced sync detection makes 1080p and higher-resolution video replication more reliable than previous generations

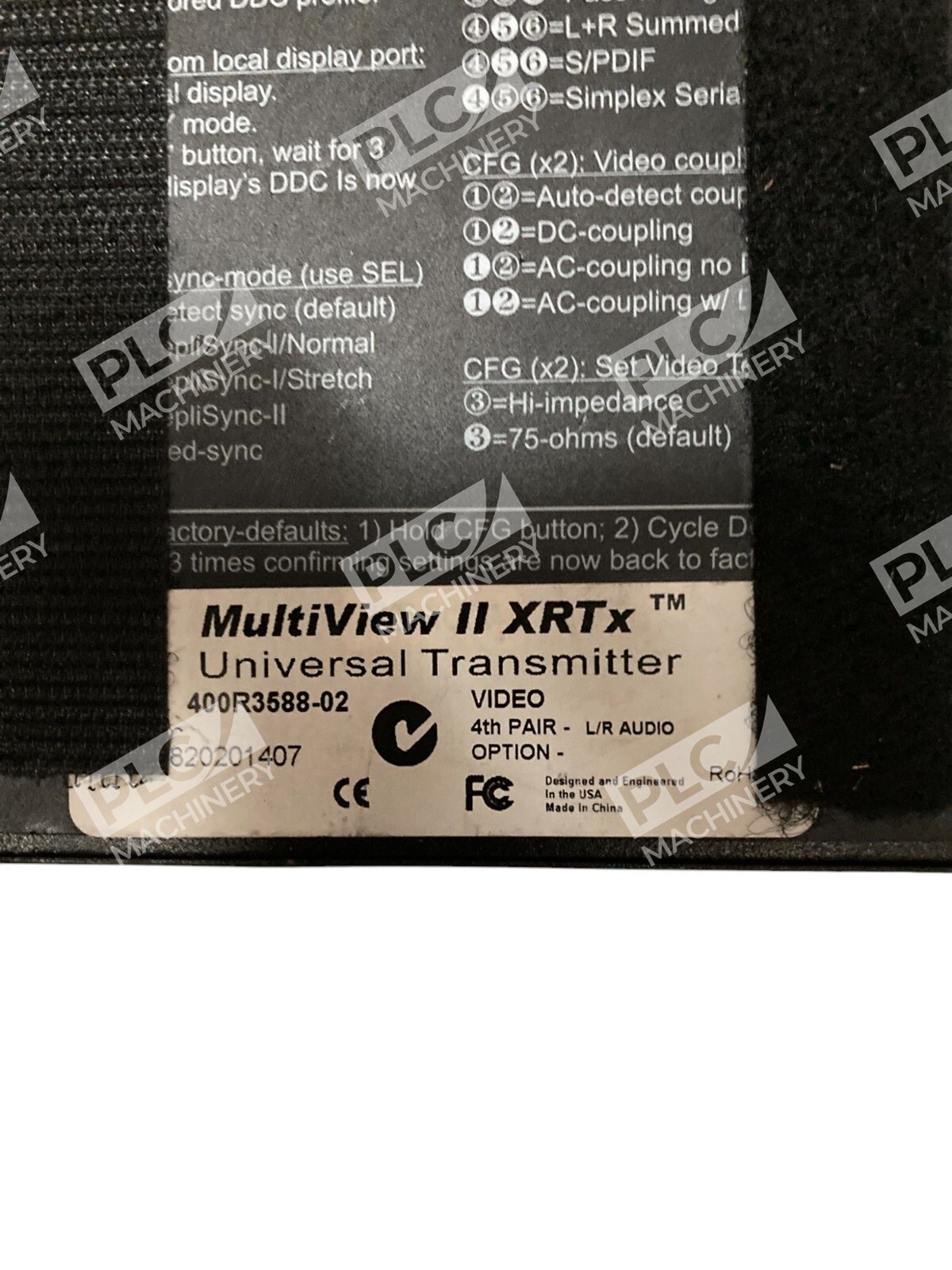

- Field-Adjustable Settings: Video, audio, and serial functions controlled from front panel—no jumper reconfiguration required
- Compact Footprint: Measures 1.2″ × 4.2″ × 4.3″, easily wall-mounted or rack-mounted in standard 19″ installations
Technical Specifications
- Video Input: Standard VGA (15-pin D-Sub) with DDC support
- Audio Input: Stereo L/R RCA connectors, 10K ohms impedance
- Network Connection: RJ-45 for CAT5/5e/6 extension
- Maximum Distance: 2000 feet (609 meters) at maximum supported resolution
- Maximum Resolution: 1920×1200 @ 60 Hz
- Operating Temperature: 0°C to 40°C
- Weight: Approximately 450 grams
- Power Requirements: Magenta Research approved MultiView II power adapter (external)
- Certifications: CE, FCC Class A, IC Class A, RoHS compliant
- Enclosure: Compact metal chassis, rack-mountable or surface-mount capable
Typical Applications
- Broadcast and television production control rooms requiring remote monitor placement
- Command and control centers with distributed display systems
- Corporate AV installations where video sources must be located remotely from displays
- Live event production and rental applications
- Digital signage networks extending signals across large facilities
- Training and simulation environments with centralized video servers
Compatibility & Replacements
Compatible With
- All Magenta MultiView II receivers (MV500, AK600, AK1200, XR2000 series)
- Magenta MultiView distribution amplifiers
- Magenta MultiView matrix switchers
- Standard VGA/RGBHV video sources (computers, cameras, surveillance systems, DVD/Blu-ray players)
- Stereo analog audio sources with standard RCA connectors
- CAT5, CAT5e, and CAT6 cabling infrastructure
Replaces / Drop-In Replacement For
- Magenta Research 400R3588-01 (original XRTx-A model)
- Earlier-generation Magenta XRTx transmitters requiring upgraded sync technology or firmware features
Works With
- MultiView II XRTx system architecture and building-block platform
- Front-panel user-configuration interface (no external software required)
- Optional module configurations for serial (RS-232) or SAP (serial addressing protocol) functionality
- Standard video connector adapters for YUV, S-video, and composite formats (adapters sold separately)
