Overview

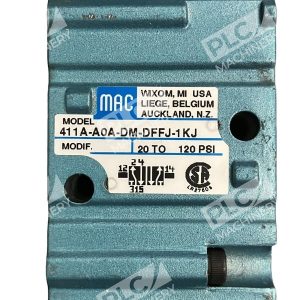

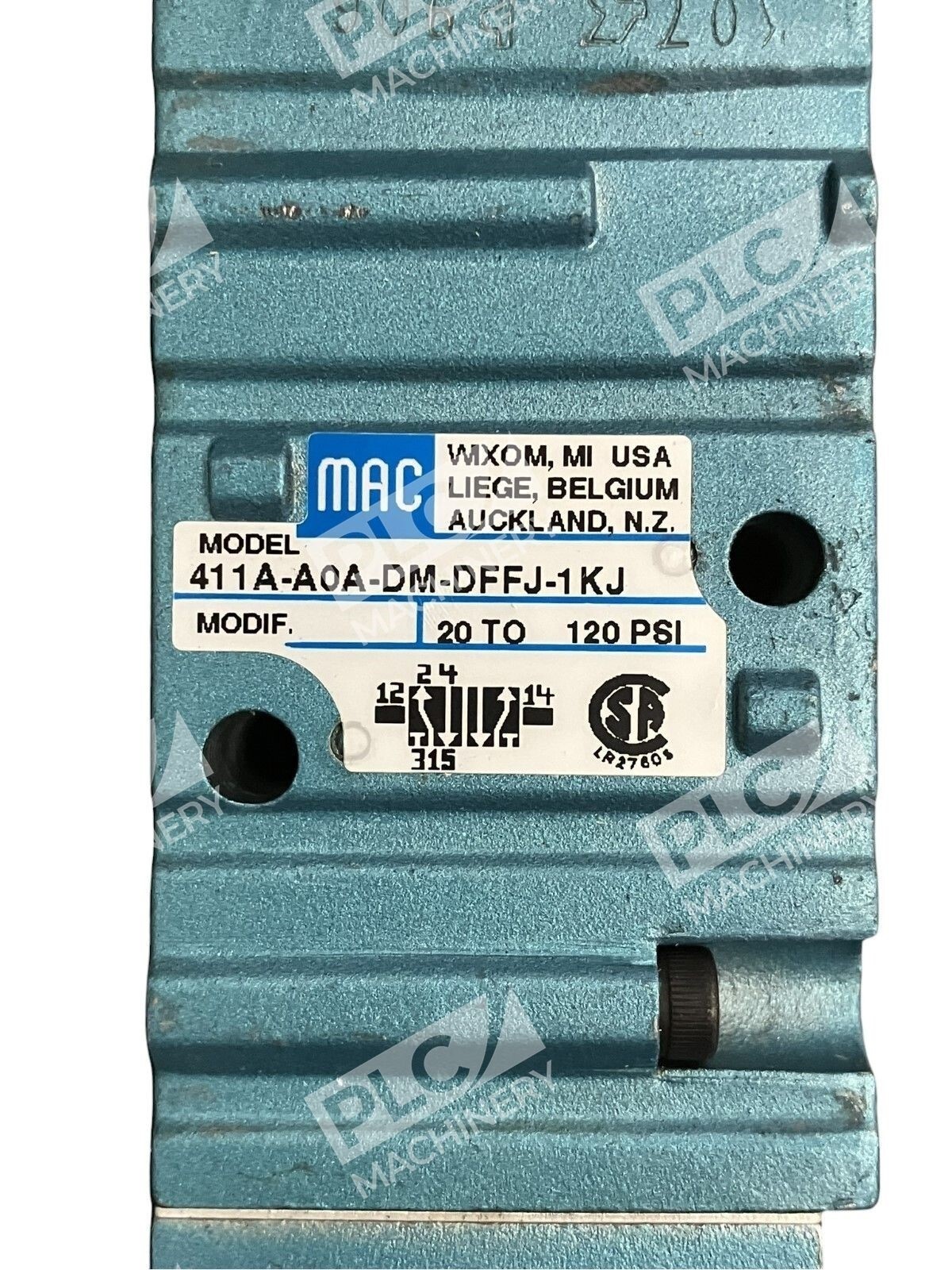

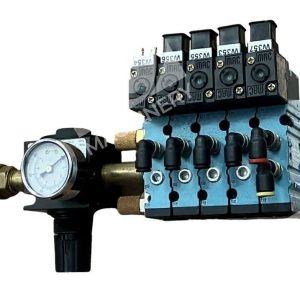

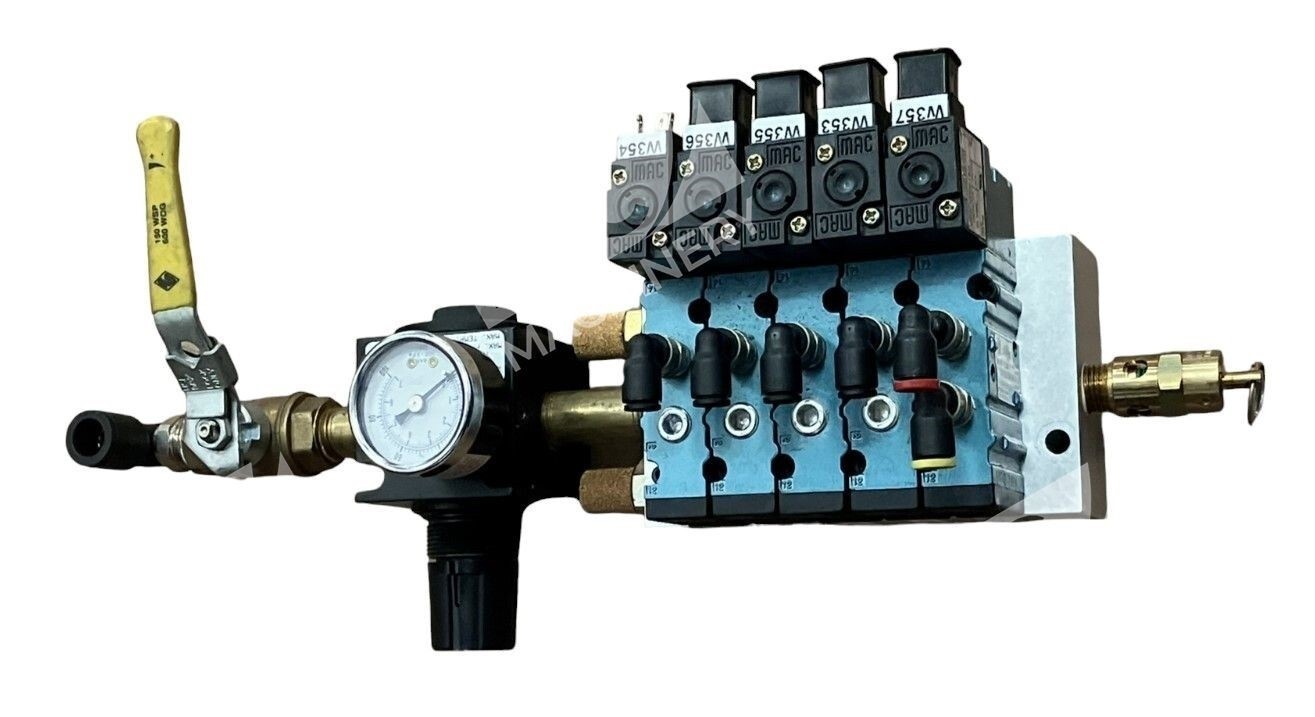

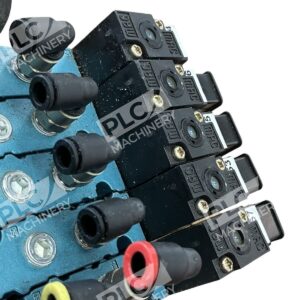

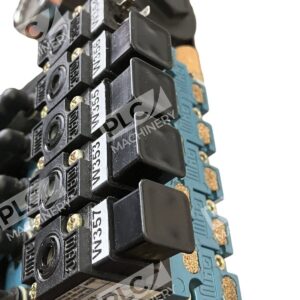

The MAC 411A-A0A-DM-DFFJ-1KJ is a 5/2-way spool valve assembly from MAC Valves’ proven 400 series. This solenoid-piloted, spring-return (monostable) configuration delivers repeatable, responsive pneumatic switching for industrial automation, material handling, and machine controls. The unit is rated for 20–120psi compressed air operation and incorporates internal pilot air for efficient actuation with minimal pilot line pressure loss.
Key Features
- 5/2-way, 4-port configuration with single solenoid operator and spring reset
- Patented MACSOLENOID technology for rapid response times and burn-out resistance
- Non-locking recessed manual override for emergency or manual control
- Internal pilot air reduces auxiliary pilot line complexity
- Muffled pilot exhaust minimizes noise in compressed air systems
- Flow coefficient (Cv) of 1.0 for controlled, metered flow

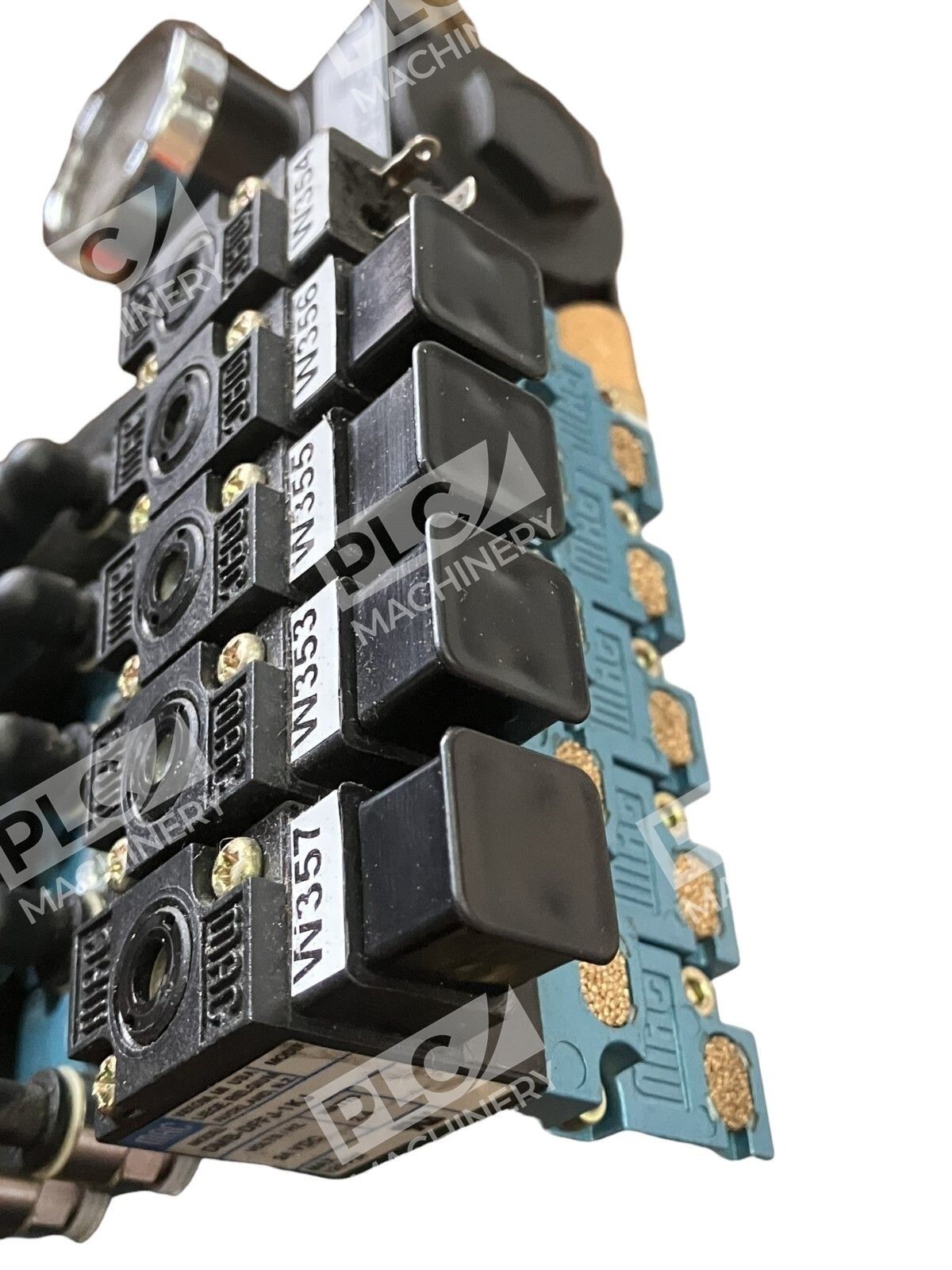

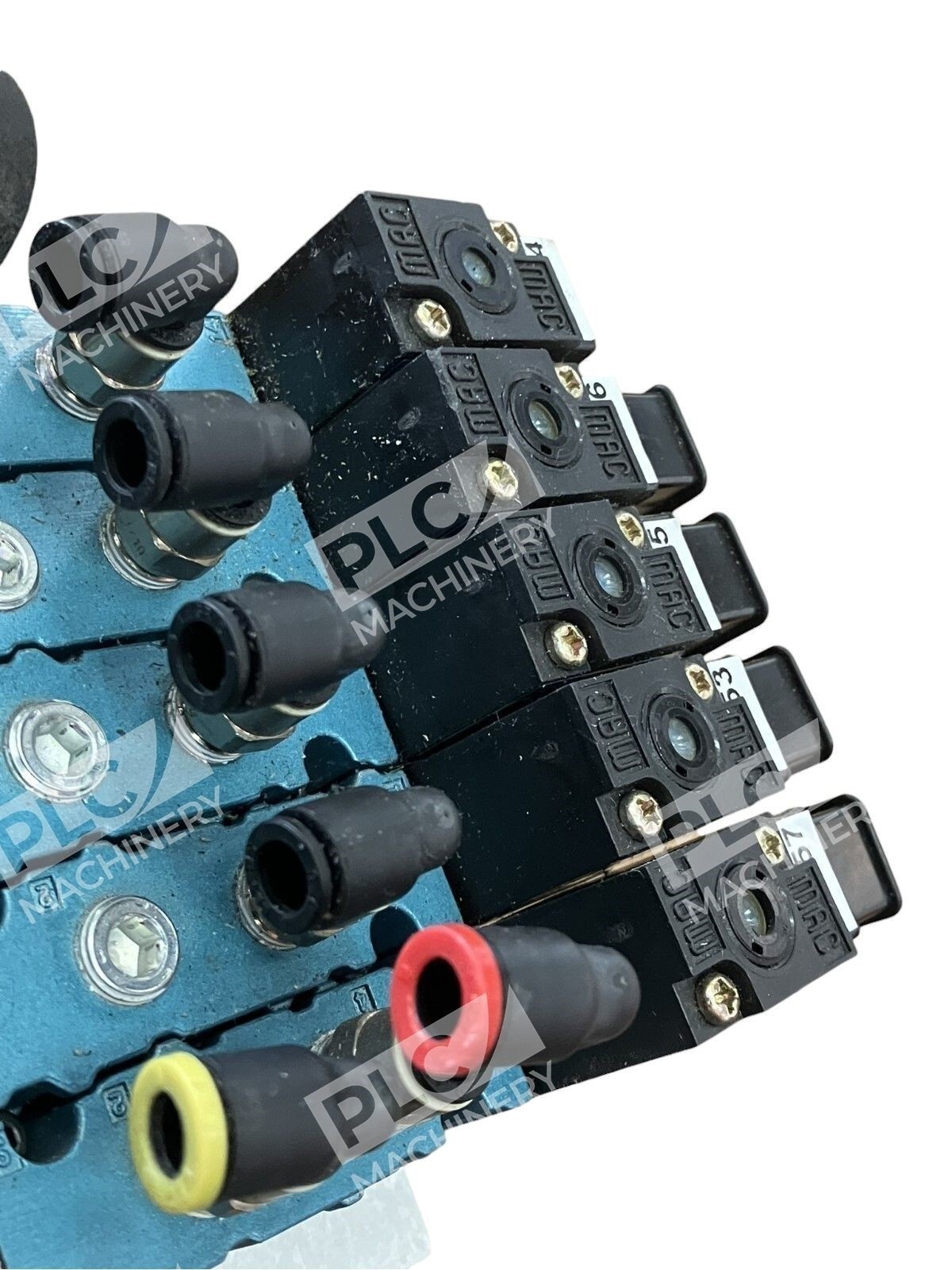

- Mini plug-in DIN 43650 connector with built-in diode and indicator light for coil status visibility
Technical Specifications

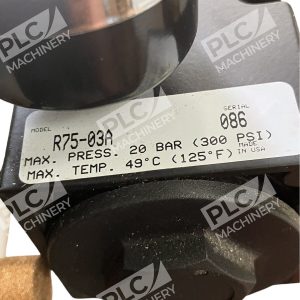

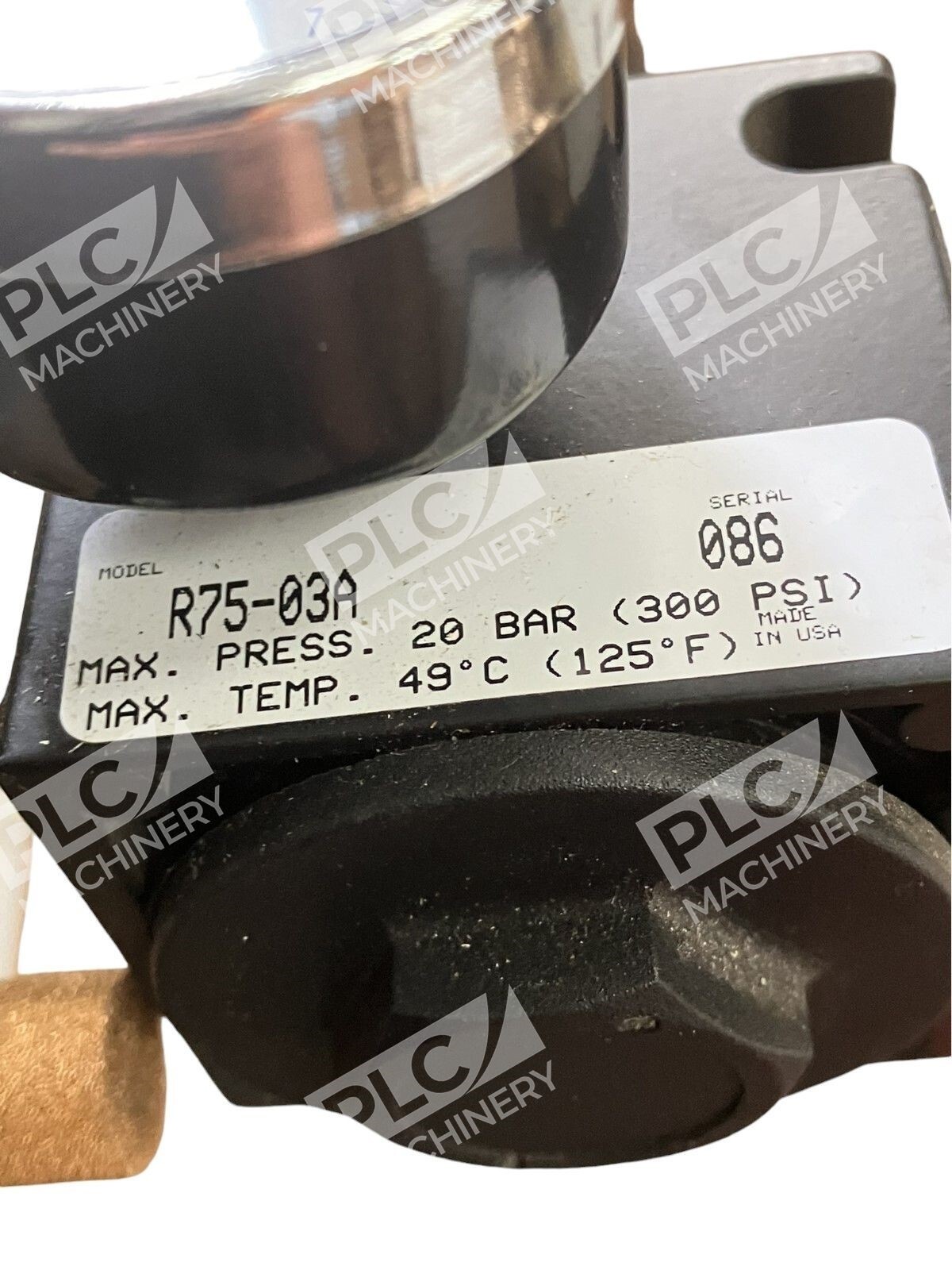

- Pressure Range: 20–120 psi (1.4–8.3 bar)

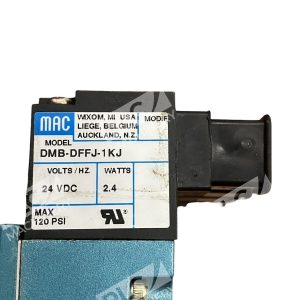

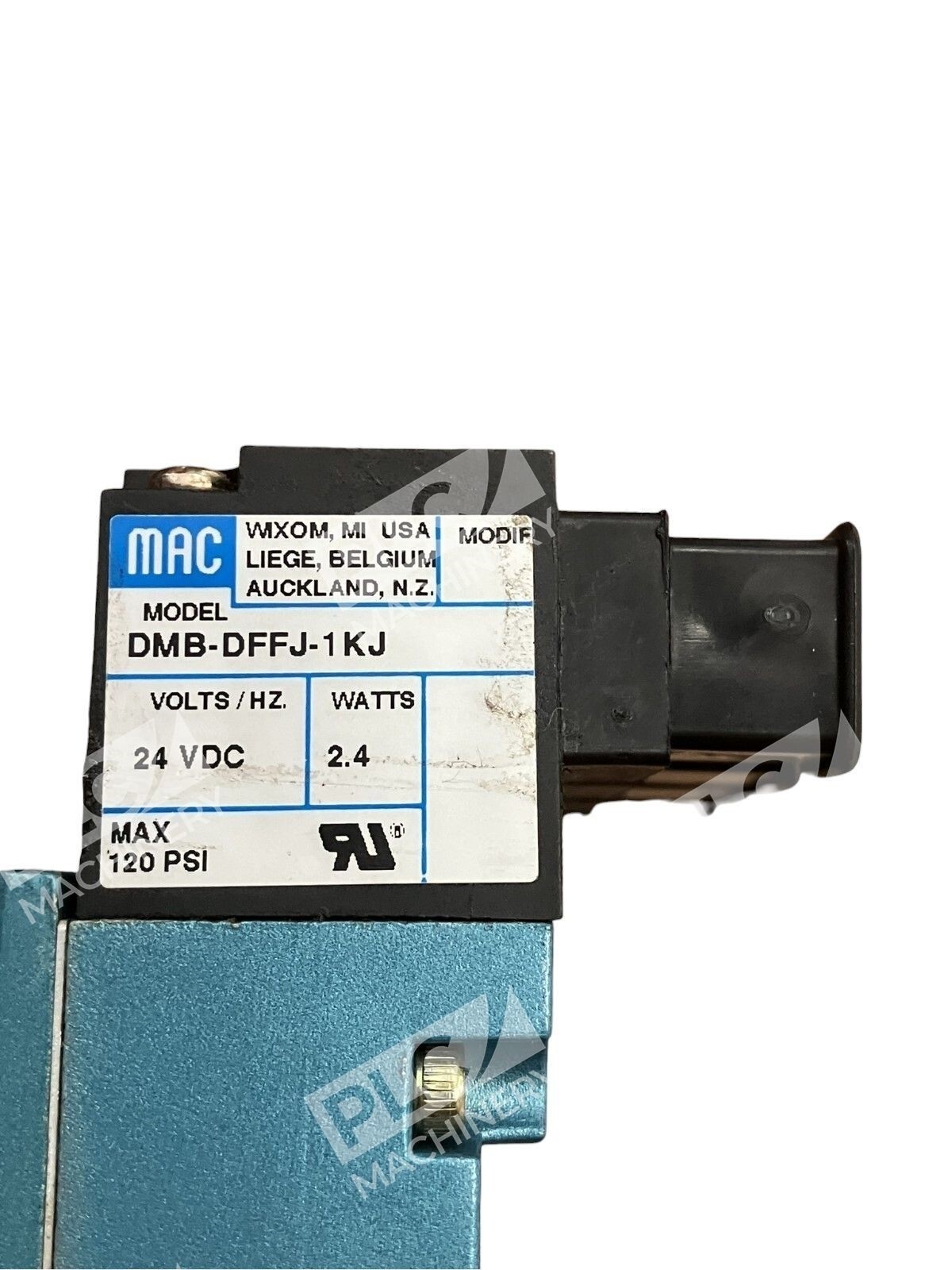

- Solenoid: 24VDC, 2.4W coil
- Pneumatic Ports: 1/8″ NPTF threaded female (P, A, B, S, T)
- Electrical Connection: Mini DIN 43650 with diode + indicator light
- Manual Operator: Non-locking recessed
- Spool Type: Valve body spool design, pilot-operated
- Operation: Pneumatic spring return to neutral (monostable)
- Dimensions: H 63mm × W 21mm × D 96mm (approximately 2.5″ × 0.83″ × 3.78″)
- Weight: 0.30 lbs (0.14 kg)
- Coil Classification: Class A insulation
Typical Applications
- Pneumatic automation circuits requiring 4-way, 5/2 valve logic
- Double-acting cylinder control (single solenoid forward, spring return)
- Pick-and-place, material conveying, and assembly line equipment
- Industrial packaging machinery
- Machine tool air controls
- Pneumatic press and clamp operations
- OEM and retrofit installations where compact, responsive piloted control is needed
Compatibility & Replacements
Compatible With
- Standard compressed air systems (shop air, plant pneumatic networks)
- Industrial PLC and control modules with 24VDC output
- Pneumatic cylinders and actuators rated 20–120psi
- Air pressure regulators, filters, lubricators (ISO 4401 compatible)
- Solenoid relay modules and timer circuits
- Proportional and on/off control systems
Replaces / Drop-In Replacement For
- 411A-A0A-DM-DFFJ-1KE (variant with different connector/wire configuration)
- 411A-A0A-DM-DFFJ-1KD (alternate electrical connector designation)
- Other MAC 411A-A0A configurations with identical pneumatic and solenoid ratings
- Verify exact replacement compatibility with your system integrator; minor connector or pilot line differences may require adapter consideration.
Works With
- 24VDC control circuits and solenoid coil relay logic
- Pneumatic pilot-to-load switching with internal or external pilot air
- Manual operator allows standalone testing without electrical supply
- ISO 4401 (CETOP 05) cavity and NG10 sandwich configurations in modular systems
