Overview

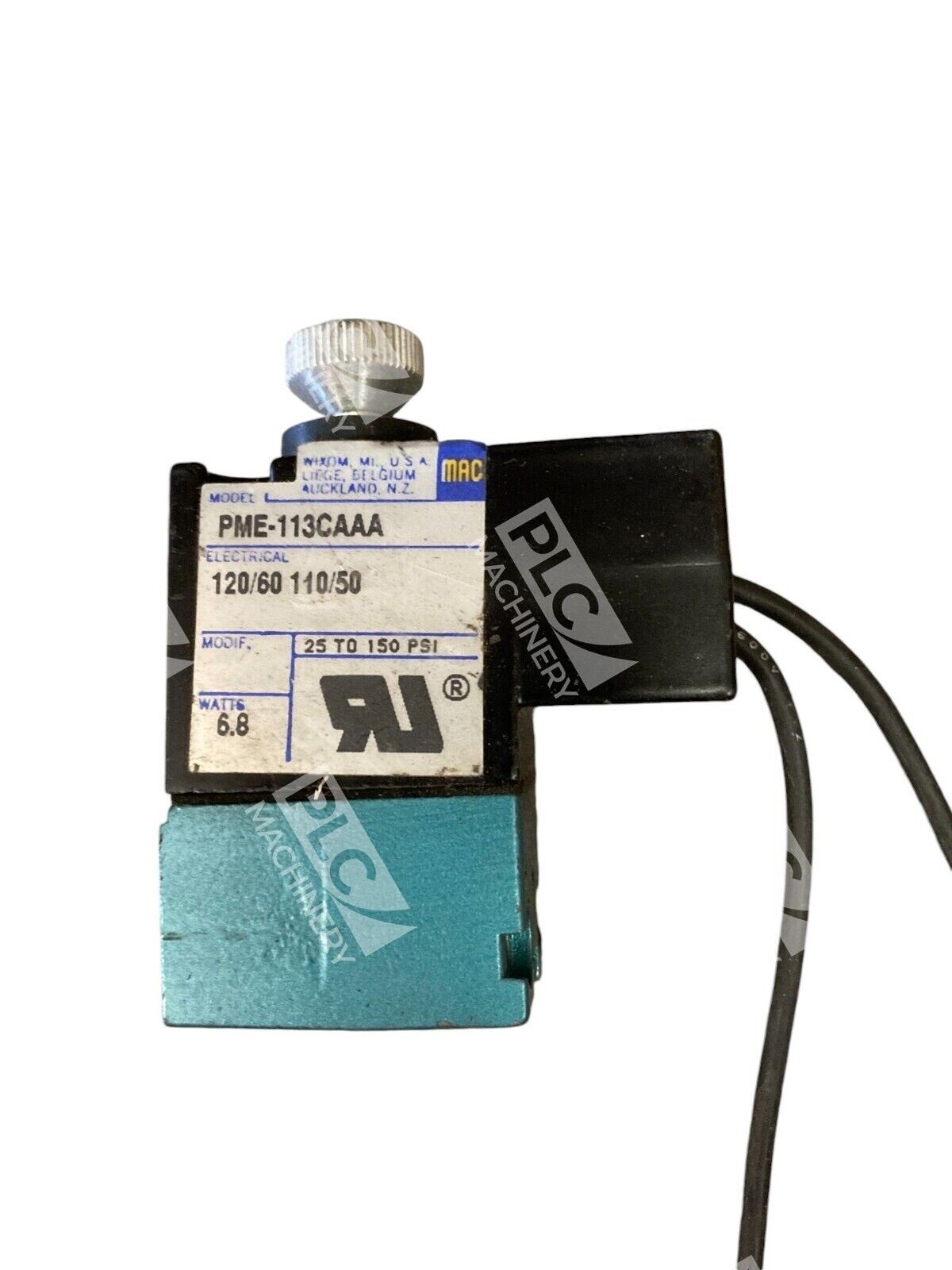

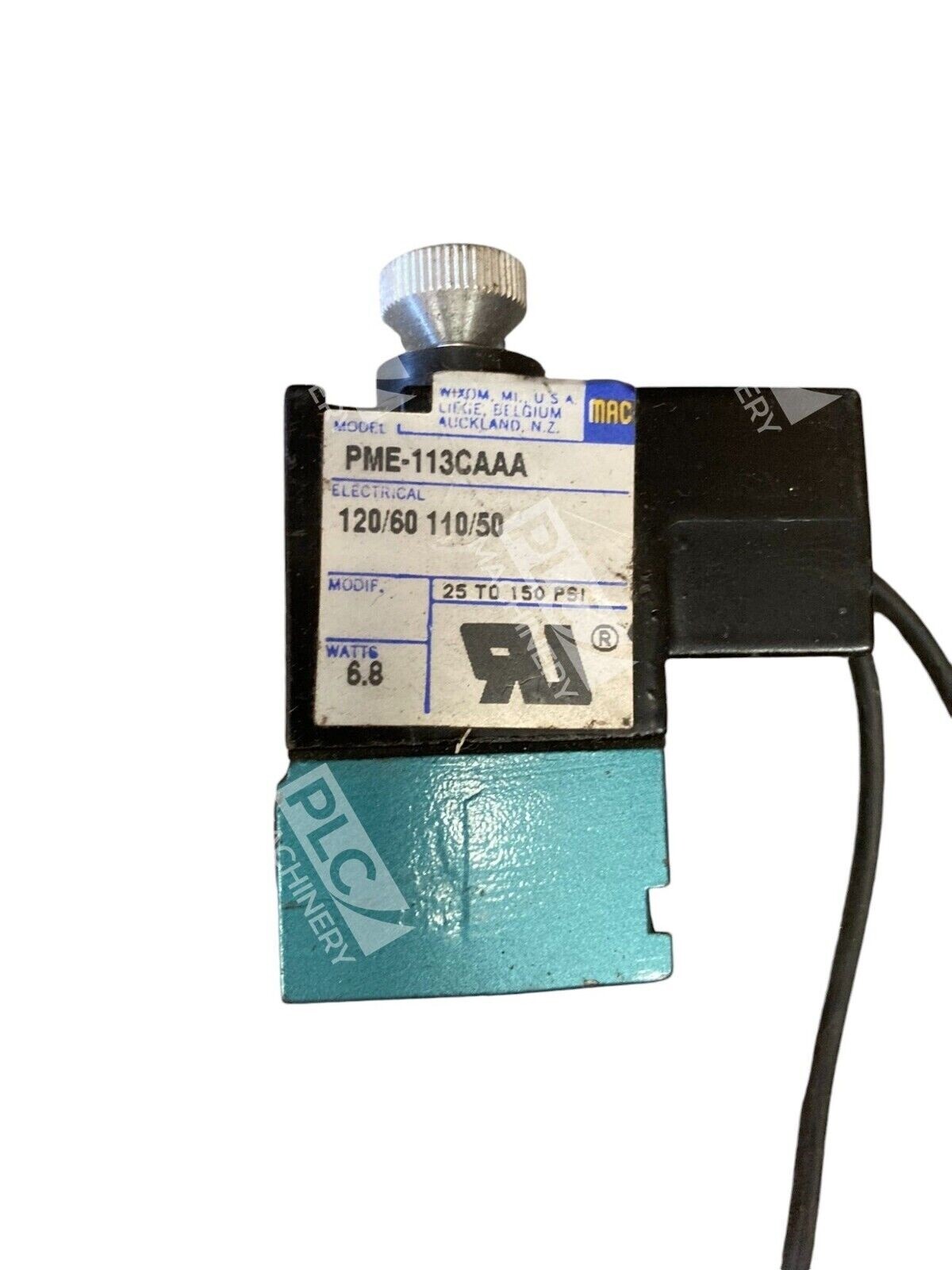

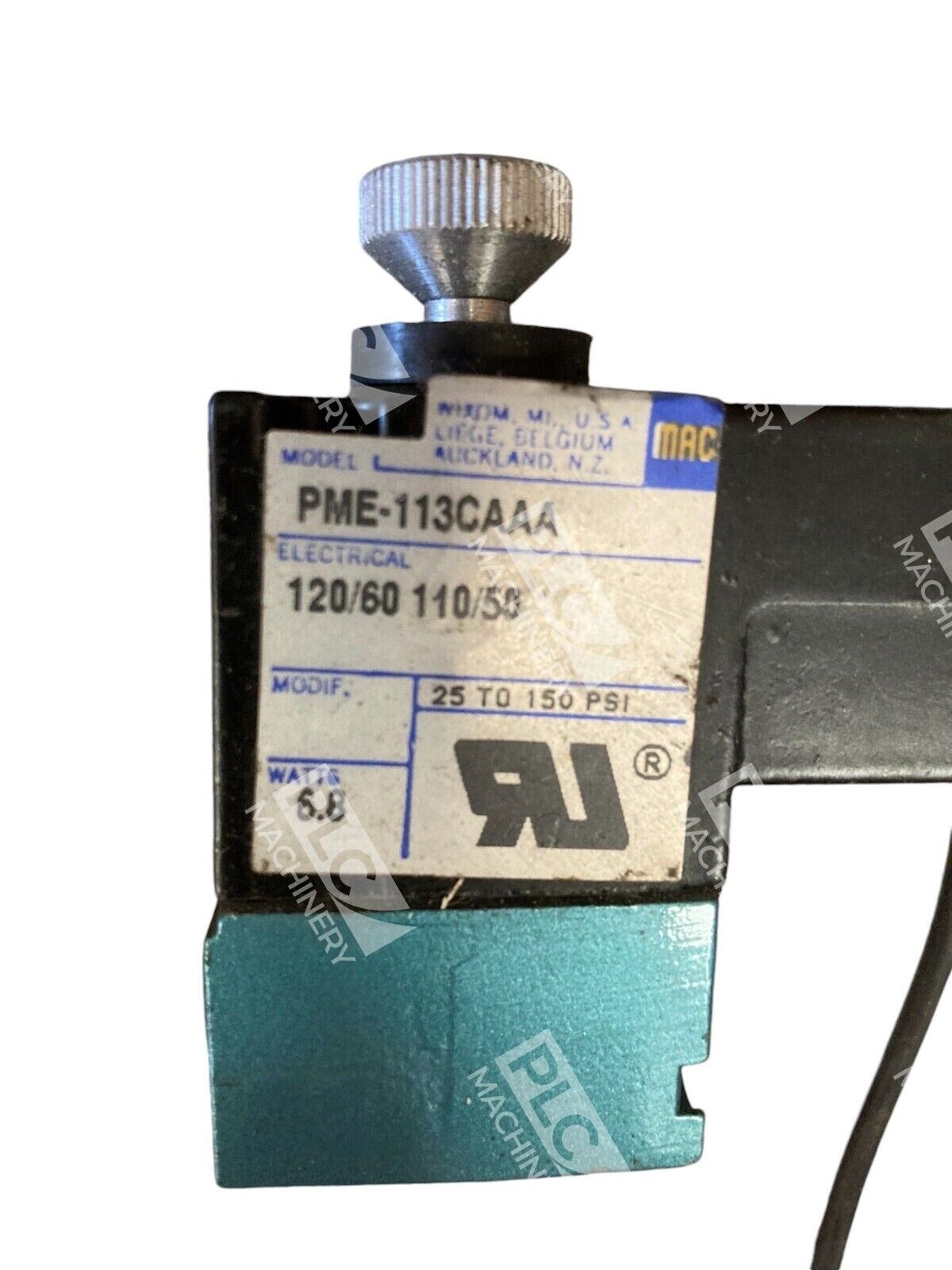

The MAC PME-113CAAA is a solenoid-actuated pneumatic valve engineered for industrial automation and fluid power applications. This dual-voltage model (120V 60Hz / 110V 50Hz) is part of MAC Valves’ proven 100-series platform, designed for reliable pilot-operated or direct-acting control of compressed air and inert gases across manufacturing, packaging, food & beverage, and automotive systems.
Key Features
- Dual-voltage solenoid coil — 120V 60Hz and 110V 50Hz rated for global deployment
- Non-burn-out solenoid — MAC’s patented MACSOLENOID technology ensures durability on AC service
- Compact design — Space-saving profile suitable for manifold mounting and modular system integration
- Rapid response — Industry-standard switching speed for cycle-sensitive applications
- No lubrication required — Sealed design minimizes maintenance and operational downtime
- Manual operator — Non-locking recessed manual override for emergency or manual operation
Technical Specifications
- Solenoid Voltage (Rated): 120V AC 60Hz / 110V AC 50Hz
- Coil Type: AC-rated, Class A insulation
- Valve Configuration: Pilot-operated or direct-acting, 3/2-way or 4/2-way (verify with order)
- Port Connection: 1/2″ NPS threaded ports (ported or manifold base)
- Fluid Medium: Compressed air, inert gases, or vacuum
- Operating Pressure Range: Typically 25–150 PSI (verify application range)
- Manual Override: Non-locking recessed operator
- Cable Termination: 18″ (45 cm) lead with bare-end flying leads (standard)
- Certifications: Meets industrial and hazardous location standards (verify for specific app)
- Temperature Rating: Coil Class A per NEMA standards
Typical Applications
- Packaging machinery and conveyor control
- Pneumatic cylinder actuation (single or double-acting)
- Air flow routing in automated assembly systems
- Production line pilot-operated valve control
- Emergency stop and safety circuit integration
- Food, beverage, and pharmaceutical processing equipment
Compatibility & Replacements
Compatible With
- MAC Valves ISO 5599 bases and manifold systems
- Standard compressed air systems (25–150 PSI)
- Inert gas applications (nitrogen, argon)
- Vacuum service with appropriate sealing
- Industrial control logic (electro-pneumatic circuits, PLC outputs)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Related MAC model families include PME-113DA and PME-113AA series; however, direct part substitution requires confirmation of porting, coil configuration, and voltage specifications.
Works With
- Standard 120V 60Hz and 110V 50Hz control power supplies
- ISO 5599 manifold base systems
- Pneumatic cylinders and actuators (all brands)
- Vacuum generators and boosters
- Electro-pneumatic control systems and hardwired circuits
