Overview

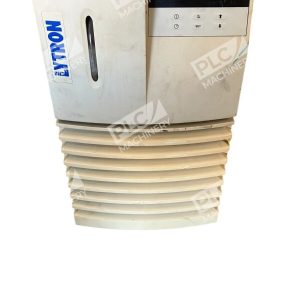

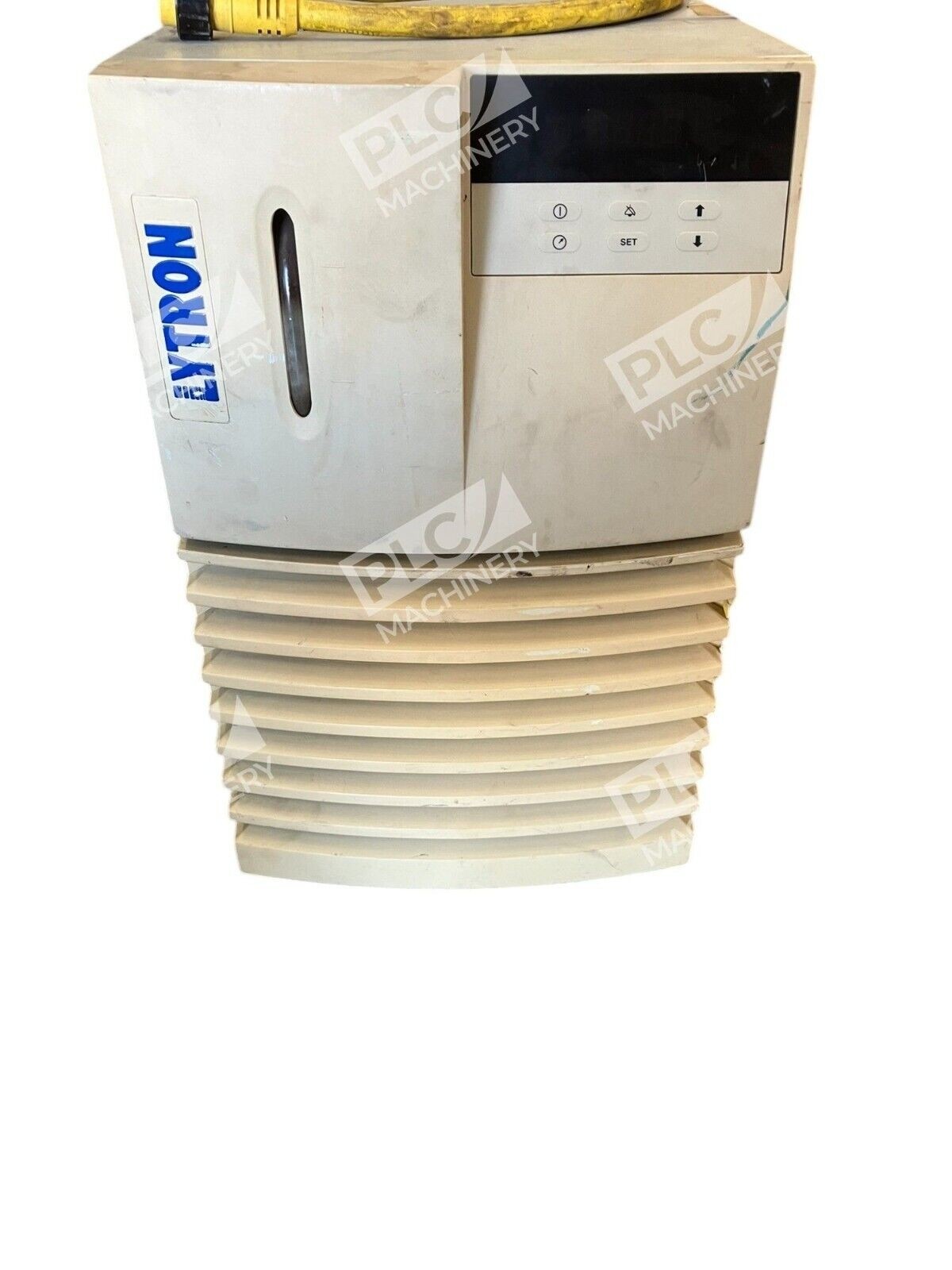

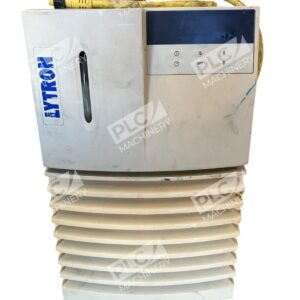

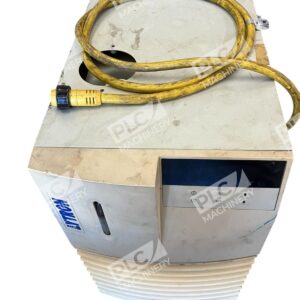

The Lytron RC022J03BB2M065 is a Kodiak-series recirculating chiller engineered for precise temperature regulation in demanding laboratory, medical, and industrial applications. Kodiak recirculating chillers provide precise temperature control or cooling below ambient temperature, with outstanding performance, high reliability, quiet operation and ease-of-use. The J03 electrical configuration delivers single-phase, 10A, 60 Hz power, making it compatible with standard North American facility power.
Key Features
- Microprocessor Temperature Controller: Digital temperature display with 0.1°C setpoint, RS-232 interface, digital pressure sensing, low level, low/high temp fault shutdown, relay contacts, calibration offset, low flow shutoff, auto-restart, °C/°F toggle, and audible alarm with mute.
- Hot-Gas Bypass Control: Employs a hot-gas bypass system for precise temperature control while minimizing compressor wear through continuous operation.
- Integrated Filtration: 5-micron water filter and air filter included.
- External Flow Valve: Manually adjustable globe or ball valve for flow optimization.
- Reliable Cooling Performance: Compressor-based system suitable for 3D printers, lasers, laboratory equipment, medical devices, and semiconductor processing.
Technical Specifications

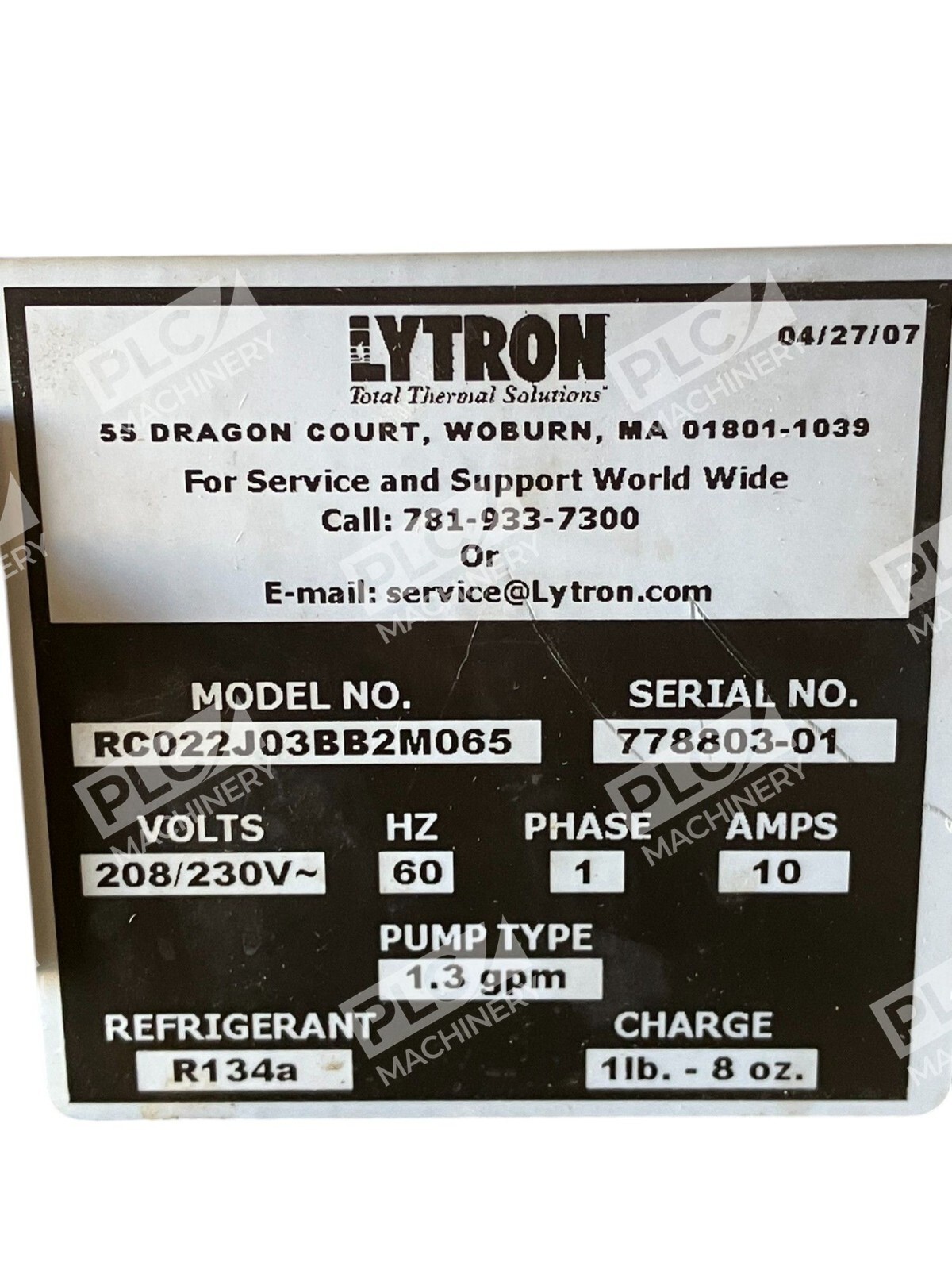

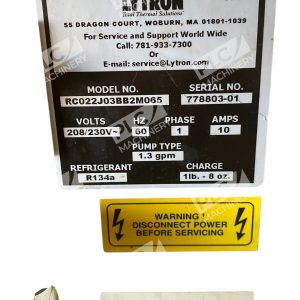

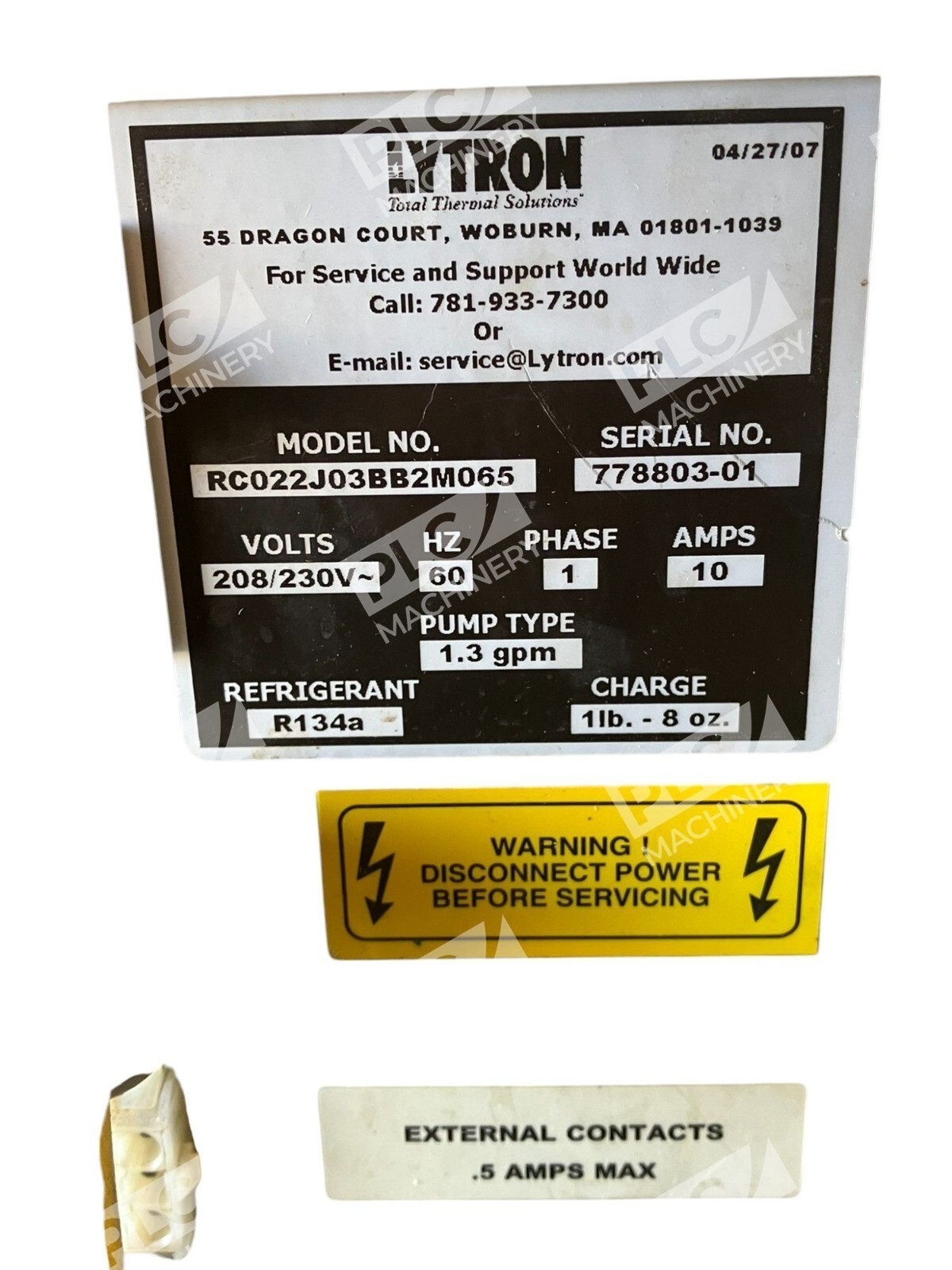

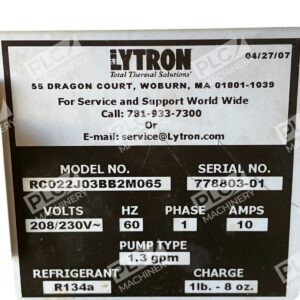

- Electrical Configuration: Single-phase (1Ph), 10A, 60 Hz
- Controller Type: Microprocessor with digital display
- Temperature Setpoint: 0.1°C
- Communication: RS-232 interface
- Water Filter: 5-micron
- Pressure Relief: Factory set at 90 psi (6.2 bar); other settings available upon request
- Pump Type: BB pump (configurable flow rates as low as 0.5 gpm for RC022)
- Cooling Method: Compressor-based with hot-gas bypass control
- Safety Features: Low-level shutdown, low/high temperature fault shutdown, auto-restart capability
Typical Applications
Kodiak recirculating chillers are ideal solutions for 3D printers, lasers, laboratory and medical equipment, semiconductor processing, and general industry applications. The precise ±0.1°C control and robust compressor design make the RC022J03BB2M065 well-suited for:
- Laboratory analytical instruments requiring stable temperature environments
- Medical diagnostic and imaging equipment
- Laser systems and optical testing
- Semiconductor processing and wafer handling
- Industrial process cooling and research applications
Compatibility & Replacements
Compatible With
- Standard North American 120V single-phase 60 Hz electrical systems
- External heat loads with closed-loop coolant circulation
- Custom plumbing systems using brass, stainless steel, or plastic fittings
- Remote start/stop capability via RS-232 interface
Replaces / Drop-In Replacement For
The RC022J03BB2M065 is part of the Lytron Kodiak RC022 platform and may replace other RC022 chillers with J03 electrical configuration. Verify compatibility with your system integrator or Lytron technical support before ordering, as custom configurations and option codes affect interchangeability.
Works With
- RS-232 serial communication for remote monitoring and control
- Standard process cooling fluid (water or approved coolant)
- Closed-loop recirculation systems with BG/CG pump compatibility
- External temperature sensors and interlock devices
