Overview

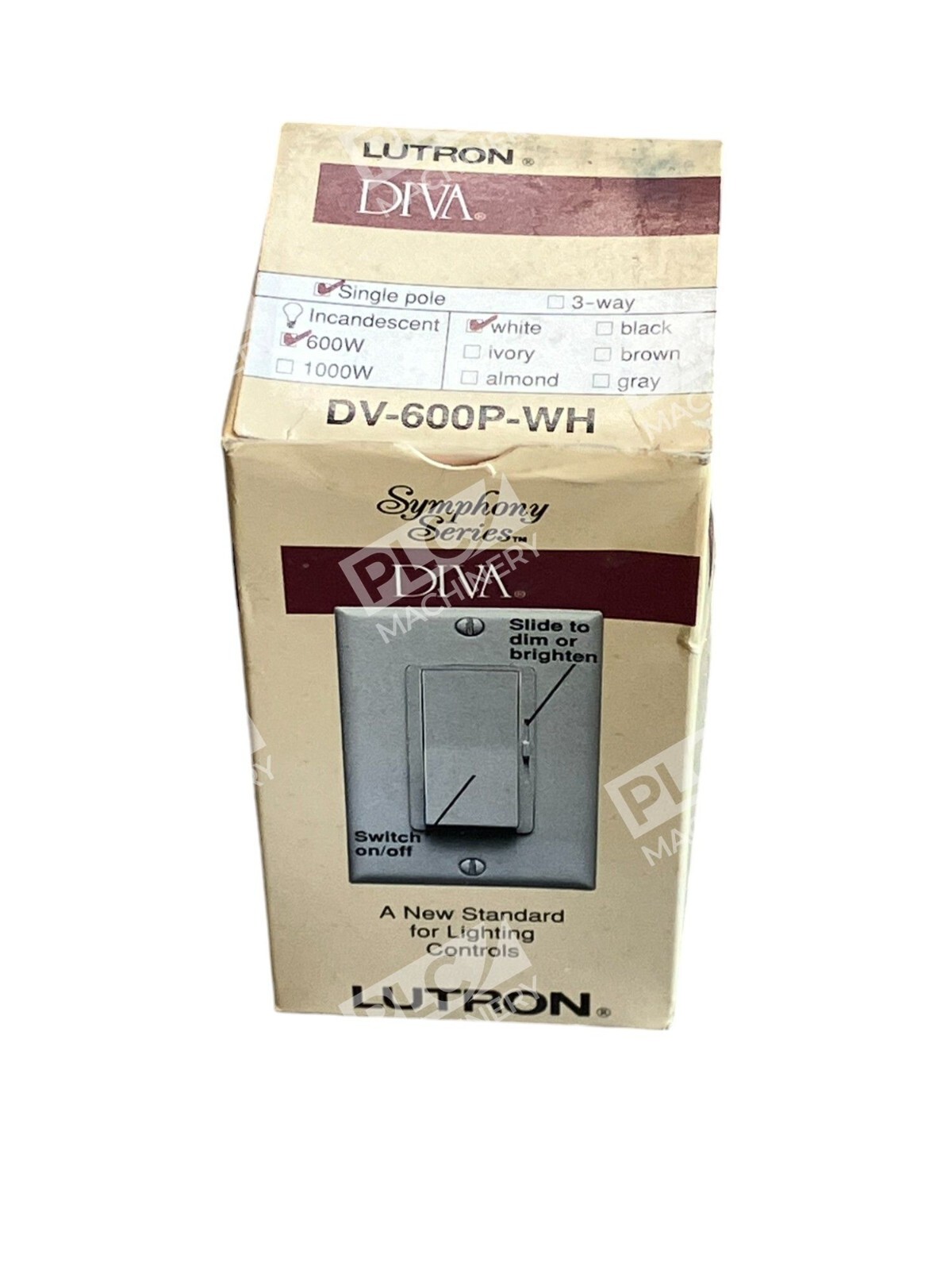

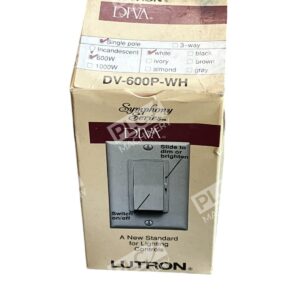

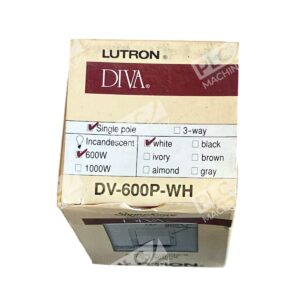

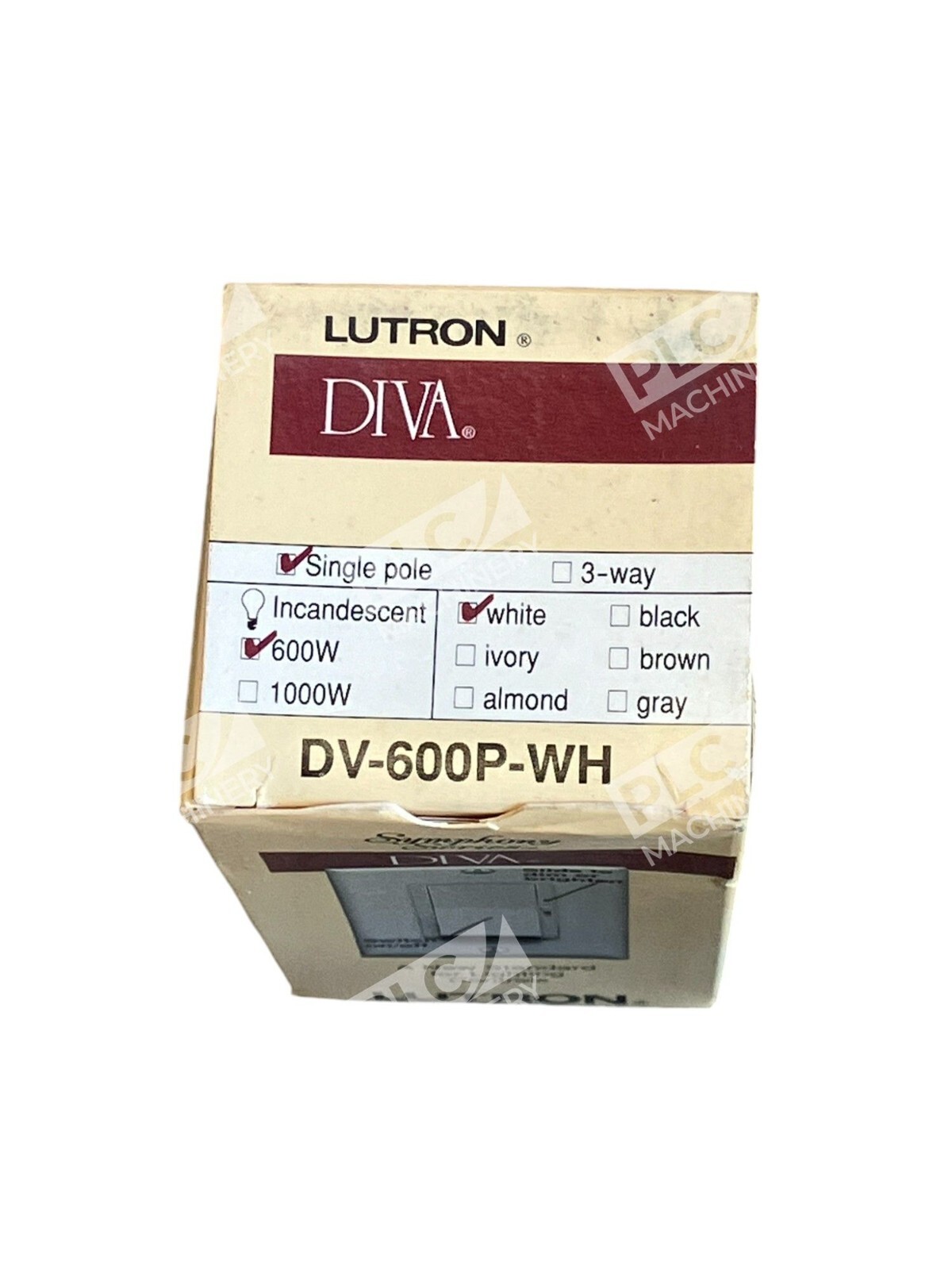

The Lutron DV-600P-WH is a premium single-pole incandescent/halogen dimmer in the Diva series. This wall-mounted control delivers precise fade and hold dimming of up to 600 watts at 120V, 60 Hz. Designed for residential and light commercial applications, the DV-600P-WH combines intuitive paddle-switch operation with advanced protection against voltage surges and power loss, making it a reliable choice for everyday lighting control.
Key Features
- Slide-to-bright/dim operation with preset light level memory
- Soft-glow backlit locator light for nighttime visibility
- Power-failure memory retains light level setting across interruptions
- Surge protection up to 6000V per ANSI/IEEE C62.41-1980 standard
- 100% function tested at manufacture; single-pole configuration only
- White gloss finish; compatible with Lutron Claro wallplates
Technical Specifications
- Voltage: 120 VAC, 60 Hz
- Maximum Load: 600W incandescent/halogen
- Wiring: Push-in wire and screw terminals included
- Actuator: Large paddle switch with linear-slide control
- Enclosure: Durable plastic construction
- Operating Temperature: 0–40°C
- Dimensions: 4.69″ H × 2.94″ W × 1.31″ D
- Color: White (gloss finish)
- Certifications: UL Listed, CSA, NOM approved
- Configuration: Single-pole (3-way and 4-way require separate Claro switches)
Typical Applications
- Residential living rooms, bedrooms, dining areas with incandescent or halogen table and overhead lighting
- Hospitality environments requiring guest room ambient lighting control
- Retail display lighting with incandescent accent lamps
- Home theater and accent lighting for adjustable mood control
Compatibility & Replacements
Compatible With
- 120V, 60 Hz standard residential electrical systems (single-pole only)
- Incandescent and halogen lamps only (not LED-compatible; see DVLV models for magnetic low-voltage)
- Lutron Claro designer wallplates (sold separately)
- Hubble Xcelerator and snap-fit connectors for advanced configurations
Replaces / Drop-In Replacement For
The DV-600P-WH is part of the Lutron Diva family. It does not directly replace other part numbers; verify your application requirements before substituting. For magnetic low-voltage (MLV) and LED applications, Lutron offers the DVLV-600P series instead.
Works With
- Incandescent lamps (A-series, G-series)
- Halogen lamps (line voltage only)
- Standard 120V residential branch circuits with proper neutral wire
- Lutron ecosystem lighting control systems (consult Lutron for integration with networked systems)
