Overview

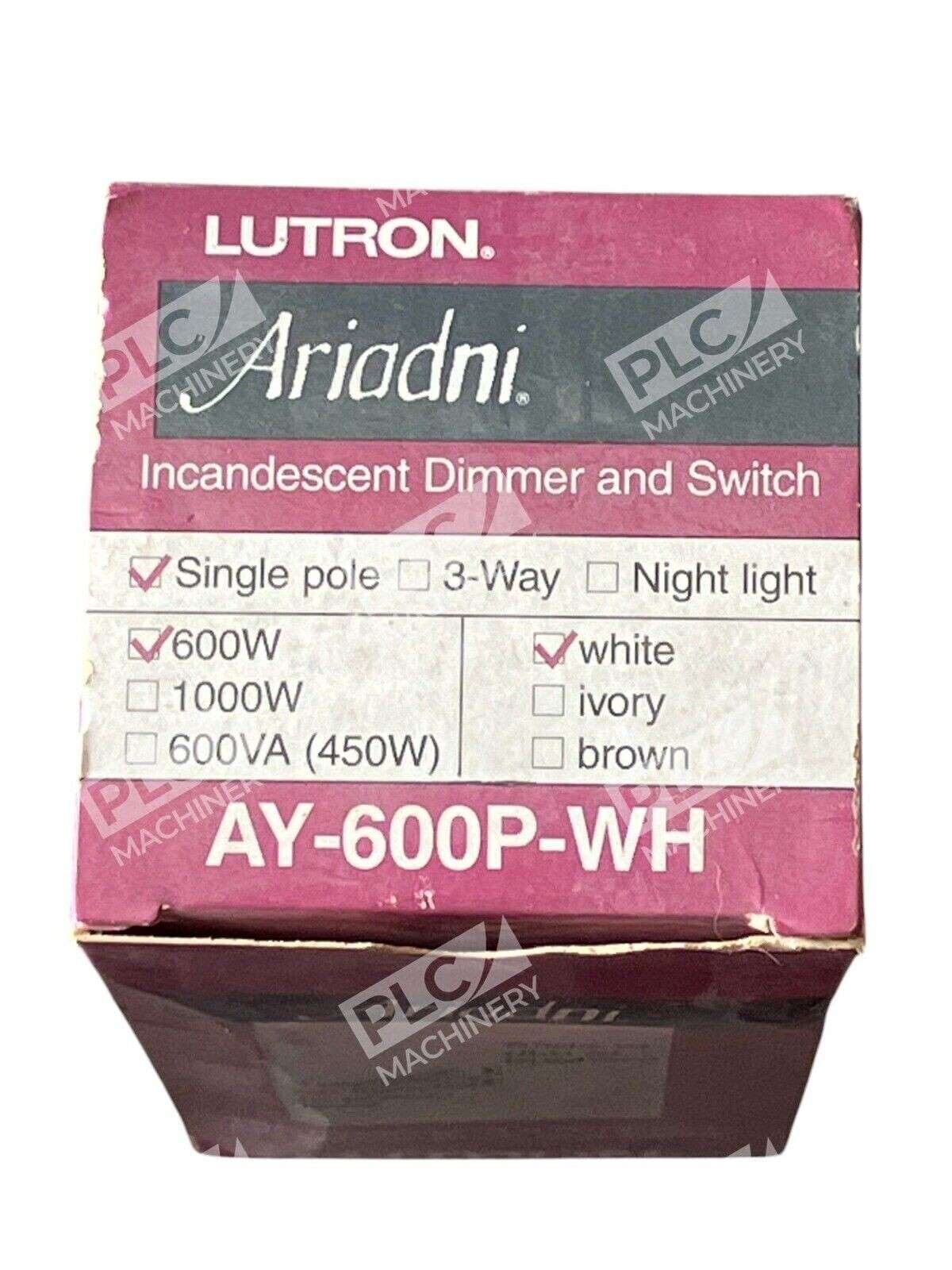

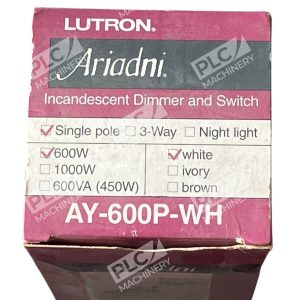

The Lutron AY-600P-WH Ariadni dimmer is a single-pole preset dimmer designed for incandescent and halogen loads up to 600W at 120VAC. This model combines a traditional toggle on/off switch with a small slide dimmer for intuitive brightness control. The shallow 1-inch back cover allows installation into standard electrical boxes without modification, making it an efficient retrofit solution for existing lighting circuits.
Key Features
- Preset Dimming: Toggle switch returns light to a pre-selected brightness level
- Compact Design: Shallow 1-inch back cover for easy installation in tight spaces
- Power Failure Memory: Retains dimmer setting after power interruption
- RFI Suppression: Superior electromagnetic interference filtering for reliable operation
- Multi-gang Compatible: Works with existing traditional wallplates; Fassada plates available separately
- Energy Efficient: Extends incandescent bulb life and reduces energy consumption
Technical Specifications
- Load Type: Incandescent and Halogen
- Voltage Rating: 120 VAC, 60 Hz
- Wattage Capacity: 600W
- Circuit Type: Single Pole
- Operator: Preset Slide with Toggle On/Off Switch
- Enclosure: Plastic
- Back Cover Depth: 1 inch (25.4mm)
- Connection: Screw-type terminals
- Color: Gloss White
- Warranty: 1 Year Limited
Typical Applications
- Residential living rooms and bedrooms requiring adjustable incandescent lighting
- Hallways and entryways with traditional toggle switch aesthetic
- Retrofit installations where shallow mounting depth is required
- Circuits with halogen or standard incandescent bulbs up to 600W
- Properties where preset dimming functionality enhances user convenience
Compatibility & Replacements
Compatible With
- Standard single-pole 120VAC lighting circuits
- Incandescent bulbs (A-19, G-25, PAR, flood, and other medium-base configurations)
- Halogen lamps on standard 120V circuits
- Traditional multi-gang wallplate configurations
- Lutron Fassada wallplate system (sold separately)
Replaces / Drop-In Replacement For
- Other single-pole 600W incandescent dimmers in the Ariadni line
- Standard incandescent dimmer switches requiring preset functionality
- Any dimmer requiring the shallow 1-inch mounting depth profile
Works With
- 120VAC 60 Hz branch circuits only—not compatible with 277V or 3-way circuits
- Incandescent and halogen filament loads; check compatibility for LED or CFL applications
- Traditional residential wiring and junction box configurations
