Overview

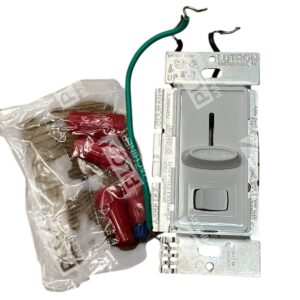

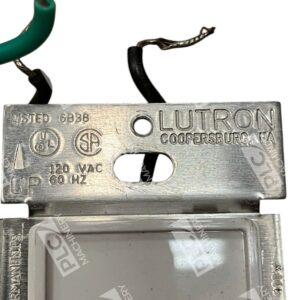

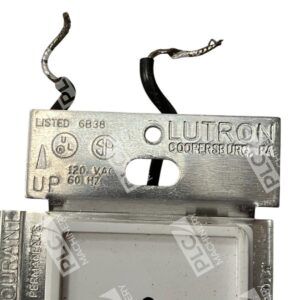

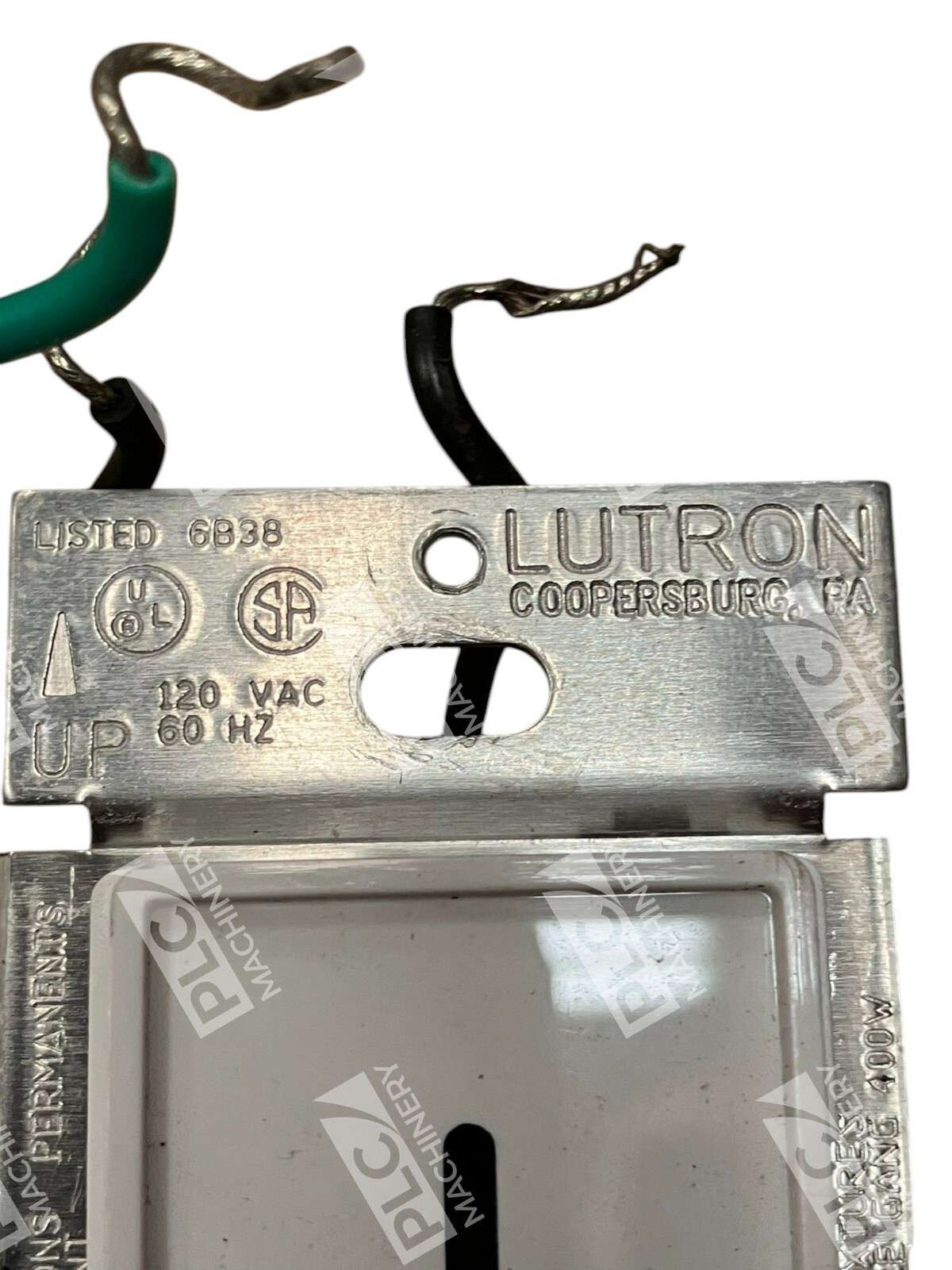

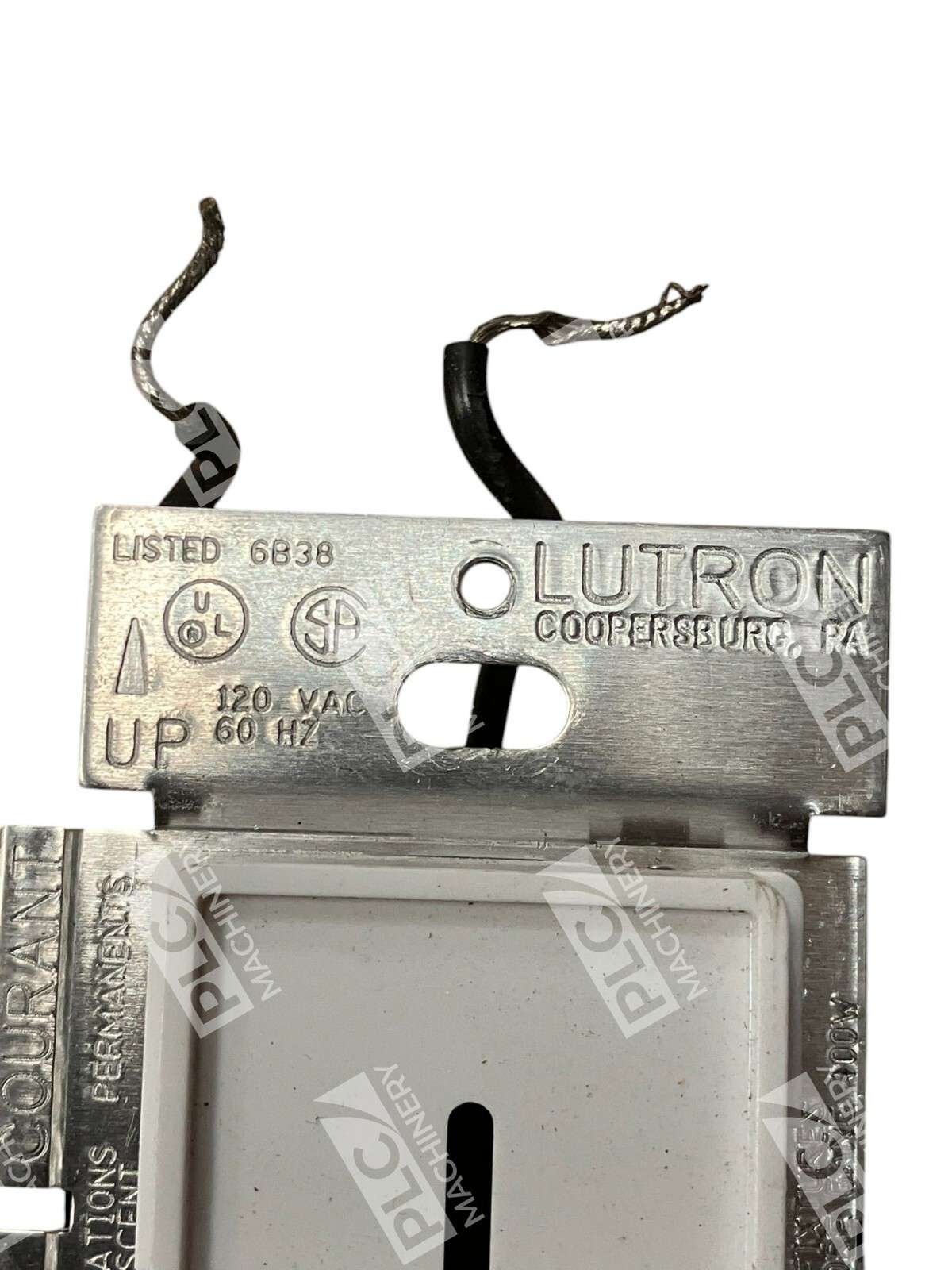

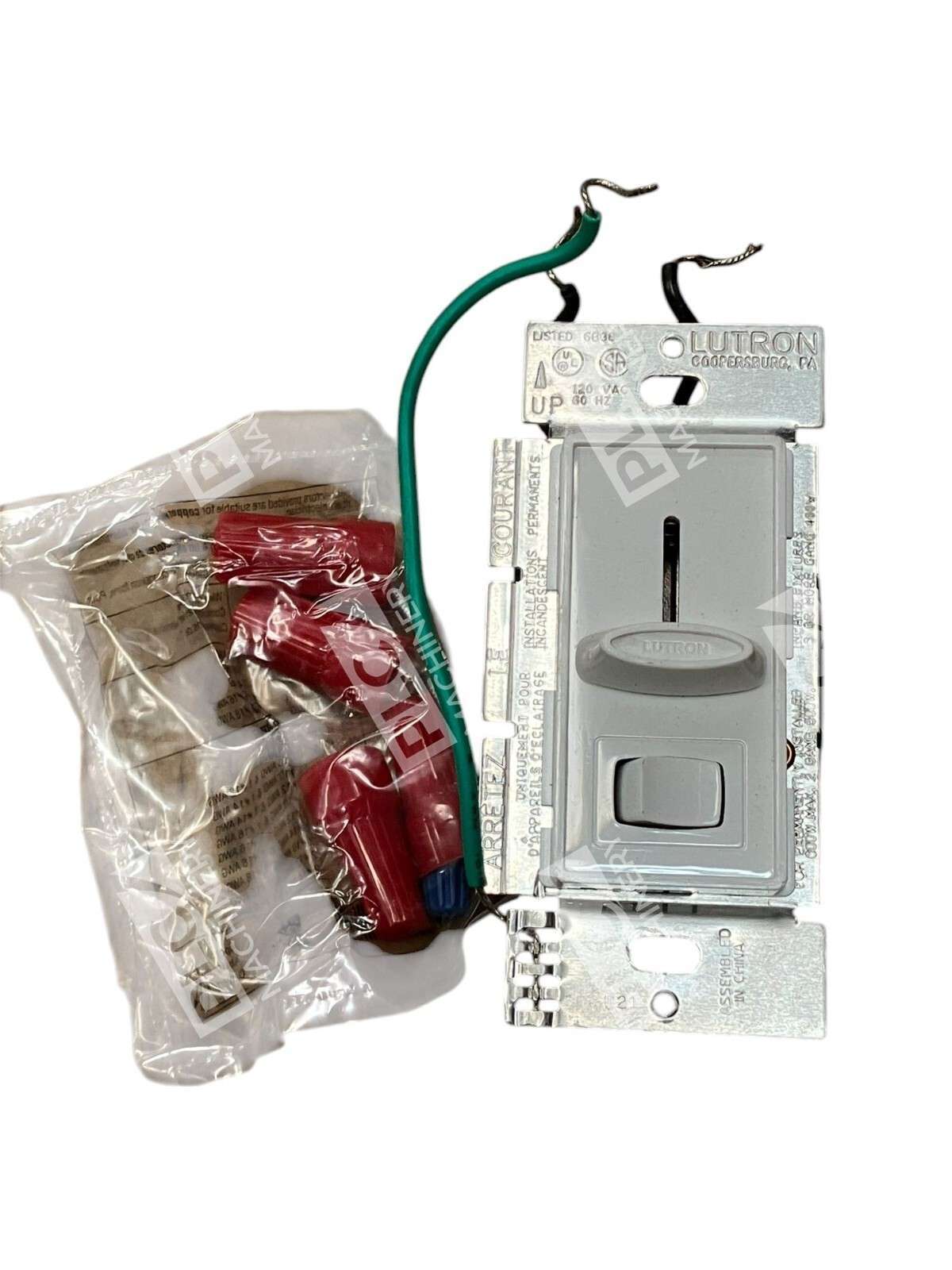

The Lutron 6B38 is a toggle-style dimmer switch designed for 120VAC, 60Hz applications. This single-pole control combines an on/off rocker switch with smooth dimming capability, finished in classic almond color. The 6B38 provides reliable light level adjustment from full off to full brightness for incandescent and compatible LED loads up to 600 watts.
Key Features
- Toggle switch with integrated slide dimmer in one compact unit
- 600-watt maximum load capacity
- Single-pole control—suitable for single-location switch applications
- 120VAC 60Hz rated for North American residential and light commercial use
- Almond finish matches standard decorator wall plates
- Easy manual dimming and on/off operation
Technical Specifications
The following specifications are verified from manufacturer sources and field measurements:
- Input Voltage: 120VAC, 60Hz
- Load Capacity: 600W maximum
- Control Type: Single-pole, toggle switch with slide dimmer
- Finish: Almond
- Mounting: Standard wall box (2 mounting holes, 3¼” center-to-center)
- Dimensions: 1¾” W × 4⅛” H
- Installation: Quick-connect or screw terminals
Typical Applications
The Lutron 6B38 is commonly used in:
- Residential bedroom, living room, and dining lighting control
- Bathroom vanity and ambient lighting dimming
- Kitchen pass-through and accent lighting
- Light commercial spaces with standard wall-switch layouts
- Retrofit installations where single-pole control is required
Compatibility & Replacements
Compatible With
- Standard 2-wire and 3-wire residential circuits (single-pole and 3-way configurations with appropriate neutral)
- Incandescent and halogen lamps up to 600W
- LED bulbs rated as compatible with standard dimmers
- Standard US wall boxes and decorator-style wall plates
Replaces / Drop-In Replacement For
Verify compatibility with your electrician or system integrator before ordering, as dimmer interchangeability depends on circuit wiring configuration (single-pole vs. 3-way) and load type. The 6B38 is a direct replacement for other Lutron toggle dimmer models with identical footprint and 600W rating.
Works With
- Standard 120VAC residential electrical service
- Incandescent, halogen, and LED-compatible lighting loads
- Decorative wall plates matching standard opening dimensions
- Traditional 2-wire, 3-wire, and neutral-return circuits
