Overview

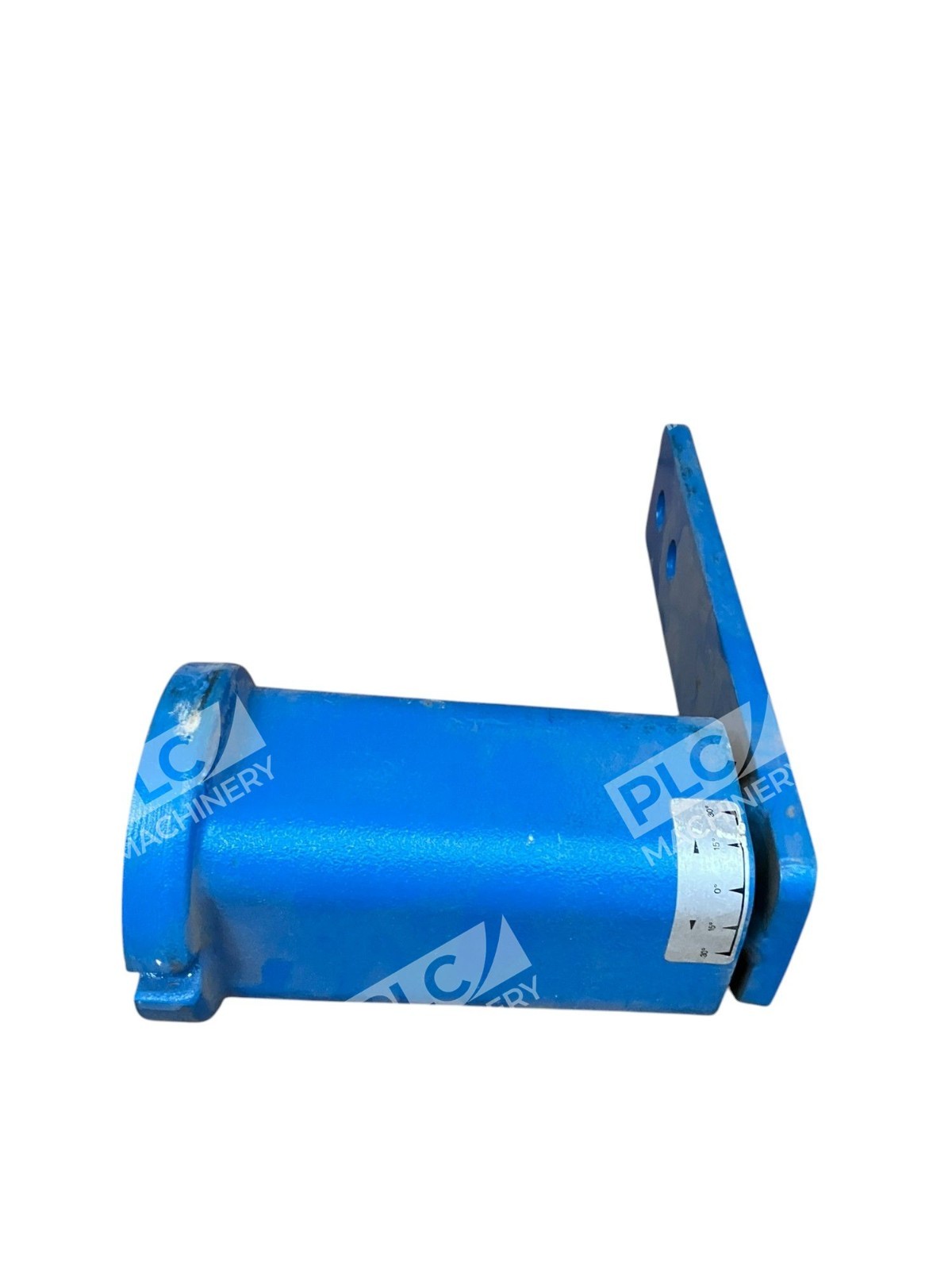

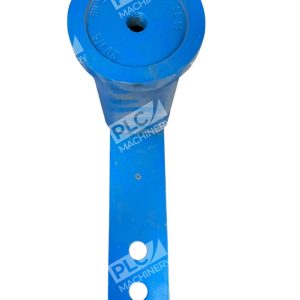

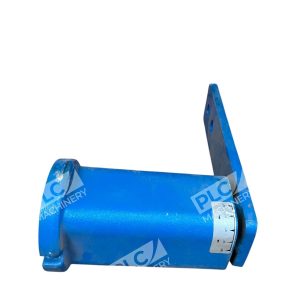

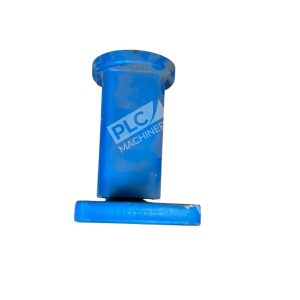

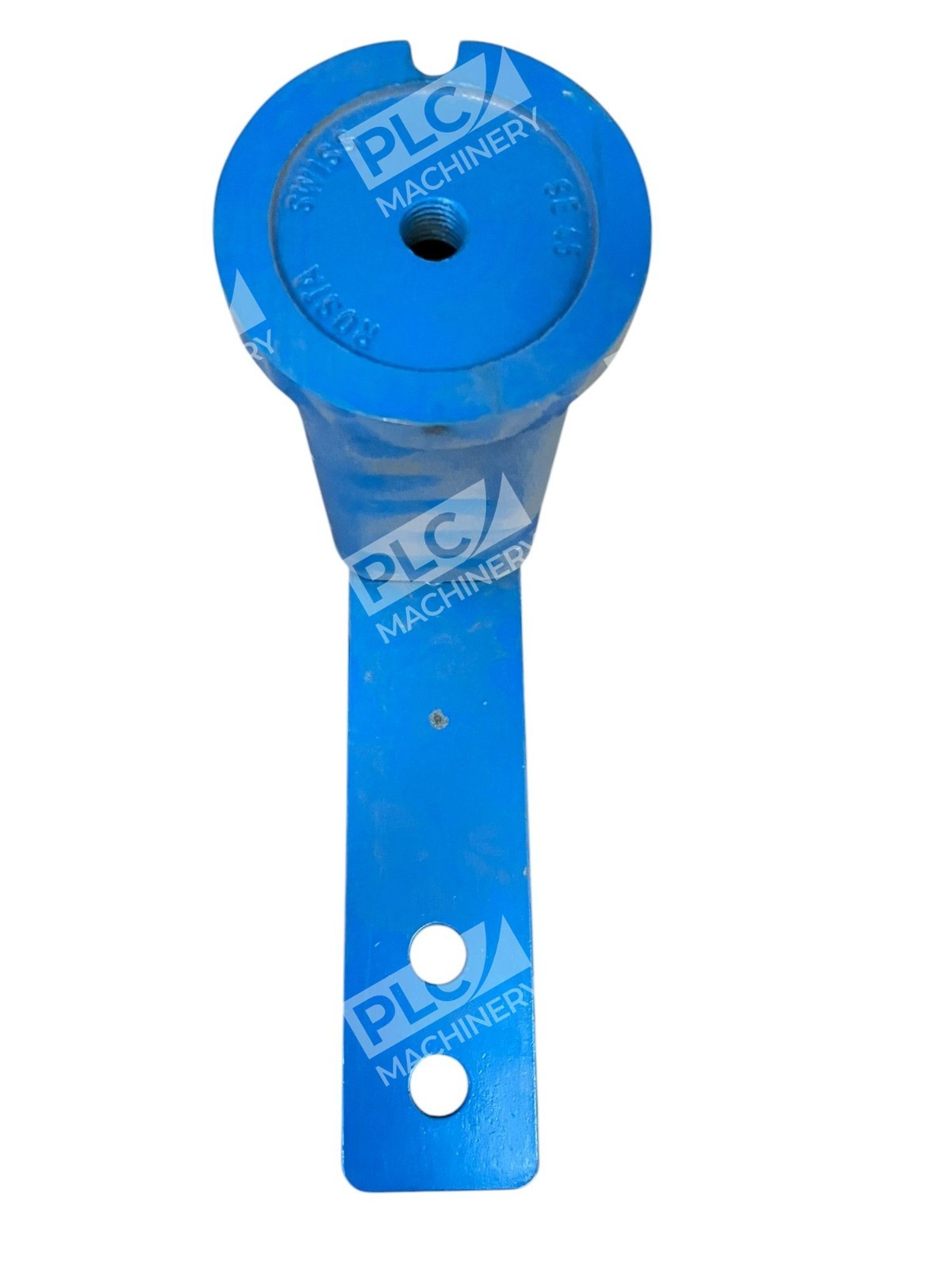

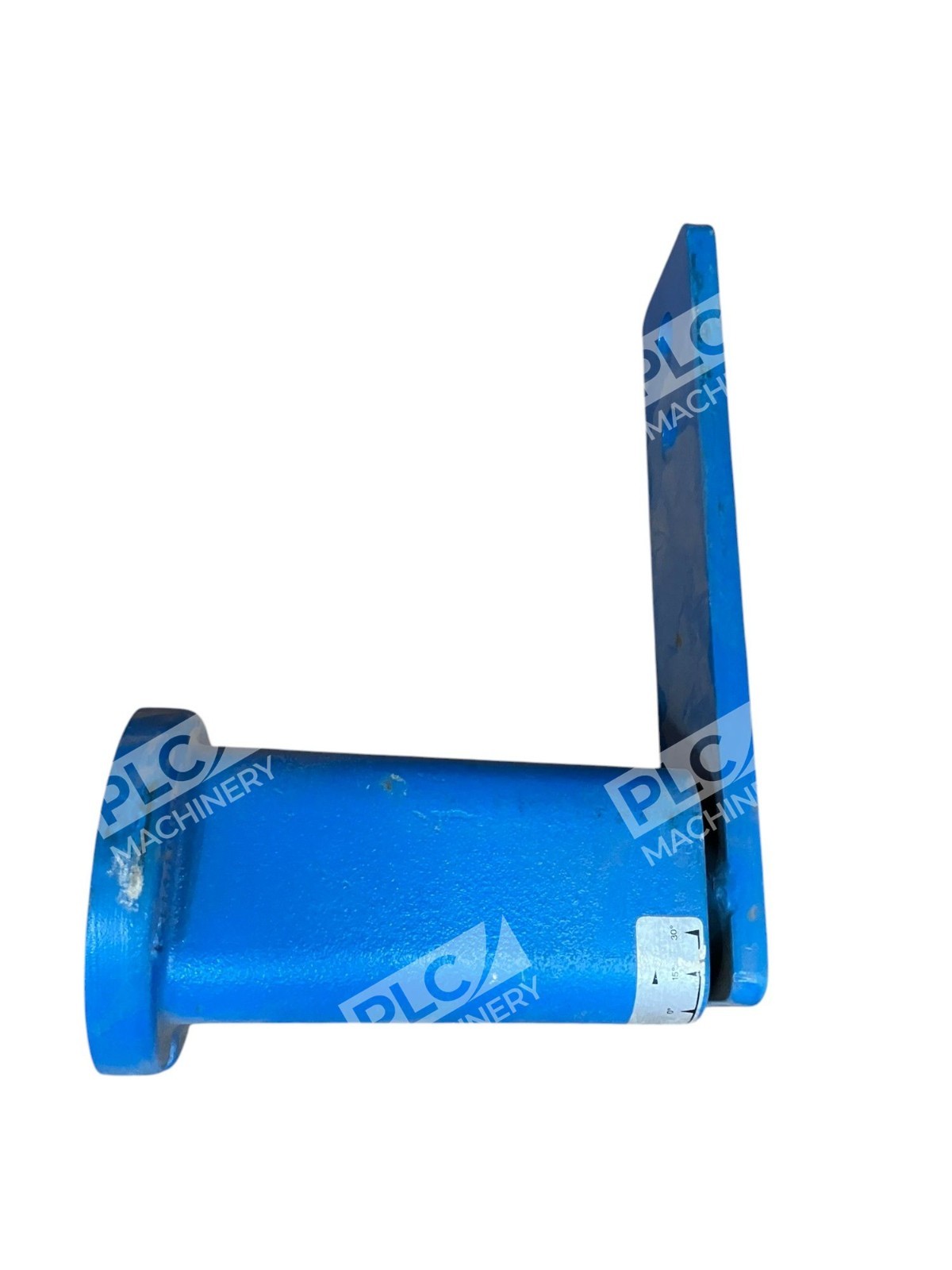

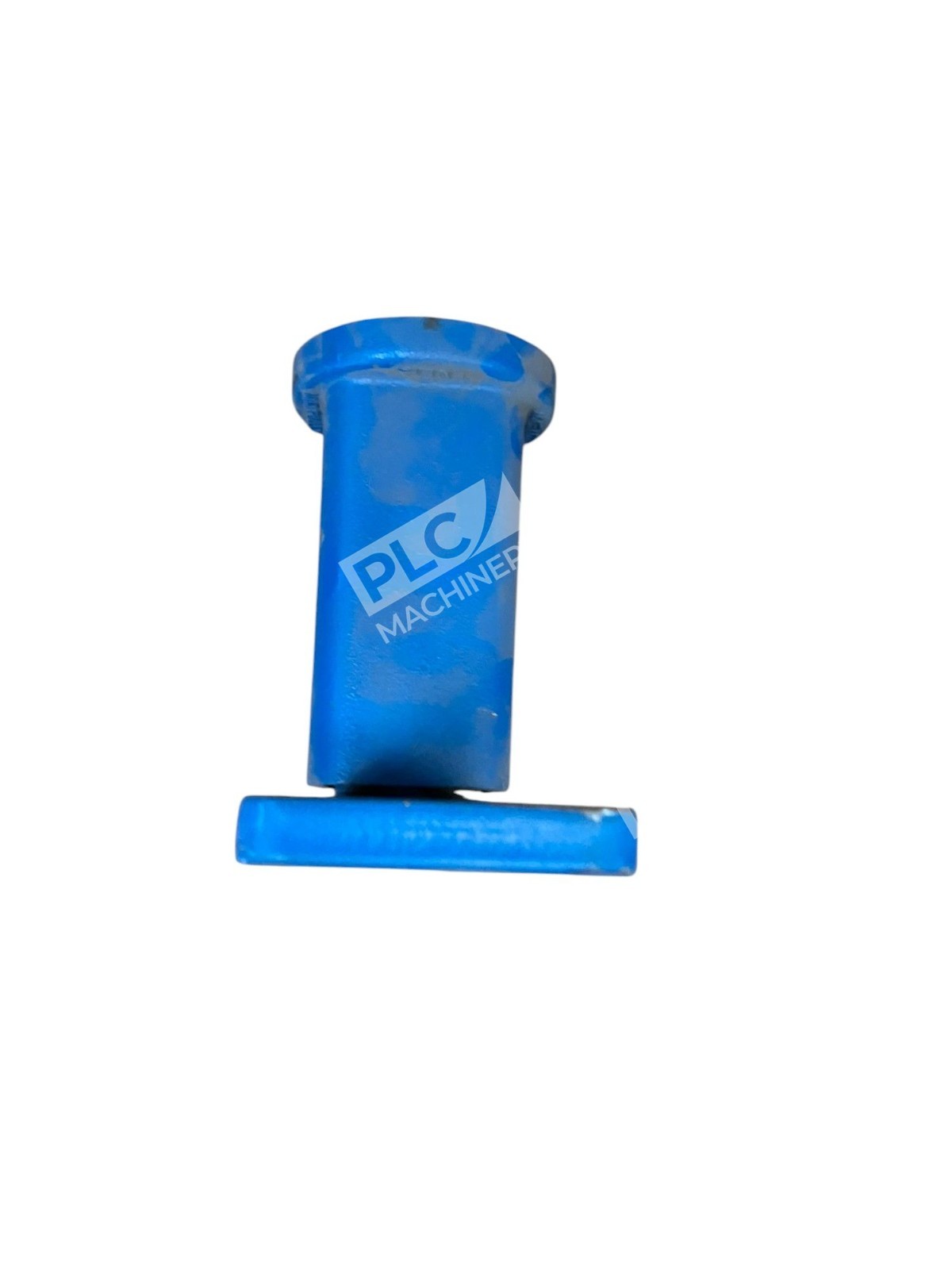

The Lovejoy ROSTA 17456 SE 45 elastomeric tensioner is a take-up idler for restoring elongated chain or belt tension to original specifications and preventing uneven drive surges and power loss. Self-adjusting and maintenance-free, this tensioner accommodates wear in drive systems without manual adjustment, making it ideal for industrial machinery that runs continuously or intermittently.
Key Features
- Self-Adjusting Design: Automatically compensates for belt or chain stretch without manual intervention
- Elastomeric Inserts: Four elastomeric elements absorb shock and vibration, extending drive component life
- Maintenance-Free Operation: Sintered iron housing with steel arm resists mud, dirt, water, and sunlight
- 360-Degree Mounting Flexibility: Tensioning arm deflects up to 30 degrees either side of neutral position; mounts at any angle

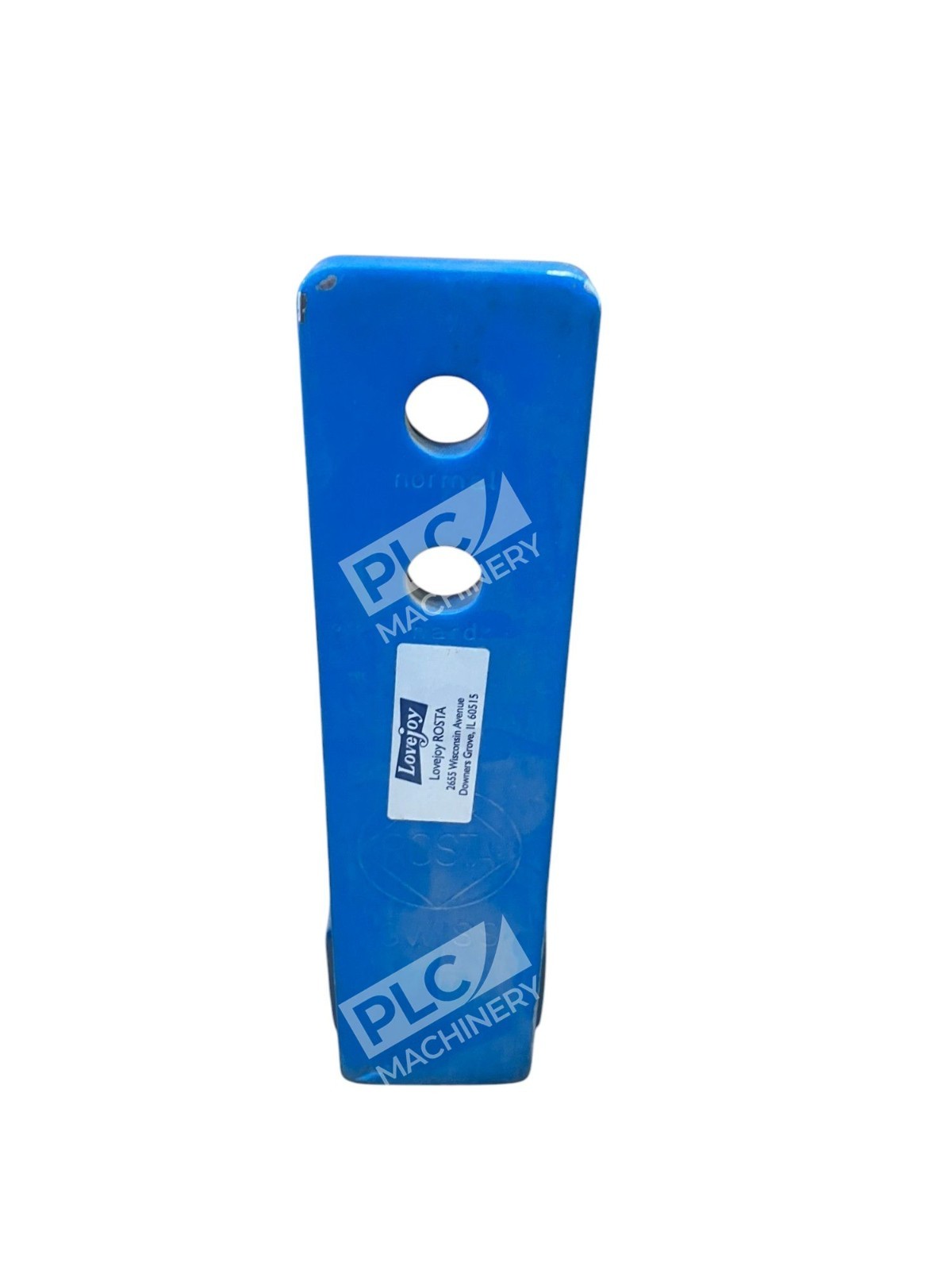

- Dual Force Levels: Two-hole arm design enables two levels of clamping force for application-specific tuning
Technical Specifications
- Part Number: 17456
- Model Series: ROSTA SE 45
- Housing Material: Sintered iron
- Arm Material: Steel
- Elastomeric Inserts: 4 elastomeric elements for vibration absorption
- Deflection Range: 30 degrees either side of neutral
- Operating Temperature Range: −40° to 180° F (−40° to 80° C)
- Suitable For: A, B, and 3L V-belts; roller and silent chains
- Environmental Resistance: Unaffected by mud, dirt, water, and UV sunlight
Typical Applications
- Industrial conveyor systems requiring constant tension maintenance
- Textile machinery and processing equipment
- Food processing and packaging lines
- Pump and fan drive systems in HVAC applications
- Compressor and air handling unit belt drives
- Chemical and manufacturing processes requiring corrosion resistance
Compatibility & Replacements
Compatible With
- A, B, and 3L V-belt drive systems
- Roller and silent chain drive systems
- Industrial machinery requiring belt or chain tension adjustment
- Standard idler pulley mounting provisions
Replaces / Drop-In Replacement For
- SE-45 series tensioner applications
- Generic belt tensioner take-up idler positions
- Worn or ineffective elastomeric tensioning systems
Works With
- Lovejoy ROSTA idler pulleys and rollers
- Standard industrial belt and chain drive systems
- Mounting hardware and fastening systems for industrial equipment
