Overview

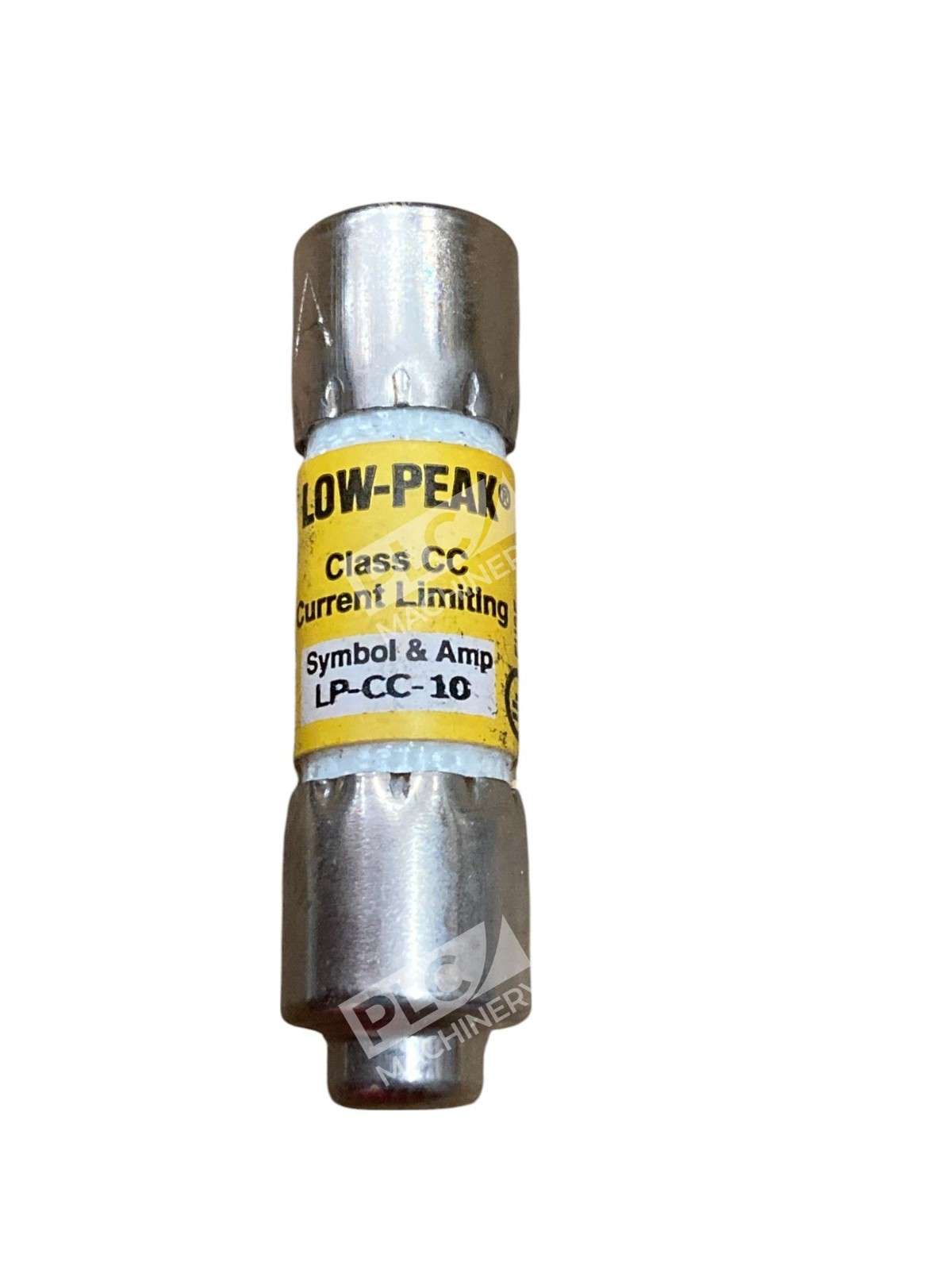

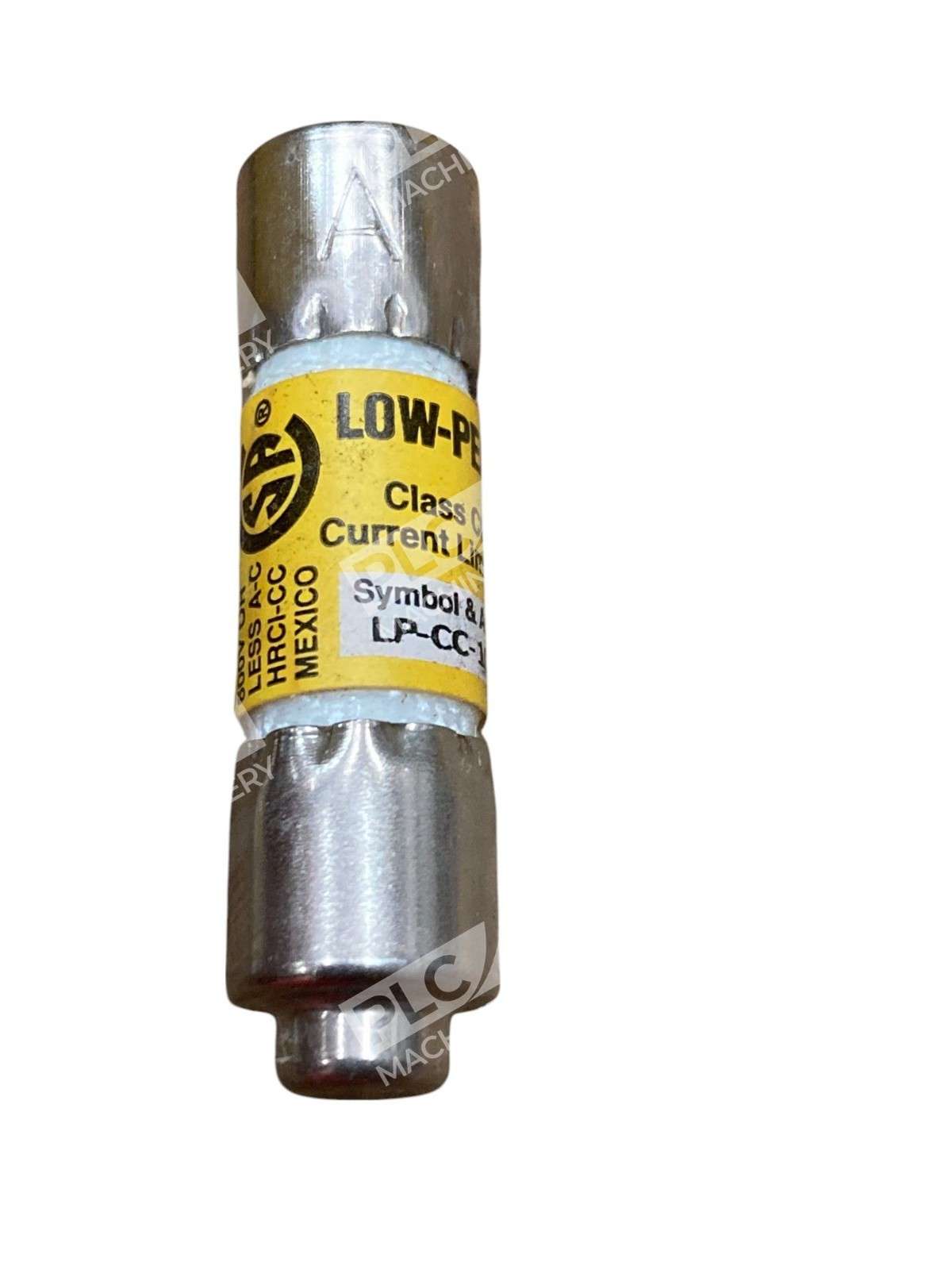

The Bussmann LP-CC-10 is a 10 amp, 600 volt, Class CC time-delay current-limiting fuse manufactured by Eaton Bussmann. This lot contains 9 units of the standard rejection-style cartridge fuse. A superior, all-purpose, space-saving branch circuit fuse that meets most protection requirements up to 30 A, these fuses are widely used in industrial control panels, motor circuits, and small horsepower equipment protection.
Key Features
- Dual-element design with a 12 second time delay at 200% rated current
- Interrupt rating of 200 kA at 600 Vac and 20 kA at 150 Vdc, making it suitable for industrial control and small horsepower motor circuits
- Class CC fuses are branch circuit fuses designed with a rejection feature to prevent the wrong fuse from being inserted in the fuse holder
- The unique yellow color makes it easy to tell that the correct fuse type is installed
- As a current limiting fuse, it reduces the magnitude of the current flowing through it during a short-circuit or other overcurrent event. This limits the potential damage to the electrical system and connected equipment
Technical Specifications
- Amperage Rating: 10 A
- Voltage Rating: 600 VAC / 150 VDC
- Class: CC
- Response Type: Time-Delay
- Time Delay: 12 seconds at 200% rated current
- Interrupt Rating: 200 kA at 600 VAC, 20 kA at 150 VDC
- Mounting Style: Rejection (ferrule end)
- Body Material: Melamine tube with dual-element design
- Physical Dimensions: 13/32″ diameter × 1-1/2″ length (10.3 × 38.1 mm)
- Color: Yellow
- Certifications: UL Listed, CSA Certified, CE Marked, and RoHS Compliant

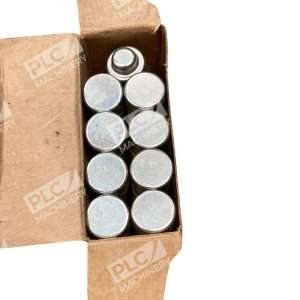

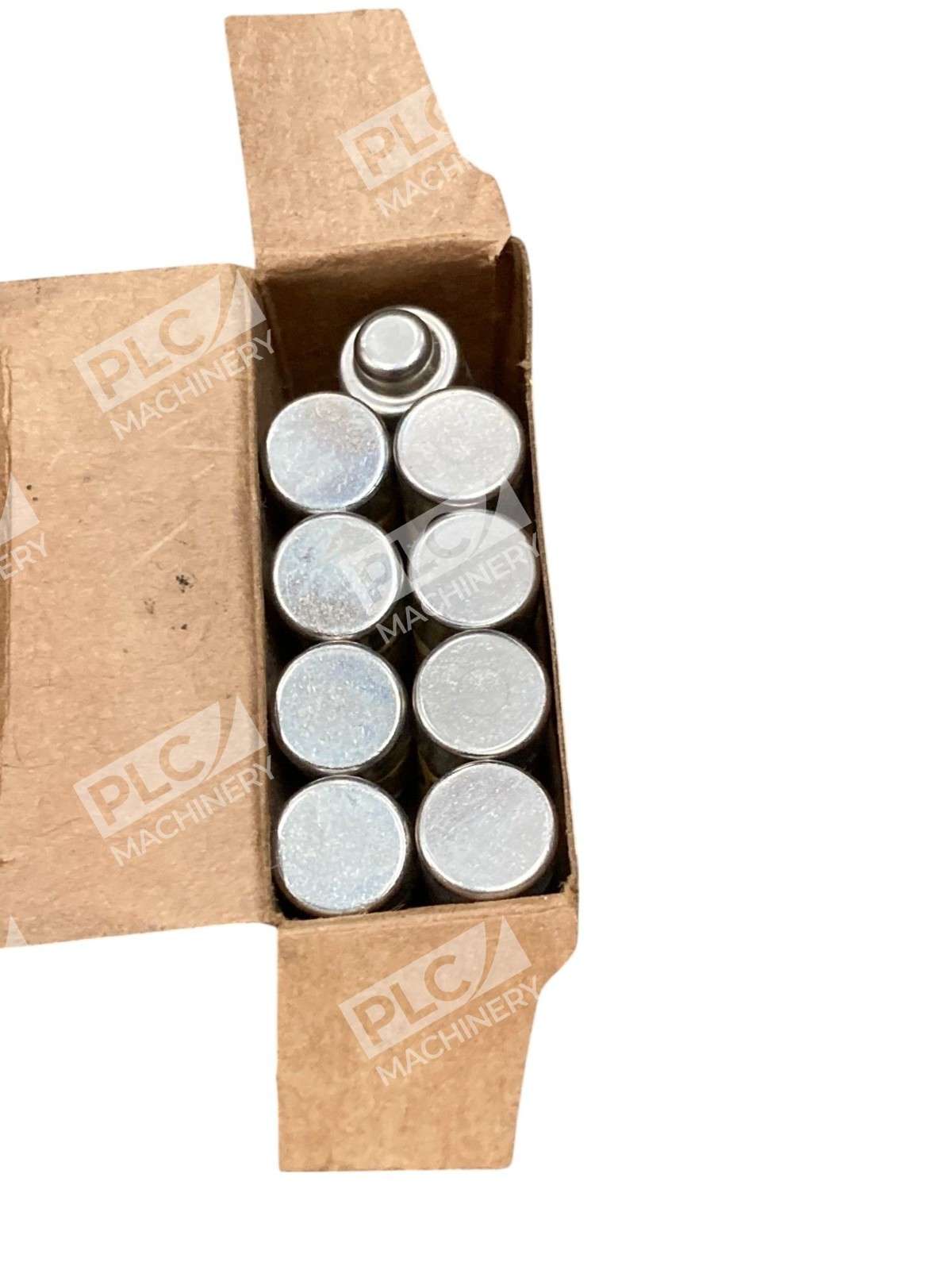

- Quantity: 9 fuses per lot
Typical Applications
Branch circuit protection, specialized circuits, small control transformers, for line protection, in industrial controls and control panels, and in isolated, in-line fuse holders. The time-delay characteristic makes the LP-CC-10 ideal for circuits where momentary inrush currents occur, such as motor starting circuits and transformer primary protection.
Compatibility & Replacements
Compatible With
- Class CC fuse holders with rejection style acceptance
- Industrial control panel circuits rated 600 VAC or 150 VDC
- Small horsepower motor control circuits (NEMA and IEC motor controllers)
- Control transformer primary protection circuits
- Electrical equipment requiring 10A branch circuit protection
Replaces / Drop-In Replacement For
Substitute parts include Littelfuse CCMR and Mersen ATDR. Verify exact compatibility with your specific fuse holder and application before ordering, as Class CC rejection features require compatible fuse blocks.
Works With
- Class CC fuse blocks and holders (rejection style)
- NEMA control transformers
- IEC motor controllers
- Small motor circuits
- Industrial control systems requiring 600V circuit protection
