Overview

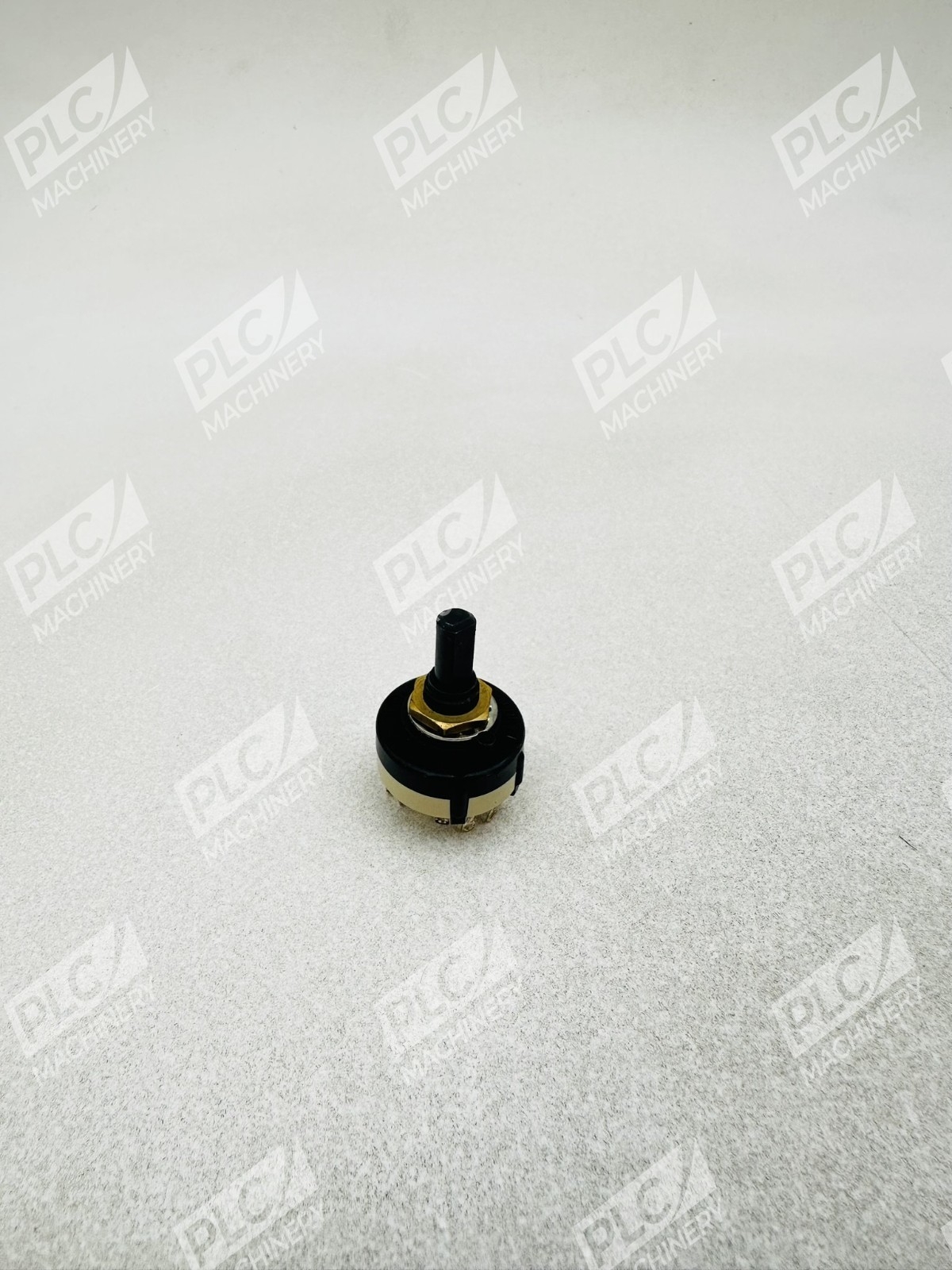

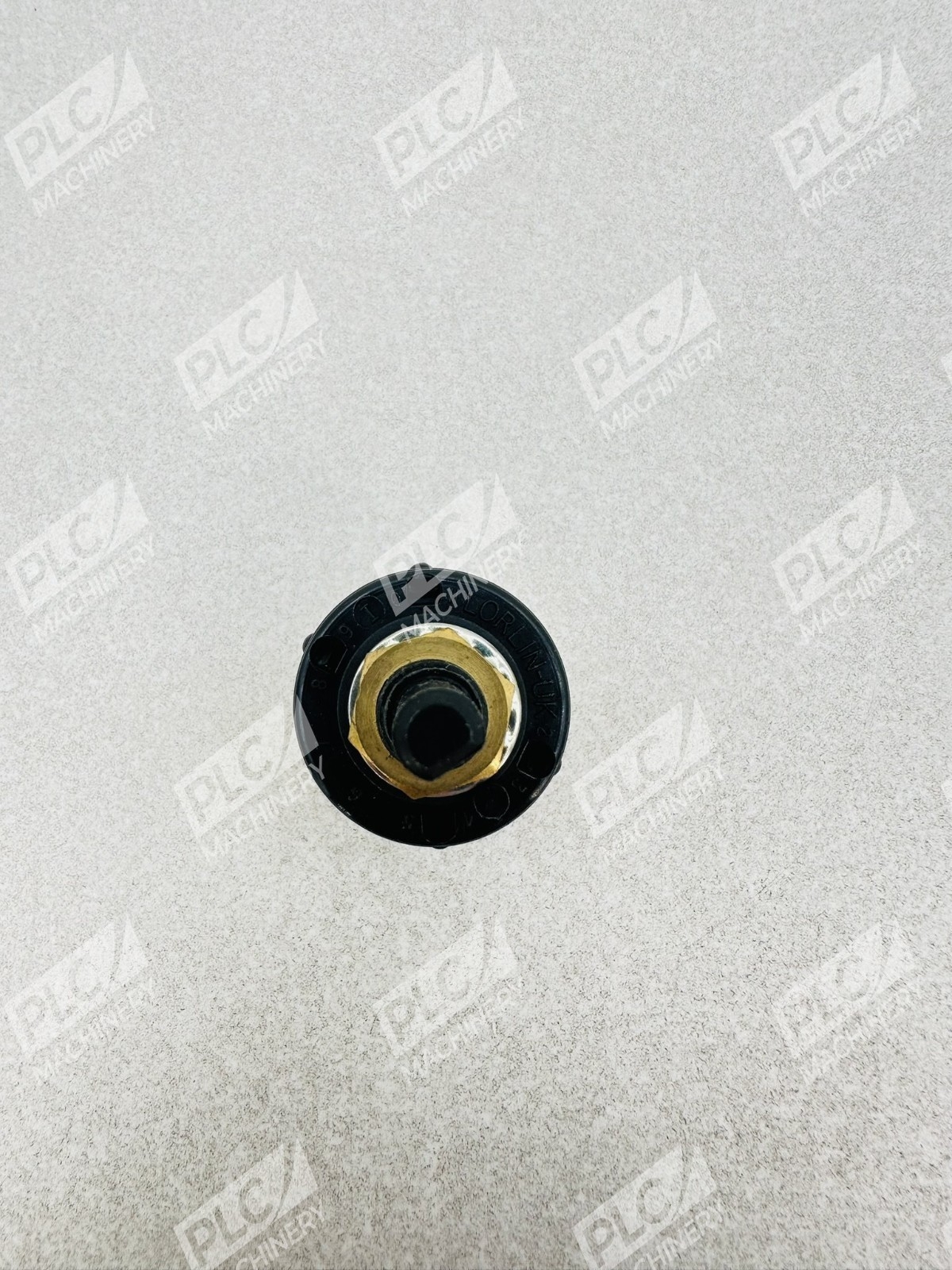

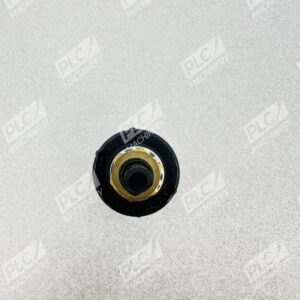

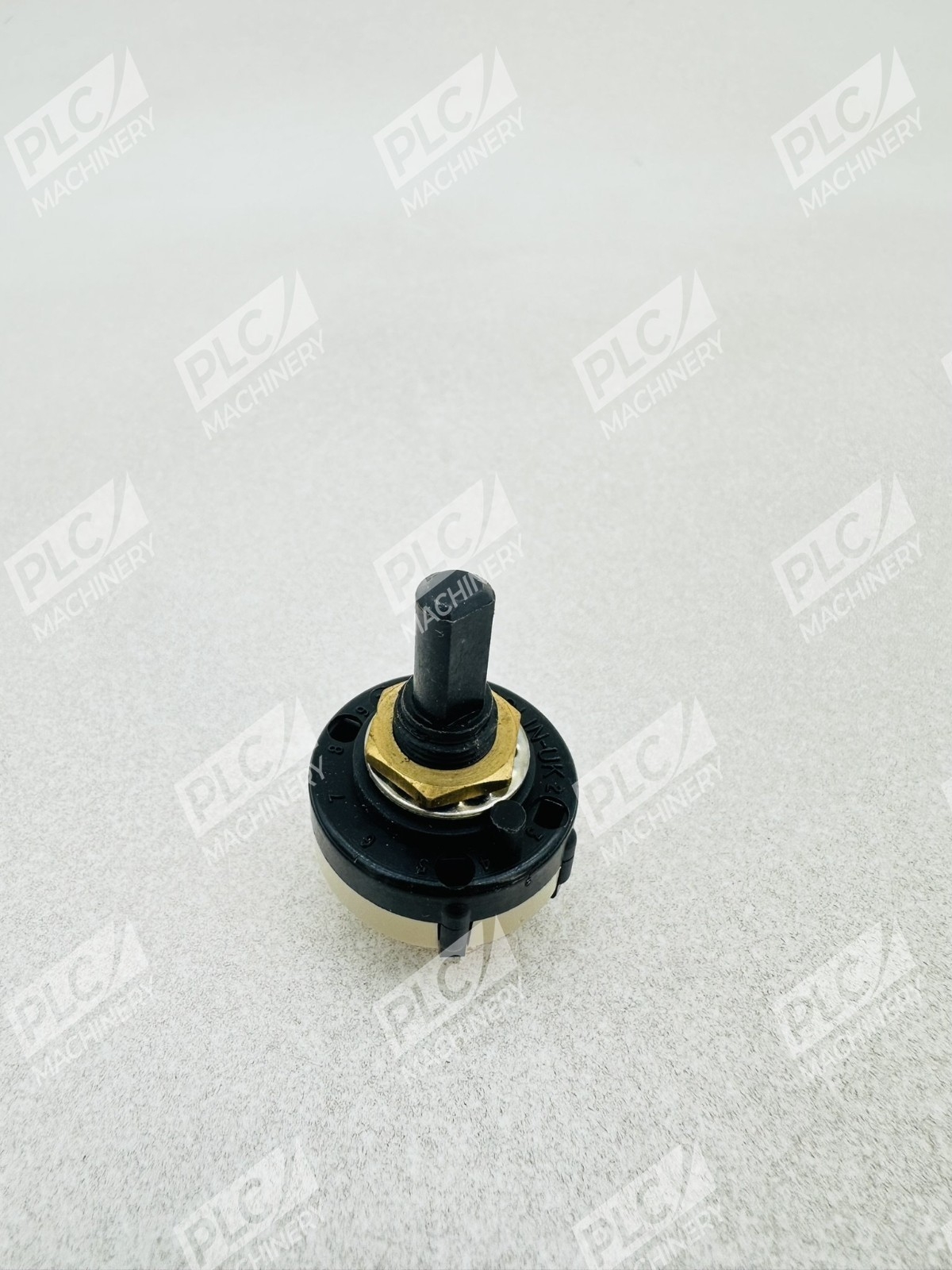

The Lorlin-UK 6 position 2 pole rotary switch is a precision selector component designed for industrial control, audio equipment, medical devices, and networking applications. The CK series offers 2-pole 6-position configuration with adjustable stop to restrict positions and shorting or non-shorting contact options with brass alloy contacts and silver-plated terminals. Each unit features 30° indexing for positive, detent-style operation. This lot includes 9 units, providing cost-effective inventory for system integrators and maintenance operations.
Key Features
- Adjustable stop to restrict number of positions or allow continuous rotation
- Shorting (make-before-break) or non-shorting contact options with brass alloy and silver-plated construction
- 30° standard indexing for smooth, tactile operation
- PCB terminal with silver-plated finish for soldering or direct mounting
- Suitable for audio, industrial, medical, communications, networking, automotive, and automation applications
- UL-V0 rated polymer housing available on select models
Technical Specifications
- Poles: 2
- Positions: 6
- Indexing: 30° standard
- Contact Type: Brass alloy with silver-plated terminals
- Contact Rating: 150 mA, 250 V
- Terminal Type: PCB mount
- Material: Polyamide 6.6 (glass-filled available)
- Operating Temperature: -30°C to +85°C
- Quantity: Lot of 9 units
- Condition: New, no original box
Typical Applications
- Audio equipment selector switches and input/output routing
- Industrial control systems and mode selection
- Medical device configuration and function selection
- Networking and communications equipment switching
- Low-power automation and process control circuits
Compatibility & Replacements
Compatible With
- PCB-mounted selector circuits
- Low-voltage control systems (up to 250 V)
- Industrial automation panels and enclosures
- Audio distribution amplifiers and signal routing
- Medical device user interfaces
Replaces / Drop-In Replacement For
- Lorlin CK1030, CK1035, CK1050, CK1060 (model-specific compatibility)
- Generic 6-position 2-pole rotary selector switches
- Legacy selector switches requiring 30° indexing and 250V operation
Works With
- PCB assembly and hand-wired control circuits
- Industrial relay panels and terminal blocks
- DIN rail-mounted enclosures and control cabinets
- Audio crossover networks and vacuum tube equipment
