Overview

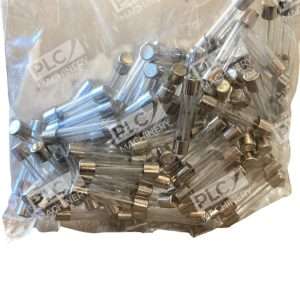

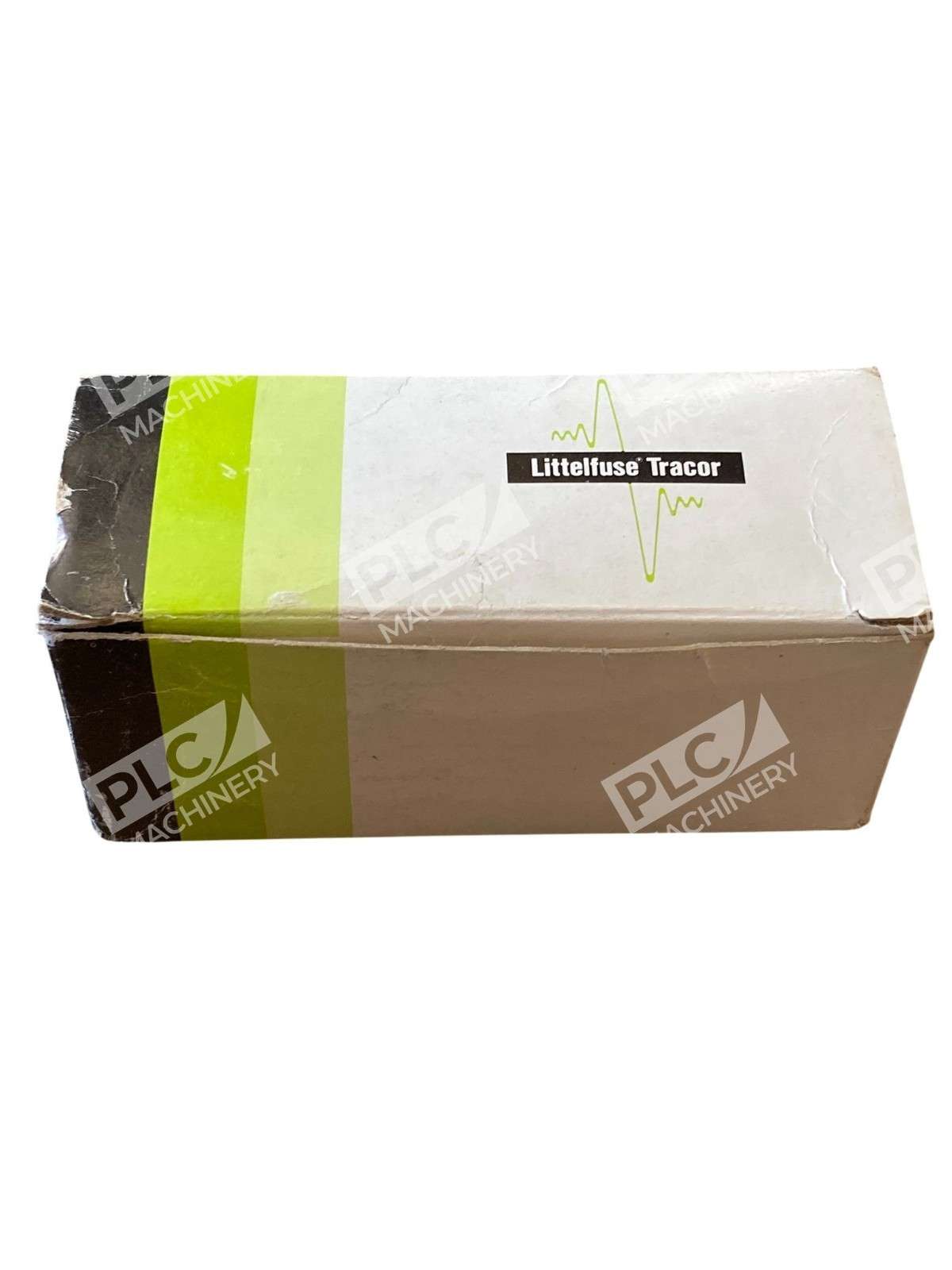

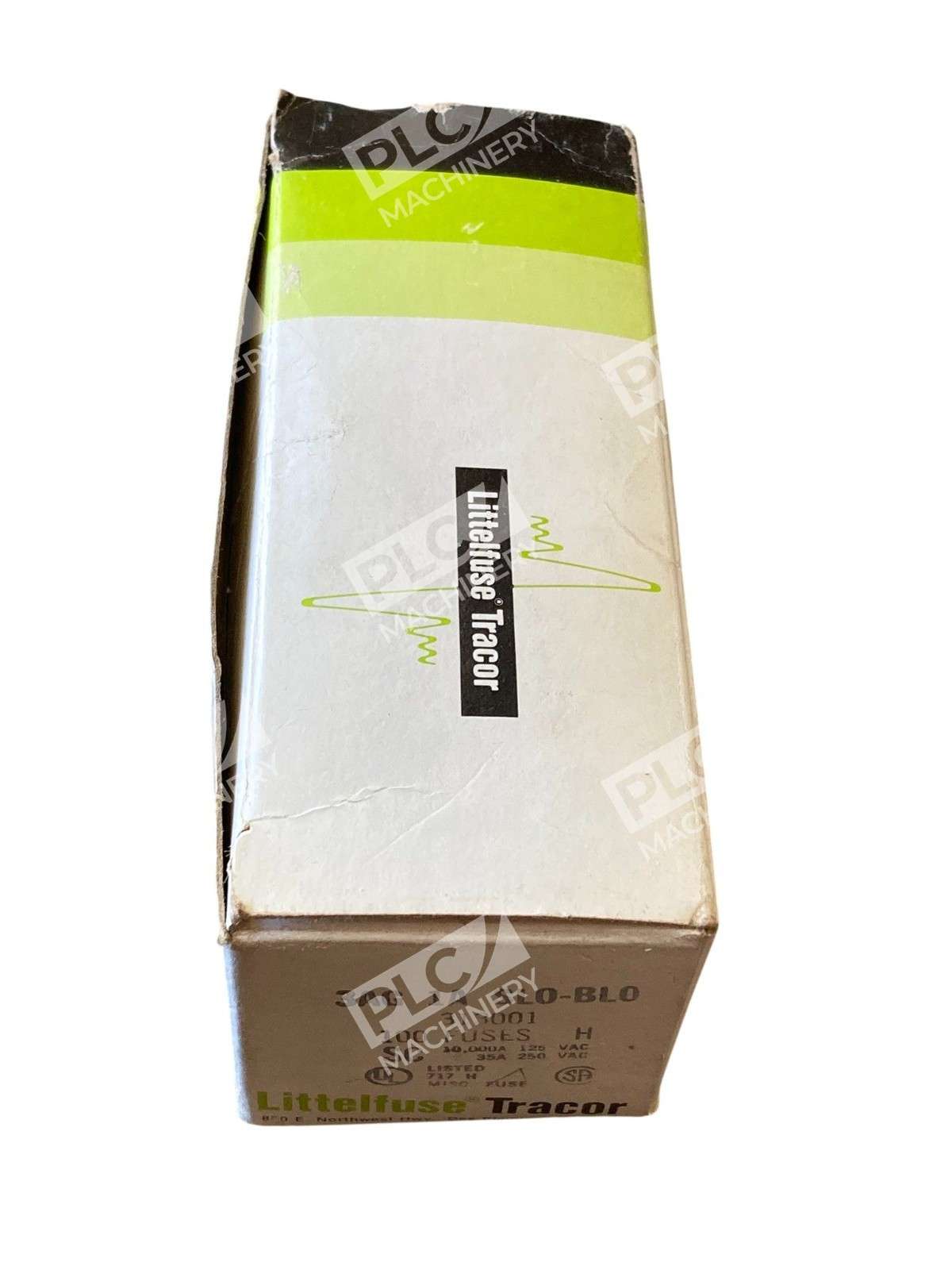

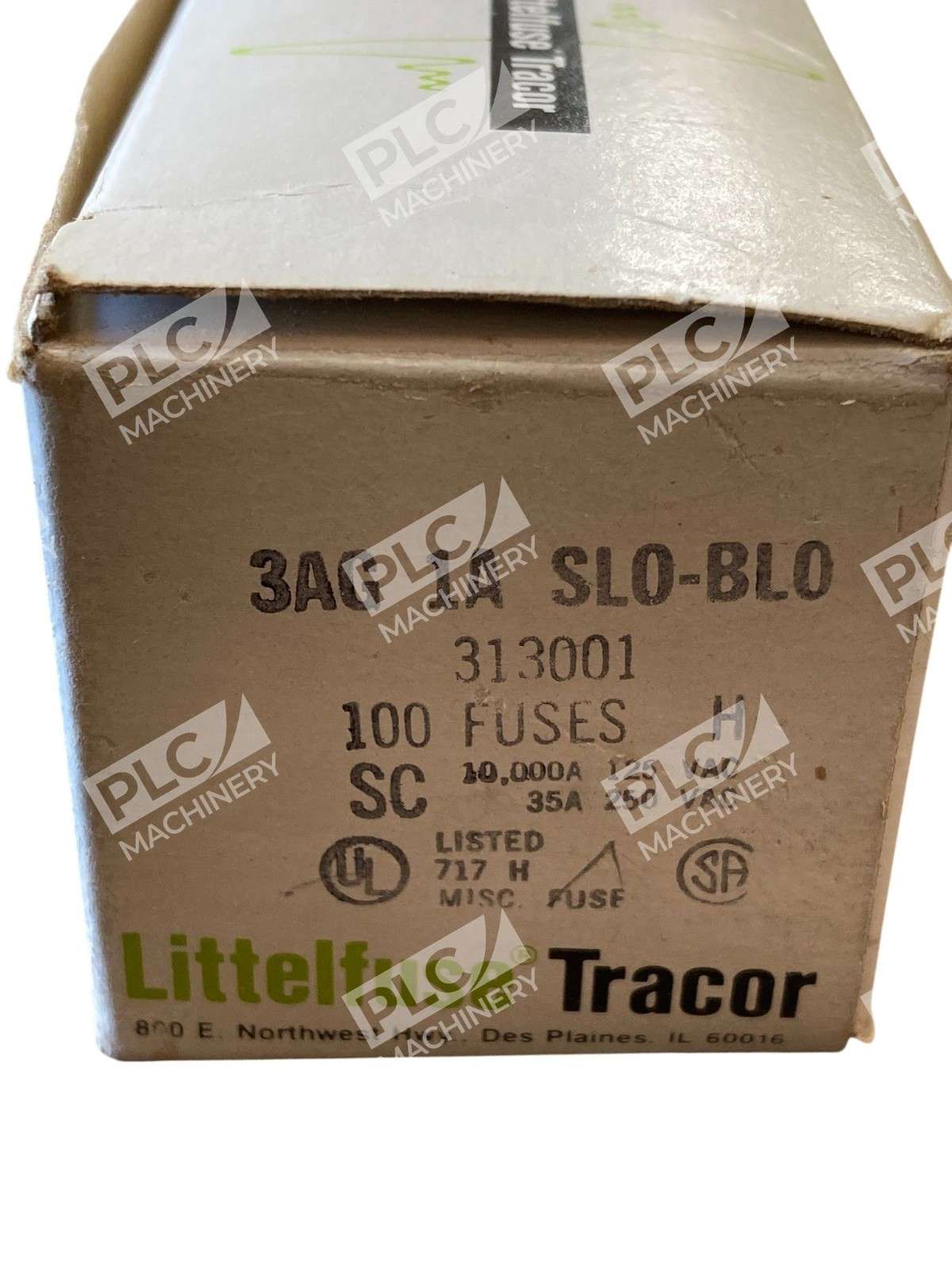

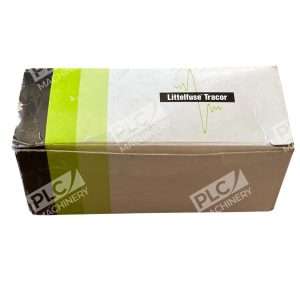

The Littelfuse 313001 is a 3AG Slo-Blo (time-lag) cartridge fuse designed for general-purpose circuit protection in industrial and commercial applications. Rated 1 Amp 250 Volts with a 35A @ 250V AC interrupting rating, this lead-free fuse provides reliable protection for sensitive equipment. The 313 series features time-delayed protection in the overload range, which provides superior protection for inductive loads such as motors, transformers, and solenoids.
Key Features

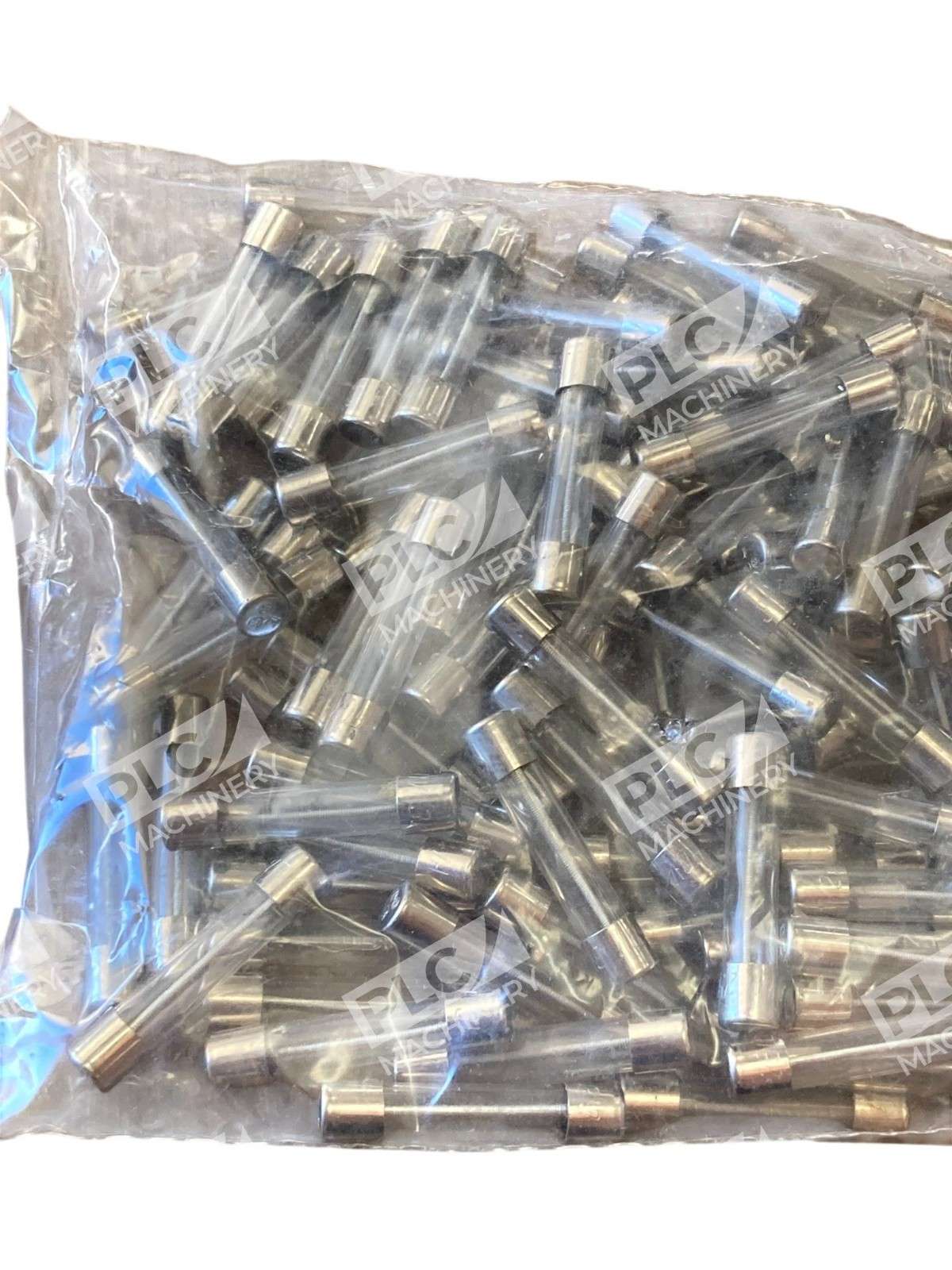

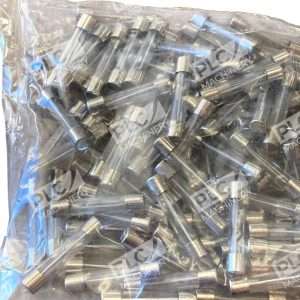

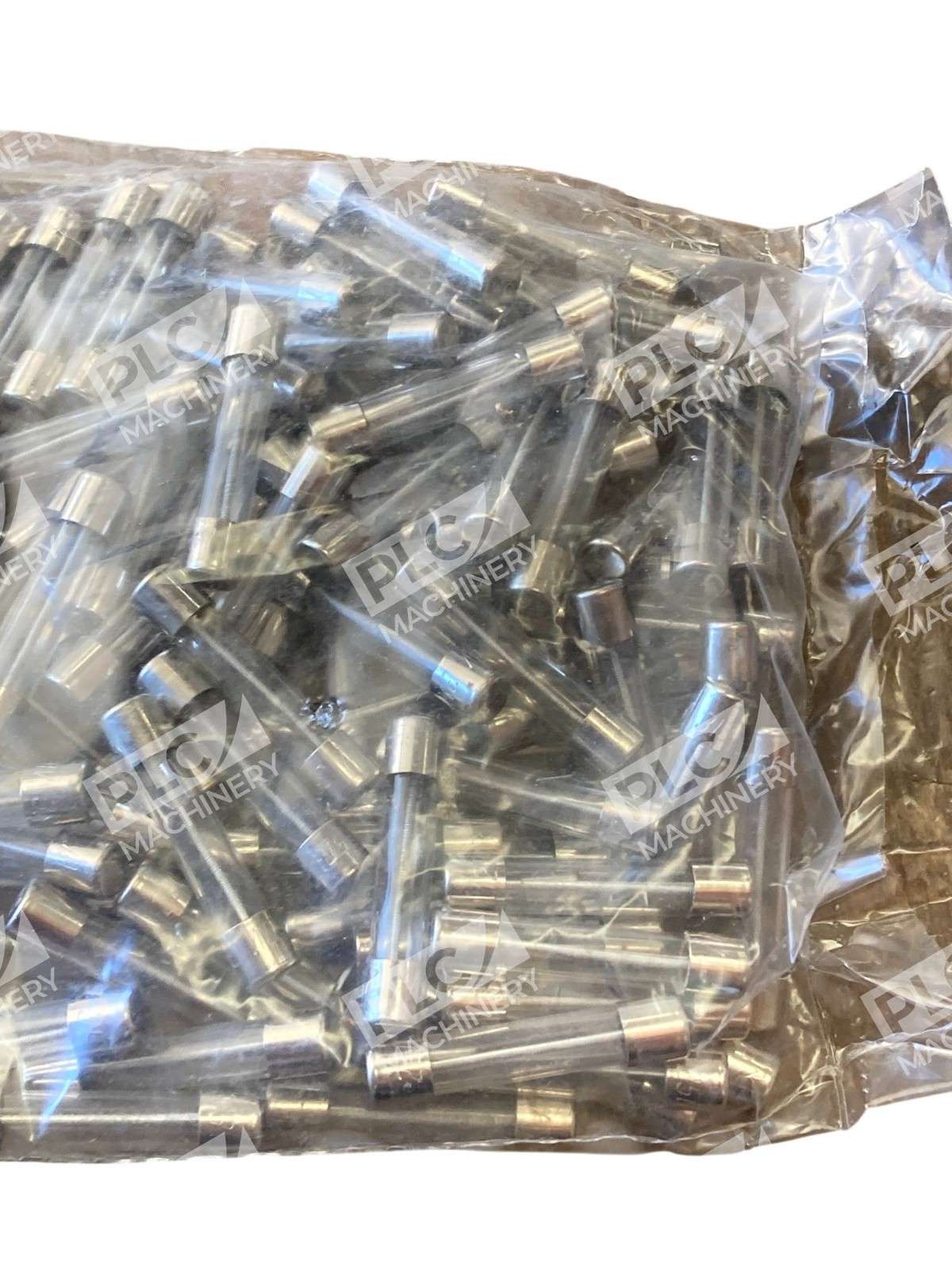

- Glass tube body with nickel-plated brass cap and tin-plated copper leads
- 3AG indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
- Lead-free, RoHS-compliant construction
- Time-delayed response ideal for motor startup inrush currents
- Widely used in industrial control panels, HVAC systems, and motor circuits
Technical Specifications
The Littelfuse 313001 cartridge fuse meets industry standards for circuit protection and is compatible with standard 3AG fuse holders.
Typical Applications
The Littelfuse 313001 is commonly used in:
- Motor circuits and motor controllers
- Transformer circuits requiring inductive load protection
- Solenoid and relay circuits
- Industrial control panels and switchboards
- HVAC equipment and heating systems
- General-purpose AC circuit protection up to 250V
Compatibility & Replacements
Compatible With
- Standard 3AG cartridge fuse holders (6.35mm x 31.75mm)
- Electrical distribution panels and switchgear
- Motor control centers (MCCs)
- Industrial control systems requiring 250VAC fusing
- HVAC and pneumatic control circuits
Replaces / Drop-In Replacement For
- Littelfuse 313001P (plated lead variant)
- Bussmann MDL 1A 250V equivalent cartridge fuses
- Other generic 3AG 1A 250V Slo-Blo fuses meeting UL E10480 and CSA LR 29862 standards
Works With
- UL-listed and CSA-certified fuse holders
- Industrial-grade switchboards and distribution equipment
- Motor control circuits and soft-starter panels
- Ballast and transformer circuits
