Overview

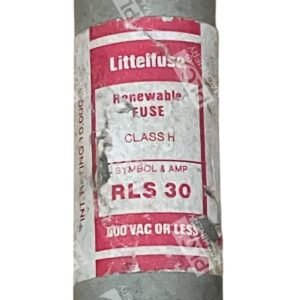

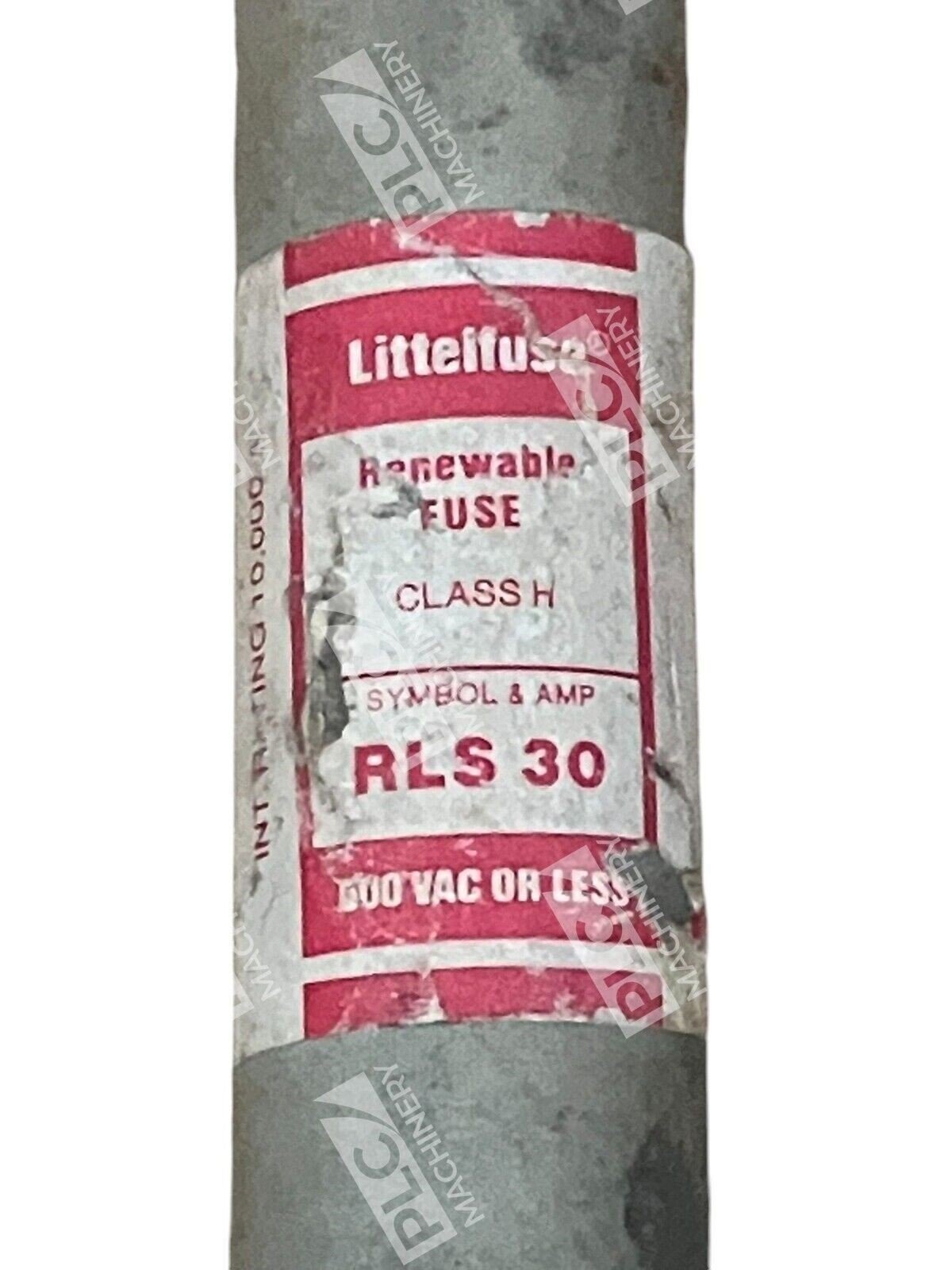

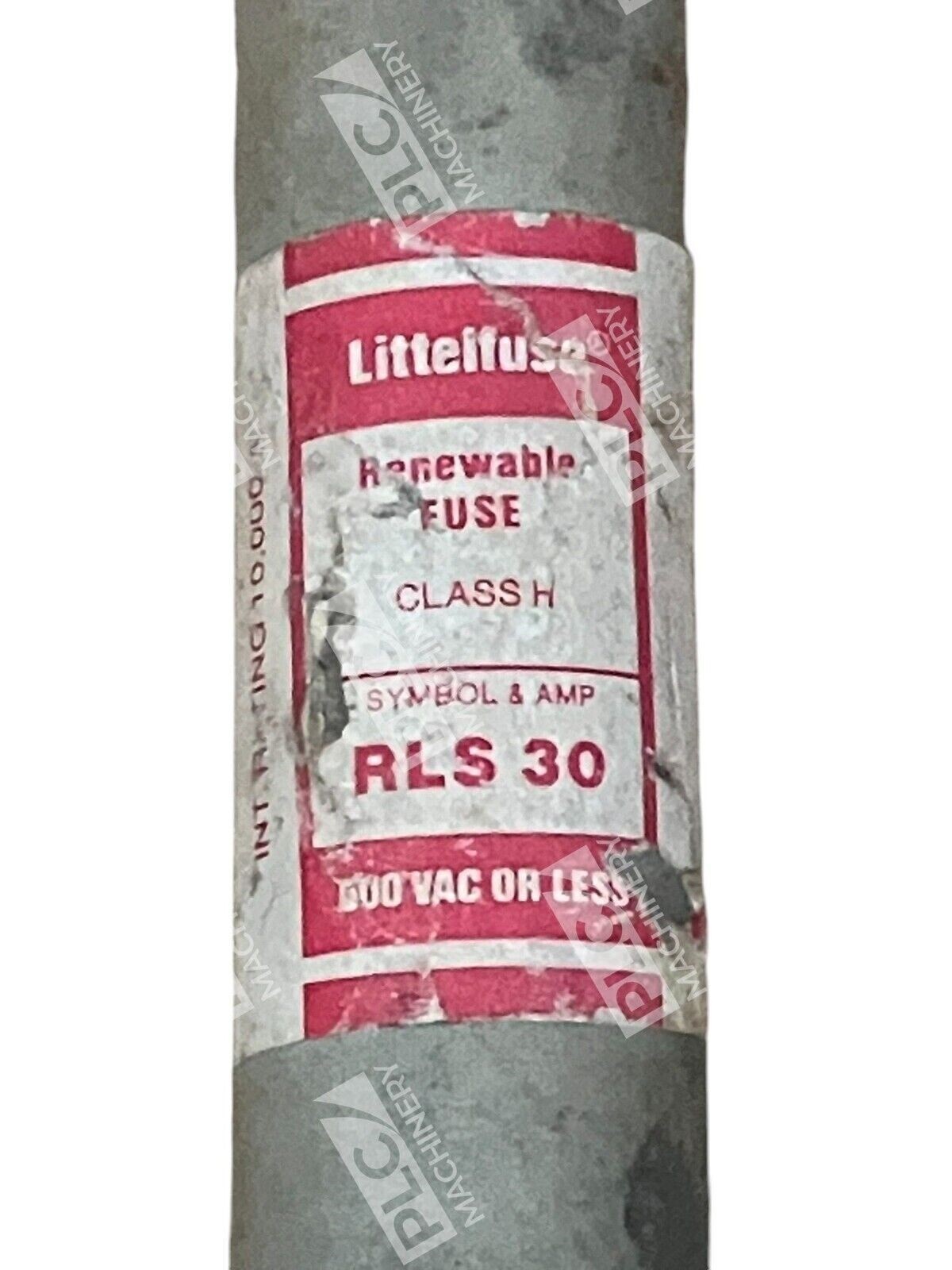

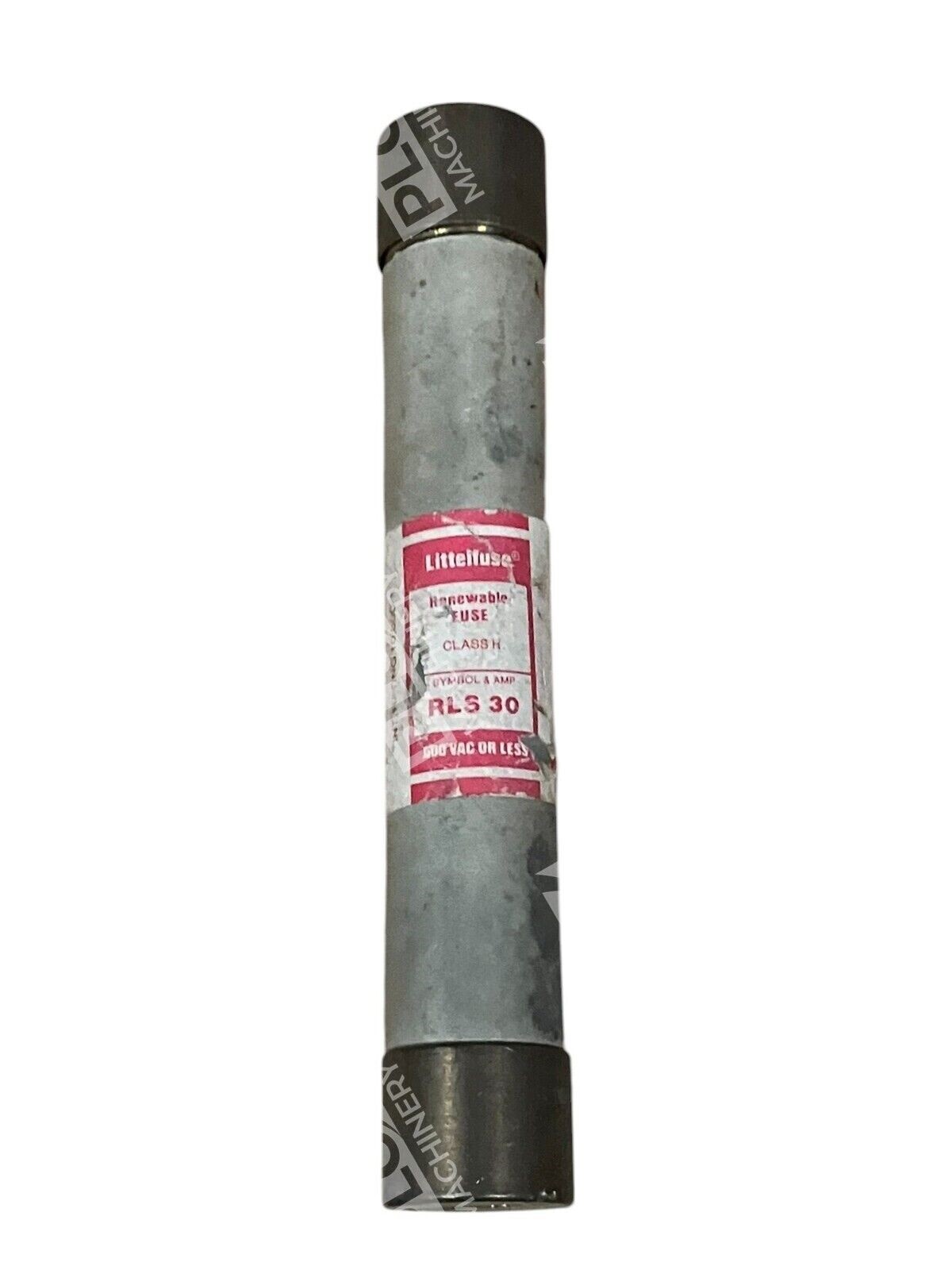

The Littelfuse RLS-30 is a renewable Class H fuse that provides cost-effective overcurrent protection for electrical circuits. Rated for 30A at 600VAC, this fuse is suitable for AC applications where available short-circuit currents do not exceed 10,000 amperes. The renewable design allows for field replacement of internal elements, making it economical for general-purpose feeder and branch circuits in industrial and commercial installations.
Key Features
- 30A amperage rating at 600VAC
- UL Listed (File E81895) and CSA Certified (File LR29862)
- Class H standard fuse per UL 248-6
- Renewable element design for field replacement
- 10,000 amperes AC interrupting rating
- Suitable for AC current applications only
Technical Specifications
- Amperage Rating: 30A
- Voltage Rating: 600VAC
- Current Type: AC only
- Class: H (Class H per UL 248-6)
- Interrupting Capacity: 10 kA rms (symmetrical)
- Approvals: UL Listed, CSA Certified
- Series: RLS
- Renewable: Yes
Typical Applications
- General-purpose feeder circuits
- Branch circuit protection
- Industrial control panels
- Motor branch circuits
- Equipment protection in facilities where short-circuit currents are limited to 10,000A or less
Compatibility & Replacements
Compatible With
- Class H fuse blocks (standard dimension fuse holders)
- Littelfuse LFH Series fuse blocks and holders
- Industrial panelboards rated for Class H fuses
- General-purpose electrical distribution systems
- AC 600VAC rated electrical circuits
Replaces / Drop-In Replacement For
- Other Littelfuse RLS-30 units
- Equivalent Class H 30A 600VAC fuses from other manufacturers with same physical dimensions
- Verify compatibility with your system integrator before ordering to ensure proper fit in your fuse block.
Works With
- Class H fuse blocks and holders
- Standard electrical distribution equipment rated for 600VAC
- Industrial control systems with AC overcurrent protection requirements
- Commercial building electrical panels and equipment
