Overview

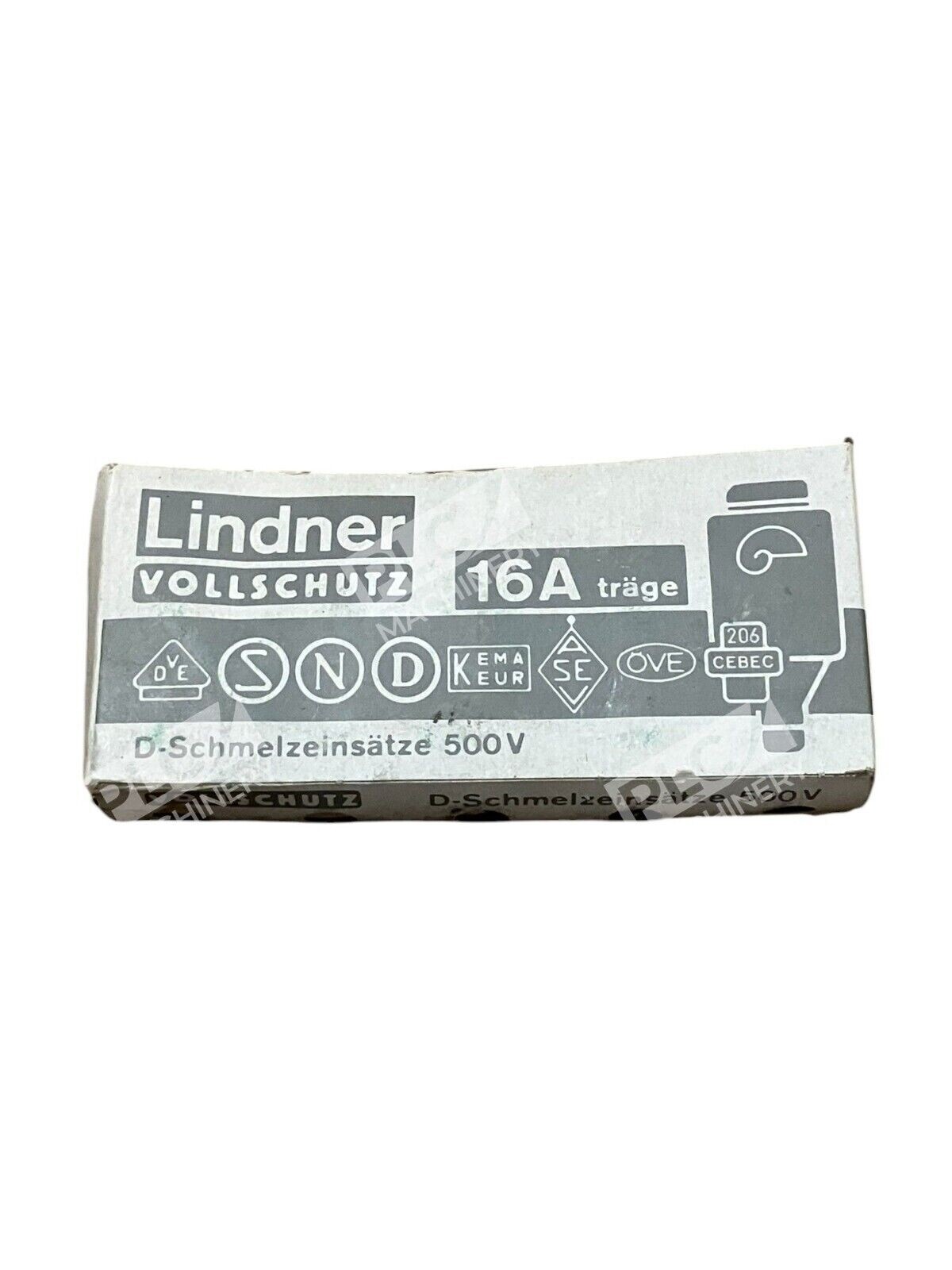

The Lindner Vollschutz ceramic bottle fuse 16A 500V is a high-quality electrical protection component designed for industrial and commercial equipment. Vollschutz (meaning “full protection” in German) indicates this fuse combines thermal and magnetic protection characteristics. Each box contains 4 fuses with ceramic construction and bottle-style form factor, ideal for panel-mount applications requiring reliable circuit protection.
Key Features
- Full protection design—combines thermal and magnetic response for overload and fault conditions
- Ceramic body construction for durability and heat resistance
- Bottle-style form factor (22 x 50 mm) fits standard DIN fuse holders
- Rated 16A at 500V AC—suitable for European and international equipment
- GL/GG classification for general-purpose industrial use

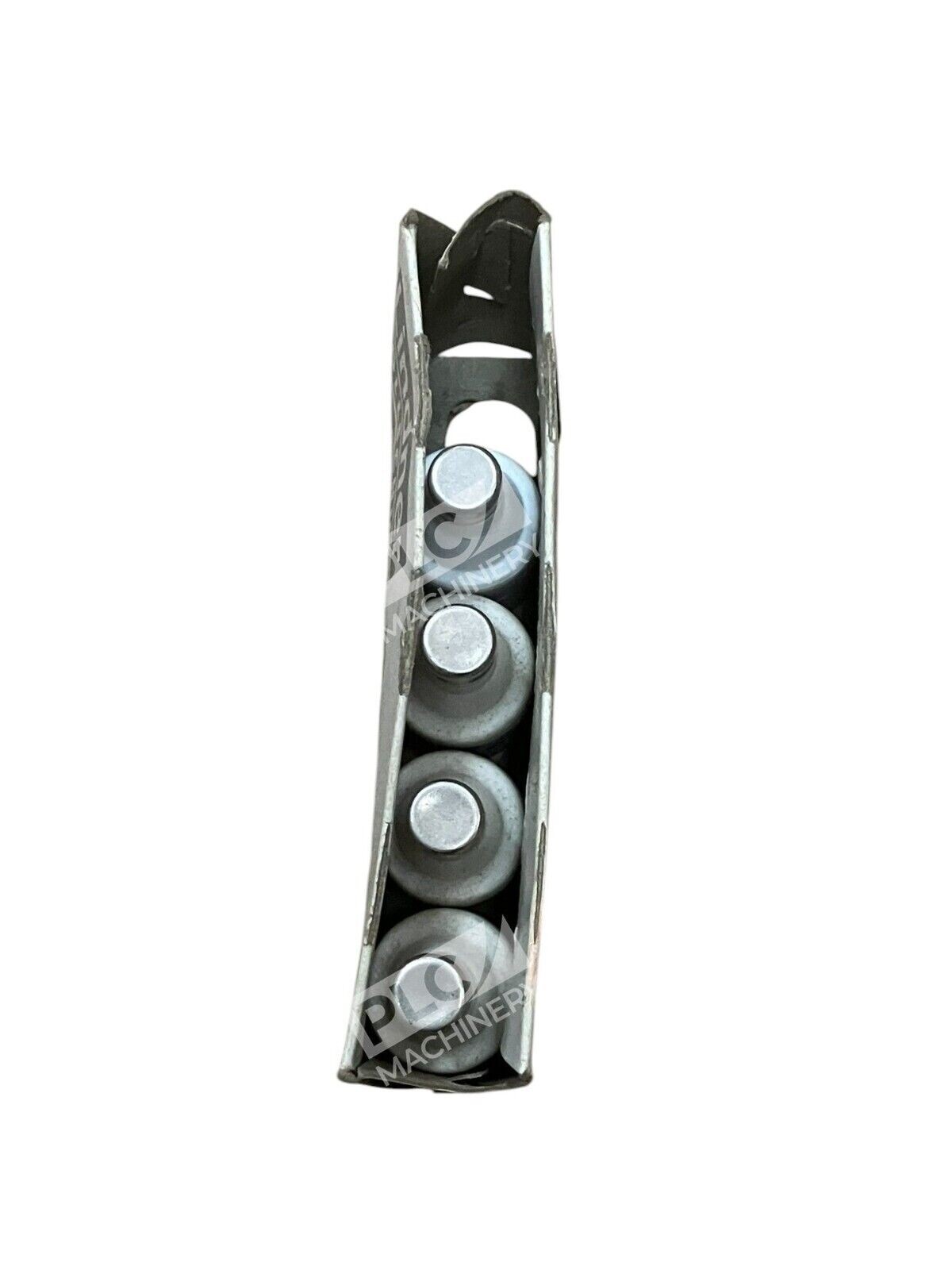

- Supplied as box of 4 units, new condition
Technical Specifications
- Current Rating: 16 Amperes (16A)
- Voltage Rating: 500V AC
- Construction: Ceramic body with metal end caps
- Type: Bottle-style (DIN 7060)
- Dimensions: 22 x 50 mm
- Protection Class: GL/GG (general purpose / time-delayed)
- Package Quantity: 4 fuses per box
- Condition: New
Typical Applications
- Industrial control panels and switchboards
- Motor control circuits (16A rated)
- Power distribution equipment in manufacturing facilities
- European machinery requiring 500V AC protection
- Legacy equipment maintenance and replacement
- Electrical cabinet protection
Compatibility & Replacements
Compatible With
- Standard DIN fuse holders accepting 22 x 50 mm bottle-style fuses
- European and international electrical panels rated for 500V AC
- Equipment requiring GL/GG (general-purpose time-delayed) fuses
- Industrial control systems and switchgear
Replaces / Drop-In Replacement For
- Lindner 597.0167 (16A 500V ceramic bottle fuse)
- Lindner LG7-16A-500V (16A 500V ceramic fuse)
- Other Lindner Vollschutz 16A 500V models with identical specifications
- Equivalent ceramic bottle fuses meeting DIN 7060 standard (22 x 50 mm)
Works With
- DIN standard fuse holders and clips
- European panel-mount electrical equipment
- Power distribution systems rated 500V AC
- Industrial automation and control gear requiring short-circuit protection
