Overview

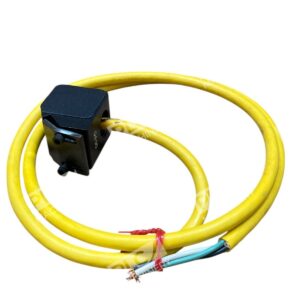

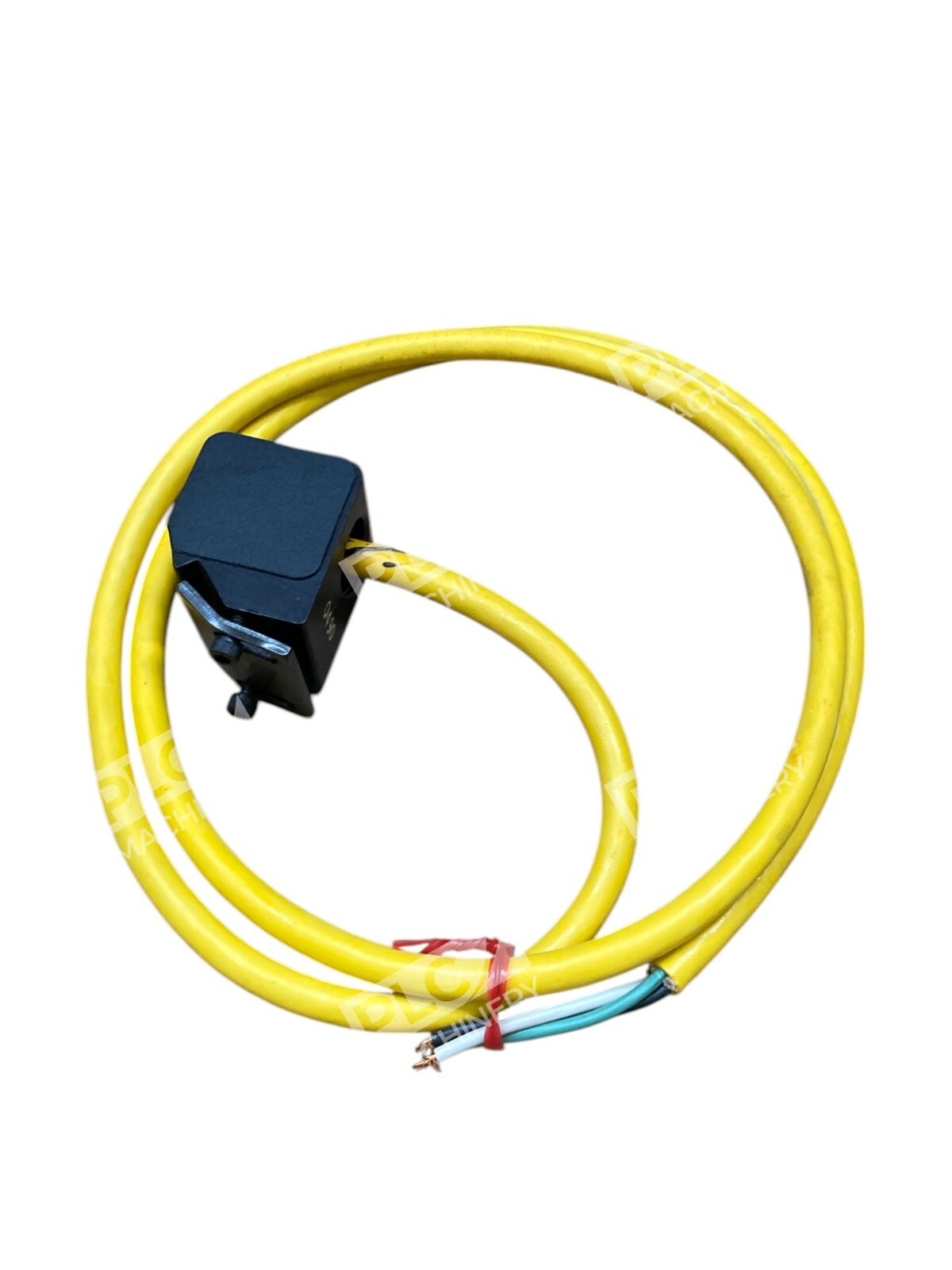

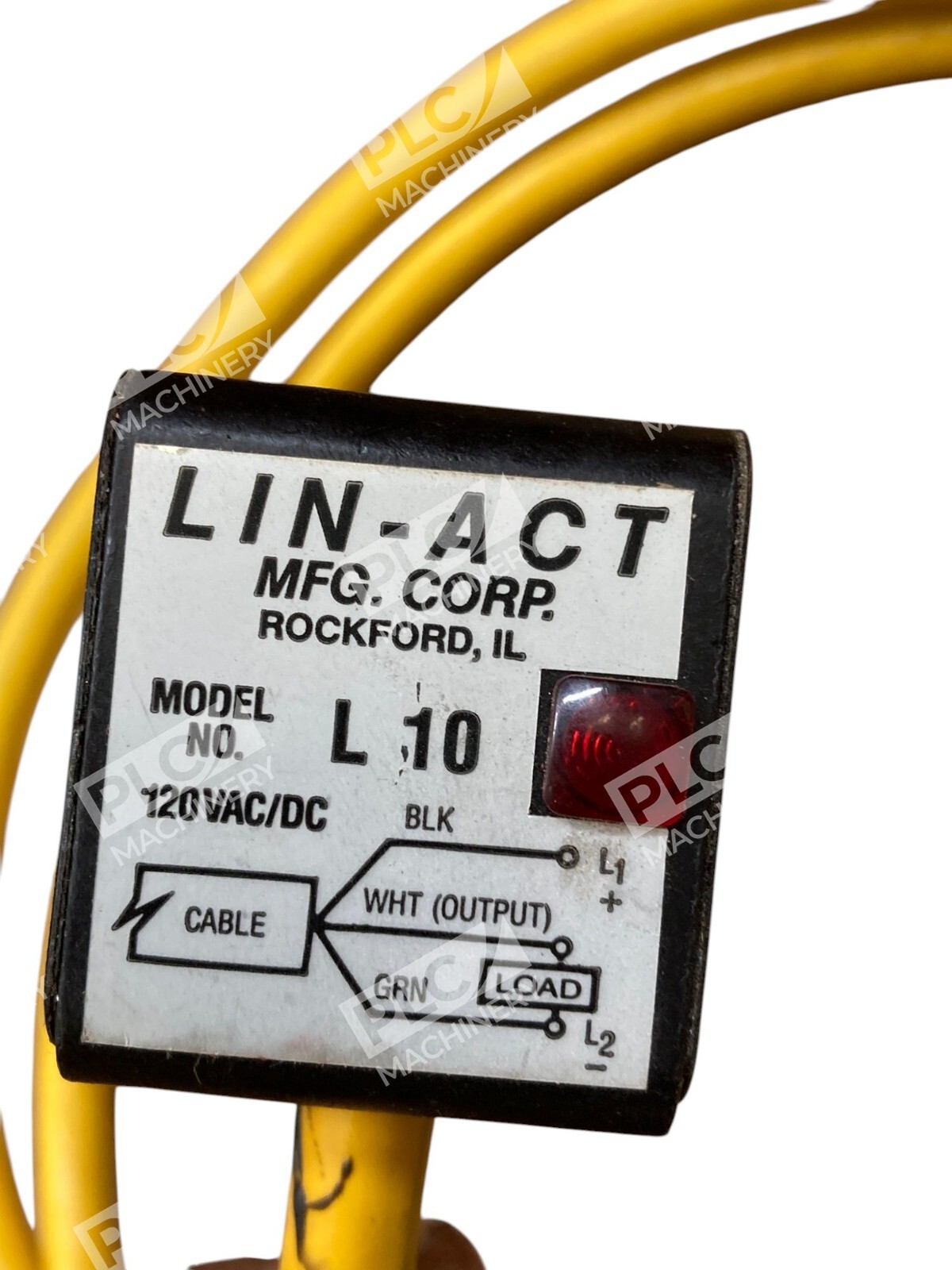

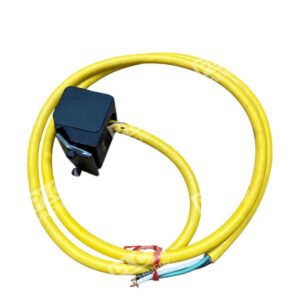

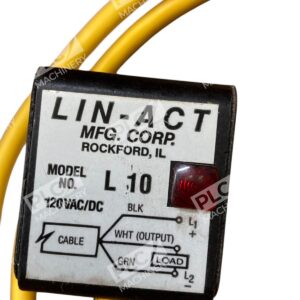

The Lin-Act L-10 120VAC/DC indicator switch is a industrial-grade limit detection device designed for machinery monitoring and control. Featuring an integrated indicator light and SPST (Single Pole Single Throw) contact configuration, this switch monitors electrical state and provides visual confirmation of circuit status. The L-10 combines reliable switching capability with built-in diagnostic visibility—essential for maintenance personnel and control system operators working in factory automation, material handling, and mechanical assembly environments.
Key Features
- 120VAC/DC dual-voltage operation for flexible installation
- Integrated indicator light for visual power/status confirmation
- SPST contact configuration; 0.5A rated current capacity

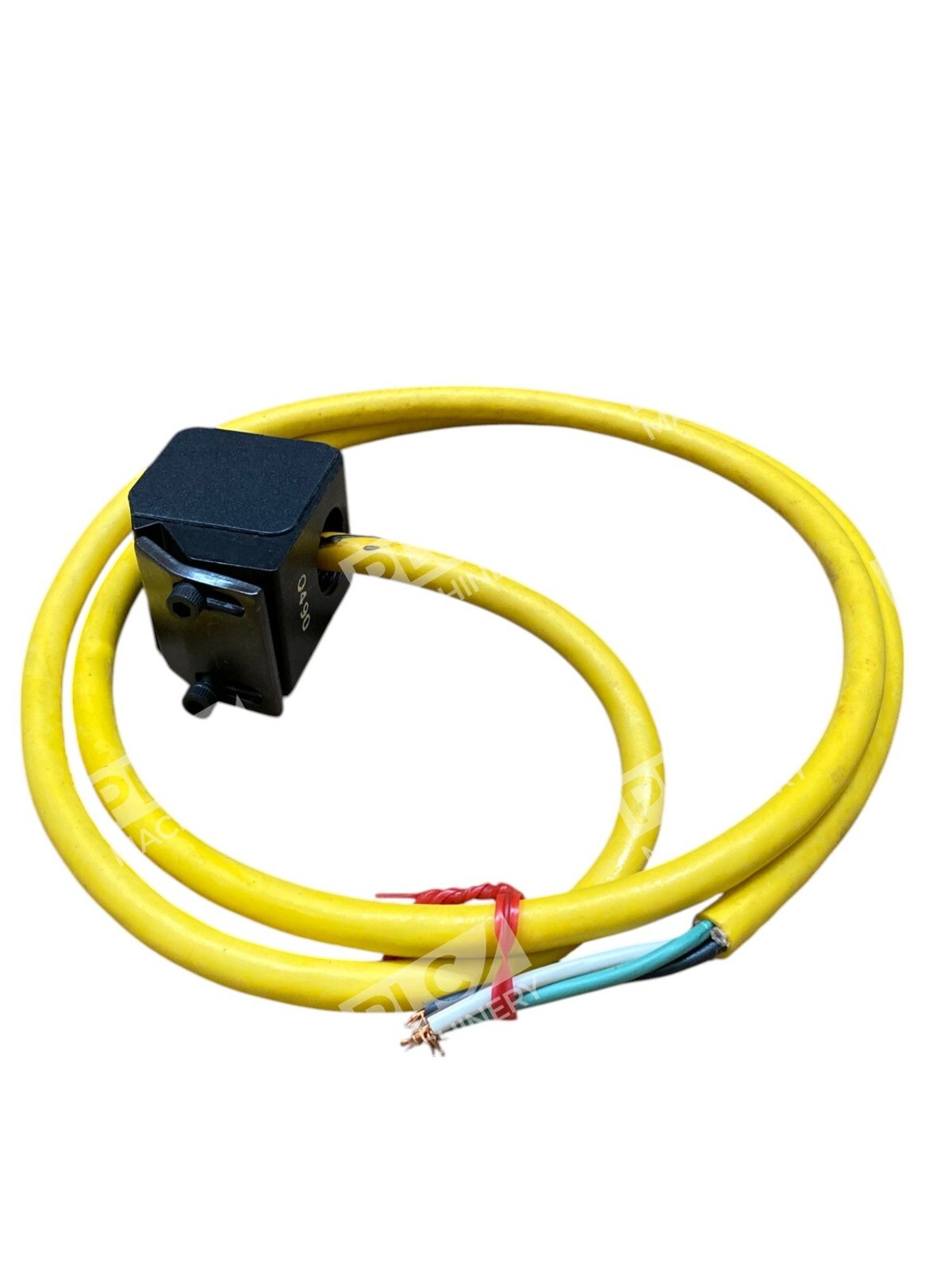

- 4-foot pre-connected cord for quick integration
- Rugged industrial-rated construction for factory floor reliability
- Compact form factor (7 × 7 × 3 inches) for space-constrained mounting
Technical Specifications
- Input Voltage: 120VAC/DC
- Contact Configuration: SPST (Single Pole Single Throw)
- Rated Current: 0.5A
- Power Rating: 10W
- Cord Length: 4 feet
- Dimensions: 7 × 7 × 3 inches
- Weight: 8 ounces
- Indicator Light: Yes (integrated)
Typical Applications
The Lin-Act L-10 is commonly deployed in manufacturing, packaging, and automation systems for:
- Limit detection on linear and rotary actuators
- Position confirmation for mechanical assemblies
- Interlock circuits requiring visual indication
- Machinery safety circuits with operator feedback
- Material handling systems (conveyors, palletizers)
Compatibility & Replacements
Compatible With
- Industrial control systems using 120VAC/DC input logic
- PLC analog/digital input modules configured for switch inputs
- Relay and contactor coil circuits rated for 120V operation
- Hard-wired machine control panels and safety circuits
Replaces / Drop-In Replacement For
- Lin-Act L-10X4 (earlier revision)
- Lin-Act L-10X6 (variant designation)
Works With
- AC/DC 120V switching systems
- Industrial relay logic and hard-wired control
- Legacy PLC input cards (24VDC isolated input with 120V sensor supply)
- Mechanical and electromechanical control circuits
