Overview

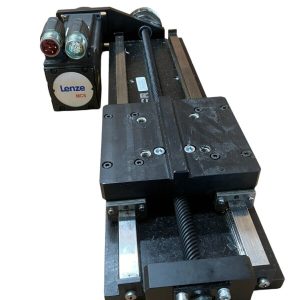

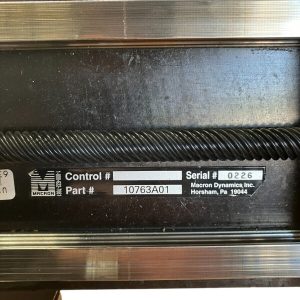

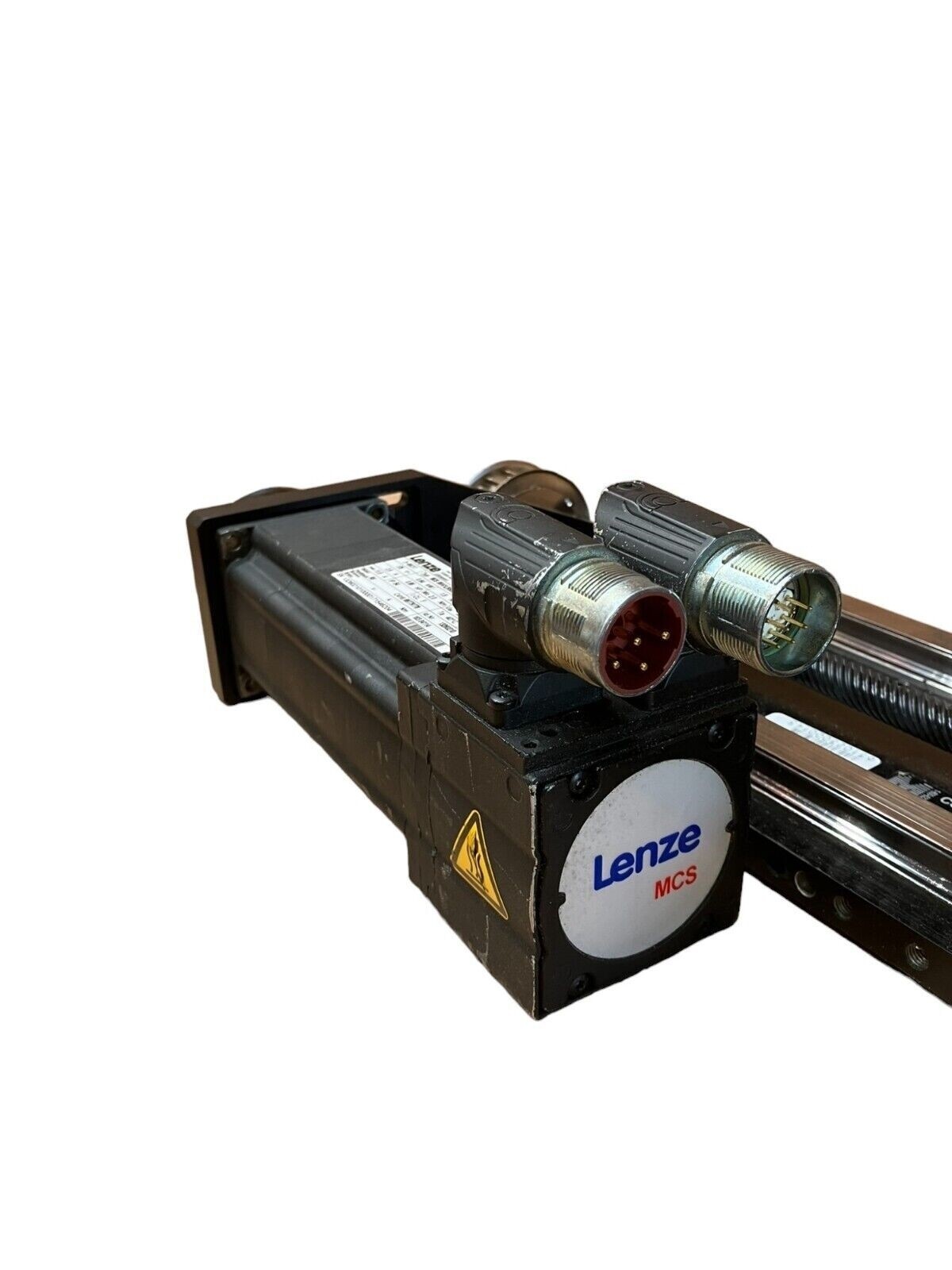

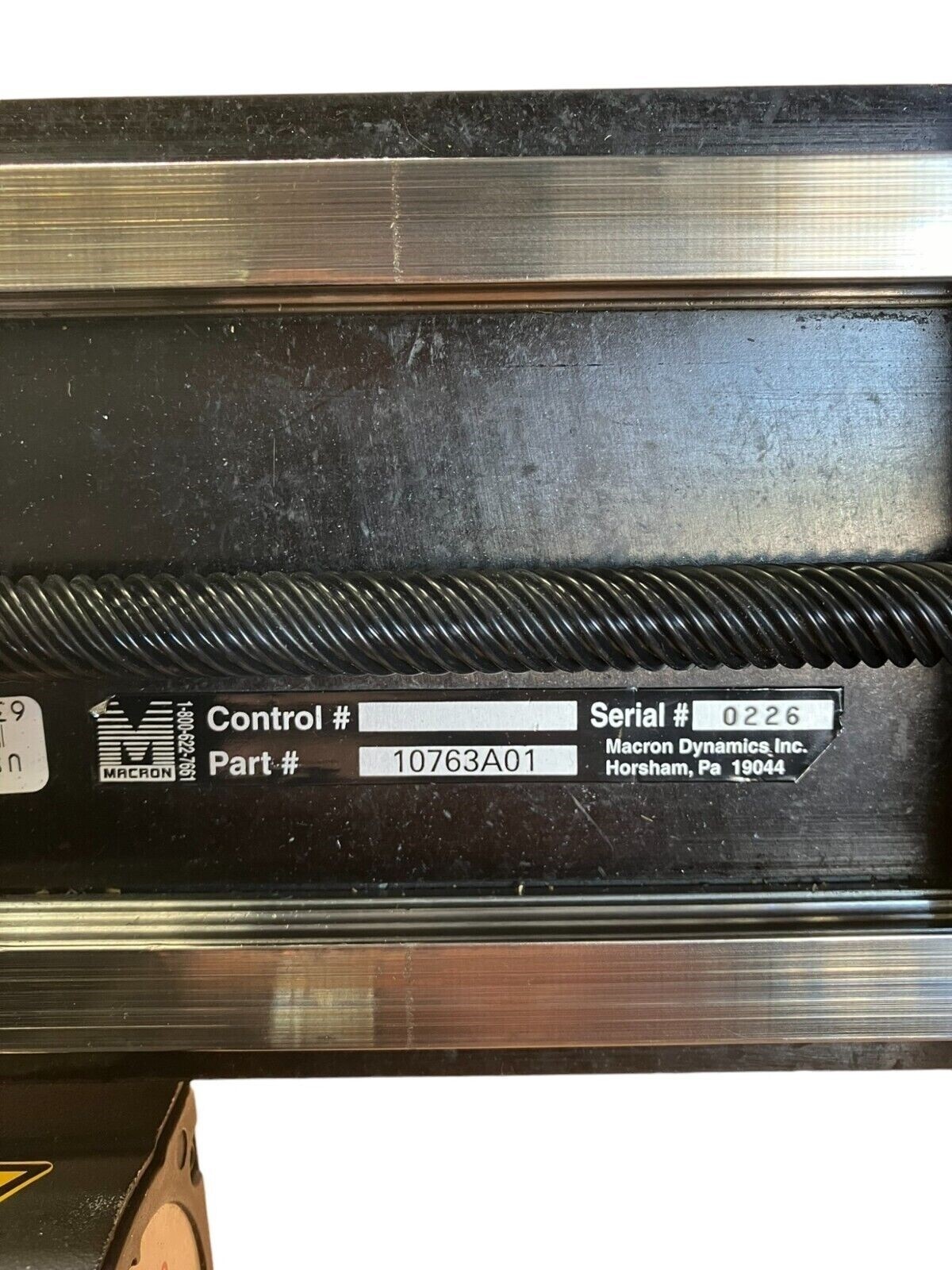

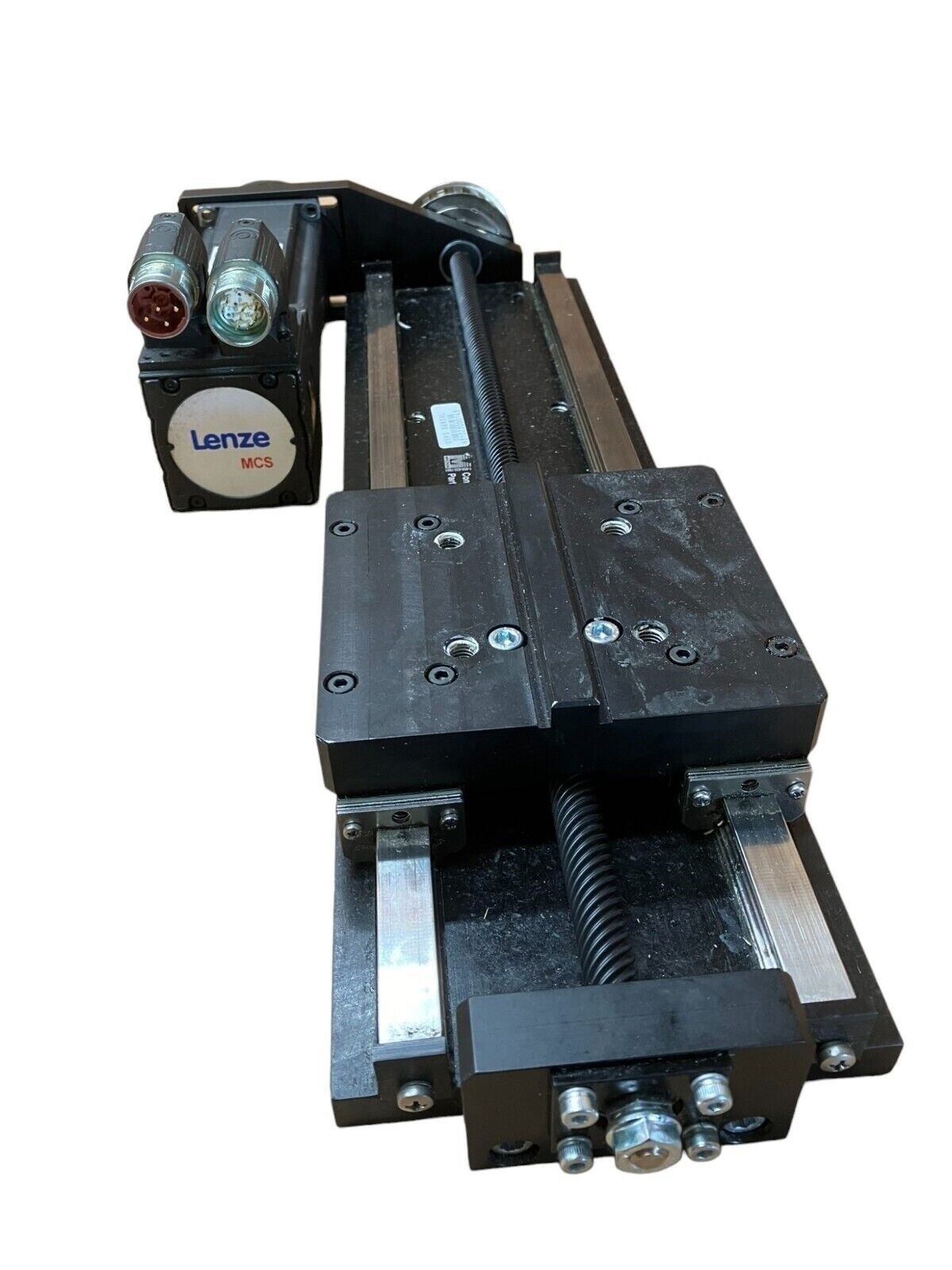

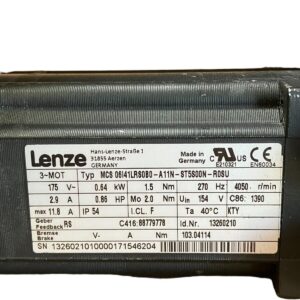

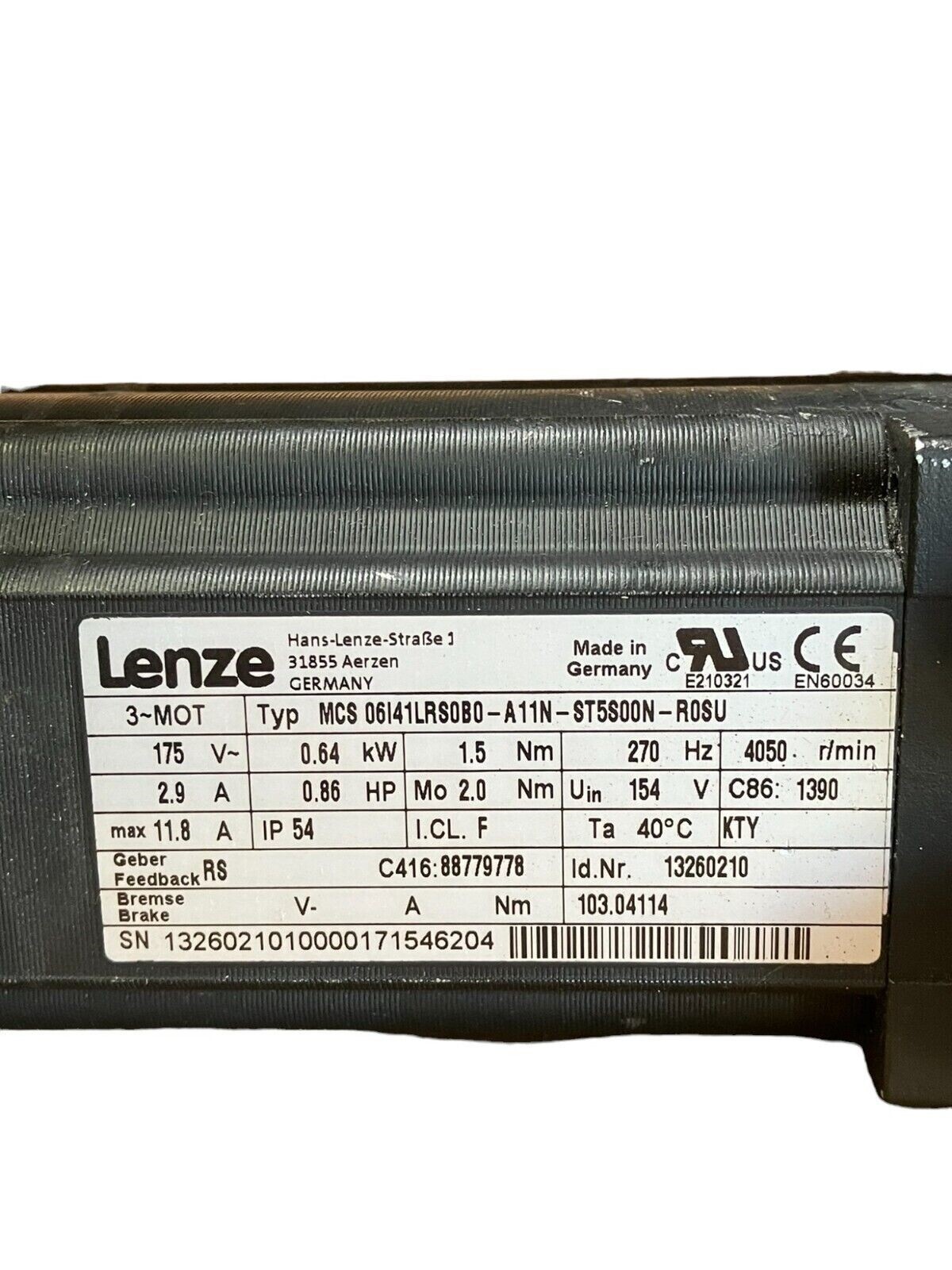

The Lenze MCS 06I41LRS0B0-A11N-ST5S00N-R0SU is a robust synchronous servo motor from Lenze’s proven MCS series, paired with a Macron 10763A01 motor. This combination provides high-precision speed and torque control for demanding industrial automation, packaging, material handling, and CNC applications. The unit features resolver feedback for closed-loop commutation and is rated for continuous 400 VAC, 3-phase operation at 4100 RPM with 4.50 Nm nominal torque and 0.51 kW power output.
Key Features
- MCS synchronous motor technology for smooth, precise velocity regulation
- Resolver feedback for accurate position and speed detection
- 400 VAC, 3-phase input; 4100 RPM nominal speed
- IP54 enclosure protection against dust and moisture ingress
- Standard shaft design with 11 mm diameter shaft key

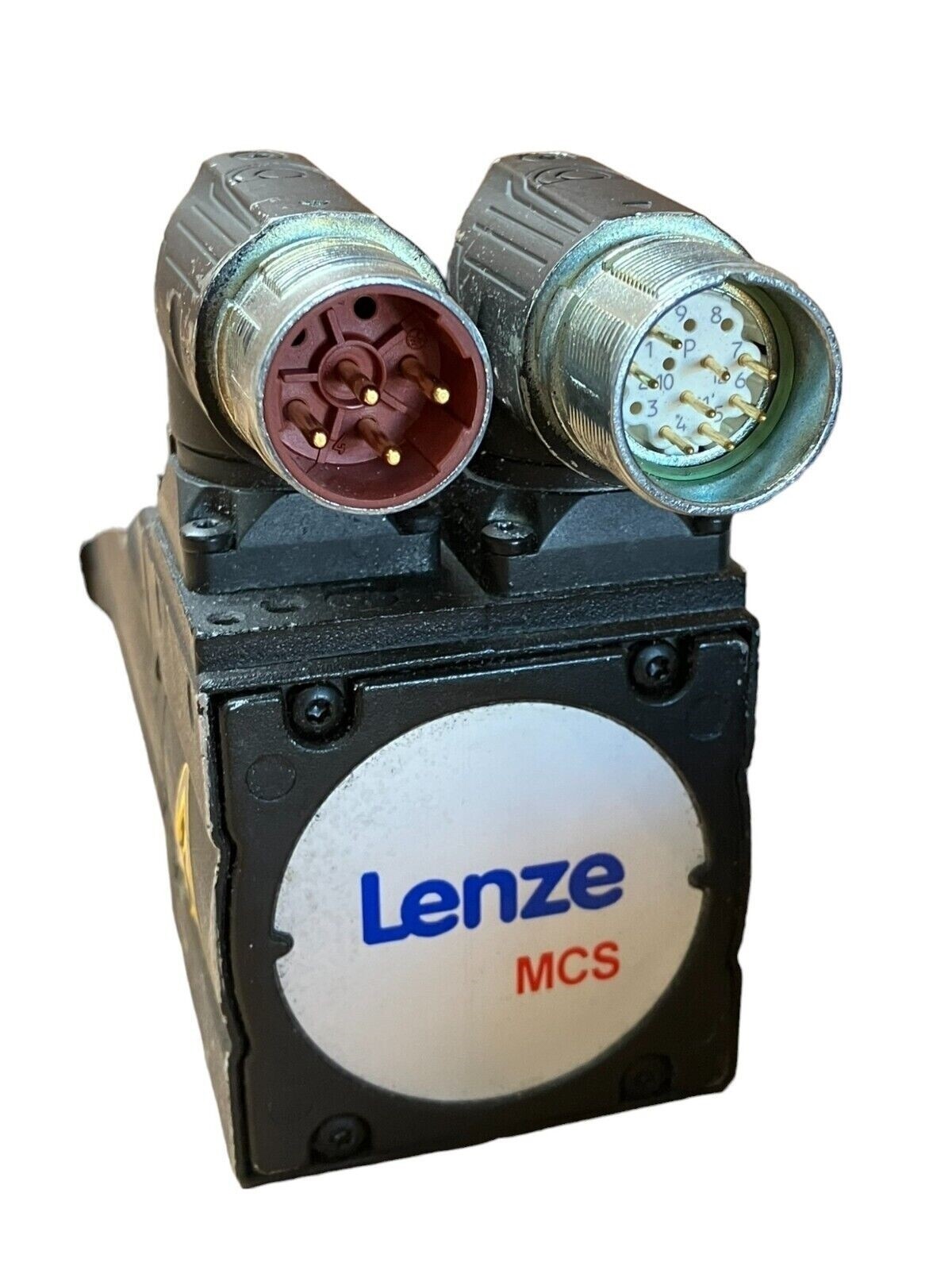

- Round plug connectors for reliable field installation
- No integral brake; natural air cooling
- Compact 06F motor frame size (approximately 5.36 lbs)

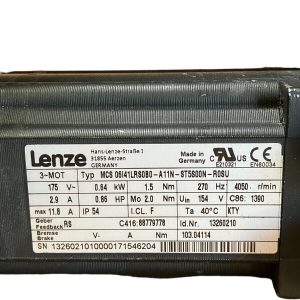

Technical Specifications
- Motor Type: Synchronous servo motor, MCS series
- Motor Frame Size: 06F
- Rated Voltage: 400 VAC, 3-phase
- Rated Speed: 4100 RPM
- Rated Torque: 4.50 Nm nominal / ~1.20 Nm continuous
- Power Output: 0.51 kW
- Feedback: Resolver (1024 ppr equivalent)
- Shaft: Standard, 11 mm diameter, with key
- Brake: None
- Enclosure: IP54, natural ventilation

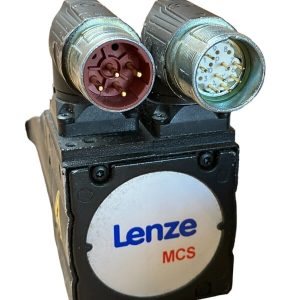

- Connector Type: Round plugs (M23)
- Weight: Approximately 5.36 lbs
- Operating Temperature: -10°C to +40°C (typical)
Typical Applications
- Industrial automation and robotic system drives
- Printing and labeling equipment
- Packaging and material handling machinery
- Machine tool spindles and positioning axes
- CNC and multi-axis motion platforms
- Conveyor and indexing systems
- Textile and printing machinery retrofit
Compatibility & Replacements
Compatible With
- Lenze AC Tech servo drive controllers (MCS drive modules)
- Third-party servo amplifiers with 400 VAC 3-phase input and resolver feedback support
- Standard industrial PLC/CNC systems requiring analog velocity or torque control
- EtherCAT and CANopen enabled motion control systems (via appropriate gateway)
Replaces / Drop-In Replacement For
- Lenze MCS06I41-RS0B0-B11N-ST5S00N-R0SU (06F frame variant with different shaft configuration)
- Lenze MCS06F41-RS0B0-B11N-ST5S00N-R0SU (06F frame, same power, 4050 RPM variant)
- Similar Lenze MCS 06-series motors with resolver feedback and matching voltage/RPM ratings
Works With
- Lenze inverter/drive product line (MCS, MCVS series)
- Industrial motion control software platforms supporting resolver feedback
- Standard servo motor coupling and gearbox designs (11 mm shaft diameter)
- Resolver-to-encoder converters for legacy PLC integration
- 360° encoder feedback modules for digital commutation
