Overview

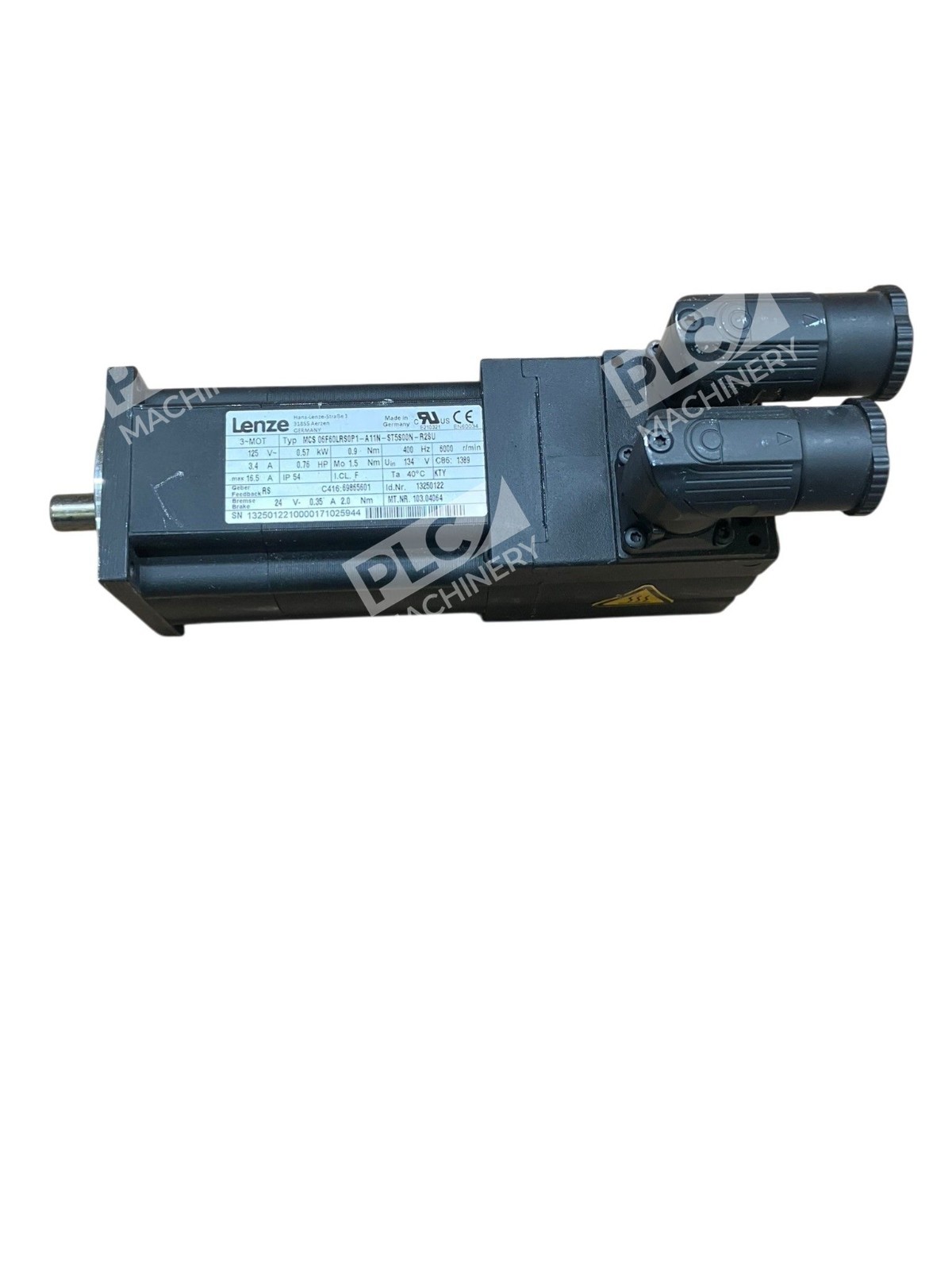

The Lenze MCS 06F60LRS0P1-A11N-ST5S00N-R2SU is a synchronous servo motor from Lenze’s MCS product line, engineered for applications requiring high dynamics, precision, and compact dimensions. This model combines advanced motor design with field-proven reliability in industrial automation and motion control environments.
Key Features
- MCS synchronous servo motor for high-dynamics applications
- Compact form factor (06F motor size)
- Rated for 4,100 RPM nominal speed
- 400 VAC three-phase power input
- LRS0P1 absolute position feedback encoder
- A11N connector type (round plugs)
- IP54 protection rating for industrial environments
- 24VDC brake integration (R2SU configuration)
- Standard shaft with key (ST5S00N)
- Natural ventilation cooling
Technical Specifications
- Motor Type: Synchronous Servo Motor
- Series: Lenze MCS (06F frame size)
- Rated Speed: 4,100 RPM
- Input Voltage: 400 VAC, three-phase
- Feedback System: Absolute encoder (LRS0P1)
- Encoder Type: Sincos absolute position feedback
- Brake Option: 24VDC electromagnetic brake (R2SU)

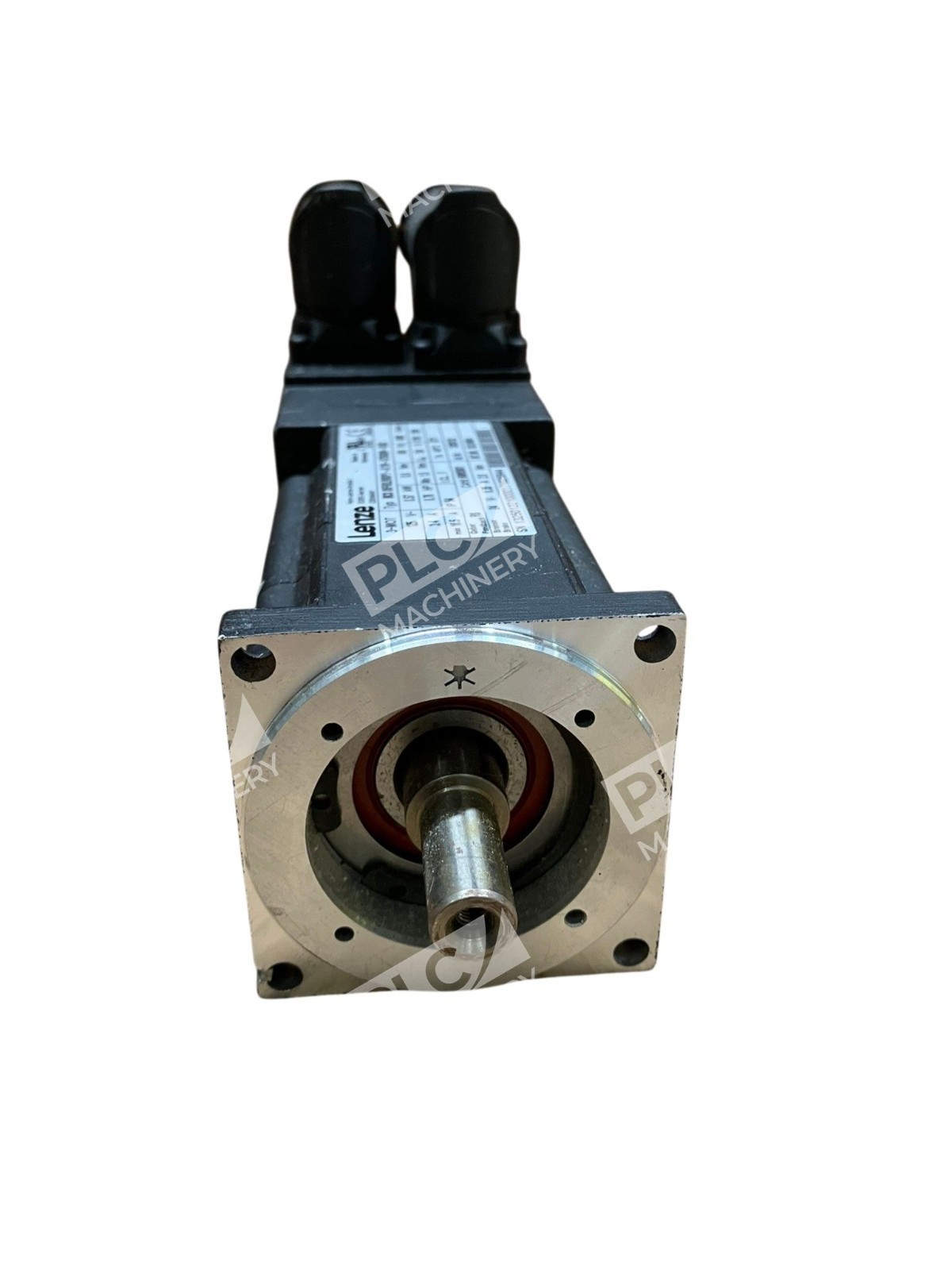

- Shaft Configuration: Standard shaft with key, diameter 11 mm
- Connector: Round plugs (A11N)
- Protection Class: IP54 (dust and splash protection)
- Cooling Method: Natural ventilation
- Connection: ST5S00N terminal block configuration
- Weight: Approximately 10 lbs
- Country of Origin: Germany
- Condition: New – No Box
Typical Applications
The MCS 06F60LRS0P1 servo motor is ideal for:
- Industrial packaging and material handling equipment
- Textile machinery and processing systems
- Food and beverage production lines
- Printing and labeling machinery
- Assembly automation and robotics
- Precision positioning and indexing applications
- Machine tool spindle drives requiring servo-grade performance
Compatibility & Replacements
Compatible With
- Lenze servo drive systems and motion controllers
- Third-party servo drives supporting 400 VAC three-phase motors with absolute encoder feedback
- Industrial automation systems using EtherCAT, PROFINET, or CANopen protocols
- Standard three-phase 400 VAC power distribution networks
- Motion control software platforms compatible with absolute position feedback encoders
Replaces / Drop-In Replacement For
- MCS 06F41-LRS0P1-A11N-ST5S00N-R2SU (similar frame, lower power rating)
- Other MCS 06F series motors with LRS0P1 encoder configuration
- Legacy MCS synchronous servo motors in same 06F footprint
Works With
- Lenze MC4plus servo drive series
- Lenze IndraDrive C and Mi4 servo drive families
- Motion control systems using IEC 61508 certified safety protocols
- Absolute encoder feedback interpretation in drive firmware
- Industrial fieldbus systems (EtherCAT, PROFINET)
