Overview

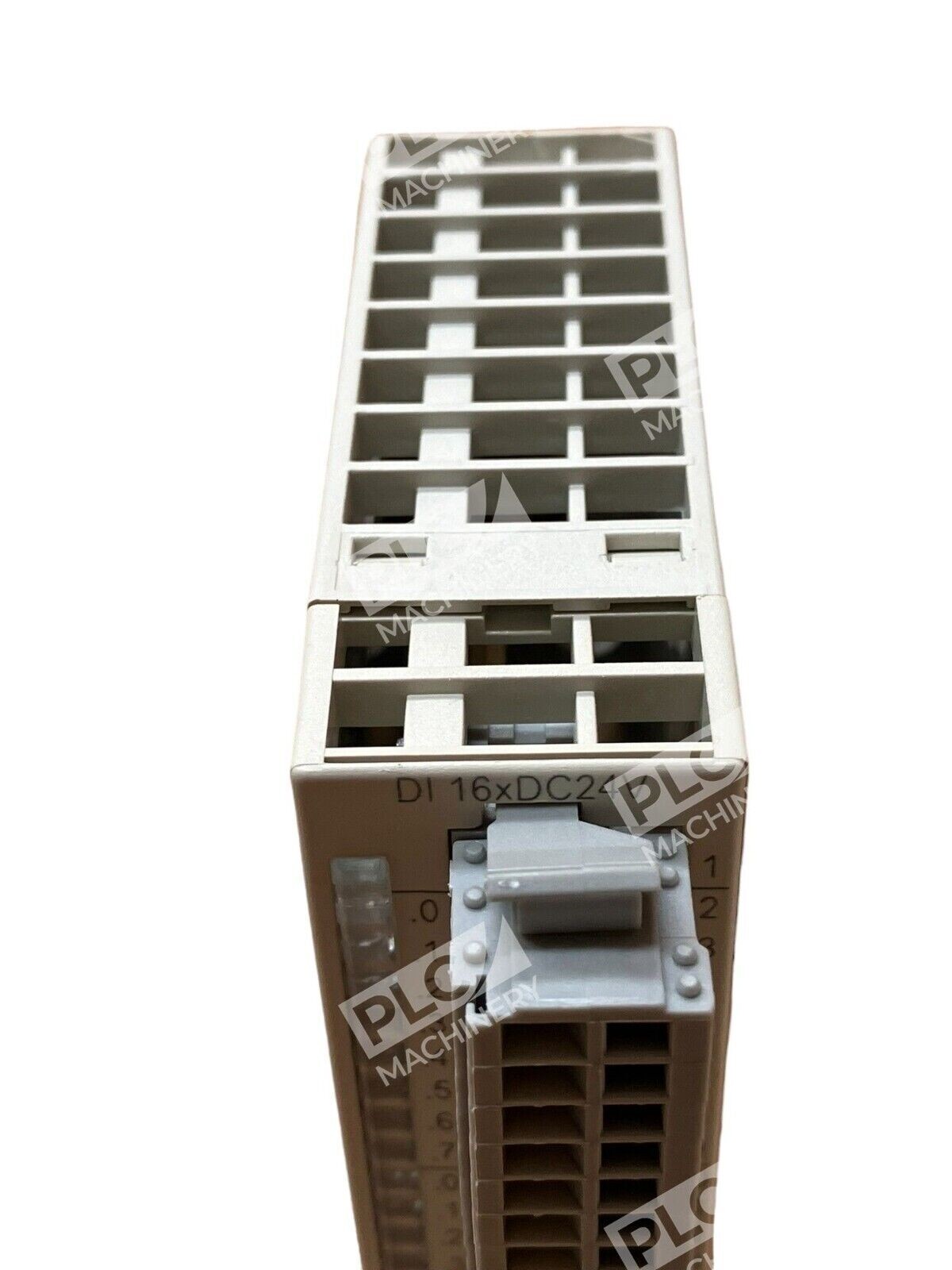

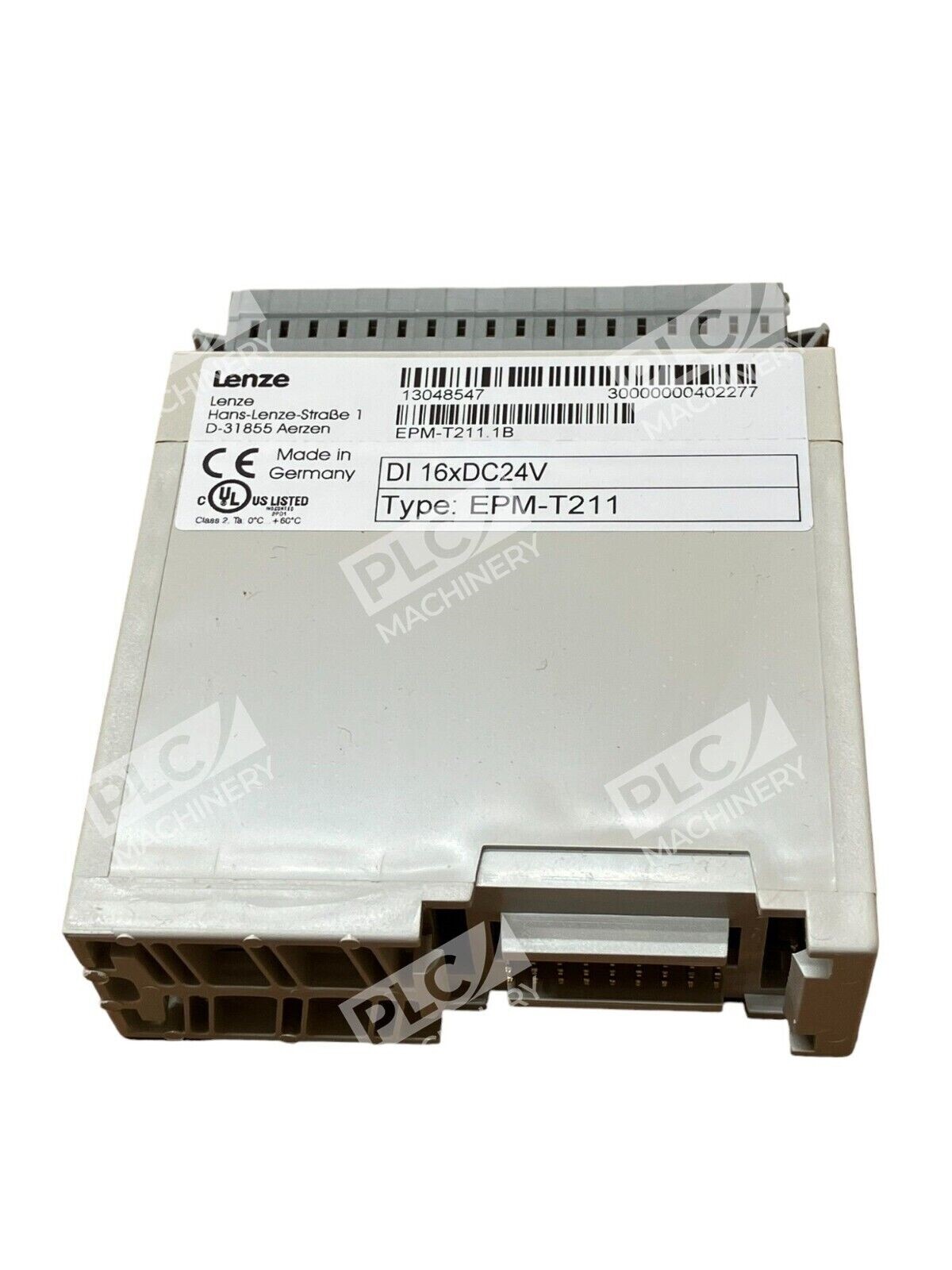

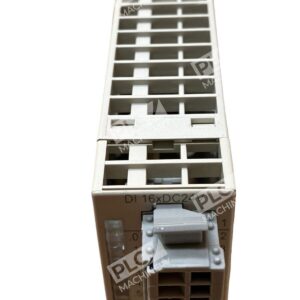

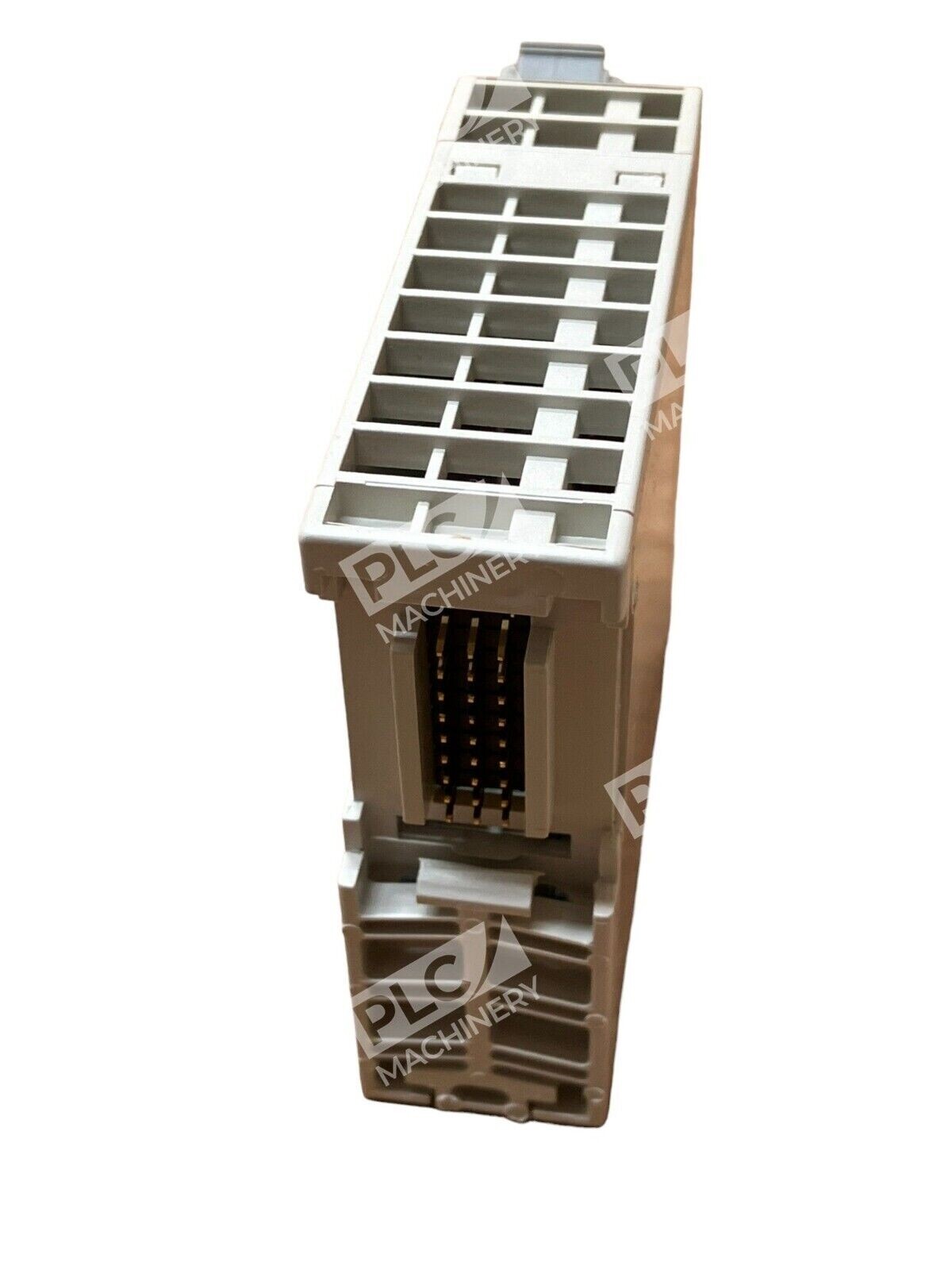

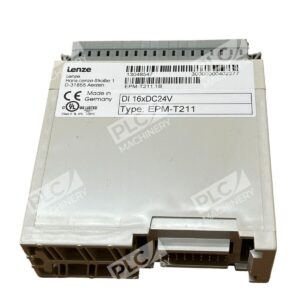

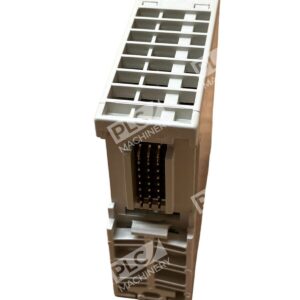

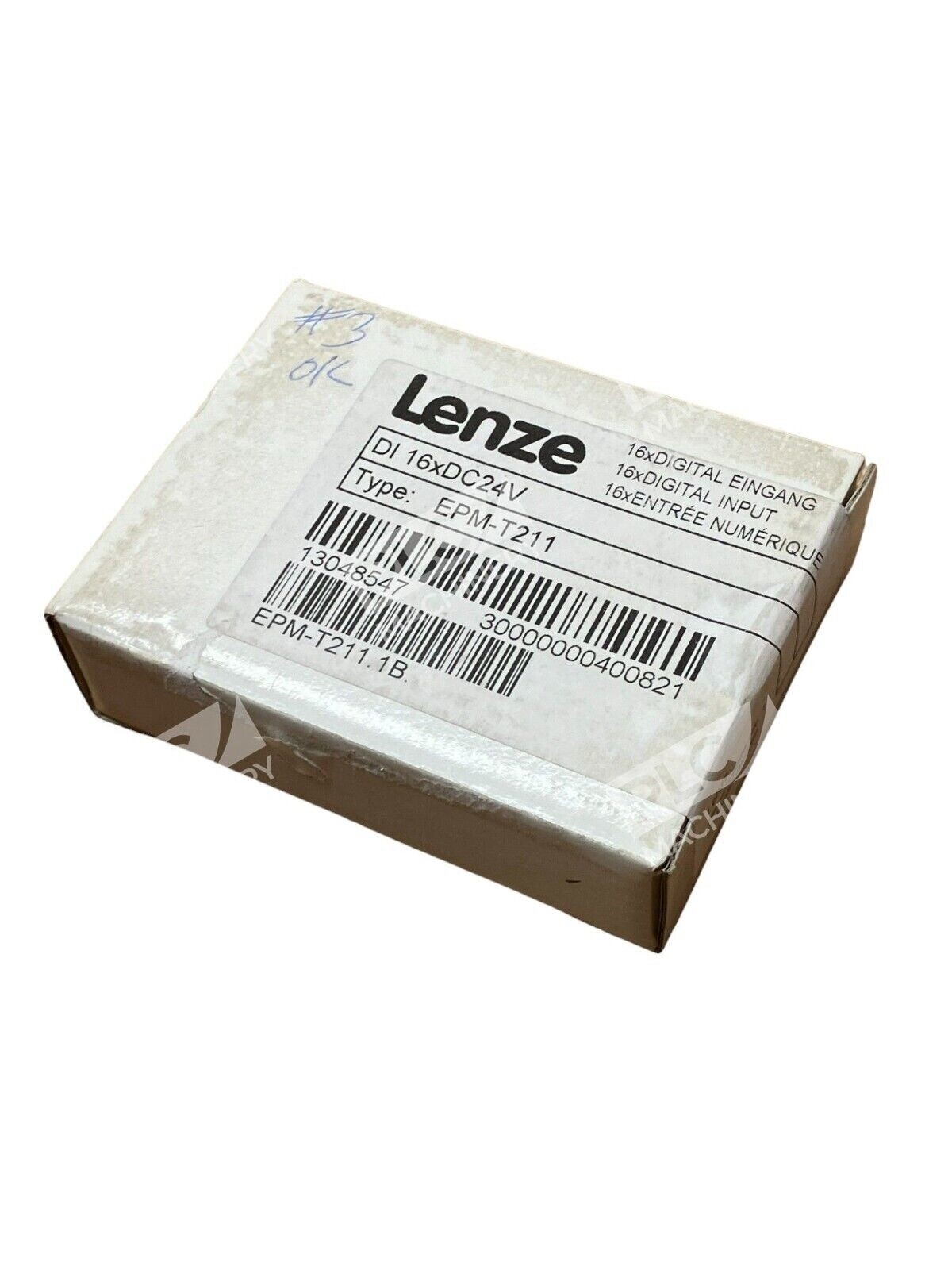

The Lenze EPM-T211 is a dedicated 16-channel digital input module designed for the Lenze modular I/O system IP20. Operating at DC24V (18–28.8 V range), this module accepts sensor signals, limit switches, and binary control inputs and interfaces them to the central controller via the backplane bus. The EPM-T211 is a 24 VDC, 16 digital input I/O module, making it an ideal expansion choice for Lenze-based automation architectures.
Key Features
- 16 independent digital input channels rated for DC24V logic levels
- DC 24 V supply rated 18–28.8 V nominal input
- Integrated status display with LED indicators for input verification
- Compact module form factor for standard DIN-rail mounting within Lenze enclosures
- Direct backplane bus integration for plug-and-play installation
- Suitable for discrete sensor and limit-switch applications
Technical Specifications
- Input channels: 16 digital inputs
- Supply voltage: DC24V (18–28.8 V)
- Input impedance: Standard DC24V logic threshold

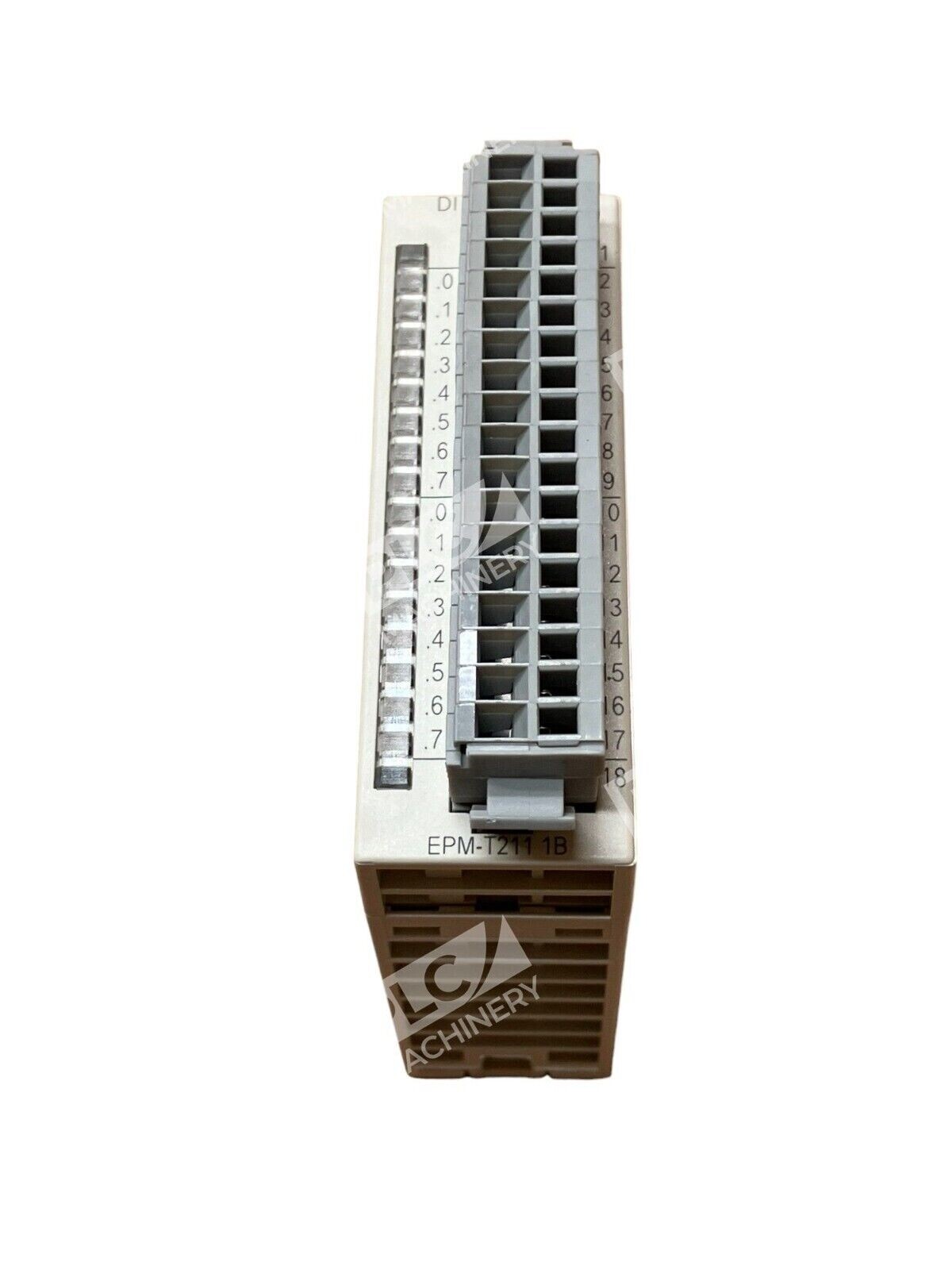

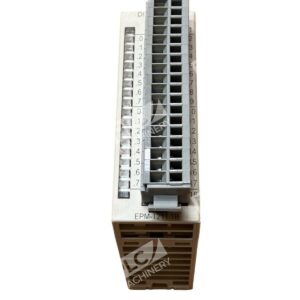

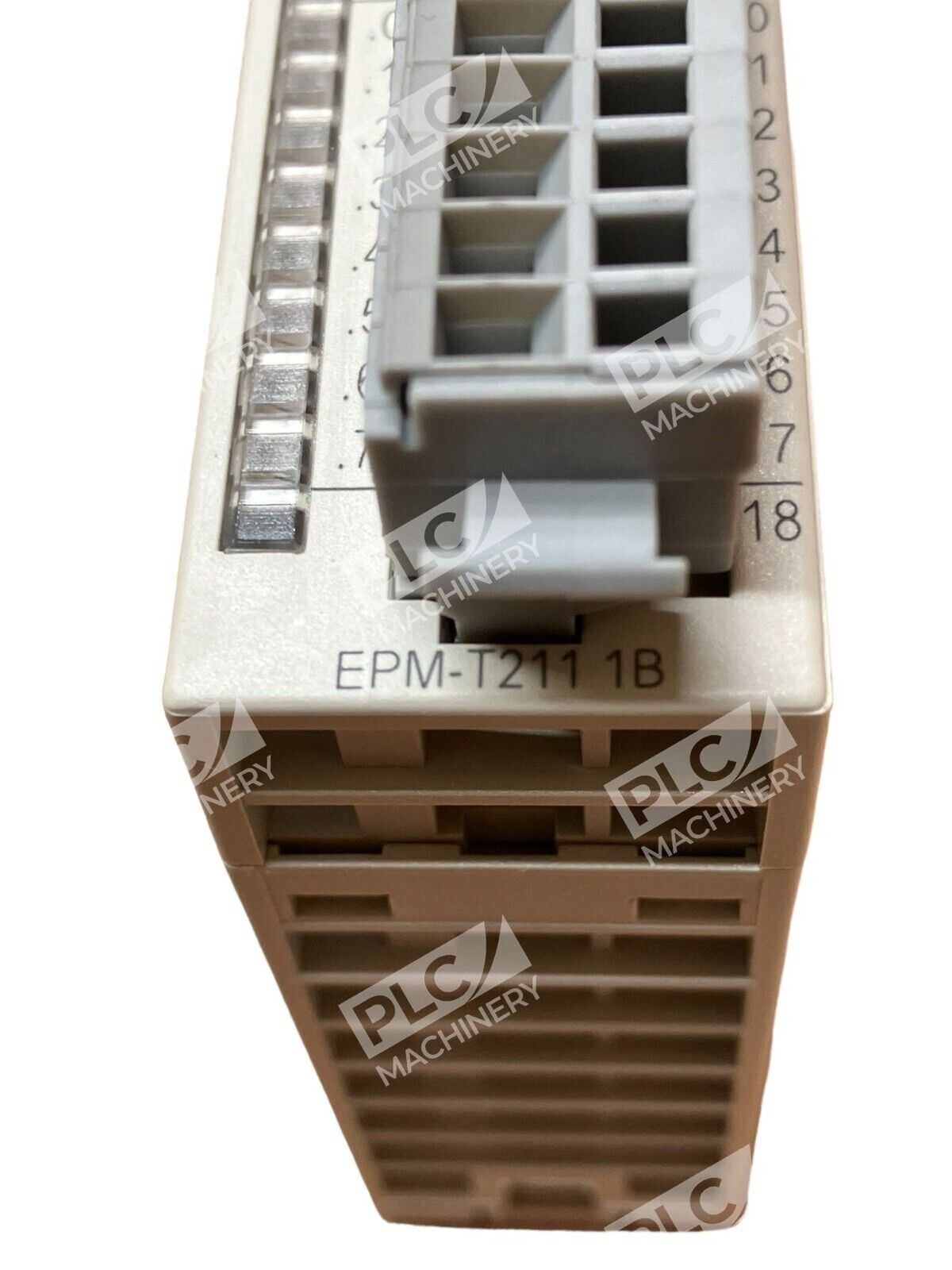

- Status display: LED indicators per channel (terminals 0–7 and 8–15)
- Mounting: DIN-rail module (fits Lenze EPM modular backplane)
- Module dimensions: Approx. 109 mm H × 12.5 mm W × 76.5 mm D
- Weight: ~0.15 lbs
- Electrical isolation: 500 V between backplane bus and I/O signals
- Operating temperature: −20°C to +50°C
- Protection rating: IP20
Typical Applications
- Limit switch and proximity sensor acquisition in motion control systems
- Discrete process signal monitoring on automated machinery
- Emergency stop and interlock signal collection
- Parallel load acquisition in packaging, conveyor, and material-handling equipment
- Integration with Lenze drive and automation component ecosystems
Compatibility & Replacements
Compatible With
- Lenze EPM-T1 series modular I/O system
- Lenze EPM backplane controllers and PLCs
- Lenze drive systems with I/O expansion capability
- DC24V sensor and binary input devices
Replaces / Drop-In Replacement For
- Previous Lenze EPM-T211 units and variants (EPM-T211.1B)
- Other 16-point, 24V digital input modules requiring Lenze-bus compatibility
Works With
- Lenze motion control software and configurators
- Lenze I/O system documentation and parameter-setting tools
- Standard CAN-bus and backplane bus protocols within Lenze automation platforms
- EC directive–compliant industrial control environments
