Overview

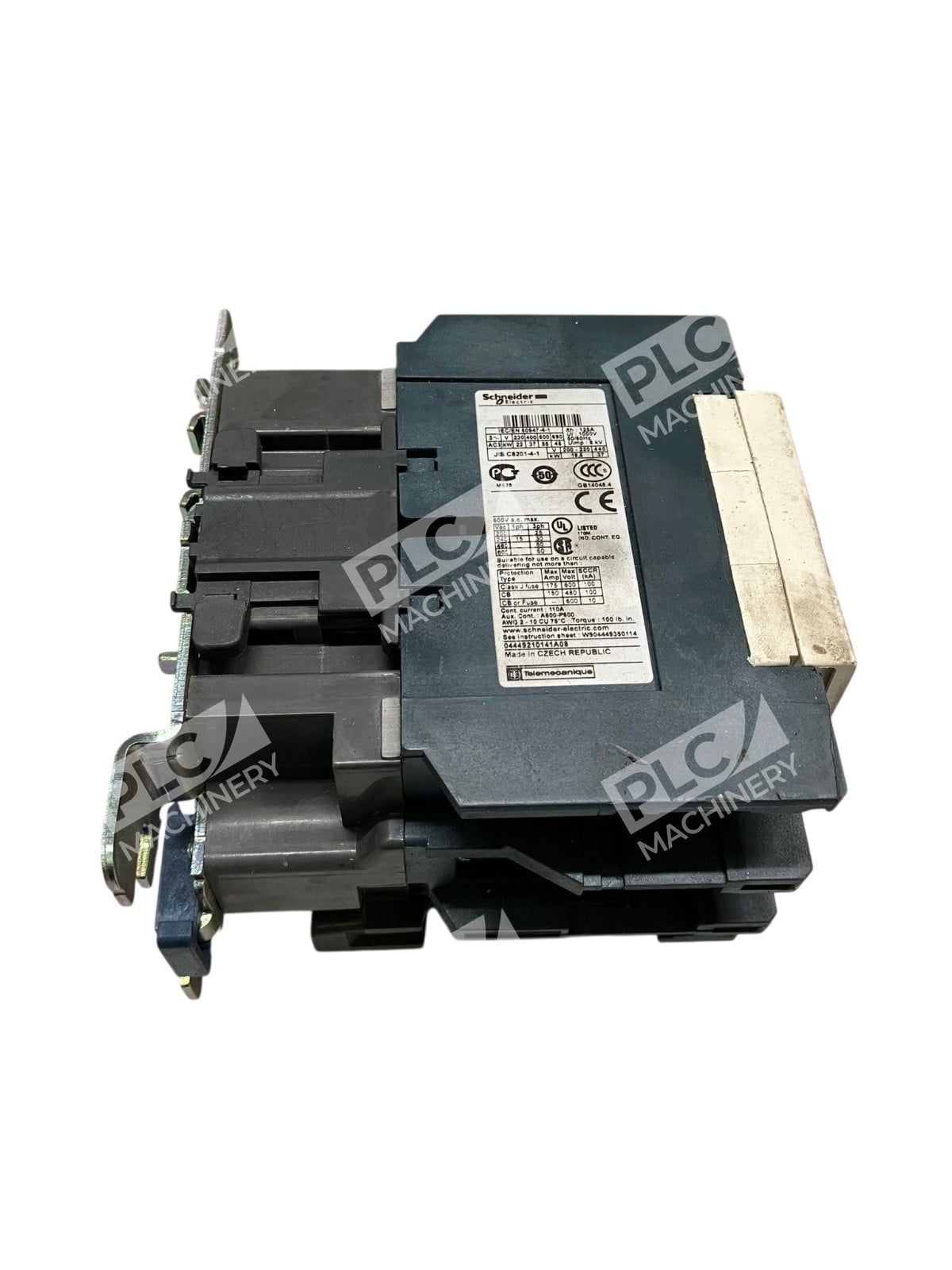

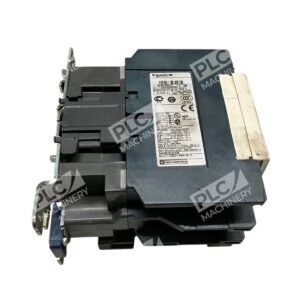

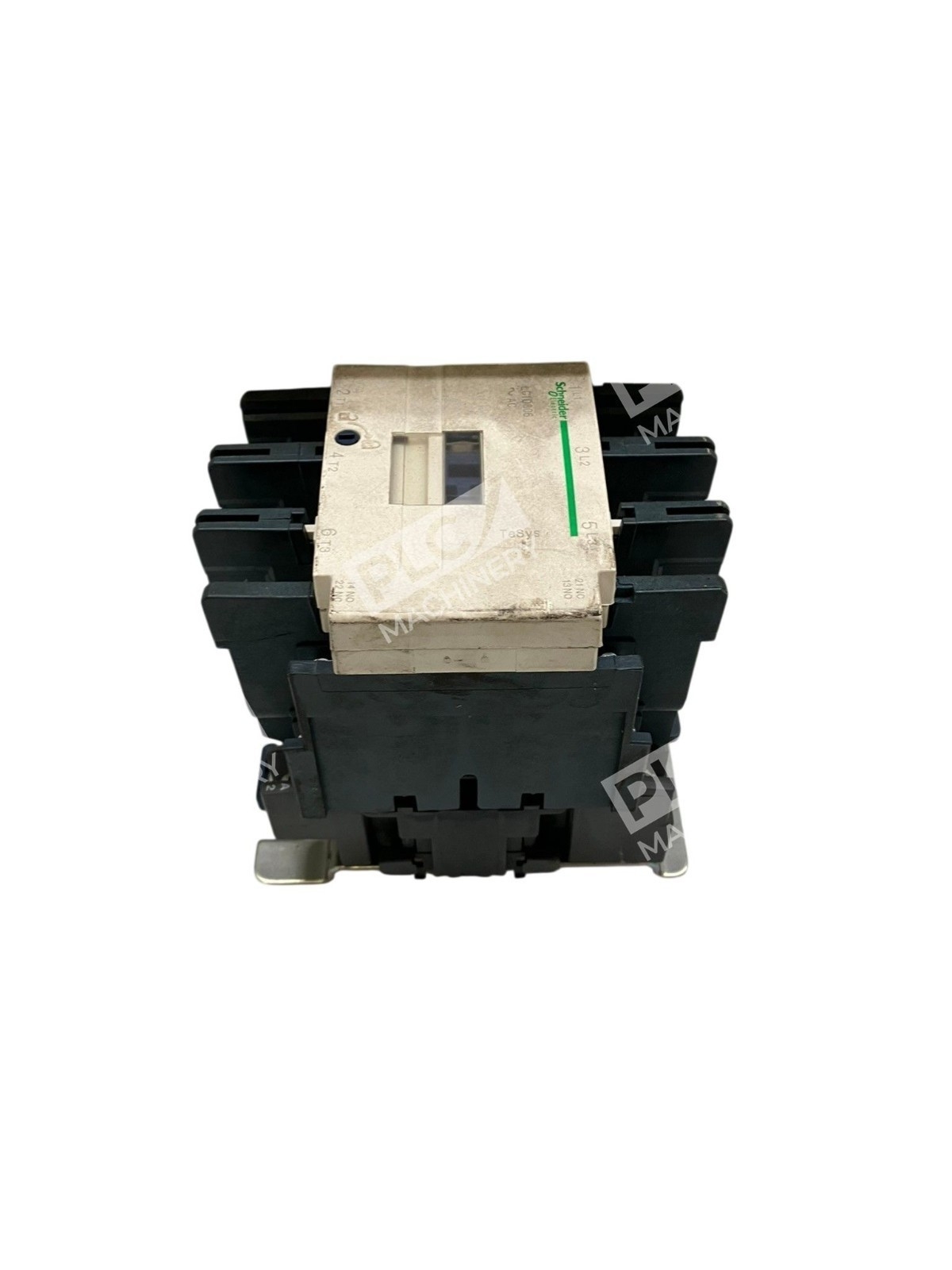

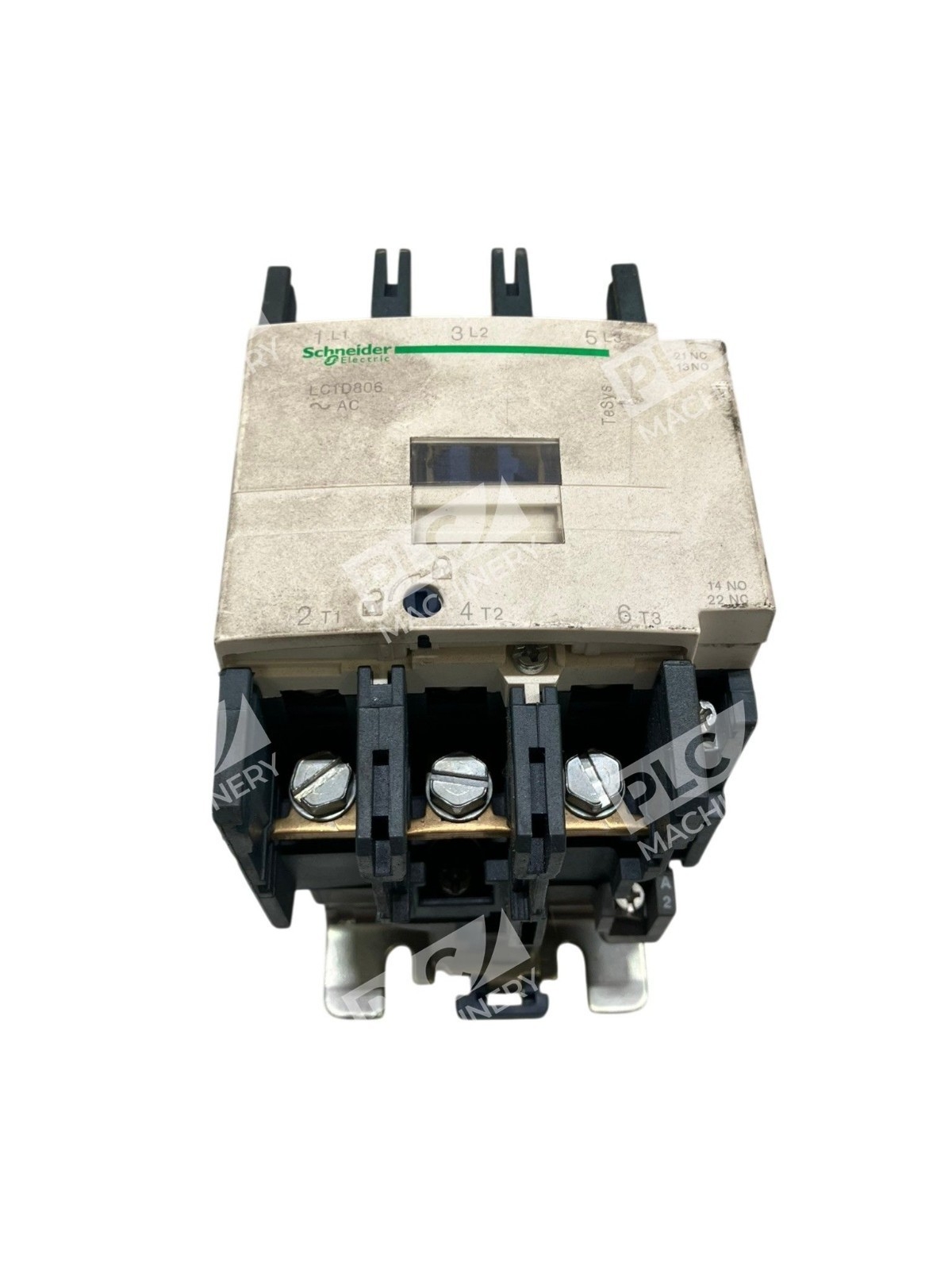

The Schneider Electric LC1D806 is a TeSys D series IEC contactor engineered for reliable motor control and power switching in industrial automation systems. TeSys D contactors have been designed for perfect integration into control systems and can be used to create motor starters for almost any type of application. This 80A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. The LC1D806 base model is available with multiple coil voltage options (24 V DC, 100 V AC, 208 V AC, 220 V AC) to match your control circuit requirements.
Key Features
- Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase.
- Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified.

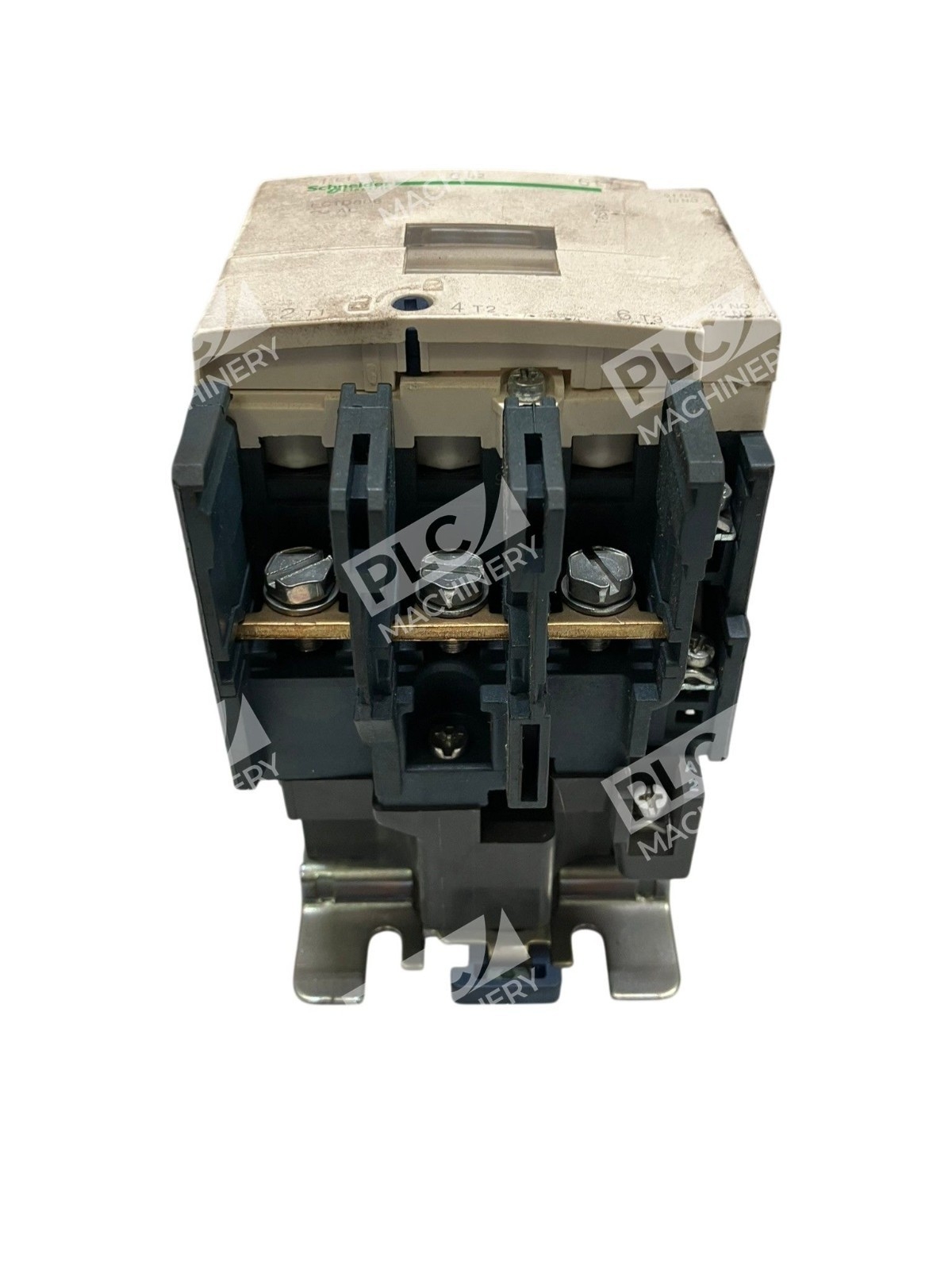

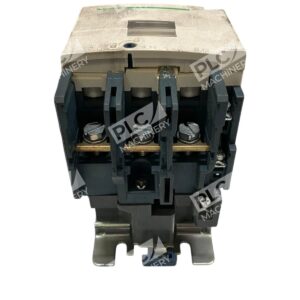

- Ring-lug screw terminals are used for load and auxiliary connections.

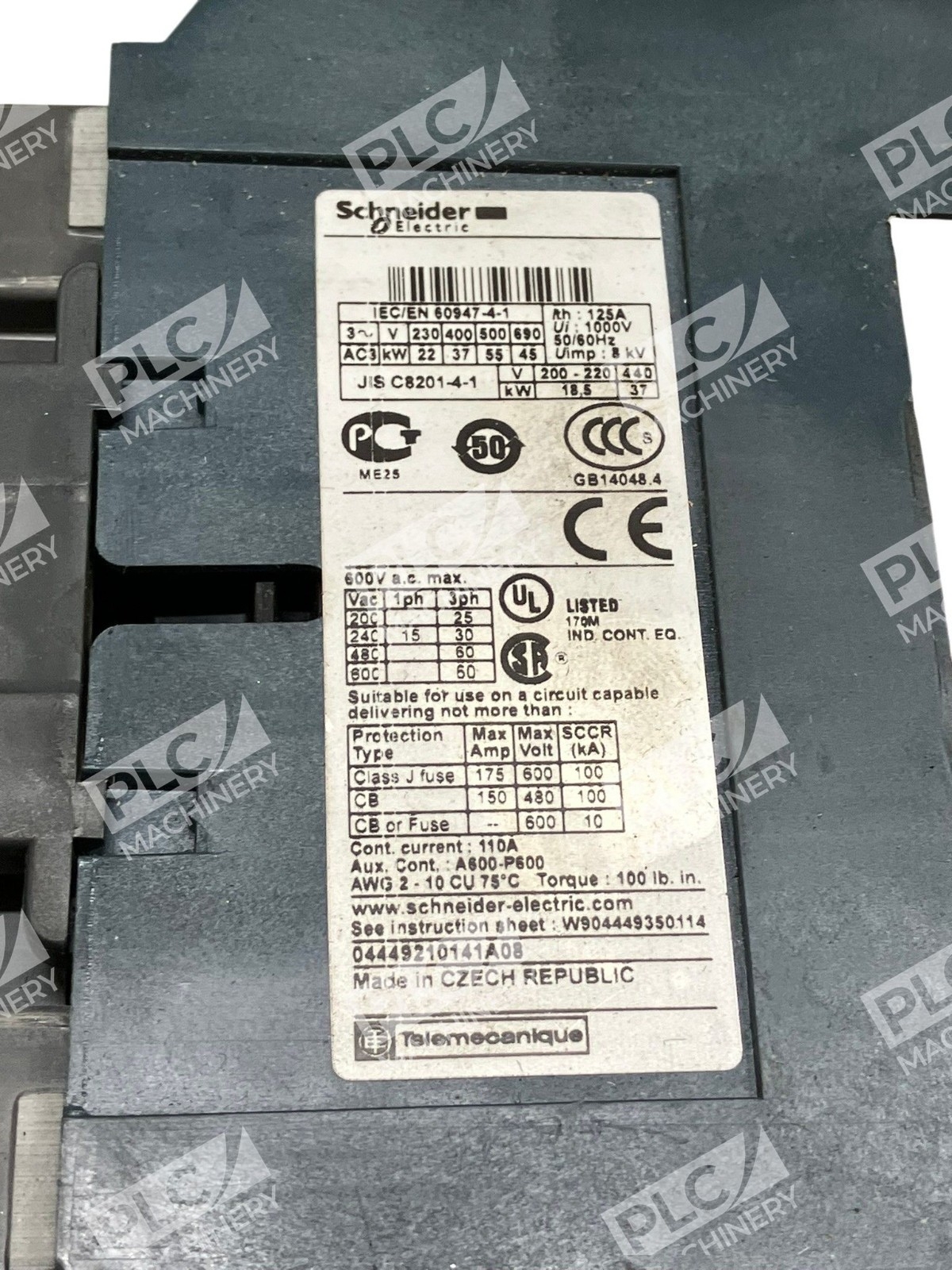

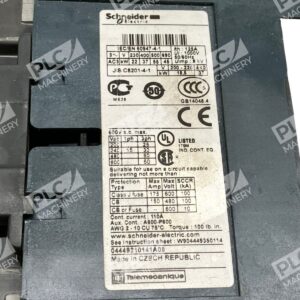

- Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
- Compact design with compliance with international standards.
- An extensive line of accessories makes it easy to meet the requirements of most applications.
Technical Specifications
- Inductive Rating (AC-3): 80 A
- Continuous Current Rating: 125 A at 60°C ambient
- Power Circuit Voltage (IEC): 1000 V AC, 1 phase and 3 phase
- Power Circuit Voltage (UL/CSA): 600 V AC
- Signalling Circuit: 690 V IEC, 600 V UL/CSA
- Poles: 3 pole, 3 NO (normally open)
- Auxiliary Contacts: 1 NO / 1 NC (mirror certified)
- Mounting: DIN rail or panel mount
- Dimensions: 5.00 in H × 3.35 in W × 5.12 in D
- Weight: 3.51 lbs
Typical Applications
TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. The LC1D806 is suitable for:
- Three-phase motor starting and control
- Industrial machinery and equipment control
- HVAC and pump motor applications
- Manufacturing process automation
- Direct on-line motor starters
- Motor starter combination with overload relays
For motor starting applications with thermal overload protection, it is recommended to use Schneider Electric TeSys Protect – Deca overload relays.
Compatibility & Replacements
Compatible With
- Three-phase AC motors (200V to 600V)
- Single-phase AC motors (115V to 240V)
- Power distribution panels and motor control centers
- DIN-rail mounted control systems
- Standard IEC 60947-4-1 compliant industrial controls
- TeSys Protect Deca overload relays and thermal trip units
Replaces / Drop-In Replacement For
The LC1D806 base model is available with different coil voltage variants. Verify the specific coil rating when replacing. Common equivalent models with different coil voltages include LC1D806M7 (220V AC), LC1D806LE7 (208V AC), LC1D806K7 (100V AC), and LC1D806BD (24V DC). Always confirm coil voltage and auxiliary contact configuration before substitution.
Works With
- Schneider Electric TeSys overload relays (LR2, LR9, TeSys Protect)
- Square D and Schneider motor circuit breakers
- Standard three-phase AC distribution circuits
- IEC-compliant motor starter combinations
- Auxiliary contact blocks and add-on modules (LAD series)
- Industrial PLC and control system I/O modules
