Overview

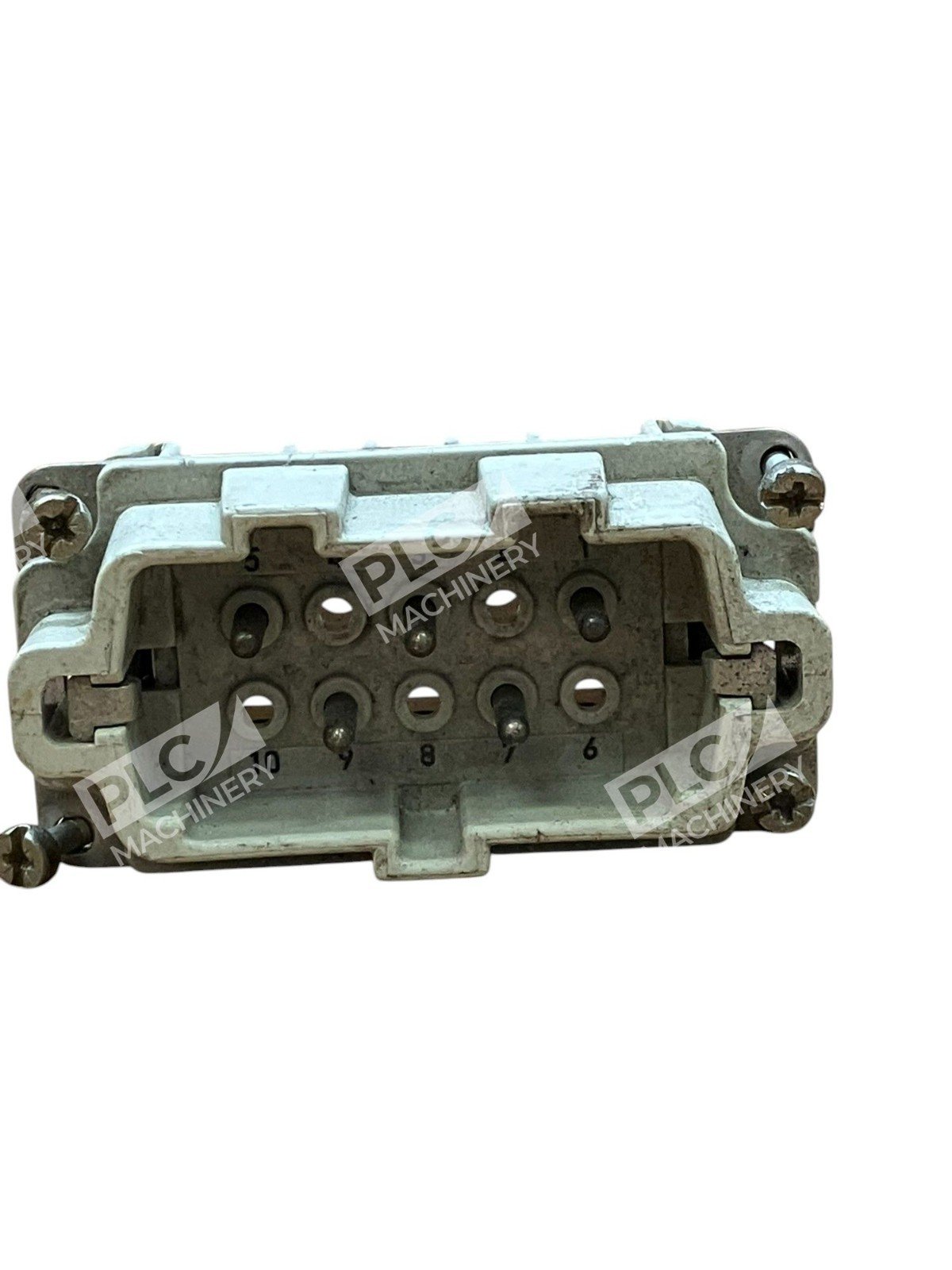

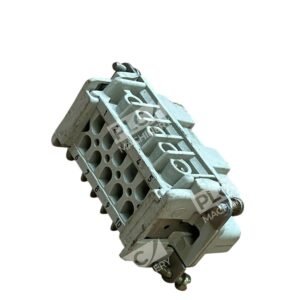

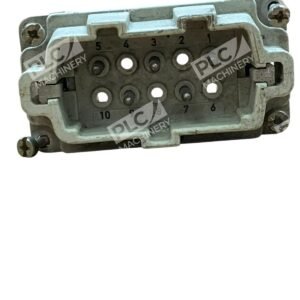

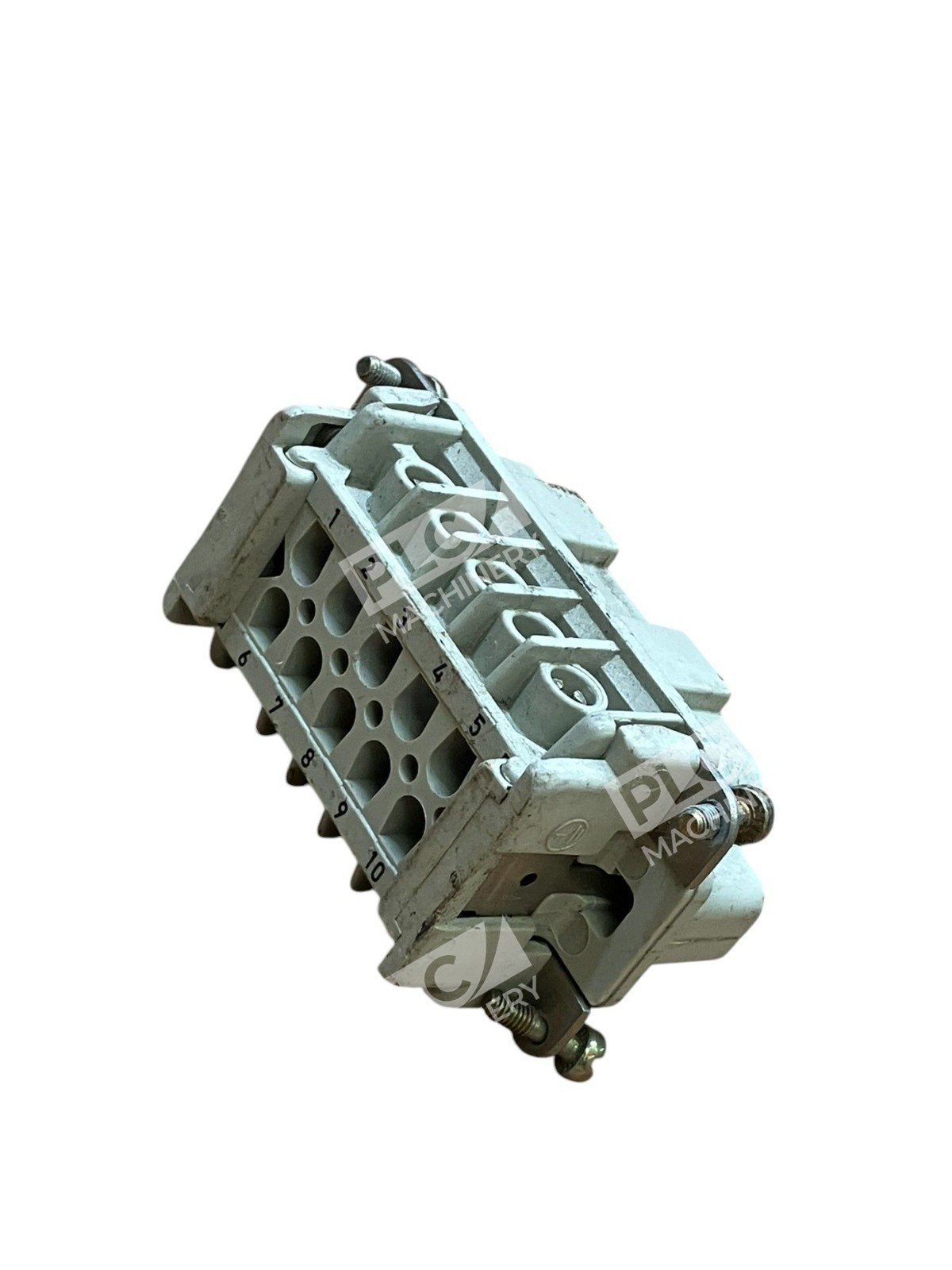

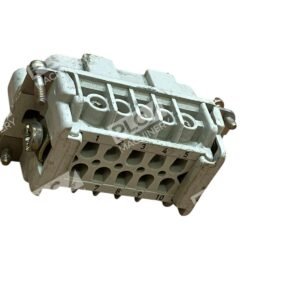

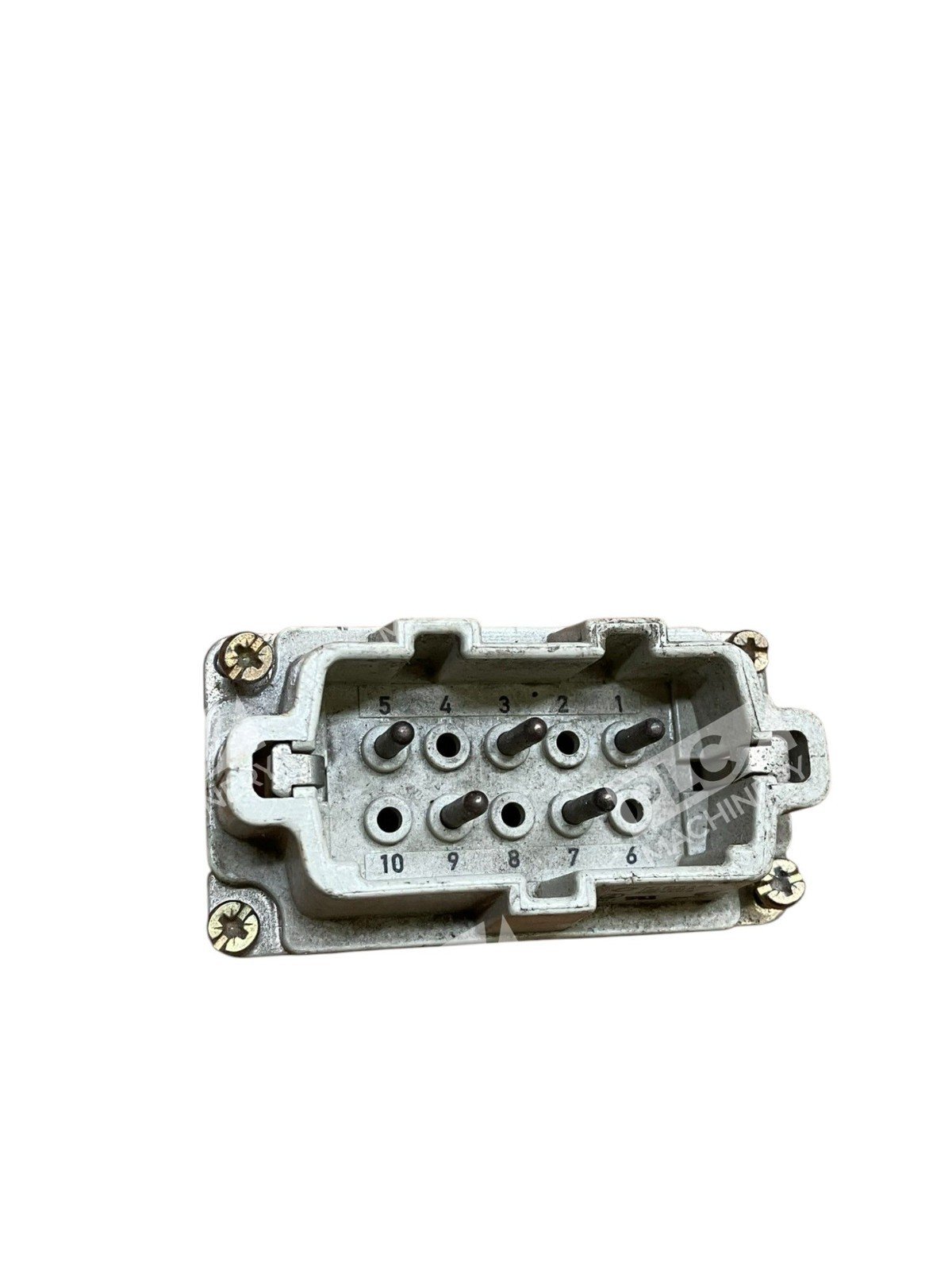

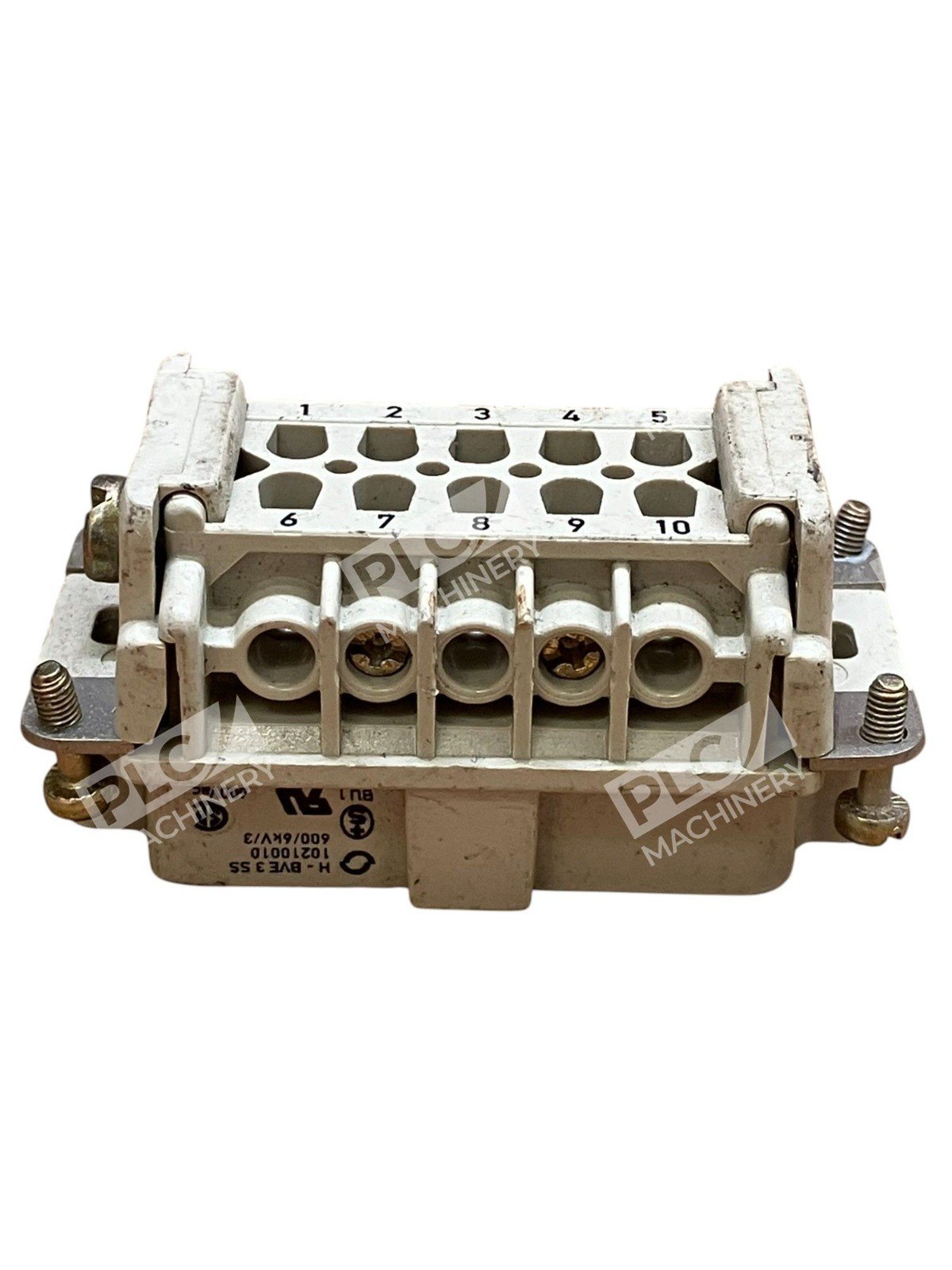

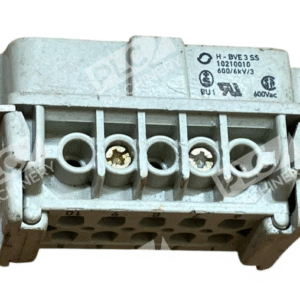

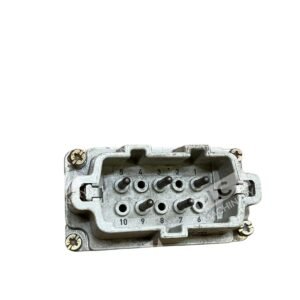

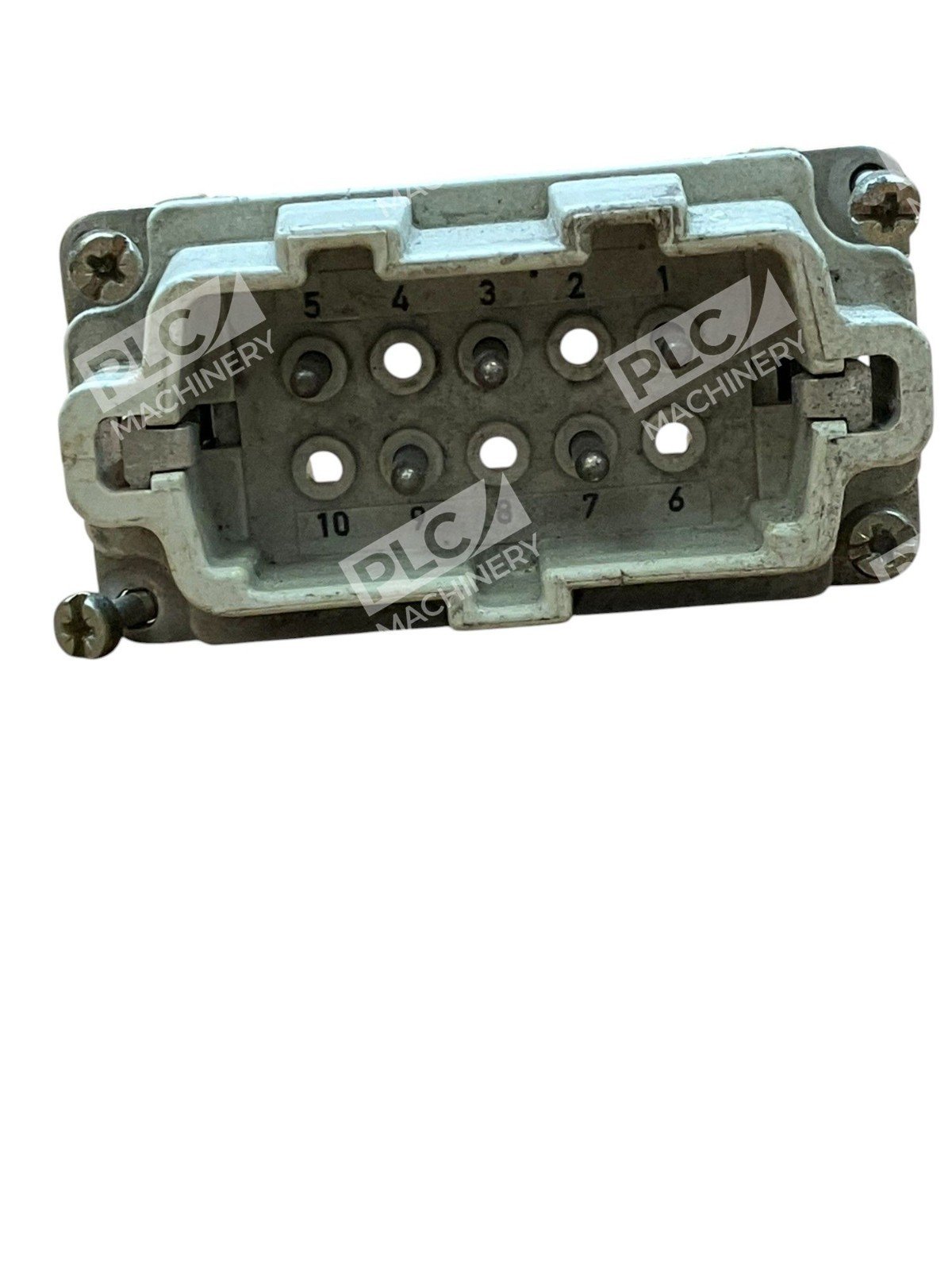

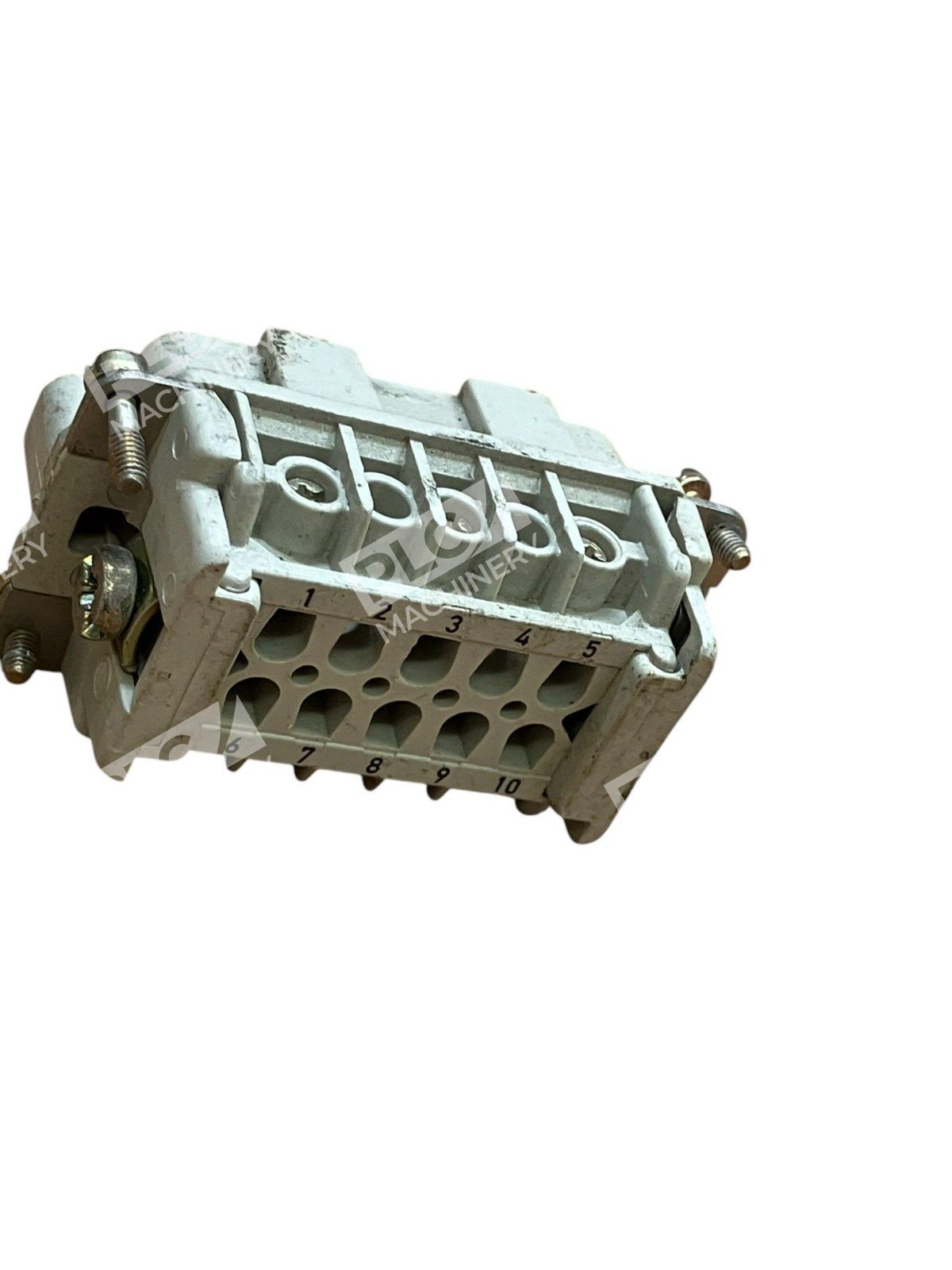

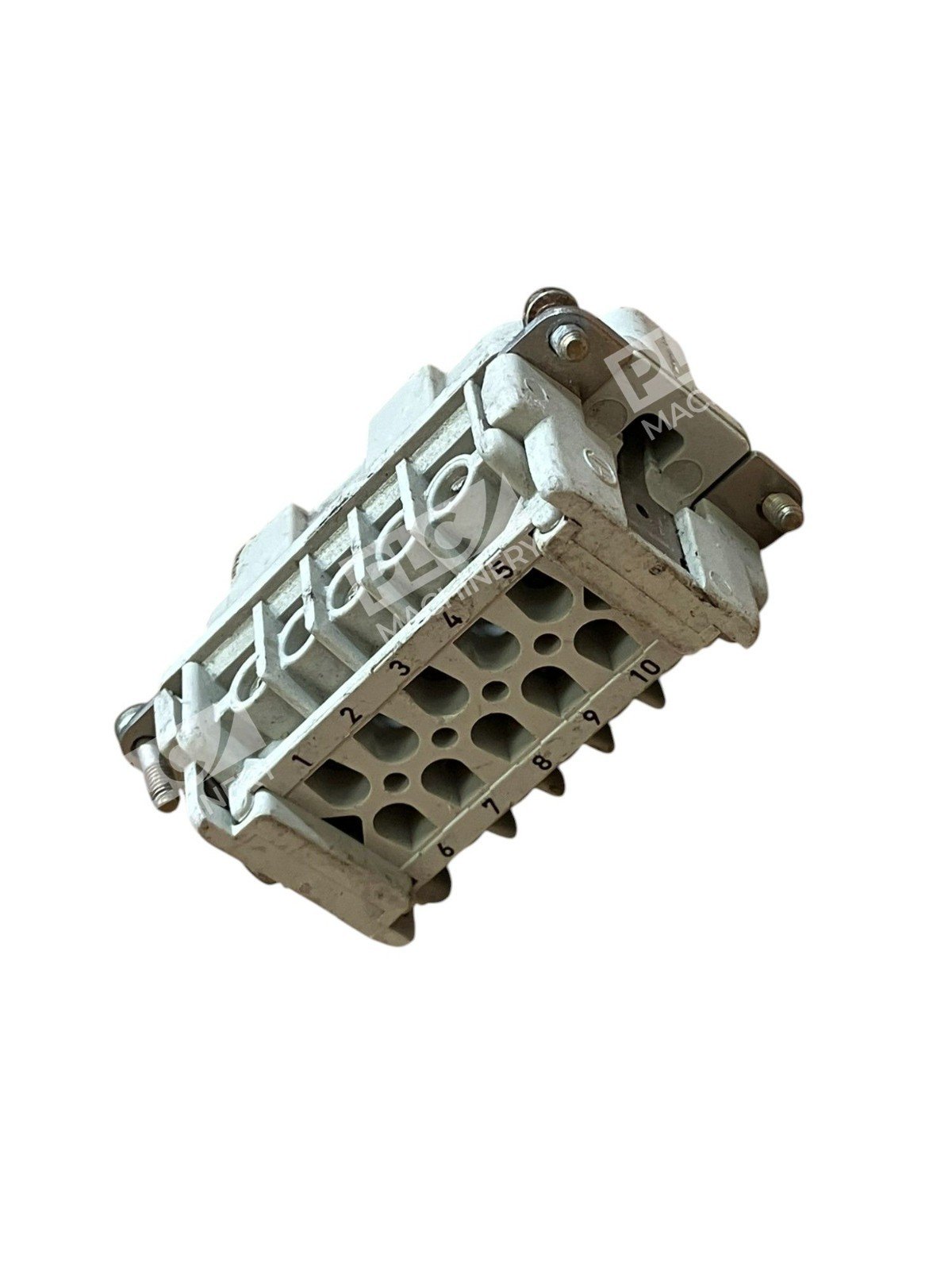

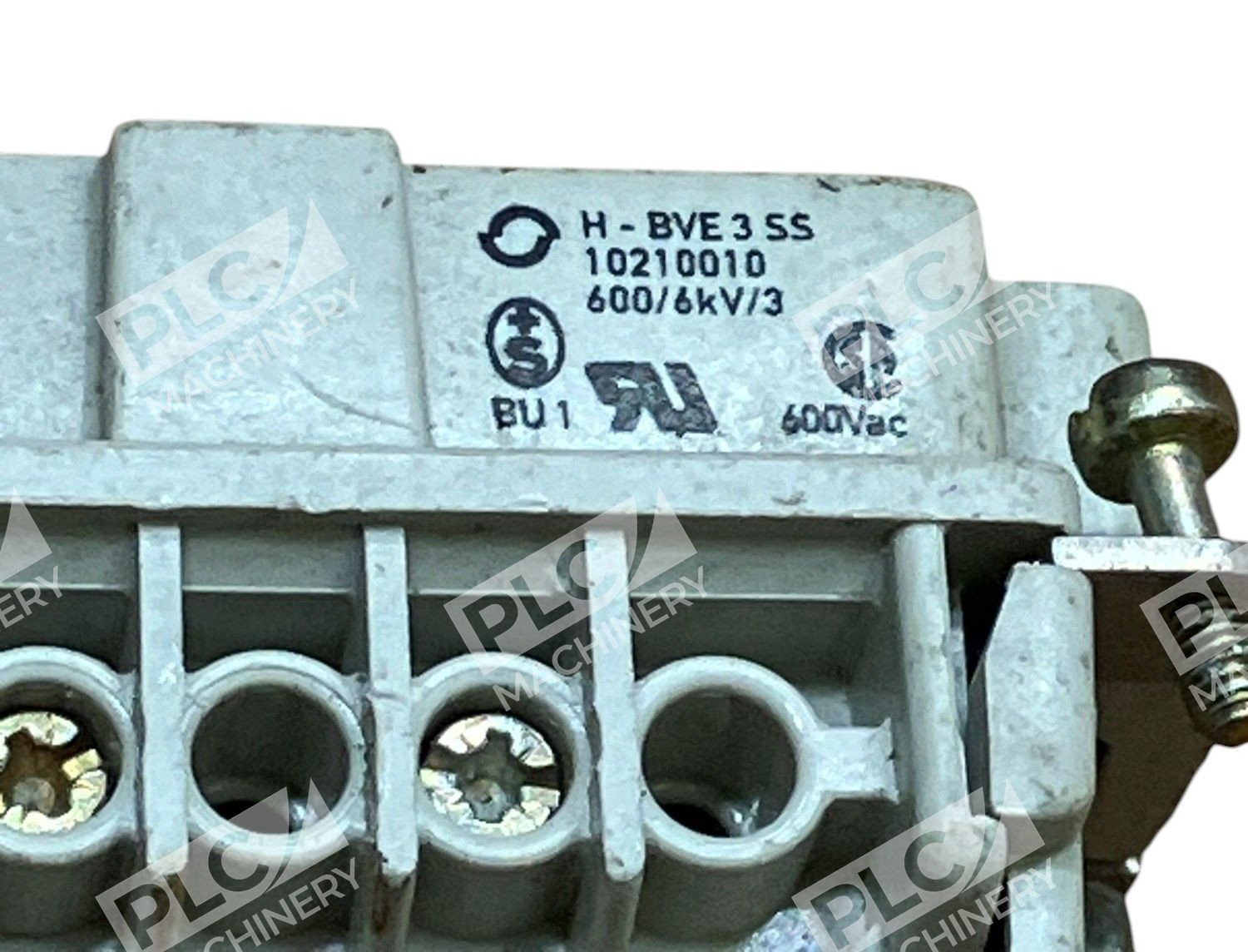

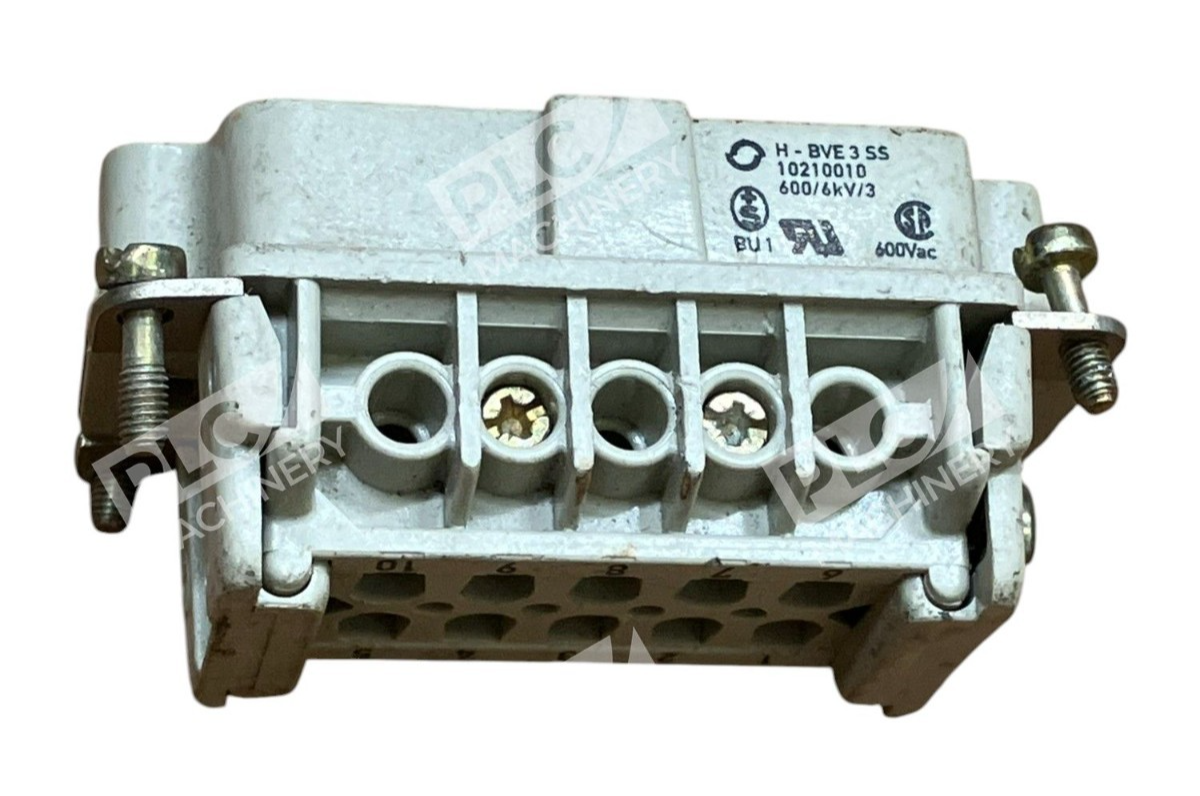

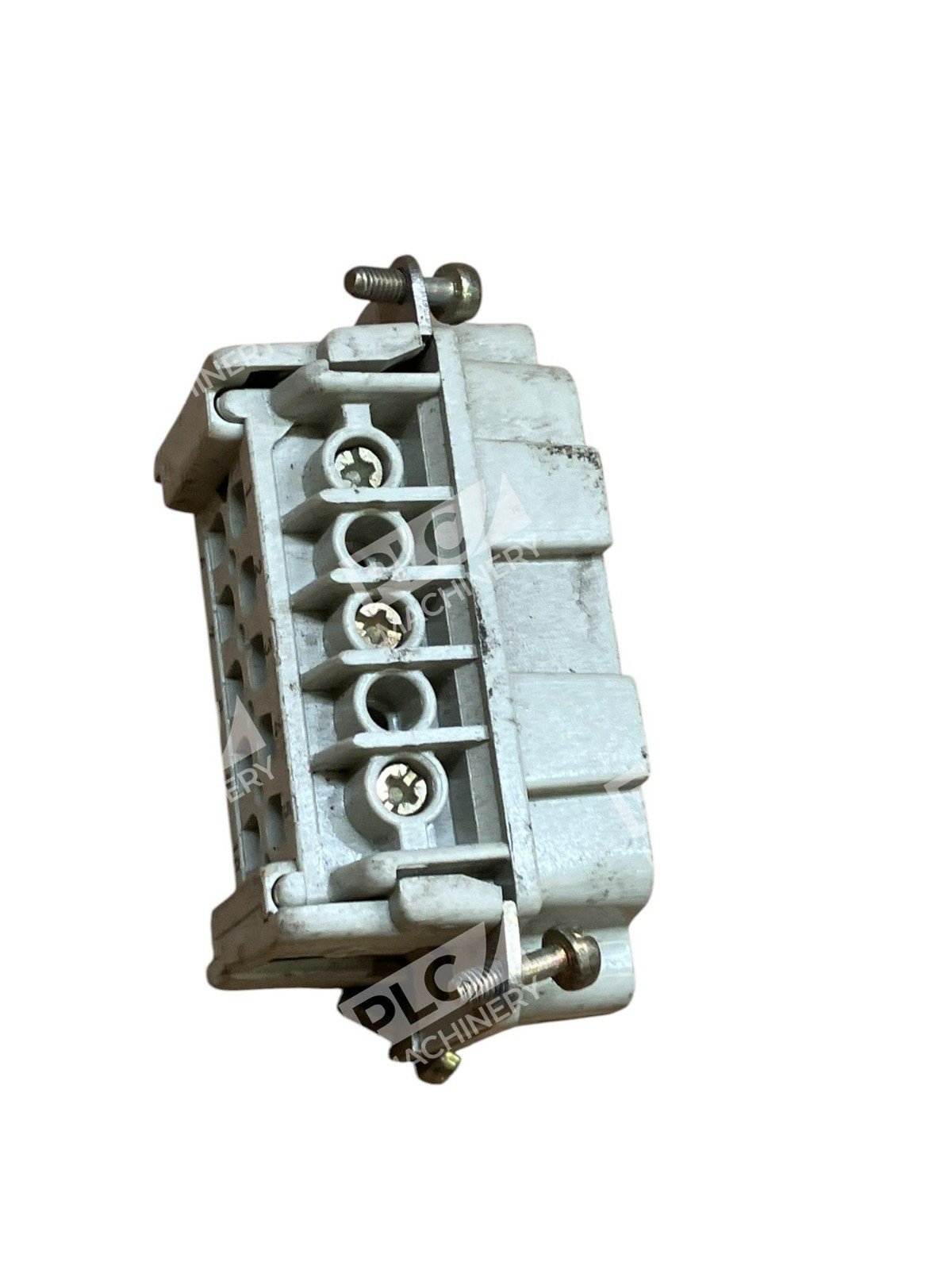

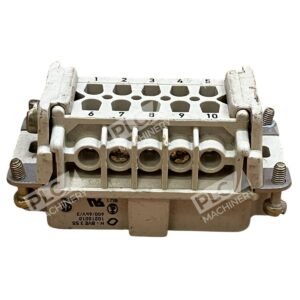

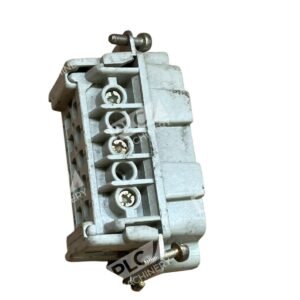

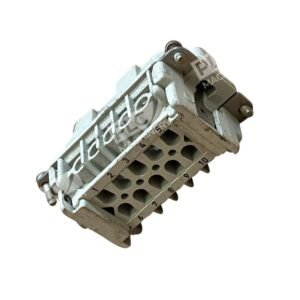

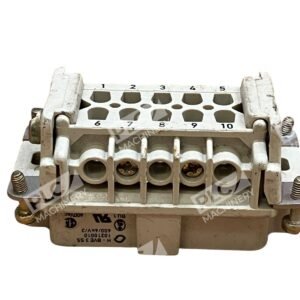

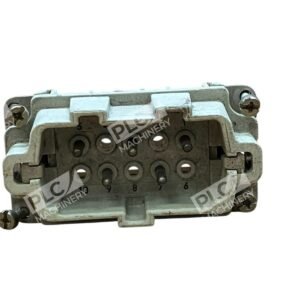

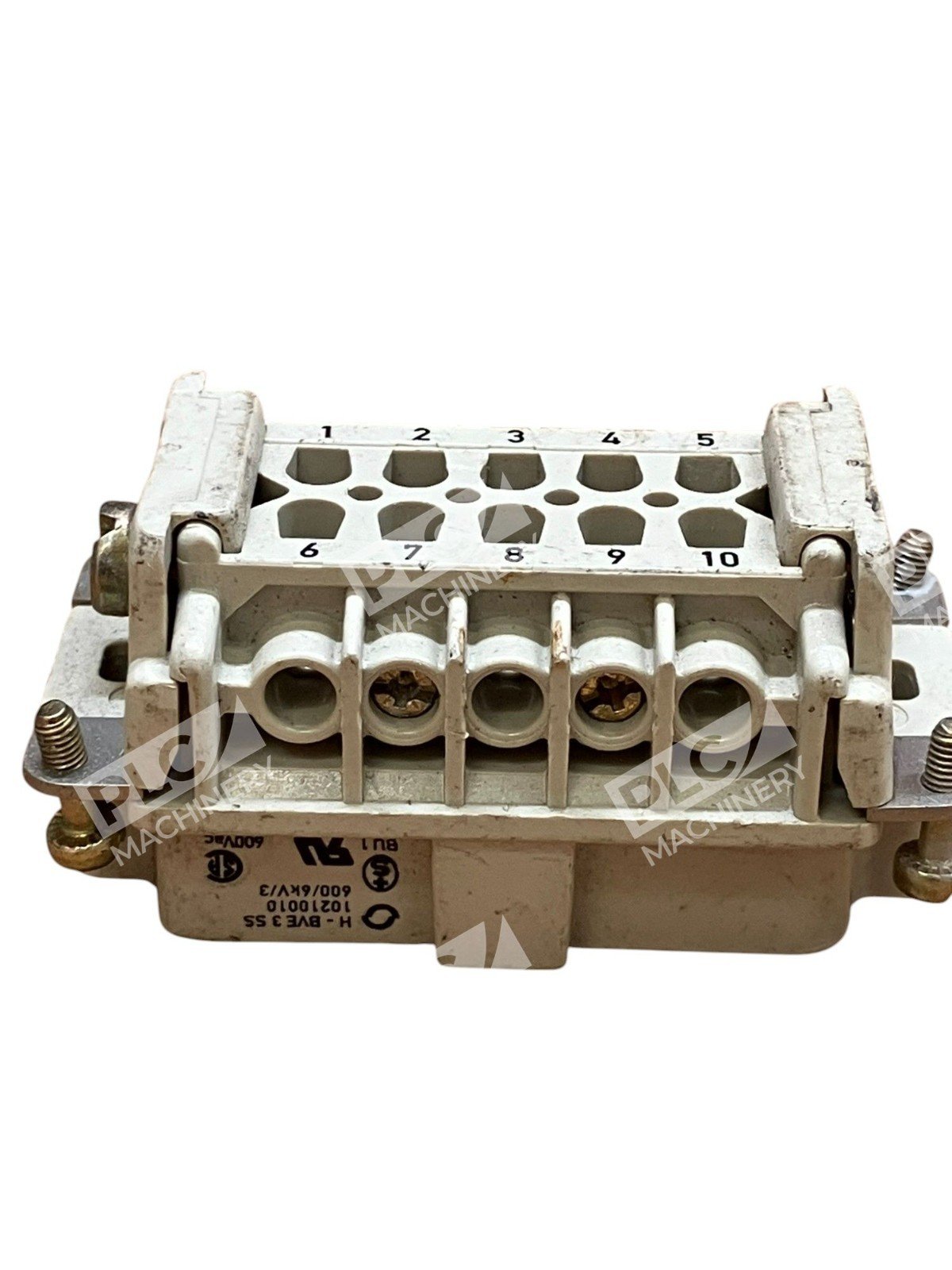

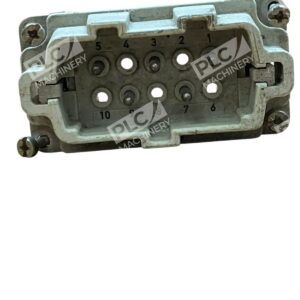

The Lapp 10210010 EPIC H-BVE3SS connector plug is a robust screw-terminal insert designed for industrial power and control circuits. Part of Lapp’s EPIC connector family, this unit provides secure termination and reliable performance in demanding manufacturing and process control environments operating at 600VAC nominal voltage.
Key Features
- Screw-terminal design for secure wire retention without crimping
- 5-pin EPIC H-BVE insert configuration
- 16A current rating with 630V withstand voltage
- Rated for 600VAC industrial power applications
- Durable stainless steel or nickel-plated contacts for corrosion resistance
- Compact form factor suitable for cabinet-mount and field installations
Technical Specifications

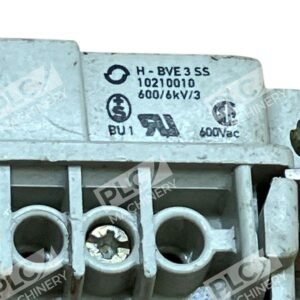

| Part Number | 10210010 |
| Connector Type | EPIC H-BVE3SS (screw-terminal insert) |
| Pin Count | 5 |
| Rated Voltage | 600VAC nominal / 630V withstand |
| Current Rating | 16A per contact |
| Termination Method | Screw-terminal |
| Contact Material | Stainless steel / nickel-plated |
| Operating Temperature | -25°C to +80°C |
| Insulation Class | 6kV per UL/IEC standards |
| Manufacturer | Lapp |
| Series | EPIC H-BVE |
Typical Applications
- Industrial power distribution cabinets and control panels
- Motor control and variable frequency drive (VFD) installations
- Heavy equipment and machinery power interconnects
- Process control circuits in manufacturing facilities
- Automated assembly lines requiring reliable high-voltage termination
- IEC 61076-2-104 compliant power connector applications
Compatibility & Replacements
Compatible With
- EPIC H-BVE connector housings and backshells
- Industrial control systems operating at 600VAC
- Standard DIN 43650C-compatible cabinets and panels
- Lapp EPIC connector ecosystem for power and signal distribution
Replaces / Drop-In Replacement For
Verify compatibility with your equipment documentation. The Lapp 10210010 is designed as a standard EPIC H-BVE3SS insert; direct replacement compatibility depends on matching housing part number and pin configuration. Consult your system integrator or Lapp technical support for specific substitutions.
Works With
- EPIC H-BVE connector housings
- Industrial electrical cabinets and junction boxes
- Standard DIN-mount rail systems
- IEC 61076-2-104 power distribution networks
- Lapp UNITRONIC and ÖLFLEX cable systems
