Overview

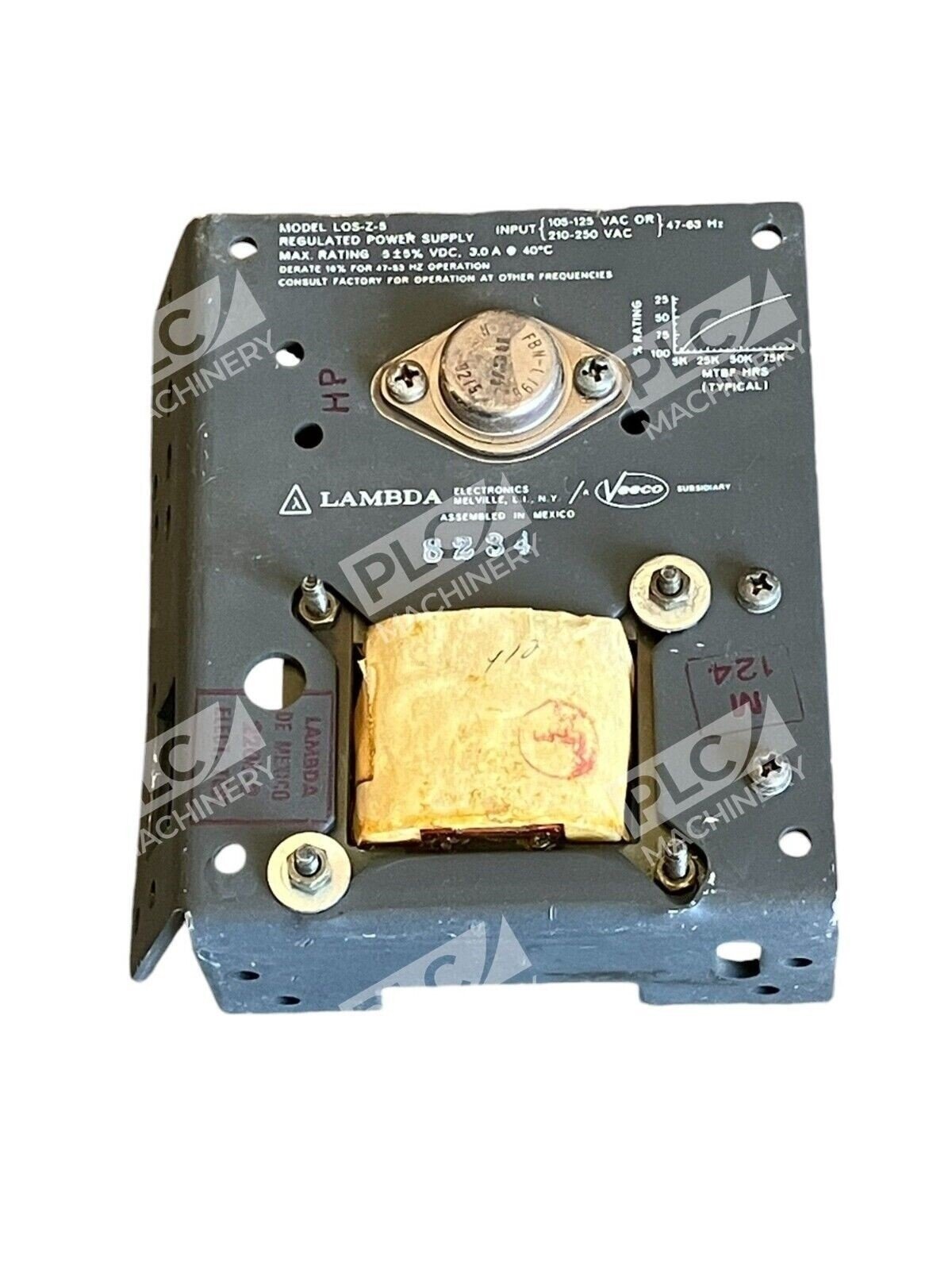

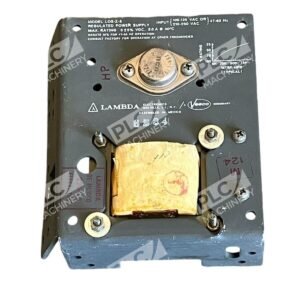

The Lambda LOS-Z-5 is a regulated AC/DC power supply engineered for reliable low-voltage DC power delivery in industrial control and instrumentation applications. Lambda LOS-Z-5 units feature fixed 5V output with current-limiting protection, switchable AC input voltage, and a modular enclosure suitable for board mounting or standalone rack installation. This used, tested unit is fully functional and represents significant cost savings for facilities and integrators stocking redundant power architecture.
Key Features
- Fixed 5VDC output with 3A maximum current rating at 40°C ambient
- Dual-voltage AC input: 105–125VAC or 210–250VAC, 47–63Hz operation
- Voltage-regulated for line and load, with inherent current-limiting protection
- Compact modular frame construction for cabinet or DIN-rail integration
- Tested fully operational; ready for immediate deployment
Technical Specifications
The following specifications are verified from manufacturer and distributor documentation:

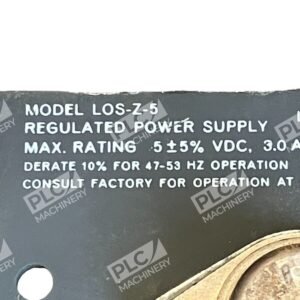

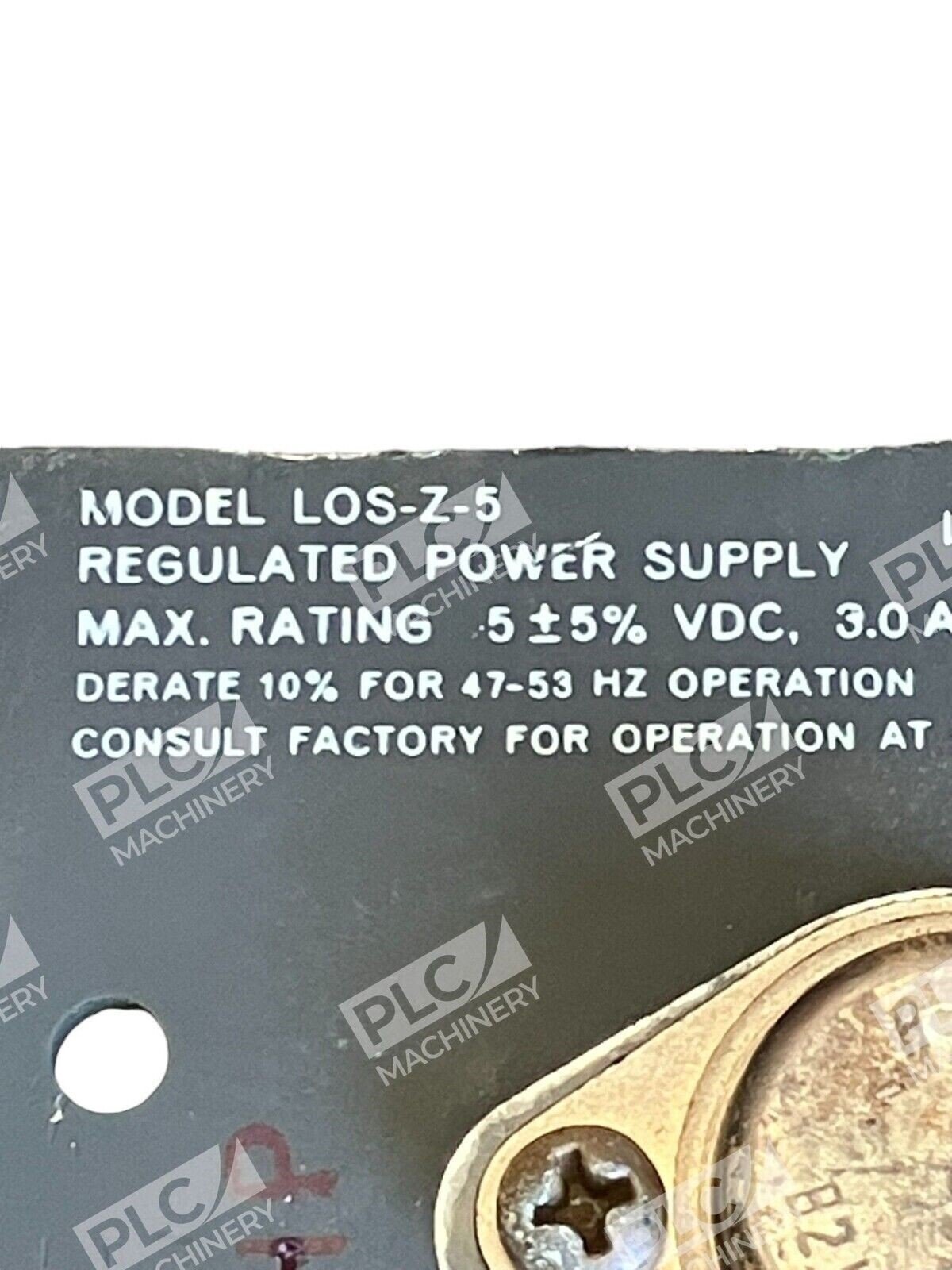

- Output Voltage: 5 VDC (fixed)
- Maximum Output Current: 3.0 A @ 40°C ambient

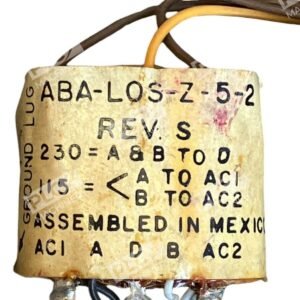

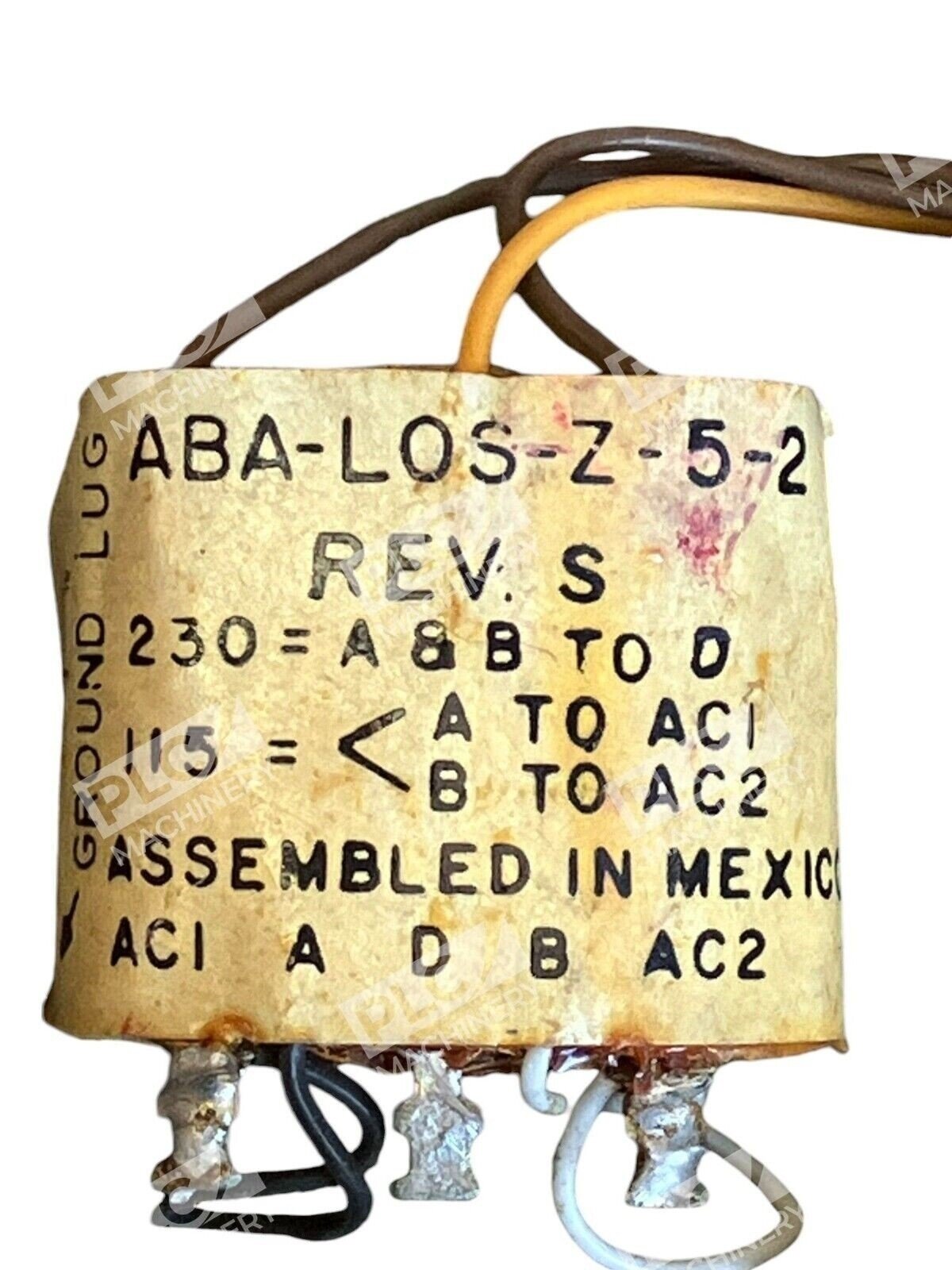

- Input Voltage: 105–125VAC or 210–250VAC (customer-selectable via internal jumper)
- Input Frequency: 47–63 Hz
- Maximum Input Power: 71W (approximate, @ 210–250VAC input)
- Regulation: Constant voltage source; load current limited at 105% of 40°C rating
- Ambient Operating Temperature Range: 0°–70°C (derate current 10% below 47Hz)
- Output Impedance: Nominal 1000 ohms/volt
- Weight: 1.95 lbs
- Mounting: AC/DC modular frame; suitable for board mount or standalone chassis
Typical Applications
The Lambda LOS-Z-5 is commonly deployed in:
- PLC control system backup power and sensor supply circuits
- Industrial instrumentation and test equipment bench supplies
- Panel-mount or modular power distribution cabinets
- Legacy automation retrofit and redundancy projects
- Low-voltage DC bias supplies for analog and digital logic circuits
Compatibility & Replacements
Compatible With
- Standard industrial control enclosures and DIN rail mounting systems
- Modular power distribution frames and chassis
- Any 5VDC load drawing up to 3A continuous current
- Single-phase 105–250VAC utility service (50/60 Hz regions)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Similar regulated 5V power supplies in the Lambda LOS-Z and LNS-Z series share form factors and electrical characteristics; confirm part numbers and mounting requirements with technical documentation.
Works With
- PLC input module power supplies (as standalone backup or redundant supply)
- Field instrumentation and sensor 5V bias rails
- Standard industrial electrical panels with AC input power availability
- Overvoltage protector accessories (Lambda LC-OV series, optional)
