Overview

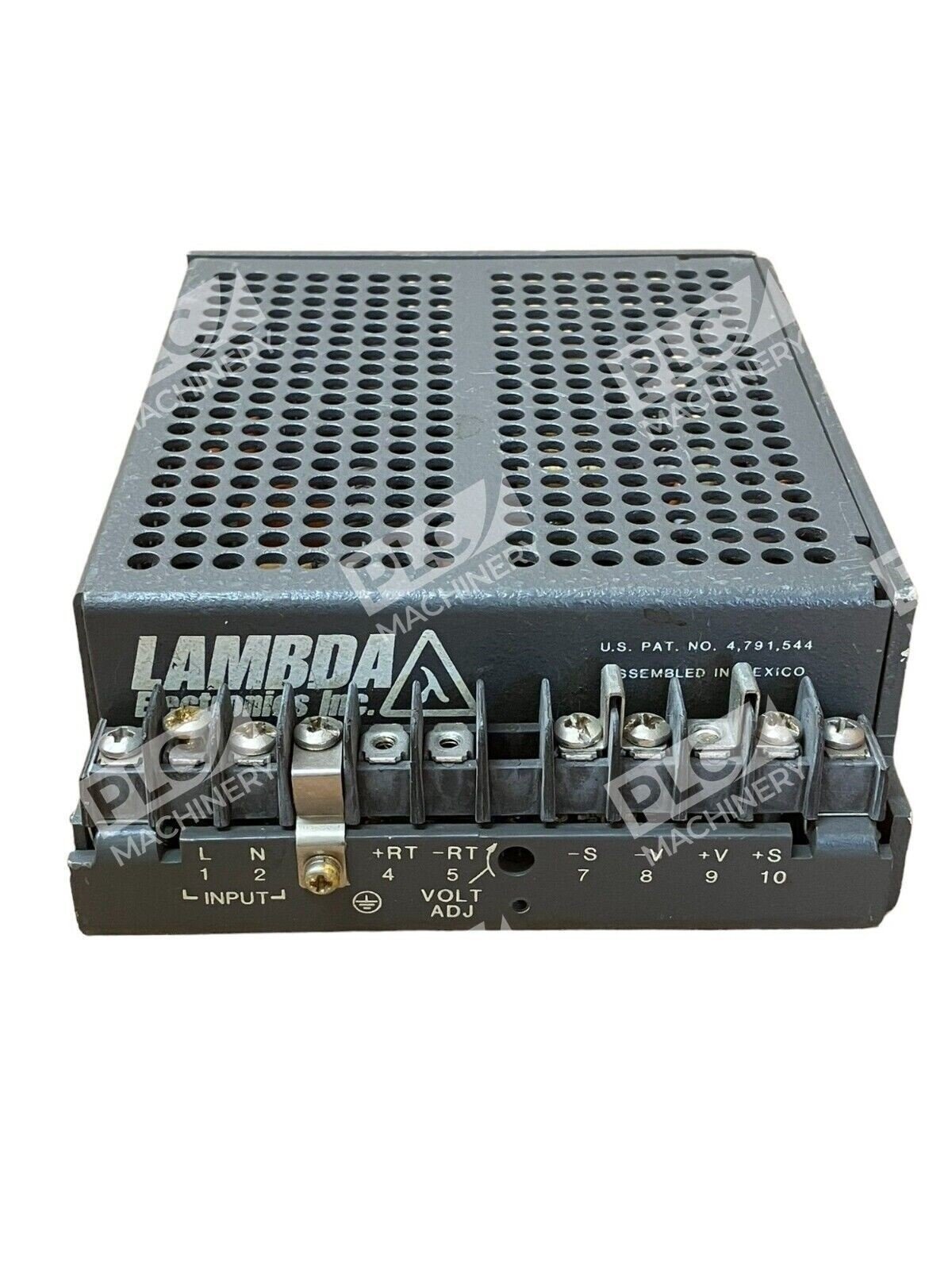

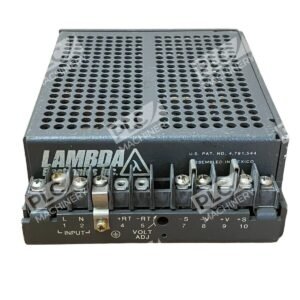

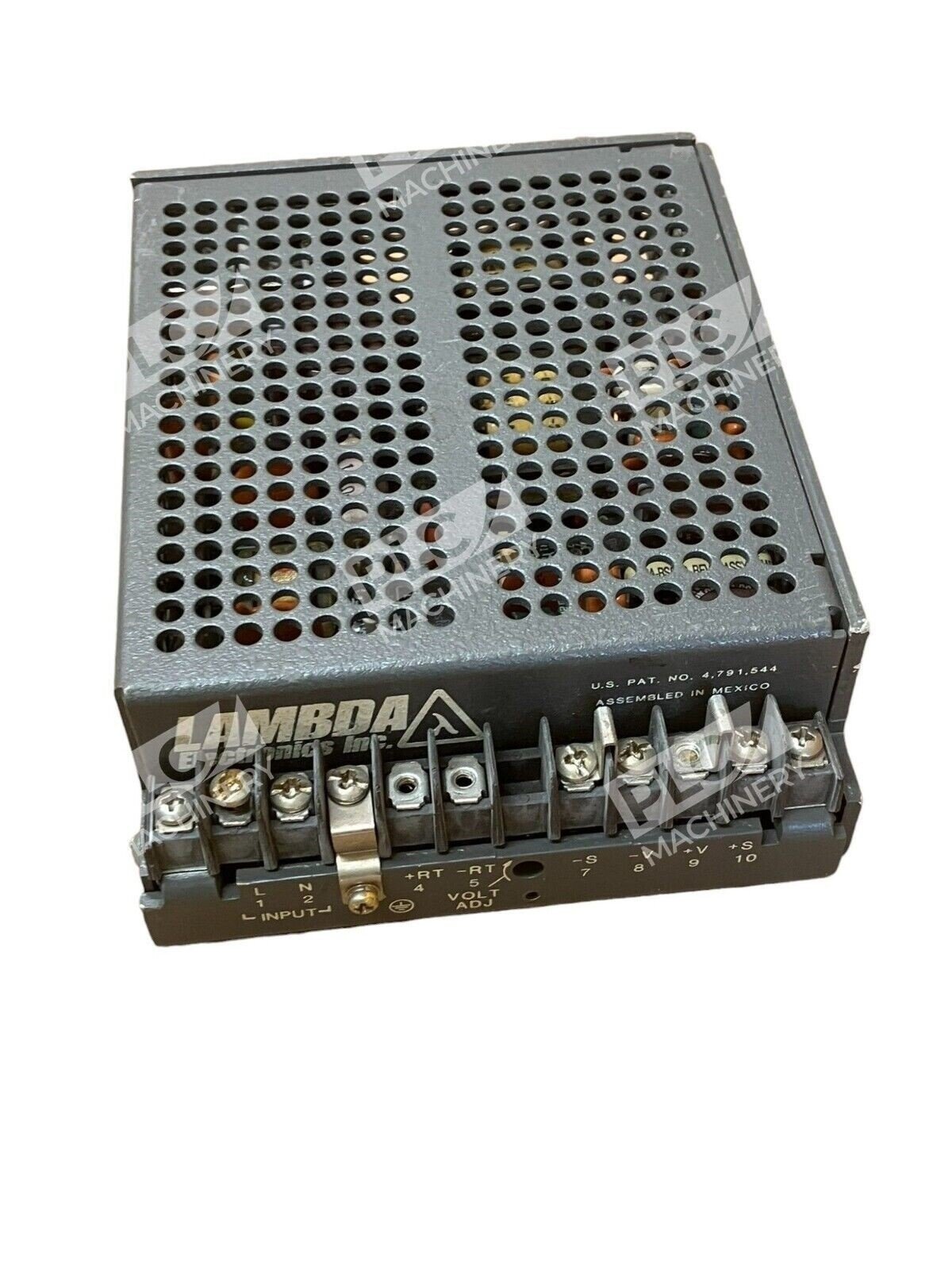

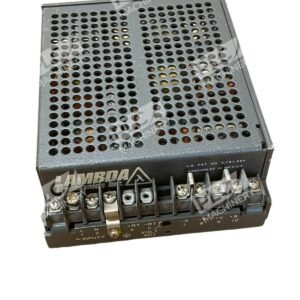

The Lambda LRS-52-24 is a single-output AC/DC switching power supply engineered for fixed 24VDC operation. Designed for reliability in industrial control systems, laboratory equipment, and manufacturing environments, this supply delivers regulated 4.1A output across its operating range. The LRS-52-24 combines compact form-factor design with proven switching technology, making it suitable for retrofit and replacement applications in legacy systems.
Key Features
- Fixed 24VDC output, ±5% regulation tolerance
- 4.1A maximum output current
- AC-DC switching topology for efficient power conversion
- 12-pin connection interface
- Input voltage range: 95–132VAC, 47–63Hz (standard)
- Compact industrial-rated enclosure
- Designed for controlled manufacturing and test environments

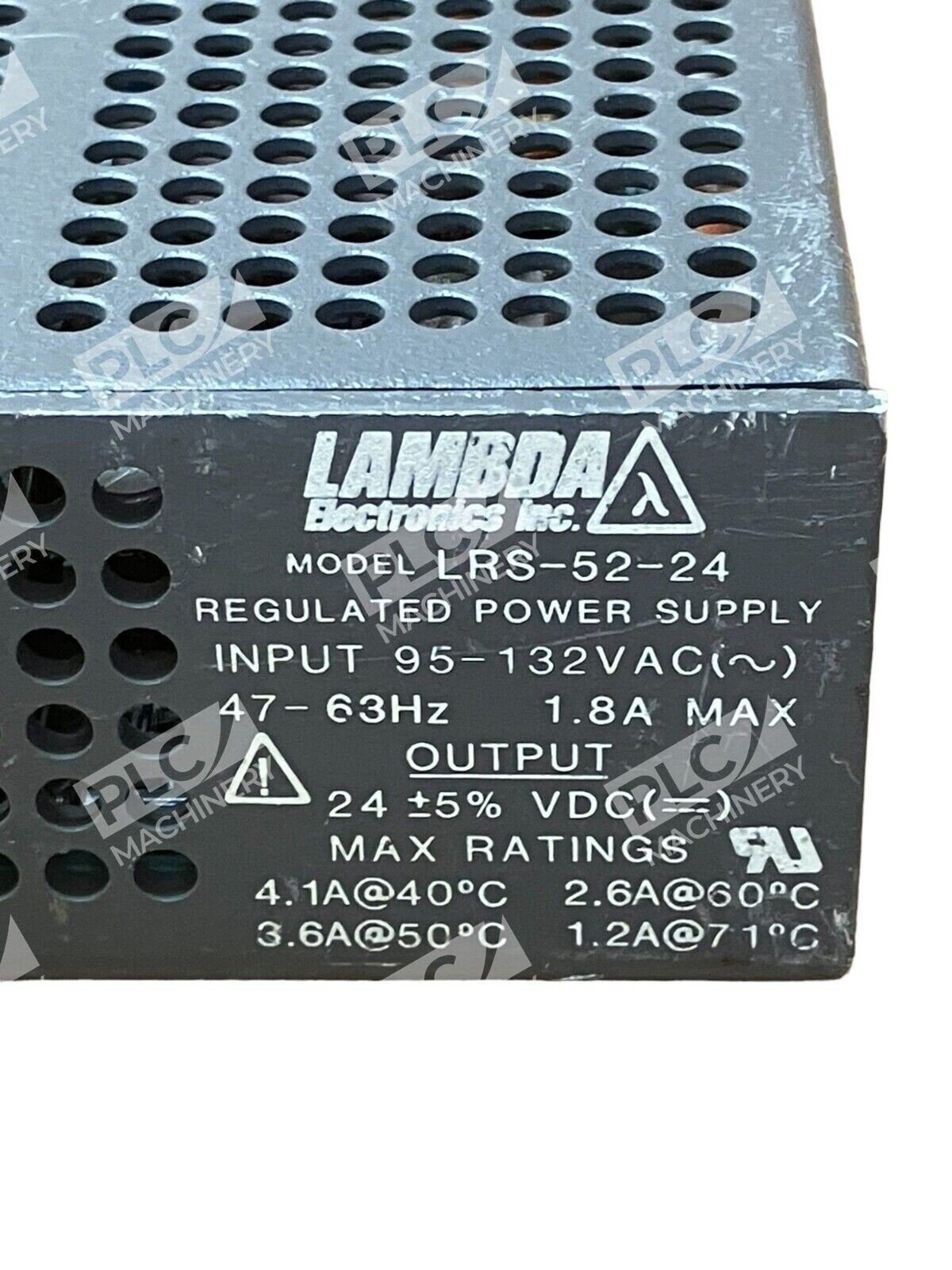

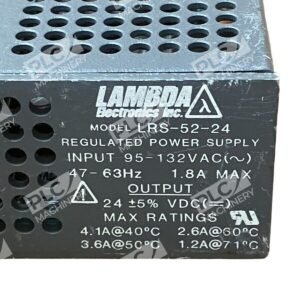

Technical Specifications
- Output Voltage: 24VDC
- Output Current: 4.1A maximum
- Output Power: ~98W
- Input Voltage Range: 95–132VAC
- Input Frequency: 47–63Hz
- Regulation Tolerance: ±5%
- Interface: 12-pin connector
- Switching Frequency: Standard AC-DC design (typical 50–100 kHz)
- Operating Temperature Range: 0–50°C typical
- Mounting: Chassis mount (standard industrial form-factor)
Typical Applications
The LRS-52-24 is commonly deployed in:
- Industrial Control Systems: PLC power modules, relay logic systems, and automation racks
- Test and Measurement Equipment: Laboratory power supplies and bench instrumentation
- Communication Systems: Telecom cabinet power, signal conditioning, and back-up supplies
- Manufacturing Equipment: Motor drives, solenoid control circuits, and sensor power
- Retrofit Applications: Direct replacement in legacy industrial systems
Compatibility & Replacements
Compatible With
- Industrial PLC systems requiring 24VDC auxiliary power
- Laboratory bench equipment and test stations
- Legacy manufacturing and automation control cabinets
- Telecom and signal-processing equipment
- Motor and solenoid control circuits
Replaces / Drop-In Replacement For
The LRS-52-24 directly replaces other Lambda LRS-52 series models with equivalent 24V output ratings. Verify pinout and connector type with your system documentation before installation to ensure compatibility with your specific application.
Works With
- Standard industrial 12-pin DIN or equivalent connectors
- AC mains wiring 95–132VAC, 47–63Hz
- 24VDC load circuits rated for up to 4.1A
- Thermal management systems and cabinet cooling
