Overview

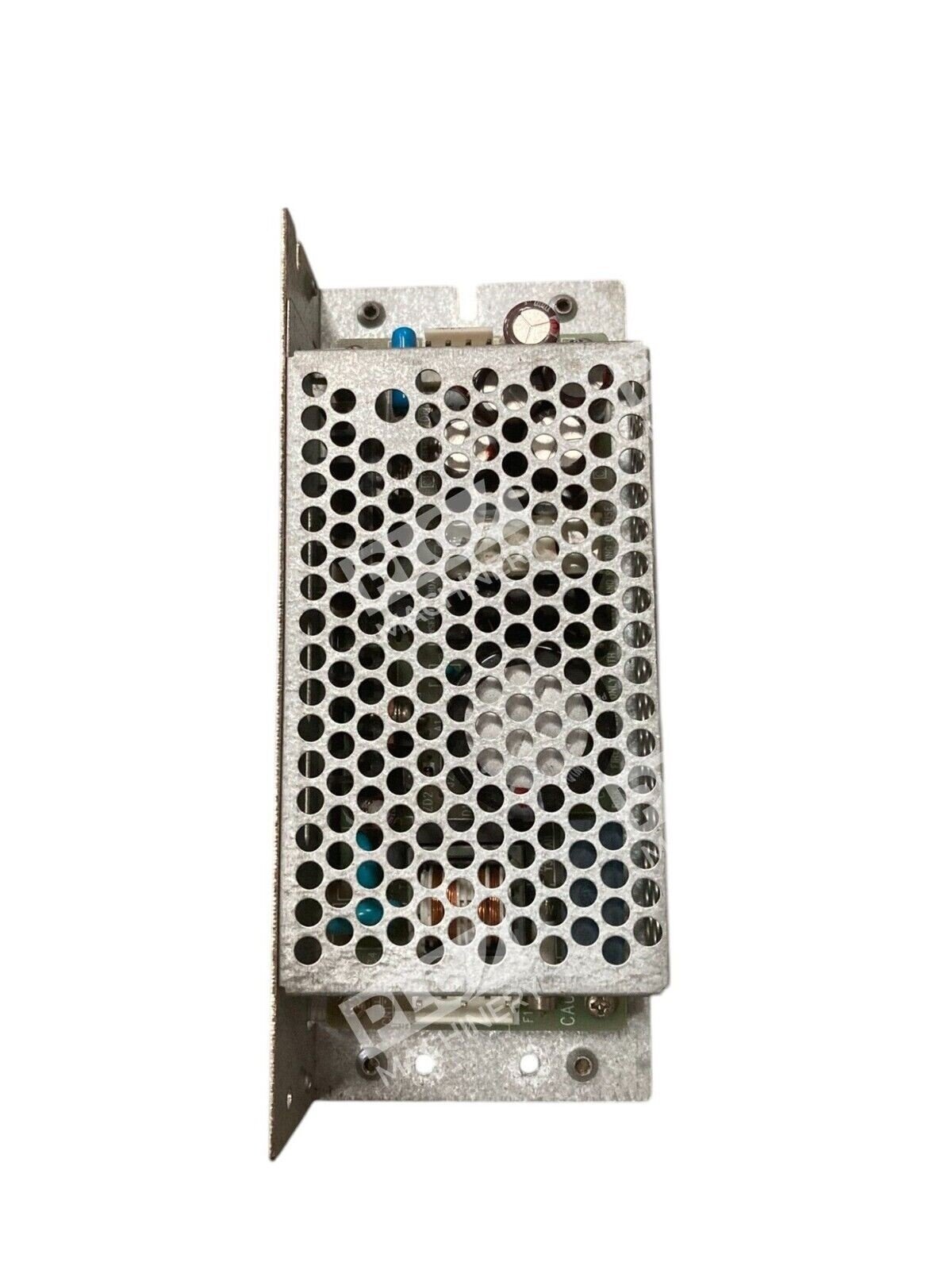

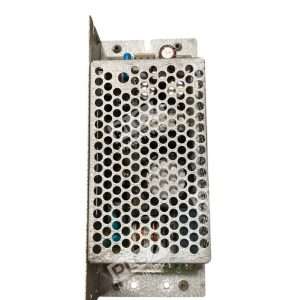

The Lambda ZWS30-5/JA is a compact, single-output AC-DC switching power supply rated at 30W delivering 5V DC at 6.0A maximum output current. Part of the ZWS-A series, this open-frame unit with integral cover features a universal input voltage range (85–265VAC), enabling worldwide use without manual configuration switching. The unit is designed for industrial and embedded applications requiring stable, efficient DC power from standard mains AC input.
Key Features
- Universal input voltage: 85–265VAC, 50/60Hz operation
- Single 5V output at 6.0A (30W peak power)
- Open-frame design with protective cover and JST connector
- Wide operating temperature: –10°C to +60°C (with derating)
- Input transient protection and built-in safeguards
- 2-year manufacturer warranty
Technical Specifications

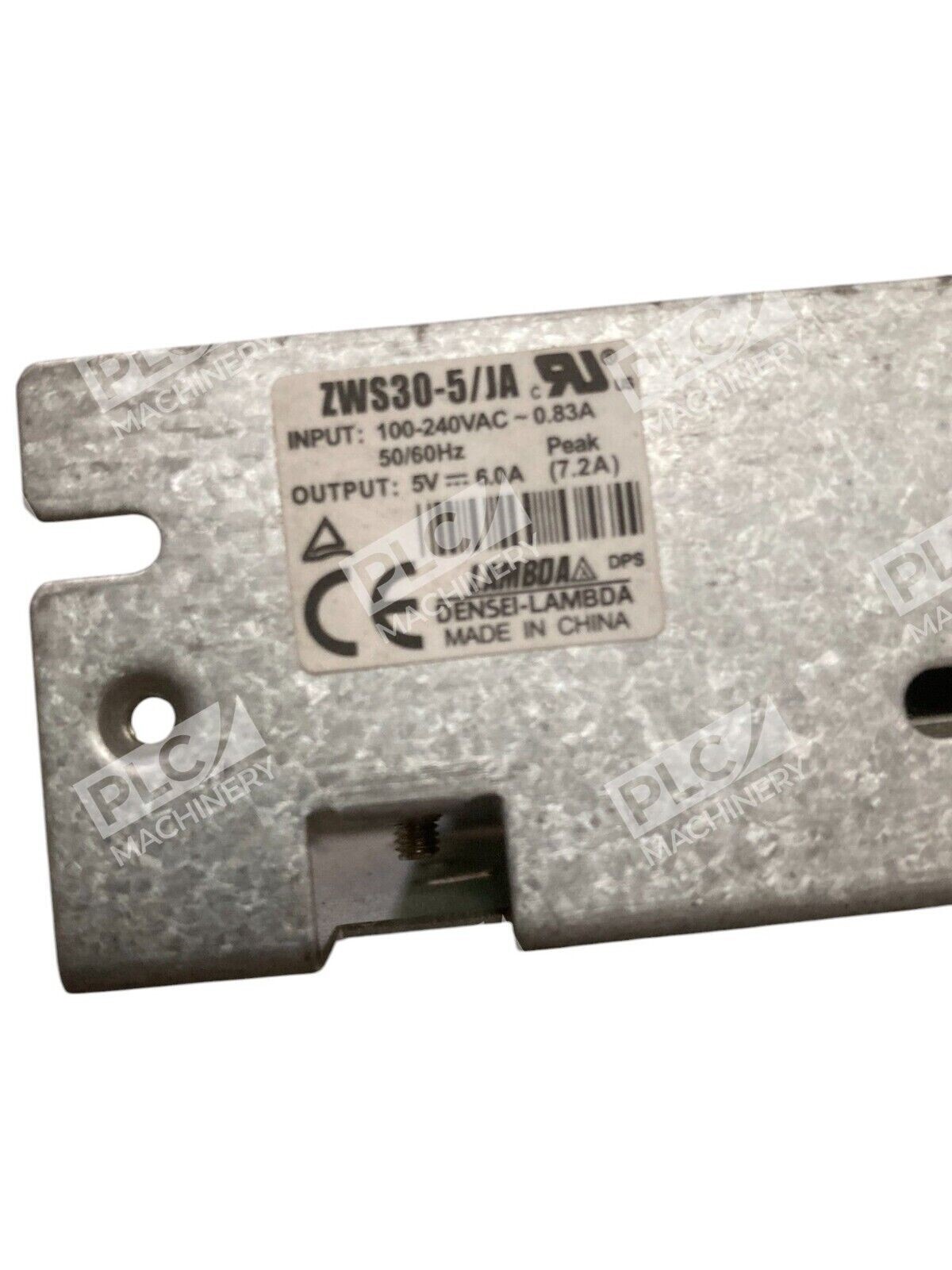

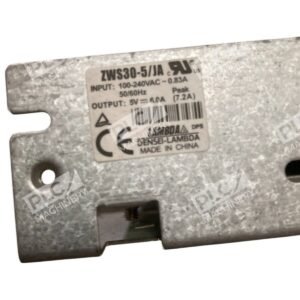

Input: 85–265VAC, 0.83A @ 100–240VAC (typical), 50/60Hz
Output: 5V DC, 6.0A (30W continuous)
Efficiency: High efficiency conversion
Operating Temperature: –10°C to +60°C (with derating)
Isolation: Input-to-output isolation provided
Packaging: Open-frame with cover, JST connector
Series: ZWS-A, compact embedded supply
Standards Compliance: Major international safety standards
Typical Applications
- Industrial automation control systems
- Servo drive logic power supplies
- Machine tool and factory automation equipment
- Sensor and I/O module power
- Embedded control board power
- Laboratory and test equipment
Compatibility & Replacements
Compatible With
- Industrial automation controllers requiring 5V DC auxiliary power
- Allen-Bradley, Siemens, Mitsubishi, Omron systems with 5V logic requirements
- Any equipment designed for 5V 6A DC input power
- Standard industrial AC mains (worldwide voltage, 50/60Hz)
Replaces / Drop-In Replacement For
- ZWS30-5/J (non-cover version)
- ZWS30-5 base model
- Other 30W, 5V AC-DC supplies in equivalent footprint (verify mounting and connector type)
Works With
- 5V DC logic and digital I/O circuits
- Servo amplifier control power stages
- PLC auxiliary power supplies
- Universal AC power distribution systems
- Standard electrical enclosures with DIN-rail or open-frame mounting
