Overview
The Klöckner-Moeller ETS V1-2 relay amplifier module is a discontinued industrial control component engineered for OEM panel applications and legacy system integration. This compact, single-channel amplifier bridges low-level DC control signals to higher-capacity AC switching loads, making it essential for retrofit and maintenance work in manufacturing, process control, and industrial automation environments where original equipment specifications demand exact part replacement.
Key Features
- Single relay output amplifier with 2A AC switching capacity
- 220V AC power input with integrated 24V DC control circuit
- Compact form factor designed for DIN-rail or panel mounting in legacy enclosures
- Proven reliability in industrial duty cycles and harsh environments
- Discontinued component—original equipment replacement recommended for critical applications

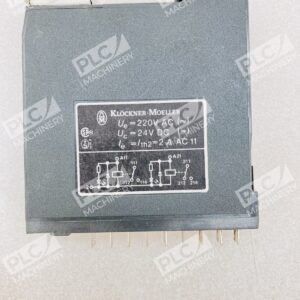

Technical Specifications
- Input Supply Voltage: 220V AC
- Control Voltage: 24V DC
- Output Rating: 2A AC
- Weight: 130 grams
- Manufacturer: Klöckner-Moeller (Moeller/Eaton Corporation)
- Status: Discontinued by manufacturer
- Application Class: General purpose relay amplifier for automation and control
Typical Applications
- Legacy panel retrofit and modernization projects
- OEM equipment replacement and repair
- Industrial machine tool control circuits
- Process automation control logic implementation
- Machine safety relay circuits and interlock systems
- Manufacturing equipment maintenance and spares
Compatibility & Replacements
Compatible With
- 220V AC three-phase and single-phase power distribution systems
- 24V DC control logic circuits (PLC outputs, control switches, sensors)
- Standard DIN-rail enclosures and control panels
- Klöckner-Moeller/Moeller industrial control systems
- Legacy industrial automation platforms from 1990s–2010s era
Replaces / Drop-In Replacement For
- Direct replacement for OEM Klöckner-Moeller ETS V1-2 units only
- Verify exact mounting and terminal configuration with original equipment documentation before installation
- For alternative amplifier solutions, consult your system integrator or panel builder
Works With
- Any 24V DC control source (PLC analog outputs, relay logic, control switches)
- Any 220V AC load up to 2A rating (solenoids, motor starters, heaters, lamp circuits)
- Industrial control panel wiring standards and relay logic circuits
- Standard test equipment and multimeters for troubleshooting
