Overview

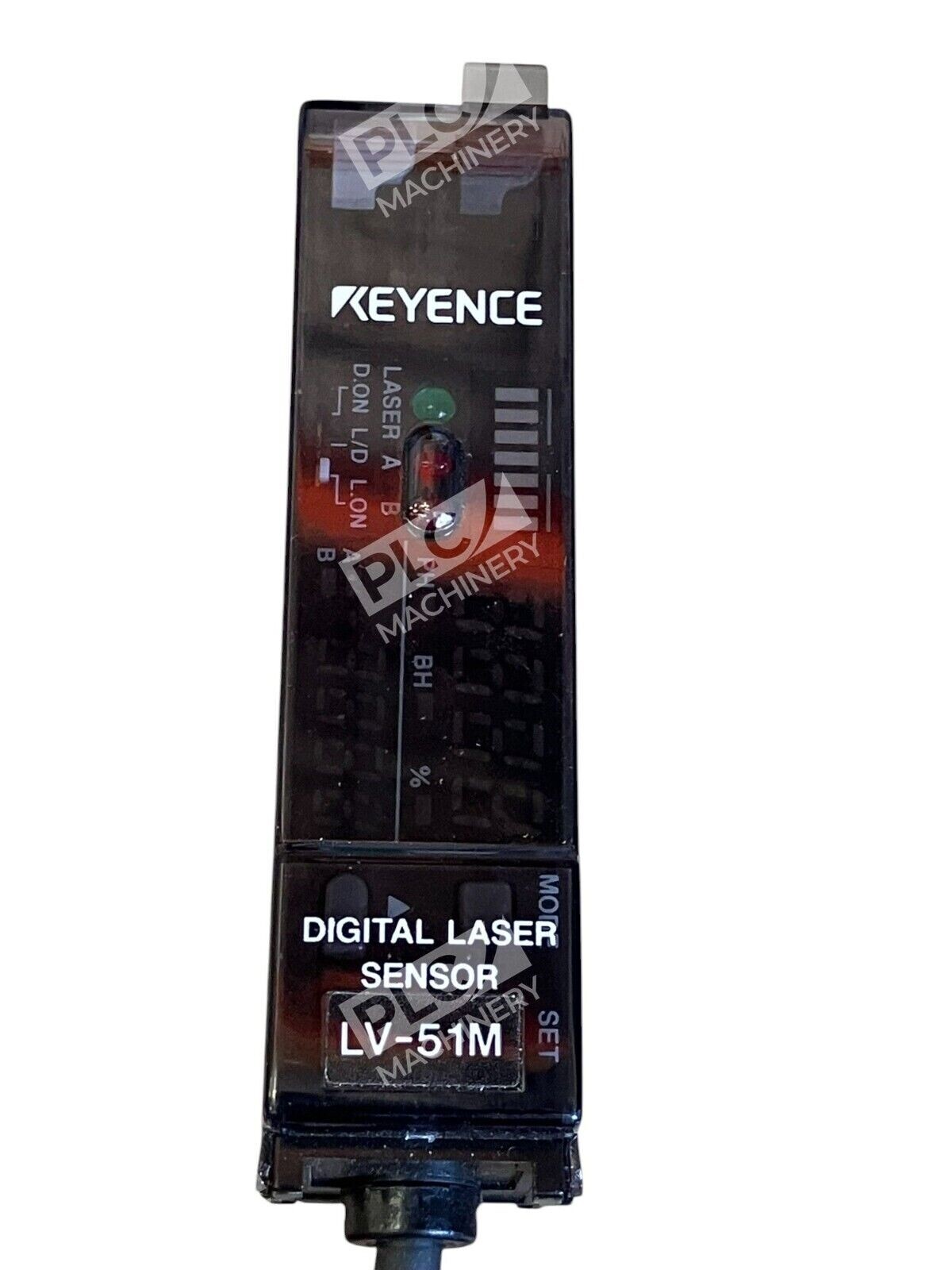

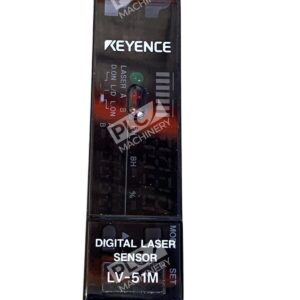

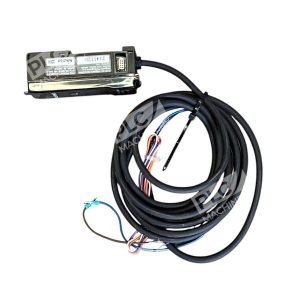

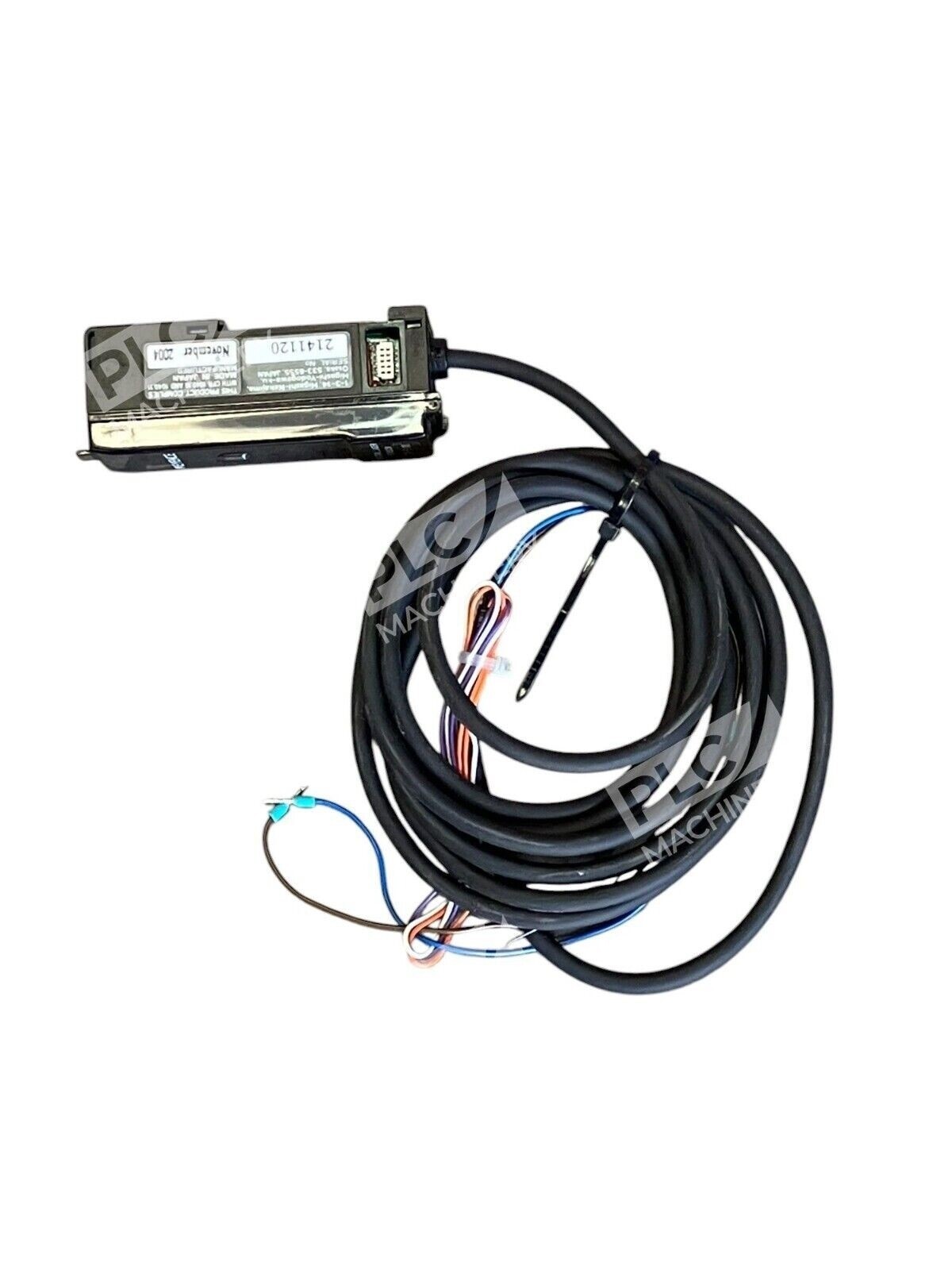

The Keyence LV-51M is an NPN output digital laser sensor amplifier unit from the proven LV series. This main unit delivers high-precision laser-based detection in a compact form factor, making it ideal for object detection, position sensing, and presence confirmation in manufacturing automation, assembly systems, and material handling applications.
Key Features
- NPN open-collector output with 2 independent channels for flexible control logic
- Multiple response speed modes (FINE, TURBO, SUPER) for application-specific tuning
- Compact amplifier unit design suitable for tight spaces and DIN rail mounting
- Main unit supports optional expansion units for multi-point sensing
- Rugged construction for industrial environments
Technical Specifications

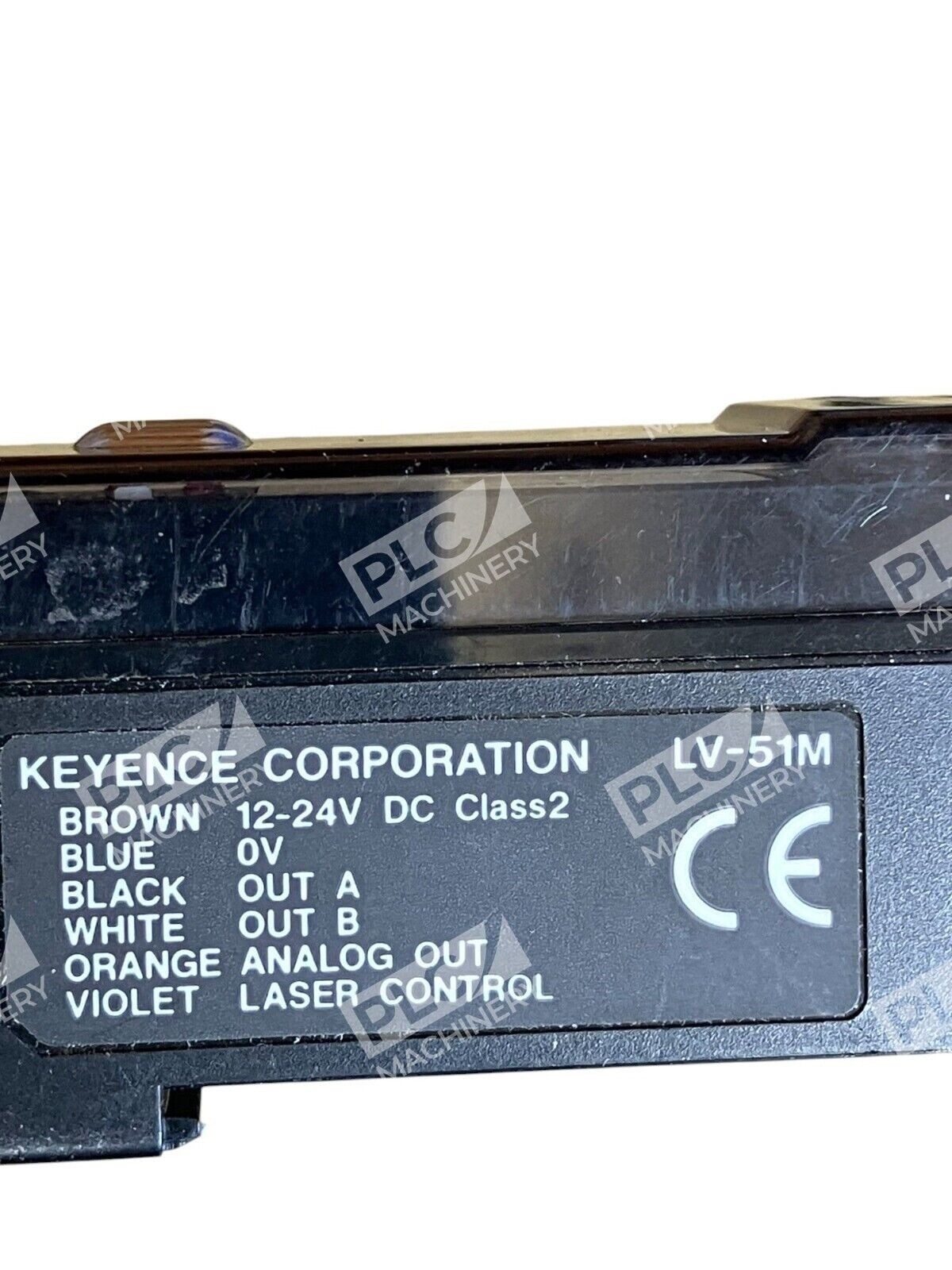

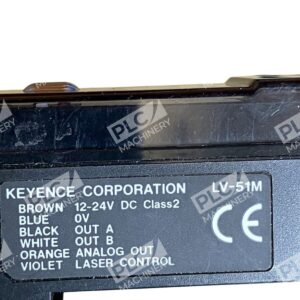

Electrical:
- Input Voltage: 12–24 VDC
- Control Output: NPN open-collector × 2 channels, 40 VDC max., 100 mA max., 1.0 V residual voltage
- Monitor Output: 1–4 V (load resistance 20 kΩ minimum)
- Response Speed: FINE 80 µs, TURBO 500 µs, SUPER 4 ms
Physical:
- Weight: Approximately 120 g
- Configuration: Main unit / Amplifier unit
- Output Type: NPN
- Mounting: DIN rail compatible
Typical Applications
- Automated assembly and pick-and-place systems
- Object presence detection on conveyor lines
- Position verification and limit sensing
- Package and label detection in packaging machinery
- Material sorting and inspection systems
- Robotic arm collision avoidance and safety sensing
Compatibility & Replacements
Compatible With
- Keyence LV series sensors and probes
- Industrial PLC and motion control systems accepting NPN digital inputs
- 24 VDC industrial power supplies and control circuits
- DIN rail mounted control architectures
- Standard industrial automation networks (via external gateway)
Replaces / Drop-In Replacement For
- Earlier versions of Keyence LV series amplifier units with similar form factor
- Other NPN-output laser amplifier units in discontinued Keyence product lines
- Note: Verify sensor probe compatibility before replacement to ensure proper optical coupling
Works With
- Keyence digital laser sensor probes (thrubeam, retroreflective, and reflective models)
- Standard industrial control software and ladder logic
- Safety-rated systems (verify compliance with application requirements)
- Optional Keyence expansion units for multi-channel configurations
