Overview

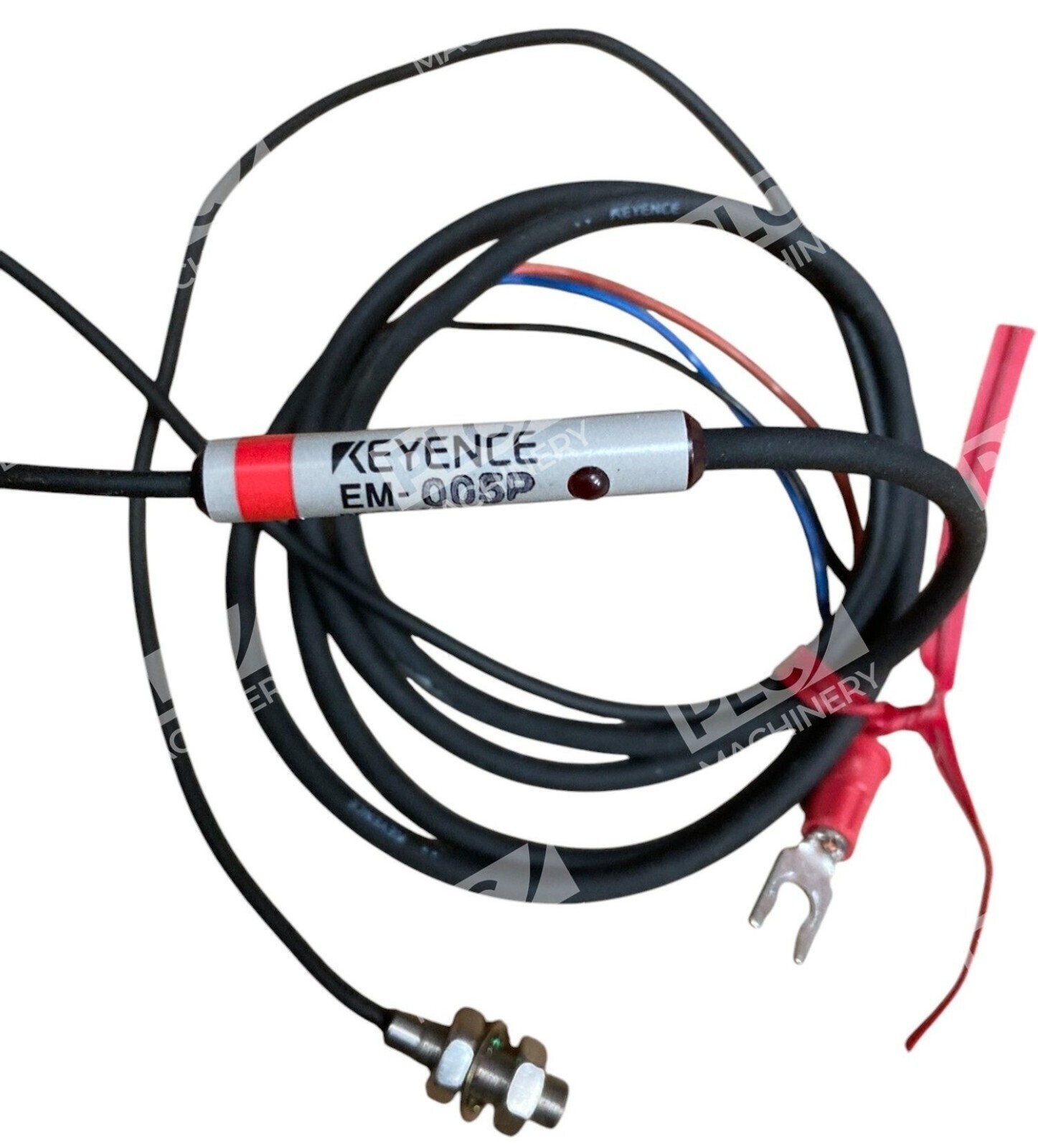

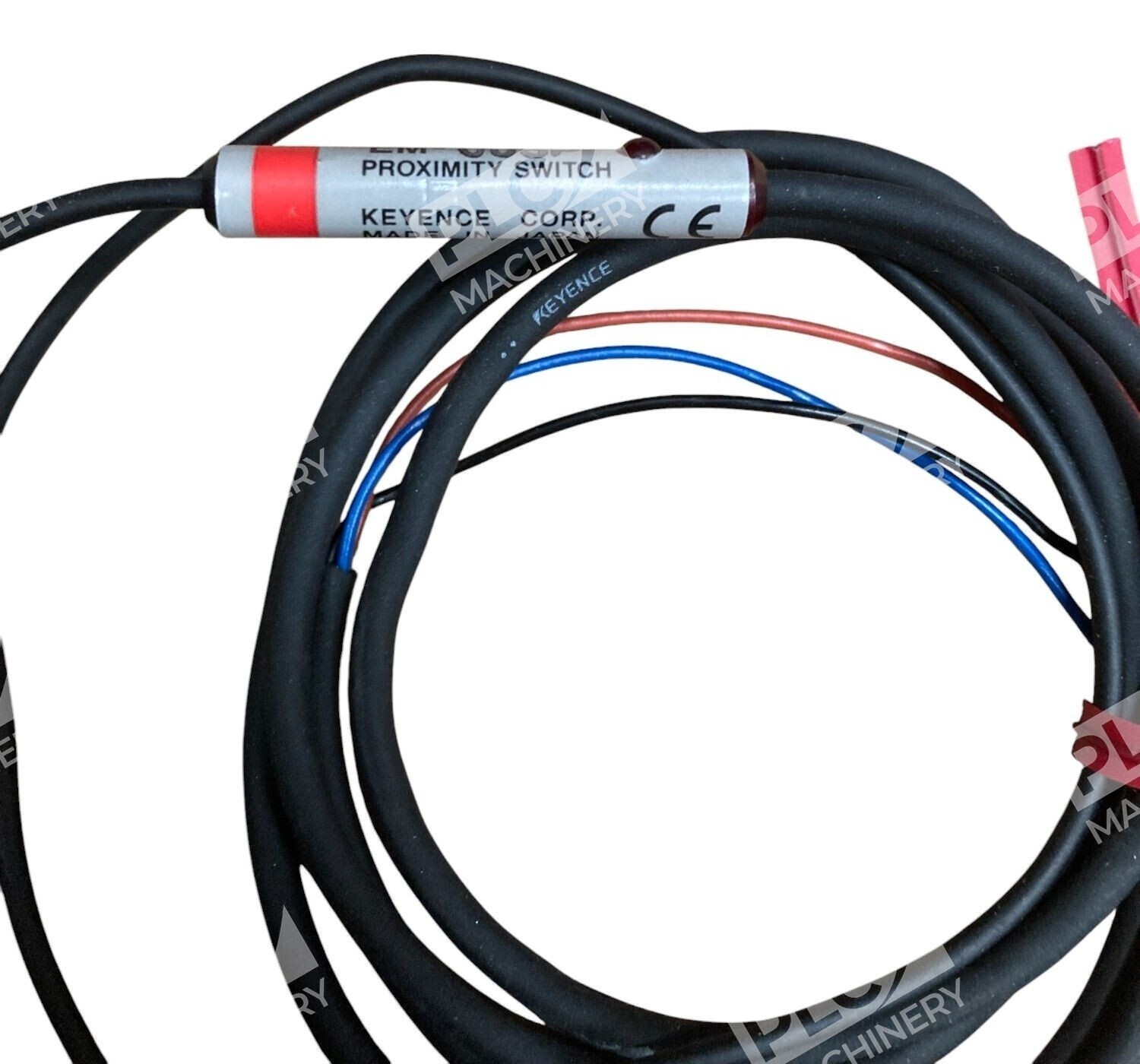

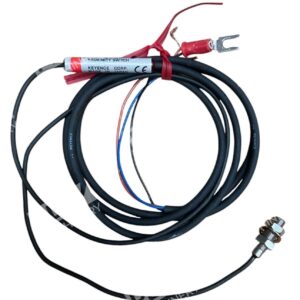

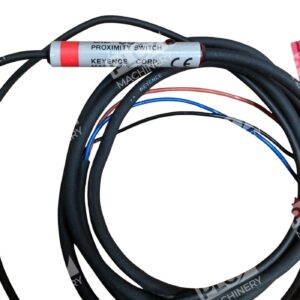

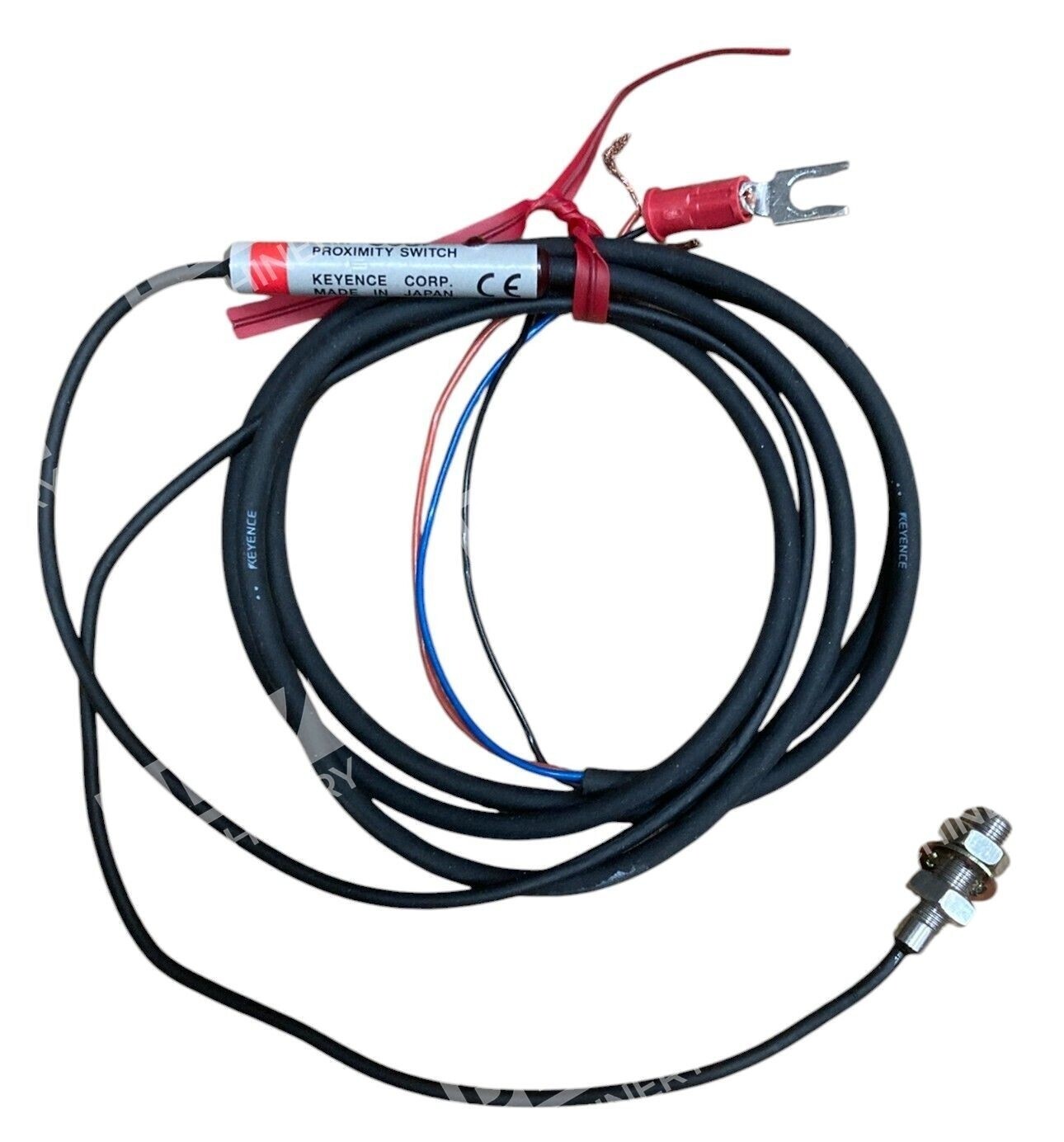

The Keyence EM-005P is a shielded inductive proximity sensor engineered for reliable object detection in industrial automation and control applications. As part of Keyence’s EM series with in-cable amplifier design, this sensor delivers precise ferrous metal detection without physical contact, making it ideal for conveyor systems, packaging machinery, and assembly line automation.
Key Features
- Shielded design for improved noise immunity in electromagnetic environments
- M5 threaded body style for easy mounting in compact spaces
- PNP output configuration for versatile controller integration
- Red LED indicator for visual status monitoring
- In-cable amplifier for simplified wiring and installation
- Detects ferrous metals (iron, steel) with minimal false triggers
Technical Specifications
- Detection Distance: 1.0 mm (±15%)
- Detectable Objects: Ferrous metals (iron, stainless steel, etc.)
- Standard Target: Iron, 5 × 5 mm (1 mm thickness)
- Response Frequency: 1.2 kHz
- Output Type: PNP
- Control Output Rating: 200 mA max at 30 VDC; residual voltage 1 V max
- Power Supply Voltage: 10.8 to 30 VDC
- Operating Temperature Range: -10 to +70°C (14 to 158°F)
- Temperature Coefficient: ±10% max of detecting distance
- Hysteresis: 10% max of detecting distance
- Operation Mode: Normally Open (N.O.)
- Housing Material: Stainless steel
- Mounting Style: M5 threaded
Typical Applications
- Conveyor belt object detection and positioning
- Packaging machine gate and limit switches
- Assembly line component verification and counting
- Robotics end-of-arm tooling proximity detection
- Press and automation machinery safety interlocks
- Industrial material handling and logistics sorting systems
Compatibility & Replacements
Compatible With
- Allen-Bradley PLCs (via standard digital input modules)
- Siemens S7-1200, S7-1500, and SIMATIC controllers
- Mitsubishi FX and Q series PLCs
- Omron CP/CJ series controllers
- Any industrial controller with 10.8–30 VDC input capability
- Standard 24 VDC automation power supplies
Replaces / Drop-In Replacement For
- Keyence EM-005N (NPN variant — requires output reconfiguration)
- Other M5 inductive sensors with similar 1 mm detect distance and PNP output
Works With
- Standard PLC digital input modules (no special protocols required)
- 24 VDC automation circuits and control relays
- Industrial automation I/O terminals and junction boxes
- Direct wiring to controller inputs without additional signal conditioning
