Overview

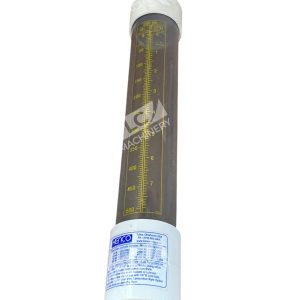

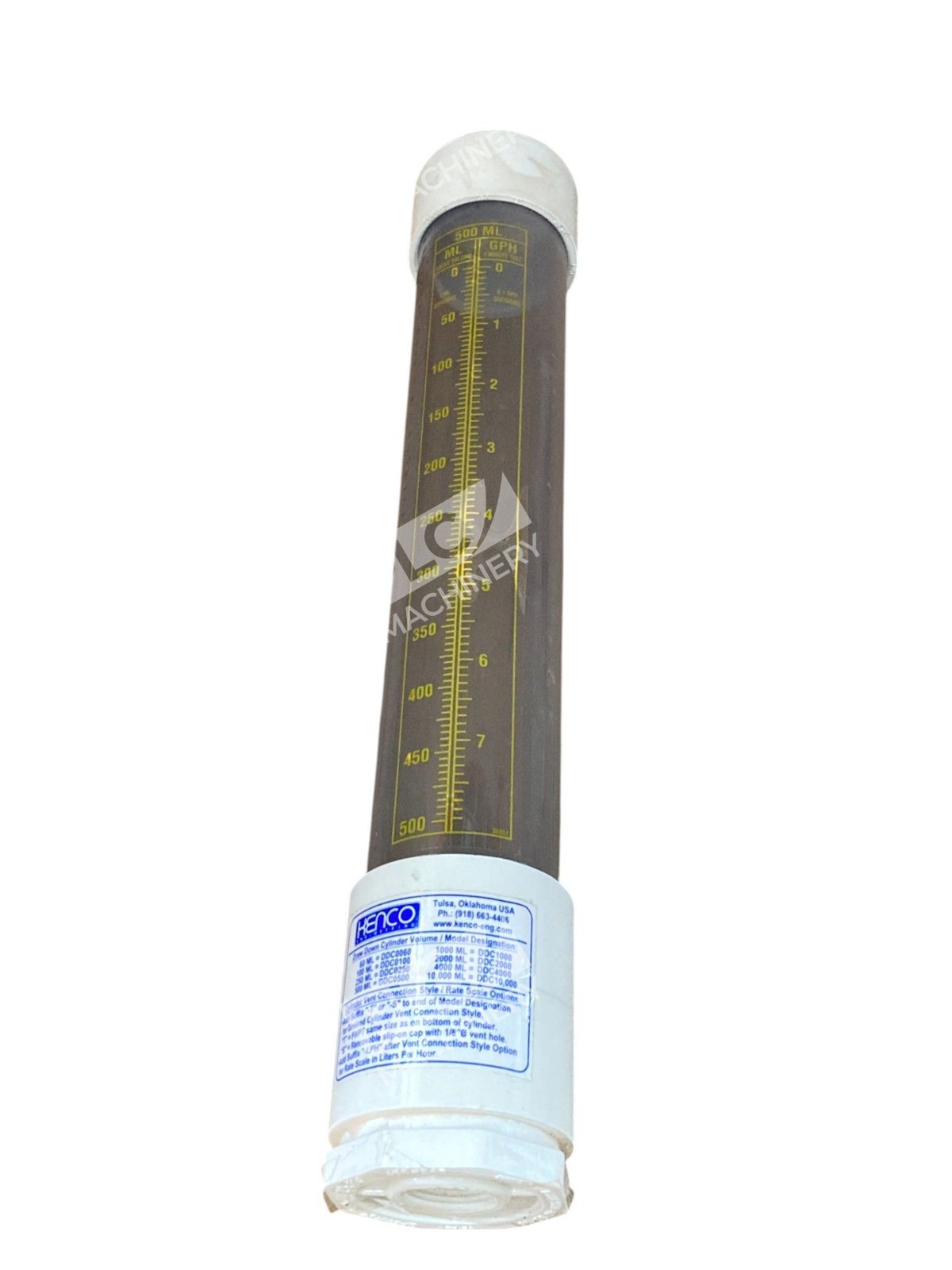

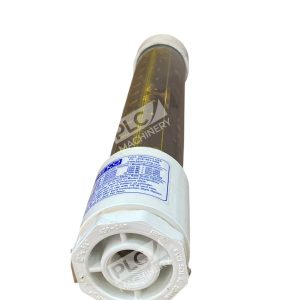

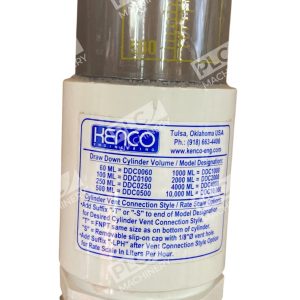

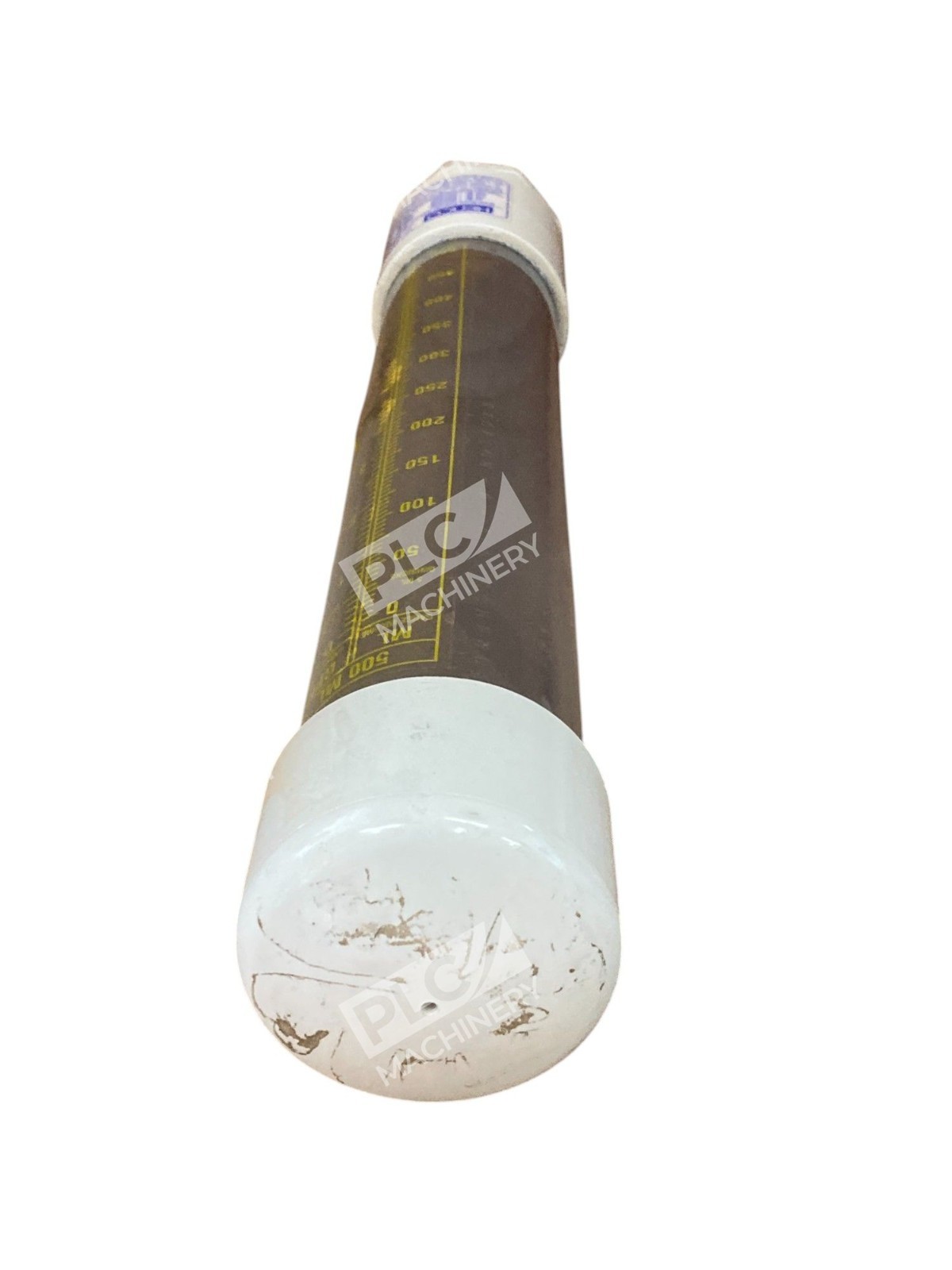

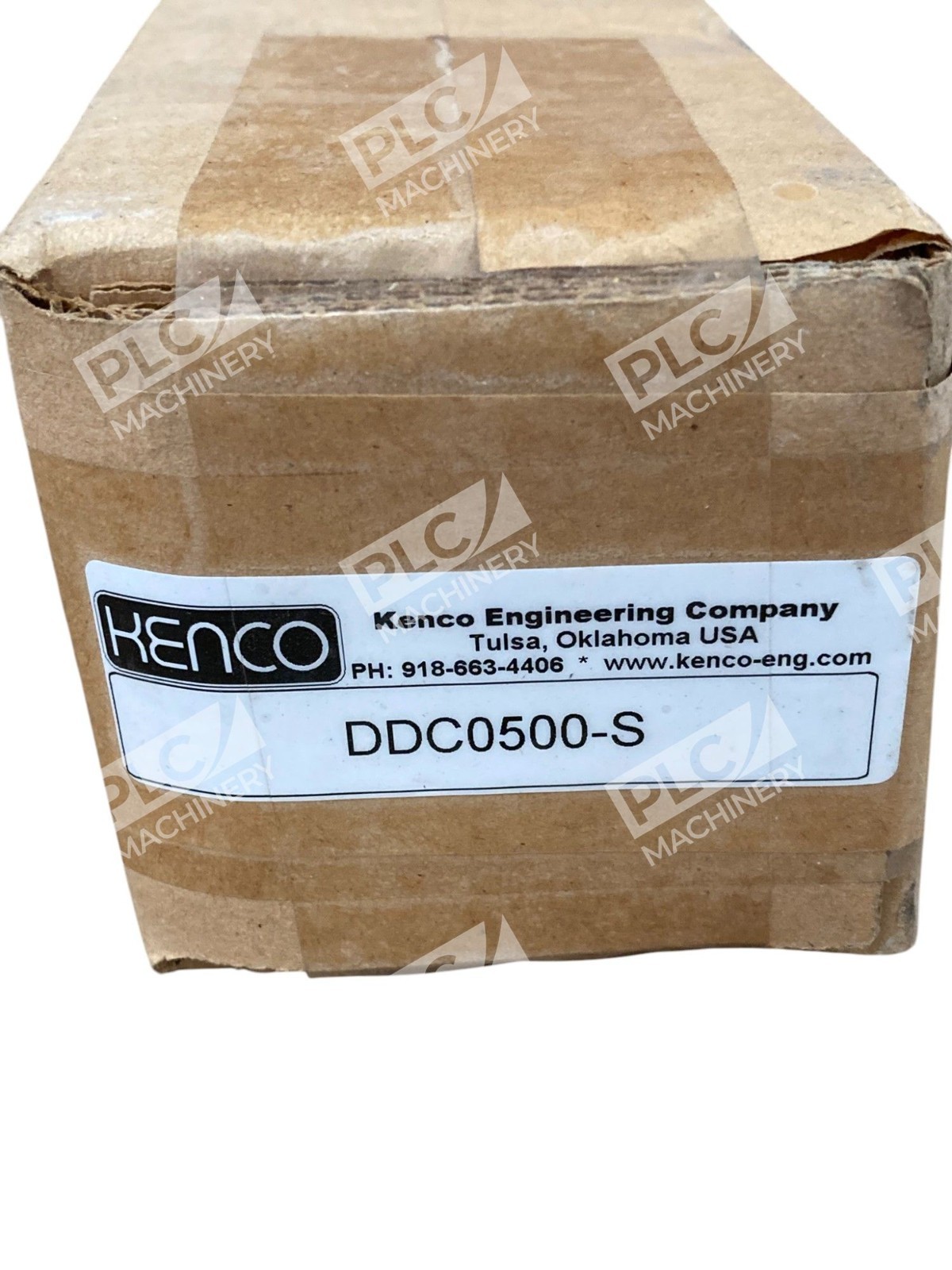

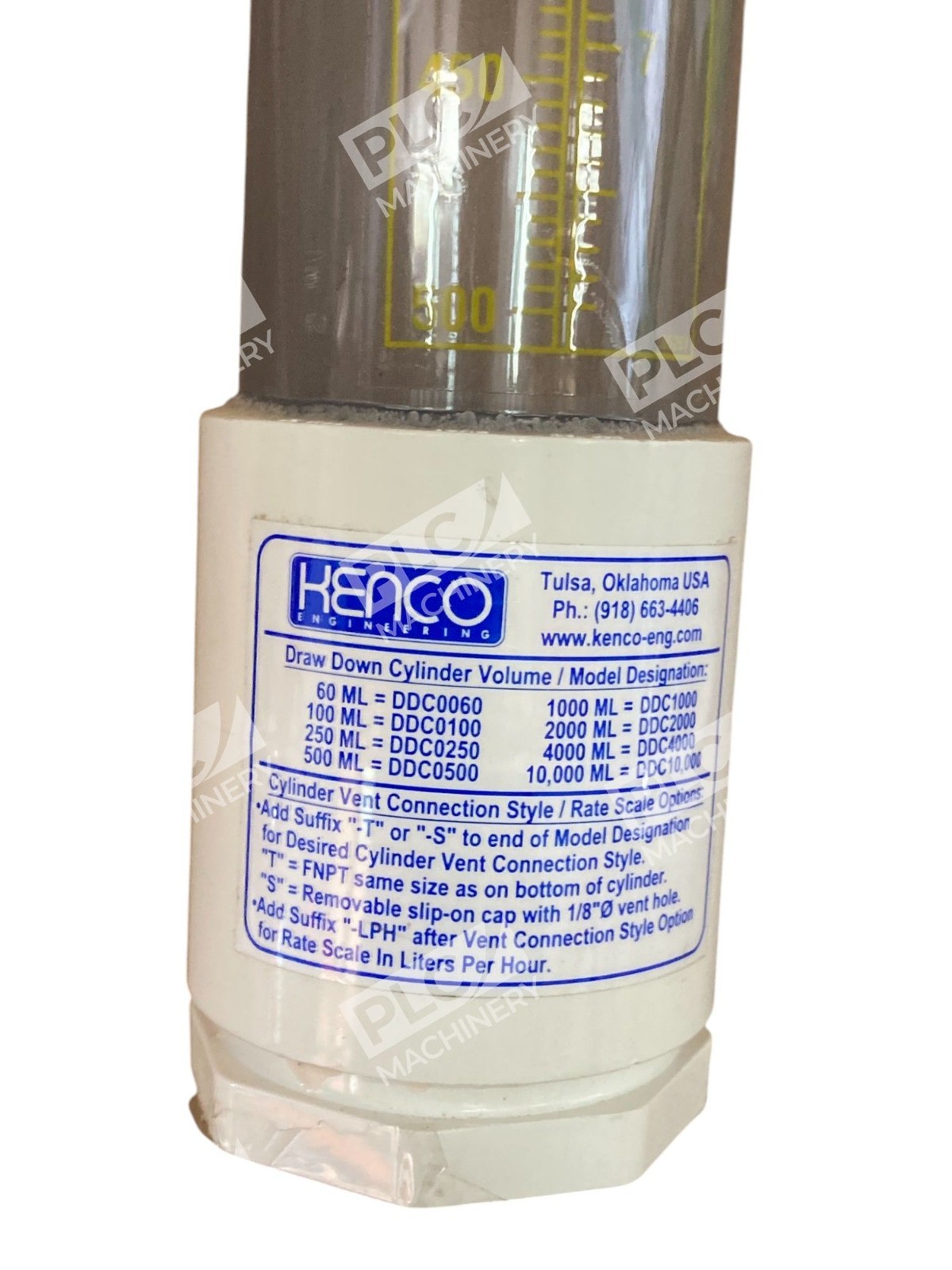

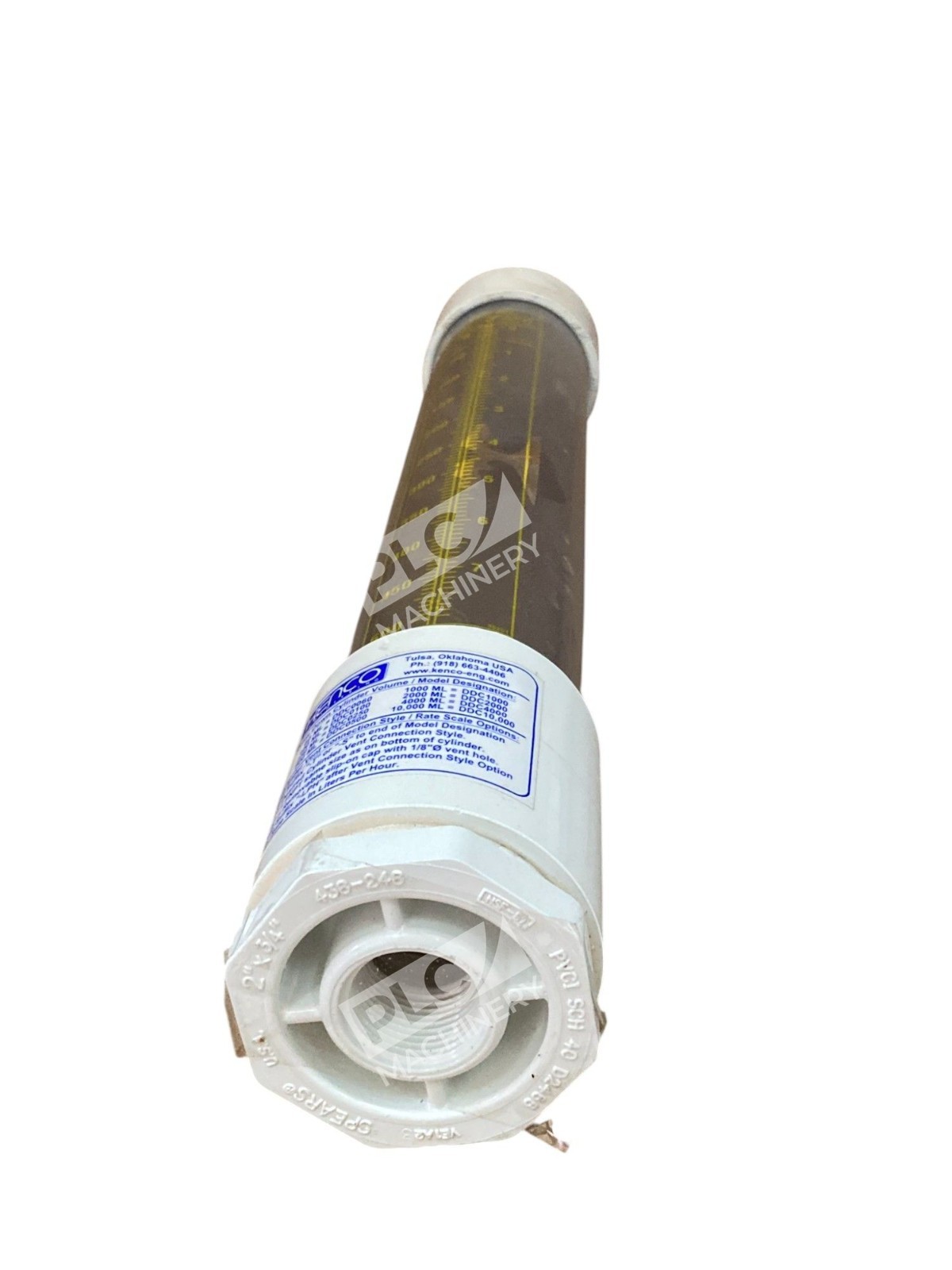

The Kenco DDC0500-S flow meter is a precision draw-down calibration cylinder engineered for field testing and validation of flow rates in industrial applications. This model features a 500 mL capacity and measures flow in the 0–8 gallons per hour (GPH) range with ±0.25 GPH accuracy. The DDC0500-S incorporates transparent PVC construction with polyester laminated scales protected against harsh chemical attack, making it suitable for use in chemical injection systems, lubrication systems, and process flow verification.
Key Features
- 500 mL Capacity: Calibrated for precise measurement within its specified range
- Dual Scale: Marked in both milliliters by volume and gallons per hour based on one-minute test intervals
- Chemical Resistant: Polyester laminated scales withstand exposure to aggressive chemicals and solvents
- Transparent PVC Construction: Clear, impact-resistant sight tube allows visual observation of fluid draw-down during testing
- Industrial Grade Fittings: NPT threaded connections (3/4 inch standard) ensure secure installation in pump discharge lines
- Wide Fluid Compatibility: Materials qualified to handle diverse fluids including oils, glycols, and aqueous solutions
Technical Specifications
- Capacity: 500 mL
- Flow Range: 0–30 mL/min (equivalent to 0–8 GPH)
- Accuracy: ±0.25 GPH
- Scale Resolution: 5 mL increments
- Connection Size: 3/4 inch NPT (both inlet and outlet)
- Connection Type: Threaded or removable slip-on cap options available
- Sight Tube Material: Clear PVC, superior grade
- Frame Material: Industrial-grade PVC fittings
- Test Duration: One-minute draw-down intervals
Typical Applications
- Chemical pump discharge verification in metering pump systems
- Lubrication system flow rate validation
- Compressor oil supply monitoring and calibration
- Process flow testing and troubleshooting
- Field commissioning and maintenance of injection systems
- Validation of flow controllers and regulators
Compatibility & Replacements
Compatible With
- Kenco manifold kits and integrated metering assemblies
- Standard 3/4 inch NPT pipe and port connections
- Chemical injection pump discharge lines
- Lubrication and oil supply systems
- Compressor and engine oil level controllers
Replaces / Drop-In Replacement For
- DDC0500-T (equivalent model with alternative scale calibration)
- DDC0500-S-LPH (liters per hour variant of this model)
- Previous generation Kenco draw-down cylinders in the 500 mL class
Works With
- Kenco oil level controllers and supply tanks
- Kenco back pressure relief valves and check valves
- Standard chemical metering pump systems
- Industrial flow monitoring and control systems
- Manual and automatic calibration procedures
