Overview

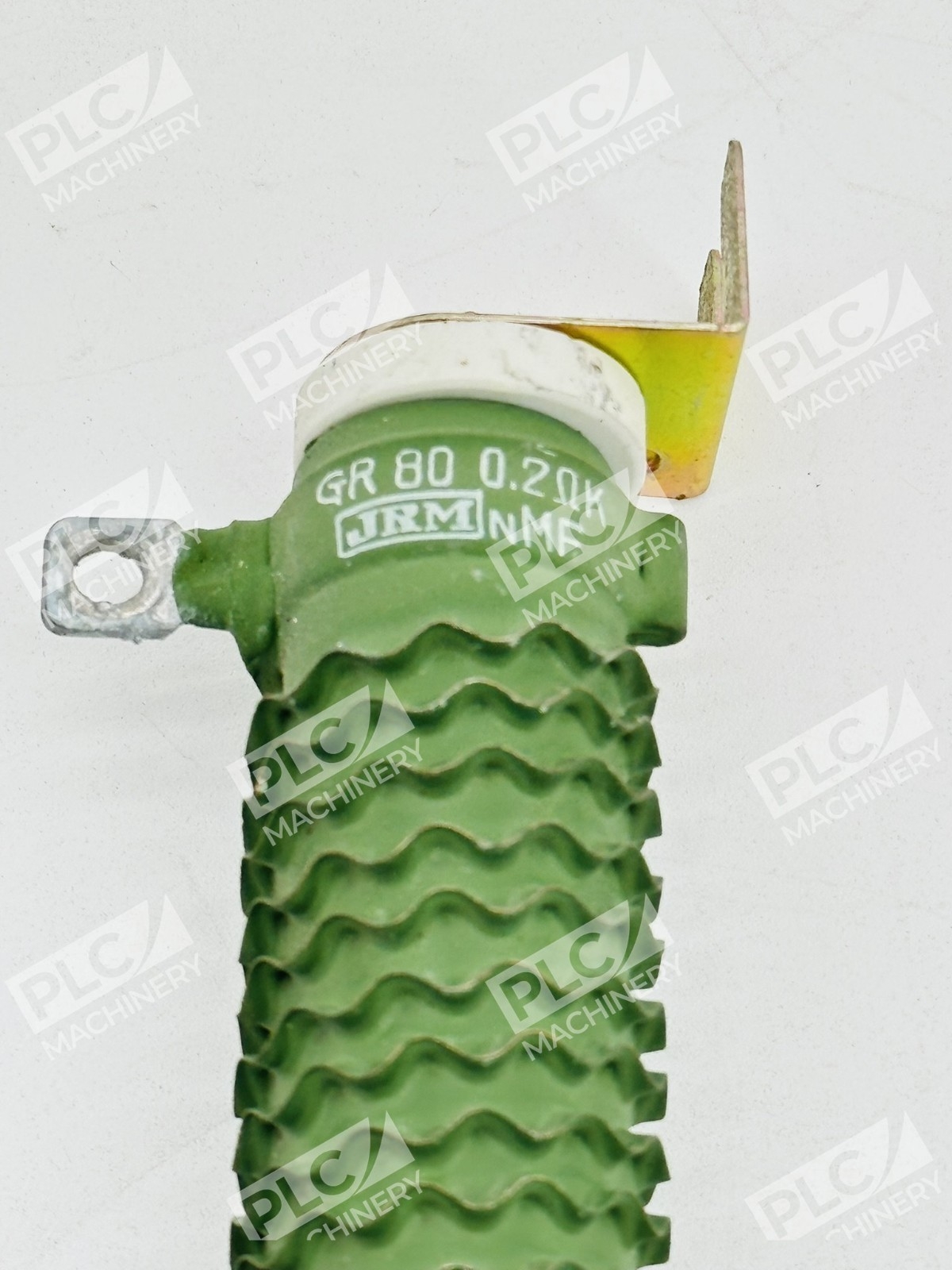

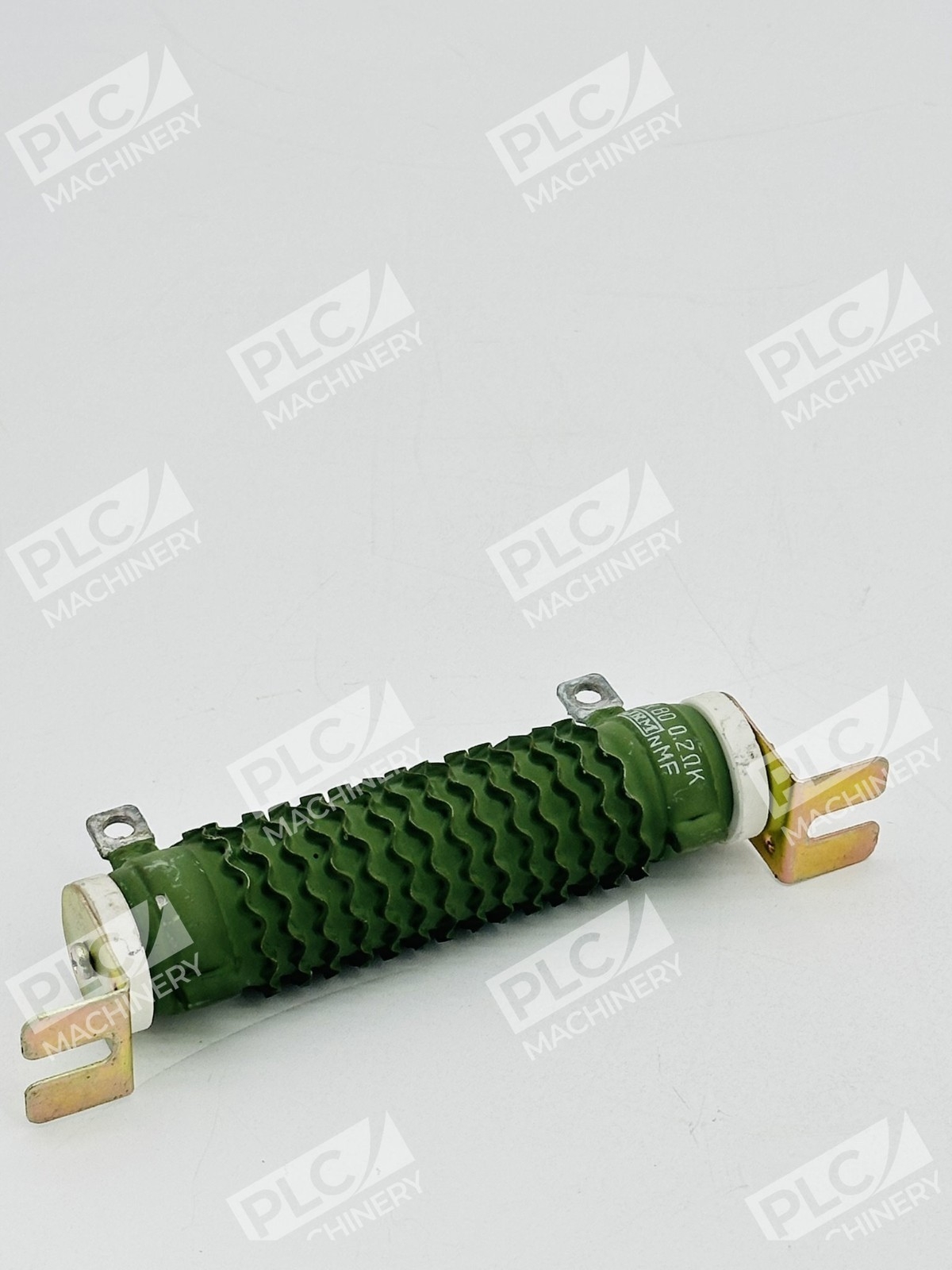

The JRM GR 80 wirewound fixed resistor is a precision component manufactured by Japan Resistor Mfg. Co., Ltd. for high-power, low-resistance applications. With a resistance value of 0.2K ohms (200 ohms) and rated power output of 120W, this wirewound resistor is engineered for stable thermal performance and consistent electrical characteristics in industrial electronics, power circuits, and equipment control systems.
Key Features
- High-power wirewound construction for reliable operation in demanding applications
- Low-resistance value (0.2K ohms) suitable for current-limiting and power distribution circuits
- Precision resistive element with stable tolerance across operating temperature range
- Robust housing designed for industrial environments and long service life
- Part of GR series specifically engineered for high-power, low-resistance performance
Technical Specifications
Resistance Value: 0.2K ohms (200 ohms)
Power Rating: 120W
Type: Wirewound Fixed Resistor
Series: GR 80
Resistance Range: 0.02–4 ohms
Manufacturer: JRM (Japan Resistor Mfg. Co., Ltd.)
Operating Temperature: Industrial range (verify with system integrator for specific application requirements)
Construction: Wirewound element for thermal stability
Typical Applications
- Power distribution and current-limiting circuits
- Load banks and test equipment
- Industrial control systems and panel assemblies
- High-power converter and motor control circuits
- Precision measurement and instrumentation circuits requiring low-resistance reference elements
Compatibility & Replacements
Compatible With
- Industrial power circuits requiring fixed resistive elements
- Equipment assemblies and panel-mount applications
- Standard circuit board and chassis layouts
- Industrial control systems using low-resistance load elements
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or original equipment documentation before ordering. The JRM GR 80 is available in multiple resistance values within the 0.02–4 ohm range; confirm your specific part configuration matches the required application.
Works With
- Standard industrial power supplies and control circuits
- Motor control and converter assemblies
- Load simulation and test equipment
- Any circuit requiring fixed, stable low-resistance elements in high-power applications
