Overview

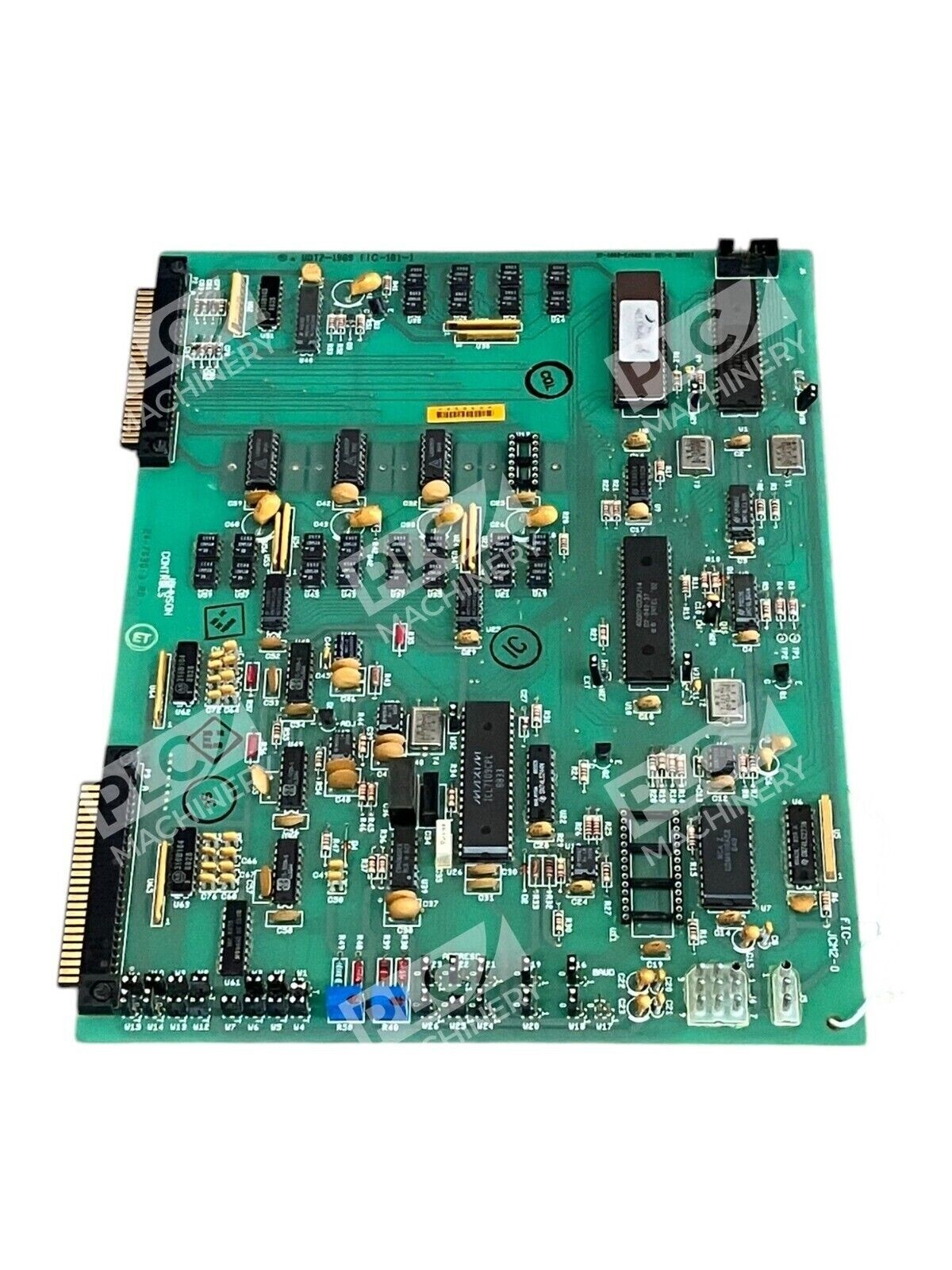

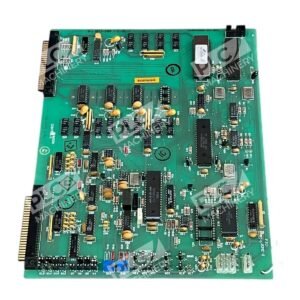

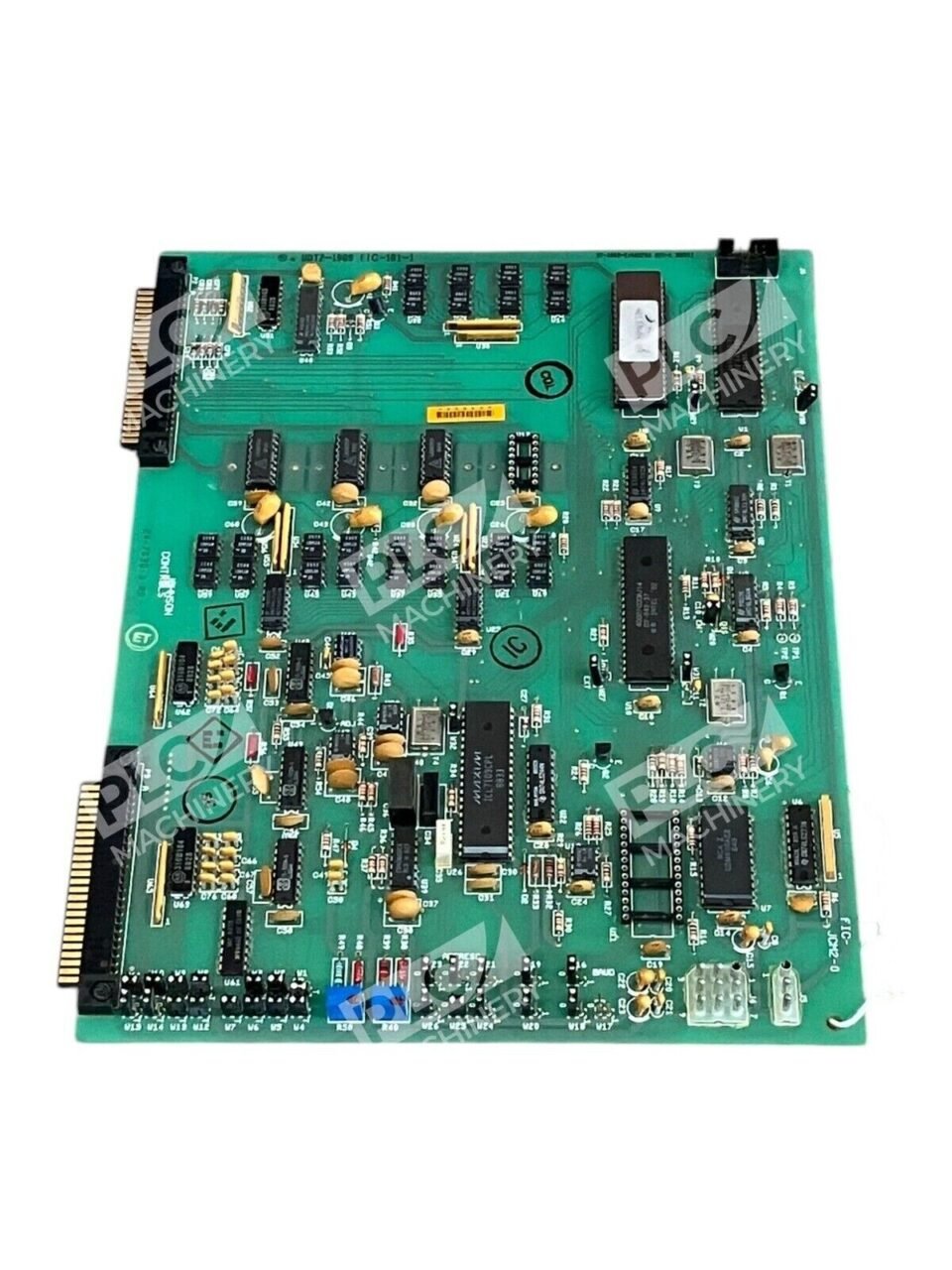

The Johnson Controls 27-3469-5 is a PCB control board, model UDTZ-19G9 with FIC-101-1 field interface designation (Rev K). This circuit board is designed for integration into Johnson Controls industrial automation and HVAC control systems. The board functions as a core control component for regulating and monitoring various industrial processes and climate control applications.
Key Features
- Industrial-grade printed circuit board for control system integration
- Field Control Interface Module (FIC-101-1) designation for distributed control architectures
- Revision K — latest tested version of this control board configuration
- Used surplus condition — fully functional and ready for deployment
- Compatible with Johnson Controls HVAC and building automation systems
Technical Specifications
Specifications based on available distributor and field data:

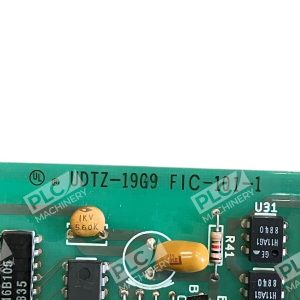

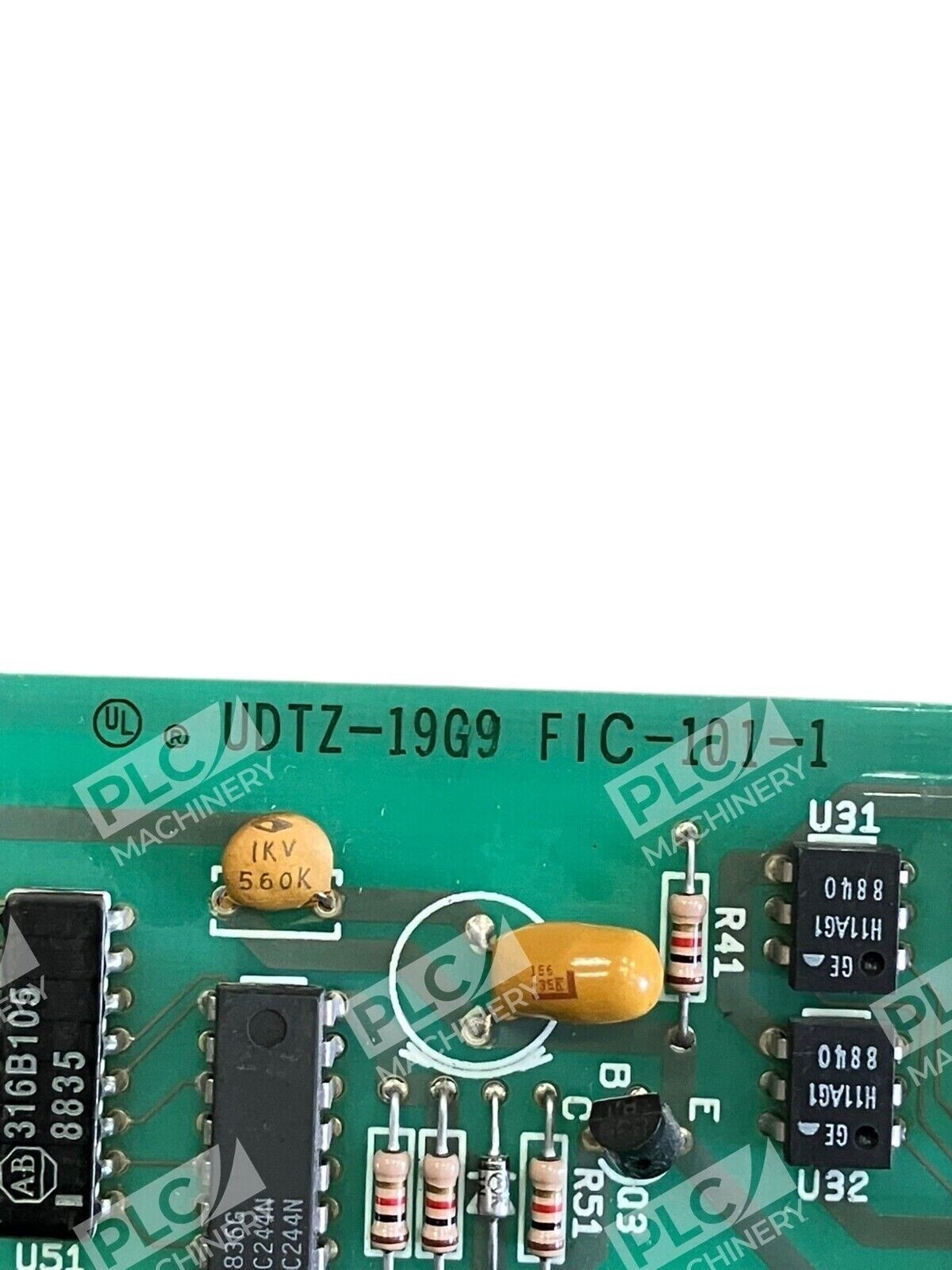

- Board Model: UDTZ-19G9

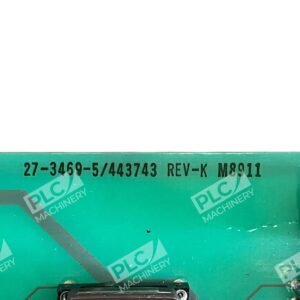

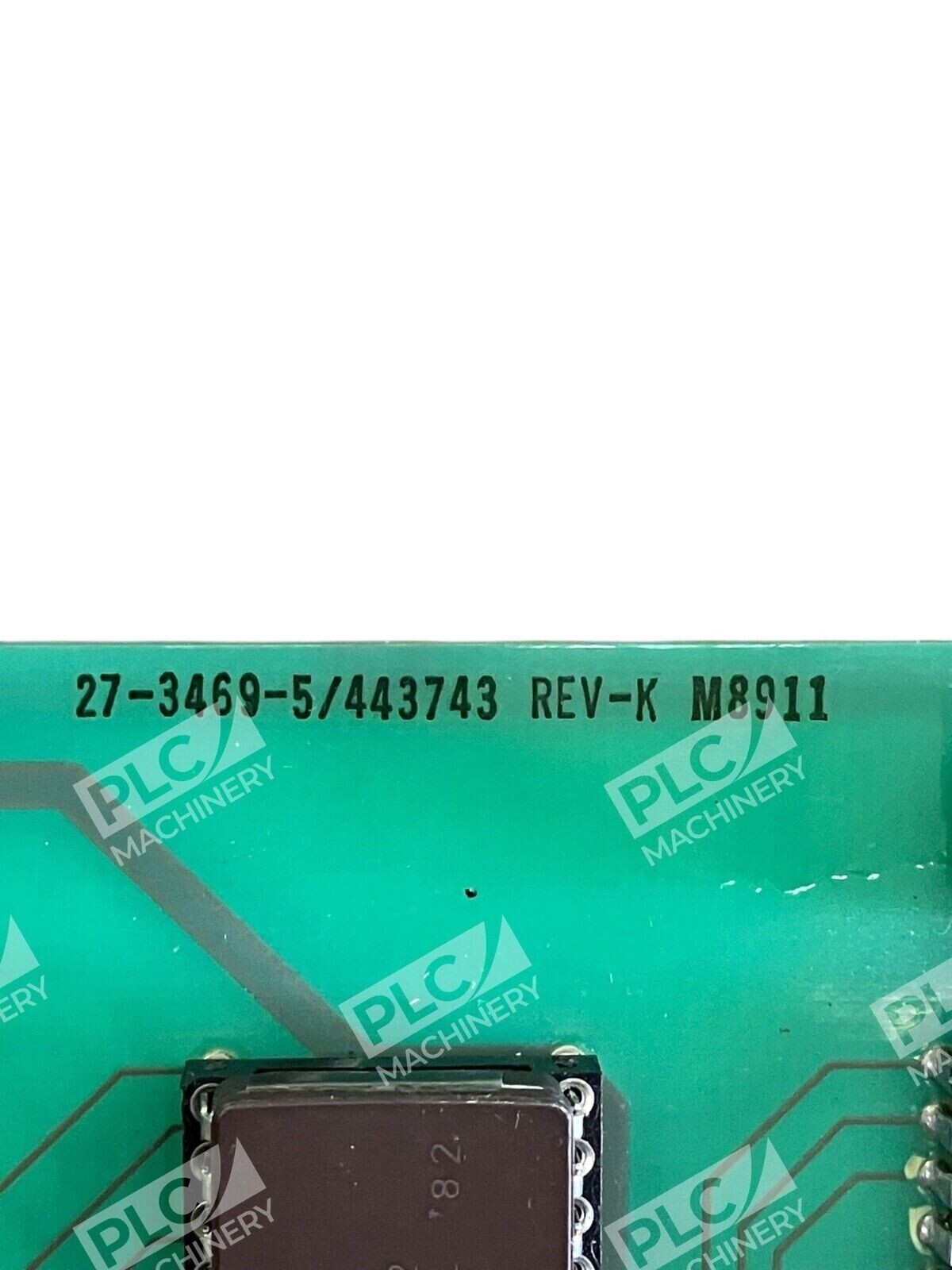

- Part Number: 27-3469-5 / 443743
- Revision: K
- Interface Designation: FIC-101-1
- Product Type: Printed Circuit Board (PCB)
- Category: Industrial Control Board
- Condition: Used, fully functional
- Compatible Series: Johnson Controls UDTZ/M8911 control systems
Typical Applications
Johnson Controls control boards are widely deployed in:
- HVAC system control and regulation
- Building automation and climate management
- Industrial process control and monitoring
- Field control interface modules in distributed control networks
- System upgrades and replacement installations
Compatibility & Replacements
Compatible With
- Johnson Controls M8911 control system modules
- Johnson Controls UDTZ series control boards
- Johnson Controls building automation platforms
- Industrial HVAC regulation and monitoring systems
- Distributed control architectures using FIC-101-1 field interfaces
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Alternate board revisions and model numbers in the UDTZ-19G9 family include CEB-104-0 and related configurations, but direct drop-in replacement status requires technical validation against your specific control system version.
Works With
- Johnson Controls building management software and platforms
- Industrial automation control networks
- HVAC system integration and monitoring tools
- Field-level control interfaces and distributed I/O modules
