Overview

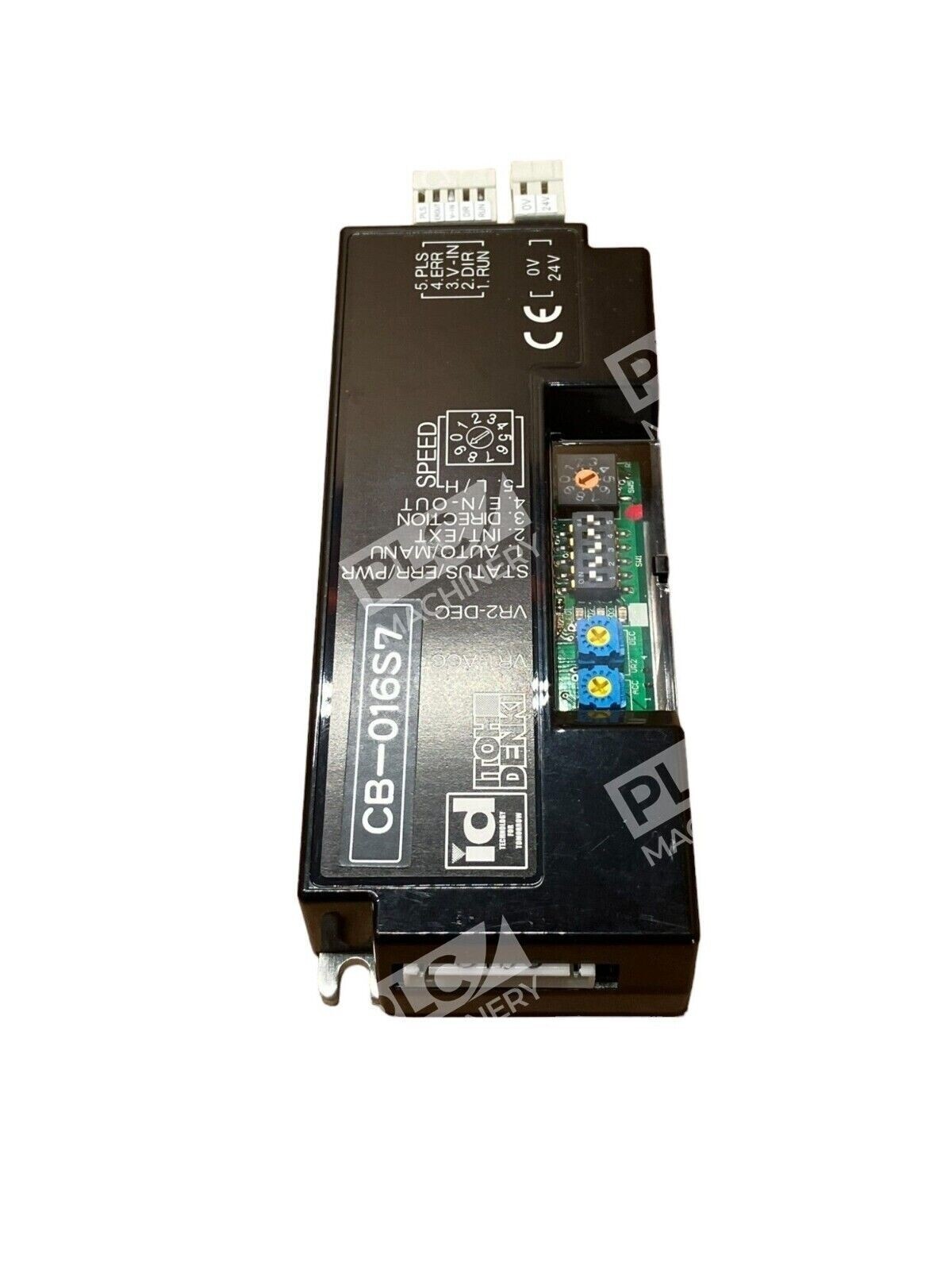

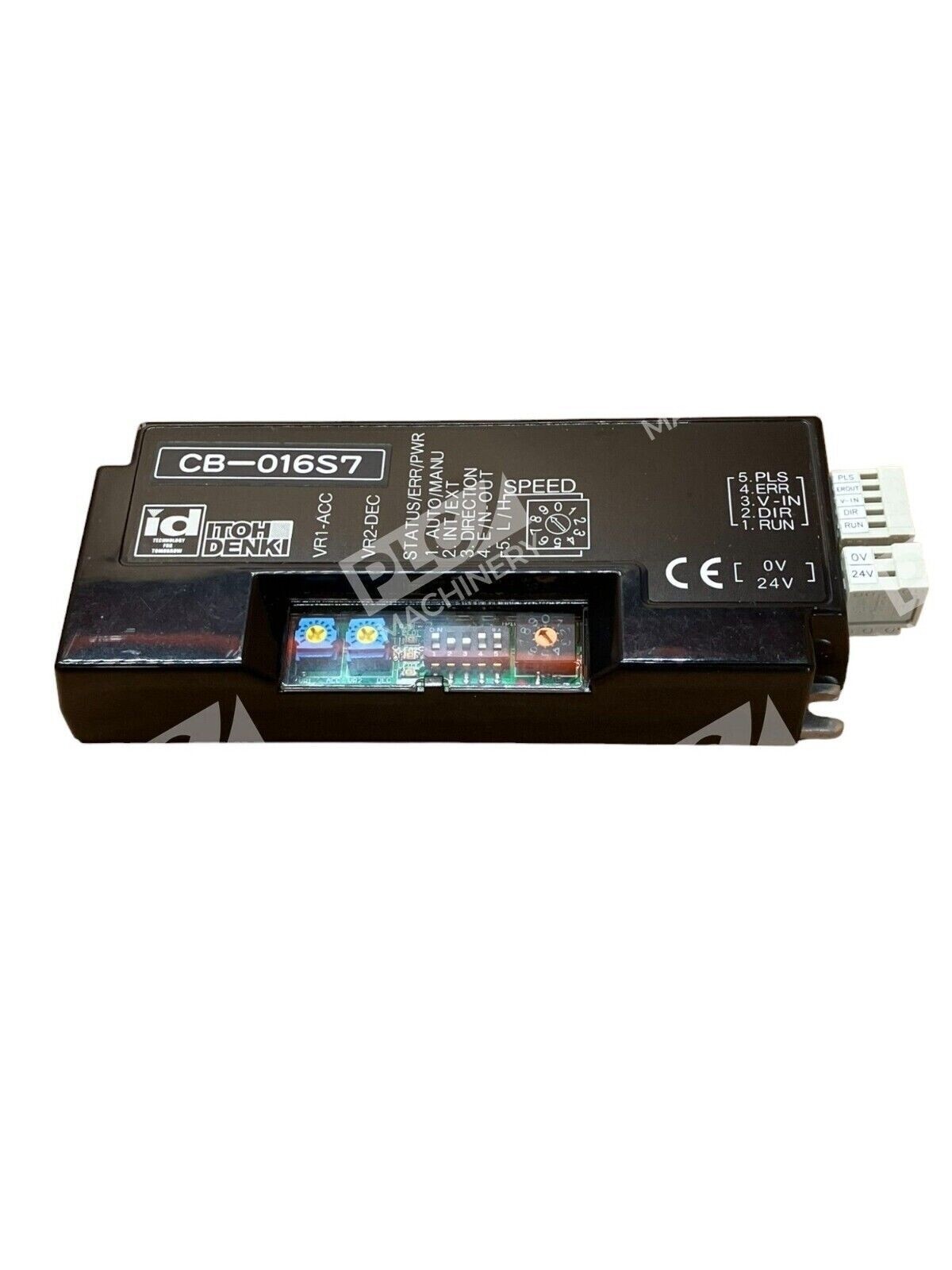

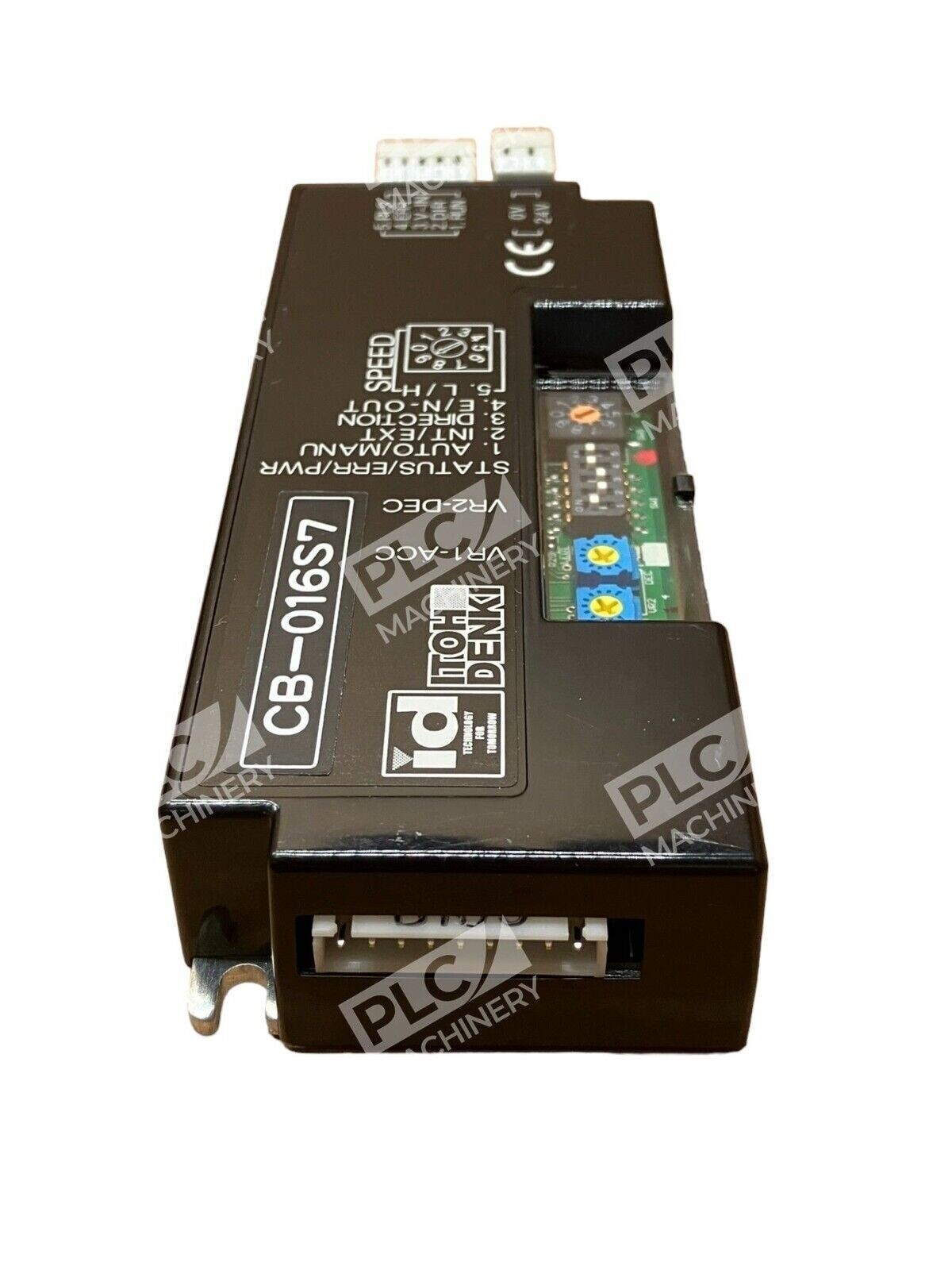

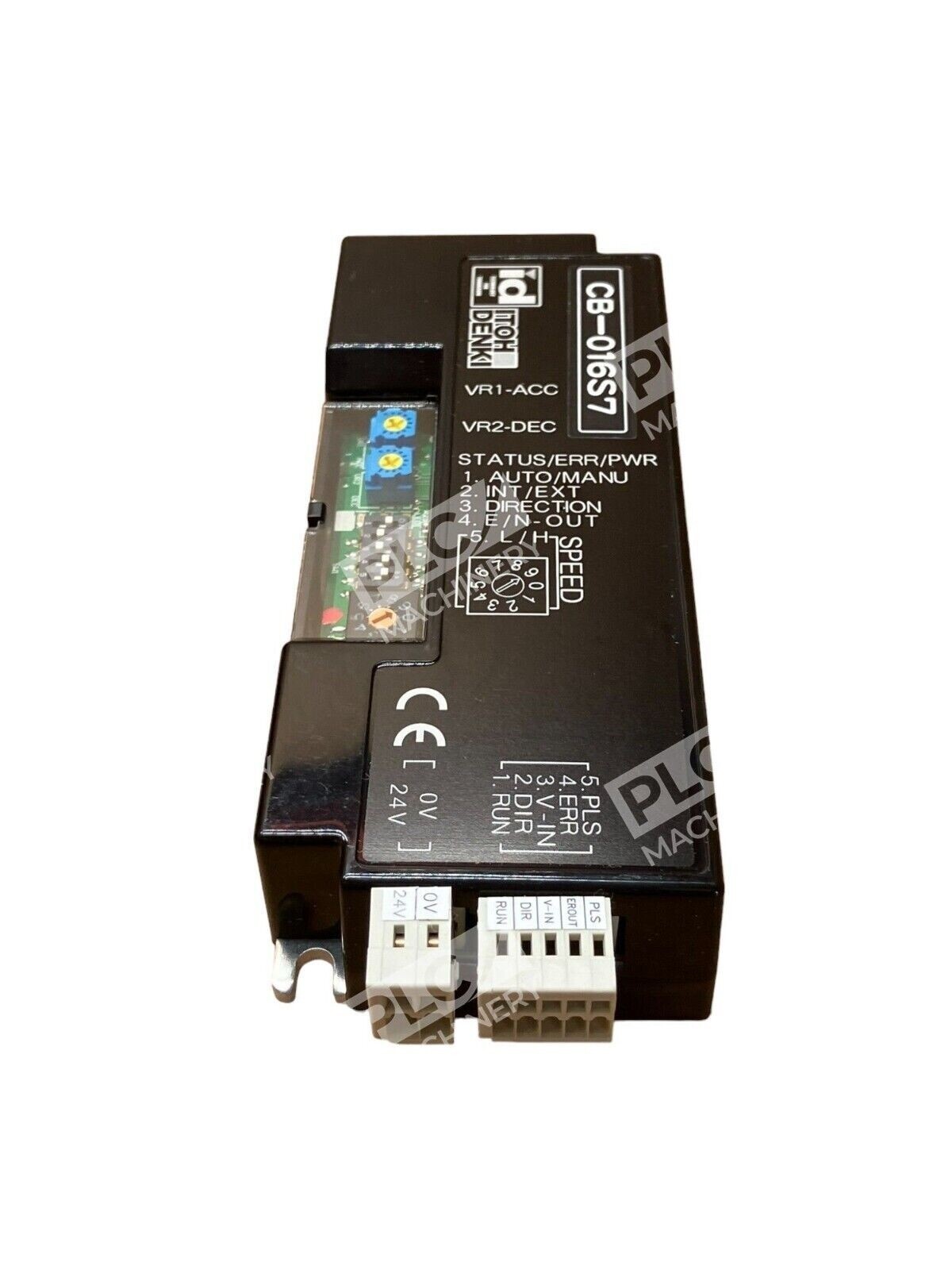

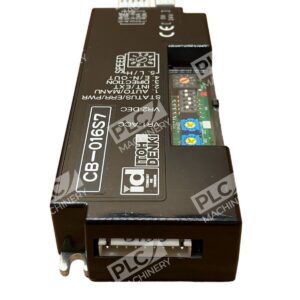

The Itoh Denki CB-016S7 driver card is a compact, reliable motor control module purpose-built for 24V DC motor-driven roller systems in conveyor and material handling applications. This single-card driver delivers straightforward on/off control with programmable speed ramping and robust thermal protection, making it ideal for OEM equipment integrators and maintenance technicians seeking a proven replacement or spare component.
Key Features
- Adjustable acceleration and deceleration time: 0 to 2.5 seconds for smooth motor control
- Manual or automatic thermal overload recovery to minimize downtime

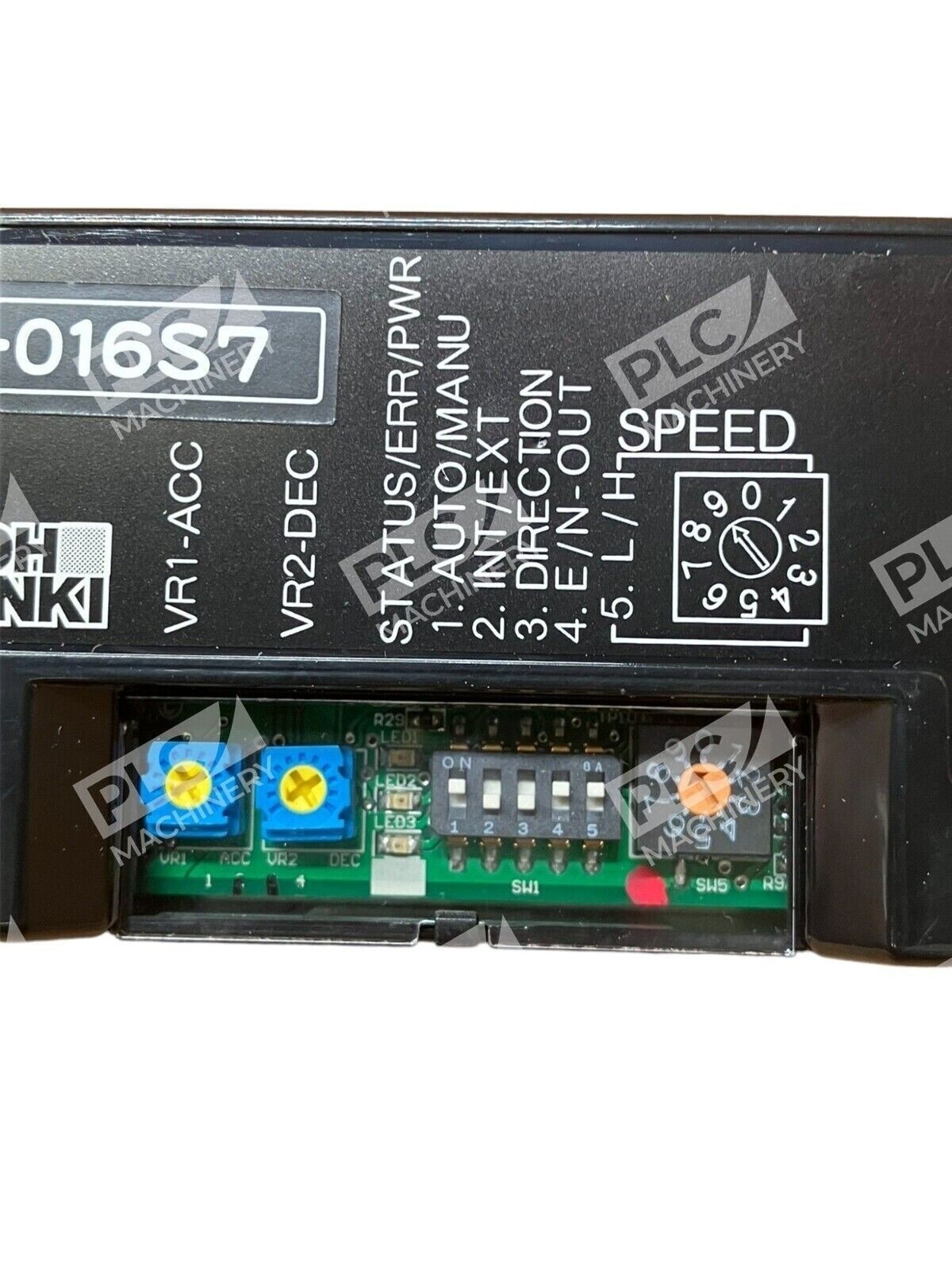

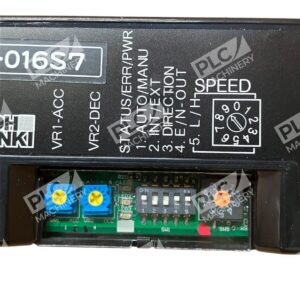

- DIP switch and rotary switch configuration for up to 20 selectable fixed speeds
- Pulse signal output for motor speed indication and feedback
- Automatic motor shutdown if lock or thermal error exceeds 4 seconds
- Brake option support for compatible Itoh Denki motor-driven rollers
Technical Specifications
- Input Voltage: 24V DC
- Locking Current: 4A
- Brake Current: 0.02A
- Fuse Rating: 5A
- Acceleration/Deceleration Range: 0–2.5 seconds
- Fixed Speed Settings: Up to 20 selectable via switch configuration
- Signal Output: Pulse signal (motor revolution indicator)
- Overload Protection: Thermal with manual/automatic recovery
- Interface Type: DIP switch + rotary switch
Typical Applications
- Conveyor belt motor control in manufacturing and packaging lines
- Motor-driven roller systems in food processing and distribution centers
- OEM equipment requiring integrated drive card solutions
- Industrial automation systems using 24V DC motor-driven equipment
- Material handling and sortation systems
Compatibility & Replacements
Compatible With
- Itoh Denki motor-driven roller systems
- 24V DC motor-driven roller equipment
- Standard PLC and automation control systems supporting 24V DC logic
- Conveyor control platforms in food, packaging, and manufacturing industries
Replaces / Drop-In Replacement For
The CB-016S7 is the current standard driver card for compatible Itoh Denki motor-driven roller product lines. Verify compatibility with your system integrator or equipment OEM documentation before ordering to ensure correct application.
Works With
- Itoh Denki motor-driven roller platforms
- 24V DC motor control circuits
- Standard DIN-style automation mounting and cabling
- Conveyor management and motion control systems
