Overview

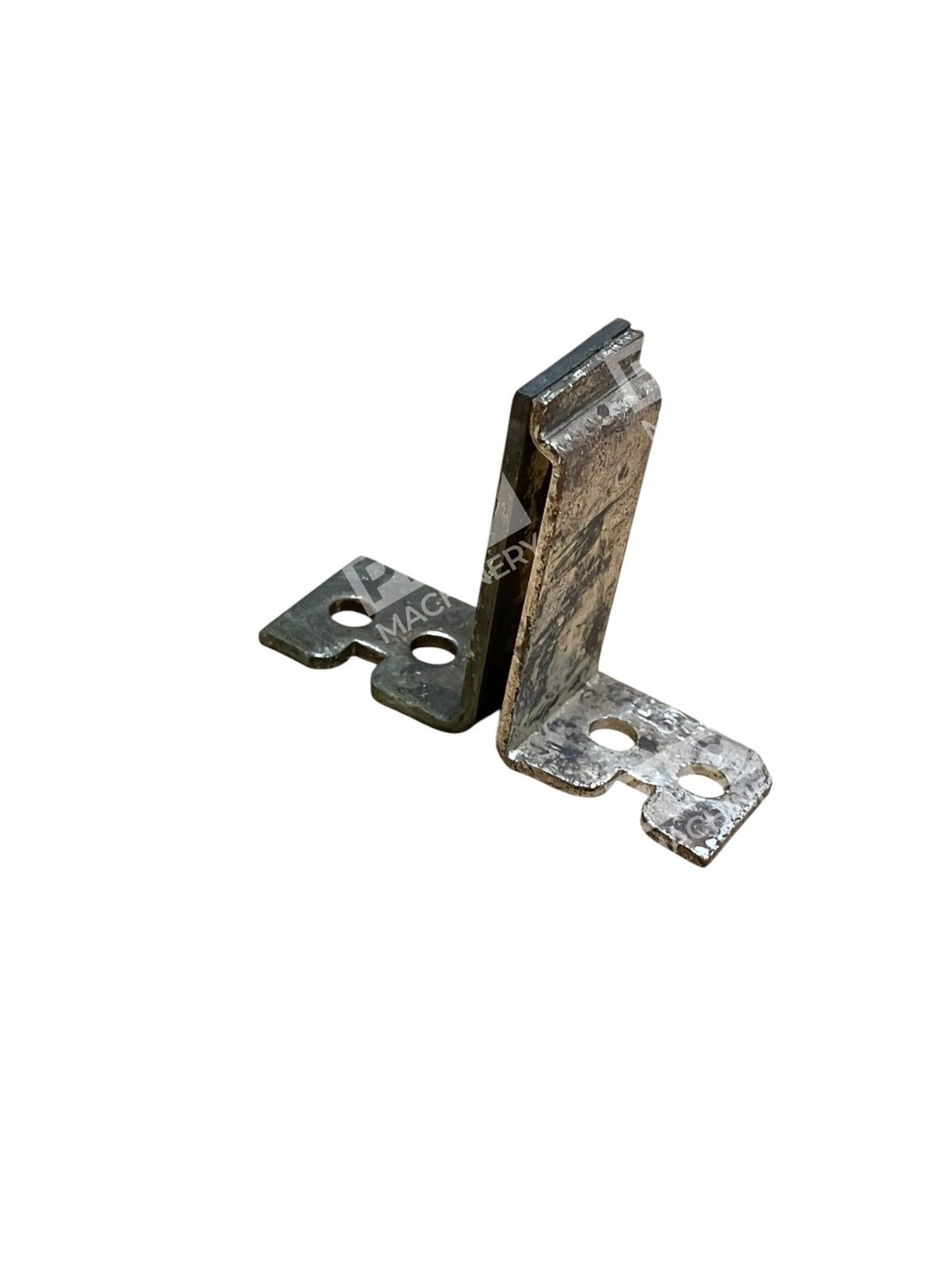

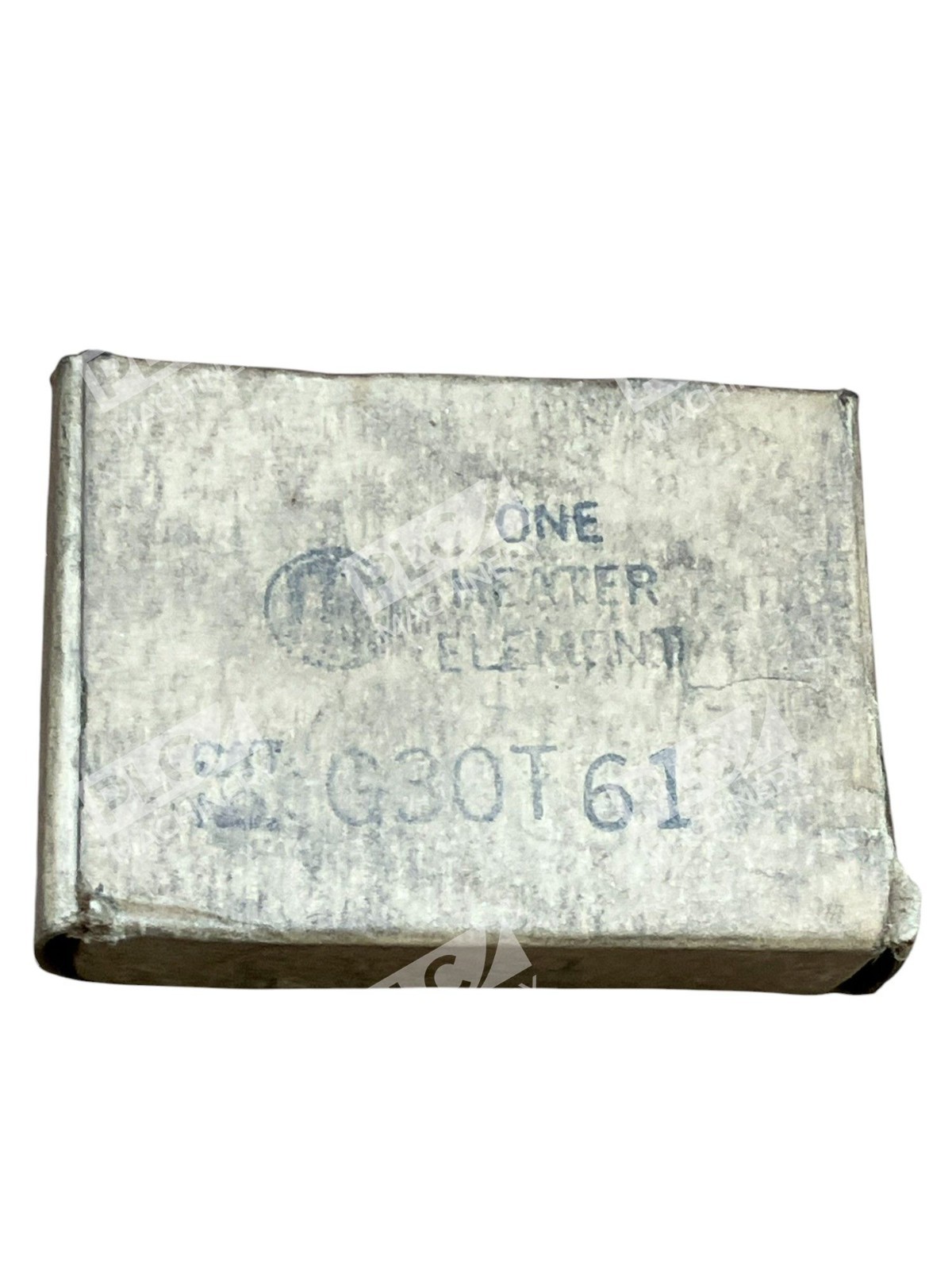

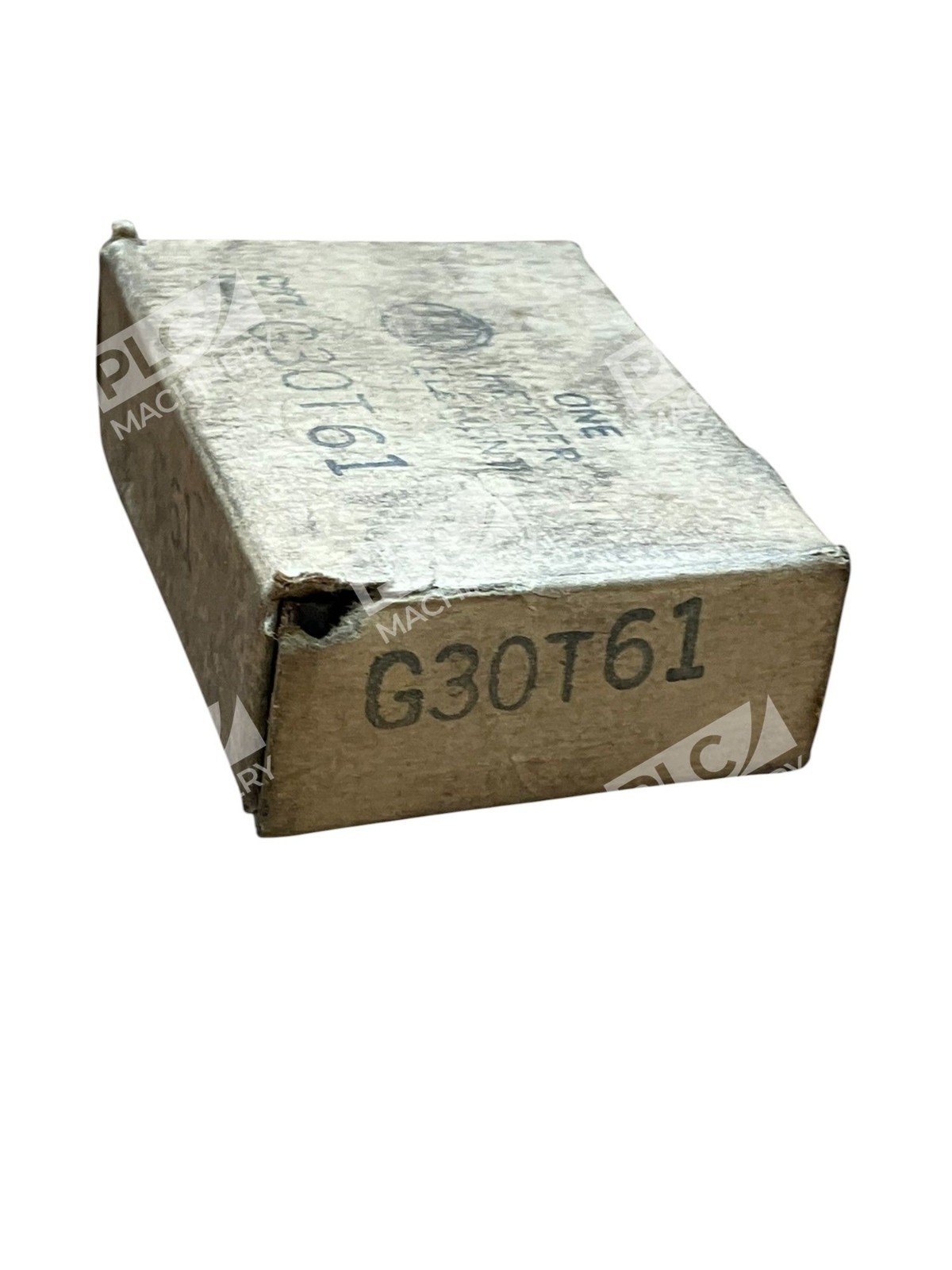

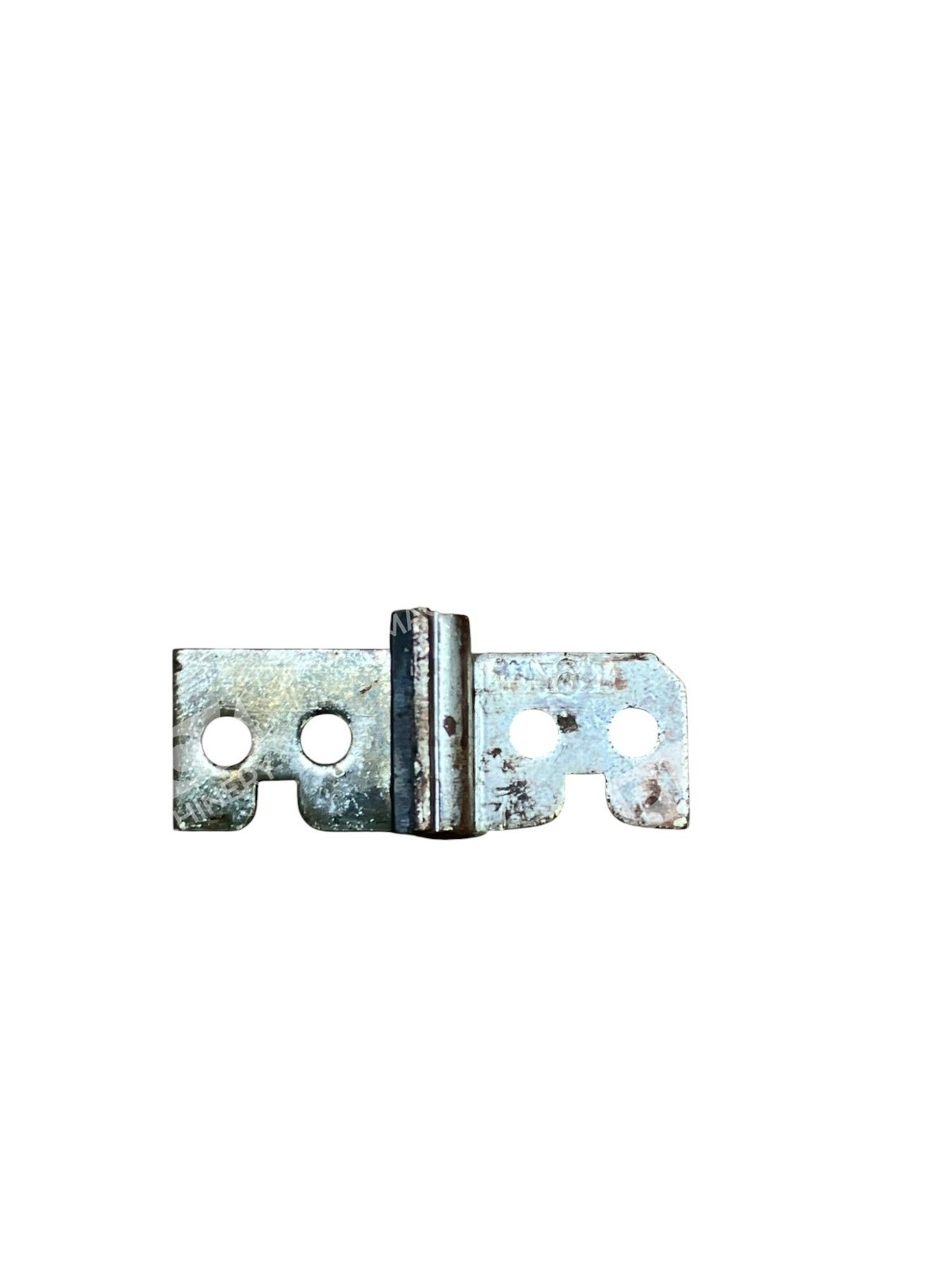

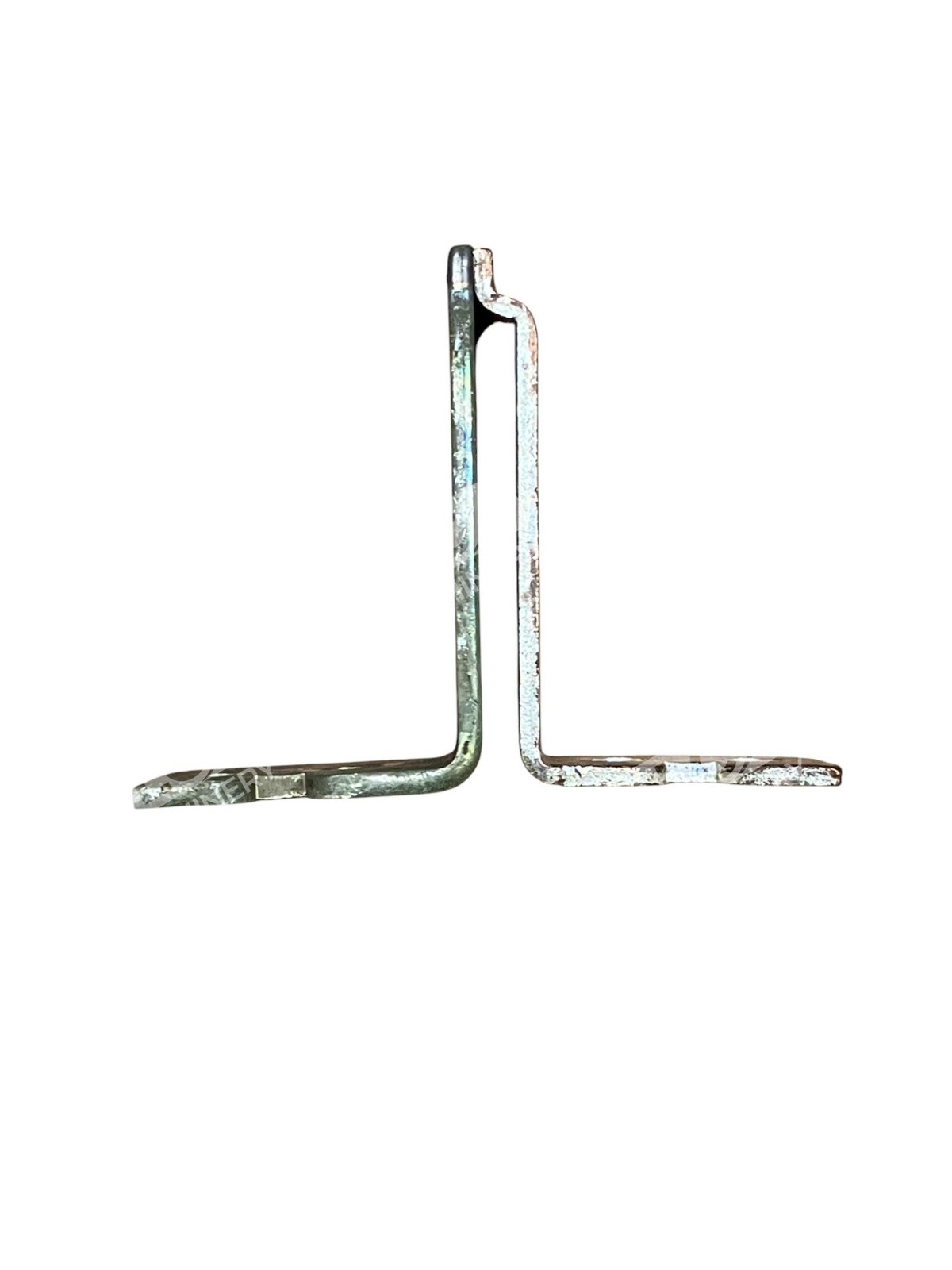

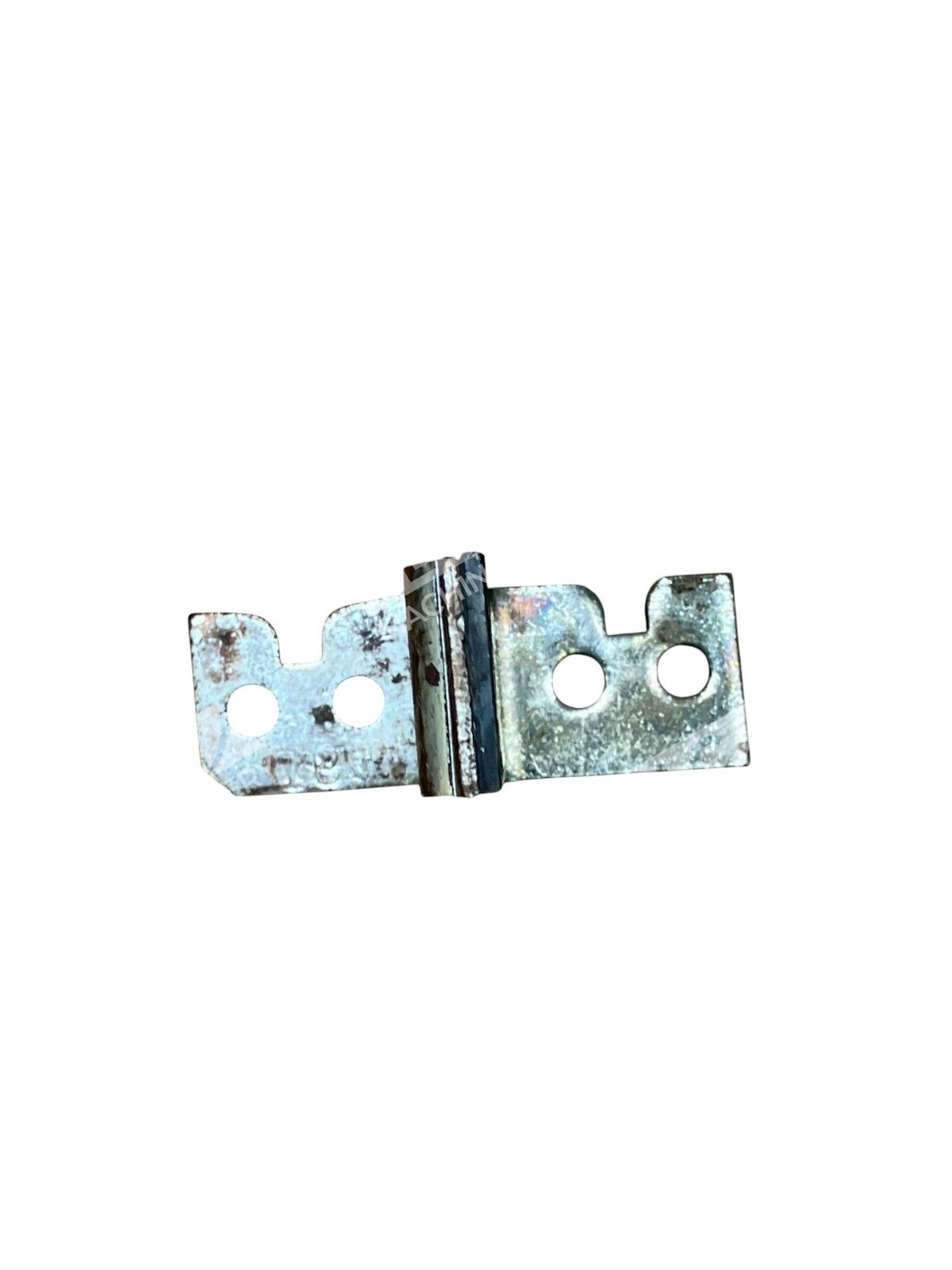

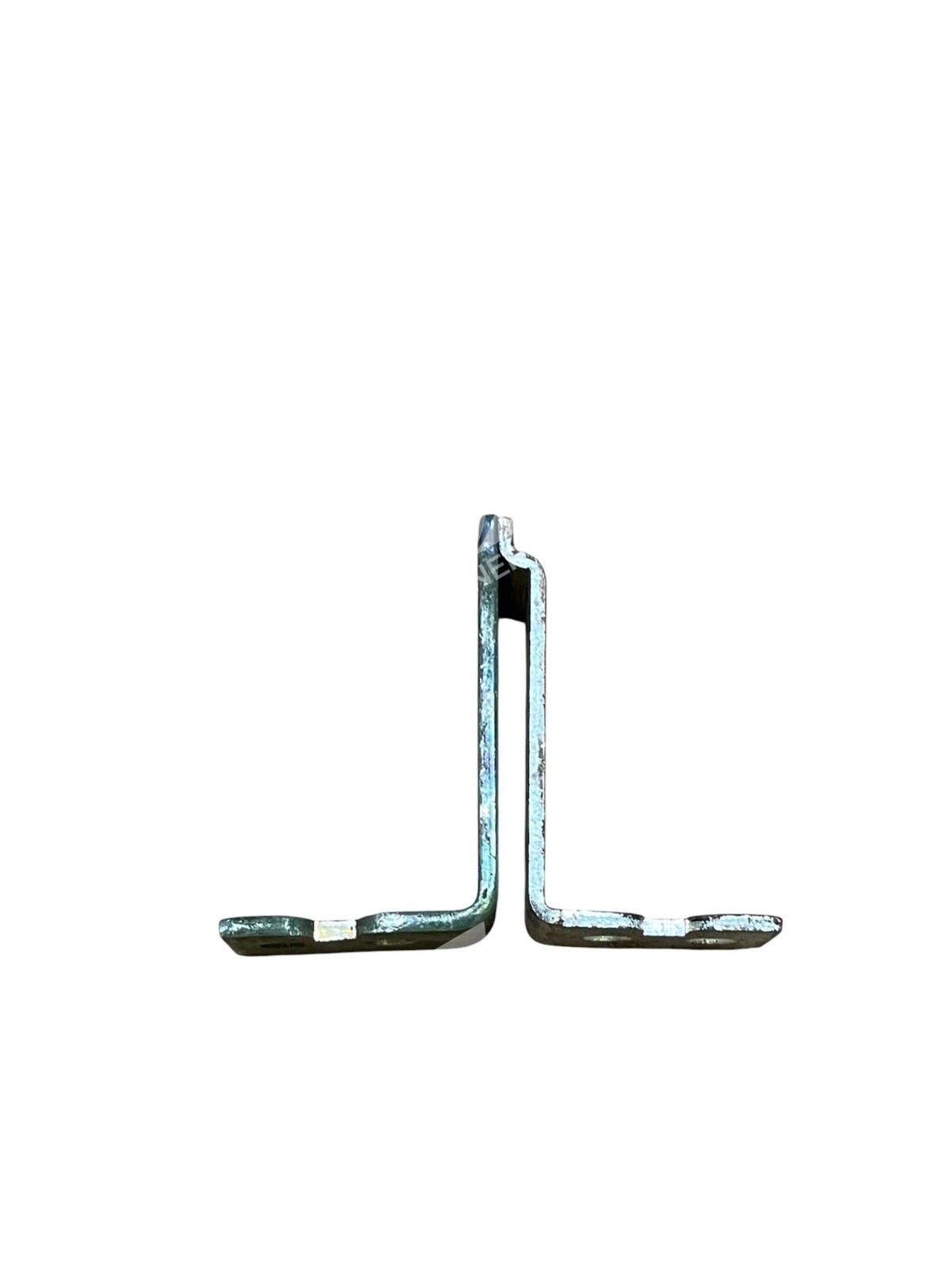

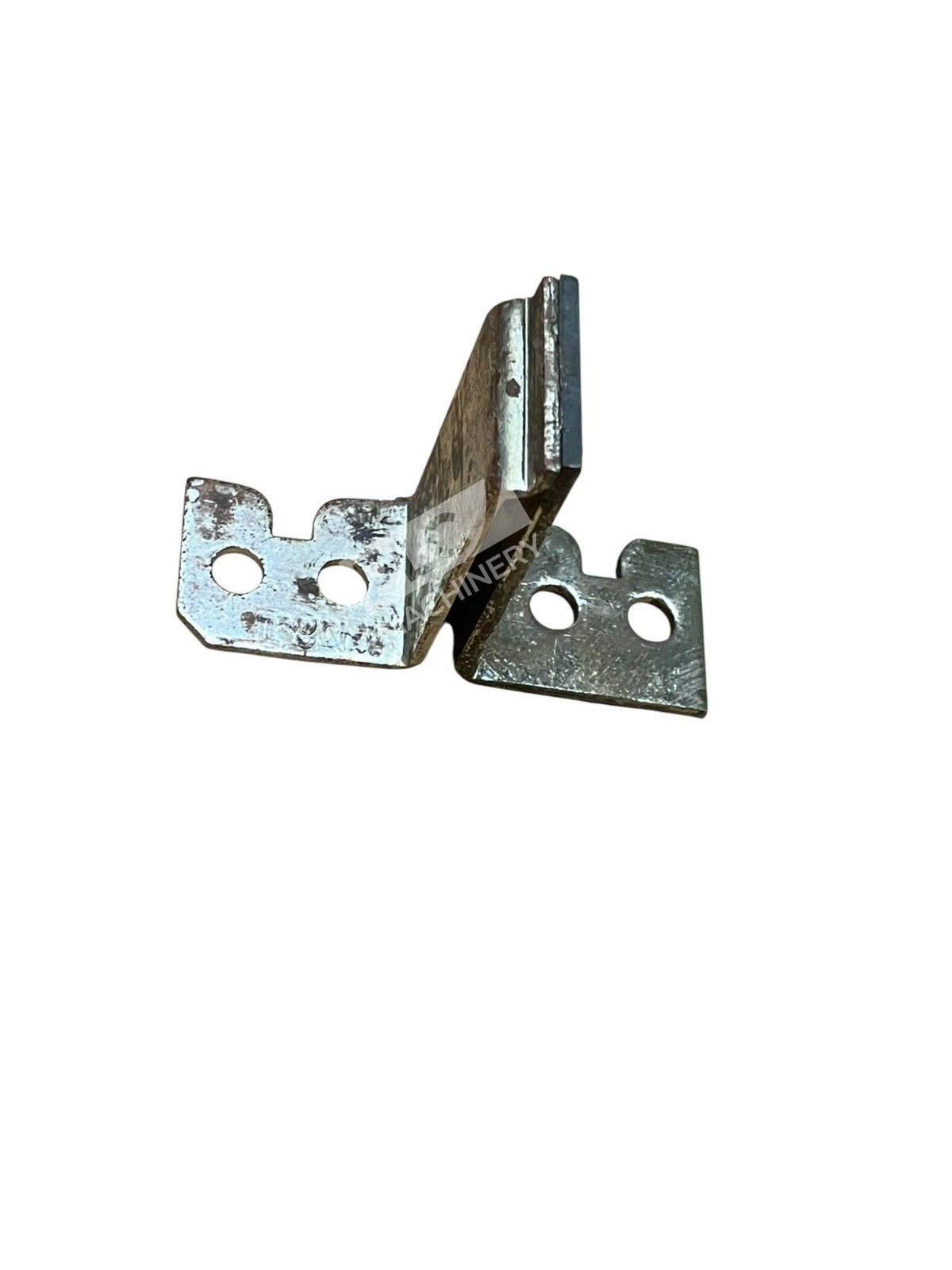

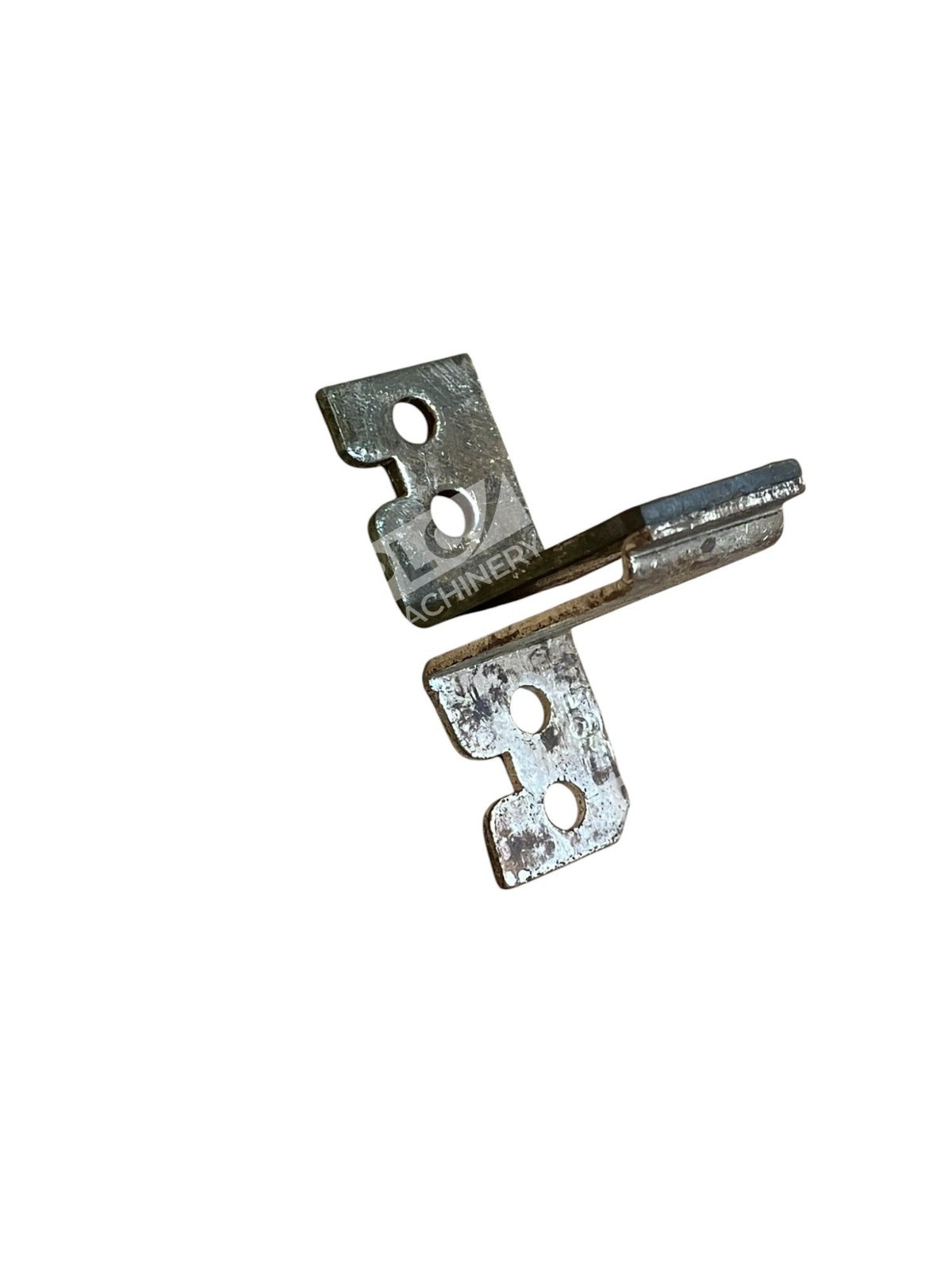

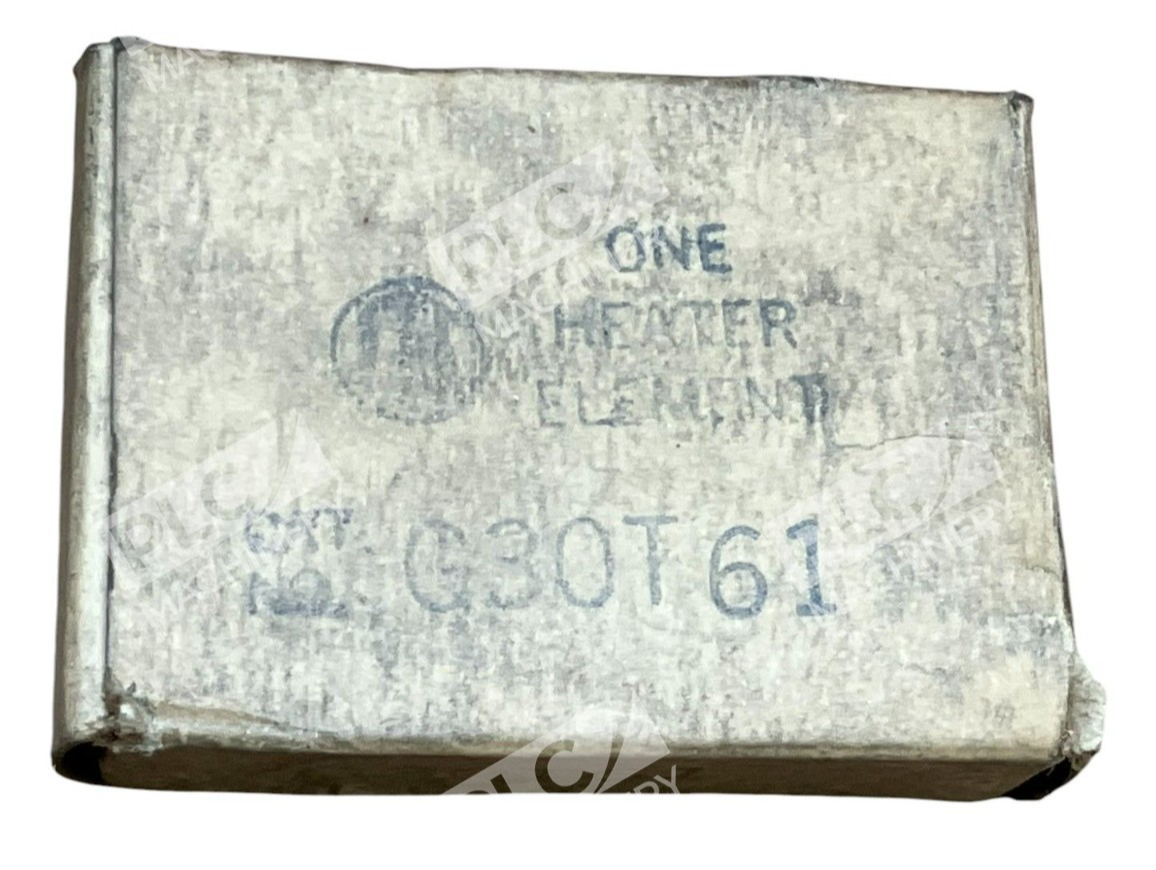

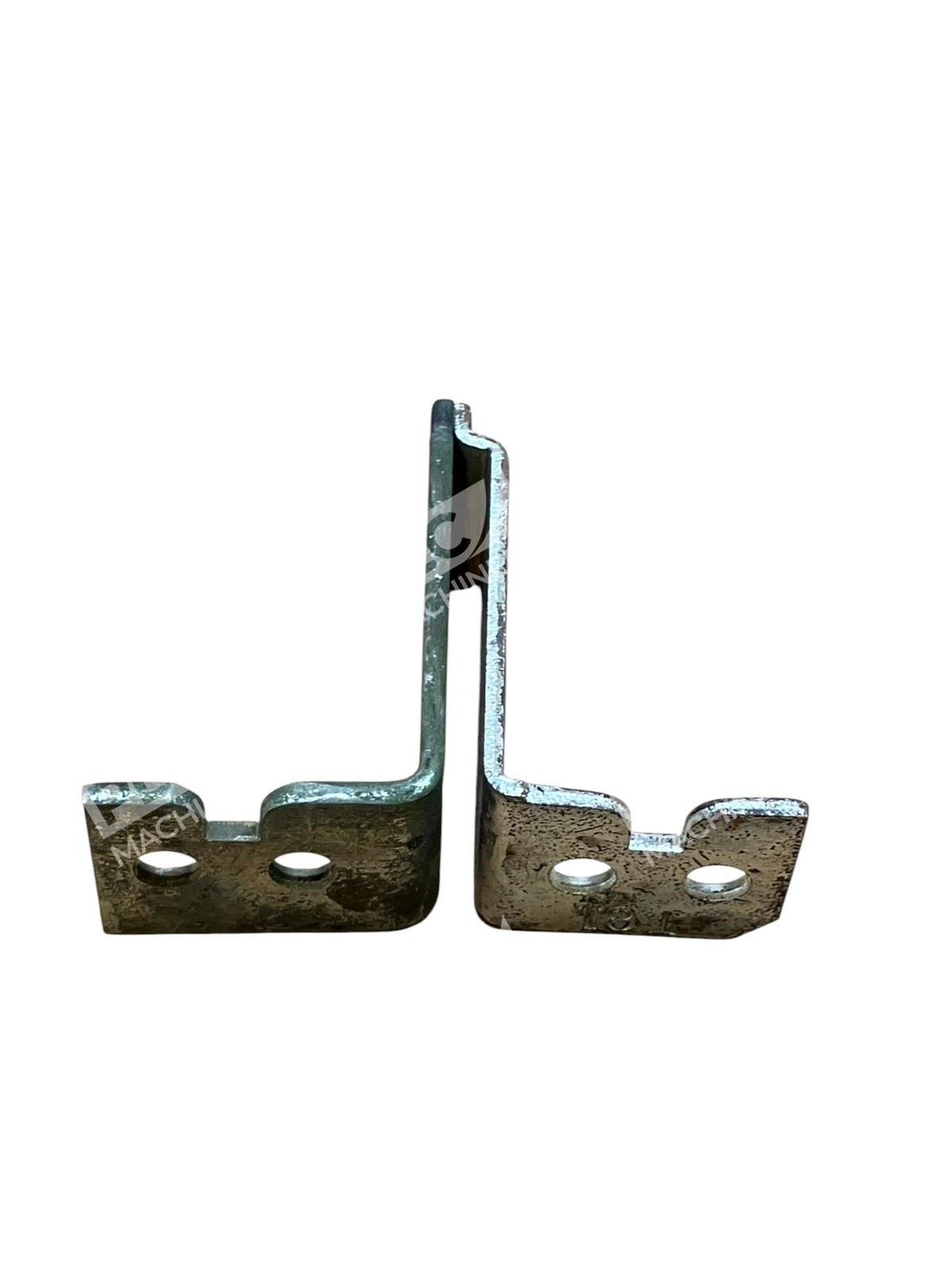

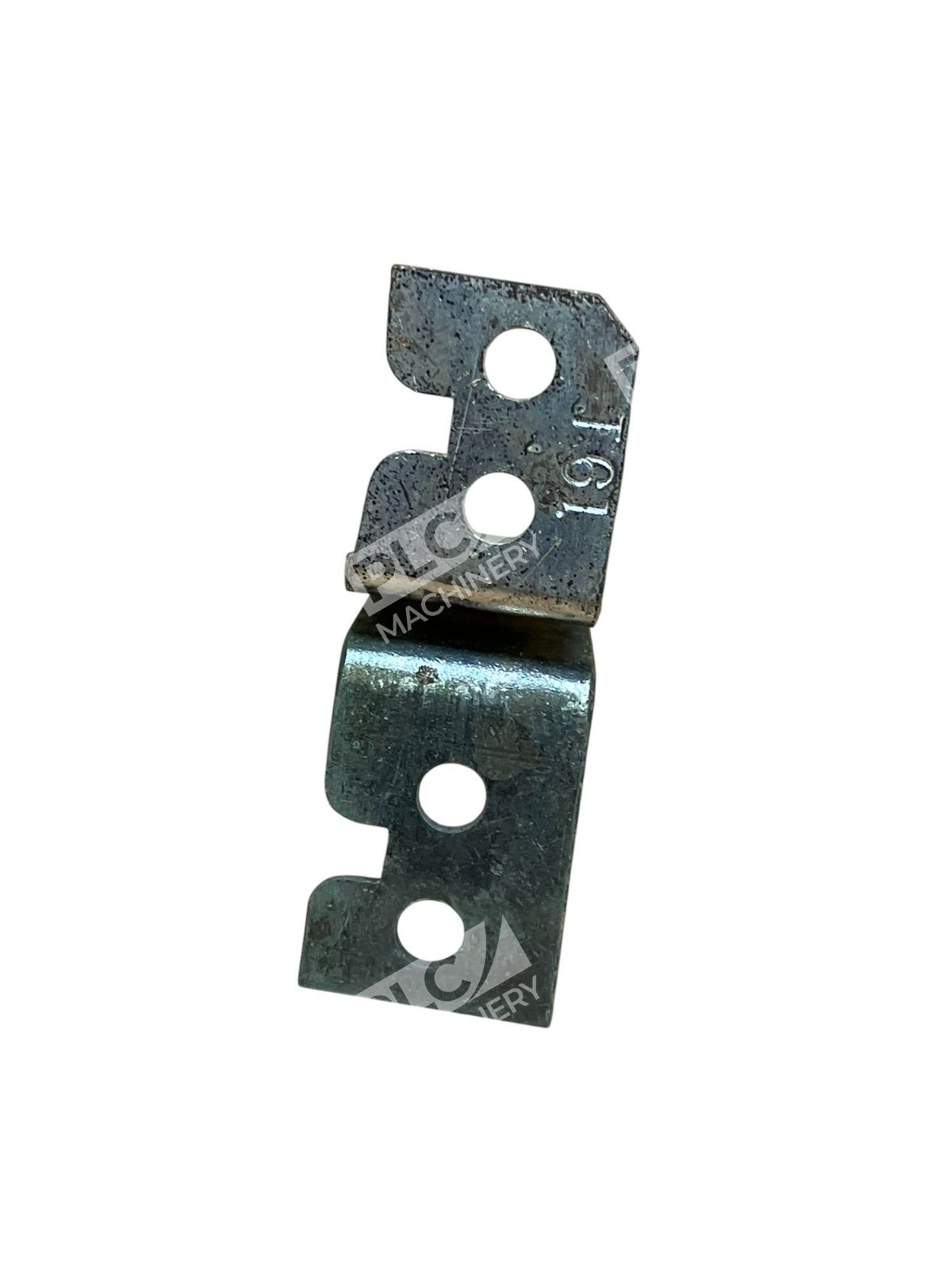

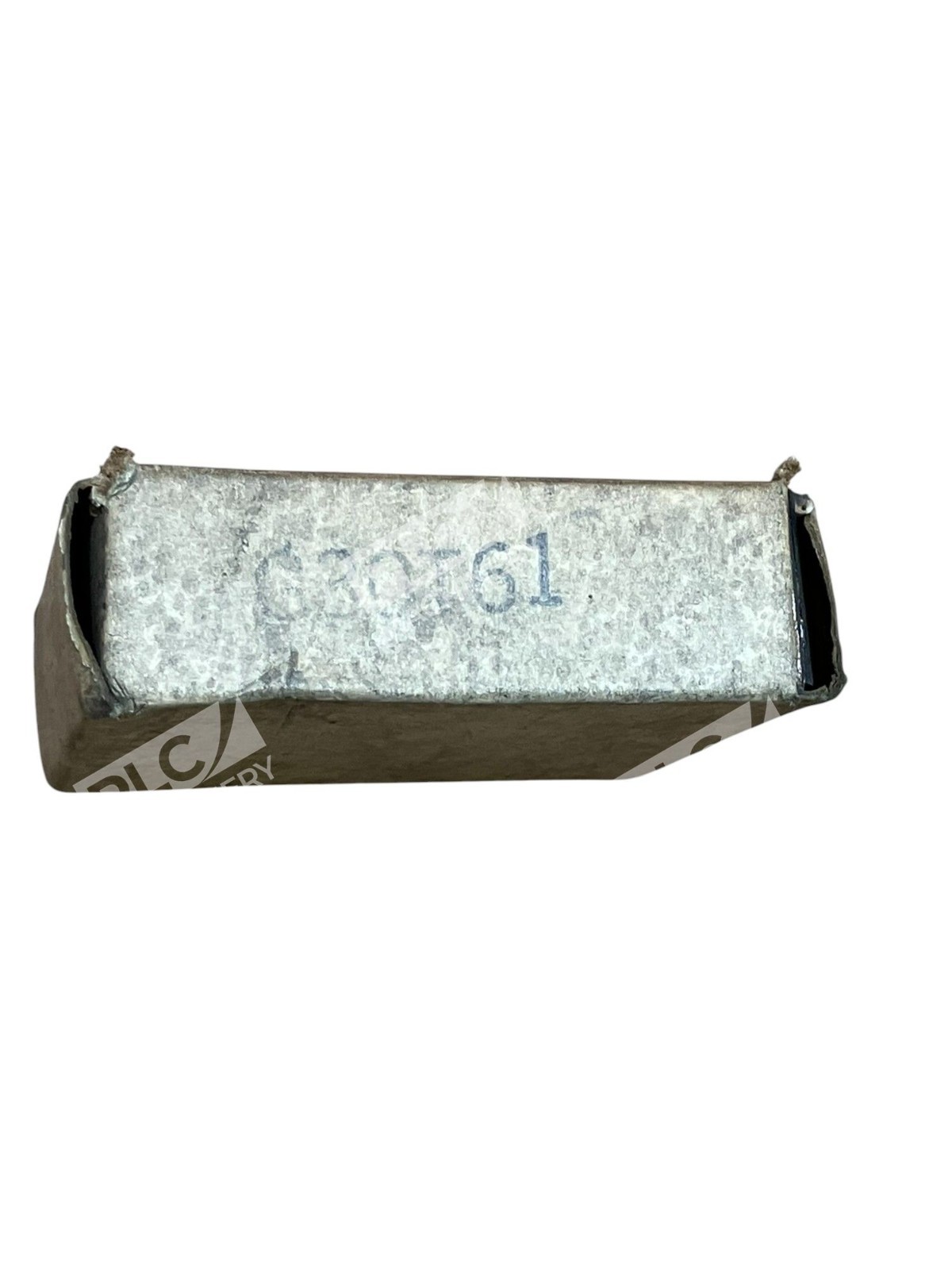

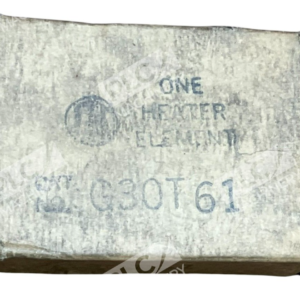

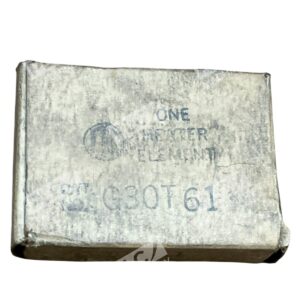

The ITE G30T61 heater element is a Type G thermal overload heater designed for use with thermal overload relays and magnetic motor starters. Rated for 95.3–113.9 amps, this component is part of the G30T series and provides dependable motor protection in industrial motor control circuits. It serves as a direct replacement for existing G30T61 units in installed systems.
Key Features
- Type G thermal overload heater element
- Rated for 95.3–113.9 amps full-load amperage
- Compatible with thermal overload relays and magnetic motor starters
- Part of the proven G30T series family
- Suitable for motor control and protection circuits
Technical Specifications
Thermal overload heater elements are critical components in motor protection circuits. The G30T61 maintains precise calibration to trip at designed amperage thresholds, preventing motor damage from sustained overload conditions.
Typical Applications
- Three-phase and single-phase motor starters
- Thermal overload relay protection circuits
- Industrial motor control panels
- Production machinery motor protection
- Motor branch circuits requiring overload protection
Compatibility & Replacements
Compatible With
- ITE thermal overload relays
- Magnetic motor starters
- Motor control centers (MCCs)
- Industrial motor control circuits
Replaces / Drop-In Replacement For
- ITE G30T61 (direct replacement for same part number)
Works With
- Standard three-phase and single-phase motor starters
- Thermal protection systems compliant with NEC and IEC standards
