Overview

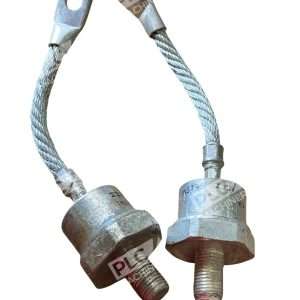

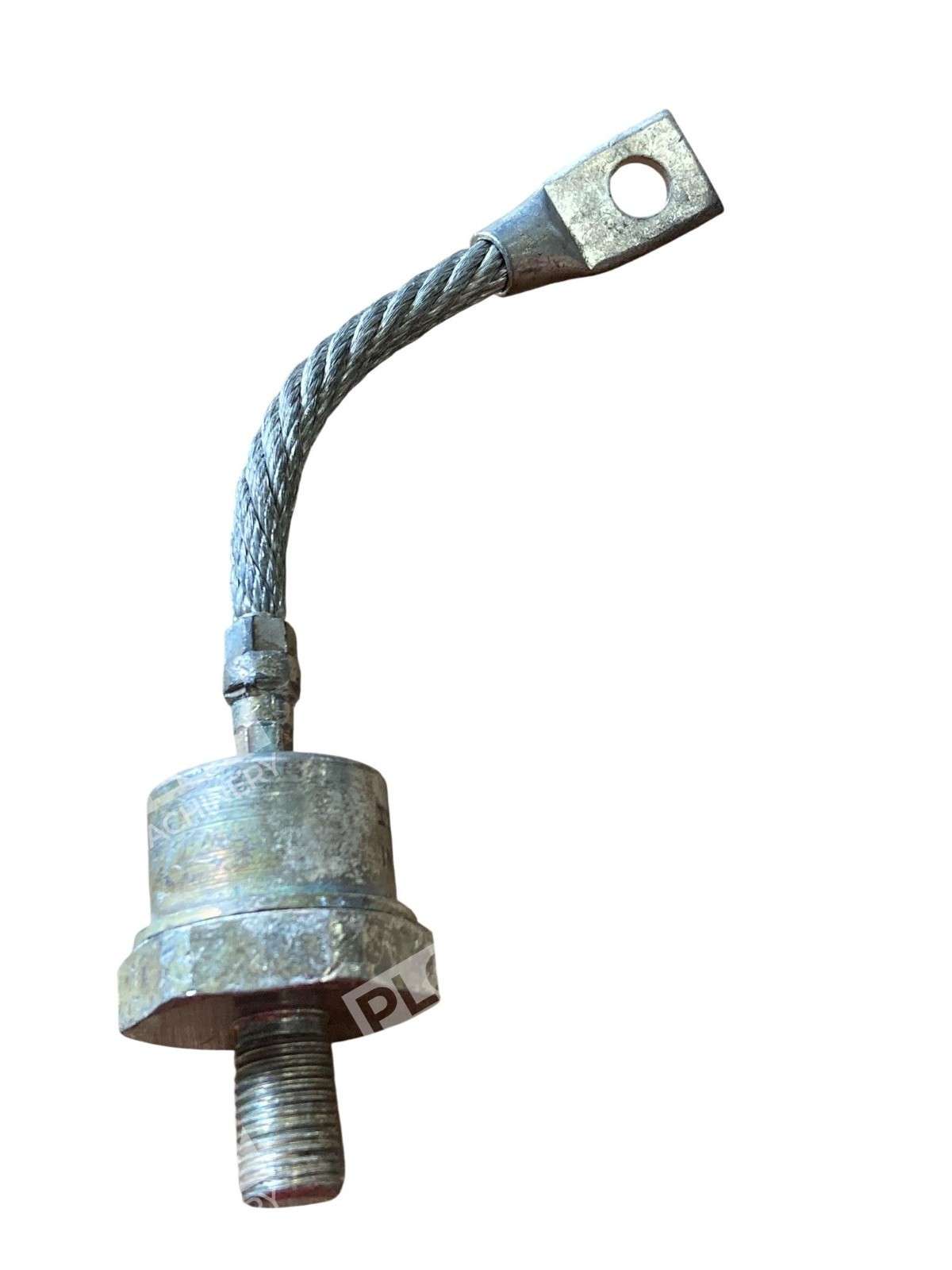

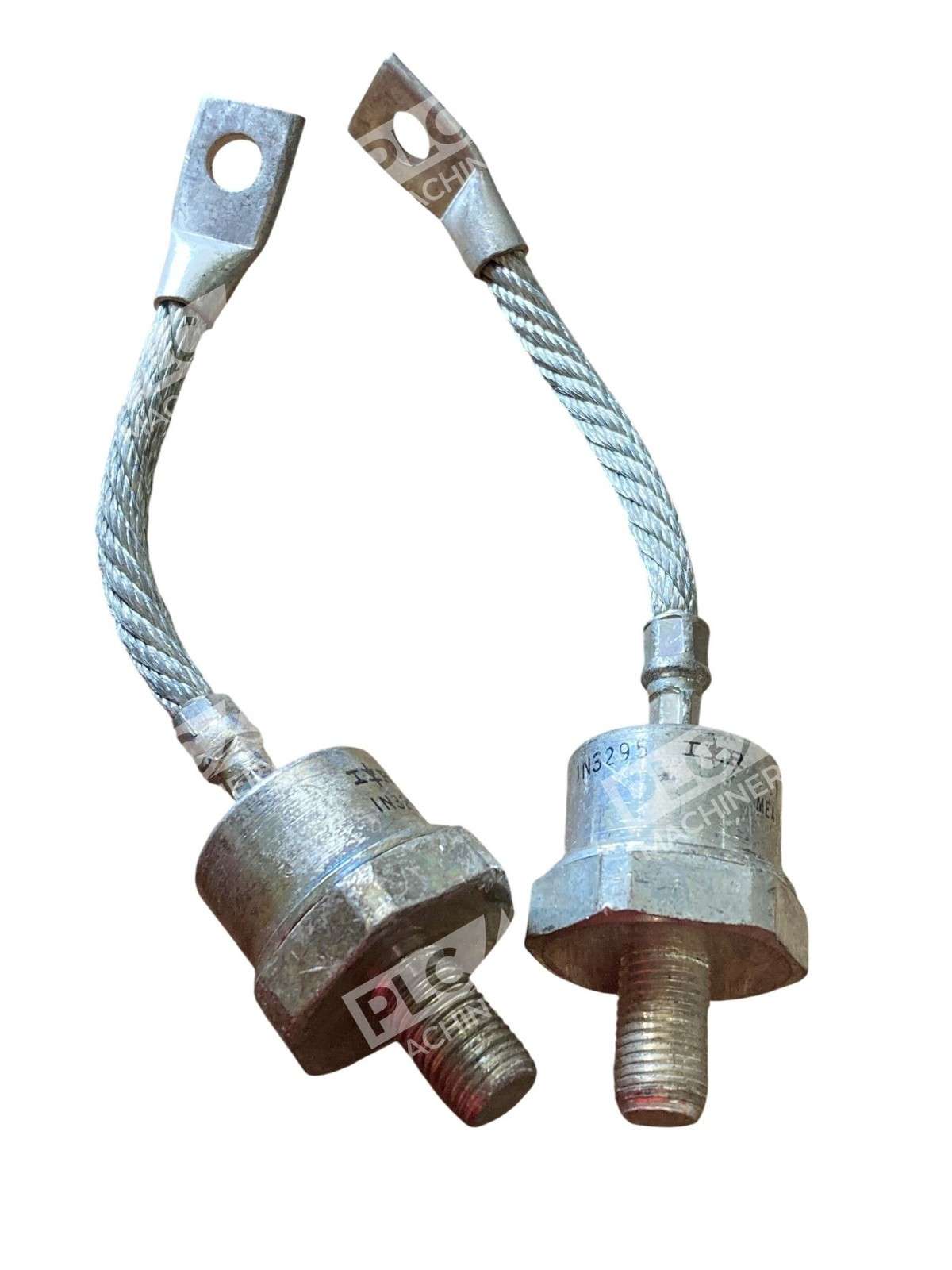

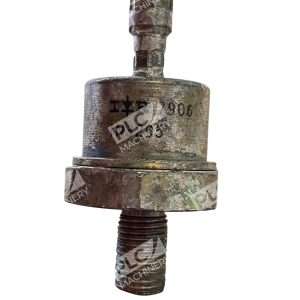

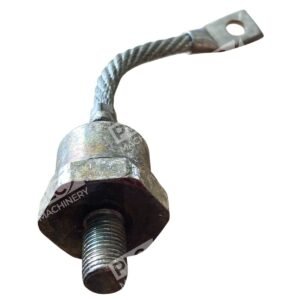

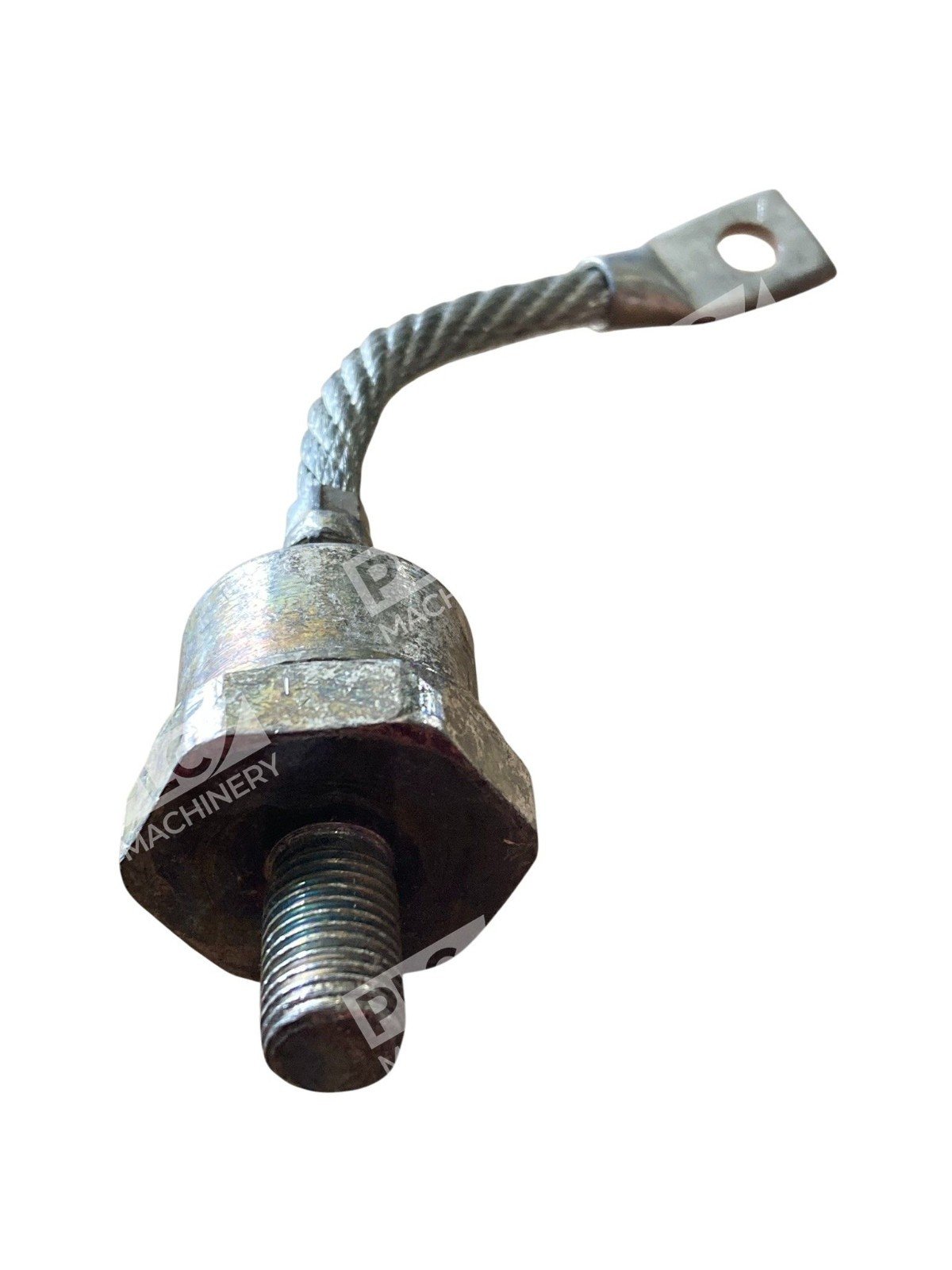

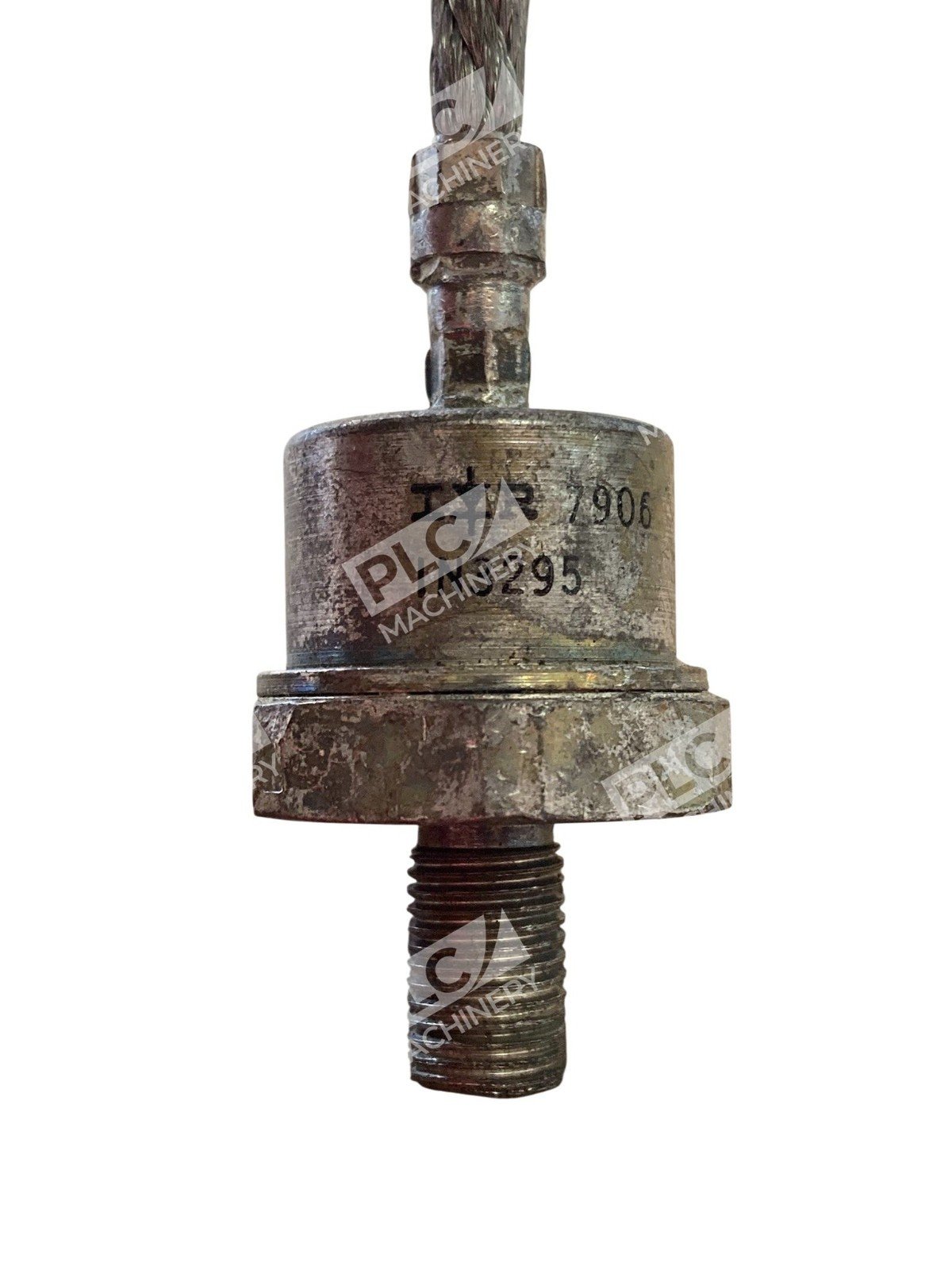

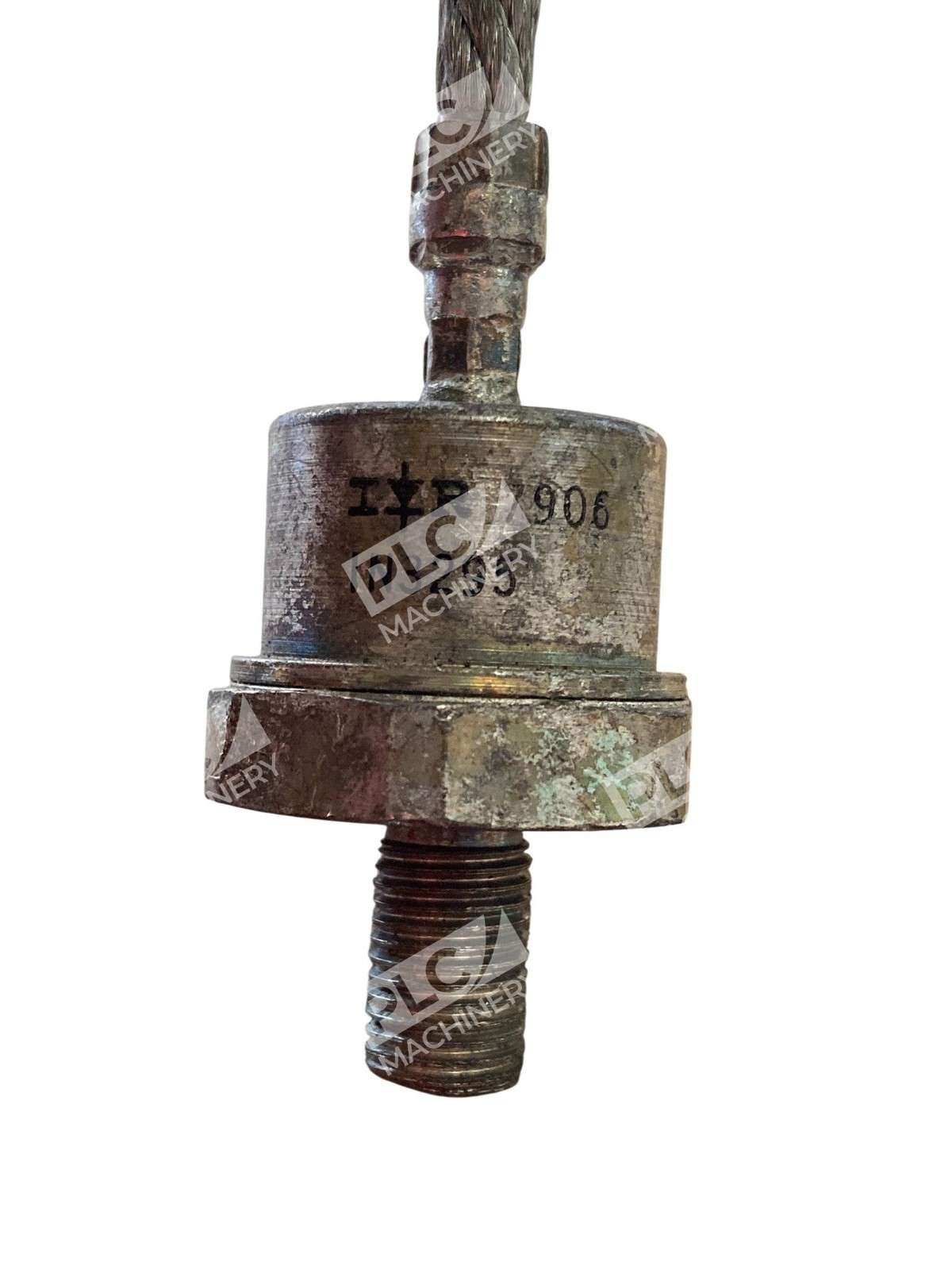

The 1N3295 is a silicon power rectifier diode from Microsemi, designed for efficient conversion of alternating current (AC) to direct current (DC) in power supply and industrial circuits. This stud-mount rectifier offers reliable performance in medium-voltage, medium-current applications. The lot of 2 units provides convenient inventory for system upgrades, repairs, or redundancy in critical power systems.
Key Features
- Silicon junction technology for stable performance across operating range
- Stud-mount package for direct integration into power modules and industrial equipment
- Unidirectional current flow for reliable AC-to-DC rectification
- Robust construction suitable for industrial and aerospace applications
- Standard recovery time performance (trr > 500 ns) for conventional rectifier circuits
Technical Specifications
- Manufacturer: Microsemi Corporation
- Part Number: 1N3295
- Component Type: Silicon Power Rectifier
- Package Style: Stud-Mount
- Diode Classification: Standard Rectifier (trr > 500 ns)
- Quantity per Lot: 2 units
Typical Applications
- Power supply units and rectification modules
- Industrial motor control circuits
- DC bus generation in power electronics
- Aerospace and defense power systems
- High-reliability industrial equipment requiring redundant components
Compatibility & Replacements
Compatible With
- Industrial power supply designs rated for medium voltage and medium current
- Stud-mount rectifier socket assemblies and power module housings
- Standard rectification circuits requiring recovery time > 500 ns
- Aerospace and military power electronics systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to confirm exact form-factor and electrical parameter matching with legacy or OEM applications.
Works With
- Standard industrial power supply architectures
- Thyristor and SCR gating circuits
- Phase-controlled and bridge rectifier modules
- Thermal management and cooling systems integrated into power equipment
