Overview

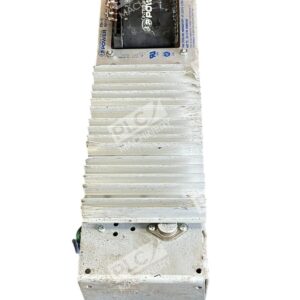

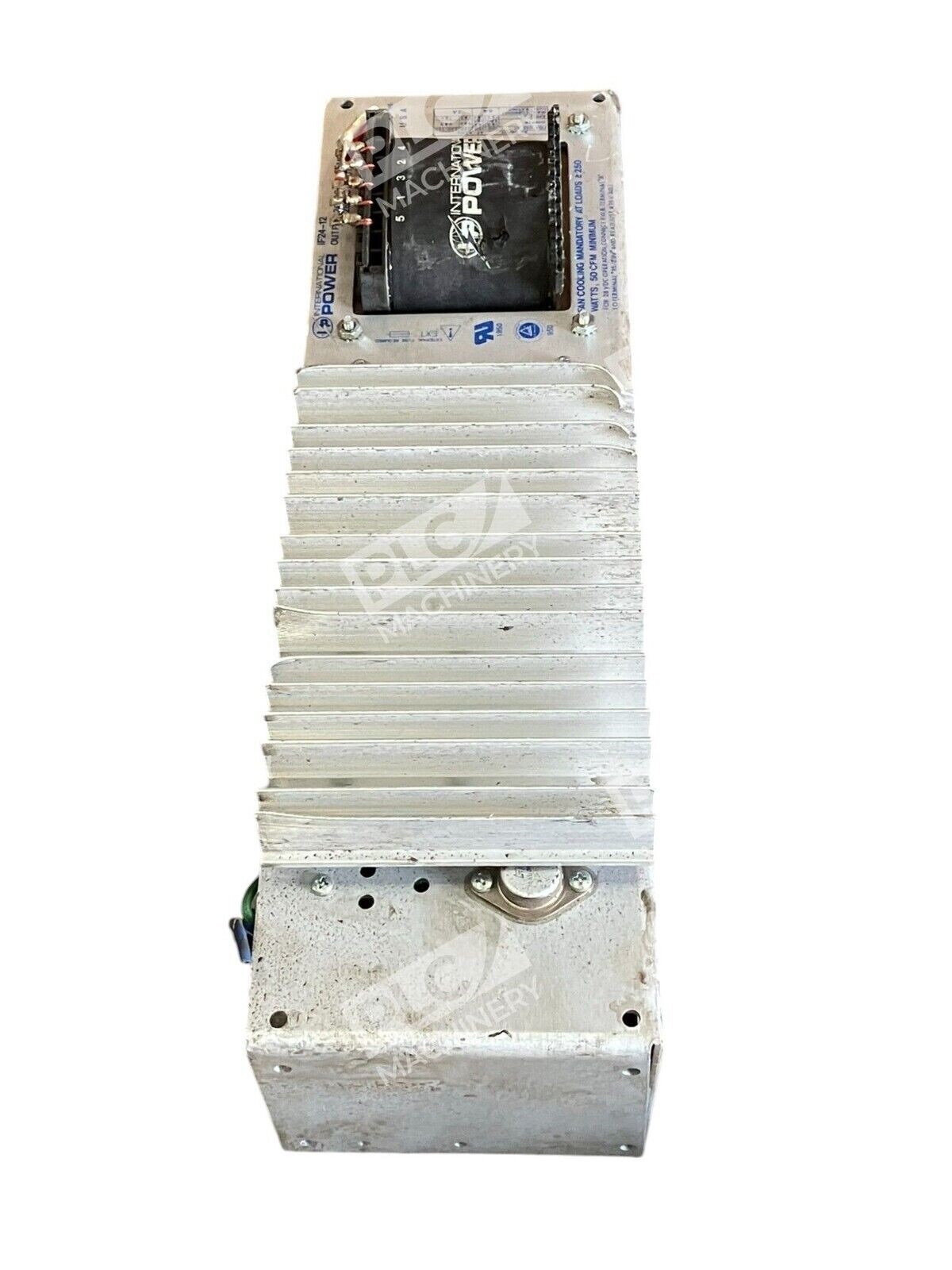

The International Power IF24-12 is a single-output, regulated linear DC power supply designed for industrial automation, control systems, and servo drive applications. This open frame series unit delivers 24VDC at 12A (or 28VDC at 10A in alternate configuration), with broad input voltage compatibility for global deployment. Built with high reliability standards and made in the USA, the IF24-12 simplifies multicountry inventory management through its wide AC input range.
Key Features

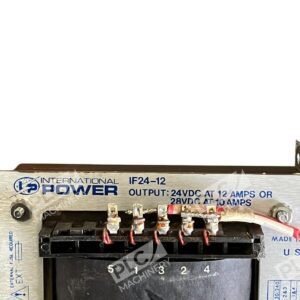

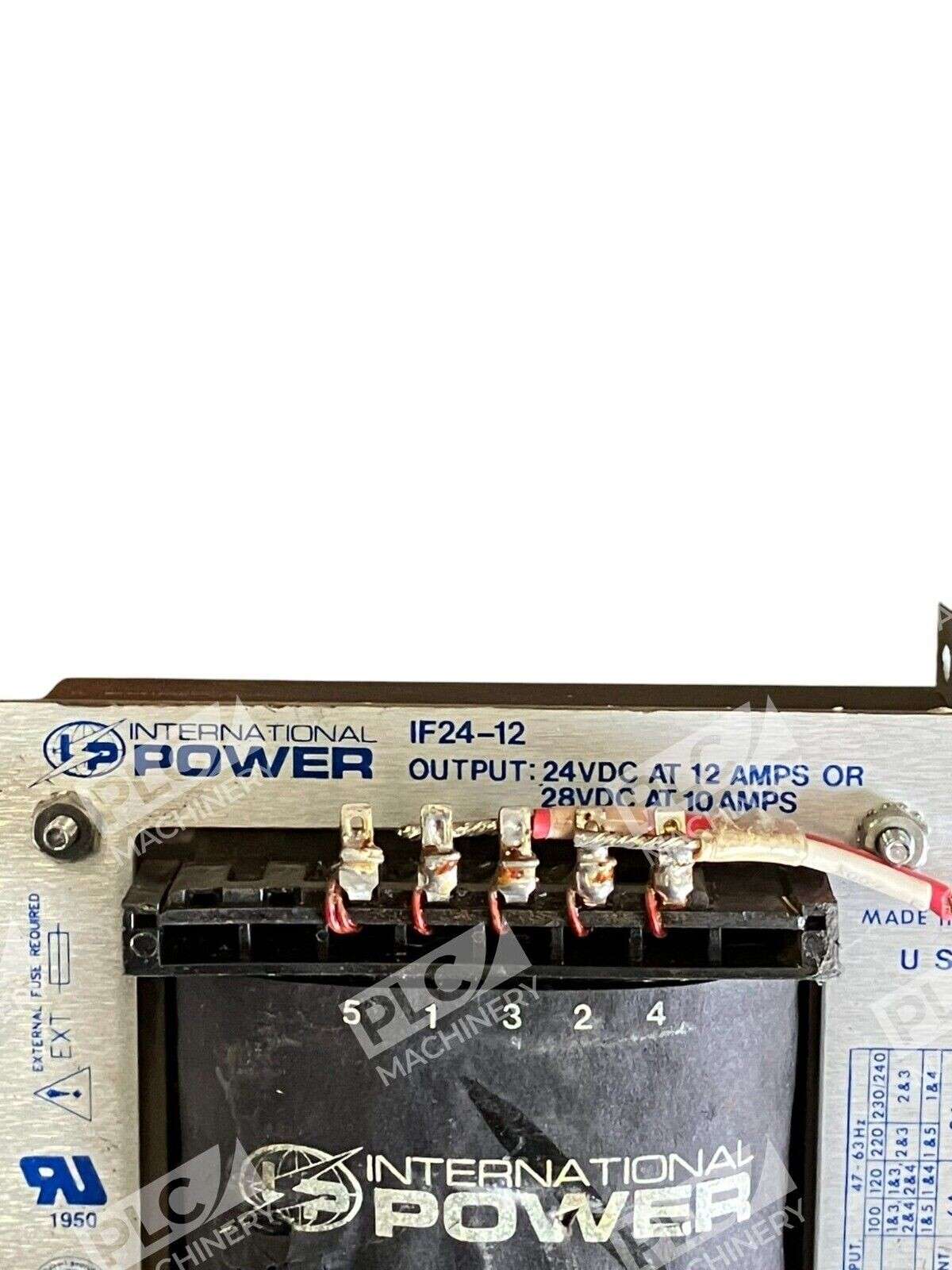

- Dual Output Configuration: Switchable between 24VDC @ 12A or 28VDC @ 10A via circuit board jumper positioning
- Universal AC Input: Accepts 100, 120, 220, 230, and 240 VAC with frequency range of 47–63 Hz
- Regulated Output: High-reliability linear regulation with input voltage tolerance of +10%, −13%
- Open Frame Design: Compact, fanless operation at lower loads; supports active cooling at high power densities
- Certifications: CE, UL, and C-UL approvals for safety and international compliance
Technical Specifications
- Output Power (Primary): 288W (24VDC @ 12A)
- Output Power (Alternate): 280W (28VDC @ 10A)
- Input Voltage: 100, 120, 220, 230, 240 VAC
- Input Frequency: 47–63 Hz
- Input Voltage Tolerance: +10%, −13% (±15%, −10% for 230VAC)
- Operating Temperature Range: Standard industrial range
- Weight: Approximately 16 lbs
- Series: Open Frame Linear Power Supplies
- Mounting: Open frame, suitable for DIN rail or custom mounting solutions
- Certifications: CE, UL, C-UL
- Country of Origin: Made in the USA
Typical Applications
Industrial automation systems requiring stable, regulated 24VDC or 28VDC power, including PLC controllers, servo drive amplifiers, industrial sensors, solenoids, valve pilots, and other control circuitry. The wide input voltage acceptance makes it ideal for deployment in factories, machine tools, and systems operating in regions with variable supply voltages.
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and MicroLogix PLC systems
- Siemens S7-1200, S7-1500 controllers
- Servo drives and motion control amplifiers requiring 24VDC auxiliary power
- Industrial sensor networks and solenoid valve systems
- Multi-voltage factory and machine tool environments
Replaces / Drop-In Replacement For
- Equivalent International Power open frame single-output models in the same power class
- Verify compatibility with your system integrator before ordering
Works With
- 100–240VAC three-phase and single-phase facility power distribution
- 47–63 Hz power grids worldwide (50 Hz and 60 Hz standard)
- Open frame mounting systems and DIN rail adaptation brackets

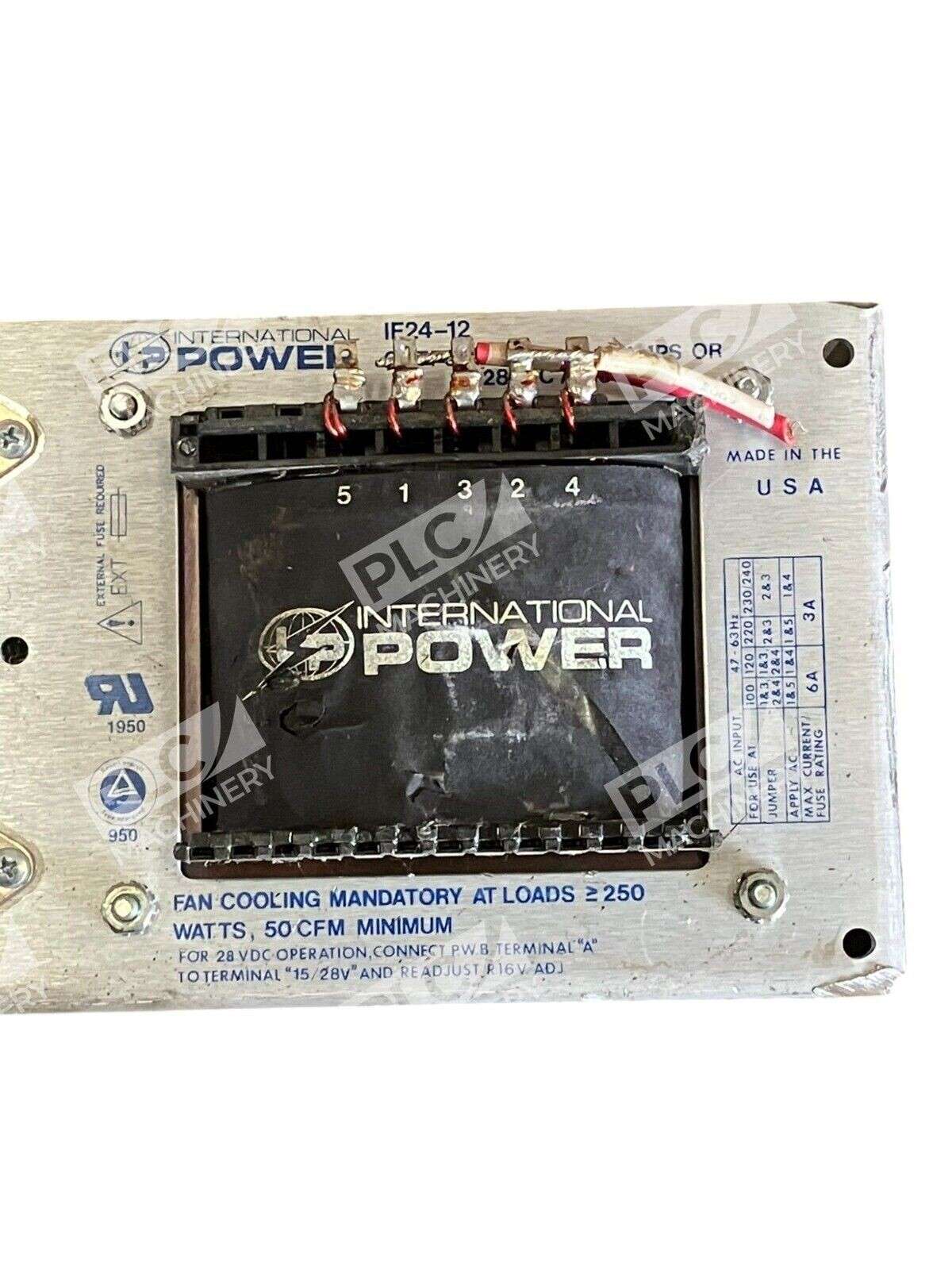

- Cooling solutions (external fans recommended at ≥250W loads)
