Overview

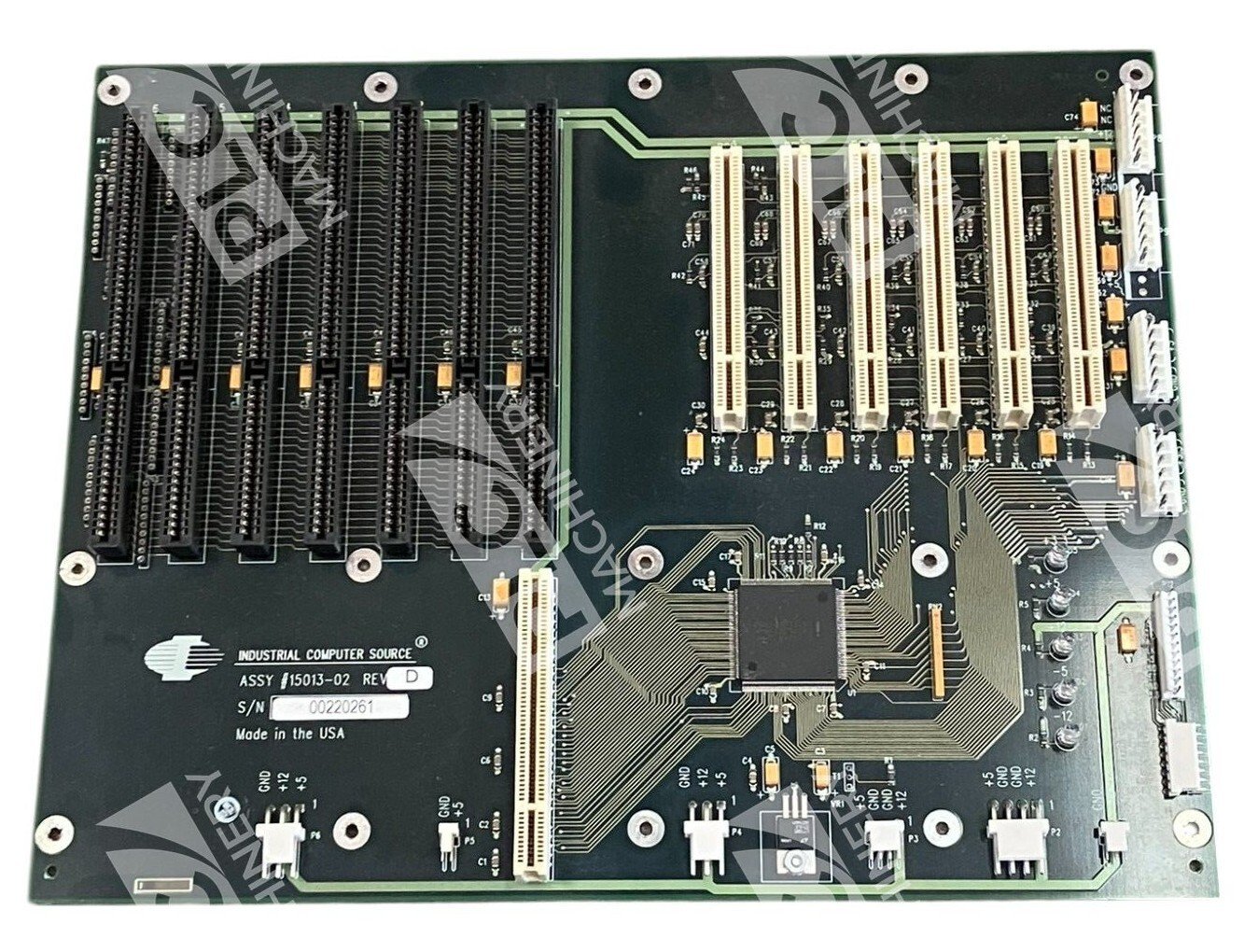

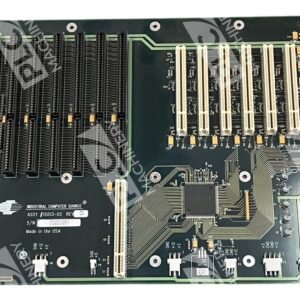

The Industrial Computer Source 15013-02 is a PICMG 1.0 compliant single board computer backplane engineered for scalable, modular industrial computing platforms. This passive backplane supports mixed expansion slot configurations with both legacy ISA and PCI interfaces, enabling flexible I/O and add-on card integration. Used units are available for system maintenance, upgrades, or surplus parts inventory.
Key Features
- PICMG 1.0 form factor compliant
- 6 ISA expansion slots + 6 PCI slots
- Single board computer (SBC) slot for modular CPU deployment
- AT power supply connector
- Passive design—no active circuitry or cooling required
- Compact form factor suitable for industrial enclosures
Technical Specifications

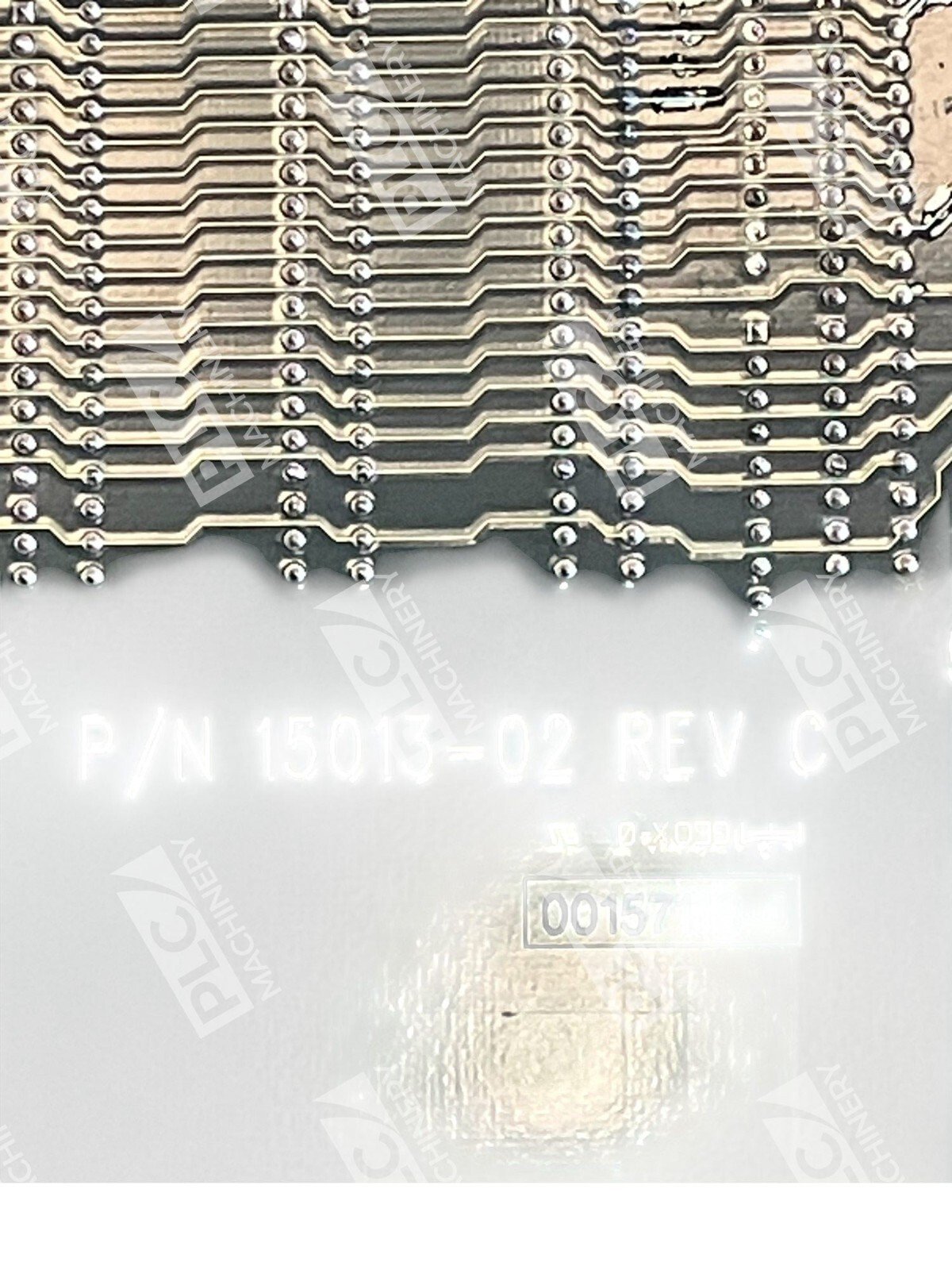

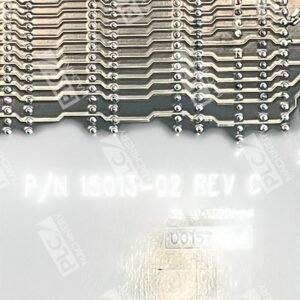

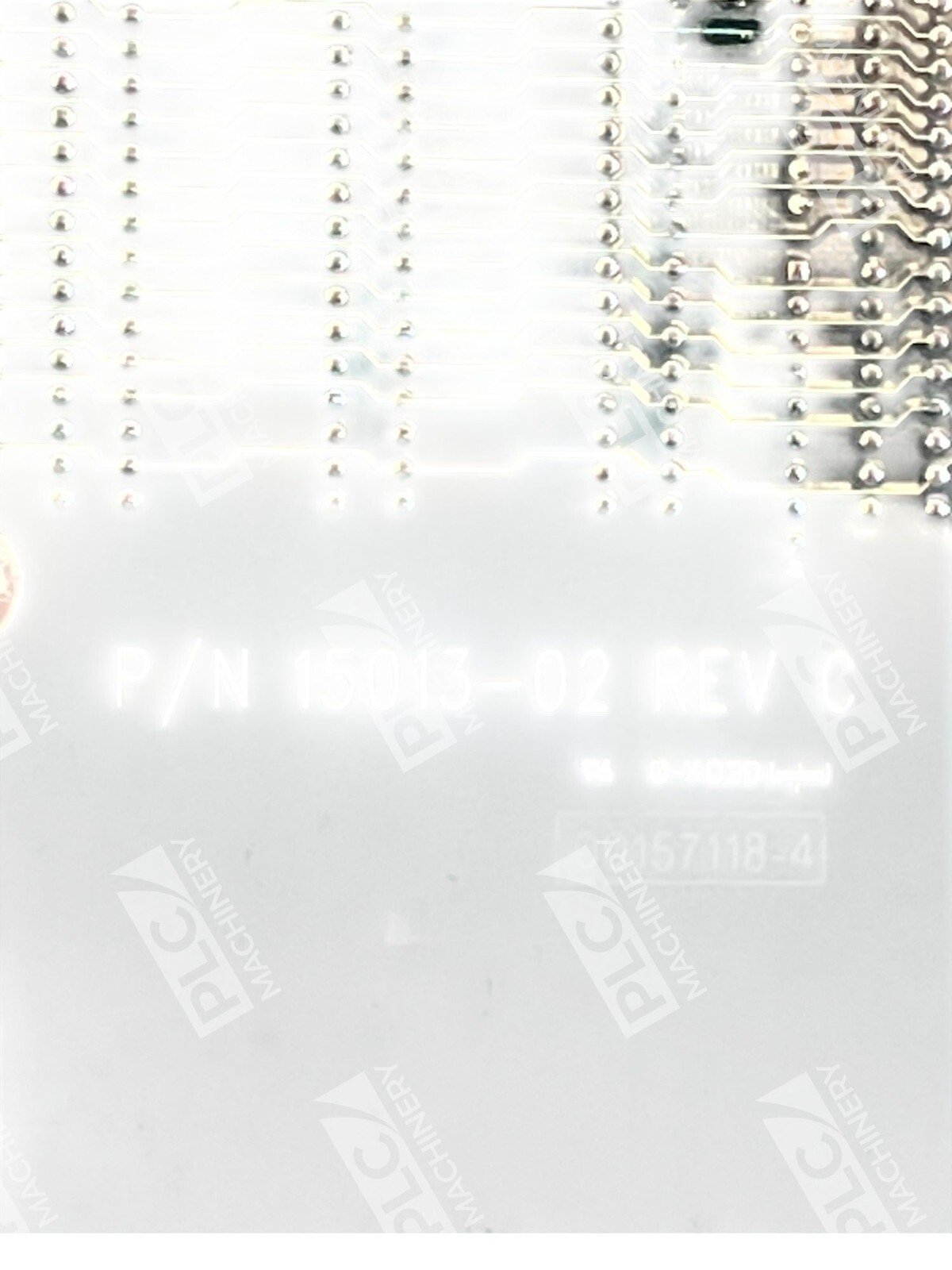

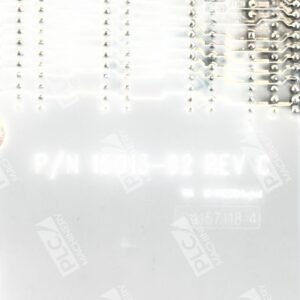

- Model Number: 15013-02

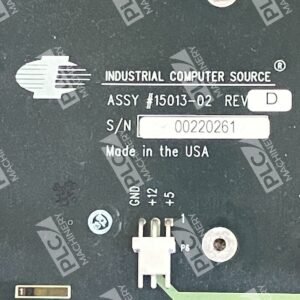

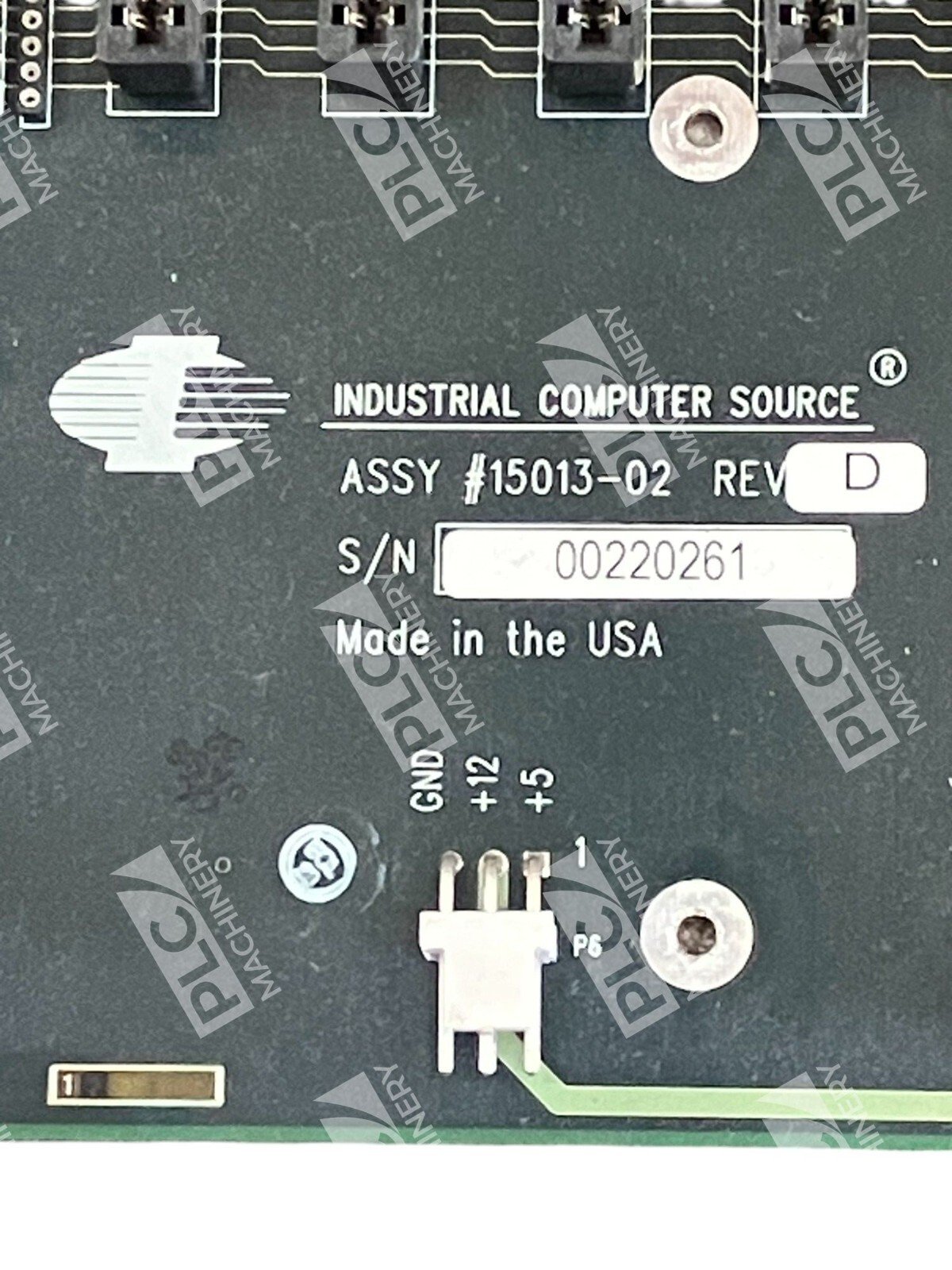

- Manufacturer: Industrial Computer Source (ICS)
- Form Factor: PICMG 1.0
- Expansion Slots: 6x ISA, 6x PCI
- SBC Slots: 1
- Power Supply Type: AT
- Dimensions: 12 3/4″ × 10 1/8″
- Board Type: Passive backplane
- Condition: Used/Surplus
Typical Applications
- Industrial automation control systems requiring modular expansion
- Legacy embedded computing platforms with ISA/PCI card support
- Factory automation and robotics systems
- Machine vision and image processing systems
- Data acquisition and process monitoring
- Replacement or upgrade for existing PICMG 1.0 installations
Compatibility & Replacements
Compatible With
- PICMG 1.0 single board computers (SBCs)
- Industry-standard ISA expansion cards
- PCI expansion cards and I/O modules
- AT form factor power supplies
- Industrial PC chassis supporting PICMG 1.0 architecture
Replaces / Drop-In Replacement For
- Industrial Computer Source 15013-01 (verify slot configuration)
- Other PICMG 1.0 single board backplanes with matching mechanical fit
Works With
- PICMG 1.0 compliant SBCs and CPU modules
- Legacy ISA bus architecture cards
- PCI bus interface expansion modules
- Industrial embedded Linux and Windows CE environments on compatible SBCs
