Overview

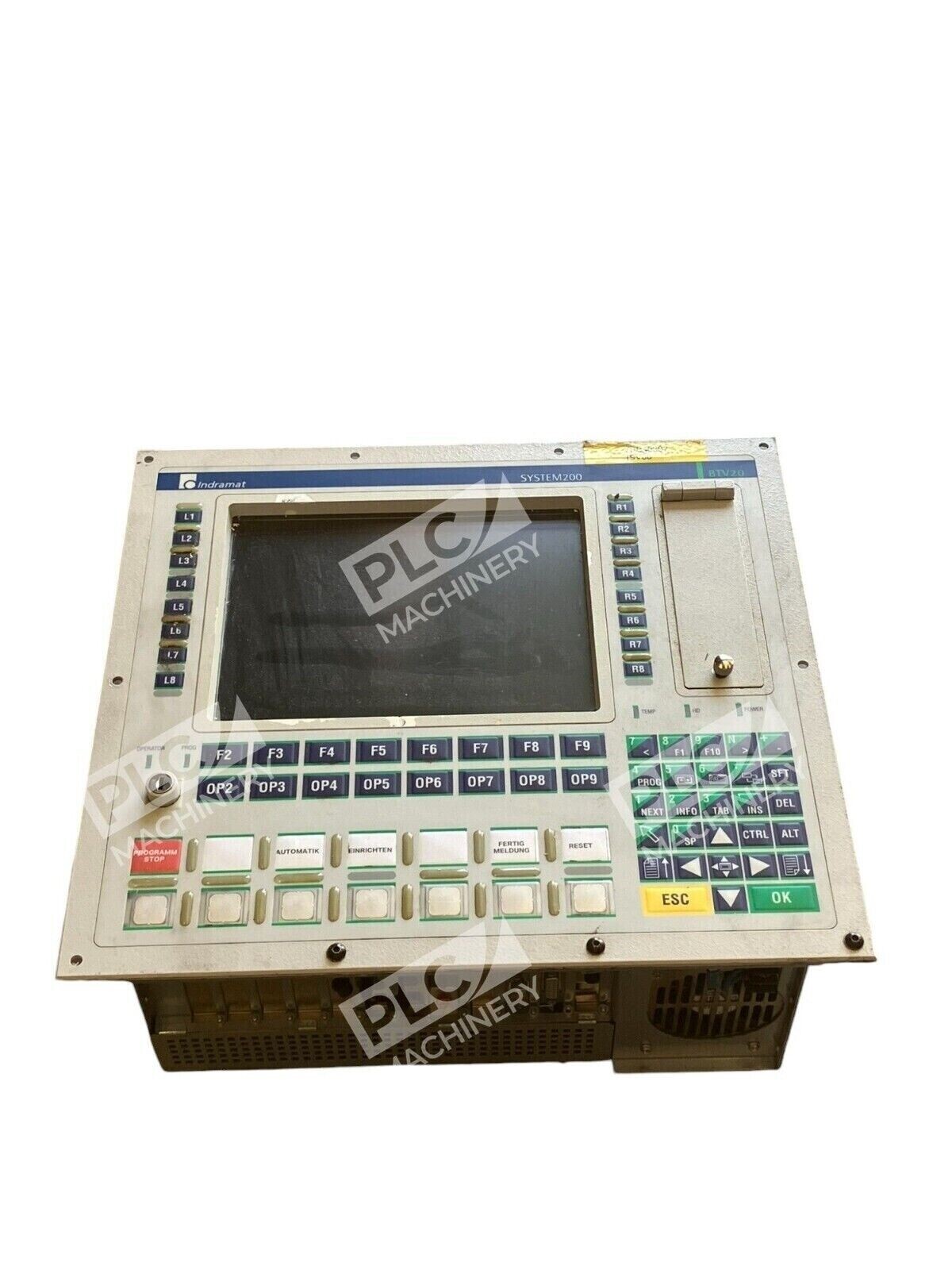

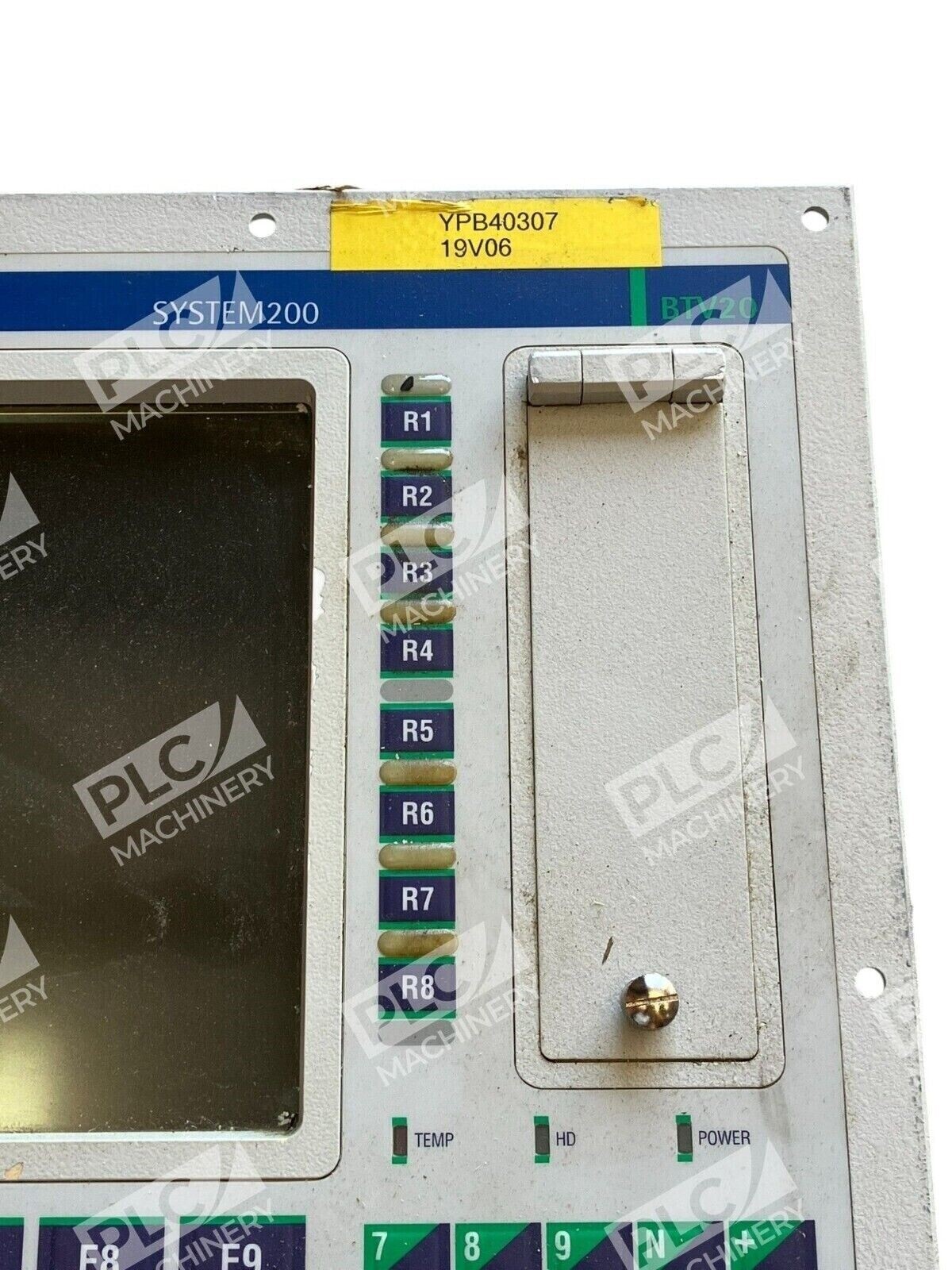

The Indramat BTV20 .2CA-24B-55D-D-FW operator terminal is a compact, PC-based machine operator panel manufactured by Bosch Rexroth. Designed for the System200 platform, this robust HMI interface bridges operator input with industrial machinery control, supporting real-time visualization and command execution on manufacturing floors, assembly cells, and process automation systems.
Key Features
- 640×480 pixel LCD display with clear visual feedback for system monitoring
- 16 programmable machine function keys for rapid task execution
- DC 24 V power supply (standard for Indramat Series 2 variants)
- Standard QWERTY keyboard for text-based programming and data entry
- Impact-resistant industrial enclosure rated for harsh environments
- Integrated 3.5-inch floppy disk drive for firmware and program loading

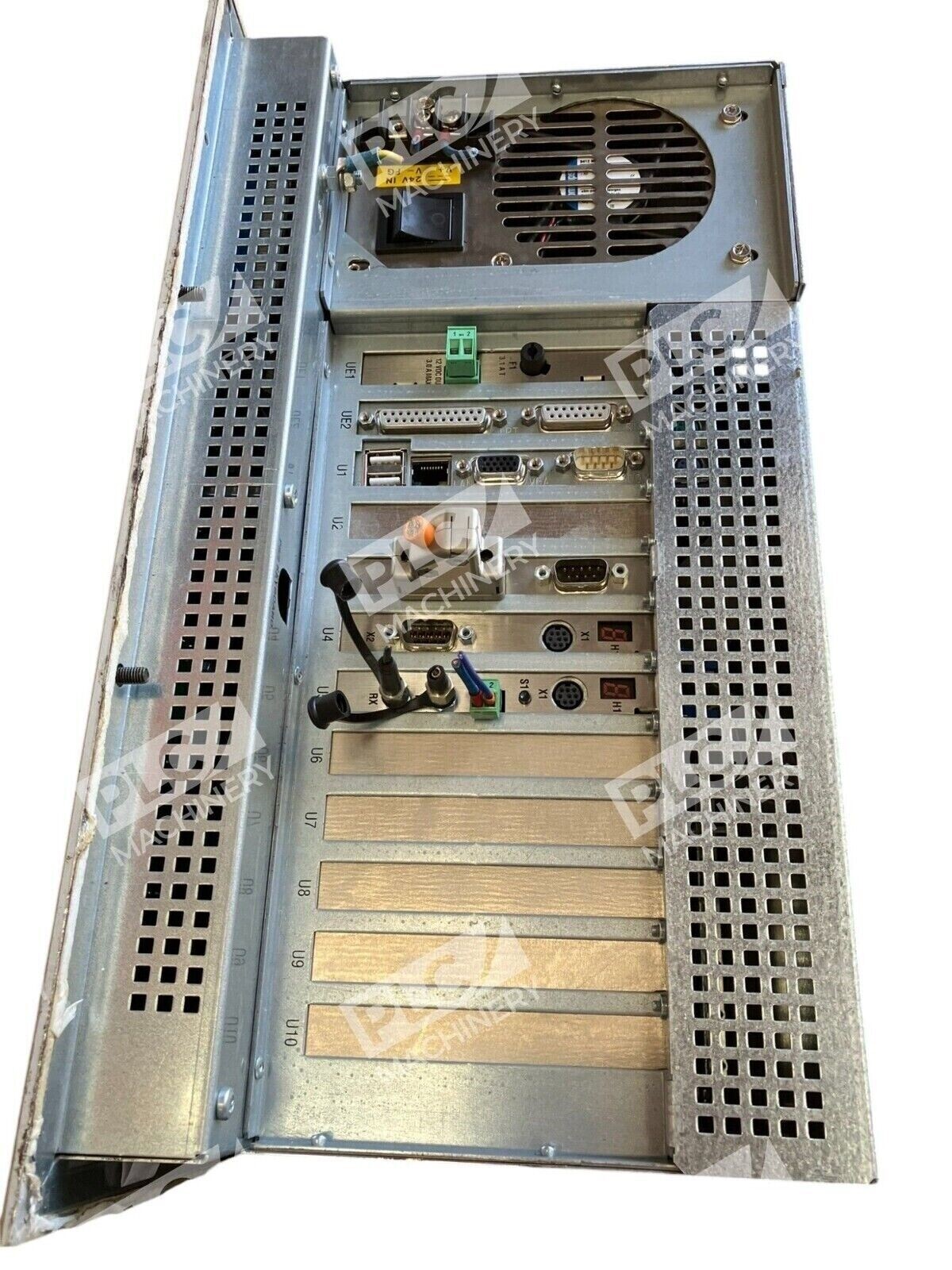

- RS485 / RS232 communication interfaces for System200 controller connectivity
- Pentium-class processor with minimum 1 GHz base system configuration
Technical Specifications
| Manufacturer | Bosch Rexroth (Indramat) |
| Series | BTV20 Machine Operator Panels |

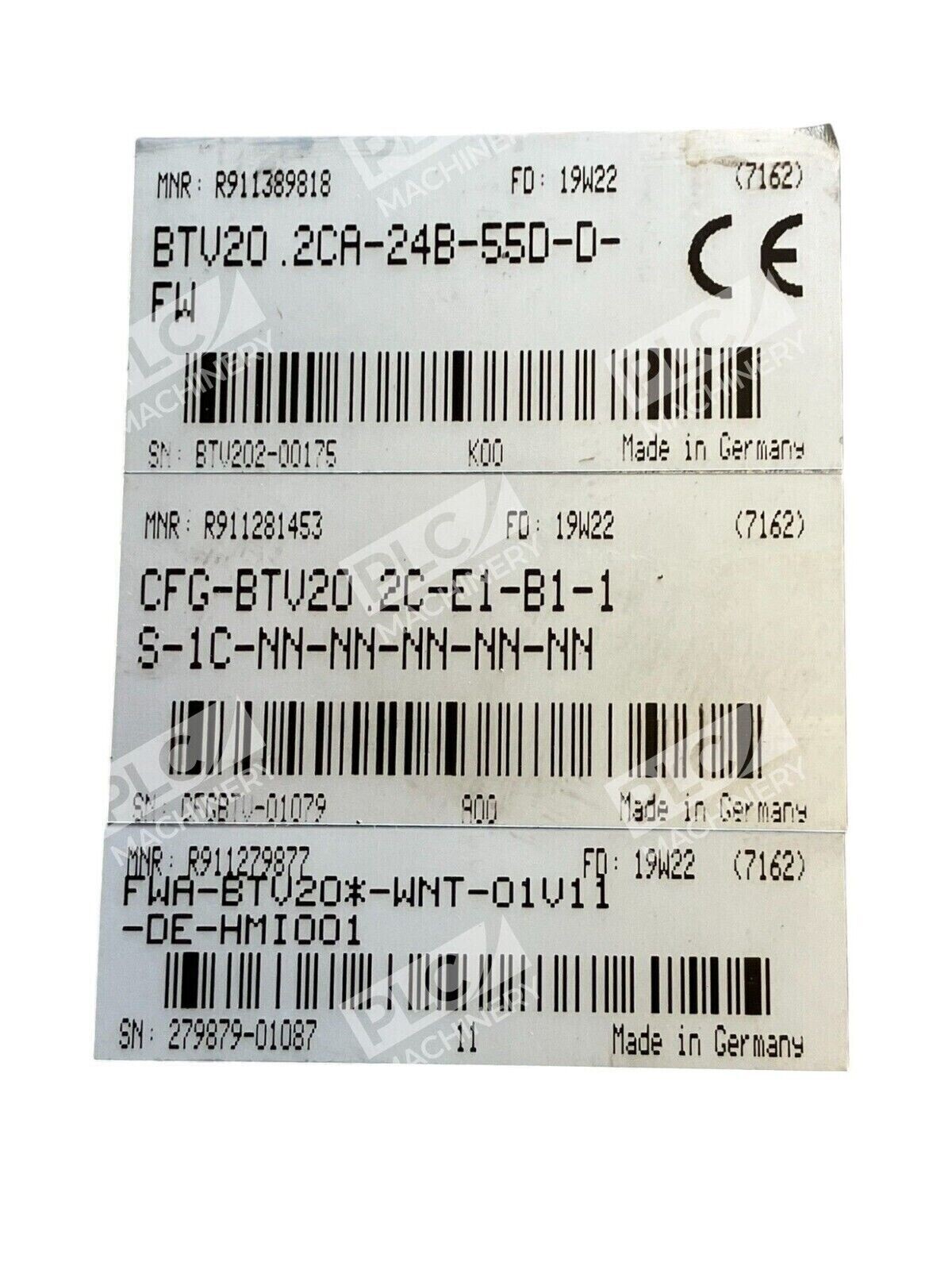

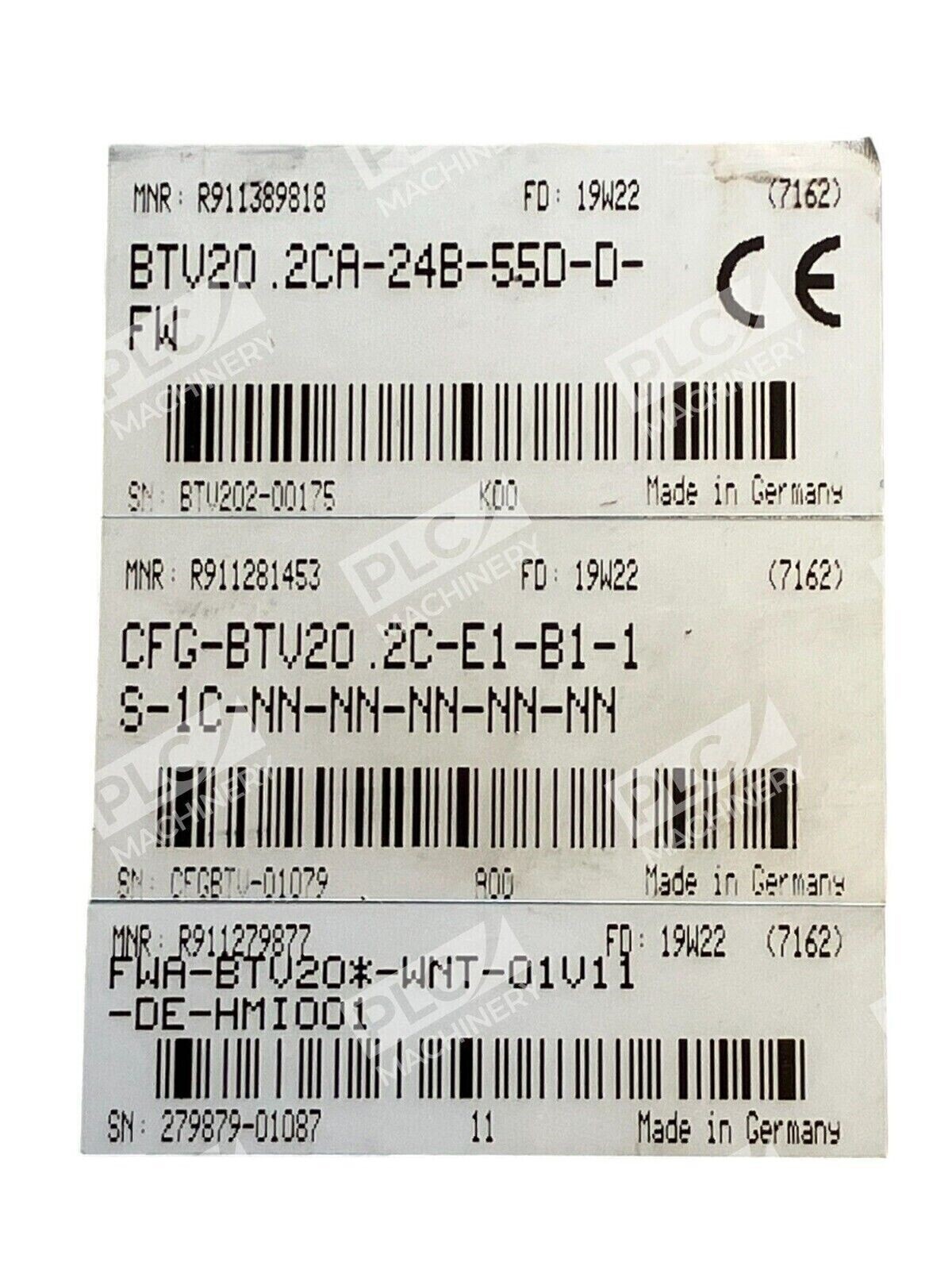

| Model | BTV20 .2CA-24B-55D-D-FW |
| Input Voltage | DC 24 V |
| Processor | Pentium-class, minimum 1 GHz |
| RAM | 1024 MB (1 GB) |
| Display | 640×480 pixel LCD, monochrome / color capable |
| Machine Function Keys | 16 (layout-dependent) |
| Primary Storage | 3.5-inch floppy disk drive, 1.44 MB |
| Communication | RS485, RS232, optional Ethernet (PCM-E02.1 card) |
| Keyboard | Standard QWERTY layout with safety-interlocked keys |
| Enclosure Rating | IP54 (impact-resistant front pane) |
| Weight | Approximately 10.5 kg |
| System Configuration | Design 2, Panel Function Type MTA/MTC |
| Condition | Used, tested, fully functional |
Typical Applications
- Standalone Machine Control: Lathes, grinding machines, and single-axis automation
- Multi-Axis Manufacturing: Control tasks across installations with multiple servo axes
- Process Automation: Integration with System200 PLC and NC controllers
- OEM Machinery: Original equipment manufacturer control panels requiring proven reliability
- Retrofit & Upgrades: Replacement HMI interface for existing Indramat installations
Compatibility & Replacements
Compatible With
- Bosch Rexroth Indramat System200 PLC controllers
- Indramat NC (CNC) motion control modules
- PROFIBUS and SERCOS fieldbus networks (via optional modules)
- RS485 / RS232 serial networks
- Rexroth drive systems and servo amplifiers using serial communication
- Legacy automation systems requiring 24 VDC panel interfaces
Replaces / Drop-In Replacement For
- Other BTV20 Series 2 variants with identical mechanical footprint and connector layout
- Verify exact compatibility with your system integrator or Indramat documentation before ordering
Works With
- Software Platforms: Indramat System200 configuration tools, MTC200 CNC software, ISP200 PLC programming environment
- Protocols: PROFIBUS, RS485, RS232 serial communication
- Modules: Ethernet PCM-E02.1 card (optional), CNC and PLC modules pre-installable
- Firmware: Ordered separately as a sub-position; pre-loaded options available for MTC200 CNC or ISP200 PLC configurations
