Overview

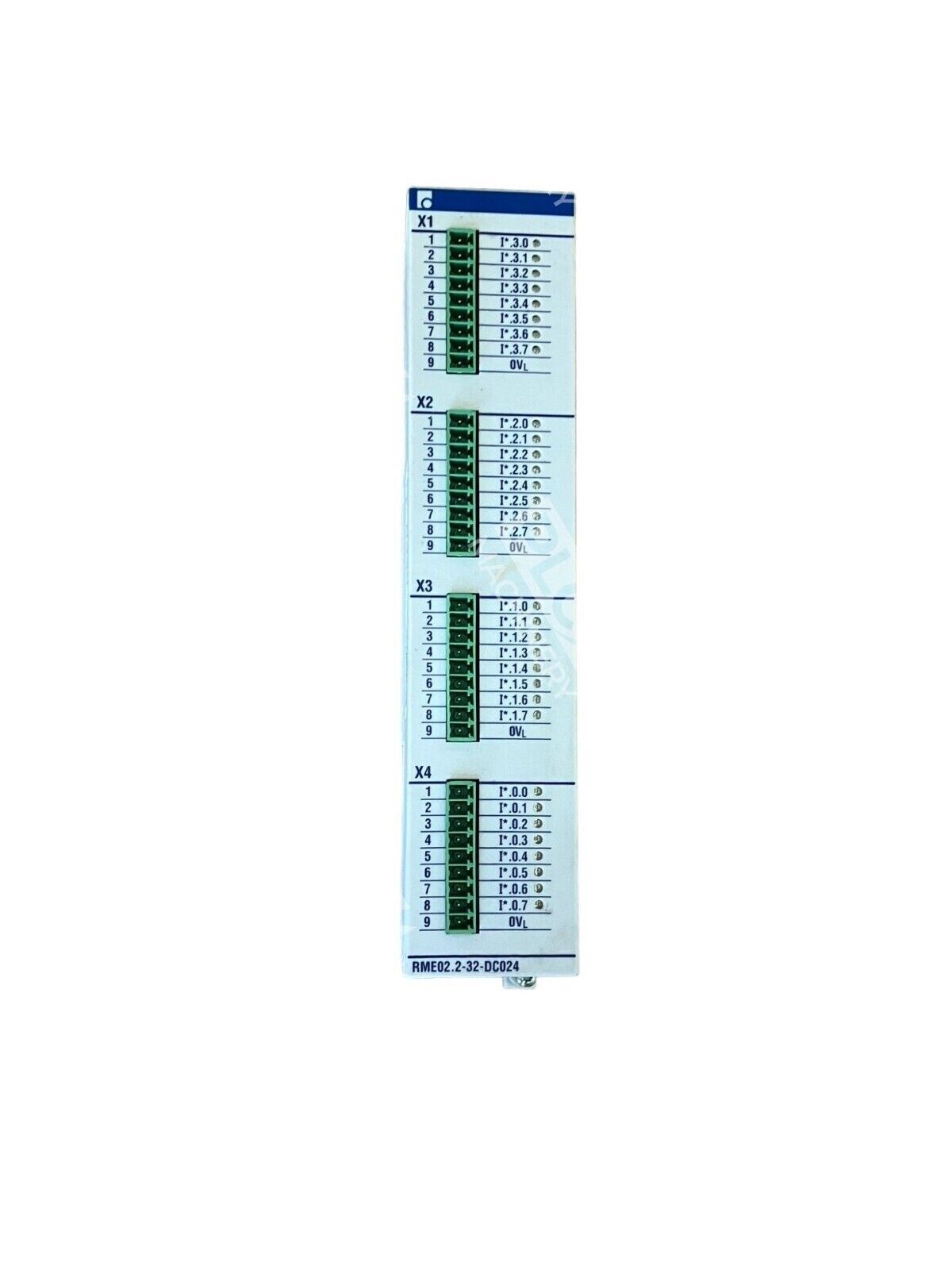

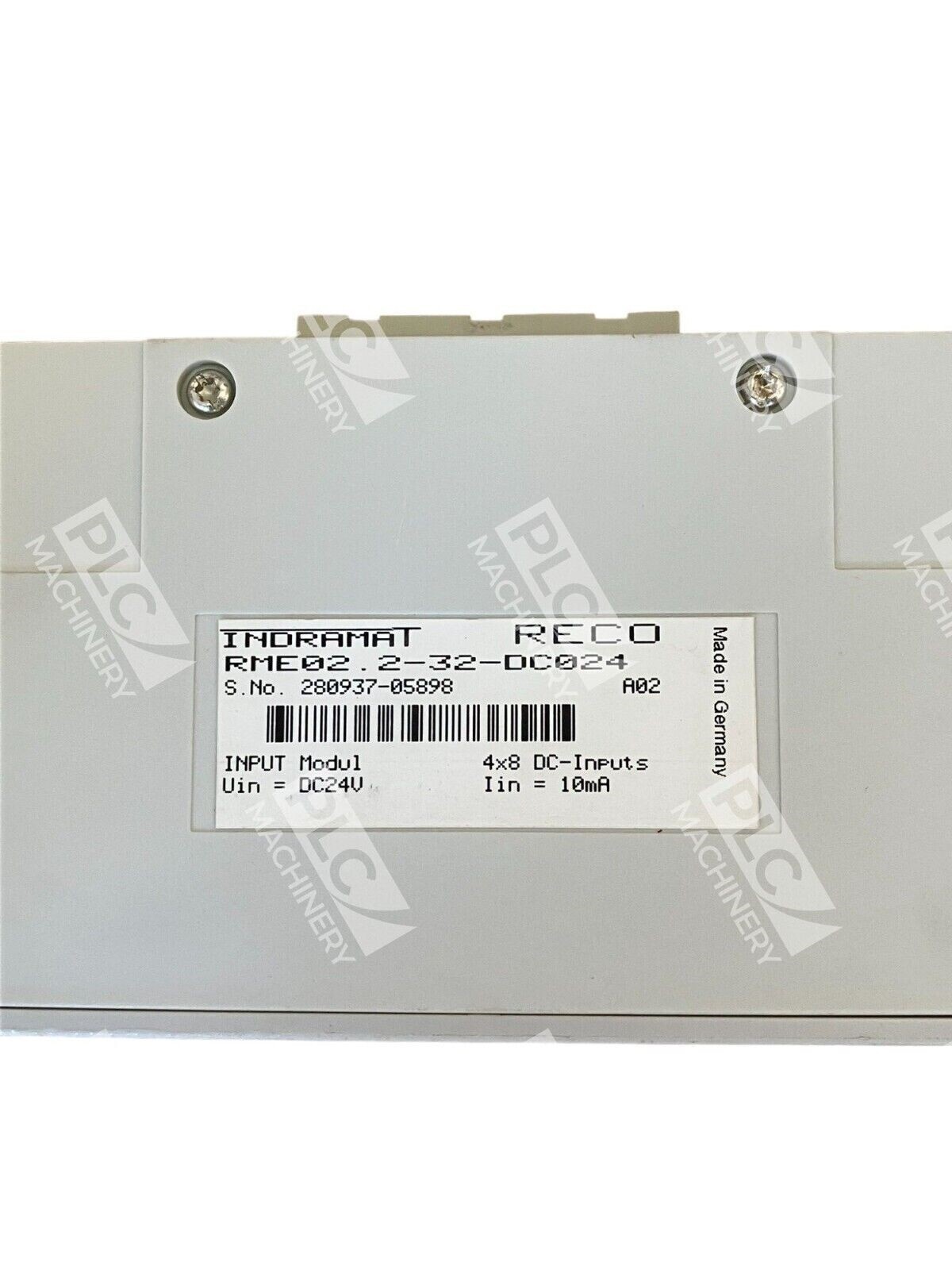

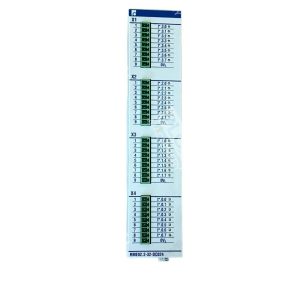

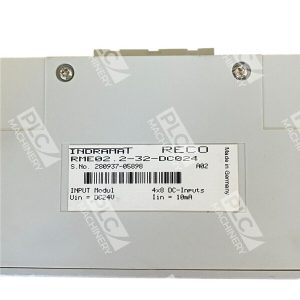

The Indramat RME02.2-32-DC024 is a 24VDC digital input module from the RECO series by Bosch Rexroth. This module provides 32 isolated digital inputs arranged in four groups of eight, making it ideal for collecting control signals from pushbuttons, limit switches, proximity sensors, and other discrete devices. The RME02.2-32-DC024 operates reliably across a wide voltage range (17–30V nominal) and is a standard solution for PLC-based automation systems requiring robust input signal conditioning.
Key Features
- 32 digital inputs (4 x 8 channels) with isolated potential groups for safe signal separation
- 24VDC rated input voltage with 17–30V operating range
- Low input current draw of 10 mA per input for energy-efficient operation
- DIN rail mounted in compact form factor (approximately 290g)
- Designed for direct connection to industrial control signals and sensors
- Part of the proven RECO series modular I/O architecture
Technical Specifications
- Input Voltage (Nominal): 24 VDC
- Operating Voltage Range: 17–30 VDC
- Number of Inputs: 32 (arranged as 4 x 8)
- Input Current: 10 mA per input
- Power Consumption: 2.5 W
- Weight: 290 g
- Mounting: DIN rail (TS 35 x 27 x 15)
- Series: RECO02.2
- Manufacturer: Indramat (Bosch Rexroth)
Typical Applications
The RME02.2-32-DC024 is widely used in:
- Manufacturing automation systems requiring multiple discrete sensor inputs
- Automotive production line controls and safety circuits
- Industrial motion control and robotic system integration
- Building automation and process control systems
- Material handling equipment and conveyor systems
- Any modular PLC system using the RECO series architecture
Compatibility & Replacements
Compatible With
- Bosch Rexroth RECO02.2 I/O chassis and racks
- Indramat PLC systems (INDRAMAT SPSes)
- PPC-R02.2 processing units and similar RECO controllers
- SERCOS and standard DIN rail-based automation platforms
- Industrial systems requiring 24VDC isolated digital inputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The RME02.2-32-DC024 may be interchangeable with certain RECO-series input configurations; consult your original equipment documentation.
Works With
- RECO02.2 modular I/O platform
- Indramat proprietary ladder logic and programming environments
- 24VDC field devices: pushbuttons, limit switches, proximity switches
- Industrial control systems supporting SERCOS protocols
- Standard DIN rail mounting and modular automation architectures
