Overview

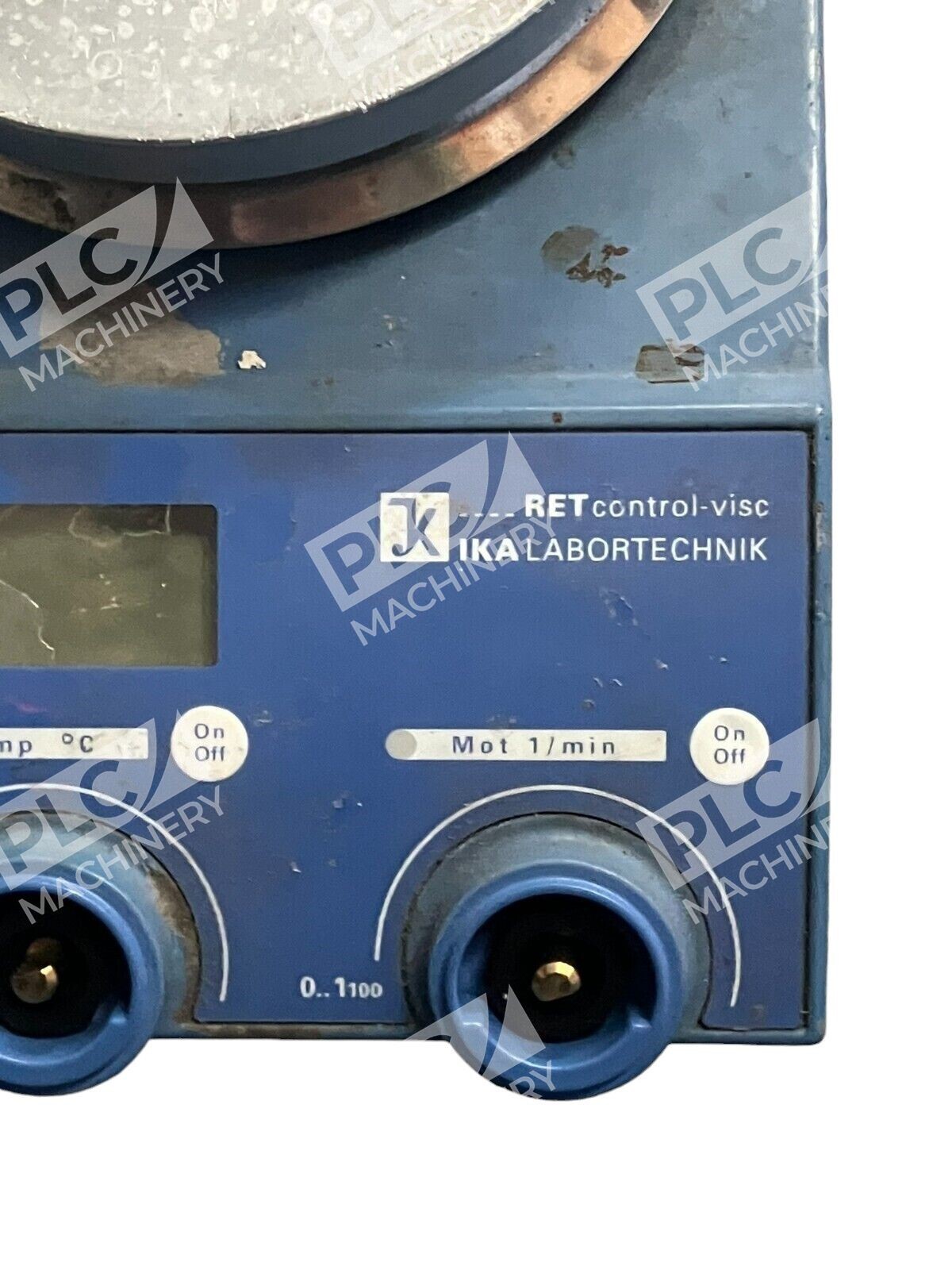

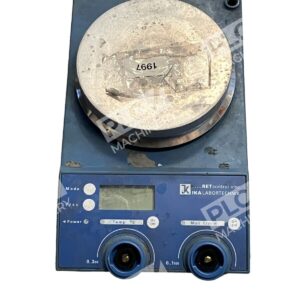

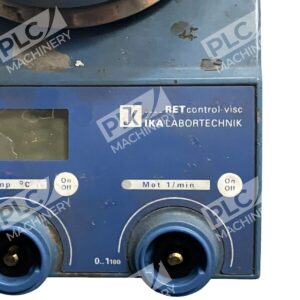

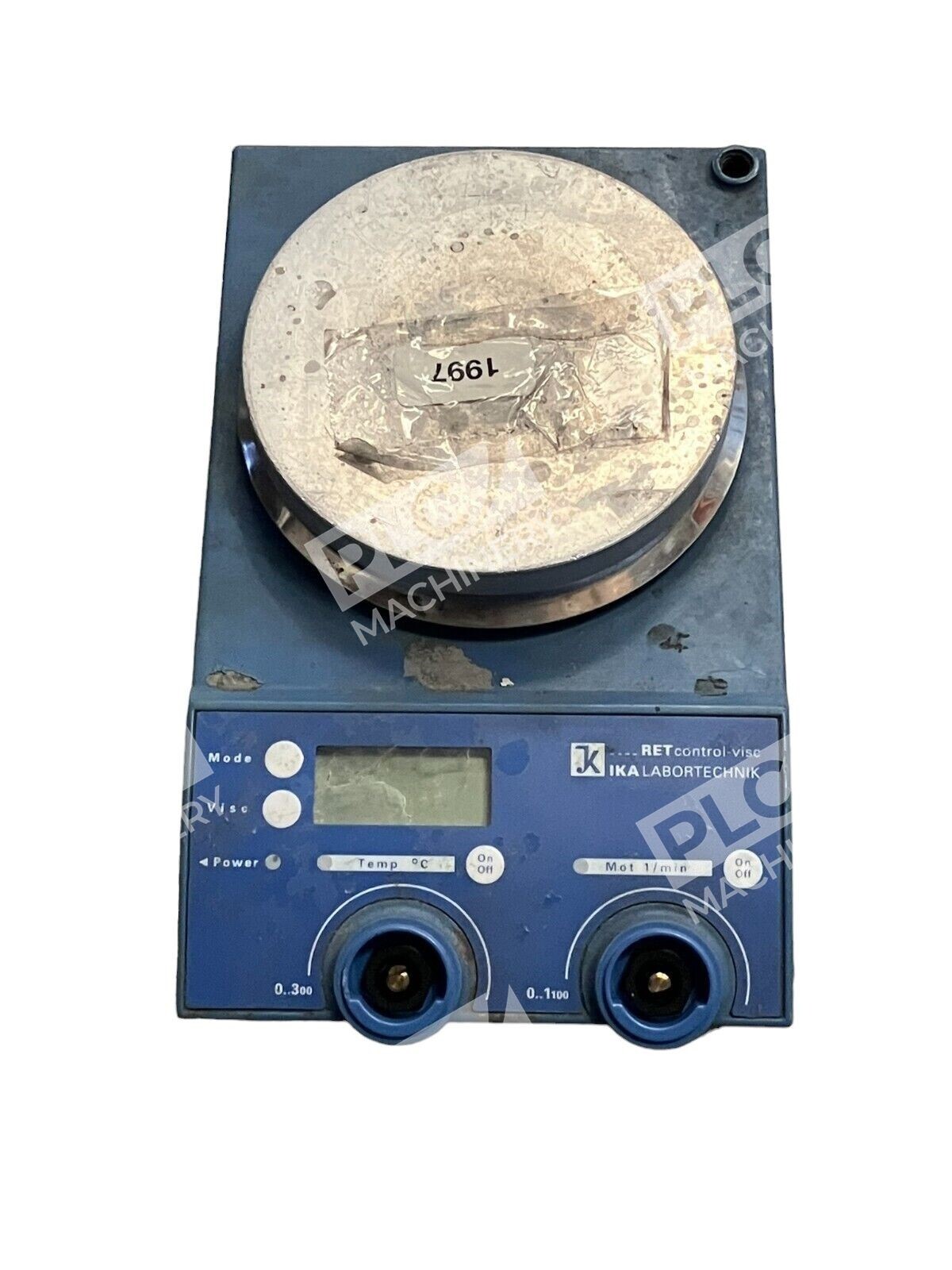

IKA RET CV S1 is a compact laboratory magnetic stirrer with integrated heating capability, designed for sample preparation, reaction control, and mixing applications. Built by IKA-Werke (Germany), this control-visc model combines a stainless steel hot plate with electronic speed and temperature regulation, making it suitable for chemistry, pharmaceutical, and materials research environments.
Key Features
- Stainless steel composite hot plate reaching a temperature of 340 °C for rapid heating

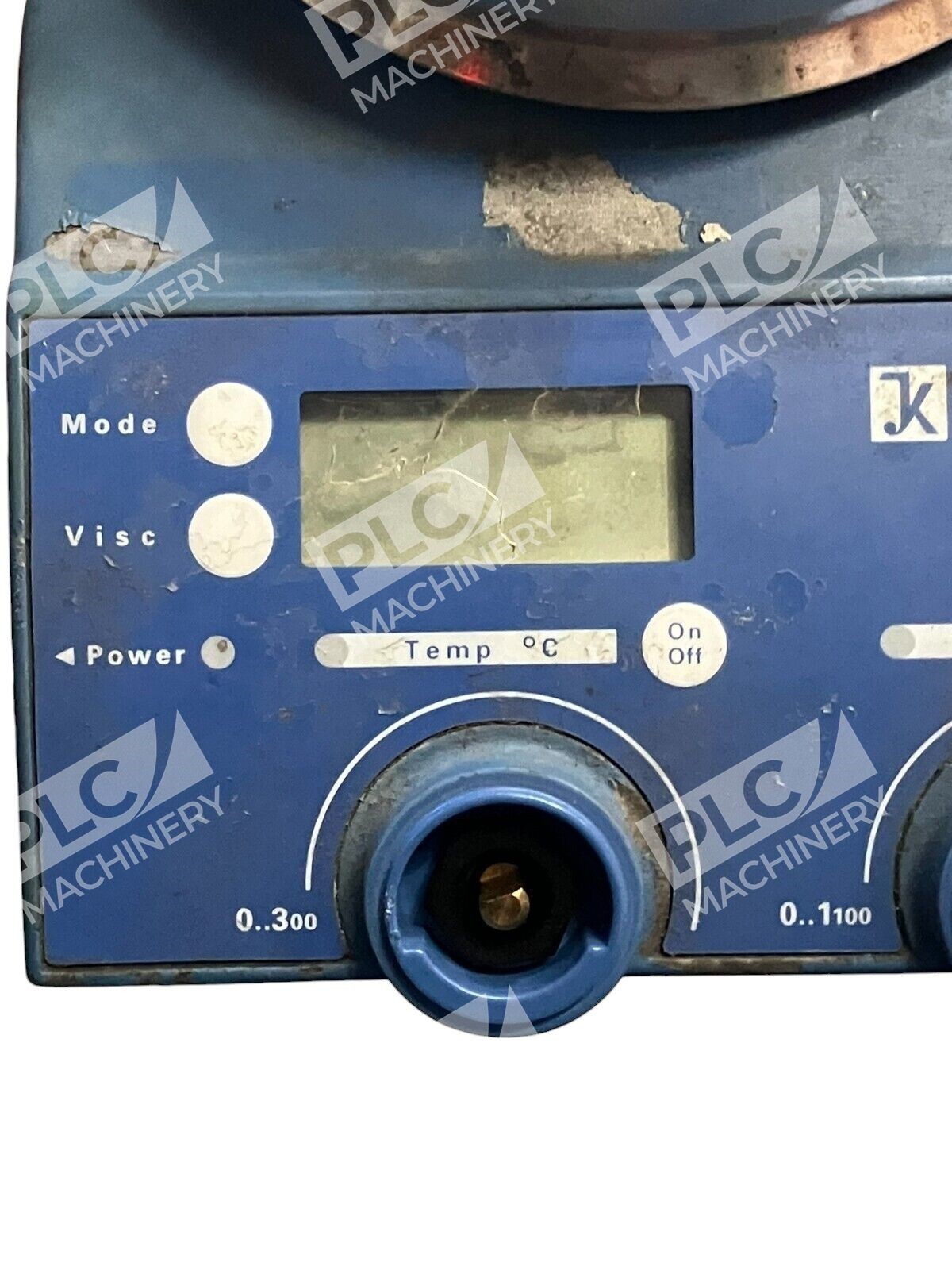

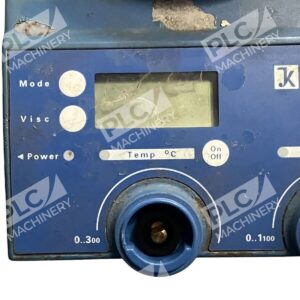

- Digital TFT display for clear parameter visualization and easy operation
- Speed range of 50–1500 rpm with 115V 50/60Hz, 620W power requirement
- Integrated temperature control with PT 100 sensor, “Lock” function to prevent accidental setting changes
- RS 232 and USB interfaces enable PC control and documentation of test parameters
- Safety features including temperature display when unit is hot, automatic display shutdown below 50 °C, and automatic heating cutoff if external sensor is not immersed
Technical Specifications
| Model | RET CV S1 |
| Manufacturer | IKA-Werke GmbH & Co. KG |

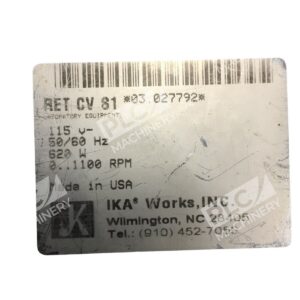

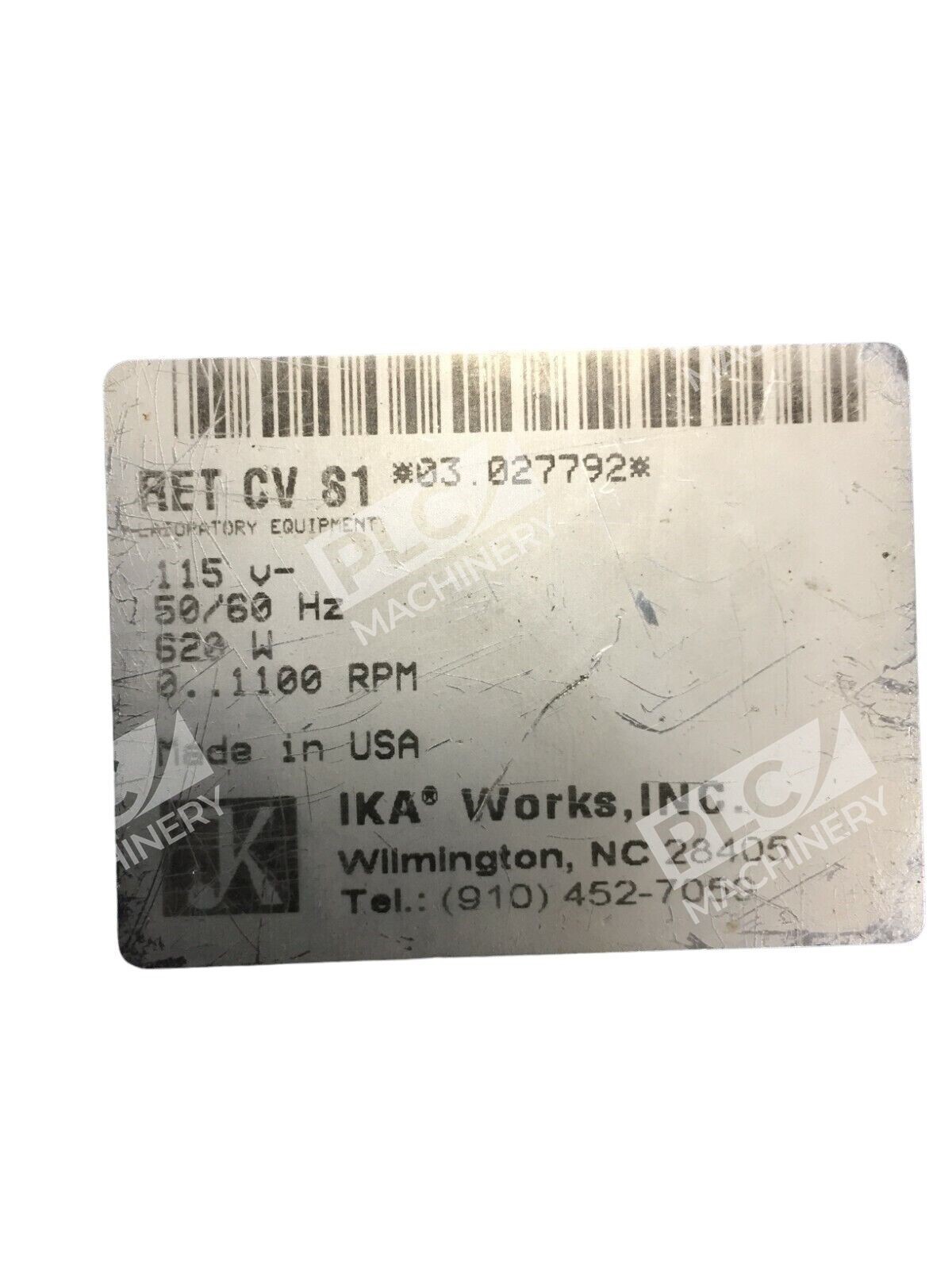

| Electrical Input | 115V, 50/60 Hz, 620W |
| Maximum Temperature | 340 °C |
| Speed Range | 50–1500 rpm |
| Hot Plate Material | Stainless steel composite |
| Display Type | Multilingual digital TFT |
| Temperature Sensor | PT 100 (included) |
| Communication Interfaces | RS 232, USB |
| Weight | Approximately 8 lbs |
| Safety Approvals | CSA approved |
Typical Applications
- Sample preparation and solution heating in chemistry and pharmaceuticals
- Reaction vessel mixing and temperature control
- Dissolution studies and solubility testing
- Laboratory batch processing and small-scale synthesis
- Viscosity-controlled stirring for non-Newtonian fluids
- Quality control and analytical testing in manufacturing environments
Compatibility & Replacements
Compatible With

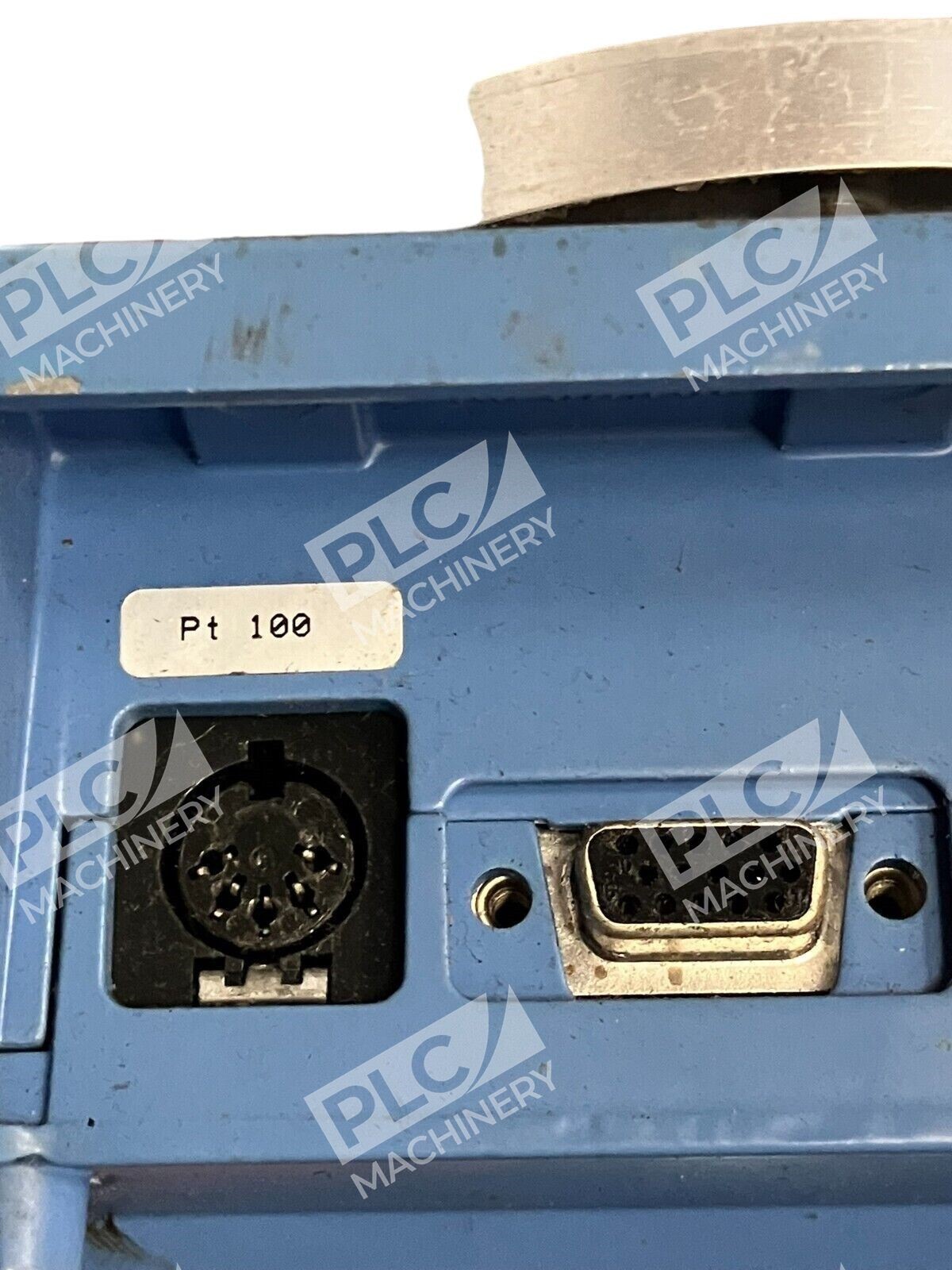

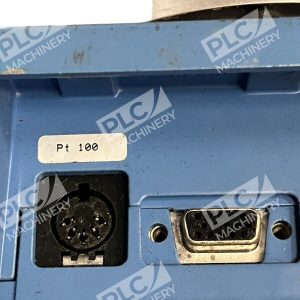

- PT 100 temperature probe for external medium temperature monitoring
- Standard magnetic stir bars and PTFE-coated rods (Ikaflon 30–40 mm)
- Personal computers via USB or RS 232 connection for data logging
- Laboratory information management systems (LIMS) via serial interface
- IKA temperature sensor accessories and control modules
Replaces / Drop-In Replacement For
- Earlier IKA RET control series without integrated weighing
- Comparable two-channel stirrer-heater systems from competing manufacturers
- Verify compatibility with your specific laboratory workflow before ordering
Works With
- RS 232 data acquisition and lab automation software
- USB standard communication protocols
- Laboratory documentation and archival systems
- External PT 100 thermometer probes and sensors
