Overview

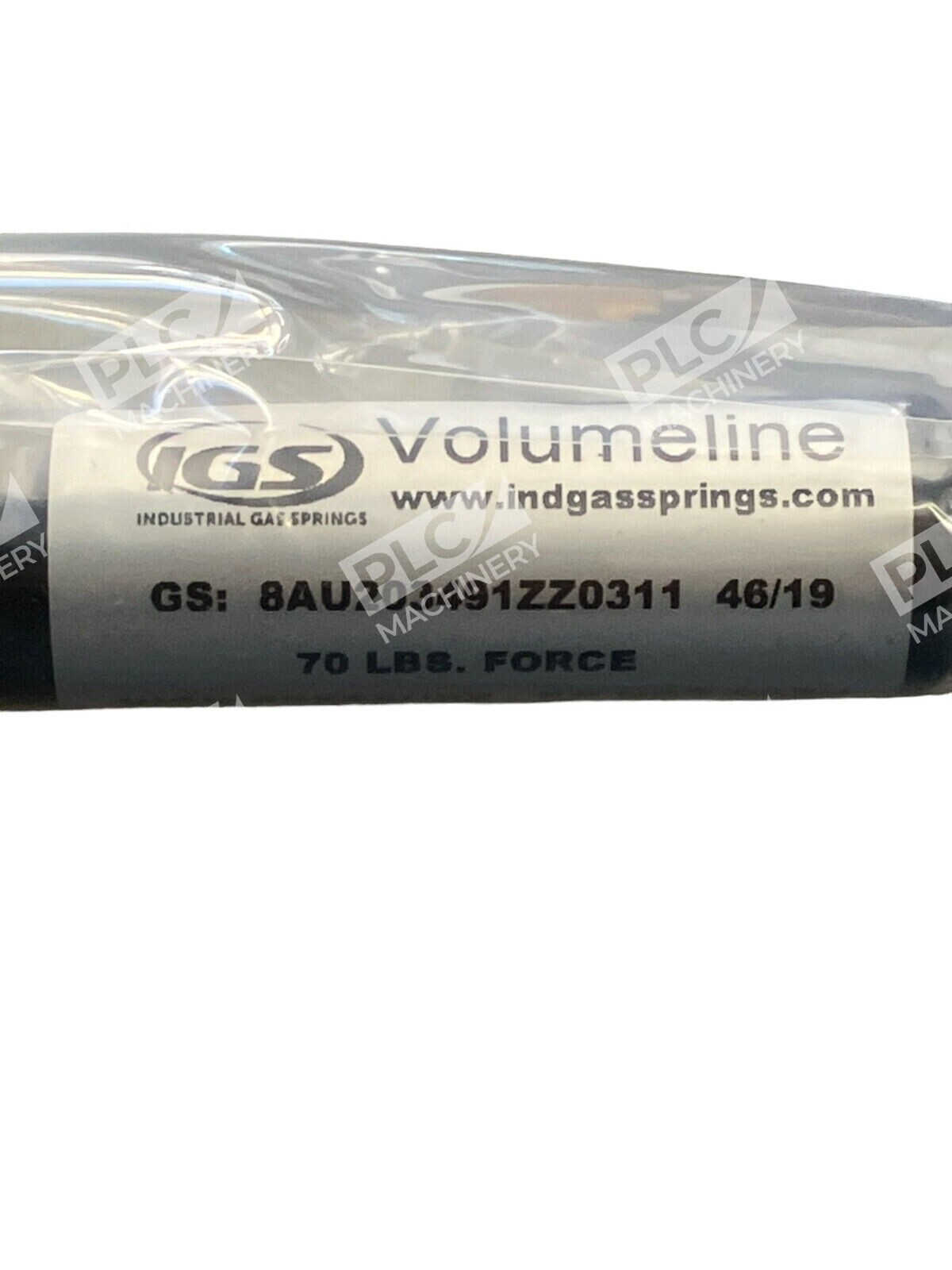

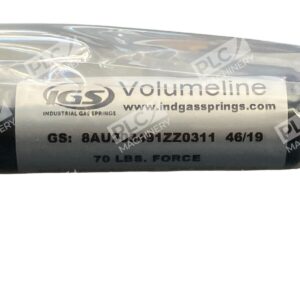

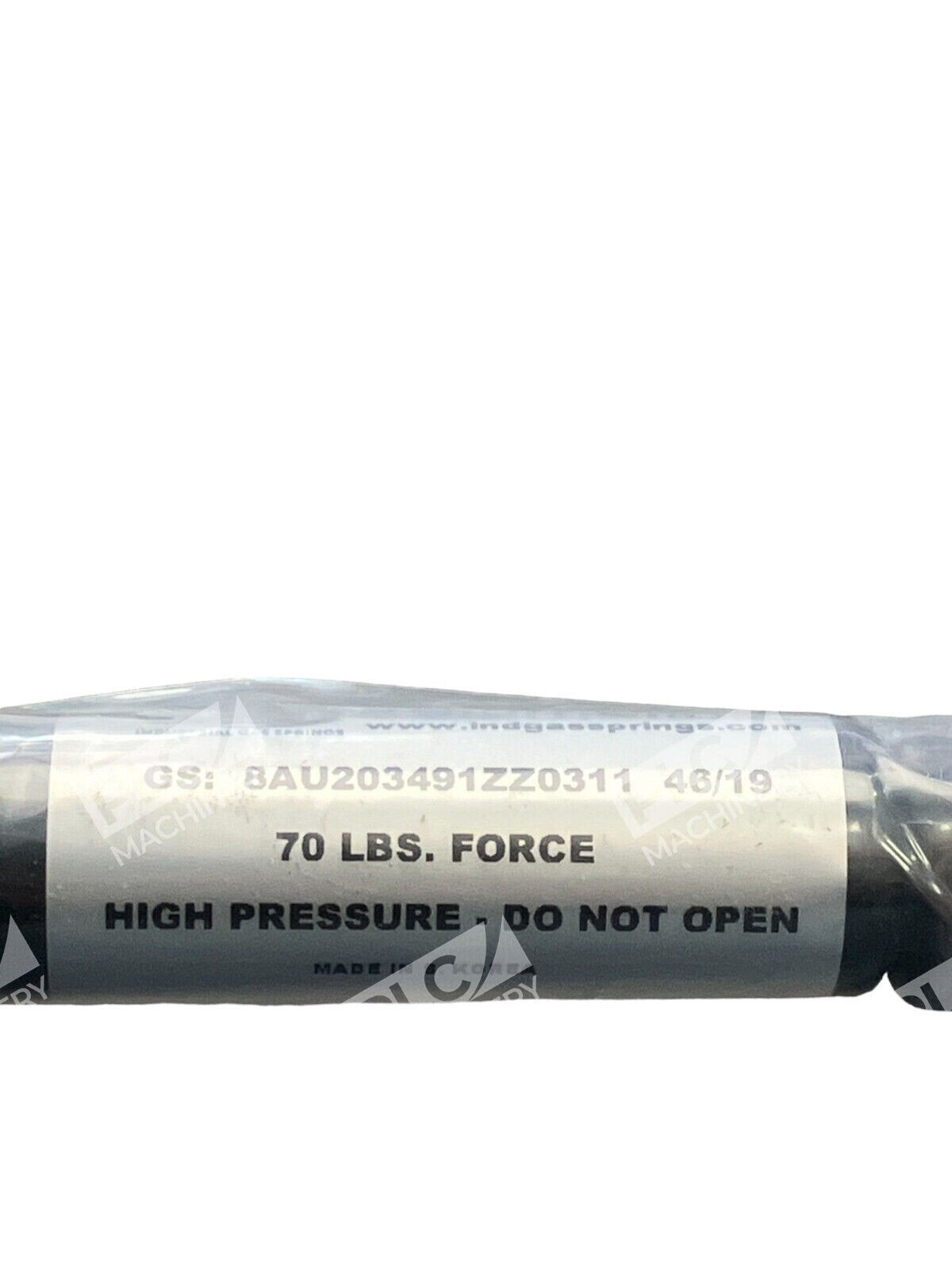

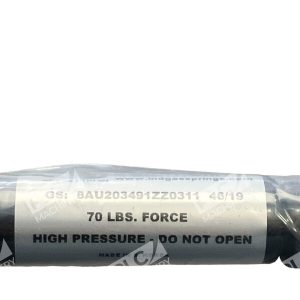

The IGS 8AU203491 Volumeline high-pressure gas spring is a precision component engineered for demanding industrial applications. Manufactured by IGS (a division of Associated Spring Raymond), this gas spring delivers consistent 70 lbs force output and is built to withstand heavy-duty operational cycles in machinery and equipment lift applications.
Key Features
- High-pressure nitrogen-charged design for reliable force output
- 70 lbs force rating suitable for mid-range equipment support
- Standard mounting configurations with threaded rod or eyelet options
- Carbon steel construction with protective rod finish
- Designed for compression spring applications across industrial sectors
Technical Specifications
Gas springs in the Volumeline series are engineered to exacting standards. Standard bore and rod dimensions support typical stroke lengths between 2 and 16 inches, allowing integration into various equipment designs. The 46/19 variant designates specific dimensional parameters for bore diameter and rod configuration.
Typical Applications
- Heavy equipment and machinery lift supports
- Factory automation equipment positioning
- Material handling and conveyor systems
- Tool die assist and clamping mechanisms
- Industrial equipment damping and shock absorption
Compatibility & Replacements
Compatible With
- Associated Spring Raymond equipment and assemblies
- OEM machinery designed for Volumeline gas spring integration
- Industrial hydraulic and pneumatic systems
- Heavy equipment supporting M6, M8, or eyelet mounting standards
Replaces / Drop-In Replacement For
The 8AU203491 variant (ZZ0311 and XX0311 configurations) are equivalent units. Verify OEM specifications and stroke requirements before installation. Consult your system integrator or equipment manual to confirm dimensional and force compatibility with your application.
Works With
- OEM industrial machinery manufacturers
- Associated Spring Raymond systems and platforms
- Standard industrial mounting interfaces (threaded rod ends, eyelet studs)
- Nitrogen charge service and refill equipment
