Overview

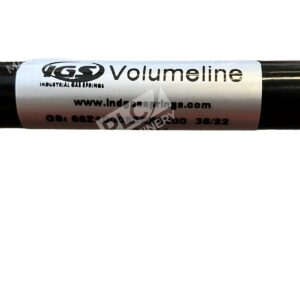

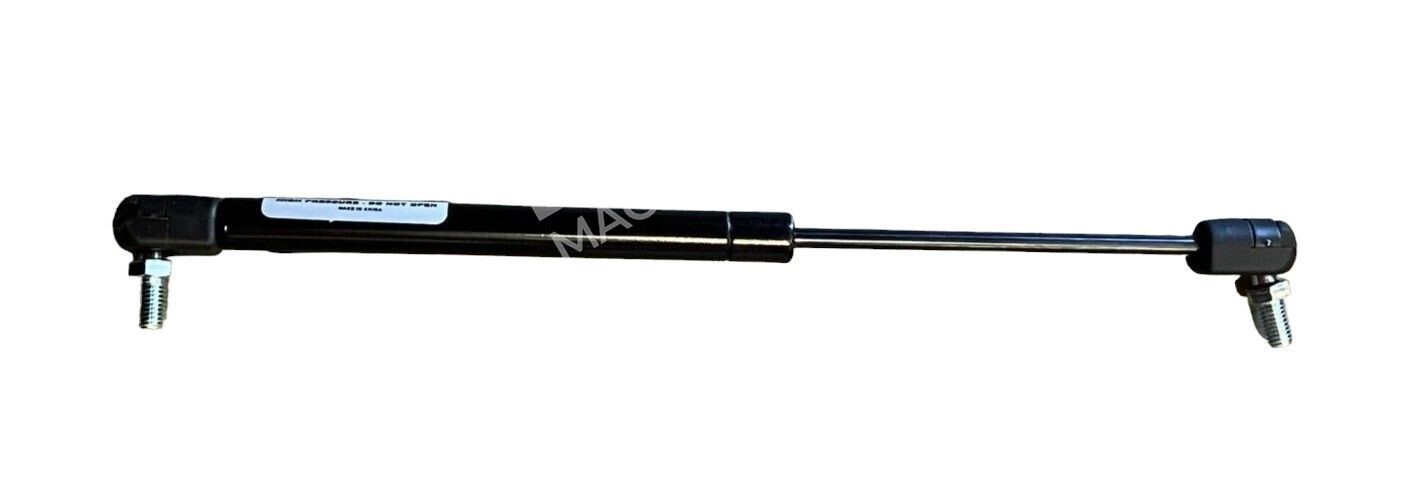

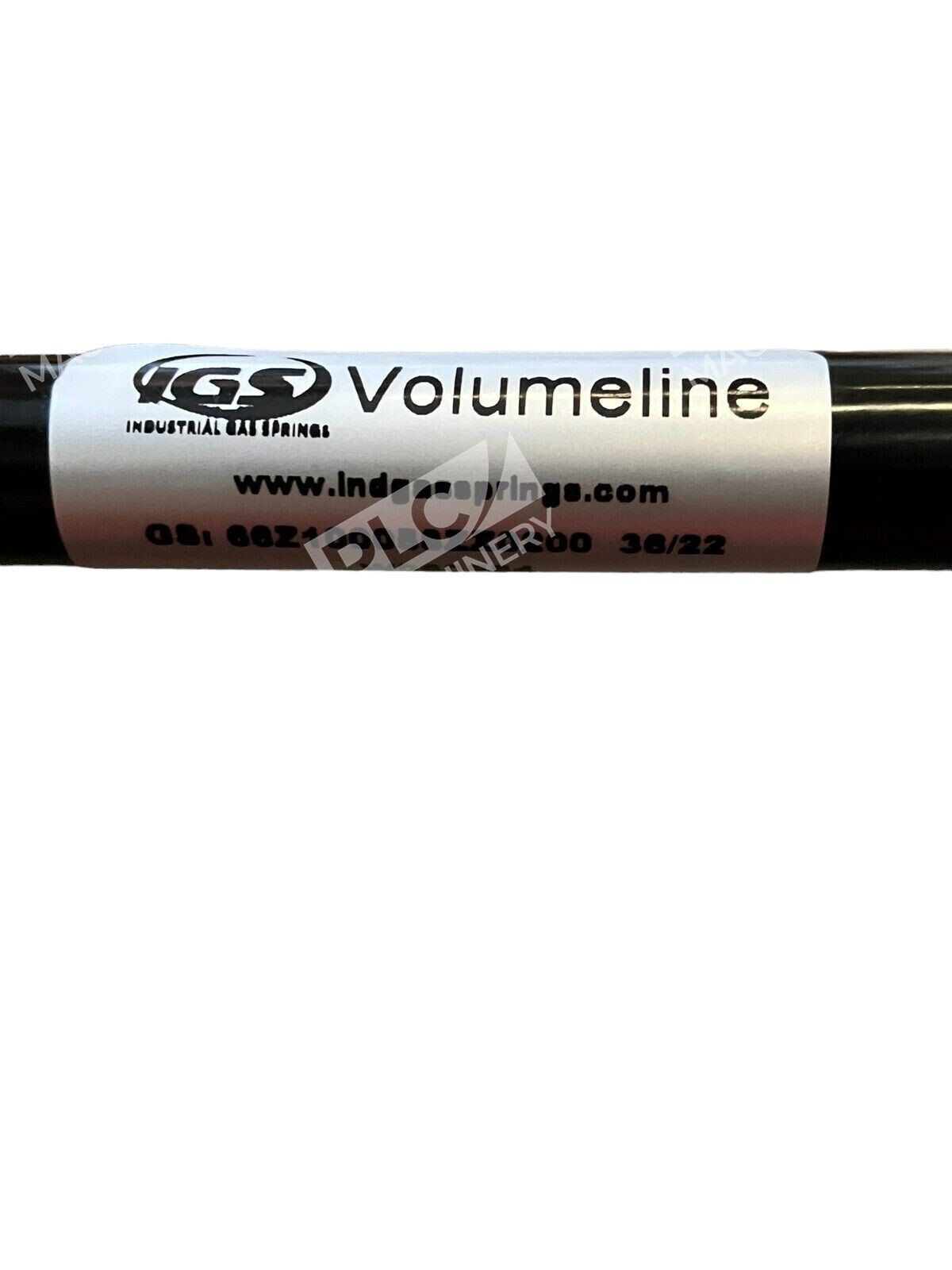

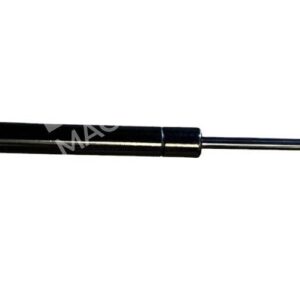

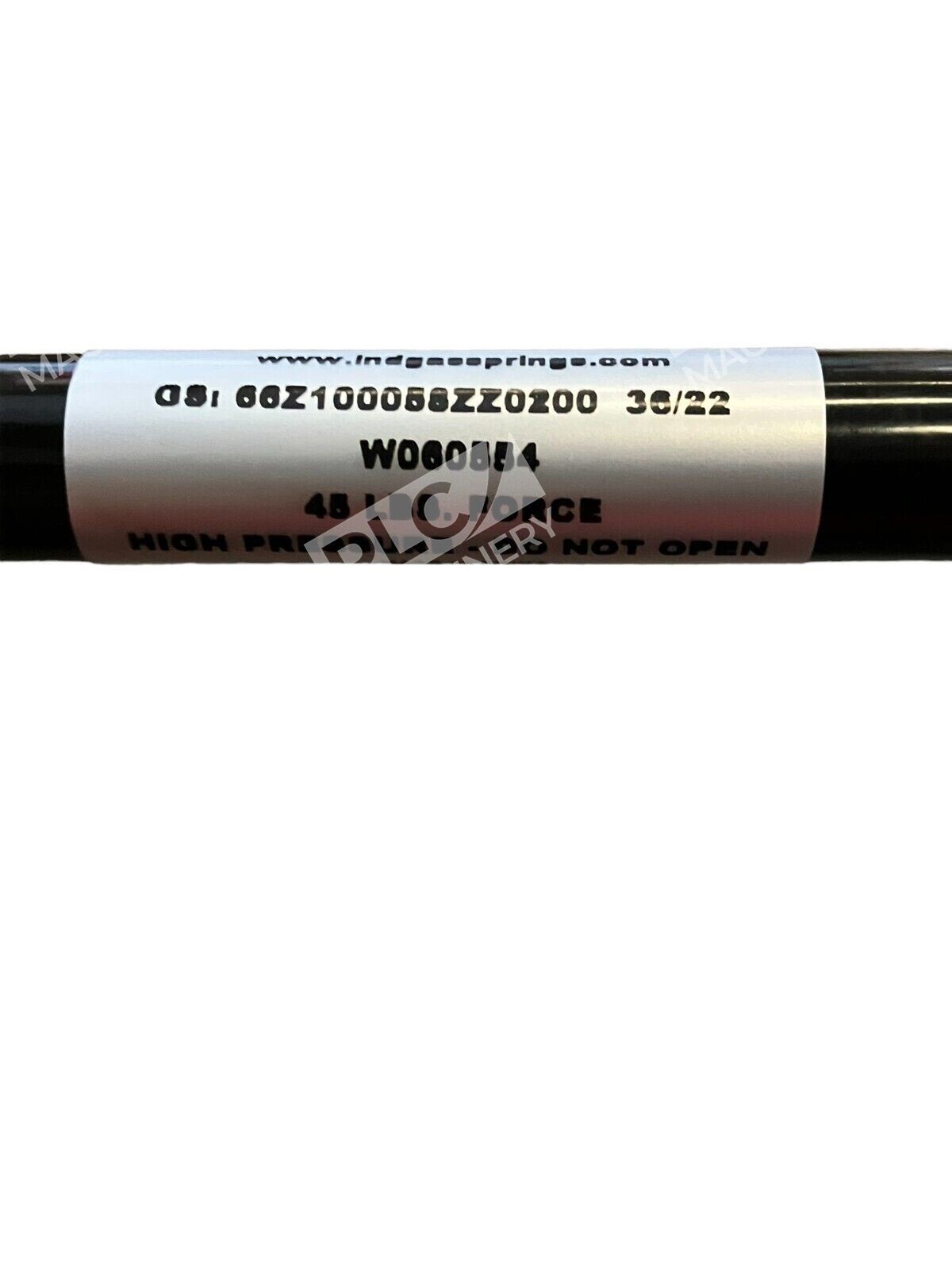

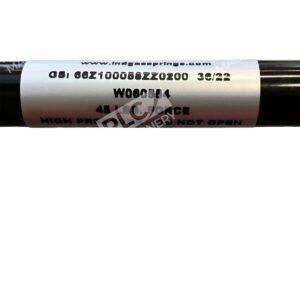

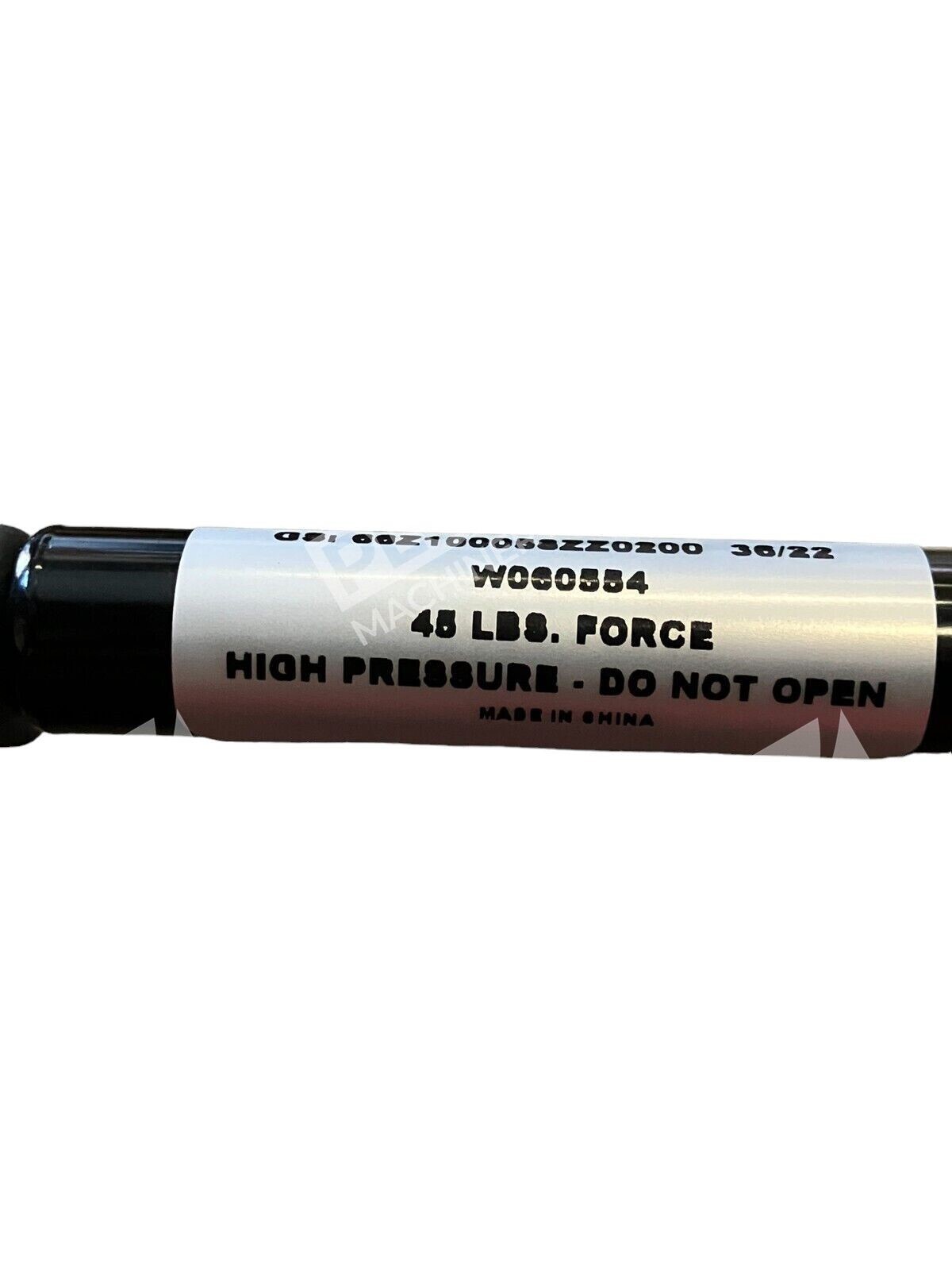

The IGS 66Z100058ZZ0200 Volumeline gas spring is a precision-engineered fixed-force strut from Industrial Gas Springs (IGS), a leading manufacturer under the Associated Spring Raymond family. This compact gas spring delivers consistent 45 lbs. of force over a 120mm stroke length, making it suitable for equipment counterbalancing, fixture support, and automation applications where reliable gas spring performance is critical.
Key Features
- Fixed force output of 45 lbs. throughout stroke
- 120mm total stroke length for precise positioning
- Robust construction designed for extended cycle life
- Compatible with standard industrial gas spring mounting interfaces
- New, open-box condition—fully functional and tested
- Same-day shipping available from Austin, TX inventory
Technical Specifications
- Part Number: 66Z100058ZZ0200
- Product Line: Volumeline Fixed-Force Gas Spring
- Force Output: 45 lbs.
- Stroke Length: 120mm (4.72 inches)
- Manufacturer: IGS / Associated Spring Raymond
- Condition: New – Open Box
Typical Applications
The IGS Volumeline series is used across defense, aerospace, automation, medical devices, and industrial equipment. Common applications include:
- Equipment access panels and hoods
- Workstation fixtures and support structures
- Counterbalancing mechanisms in material handling equipment
- Control cabinet and enclosure support
- Precision positioning and hold-down systems
Compatibility & Replacements
Compatible With
- Standard industrial gas spring mounting systems with rod/tube diameter compatibility
- Equipment and machinery requiring fixed 45 lbs. counterbalance force
- Automation and fixture applications using standard gas spring interfaces
Replaces / Drop-In Replacement For
The IGS 66Z100058ZZ0200 is a specific Volumeline model designation. Before using as a replacement, verify mounting interfaces, rod diameter, tube diameter, and force requirements with your equipment documentation or contact your system integrator.
Works With

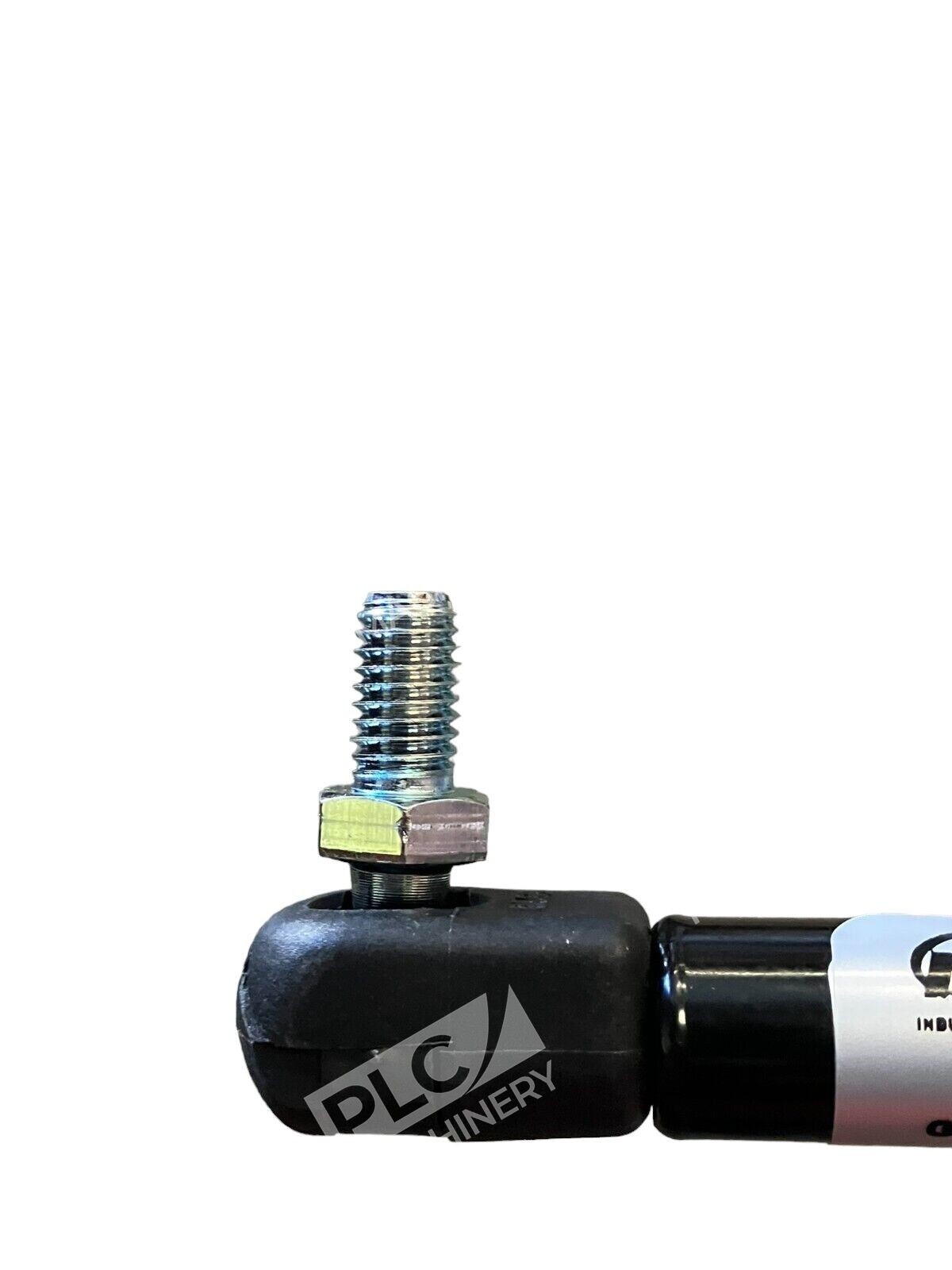

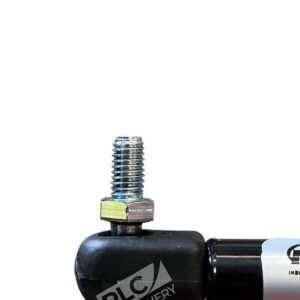

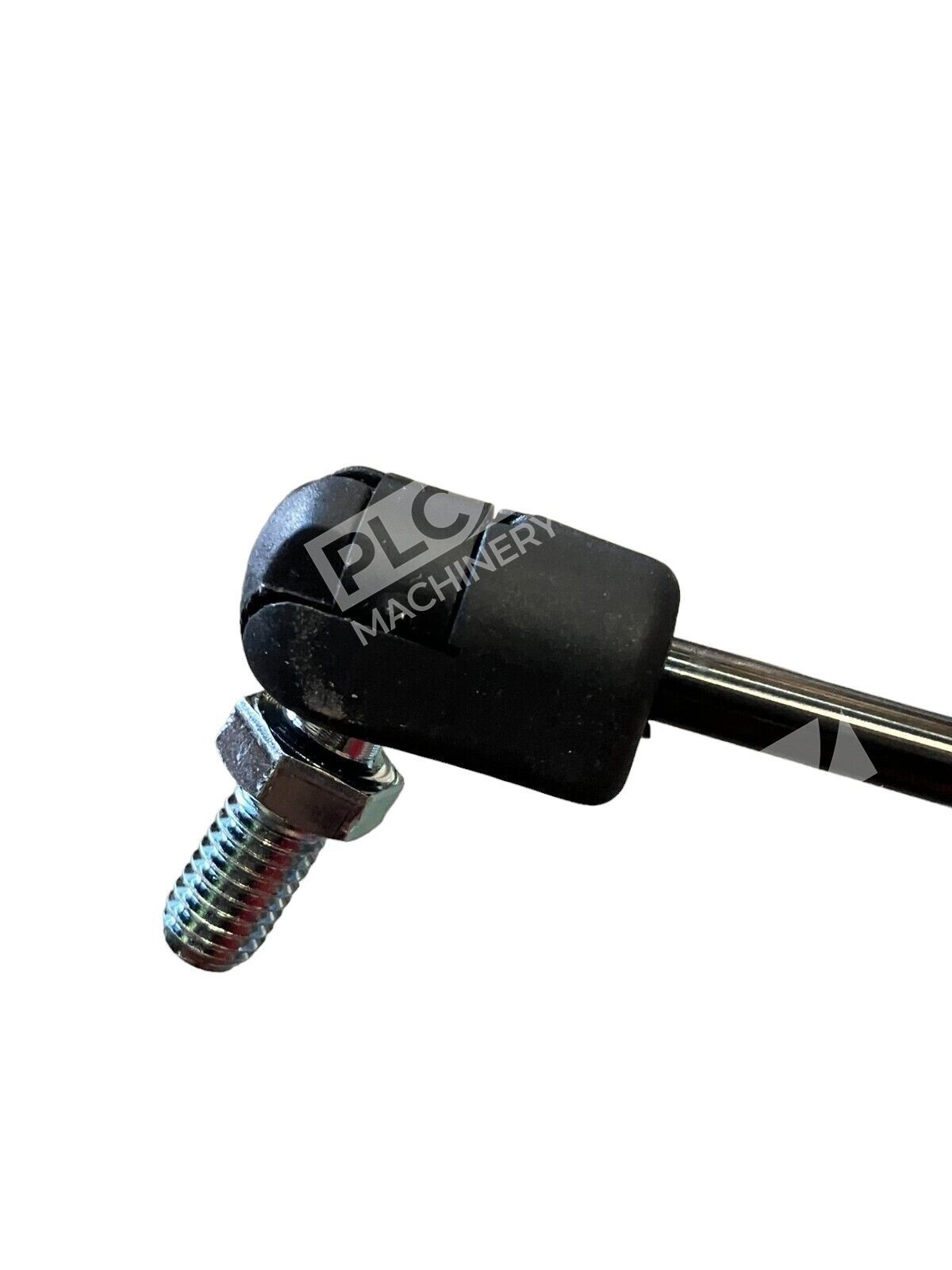

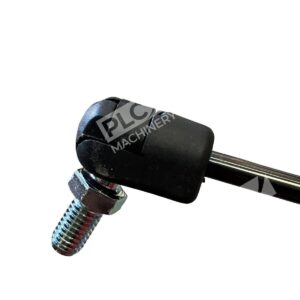

- Standard gas spring rod end fittings (rod eye, clevis, threaded rod)
- Gas spring tube-end mounts (fixed or swivel)
- Industrial equipment and machinery design standard mountings
- Maintenance and retrofit applications requiring drop-in support struts
