Overview

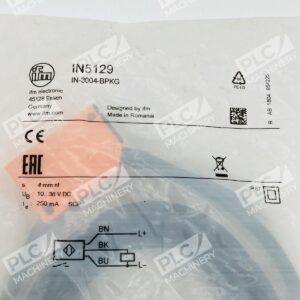

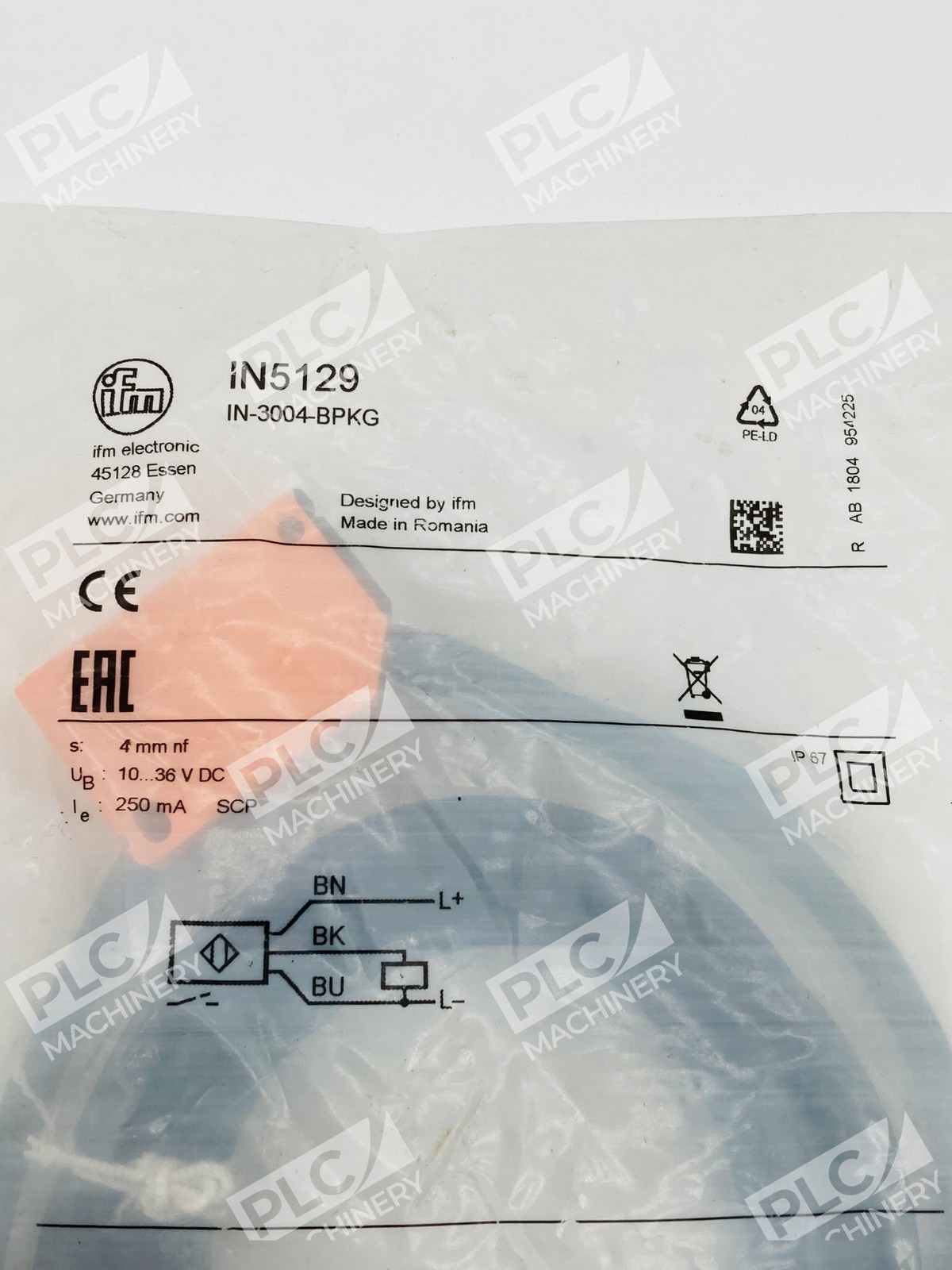

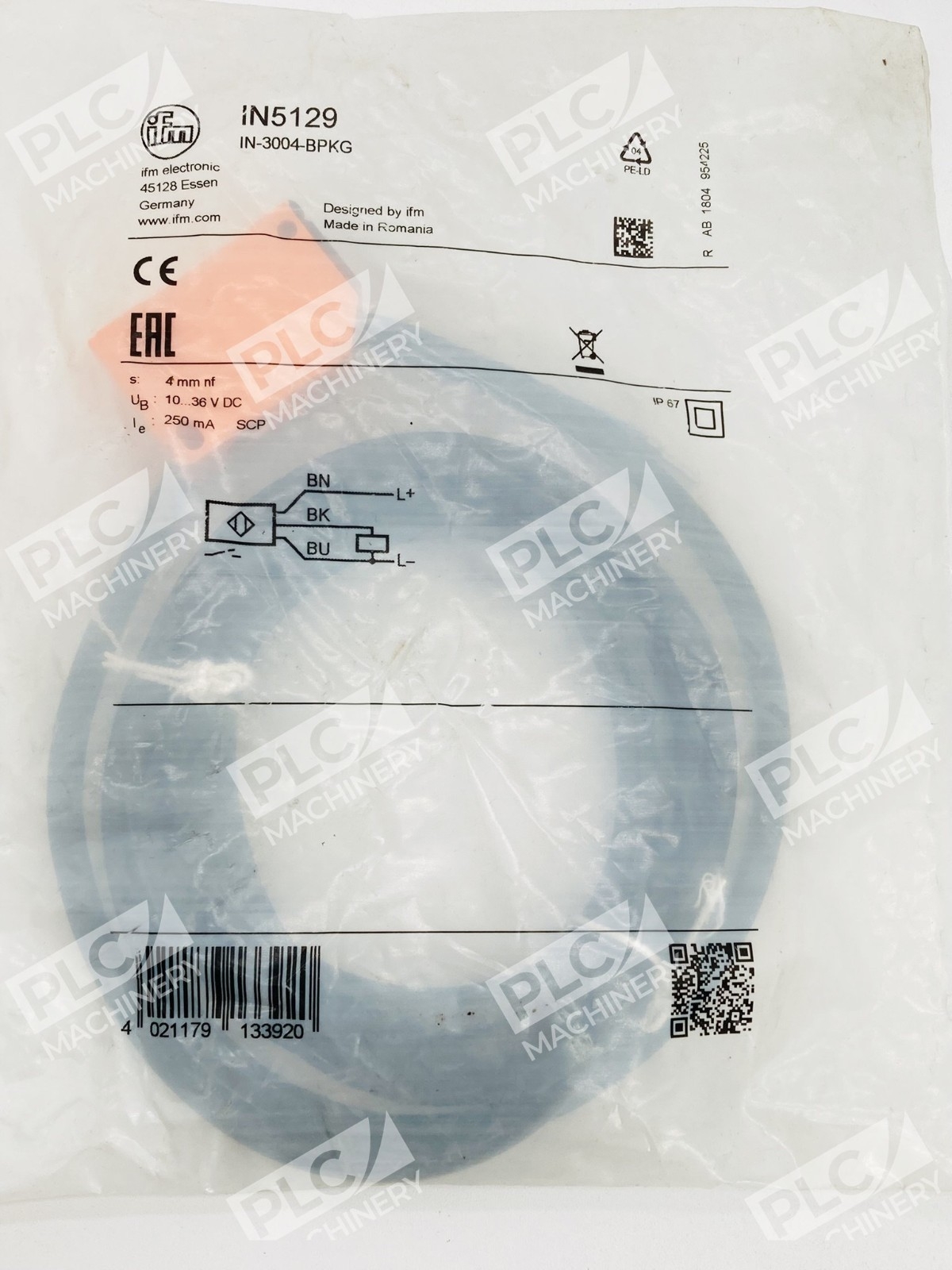

The ifm IN5129 inductive proximity sensor provides non-contact object detection for industrial automation, motion control, and material handling applications. Operating on electromagnetic induction principles, this compact rectangular-housing sensor achieves a 4mm sensing range with non-flush mounting capability. With IP67 protection, integrated M8 connector, and 2-meter PVC cable, the IN5129 delivers robust performance in demanding manufacturing, assembly, and conveyor environments. The sensor is designed to integrate seamlessly into 24 VDC industrial control circuits and PLC input modules.
Key Features
- 4mm non-flush sensing range for precise object position and proximity detection
- 10–36 VDC supply voltage with PNP normally-open output topology
- IP67 protection rating for washdown, wet industrial, and coastal salt-fog environments
- M8 3-pin connector with 2-meter PVC cable for quick field integration
- 1,300 Hz switching frequency supports high-speed response and synchronization
- Compact rectangular housing with brass/nickel-plated construction for corrosion resistance
- Reverse polarity protection and LED status indication for troubleshooting
Technical Specifications
- Supply Voltage: 10–36 VDC
- Output Configuration: PNP, normally open
- Sensing Range: 4 mm (non-flush mountable)
- Switching Frequency: 1,300 Hz
- Protection Rating: IP67
- Connector Type: M8 (3-pin)
- Cable: 2 m PVC, 3-wire
- Housing Dimensions: 40 × 12 × 26 mm
- Operating Temperature: −25 to +75 °C
- Housing Material: Rectangular, brass/nickel-plated
- Max. Output Current: 250 mA
- Max. Voltage Drop: 2.5 VDC
- Current Consumption: 15 mA (at 24 VDC)
- Protection Class: II
- Reverse Polarity Protection: Yes
Typical Applications
- End-position and proximity monitoring on automated machinery and assembly lines
- Object detection and part positioning in high-speed conveyor and sorting systems
- Machine tool limit switches and safety interlocks
- Part presence verification in industrial robotic systems and pick-and-place equipment
- Wet environment sensing with IP67 washdown and splash protection
- Encoder feedback and incremental position monitoring
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLC input modules (24 VDC, PNP)
- Siemens S7-1200, S7-1500, and LOGO controllers with digital input modules
- Mitsubishi FX3U and iQ-F series PLC 24 VDC inputs
- Omron CP/CJ-series and NX-series controllers
- Standard 24 VDC industrial control circuits and DIN-rail power supplies
- M8 connector-equipped industrial cabinets and control panels
- Motion control systems for position feedback and limit switching
Replaces / Drop-In Replacement For
The ifm IN5129 housing (IN-3004-BPKG) is shared across multiple ifm inductive sensor variants. This unit directly replaces earlier IN5129 revisions and compatible 4mm M8-connected sensor models with PNP normally-open output topology. Verify compatibility with your system integrator or controls engineer before ordering if replacing a different ifm sensor series or third-party proximity sensor.
Works With
- Studio 5000 and RSLogix PLC programming environments (via standard PNP digital input modules)
- TIA Portal (Siemens) and STEP 7 automation software
- Mitsubishi GX Developer and GX Works 2 software platforms
- Omron CX-Programmer and Sysmac software suites
- Standard PNP inductive sensor input modules on any 10–36 VDC industrial controller
- Industrial Ethernet gateways and remote I/O systems with analog/digital monitoring
- M8 3-pin connector standard across ifm, Eaton, Schneider, and third-party automation systems
