<h2>Overview</h2>

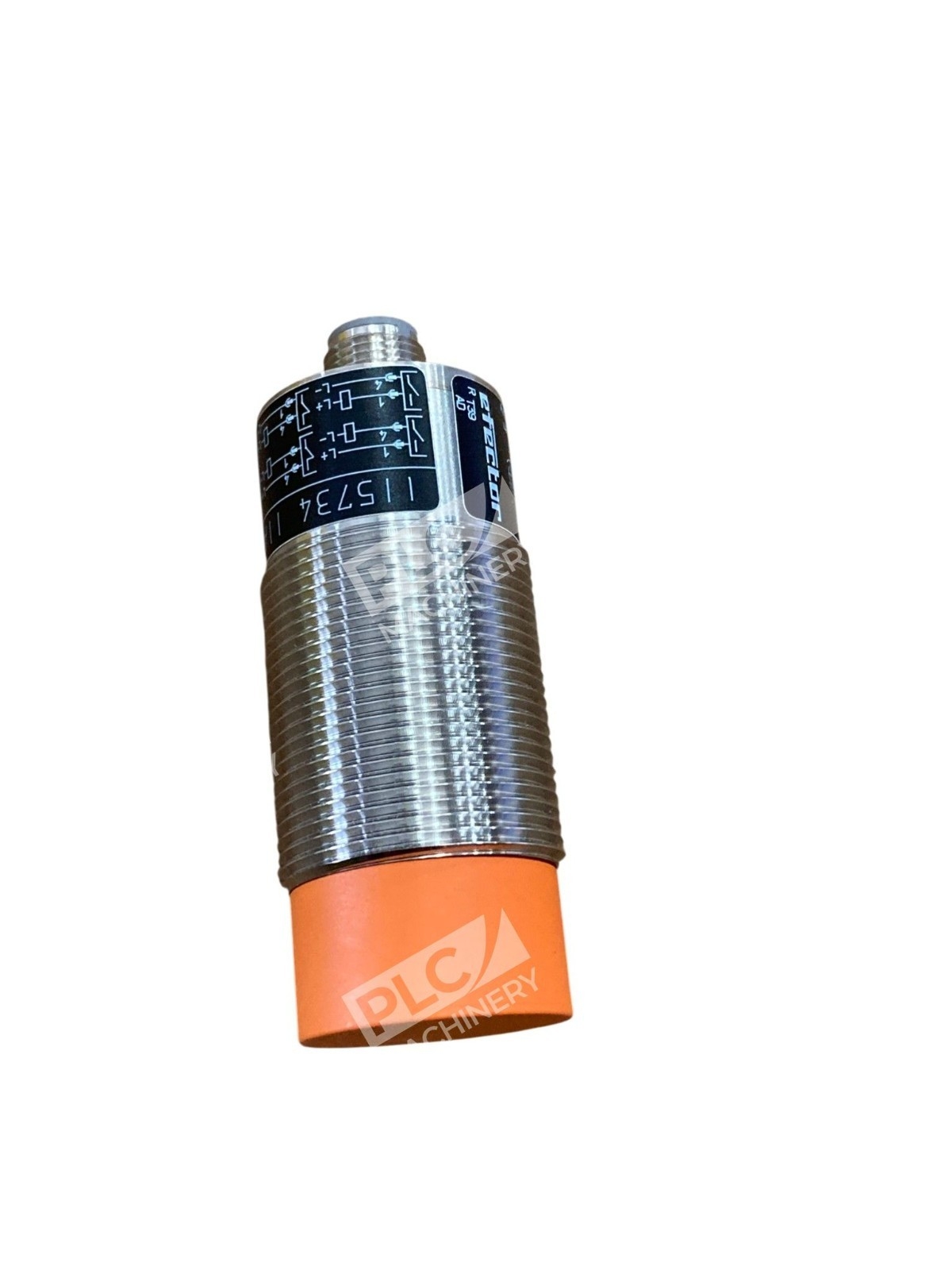

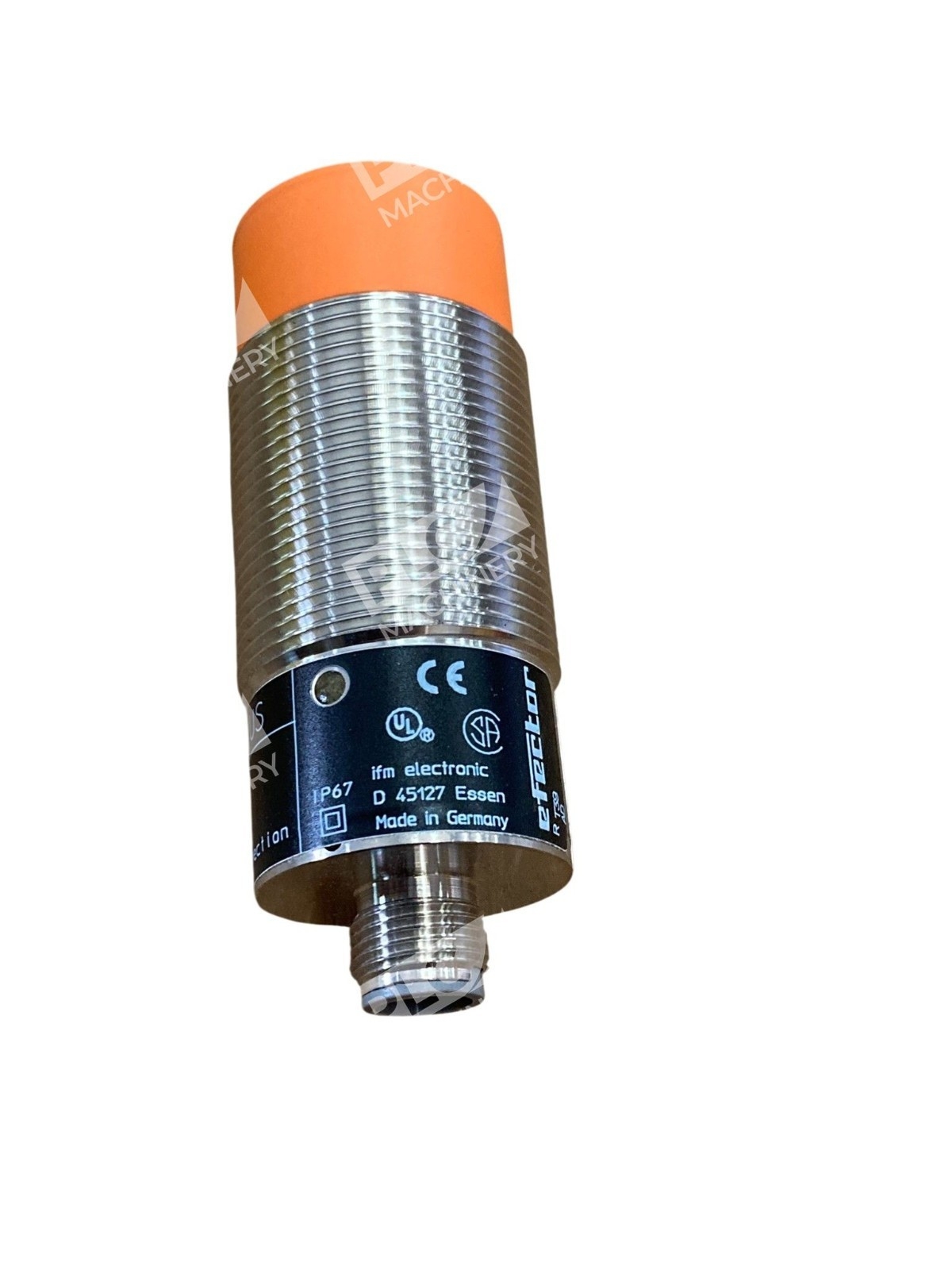

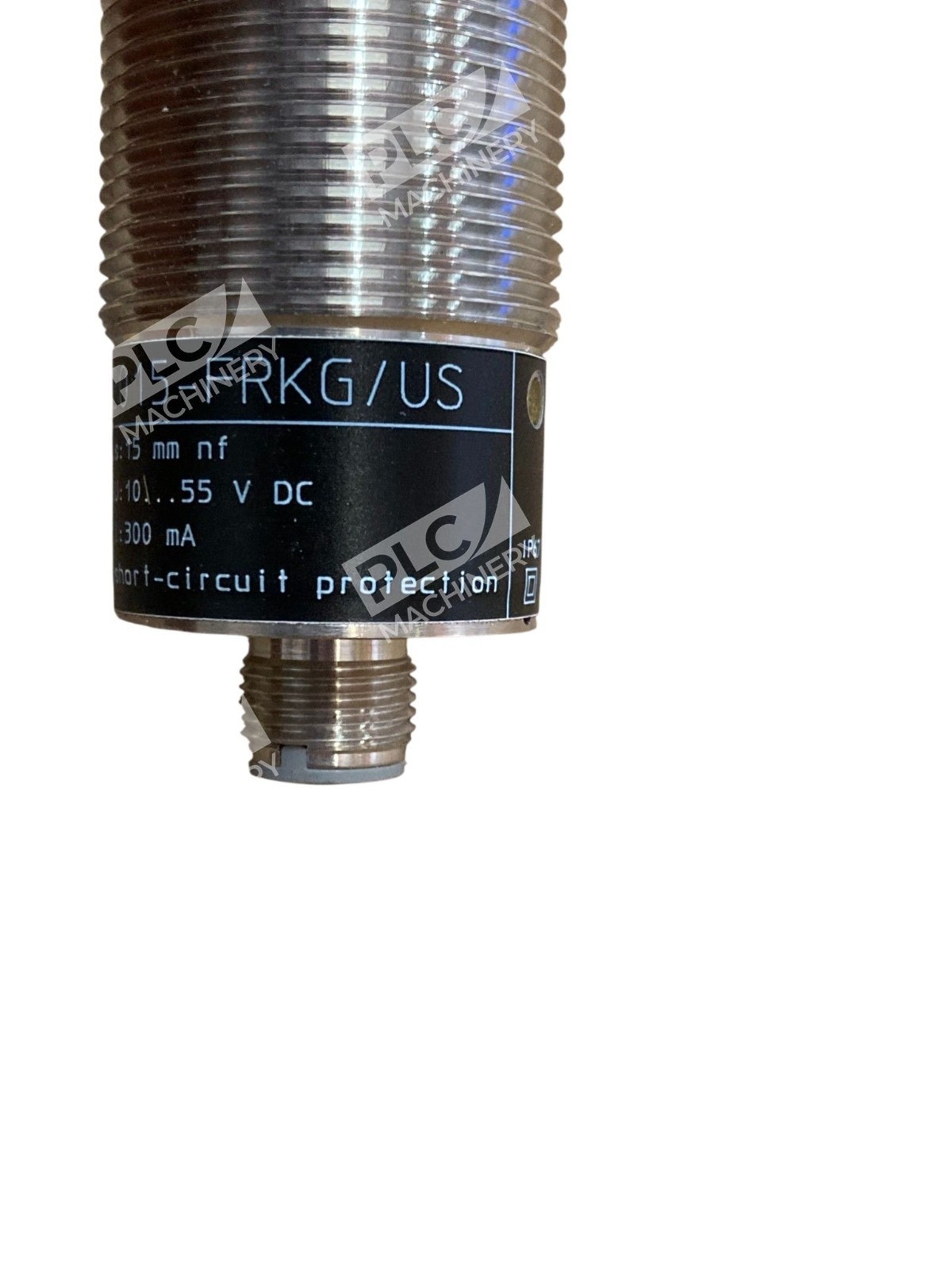

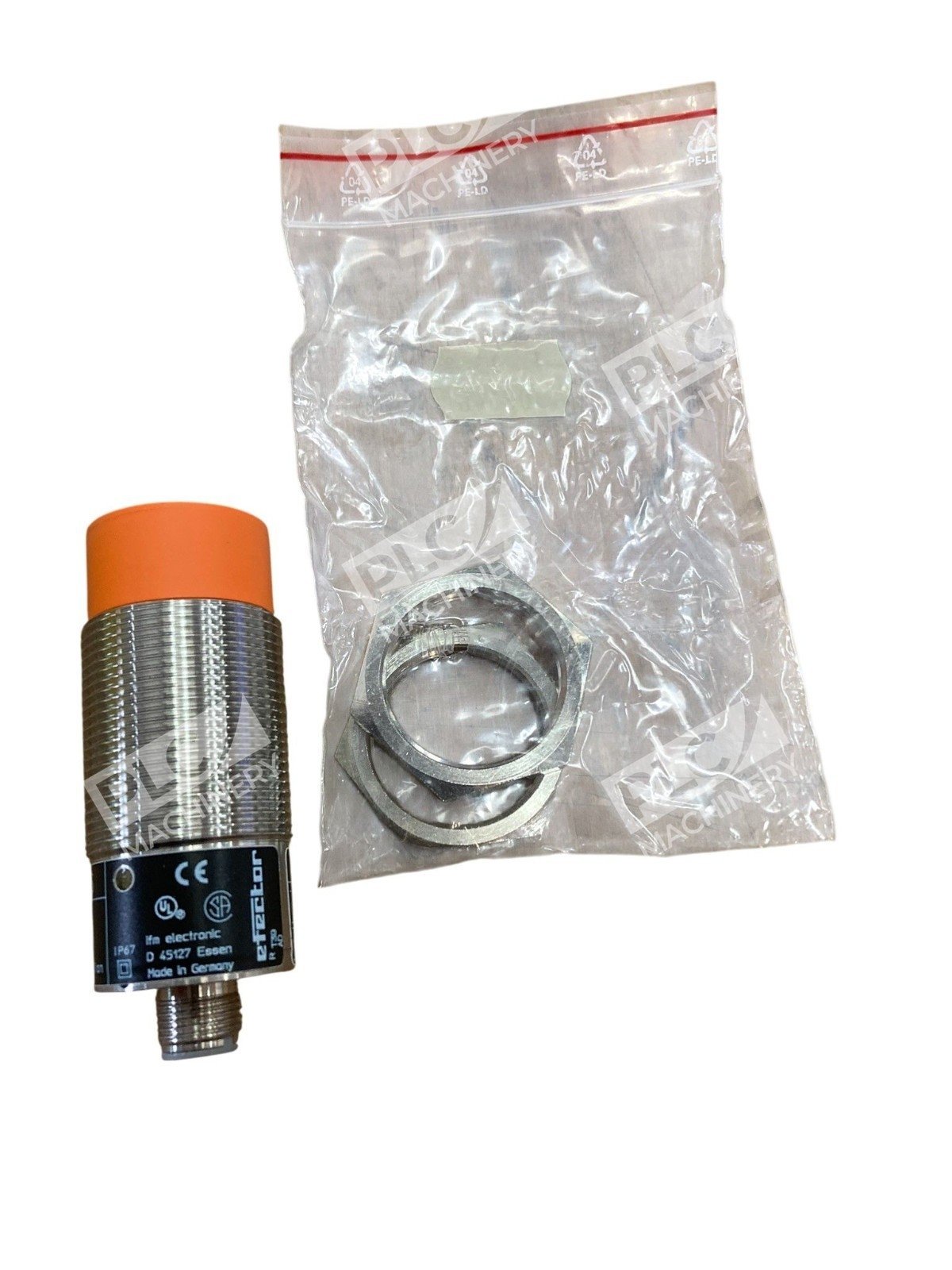

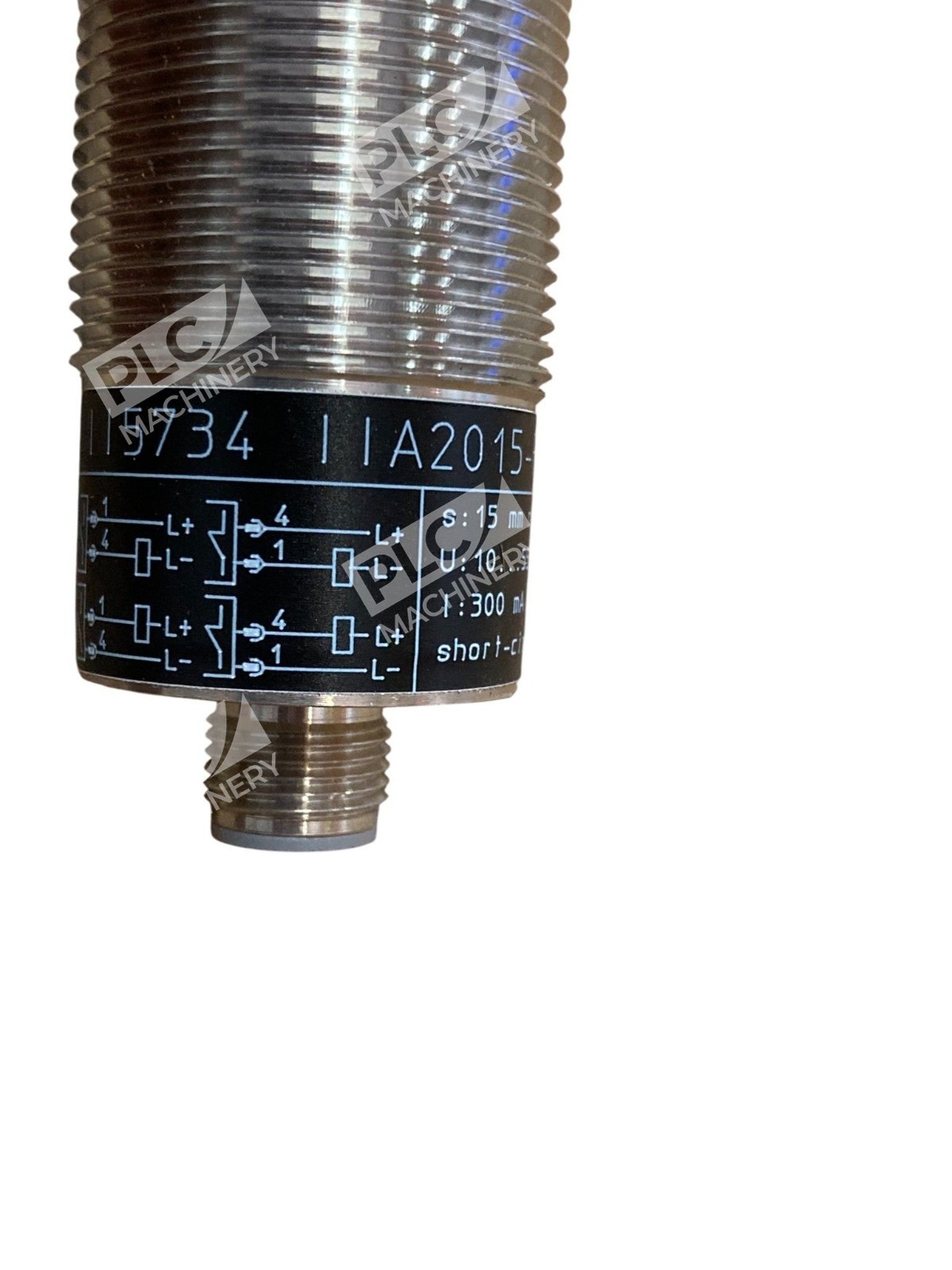

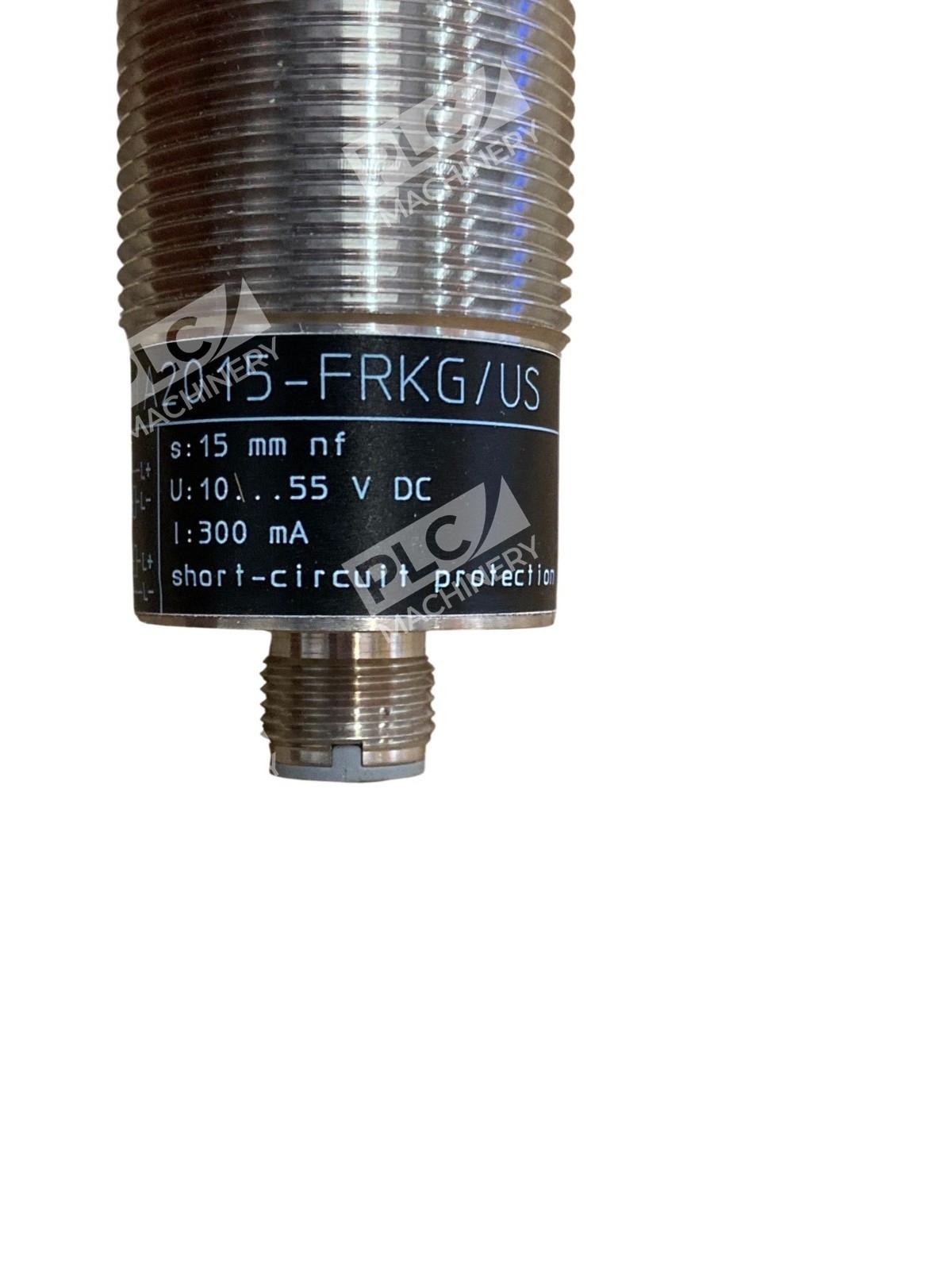

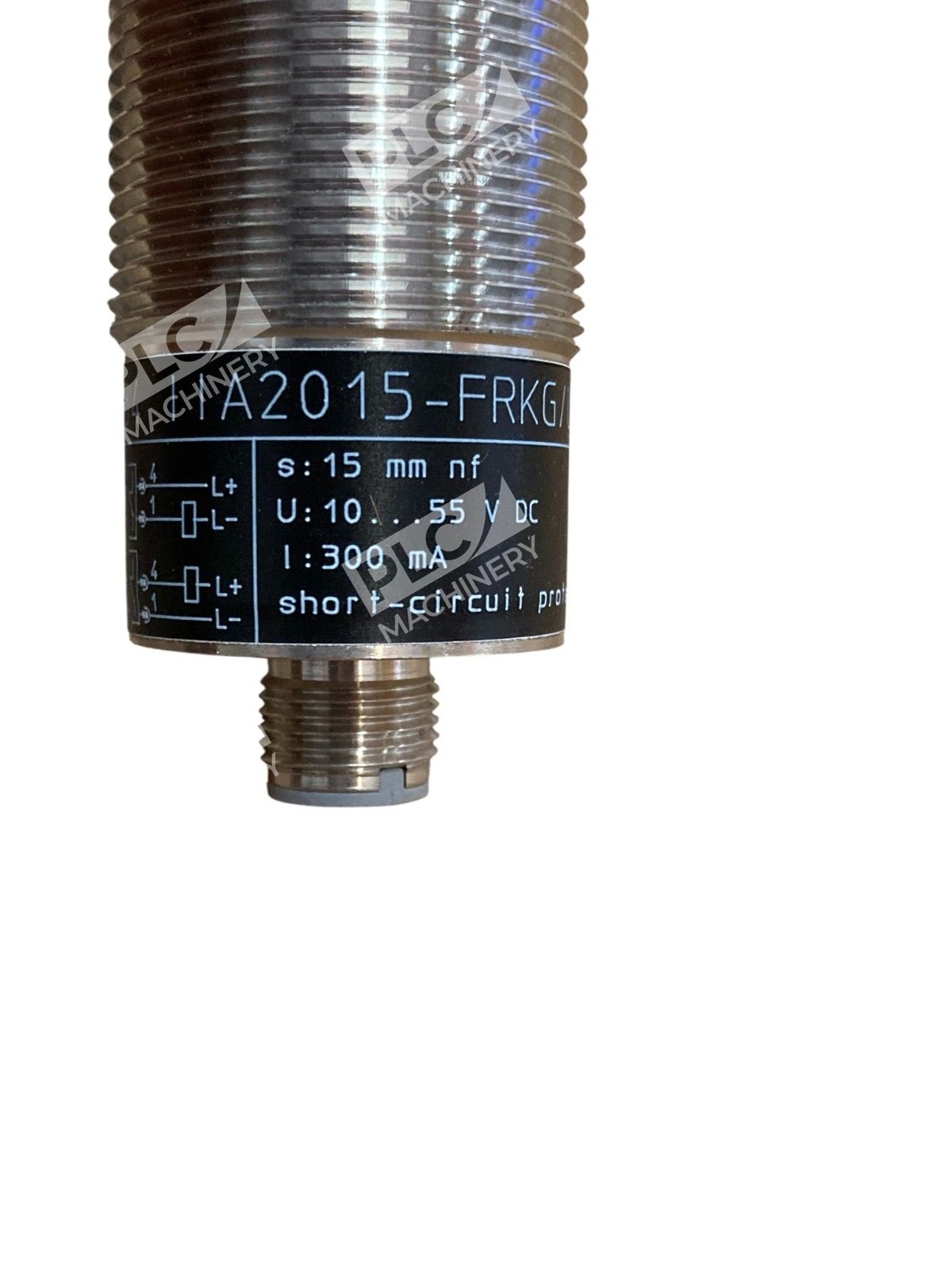

<p>The <strong>ifm IIA2015-FRKG/US</strong> is an industrial-grade inductive proximity sensor built for metal detection in harsh manufacturing environments. Manufactured by ifm Efector, a trusted German automation supplier, this M30-threaded sensor provides non-contact, reliable switching of ferrous and non-ferrous metals within its 15mm detection range. Its 10-55V DC input, PNP/NPN configurable output, and programmable NO/NC logic make it ideal for integration into PLCs, machine controls, and safety circuits.</p>
<h2>Key Features</h2>
<ul>
<li><strong>15mm sensing range</strong> for reliable, non-flush-mountable metal detection</li>
<li><strong>10-55V DC</strong> wide input voltage range tolerates power supply variation</li>
<li><strong>PNP/NPN configurable</strong> output for flexible controller integration</li>
<li><strong>Programmable NO/NC logic</strong> selectable via on-board switches</li>
<li><strong>IP67 protection</strong> resists coolant, moisture, and dust in shop-floor conditions</li>

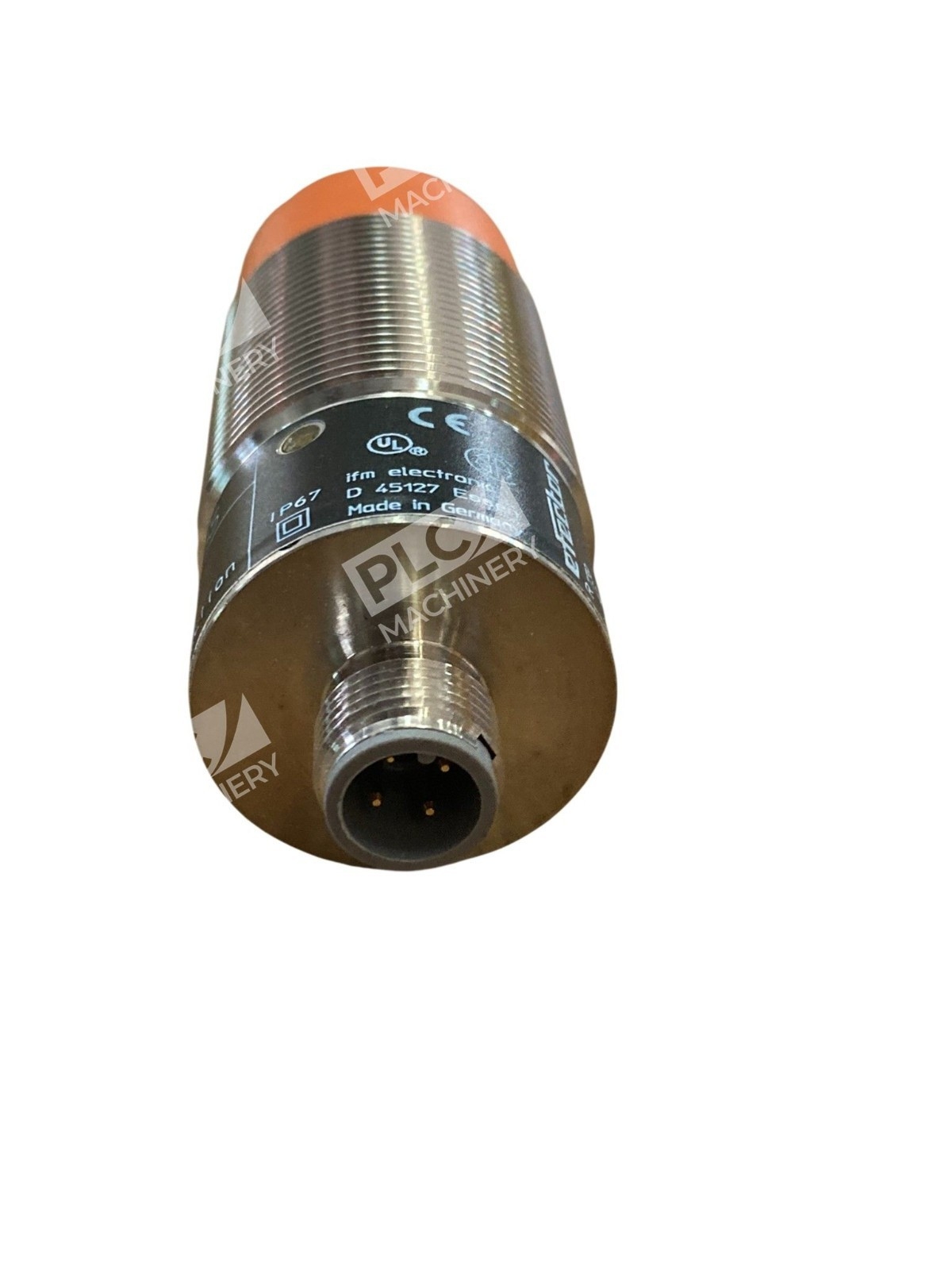

<li><strong>M12 connector</strong> enables quick plug-and-play installation</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Sensing range:</strong> 15 mm (non-flush mountable)</li>
<li><strong>Supply voltage:</strong> 10–55 V DC</li>
<li><strong>Output:</strong> PNP/NPN, NO/NC programmable</li>
<li><strong>Switching frequency:</strong> 200 Hz</li>
<li><strong>Output current:</strong> 300 mA</li>
<li><strong>Housing thread:</strong> M30 × 1.5</li>
<li><strong>Housing length:</strong> 78 mm</li>
<li><strong>Connector:</strong> M12 A-code 2-wire</li>
<li><strong>IP rating:</strong> IP67</li>
<li><strong>Operating temperature:</strong> –25 to +80 °C</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>CNC machine and turning center spindle synchronization</li>
<li>Conveyor system part-present detection</li>
<li>Assembly line workpiece positioning and counting</li>
<li>Metal stamping and punching press cycle control</li>
<li>Hydraulic and pneumatic cylinder position feedback</li>
<li>Automated guarding and interlock circuits</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Allen-Bradley CompactLogix, ControlLogix, SLC 500, and MicroLogix PLCs (via M12 analog or digital input modules)</li>
<li>Siemens S7-1200, S7-1500, and S5 systems with appropriate I/O modules</li>
<li>Mitsubishi FX3U, FX5U, and Q-series controllers</li>
<li>Omron CP, CJ, NX, and NY series automation controllers</li>
<li>Any 24V or 12V DC control circuit with PNP/NPN input compatibility</li>
<li>Standard M30 cylindrical sensor mounting fixtures</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>ifm II5734 (standard RTD variant)</li>
<li>ifm II5733 (non-RTD M12 connector version)</li>
<li>Competitive M30 × 1.5 inductive sensors with 15mm range and programmable output</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Studio 5000 (Allen-Bradley) analog/discrete input configuration</li>
<li>TIA Portal (Siemens) I/O mapping and diagnostics</li>
<li>GX Works 3 (Mitsubishi) PLC programming</li>
<li>Sysmac Studio (Omron) sensor I/O modules</li>
<li>Standard DeviceNet, EtherNet/IP, or PROFINET adapters (with appropriate gateway modules)</li>
<li>Industrial Ethernet and legacy hardwired control architectures</li>
</ul>
