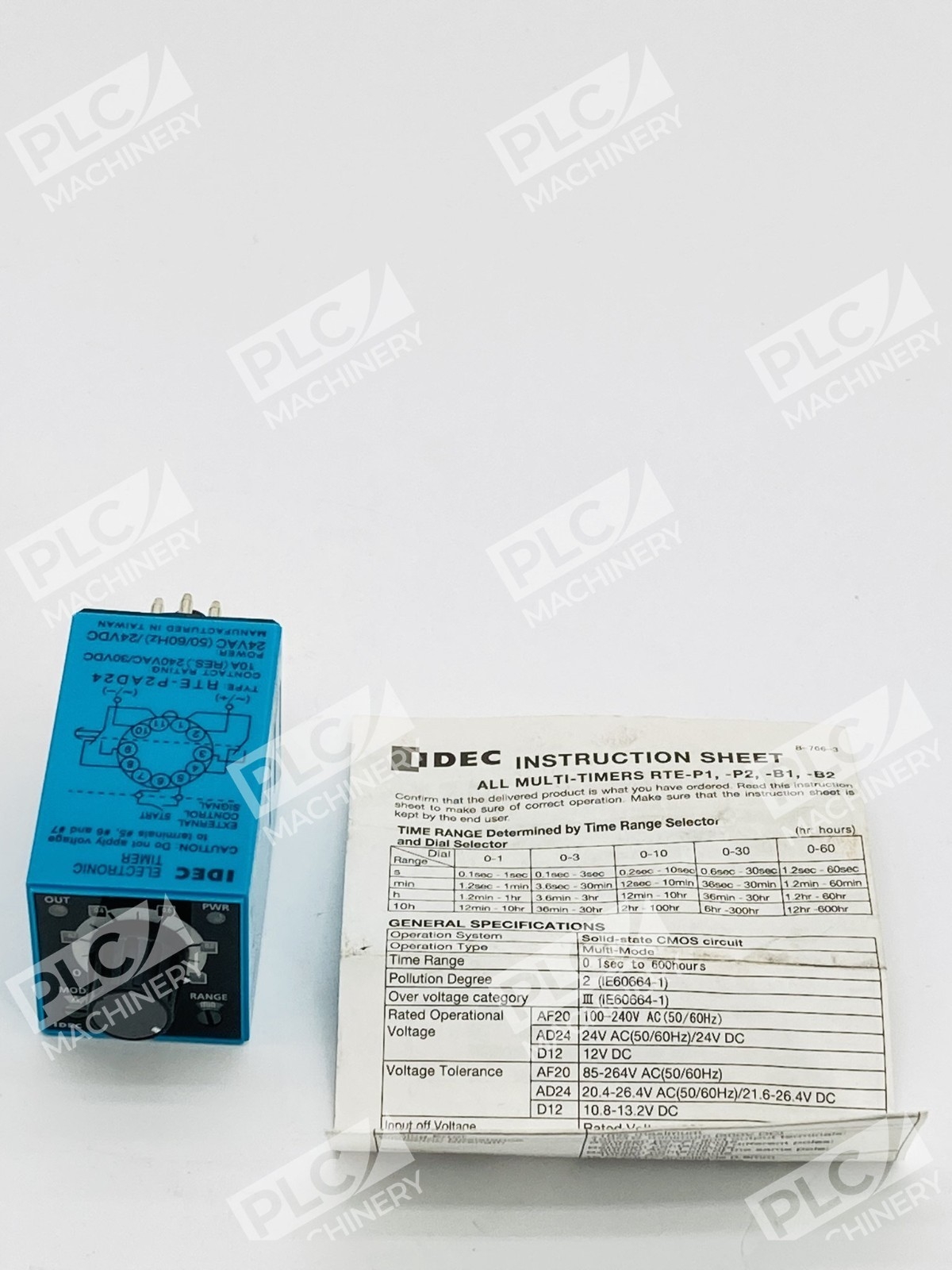

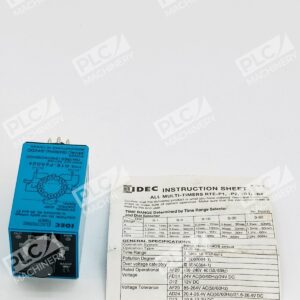

Overview

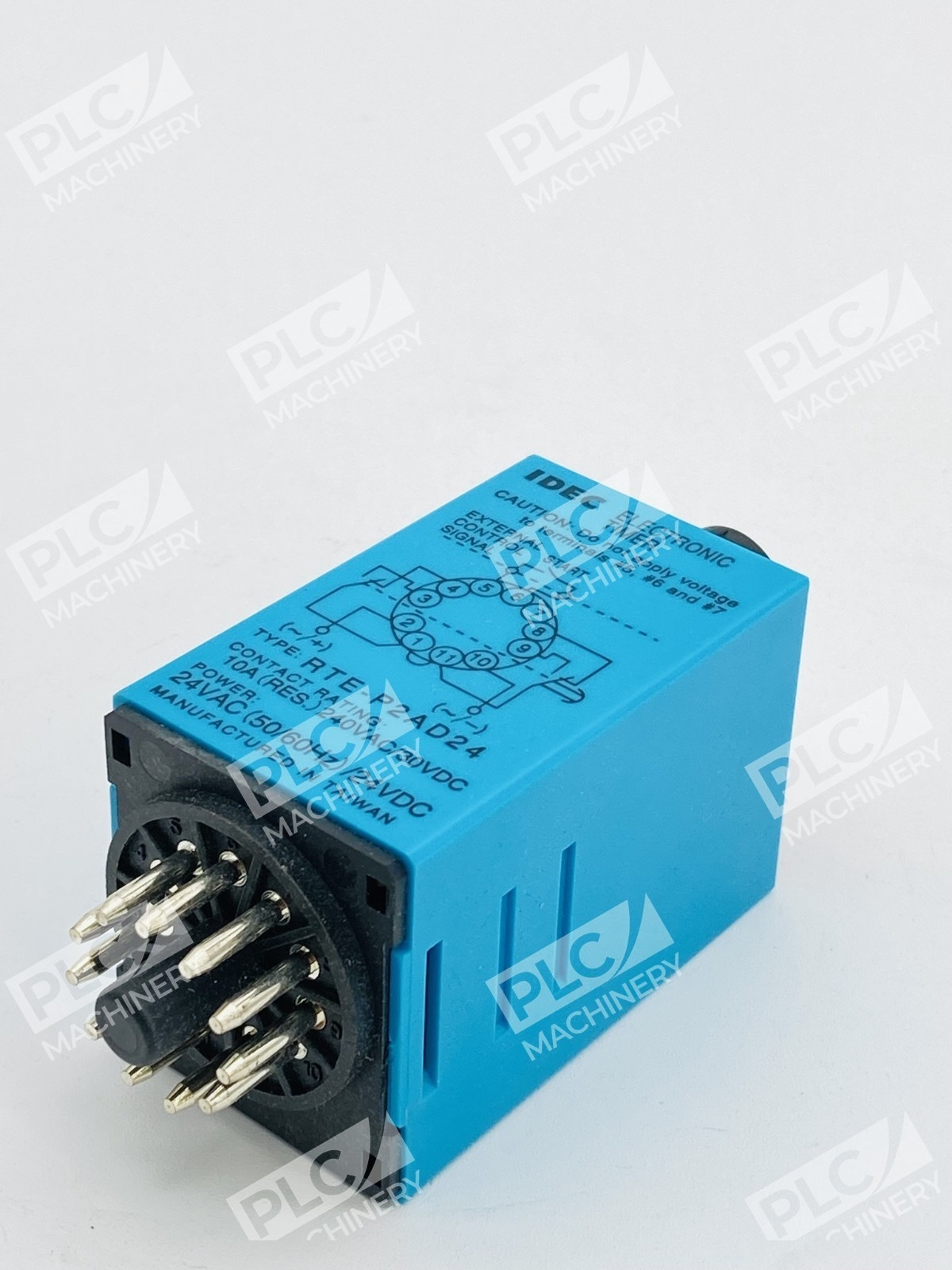

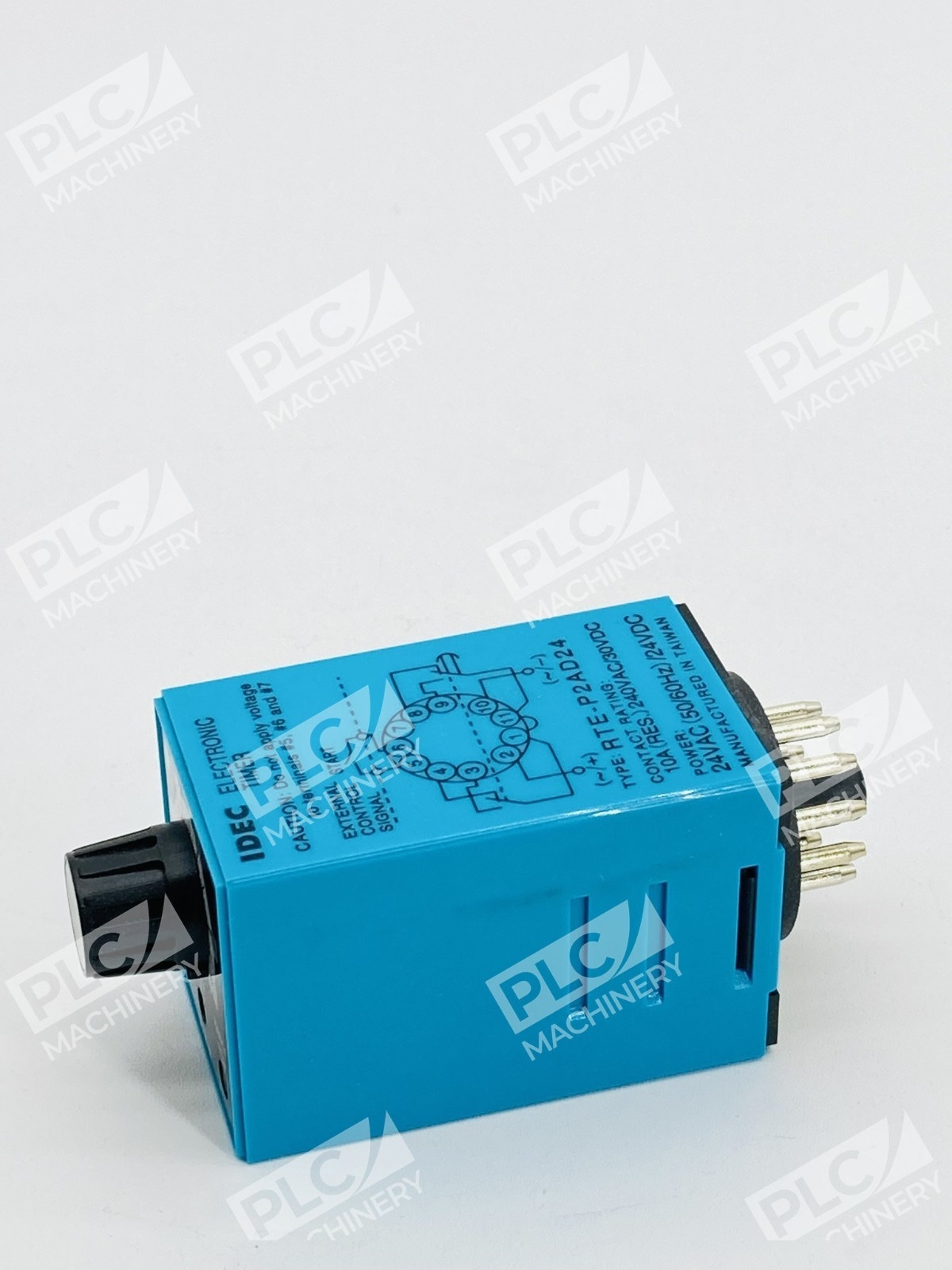

The IDEC RTE-P2AD24 is a multi-function electronic timer relay engineered for signal-triggered timing applications in building automation, HVAC systems, and industrial control. Timer functions for RTE-B2/RTE-P2 are signal triggered and include ON-Delay, OFF-Cycle, OFF-Delay, ON-Cycle and Single-Shot. This 11-pin plug-in unit operates on 24 VAC or 24 VDC, making it compatible with standard low-voltage control circuits.
Key Features
- Time Delay Settings: 0.1 sec to 600 hours with 20 selectable time ranges
- Contact Configuration: 2 Form C, DPDT (delay outputs) with 10A contact rating at 240 VAC or 30 VDC
- High repeat accuracy of ±0.2%
- ON and timing out LED indicators for operational feedback

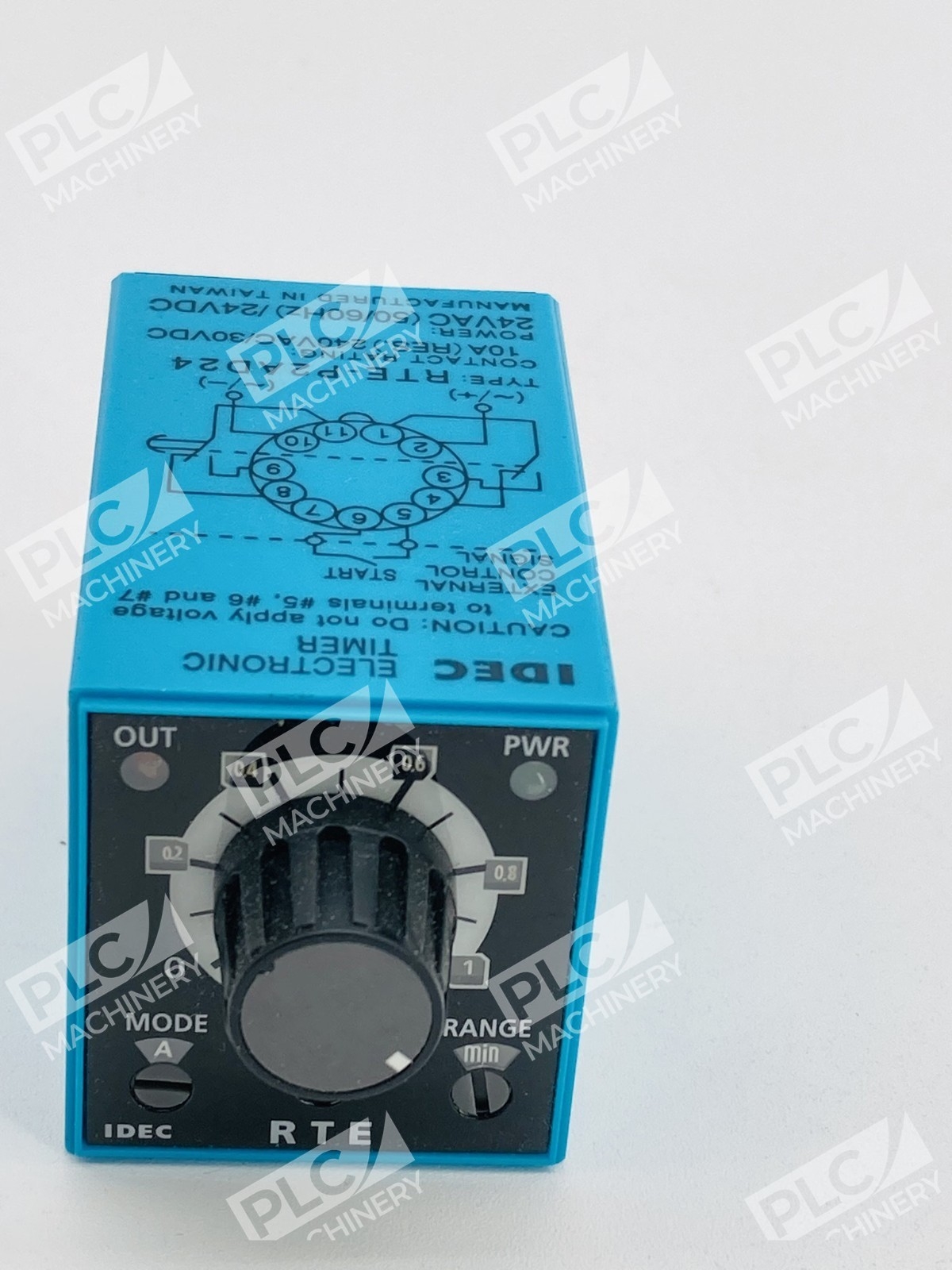

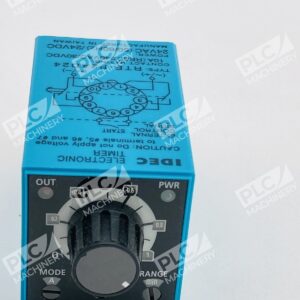

- Timer functions and time ranges are easily selected by setting external switches, with a front knob to set the precise delay period within the selected time range
- High power 10 A contacts
Technical Specifications
- Supply Voltage: 24 VAC, 24 VDC
- Contact Type: DPDT (2 Form C)
- Contact Current Rating: 10 A
- Load Capacity: 10A resistive @ 240 VAC, 30 VDC; 7A inductive @ 240 VAC, 30 VDC; 1/6 hp @ 120 VAC; 1/3 hp @ 240 VAC
- Time Delay Range: 0.1 sec to 600 hours

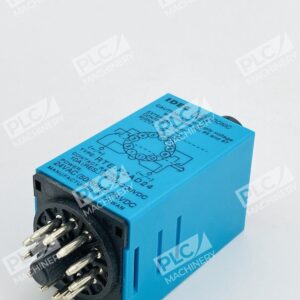

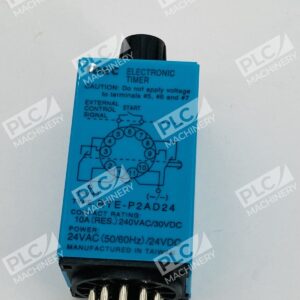

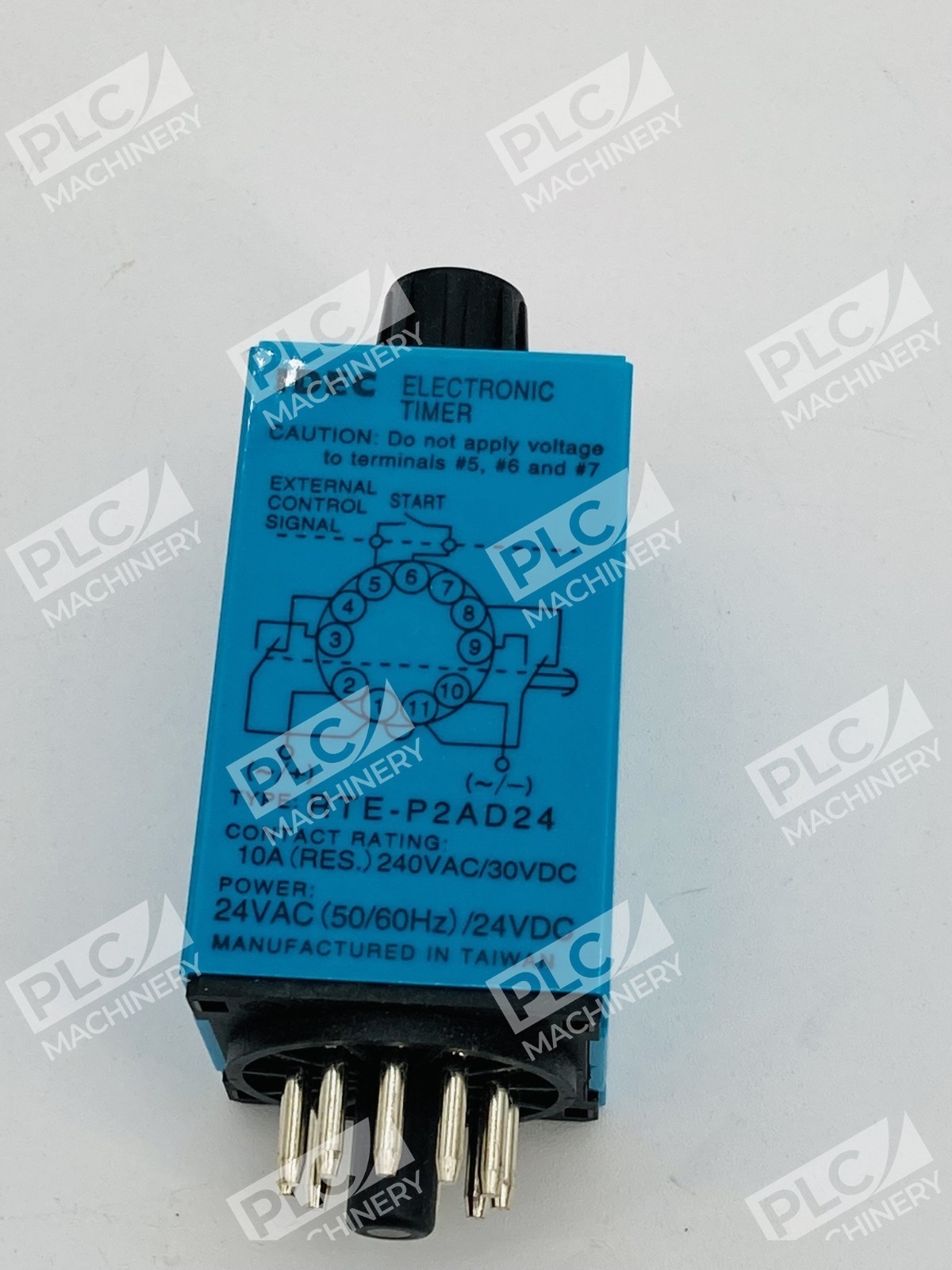

- Terminal Style: 11-Pin terminal, start input triggered configuration
- Repeatability: ±0.2%
- Operating Temperature: -4 to 149 °F (-20 to 65 °C) without freezing
- Operating Humidity: 35 to 85% RH (without condensation)
- Mechanical Life: 50,000,000 operations minimum
- Reset Time: 100ms maximum
- Mounting: DIN rail, Surface (plug-in socket or optional panel mount adaptor)
- Approvals: CE Approved, UL Listed
- Warranty: 1 year
Typical Applications
The RTE Series Multi-Function Electronic Timers are ideal for Building Automation Systems, BAS. Common uses include pump start delays, solenoid valve sequencing, motor soft-start timing, equipment warm-up cycles, and cycle timing for HVAC and environmental control systems. The signal-triggered design with multiple timing functions makes it suitable for both standard and complex control schemes.
Compatibility & Replacements
Compatible With
- DIN rail mounted control cabinets
- Panel-mount installations with optional adaptor
- Standard 11-pin relay sockets
- 24 VAC control circuits (standard industrial power supplies)
- 24 VDC control circuits (PLC auxiliary outputs, 24V batteries)
- Building Automation Systems (BAS) and HVAC controls
Replaces / Drop-In Replacement For
- IDEC RTE-B2AD24 (equivalent signal-triggered model)
- Other 11-pin RTE series timers with same function group
Works With
- Allen-Bradley PLCs and control systems (24VDC input modules)
- Siemens SIMATIC S7 and Logo controllers
- Omron programmable controllers
- Mitsubishi FX and Q series PLCs
- Standard industrial relay sockets and control circuits
- EtherNet/IP and PROFINET gateway systems (when integrated with appropriate I/O modules)
