Overview

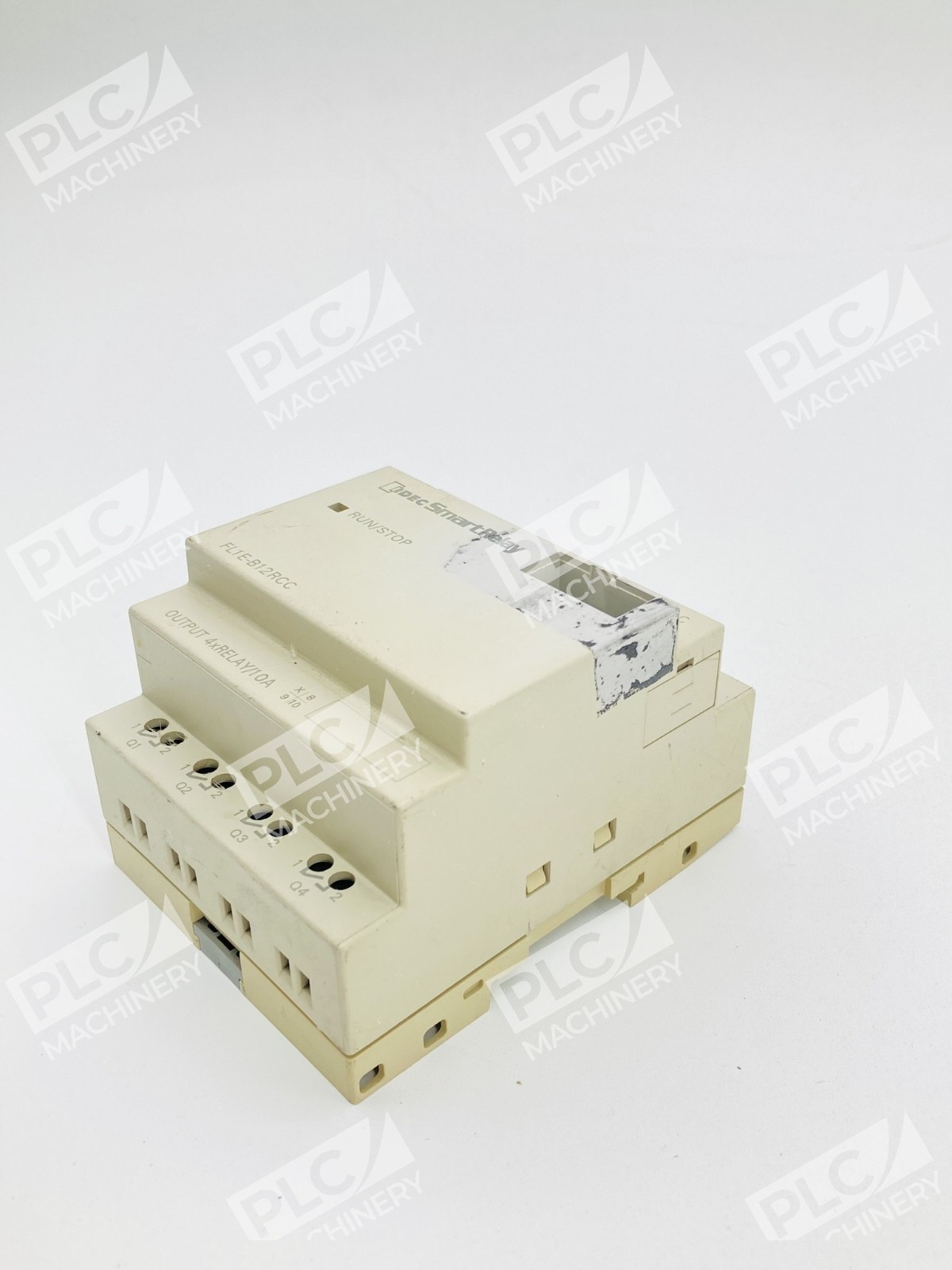

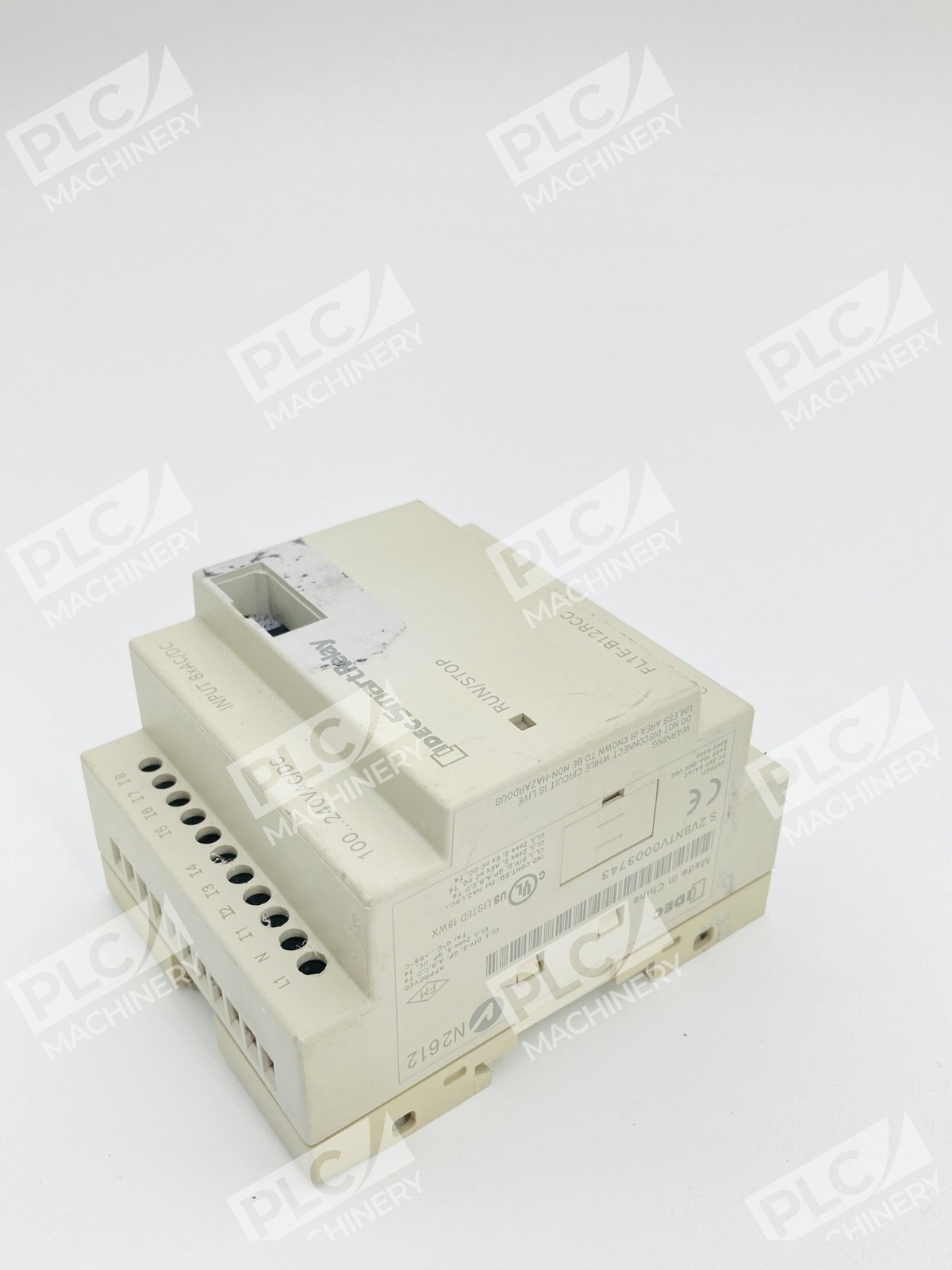

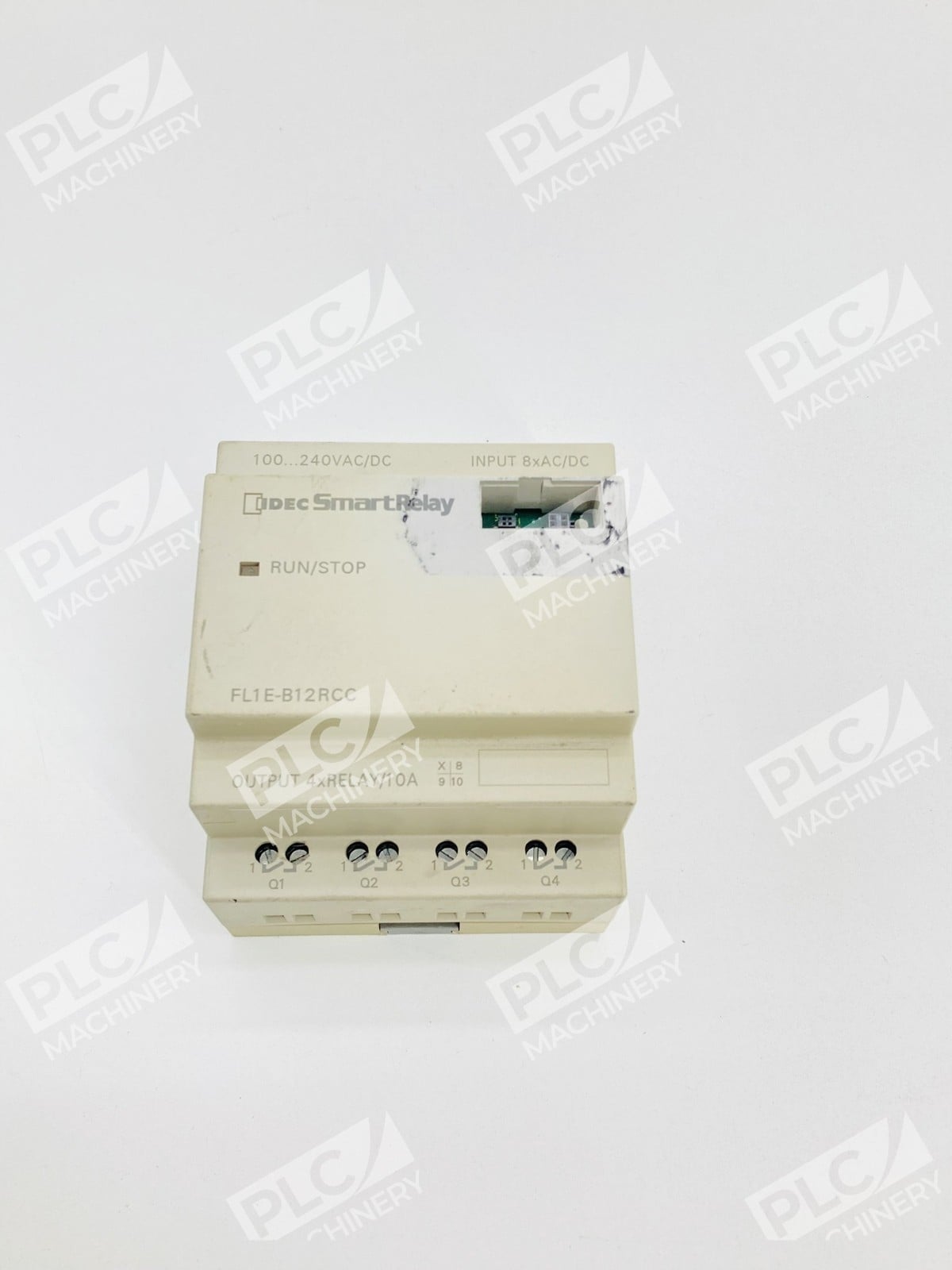

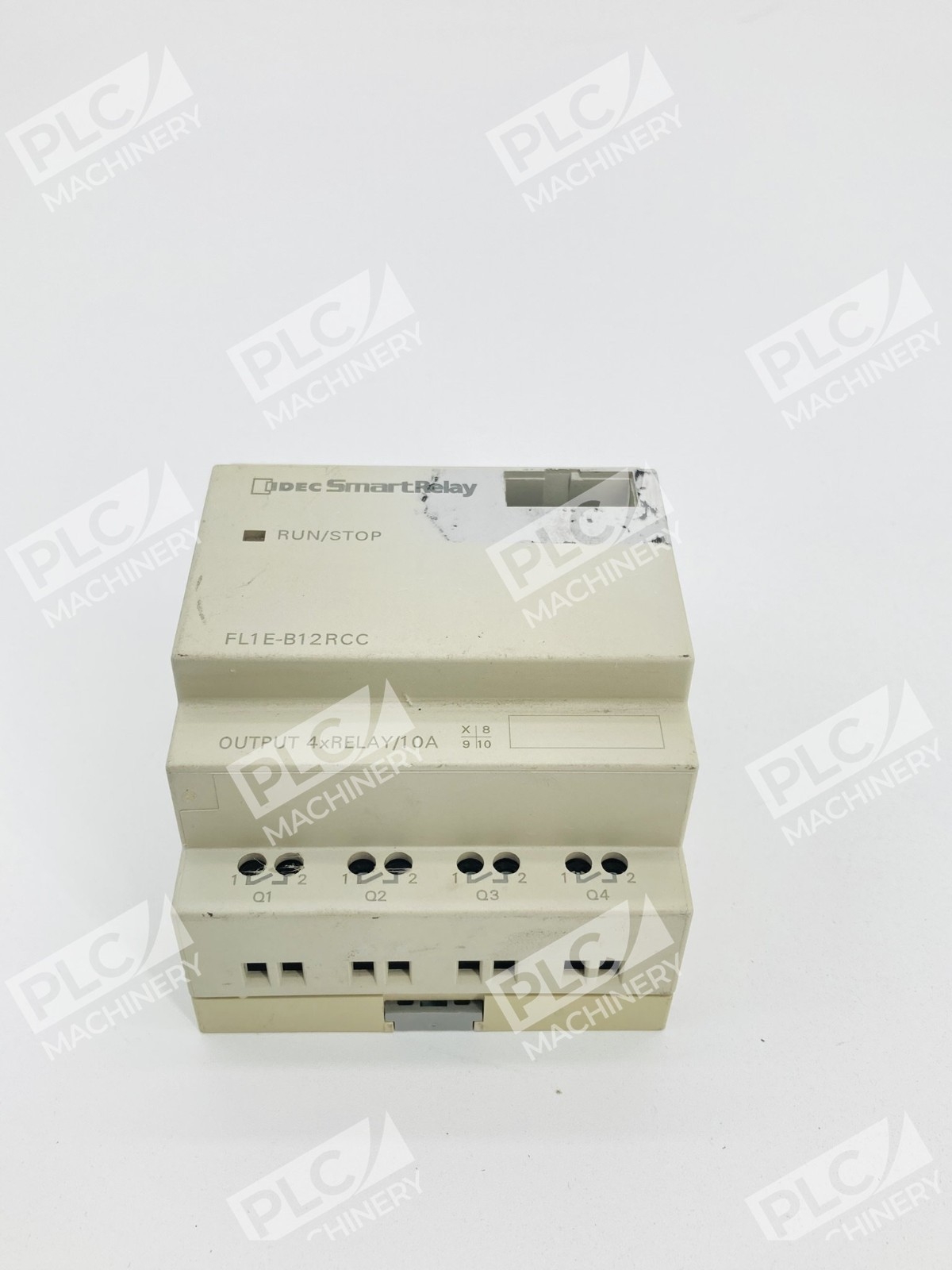

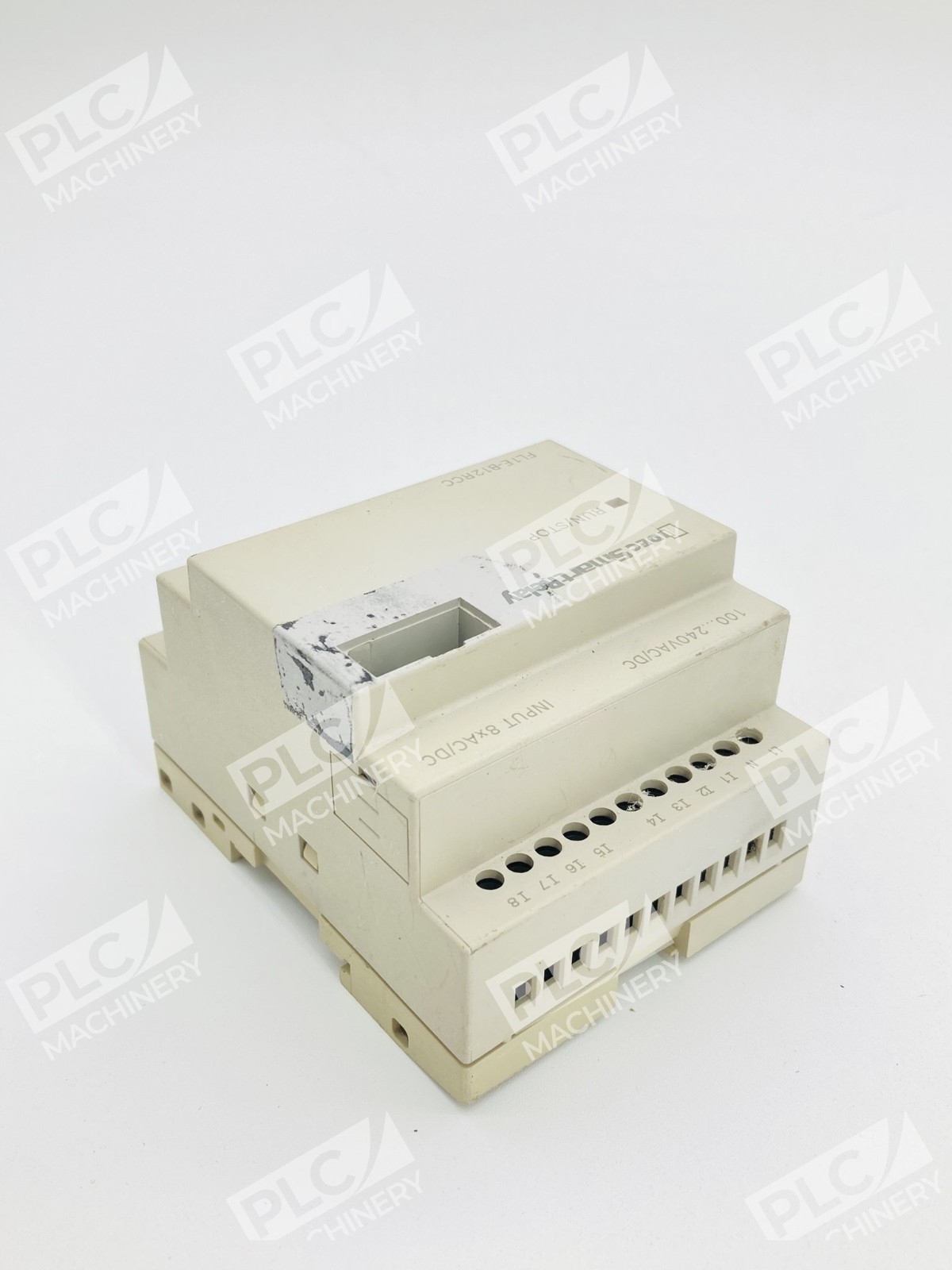

The IDEC FL1E-B12RCC is a foundational SmartRelay PLC platform designed for industrial automation and control systems. Operating across 100–240V AC/DC, this compact base module delivers 8 configurable digital inputs and 4 relay outputs rated at 10A each, making it suitable for machine control, process automation, and HVAC applications. Unlike display-equipped variants, the no-display FL1E-B12RCC reduces cost while maintaining full programmability and network connectivity.
Key Features
- Wide Input Voltage Range: 100–240V AC/DC supply compatibility eliminates regional power supply concerns
- Integrated Ethernet Port: Built-in RJ45 connector enables web-based monitoring and remote diagnostics
- Real-Time Clock: Onboard RTC with backup supports time-based scheduling and event logging
- High-Capacity Relay Outputs: Four 10A relay outputs handle standard industrial loads directly
- Flexible Programming: Ladder and function block logic support via intuitive development software
- Expandable Architecture: Plug-and-play expansion modules for analog I/O, additional digital I/O, and communication
Technical Specifications
- Input Voltage: 100–240V AC/DC (non-polarized)
- Digital Inputs: 8 configurable inputs
- Digital Outputs: 4 NO relay outputs, 10A each
- Communication: 1 × Ethernet (RJ45), Embedded web server, supports iOS/Android app access
- Memory: Micro SD card slot for program upload/download
- Clock: Real-time clock with data retention
- Programming Languages: Ladder logic, Function blocks

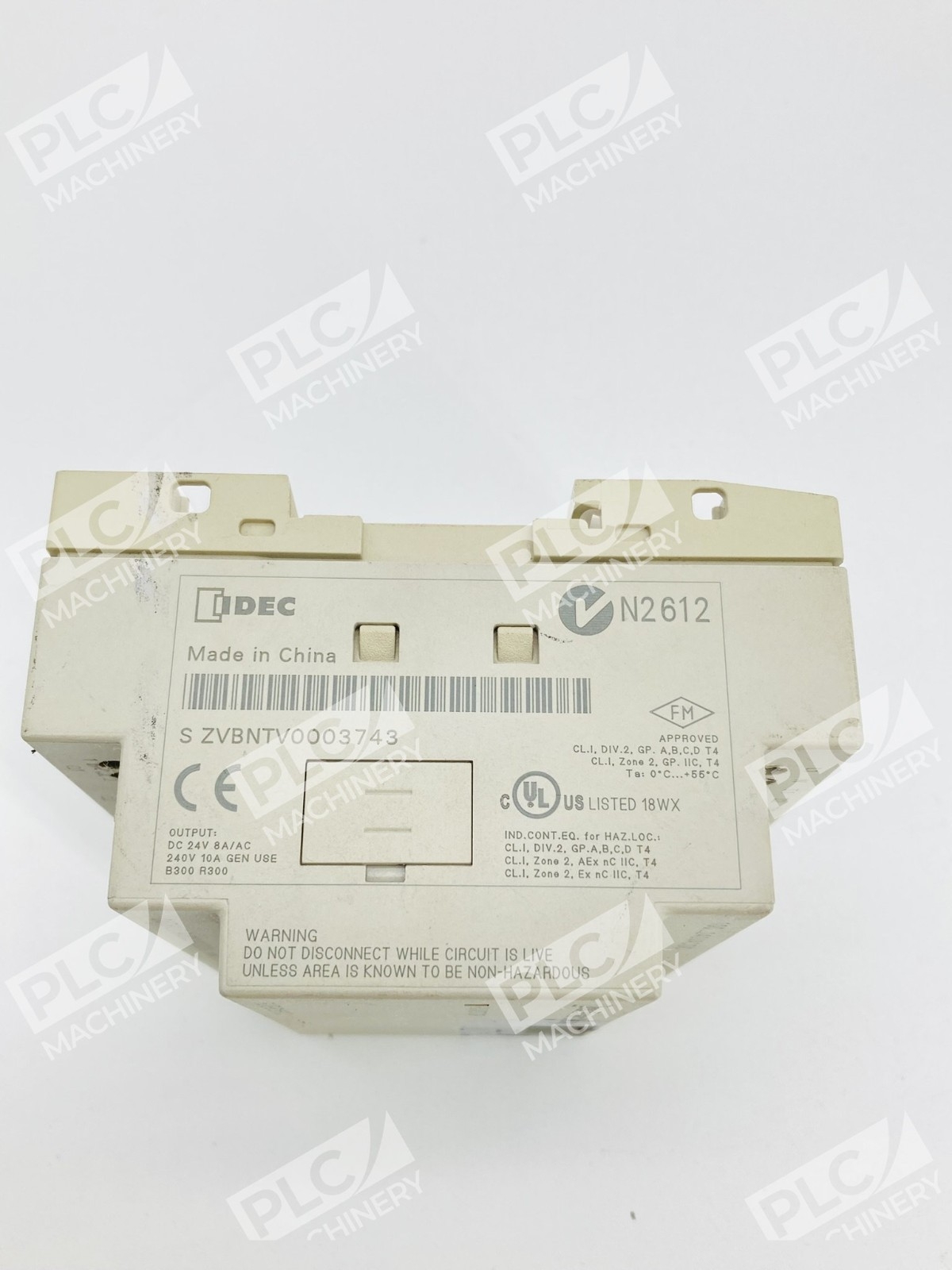

- Certifications: cULus, CE mark, FM Class I Div 2, Lloyd’s Register, ABS approved
- Operating Temperature: Industrial-grade (consult manual for exact range)
- Mounting: DIN rail compatible
- Weight: 0.50 lbs
- Series: IDEC FL1E SmartRelay
Typical Applications
- HVAC system control and monitoring
- Pump and motor starter sequences
- Industrial machine automation and safety interlocking
- Building automation and facility management
- Water treatment and process control
- Conveyor and material handling systems
Compatibility & Replacements
Compatible With
- IDEC FL1E expansion I/O modules (analog, additional digital, communication)
- Standard DIN rail mounting systems
- Ethernet-capable control networks and industrial web interfaces
- IDEC WindLGC programming and monitoring software
- Ladder logic and function block editors
Replaces / Drop-In Replacement For
- Earlier IDEC SmartRelay models in the FL1E family requiring 100–240V AC/DC relay outputs
- Note: The FL1E-B12RCC is replaced by the newer FL1F-B12RCC, which offers enhanced features while maintaining physical and pin compatibility
Works With
- IDEC WindLGC software development environment
- Ladder diagram and function block programming
- Embedded web server for remote access and monitoring
- Standard Ethernet networks (RJ45 Cat.5 or higher)
- Mobile apps (iOS and Android) for parameter review and diagnostics
- Expansion modules: FL1E-M08B2R2 (digital I/O), FL1E-M08D2R2 (analog I/O), text display panels, and communication cartridges
