Overview
The IBM 72X8588 is a MicroChannel ESDI hard disk controller card engineered for IBM PS/2 computers with MCA bus architecture. This vintage adapter provides direct attachment of ESDI hard drives to MCA systems, making it a critical component for legacy data recovery, archival systems, or period-correct computing restorations. The 72X8588 operates using the Enhanced Small Disk Interface standard, which was prevalent in enterprise computing during the mid-to-late 1980s before SCSI and IDE technologies matured.
Key Features
- 16-bit MicroChannel Architecture (MCA) interface with full compatibility for IBM PS/2 MCA expansion slots
- Multiple ESDI drive support through dedicated drive control and data connectors
- Standard ESDI control and data signaling for reliable legacy storage attachment
- Period-correct component for system restoration and data migration projects
- Includes onboard BIOS firmware (versions 06/05/87 and later available)
Technical Specifications
- Interface Type: 16-bit MicroChannel Architecture (MCA)
- Storage Protocol: ESDI (Enhanced Small Disk Interface)
- Drive Connectors: 1x ESDI Drive Control Connector (2×17 PCB edge), 2x ESDI Drive Data Connectors (2×10 PCB edge)
- Compatible Drive Transfer Rates: ESDI 10, 15, or 20 Mbit/s
- Form Factor: MCA expansion card

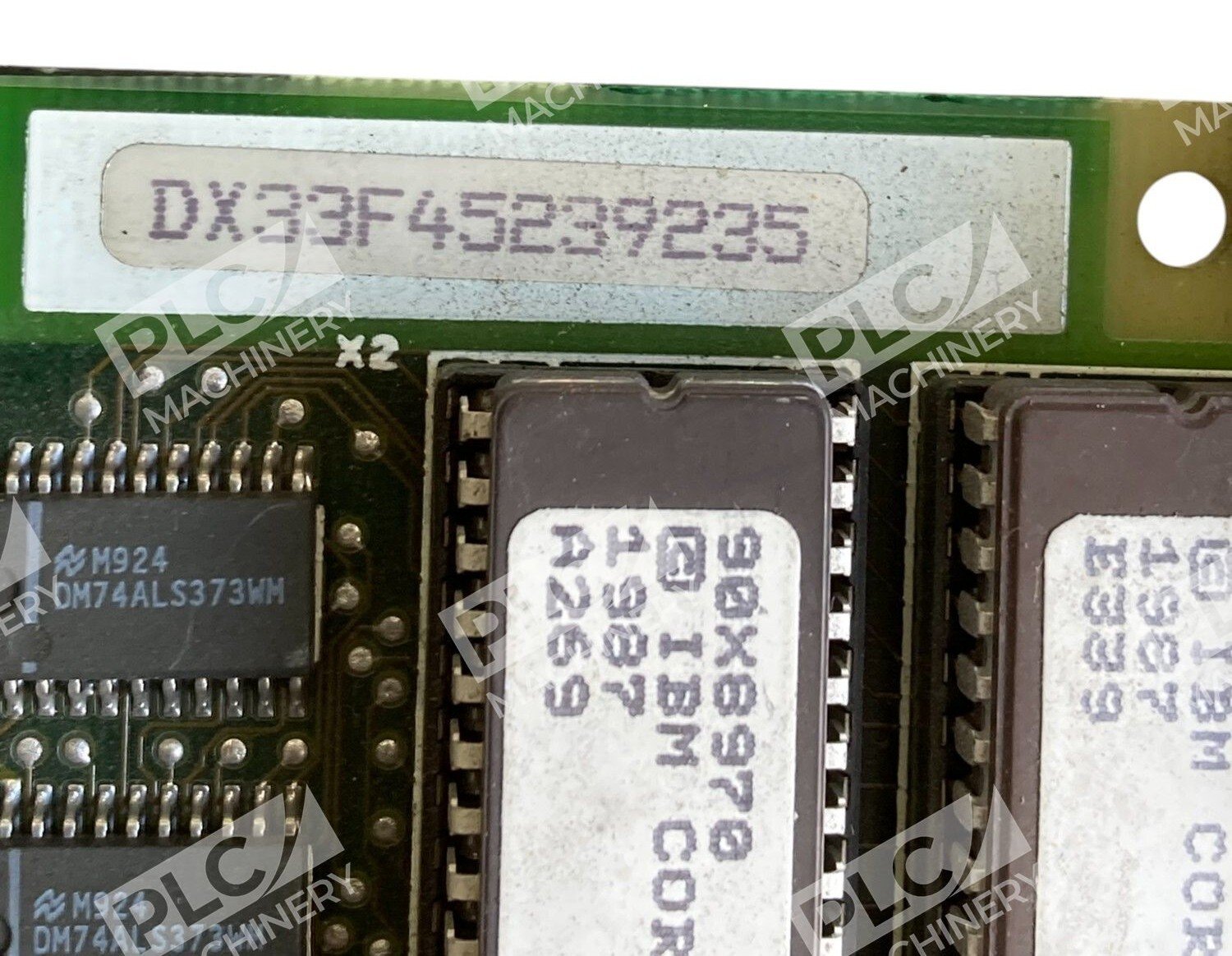

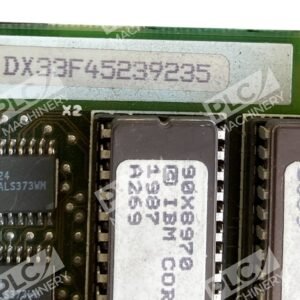

- BIOS Versions: 06/05/87 (U14/U25 chips 90X8969/90X8970), U16 (15F6809)
- System Compatibility: IBM PS/2 Models with MCA bus (Model 50, 60, 70, 77, and others)
Typical Applications
- Legacy system data recovery and archival access from ESDI hard drives
- Period-correct restoration of IBM PS/2 computing environments
- Vintage computer museum and collection setups requiring functional storage
- Educational demonstrations of 1980s storage technology evolution
- Long-term storage platform for organizations maintaining legacy systems
Compatibility & Replacements
Compatible With
- IBM PS/2 Model 50, 60, 70, 77, and other MCA-equipped PS/2 systems
- ESDI hard drives with standard 34-pin control and 20-pin data connectors
- MicroChannel architecture bus (16-bit slots)
- IBM system BIOS that recognizes MCA ESDI adapter cards
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 72X8588 is specific to IBM MCA systems and is not interchangeable with ISA or EISA ESDI controllers. No direct modern equivalents exist; SCSI or IDE adapters cannot directly replace this card without system modifications.
Works With
- IBM DOS 3.x, 4.x, 5.x operating systems
- OS/2 1.x and 2.x on compatible PS/2 systems
- Legacy disk imaging and data recovery tools designed for ESDI drives
- Standard ESDI drive diagnostic utilities
